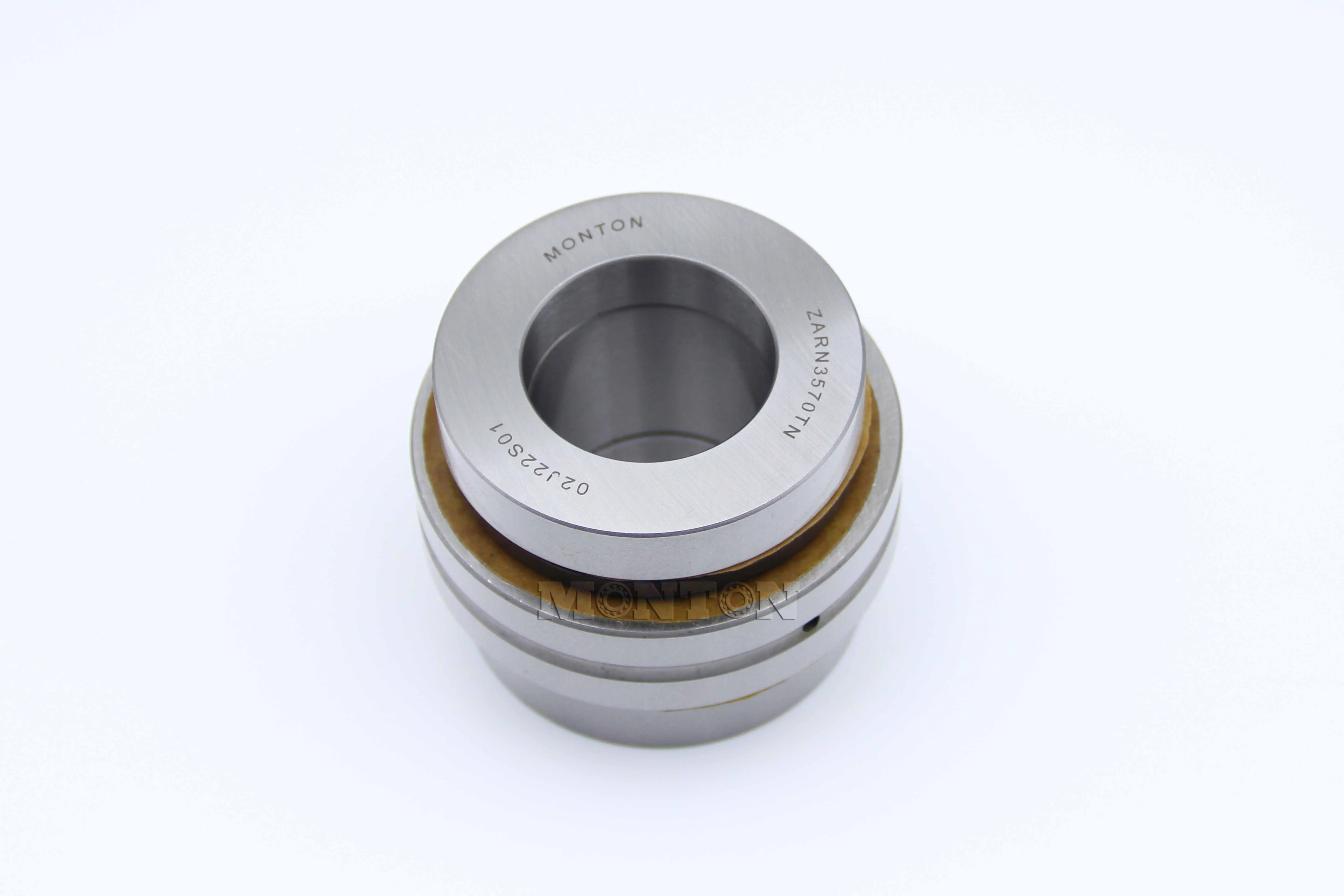

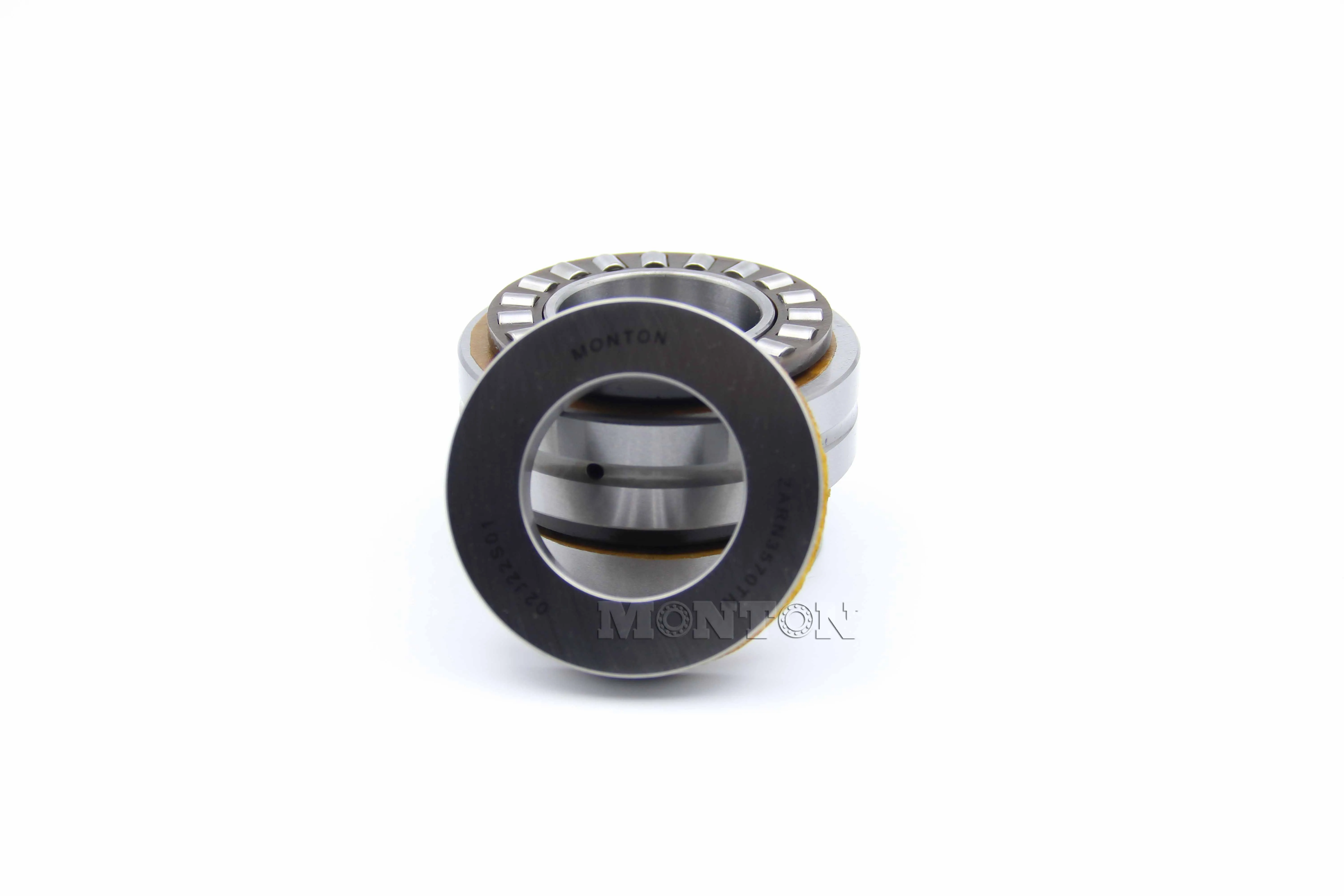

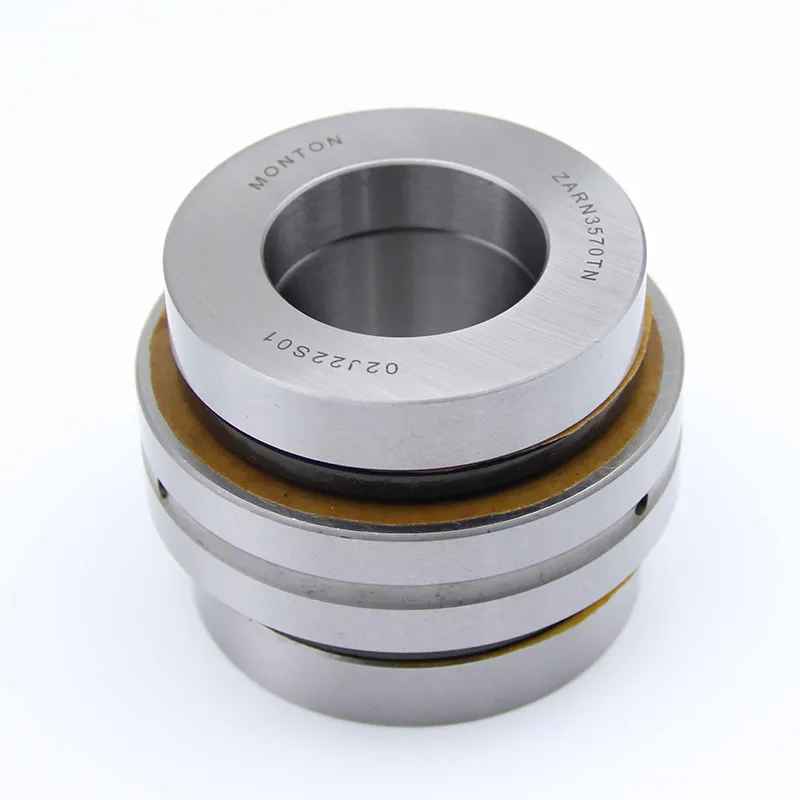

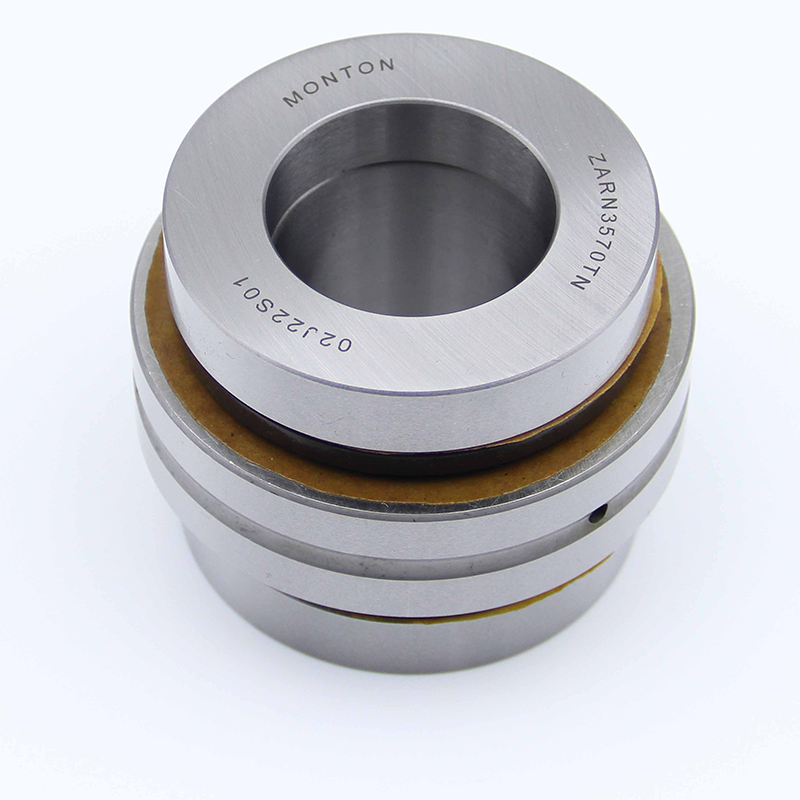

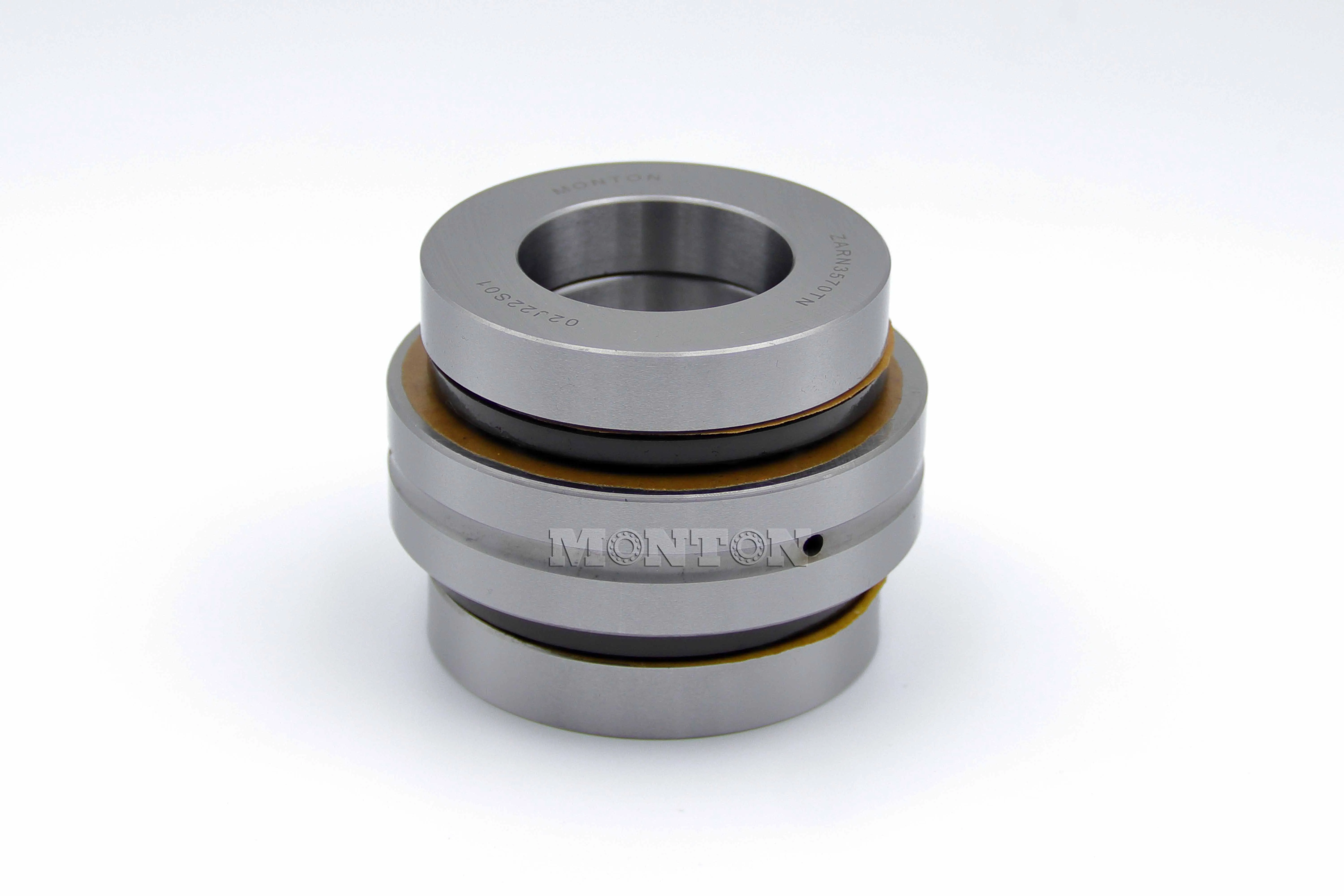

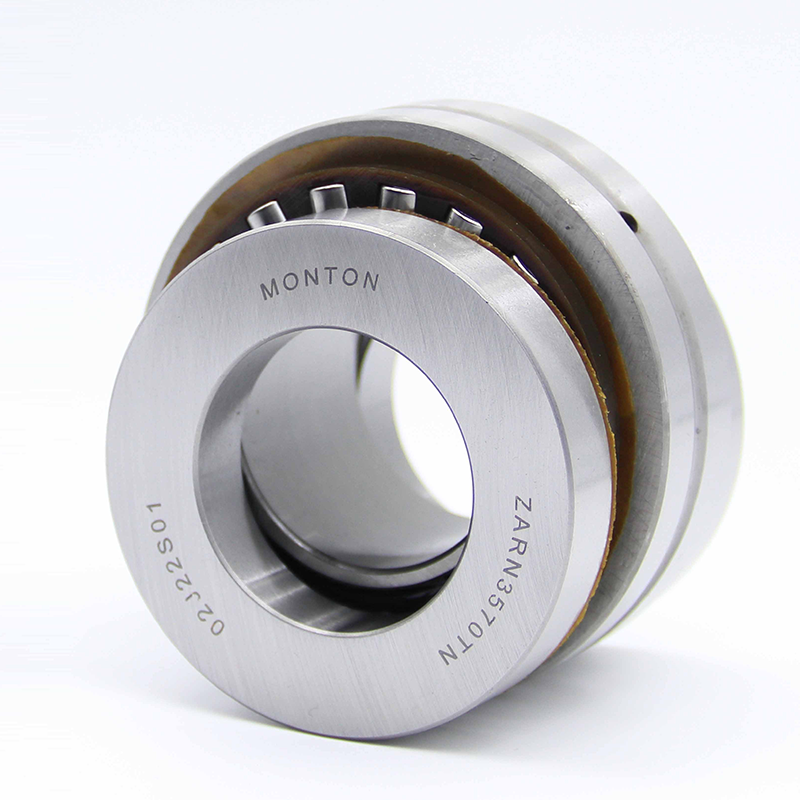

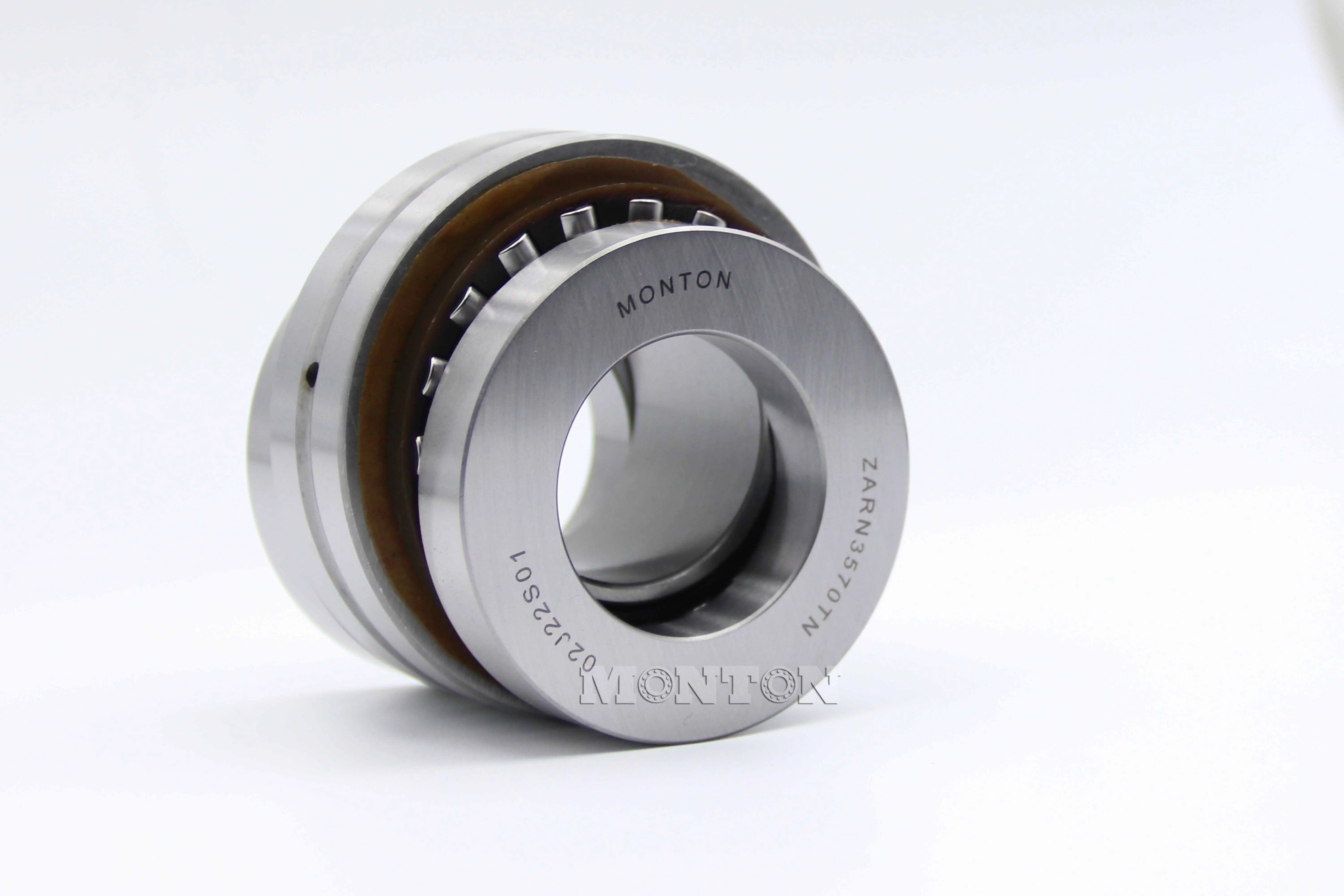

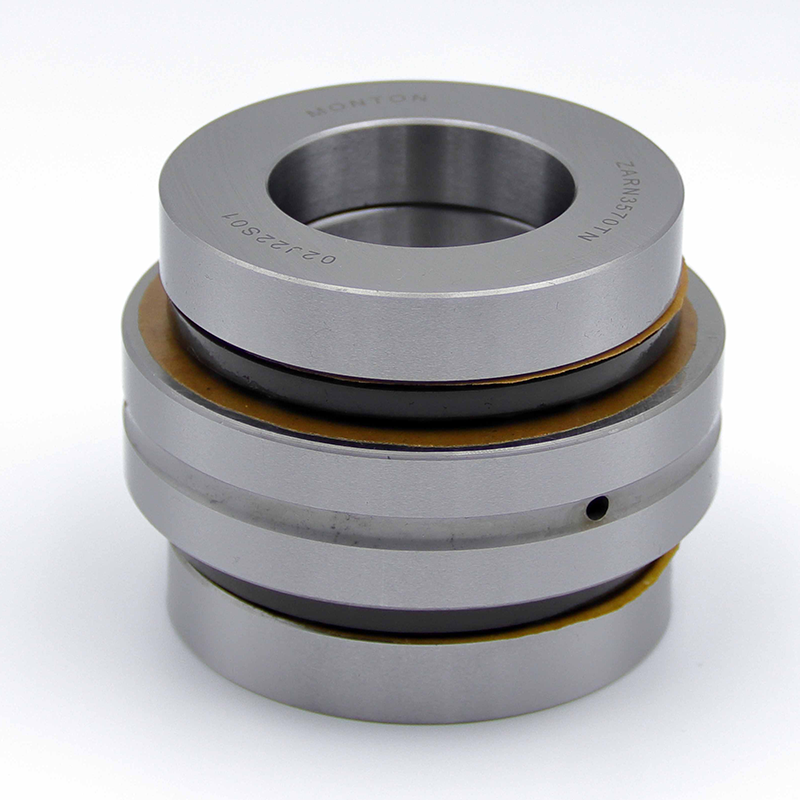

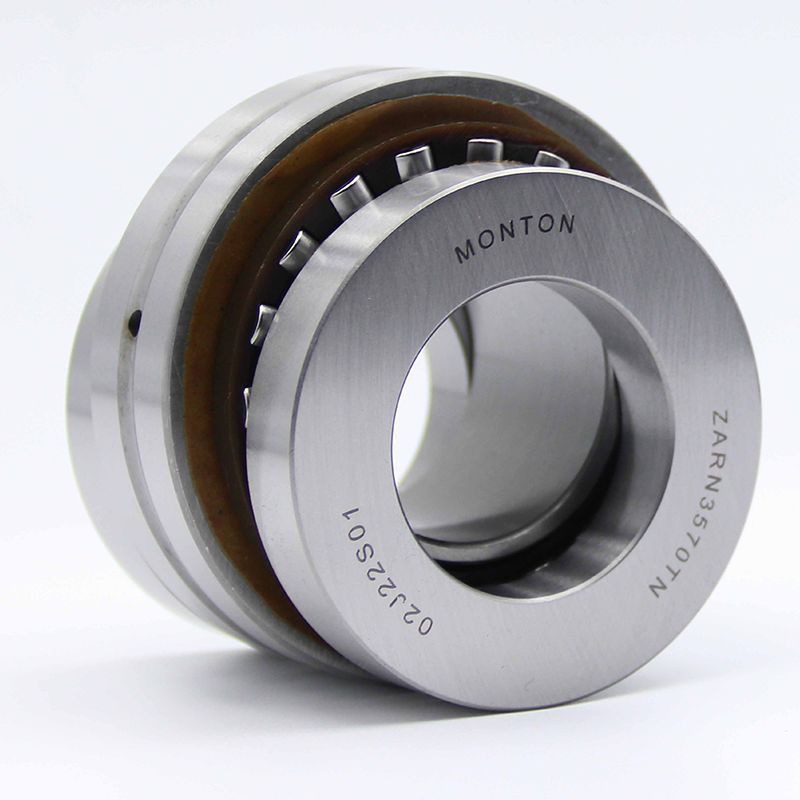

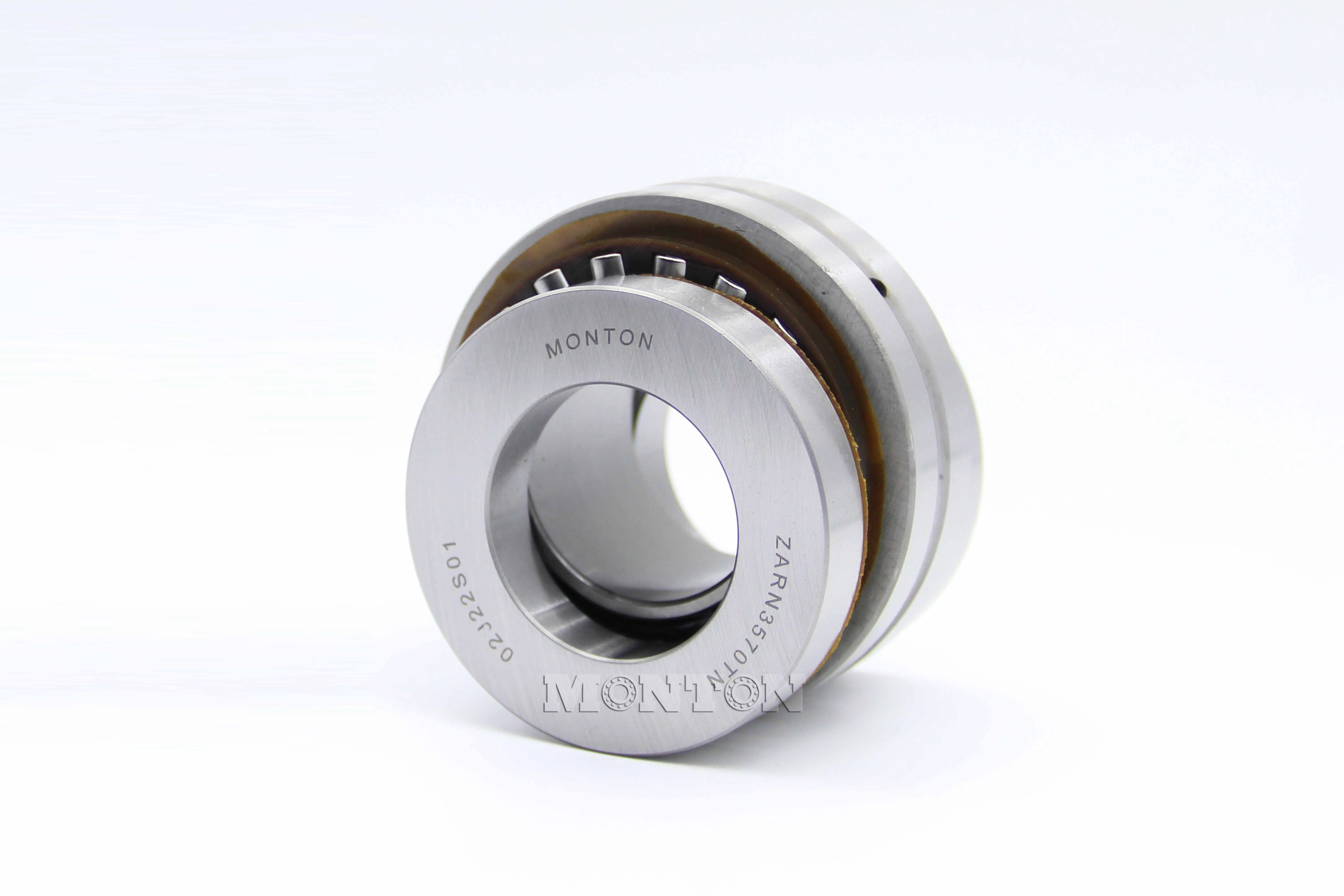

ZARN3570-L-TV ZARN3570TN/P4 Needle roller/axial cylindrical roller bearing

ZARN needle roller / axial cylindrical roller bearings consist of an outer ring with radial and axial raceways, two shaft washers, an inner ring, a radial needle roller and cage assembly, and two axial cylindrical roller and cage assemblies. ZARN needle roller / axial cylindrical roller bearings do not have mounting holes. ZARN needle roller / axial cylindrical roller bearings are mounted in the housing bore and the outer ring is fixed by a bearing cover. The bearing is locked onto the shaft with a lock nut.

Case Details

Name	Needle roller/axial cylindrical roller bearing
Seires	ZARN series
Brand	MONTON
Model	ZARN3570-TN-P4
d	35mm
D	70mm
B	54mm
C0r	56,000 N
C0a	148,000 N
Cr	26,000 N
Cor	47,000 N
Cua	12,900 N
Cur	6,800 N
nG Oil	4,800 1/min
nG Grease	1,700 1/min
Weight	0.871 kg
Operating temperature	-30 °C-120°C
Bearing friction torque	0.9 Nm
Rigidity axial	2,600 N/µm
Tilting stiffness	740 Nm/mrad
Tightening torque nut	40 Nm
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery	Stock
Application	Machine tools Handling system inspection and measuring machines small machining equipment medical and laboratory equipment machines in precision engineering and electronic component manufacture simplification of the bearing arrangement through the use of complete units.
