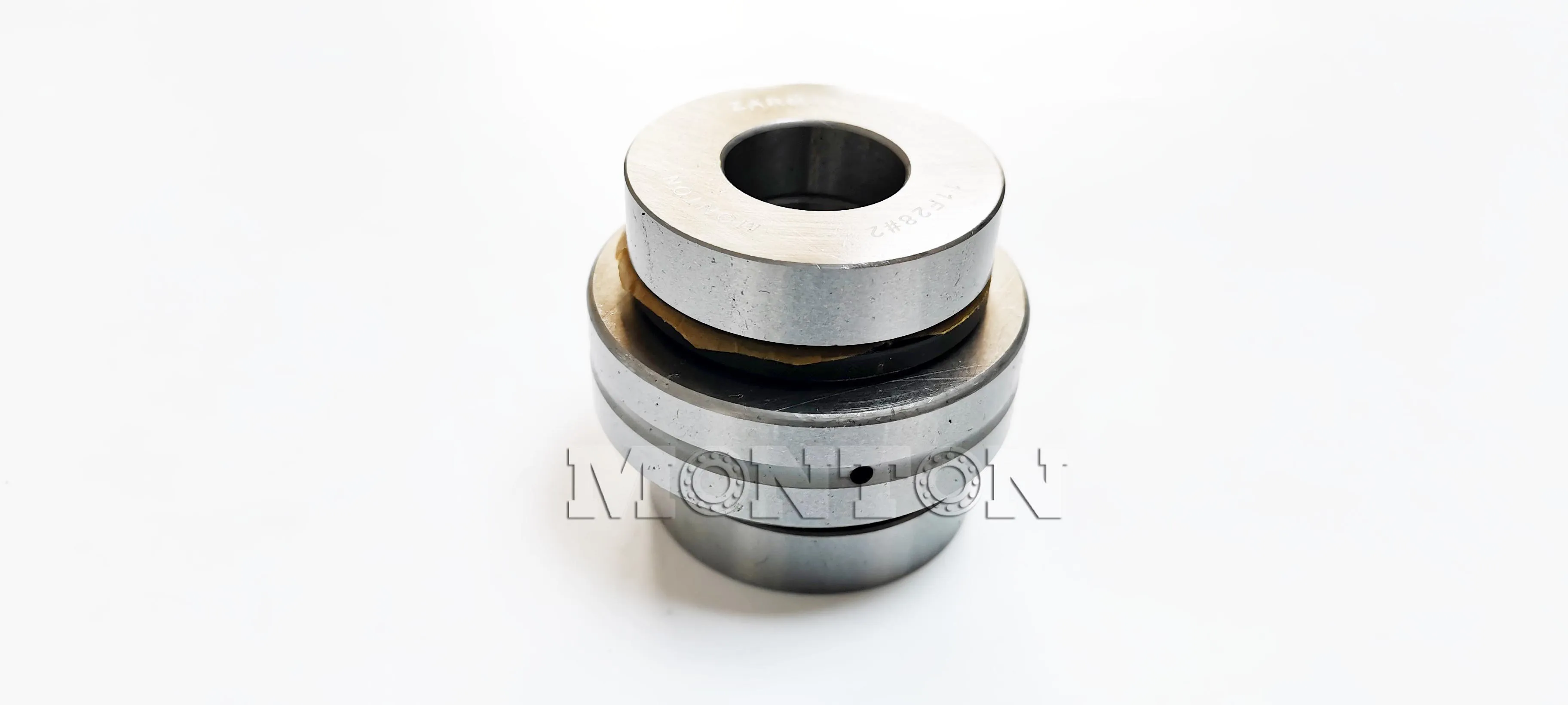

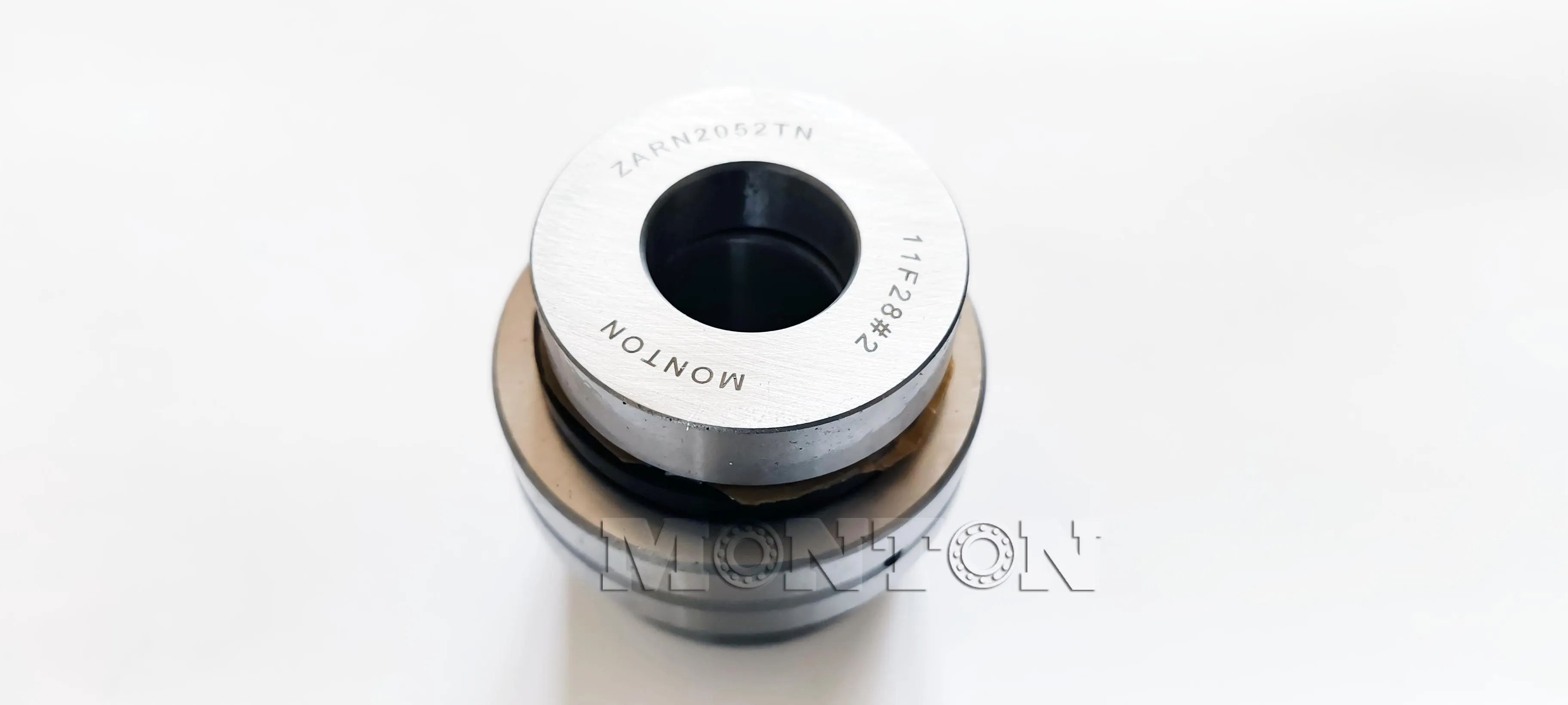

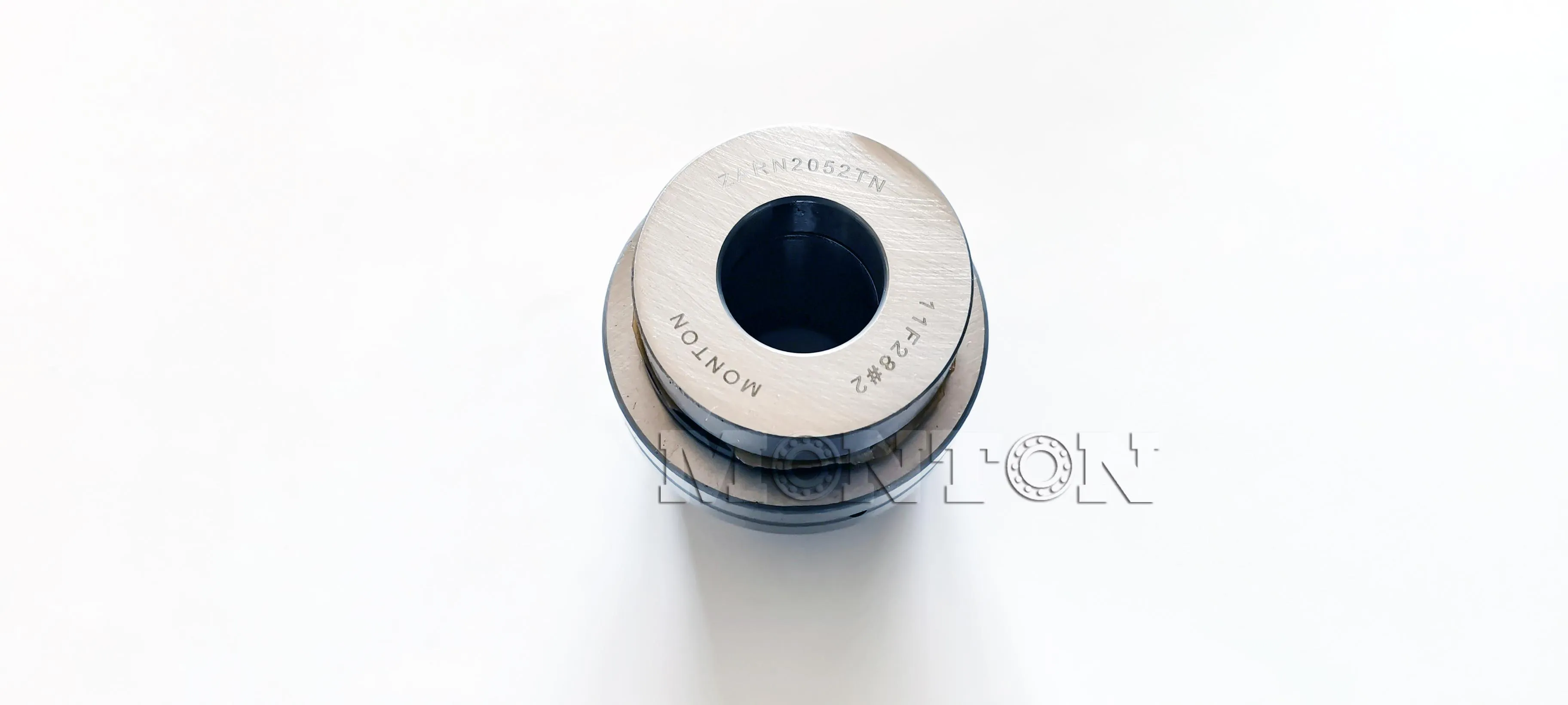

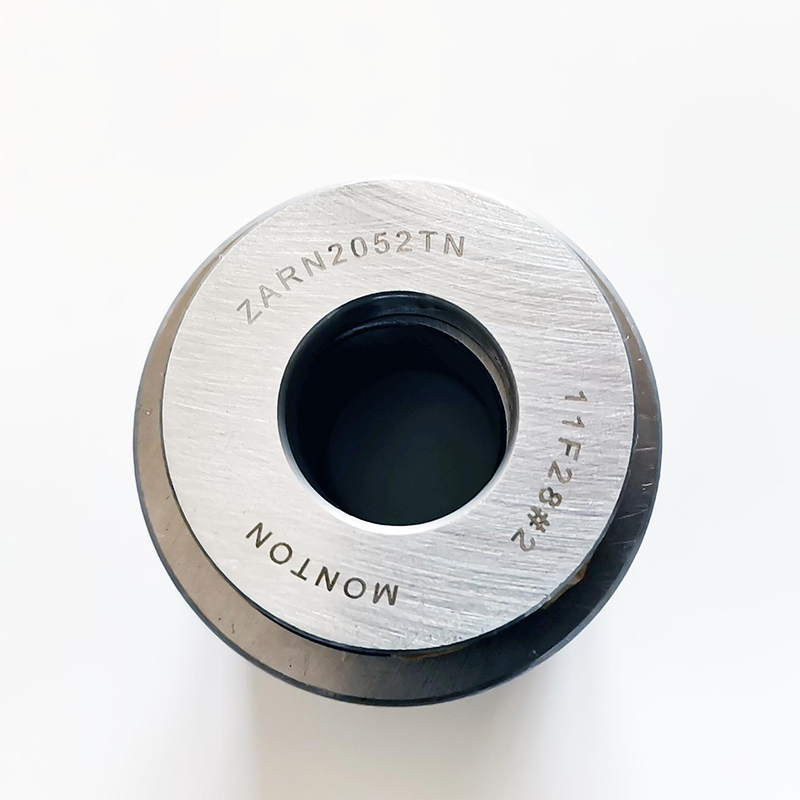

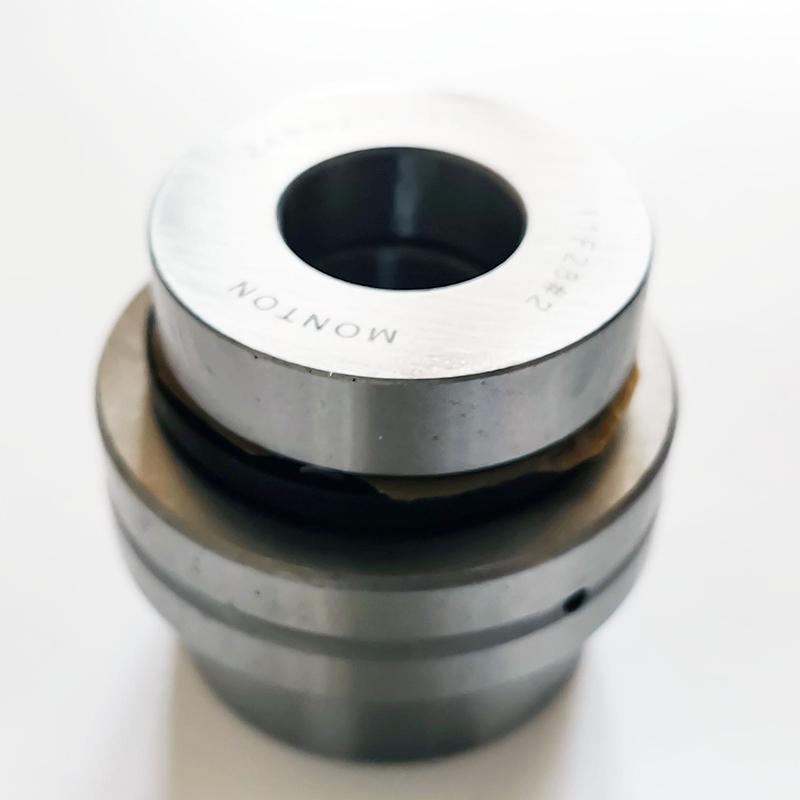

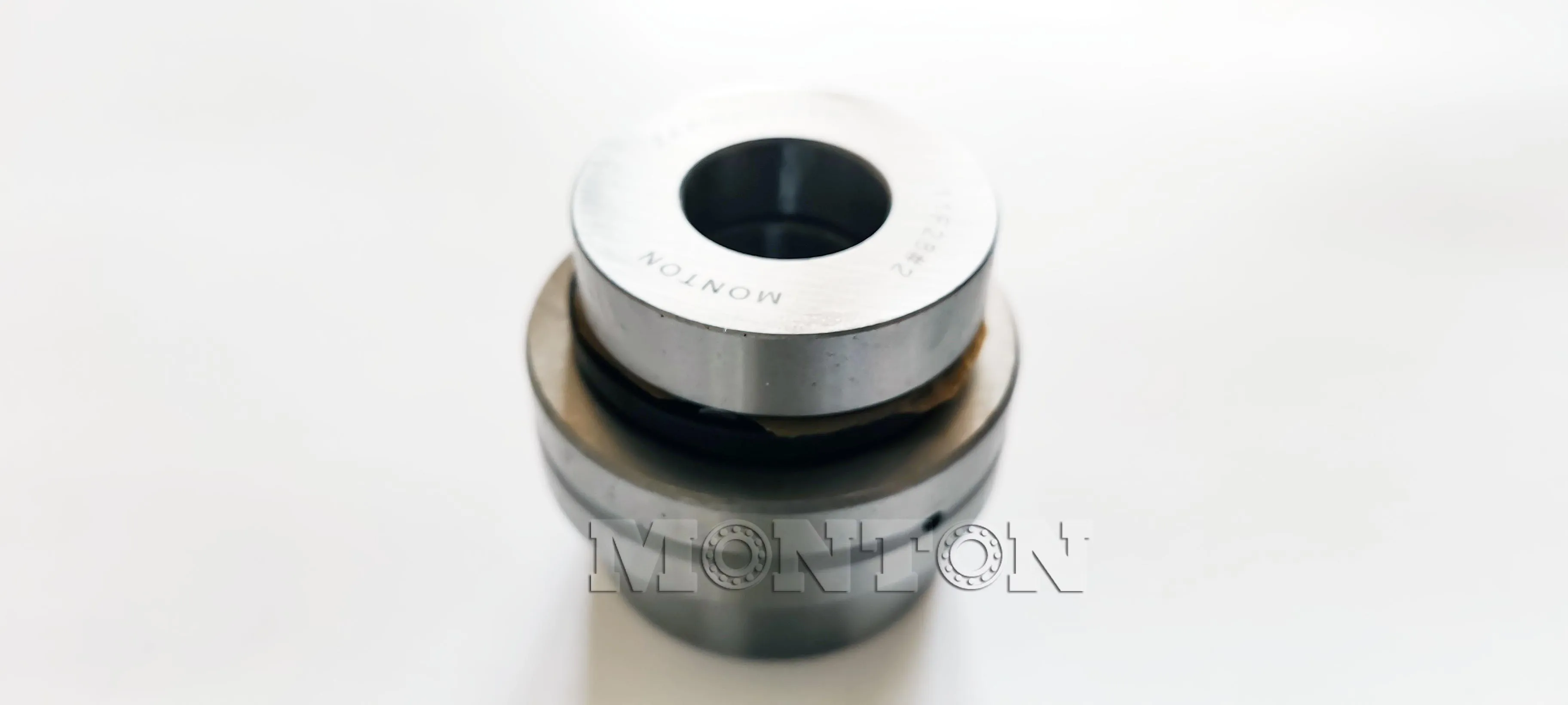

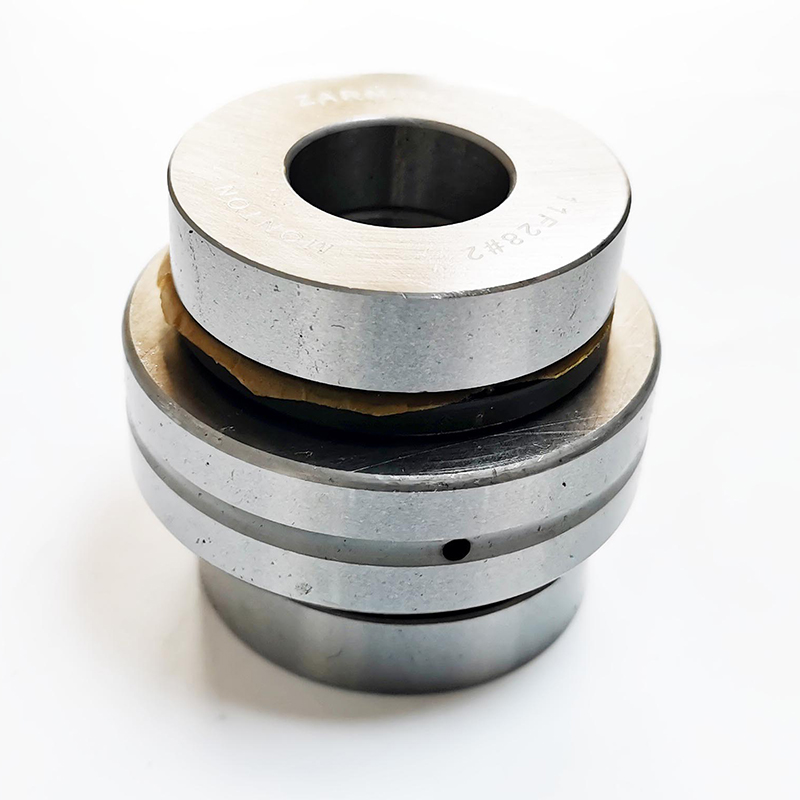

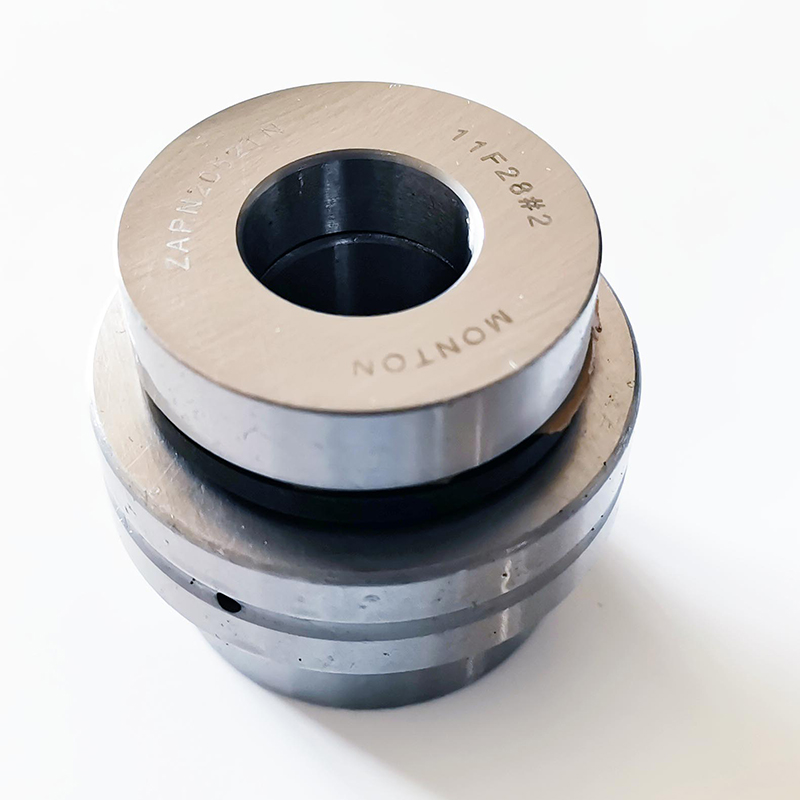

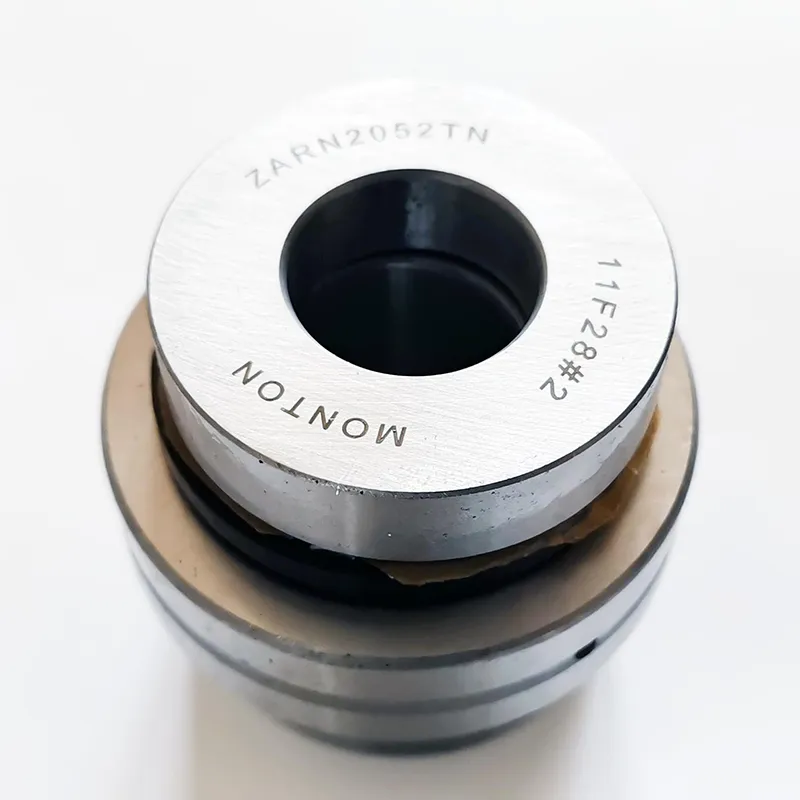

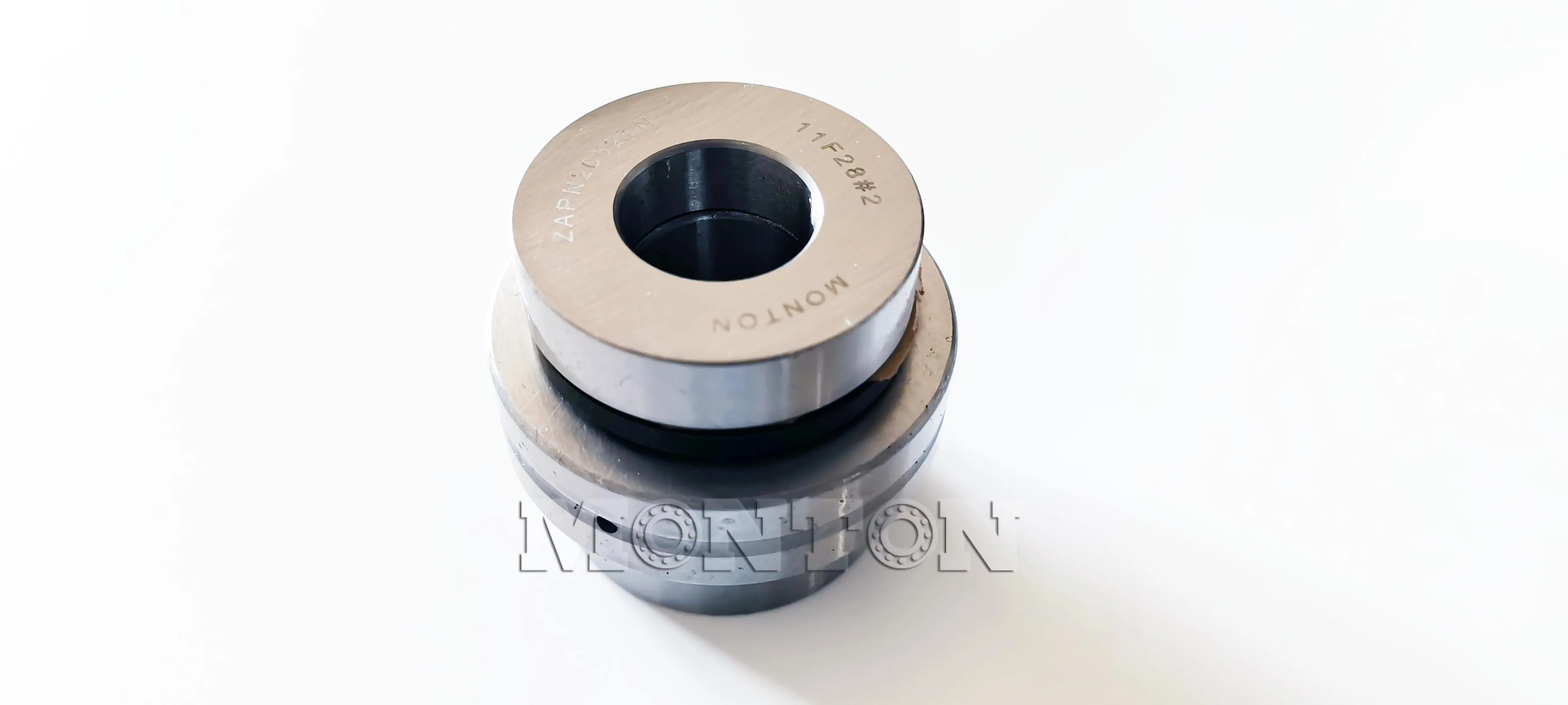

ZARN2052-TV Needle roller axial cylindrical roller bearing

ZARN needle roller / axial cylindrical roller bearings consist of an outer ring with radial and axial raceways, two shaft washers, an inner ring, a radial needle roller and cage assembly, and two axial cylindrical roller and cage assemblies. ZARN needle roller / axial cylindrical roller bearings do not have mounting holes. ZARN needle roller / axial cylindrical roller bearings are mounted in the housing bore and the outer ring is fixed by a bearing cover.

Case Details

Name	Needle roller/axial cylindrical roller bearing
Brand	MONTON
Model	ZARN2052-TV
Bore diameter	20mm
Outside diameter	52mm
B(width)	46mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Ca	76KN
C0a	14 KN
Cr	22.4KN
C0r	6.4KN
Cur	3.4K N
Sealed	Open
nG Oil	7.000 1/min
nG Grease	2.000 1/min
Row	Single row
Weight	0.46KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	CNC machine tools, lathes, milling machines, grinders, etc
