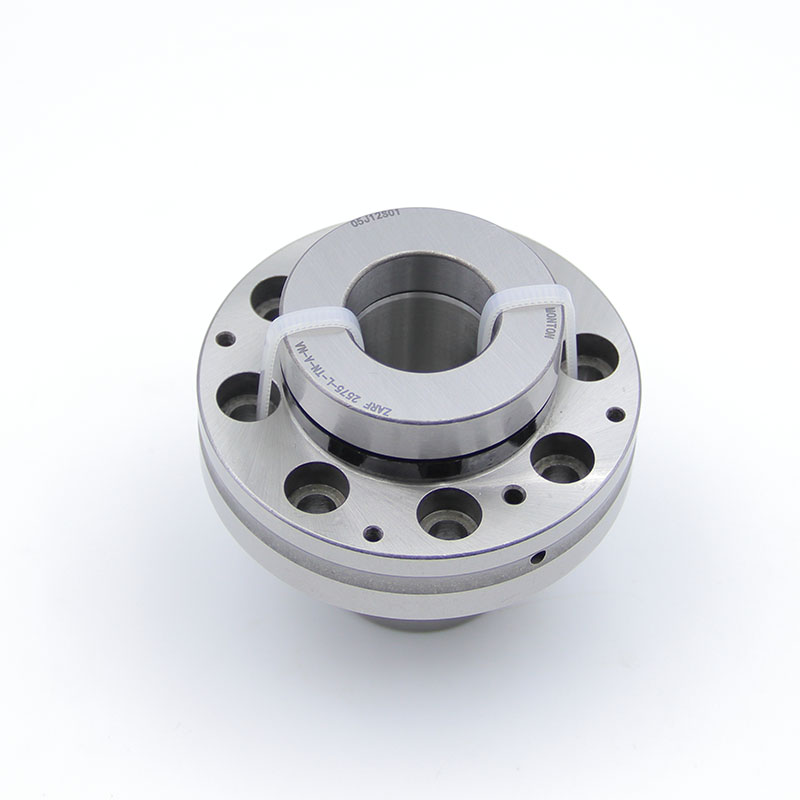

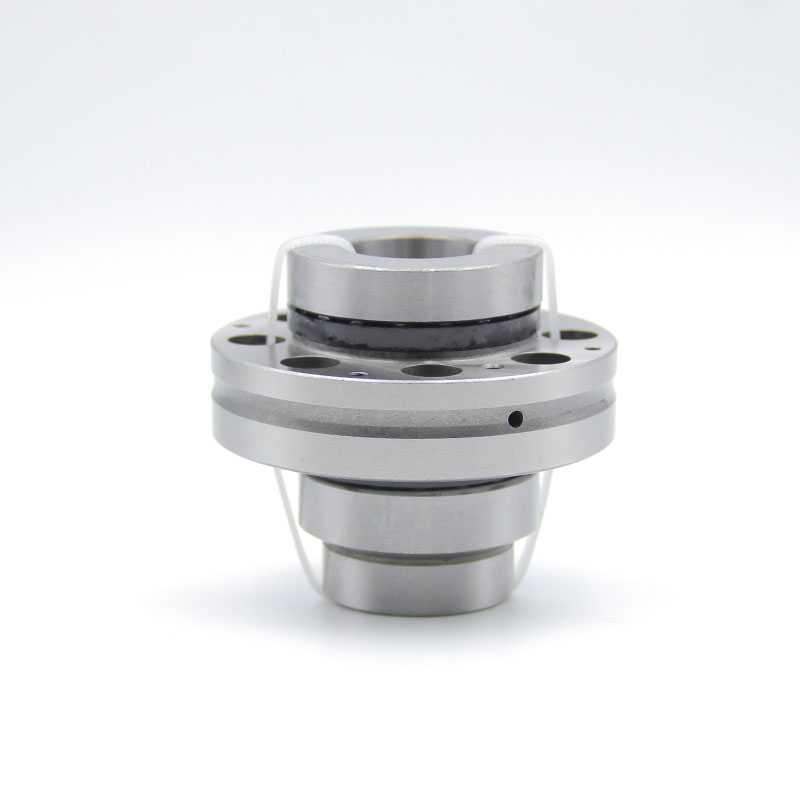

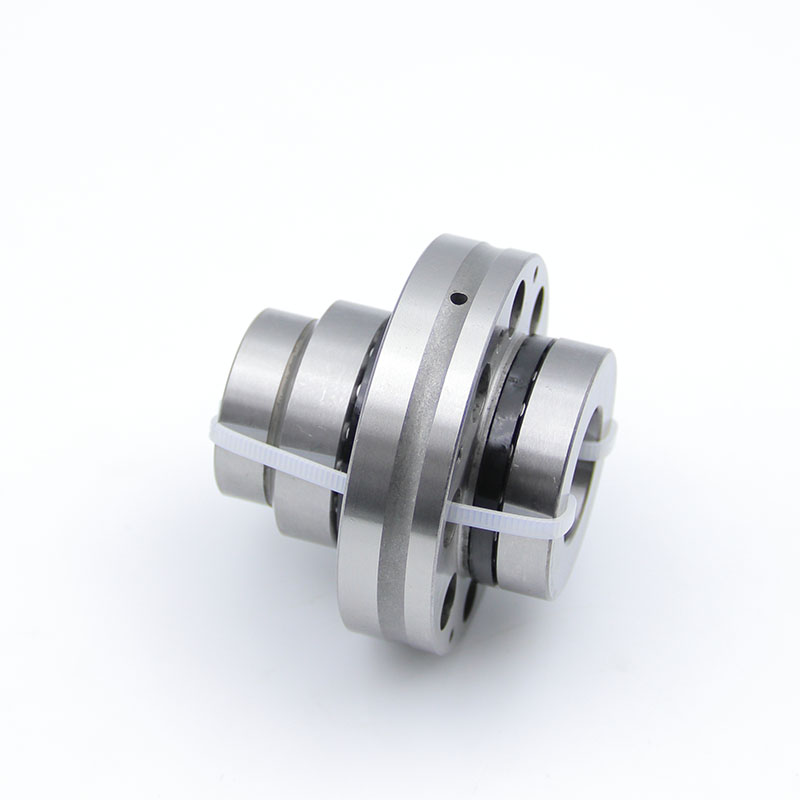

ZARF2575-L-TN Needle roller/axial cylindrical roller bearing

ZARF2575-L-TN is a needle roller combination bearing produced by Mengtuo Bearing, belonging to its ZARF.. L series products. Its inner diameter (d) is 25 mm, outer diameter (D) is 75 mm, thickness (B/H) is 65 mm, which is different from the ordinary model ZARF2575-TN. The ZARF bearing is designed as a bi-directional force structure, integrating needle rollers and thrust cylindrical roller components, capable of bearing bi-directional axial loads. The ZARF2575-L-TN outer ring is equipped with a flange, suitable for flange installation. It is recommended to use specialized nuts ZMA 25/45 or AM25 for fixation. This model is designed for bidirectional force, and during installation, it is necessary to ensure that the axial load direction matches the bearing bearing bearing direction to avoid overload failure.

Case Details

Name	Needle roller/axial cylindrical roller bearing
Brand	MONTON
Model	ZARF2575-L-TN-A-NA
Bore diameter	25mm
Outside diameter	75mm
H2(width)	65mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Ca	35.5KN
C0a	86KN
Cr	22.4KN
C0r	22.6KN
Cur	36K N
Sealed	Open
nG Oil	6000 min
nG Grease	1900 min
Row	Multi row
Weight	0.84KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	CNC machine tools, lathes, milling machines, grinders, etc
