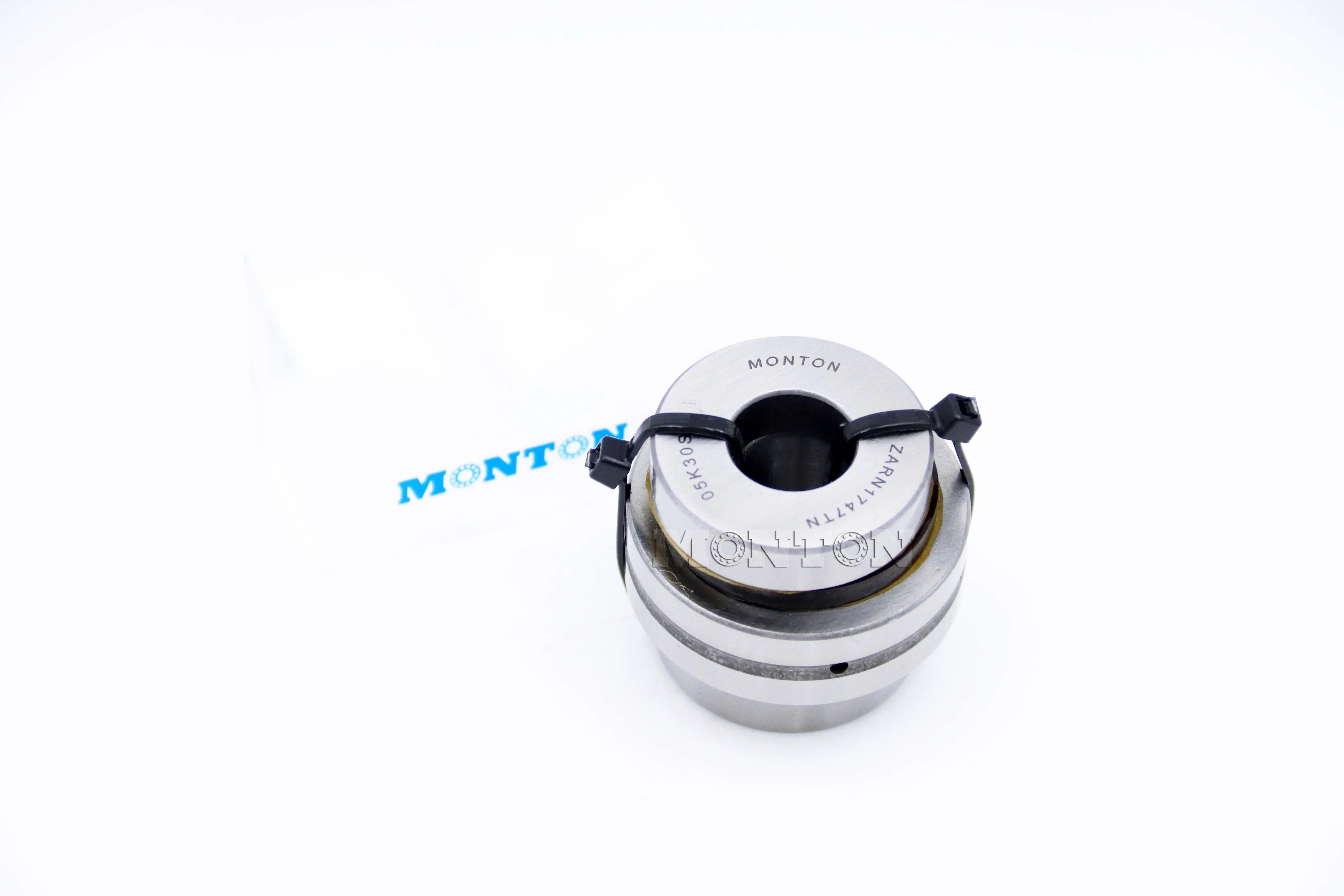

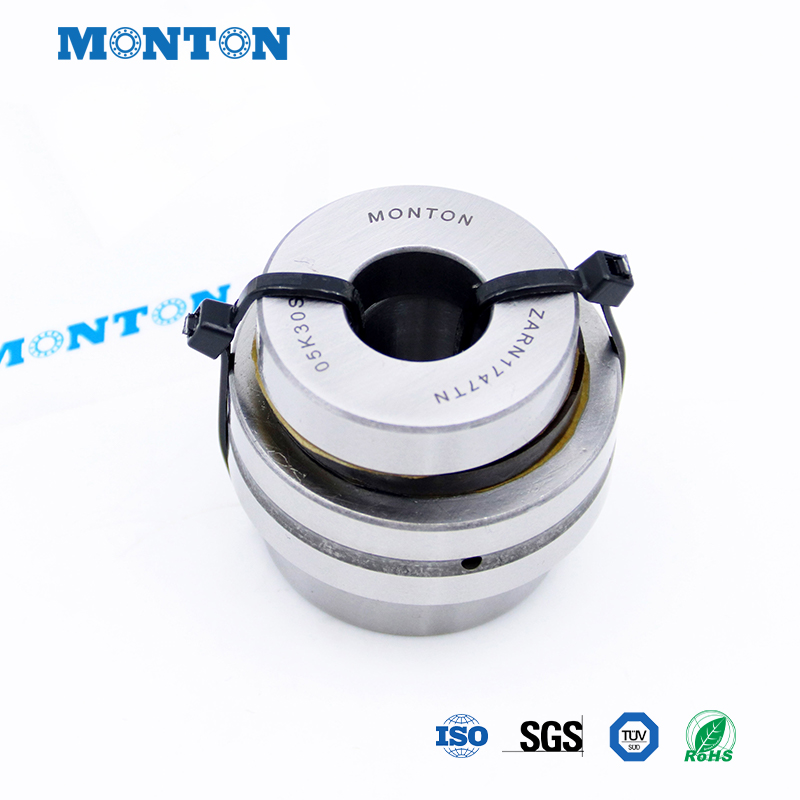

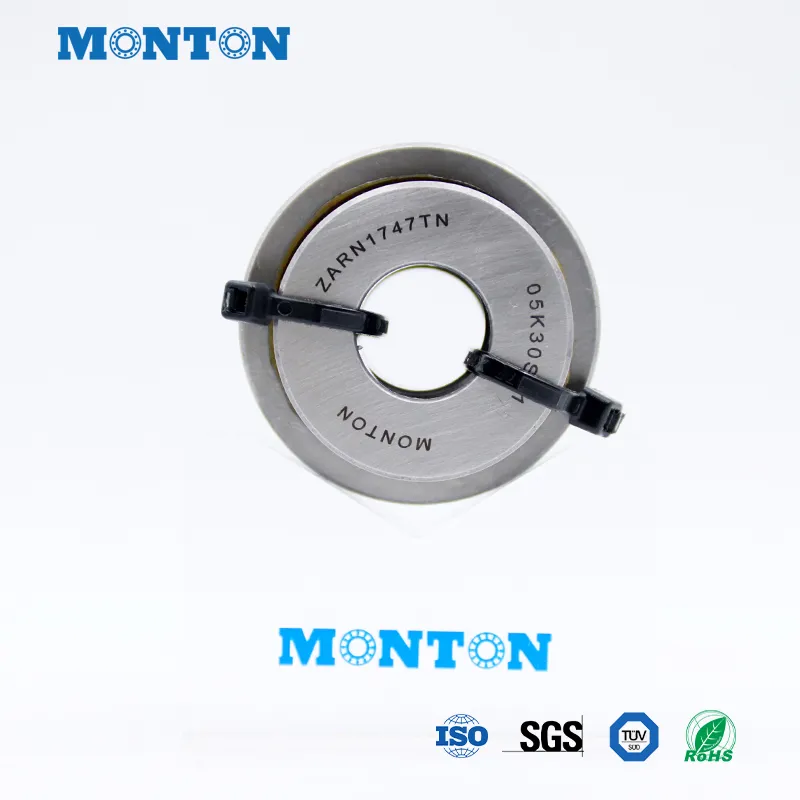

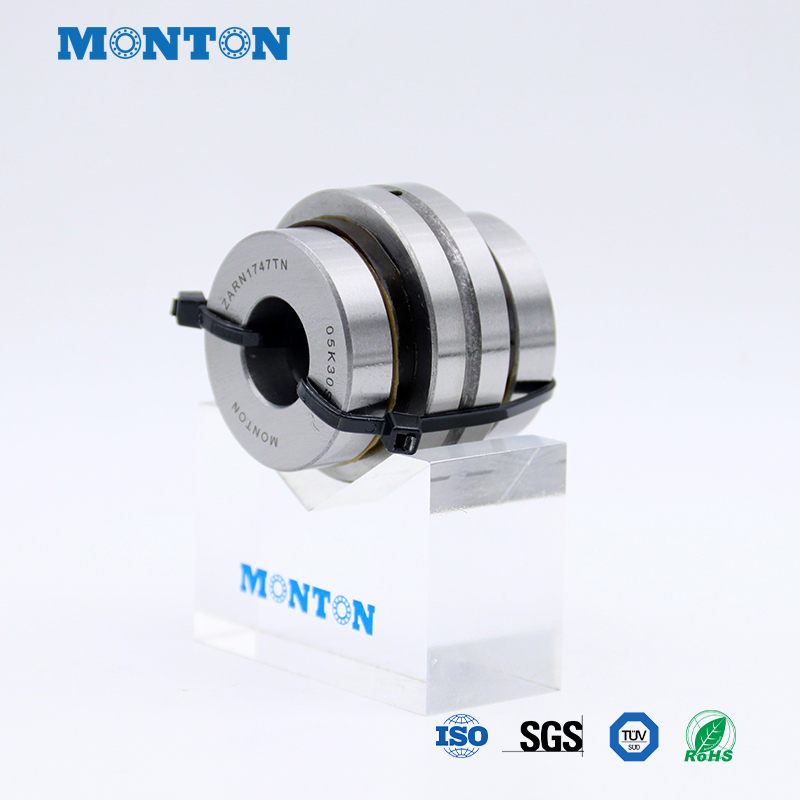

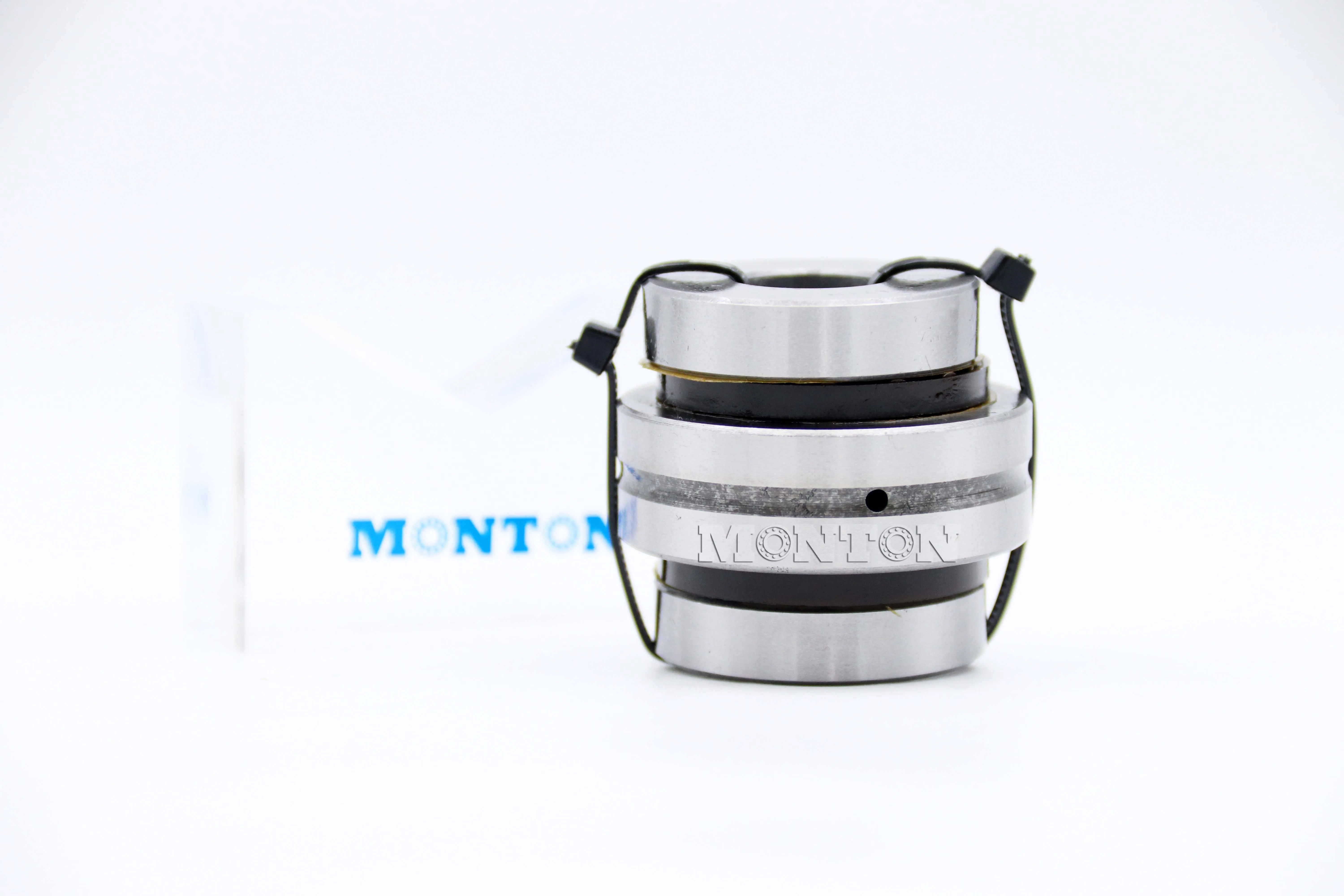

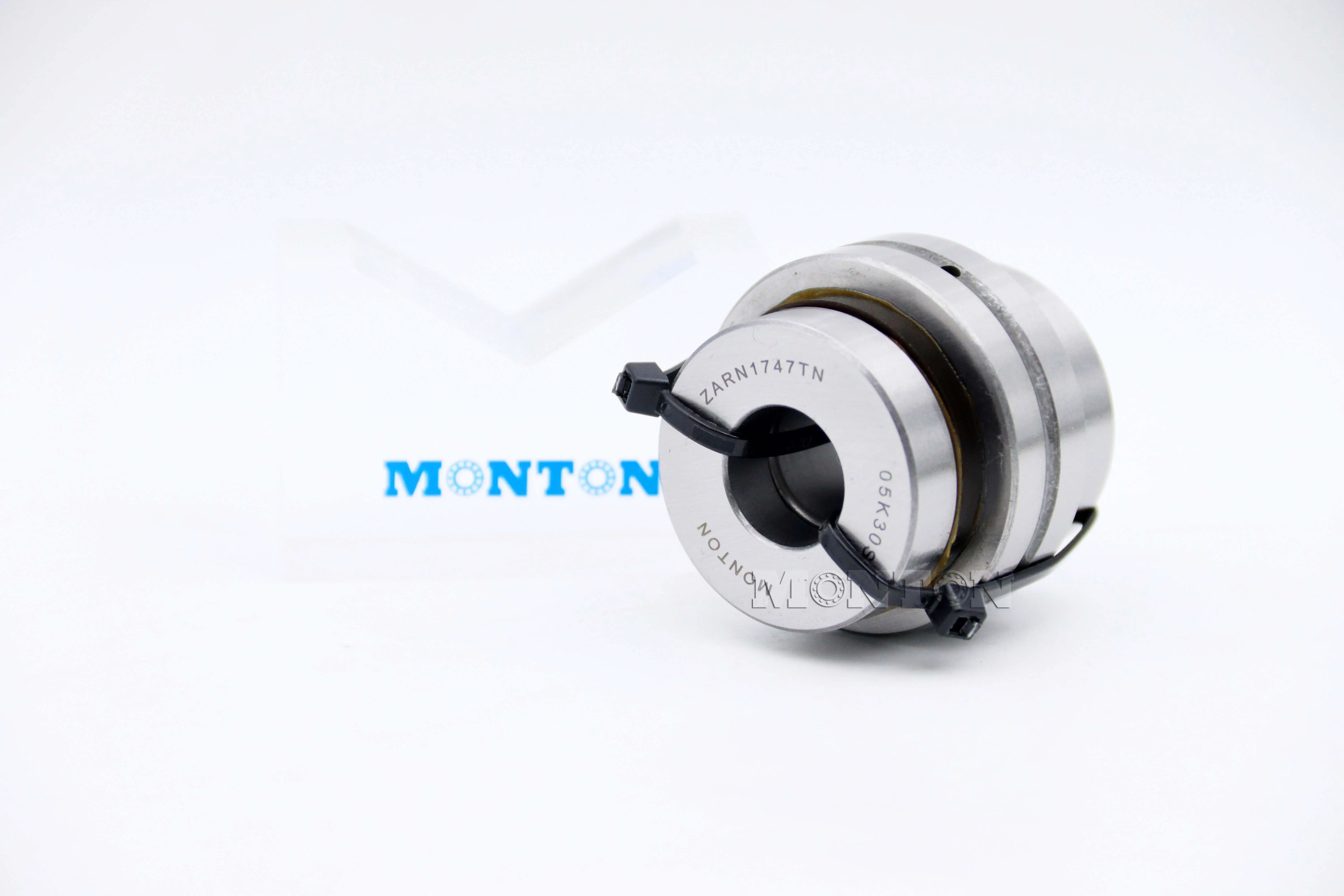

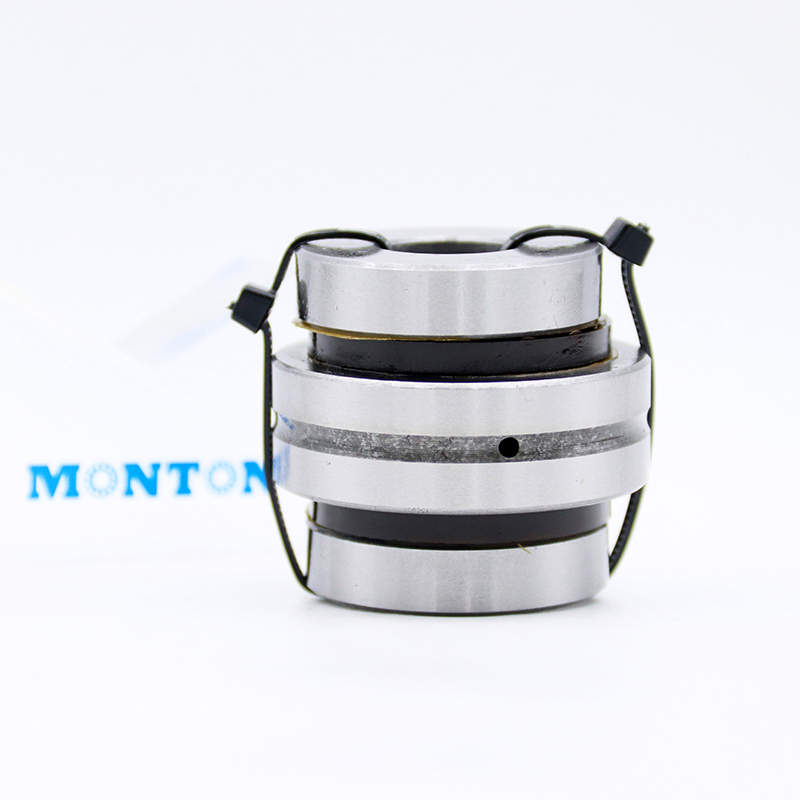

ZARN1747-TV Needle roller axial cylindrical roller bearing

ZARN1747-TV is a high-precision needle roller and thrust cylindrical roller combined bearing for screw support, with an inner diameter of 17mm, an outer diameter of 47mm, a total height of 43mm and a thickness of 9mm, which fits standard screw mounting positions.Integrated with radial needle rollers and bidirectional thrust cylindrical rollers, it can simultaneously bear radial forces, bidirectional axial forces and overturning moments. This bearing is widely used in screw supports of CNC machine tools, heavy-duty machine tool spindles, deep-hole drilling machines, gantry milling machines and other processing equipment, and is also suitable for heavy-load transmission fields such as metallurgy, mining and petroleum machinery.

Case Details

Name	Needle roller/axial cylindrical roller bearing
Seires	ZARN series
Brand	MONTON
Model	ZARN1747-TV
d	17mm
D	47mm
B	43mm
C0r	26KN
C0a	57KN
Cr	14KNN
Cor	19.9KN
Cua	8KN
Cur	3KN
nG Oil	7,800 1/min
nG Grease	2,100 1/min
Weight	0.33kg
Operating temperature	-30 °C-120°C
Bearing friction torque	0.4 Nm
Rigidity axial	1.600 N/µm
Tilting stiffness	160 Nm/mrad
Tightening torque nut	12 Nm
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery	Stock
Application	Machine tools Handling system inspection and measuring machines small machining equipment medical and laboratory equipment machines in precision engineering and electronic component manufacture simplification of the bearing arrangement through the use of complete units.
