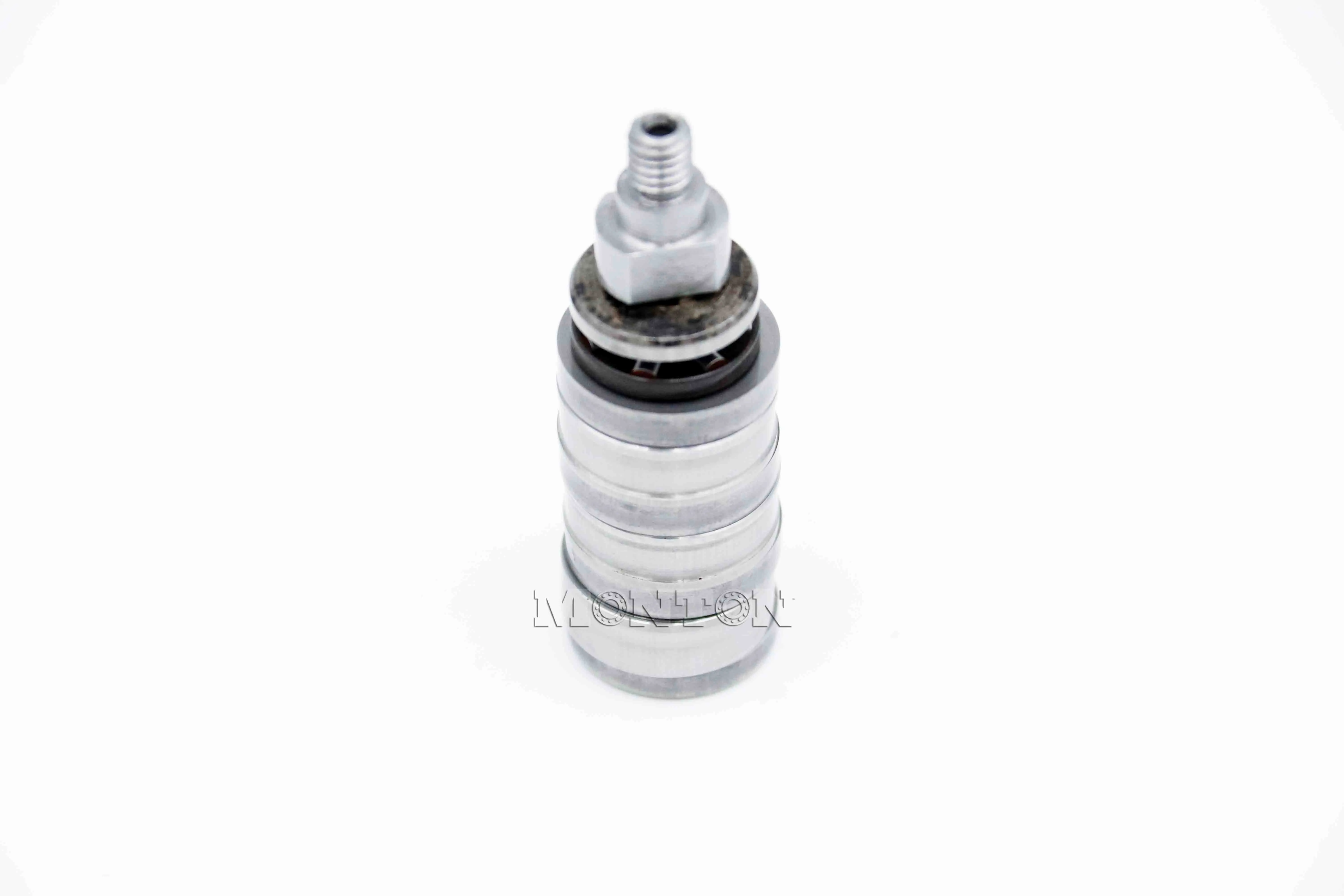

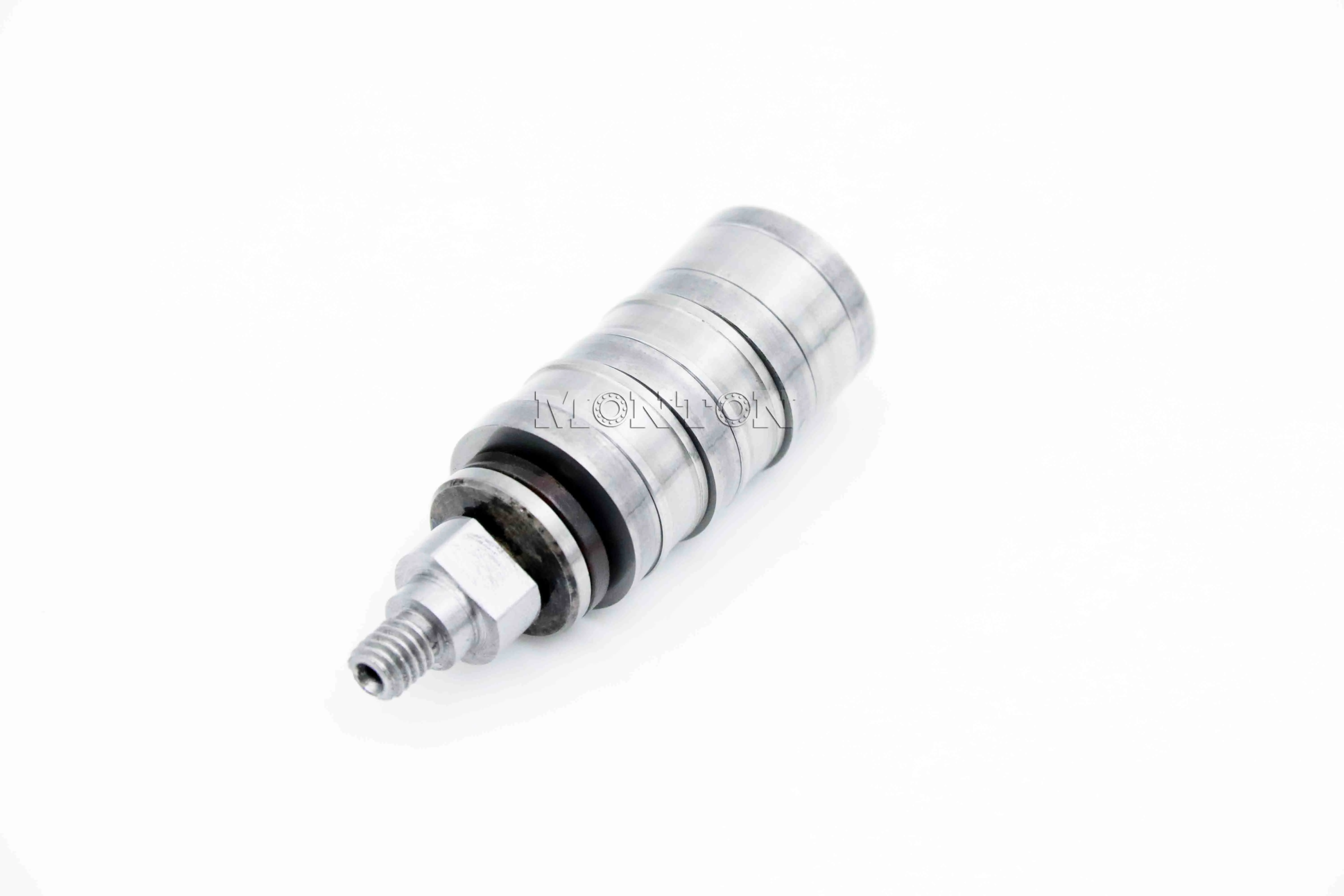

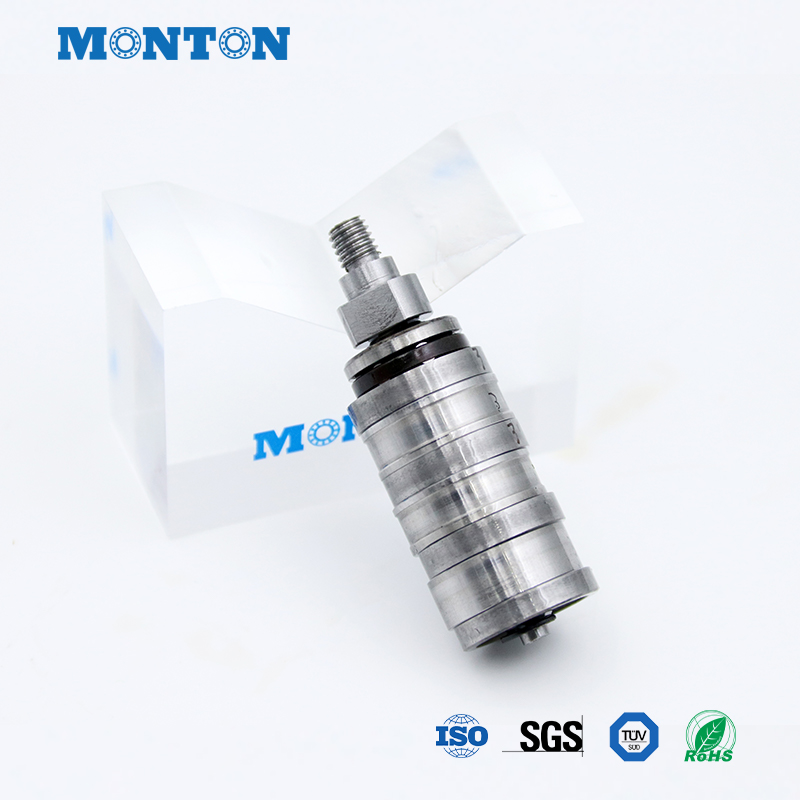

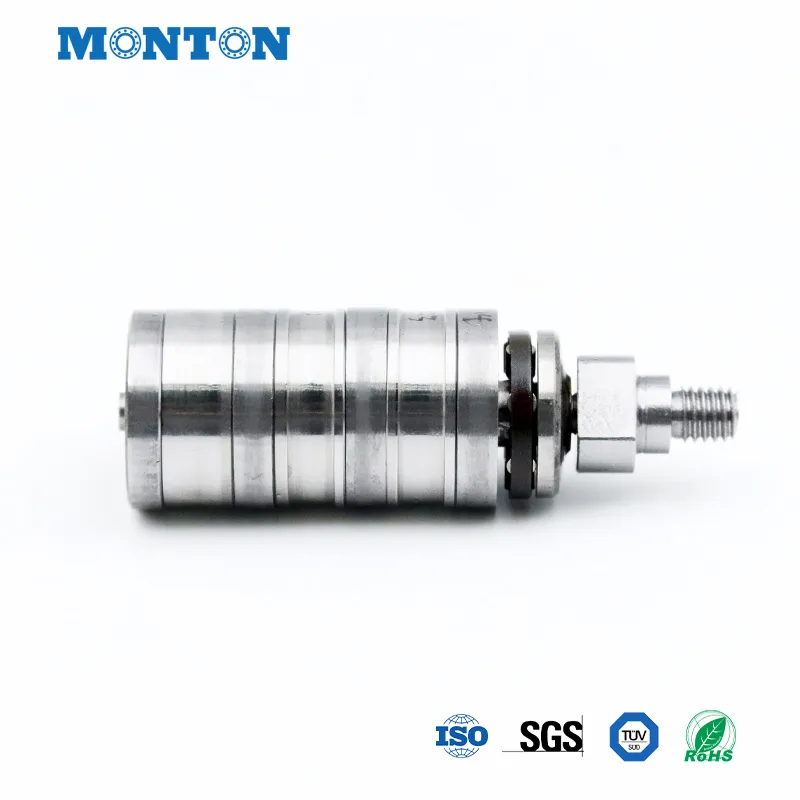

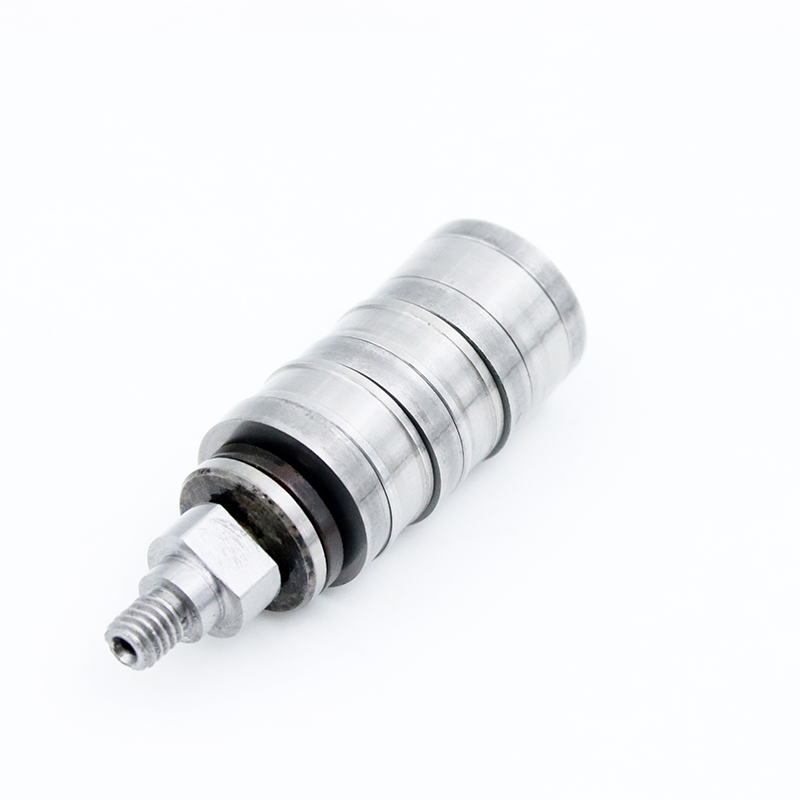

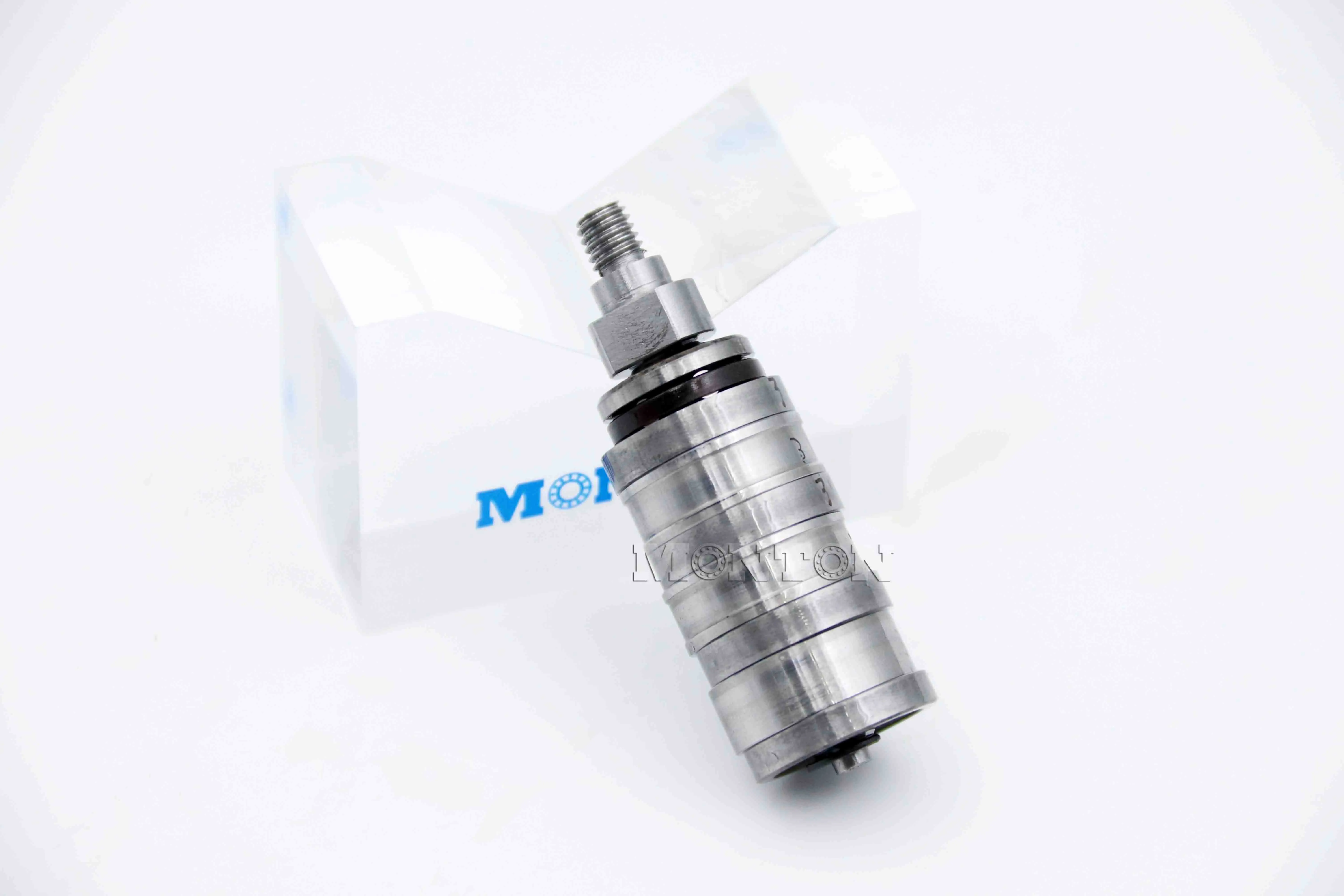

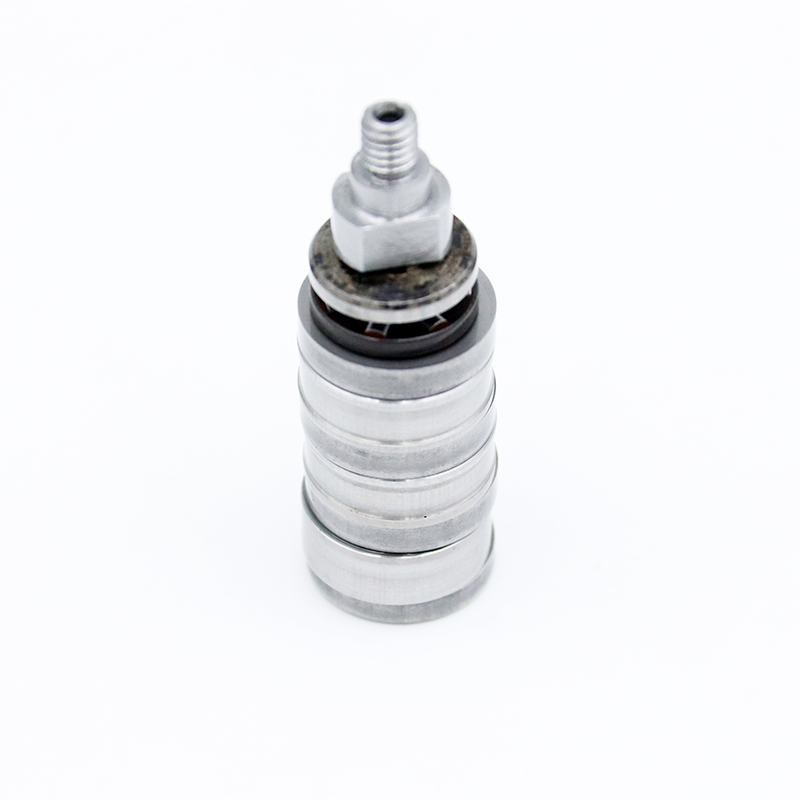

M4CT420A Tandem bearings for extruder gearbox

M4CT420A Tandem bearings is a high load axial load-bearing component designed specifically for twin-screw plastic extruder gearboxes. Its inner diameter is 4mm, outer diameter is 20mm, and total thickness is 65mm. It is made of GCr15SiMn high carbon chromium bearing steel and has excellent wear resistance and fatigue resistance. This bearing is composed of five columns of cylindrical rollers connected in series, and the axial load is evenly distributed through elastic spacers. It can withstand high dynamic and static loads in a limited radial space, far exceeding the bearing capacity of traditional ball bearings. Under typical operating conditions, oil circulation lubrication is required, with precise fit tolerances between shaft f6 and seat hole F7 to ensure smooth operation and extremely low friction loss, effectively extending equipment life.

Case Details

Name	Tandem bearings for extruder gearbox
Series	Four row Series
Brand	MONTON
Model	M4CT420A
Equal Designations	T4AR420A
d	4mm
D	20mm
H	61mm
Ring Material	Gcr15
Cage Material	Nylon/Aluminum
Load rating Ca	22kN
Load rating Coa	55kN
Shaft Tolerance	f6
Weight	0.2KG
Design Structure	cylindrical roller
Precision	P5
Assembly	Each bearing to be accompanied by instructions for assembly of individual components.
Clearance	C0 or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Extruder Gearboxes Counter-rotating twin screw extruders Parallel twin-screw extruder for plastic pellets Three screw extruder oil expeller
