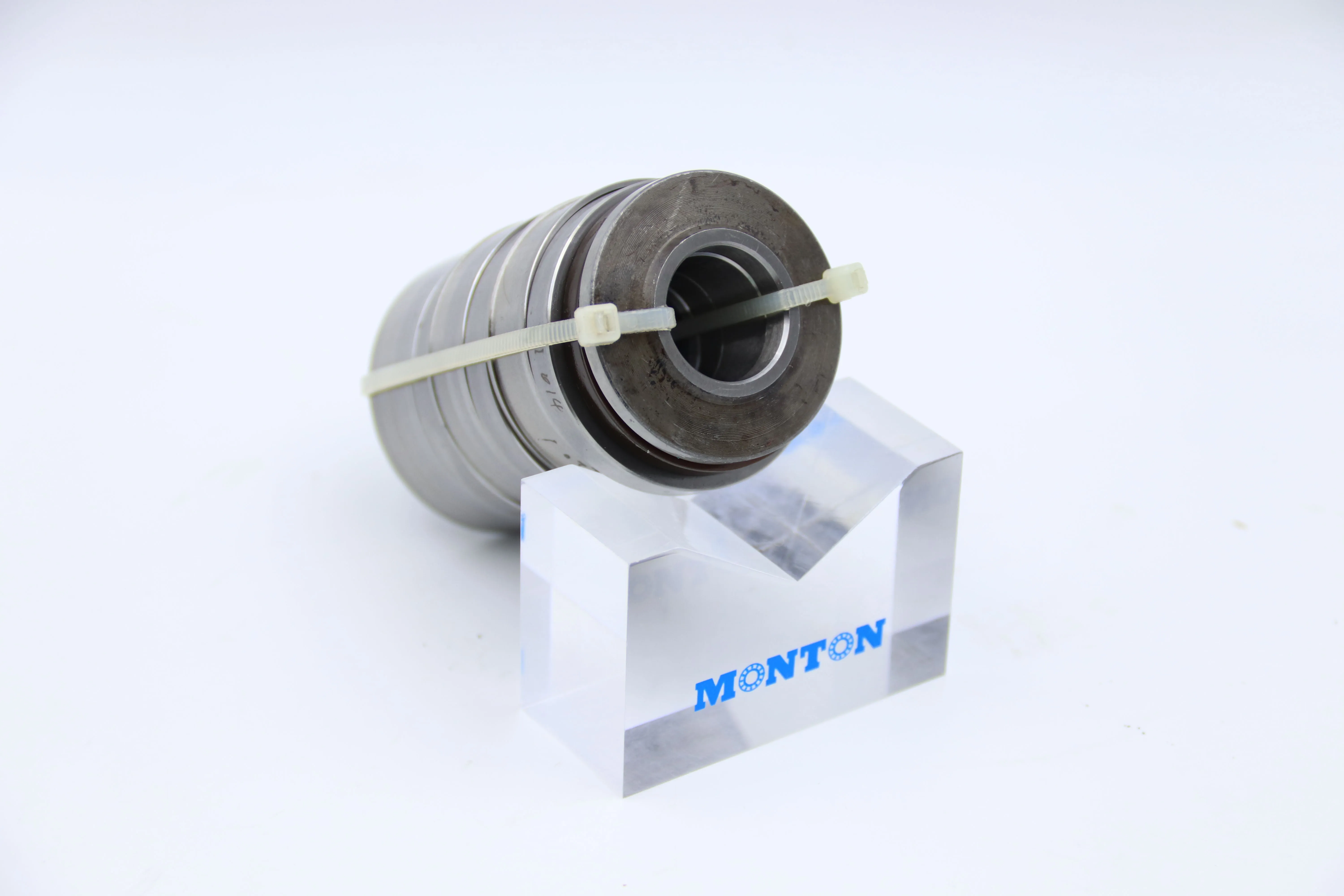

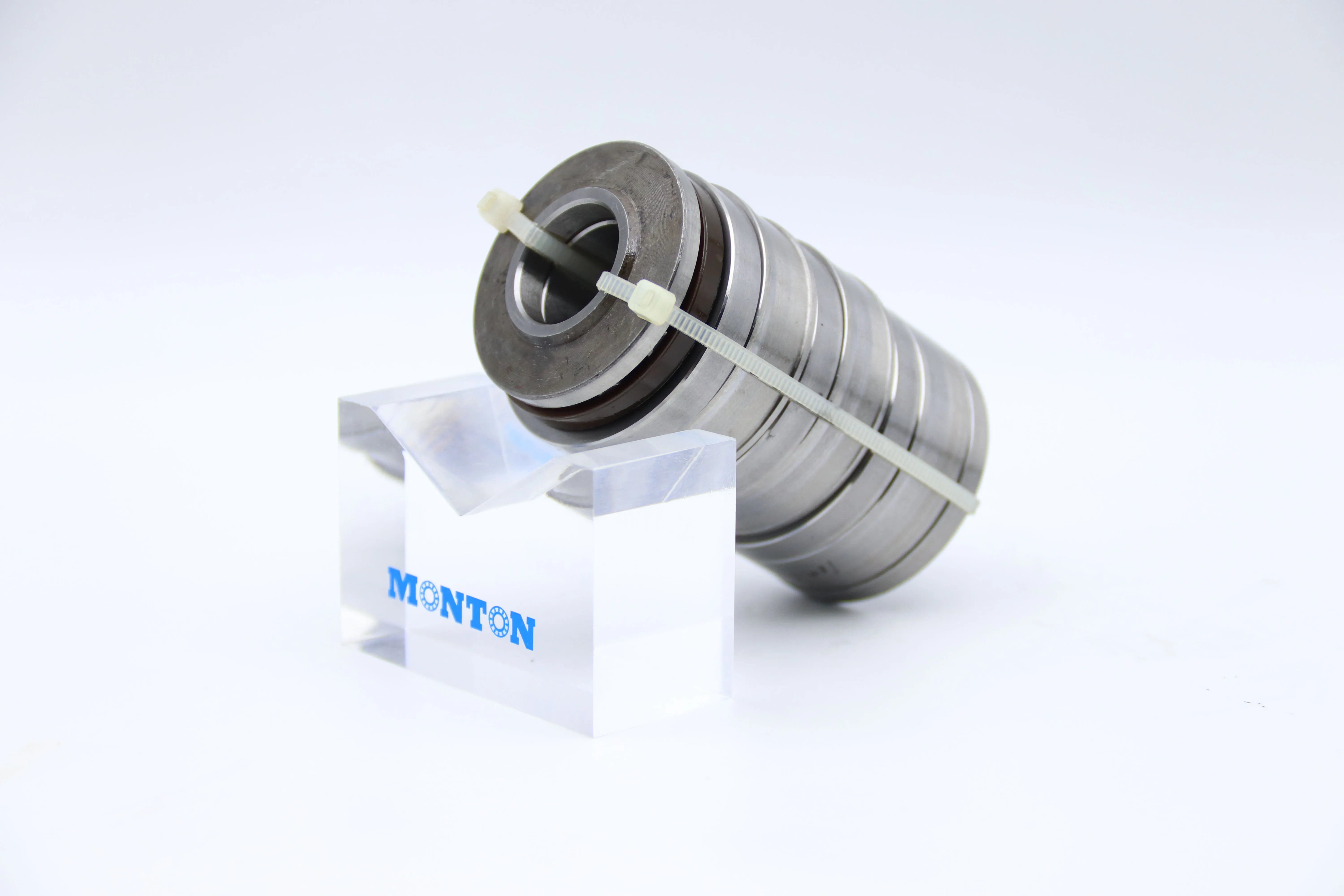

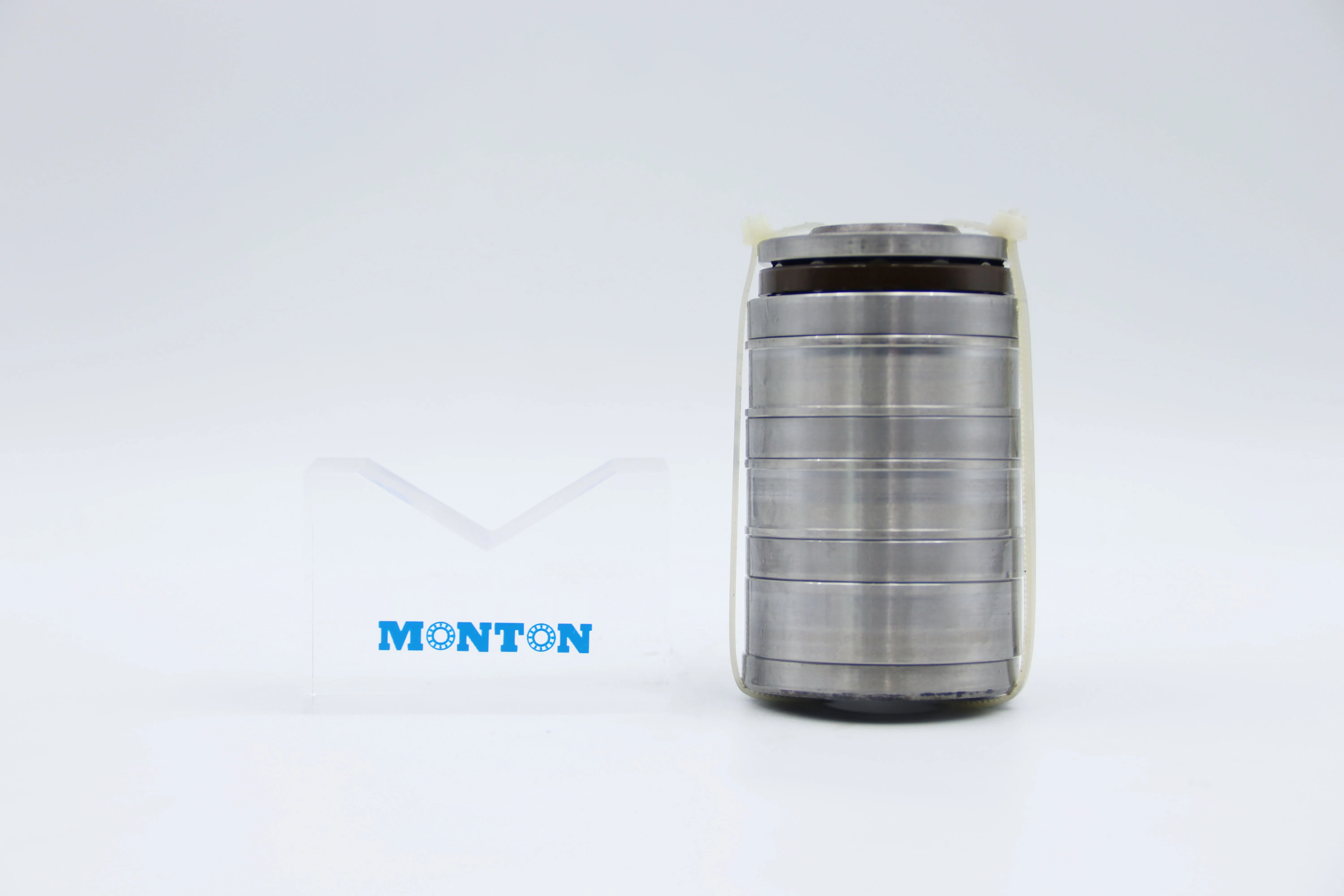

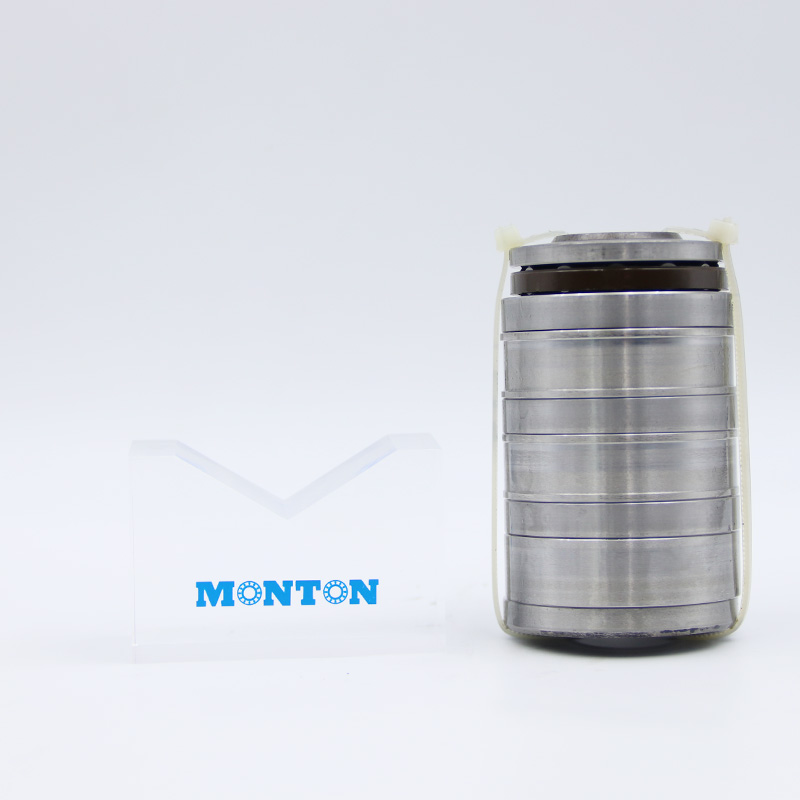

M4CT2047 Tandem Thrust Bearings for Extruder Gearboxes

The M4CT2047 produced by MONTON mainly used for extruder gearboxes. This bearing can mainly withstand high axial loads in one direction and is commonly used in gearboxes of twin-screw extruders, three screw extruders, oil presses, etc. The bearing has a compact radial cross-section and is suitable for narrow spaces in extruder gearboxes. Our company specializes in series thrust cylindrical roller bearings (MCT/TAR series) and needle roller bearings, as well as fully loaded cylindrical roller bearings (SL series), designed for heavy-duty, high-temperature, and continuous operation of twin-screw extruder gearboxes and screw spindles with high load capacity and long service life.

Case Details

Name	Multi Stage cylindrical roller thrust bearings
Seires	Multi row cylindrical roller
Brand	MONTON
Model	M4CT2047
Equal Designations	T4AR2047
d	20mm
D	47mm
H	79mm
Ring Material	Gcr15
Cage Material	Nylon/Aluminum
Load rating Cr	141kN
Load rating Cor	453kN
Shaft Tolerance	f6
Weight	0.67KG
Design Structure	cylindrical roller
Precision	P5
Assembly	Each bearing to be accompanied by instructions for assembly of individual components.
Clearance	C0 or as customer requirement
Quality standard	ISO9001: 2015/SGS TUV RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Extruder Gearboxes Counter-rotating twin screw extruders Parallel twin-screw extruder for plastic pellets Three screw extruder oil expeller
