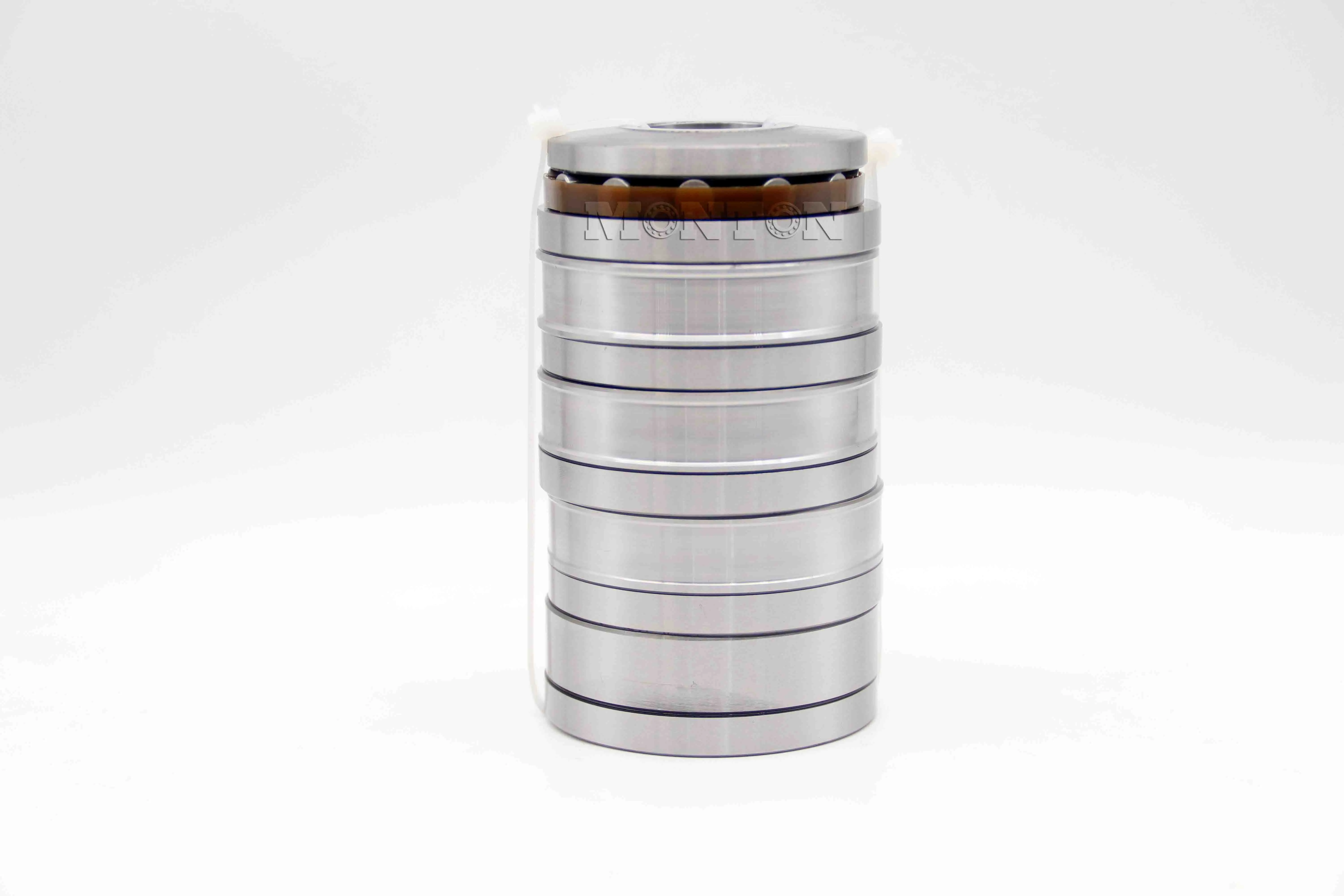

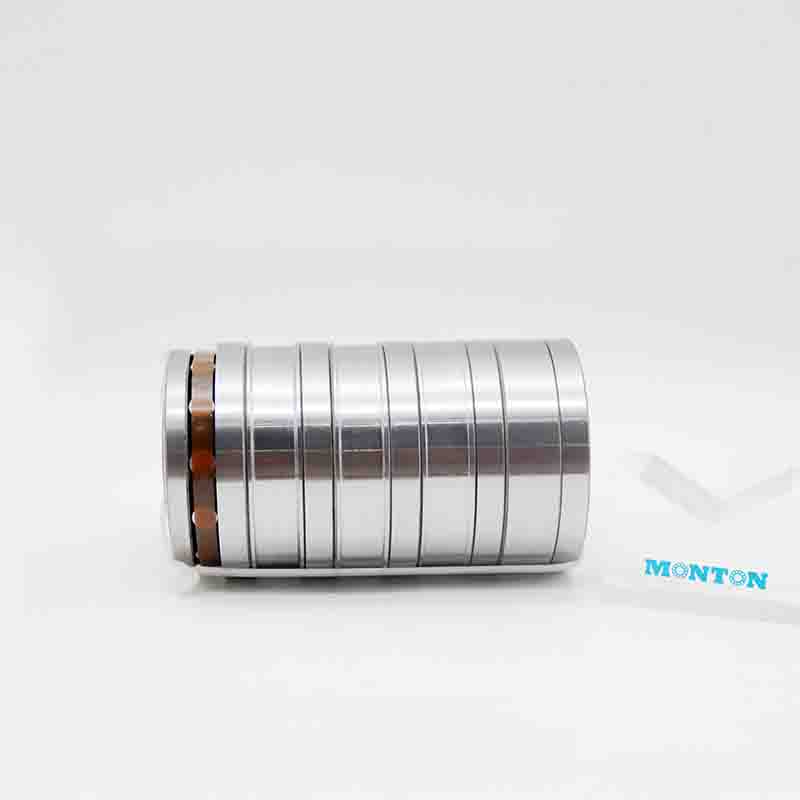

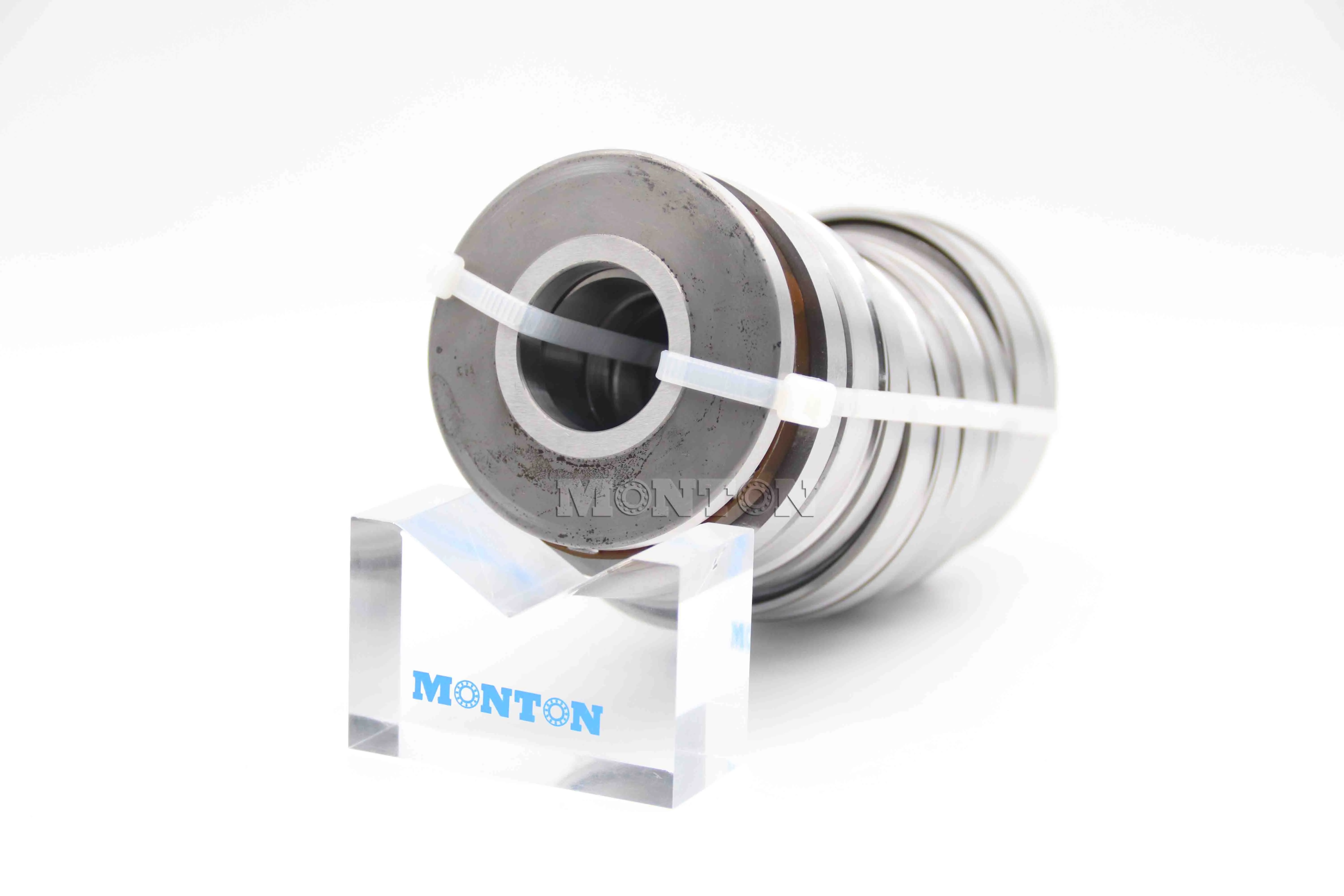

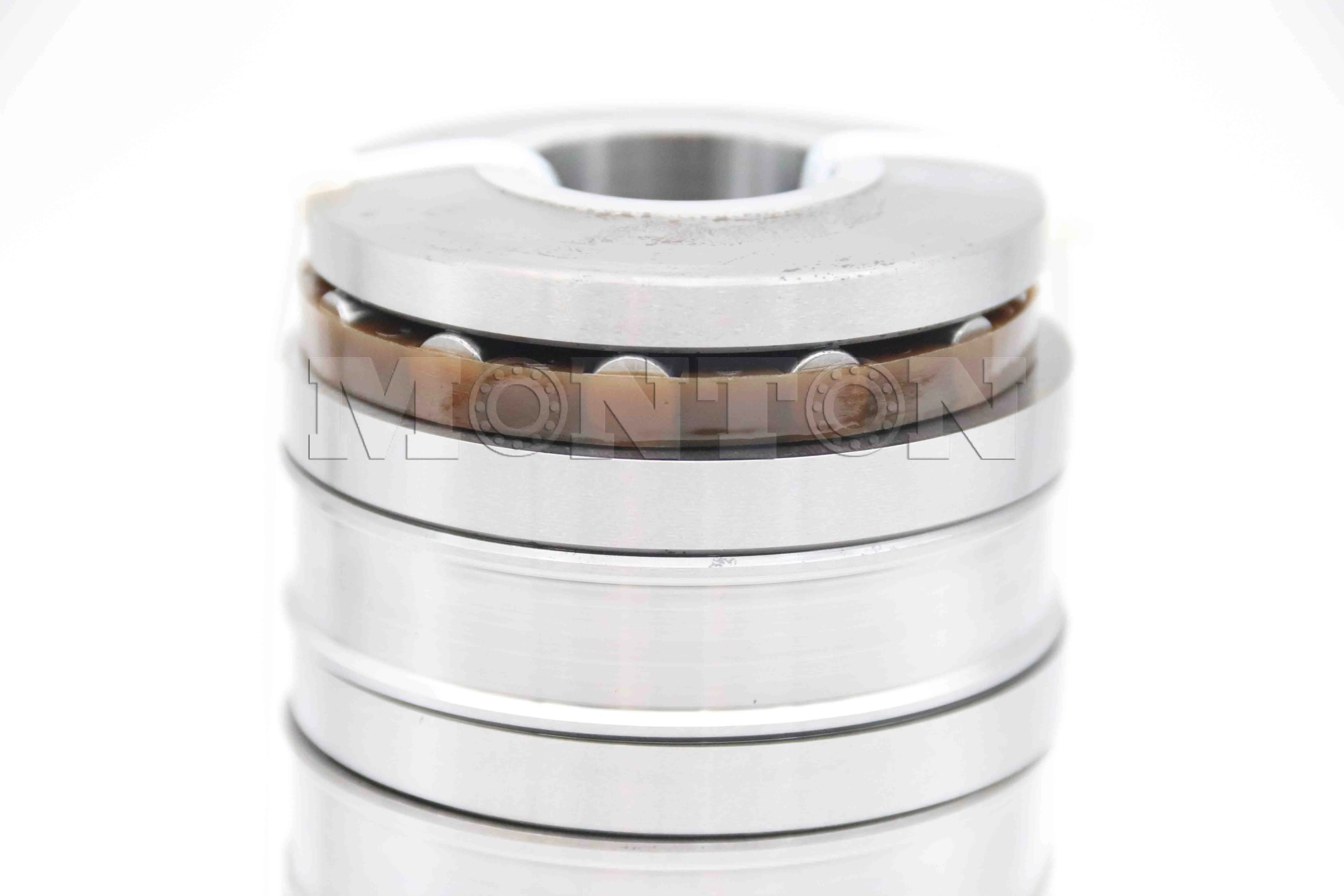

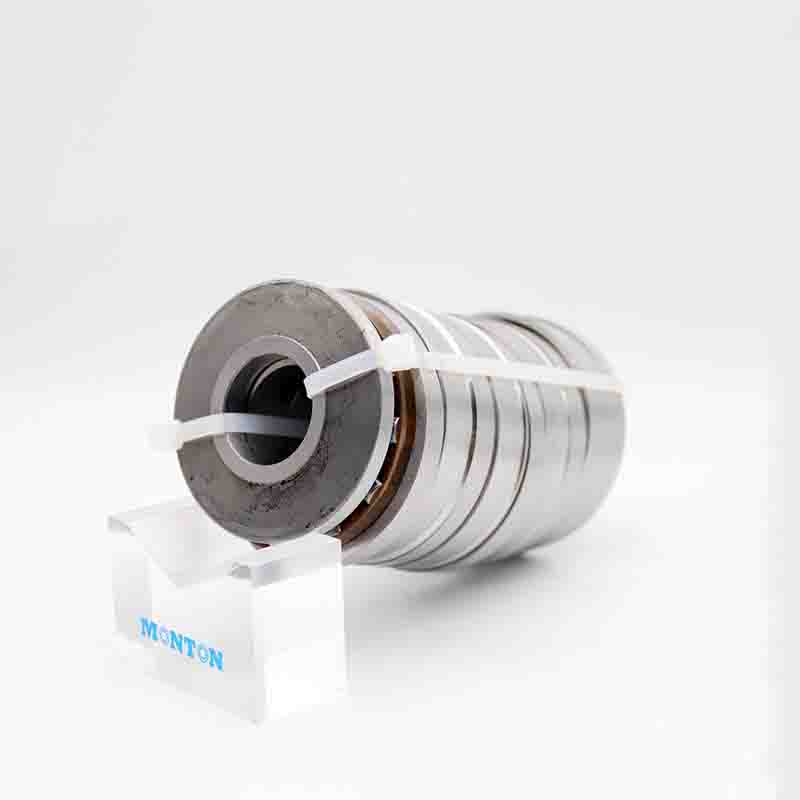

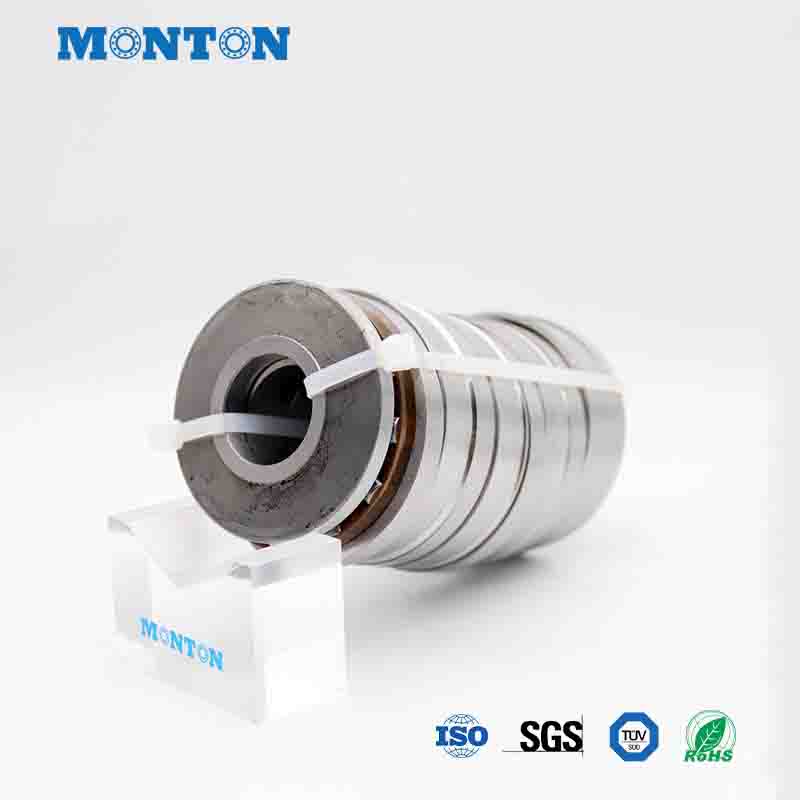

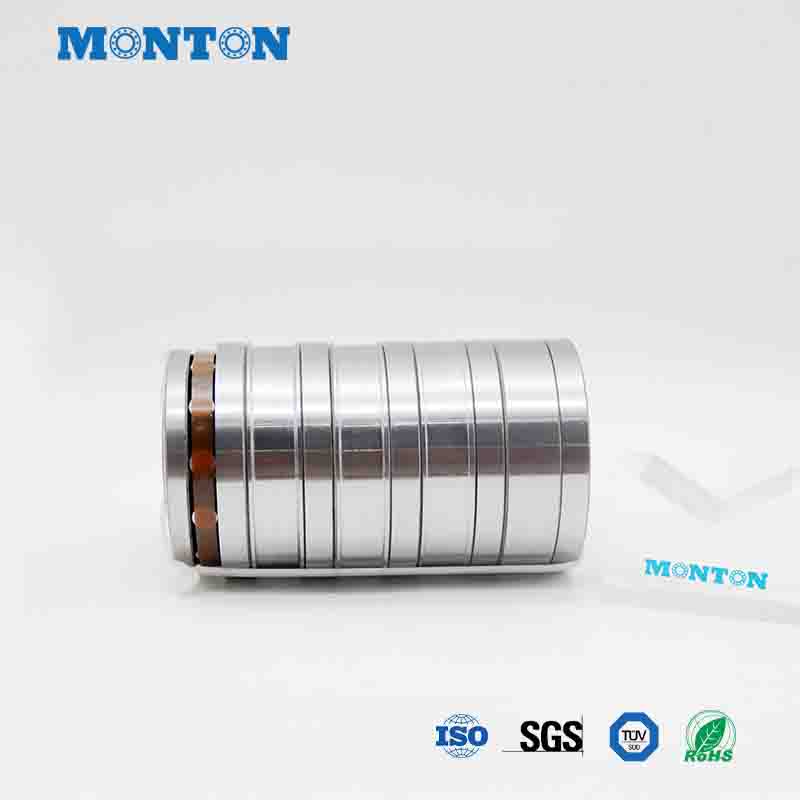

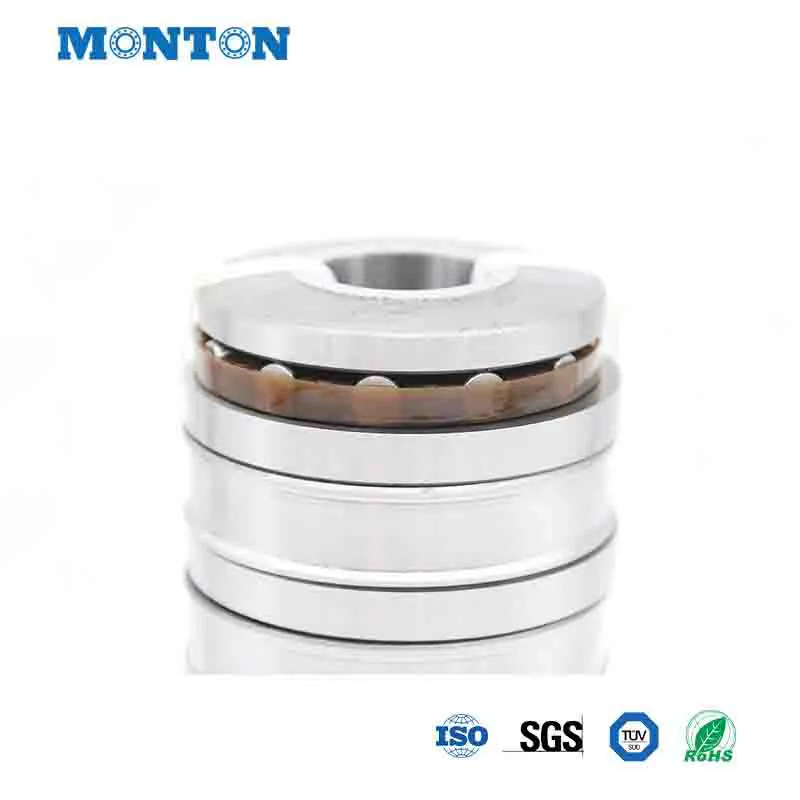

T5AR2872 Multi Stage cylindrical roller thrust bearings

This bearing is designed for the heavy-duty thrust position of extruder gearboxes, specifically tailored for heavy-load scenarios such as twin-screw extruder gearboxes, and is compatible with transmission systems at the 28mm screw center distance level.The 5-row tandem design increases the axial load-carrying capacity by more than 35% compared with 3/4-row models of the same size, ensuring uniform load distribution on each row of rollers.Its compact radial cross-section adapts to the limited installation space of the narrow center distance in twin-screw extruders.It features excellent wear resistance under low-speed heavy-duty conditions, low vibration and noise, and a continuous operation service life of 7 to 9 years.It is primarily suitable for parallel twin-screw extruder gearboxes, and also applicable to single-screw extruders, pelletizers, high-torque reducers, metallurgical heavy-duty transmissions and other scenarios.

Case Details

Name	Multi Stage cylindrical roller thrust bearings
Series	Multi row cylindrical roller
Brand	MONTON
Model	M5CT2872
Old Designations	T5AR2872
d	28mm
D	72mm
H	125mm
Ring Material	Gcr15
Cage Material	Nylon/Aluminum
Load rating Cr	434kN
Load rating Cor	1730kN
Shaft Tolerance	f6
Weight	2.7KG
Design Structure	cylindrical roller
Precision	P5
Assembly	Each bearing to be accompanied by instructions for assembly of individual components.
Clearance	C0 or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Extruder Gearboxes Counter-rotating twin screw extruders Parallel twin-screw extruder for plastic pellets Three screw extruder oil expeller
