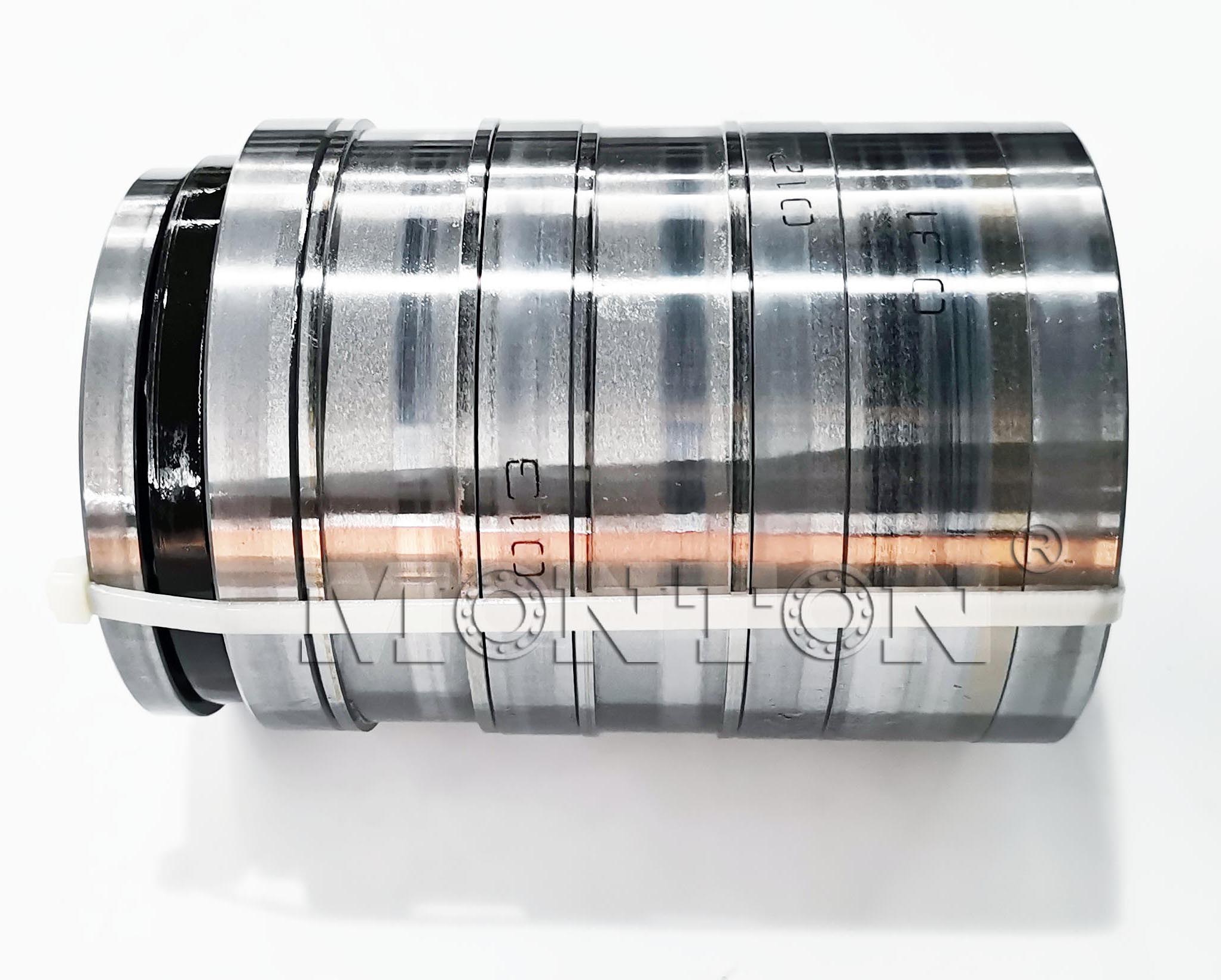

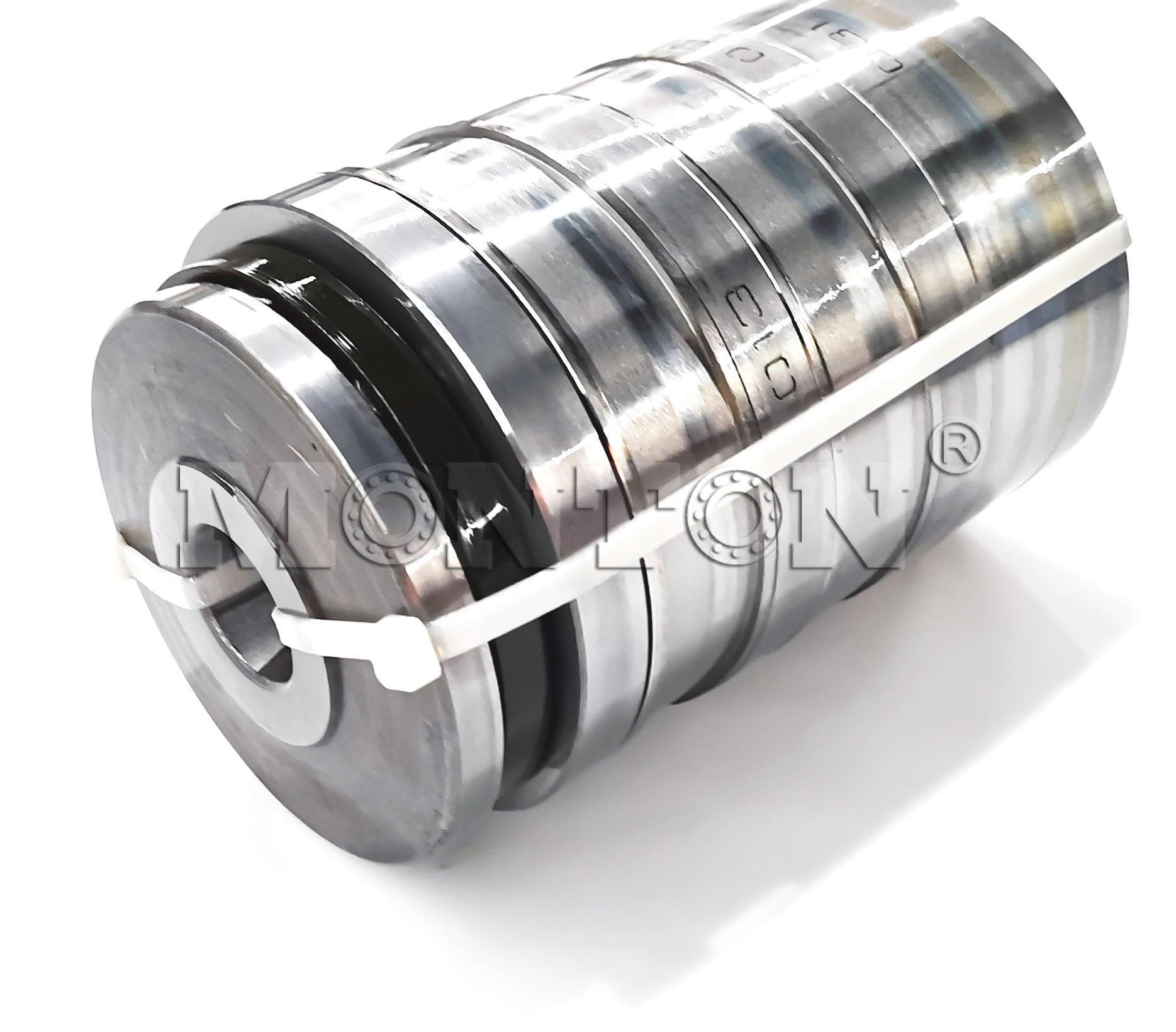

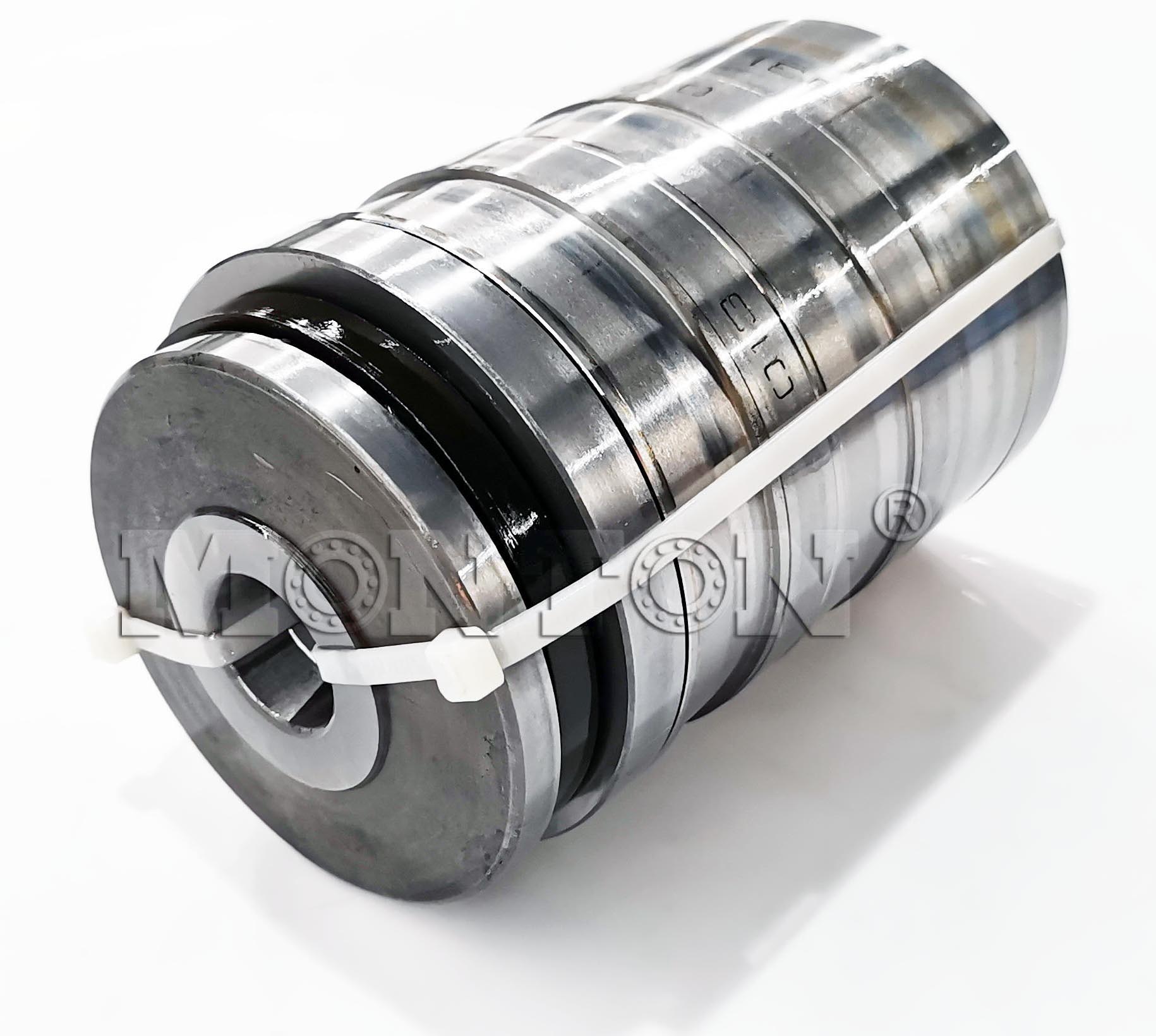

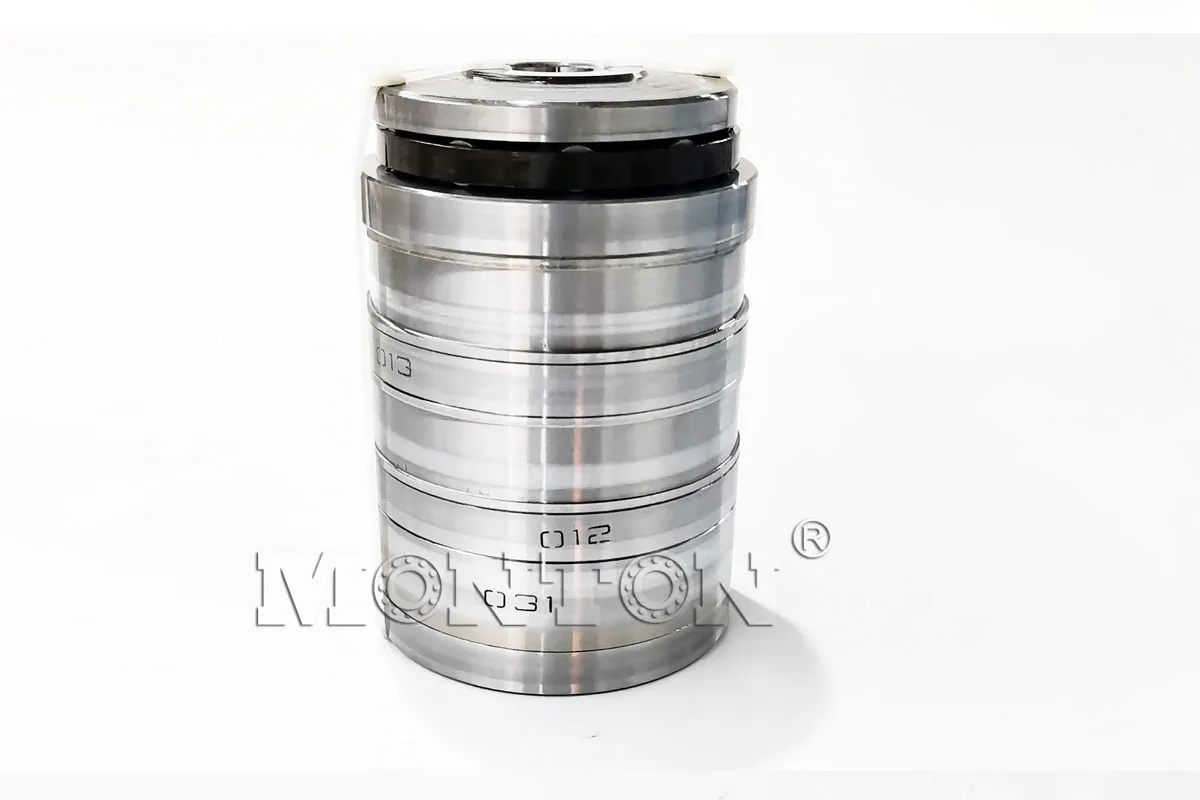

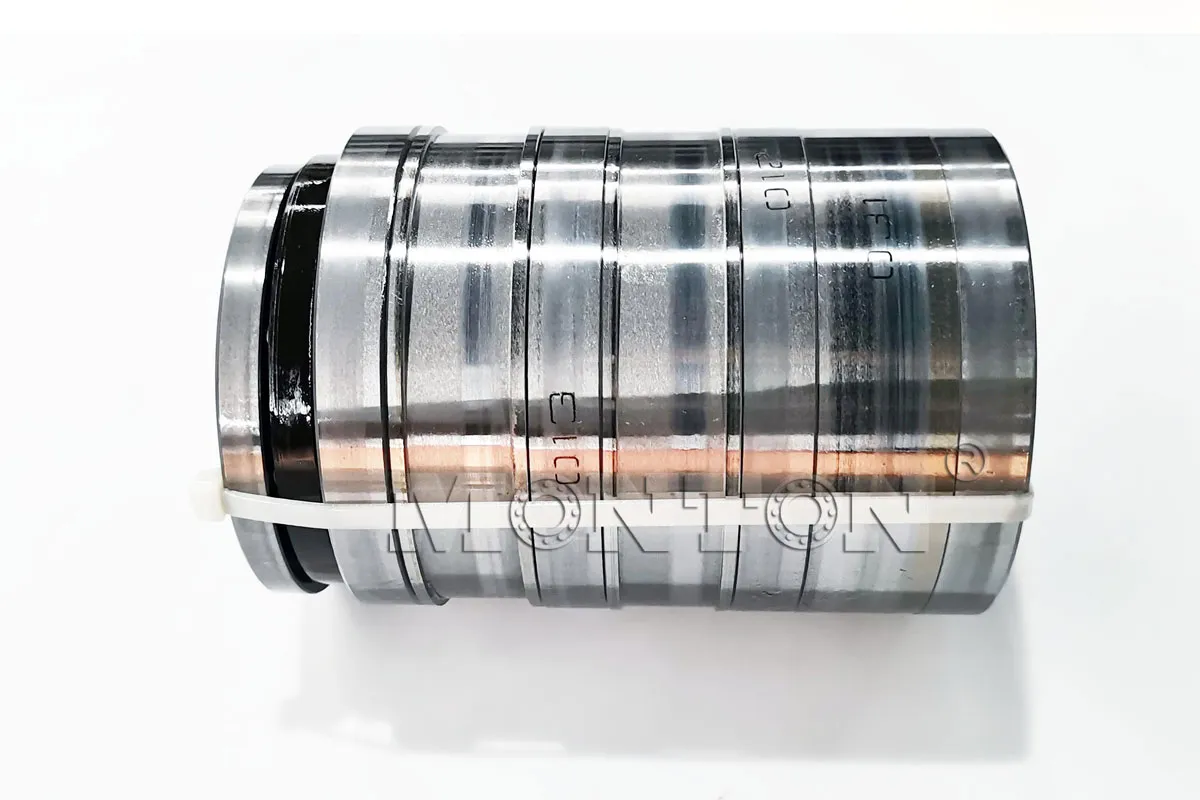

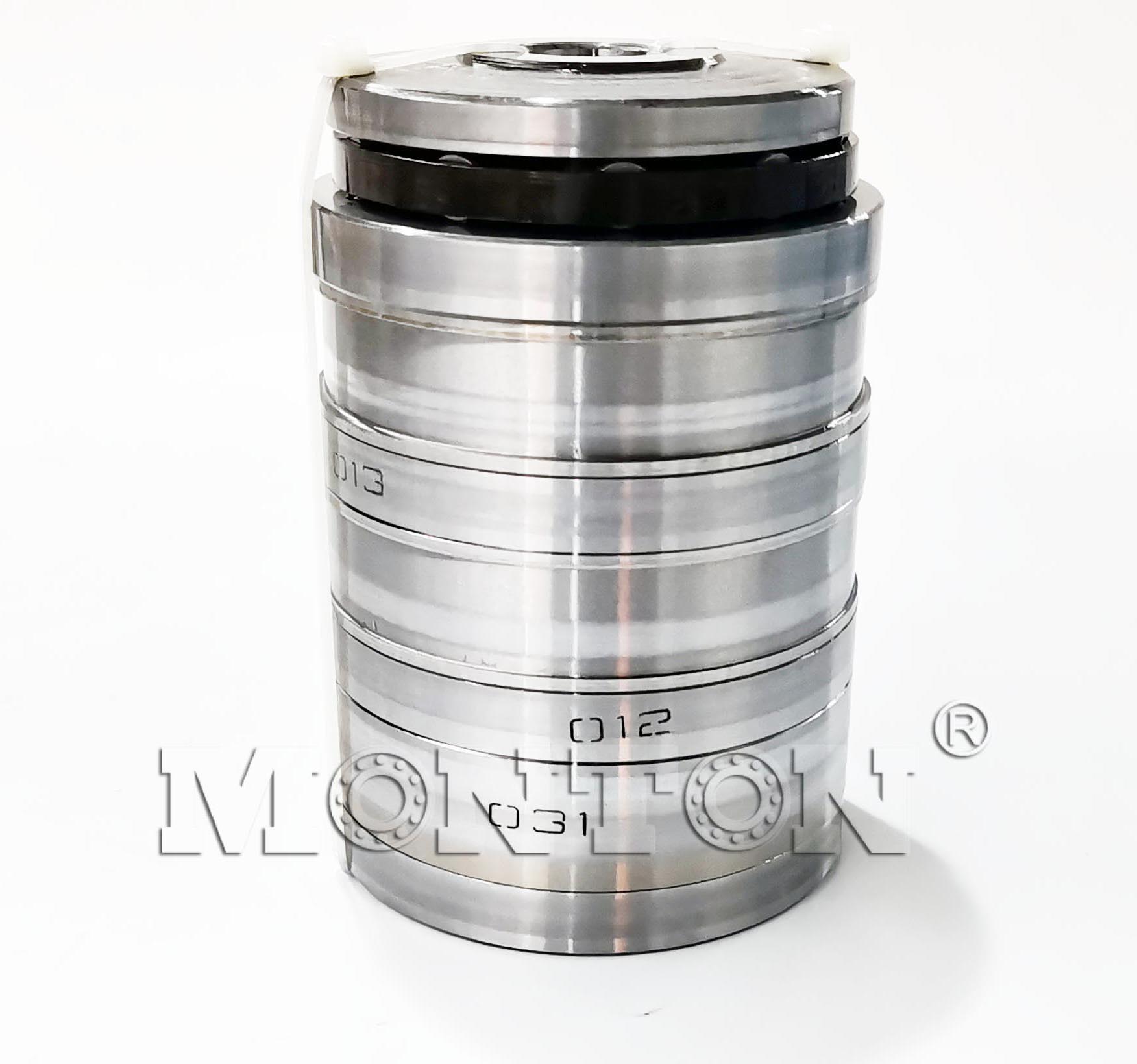

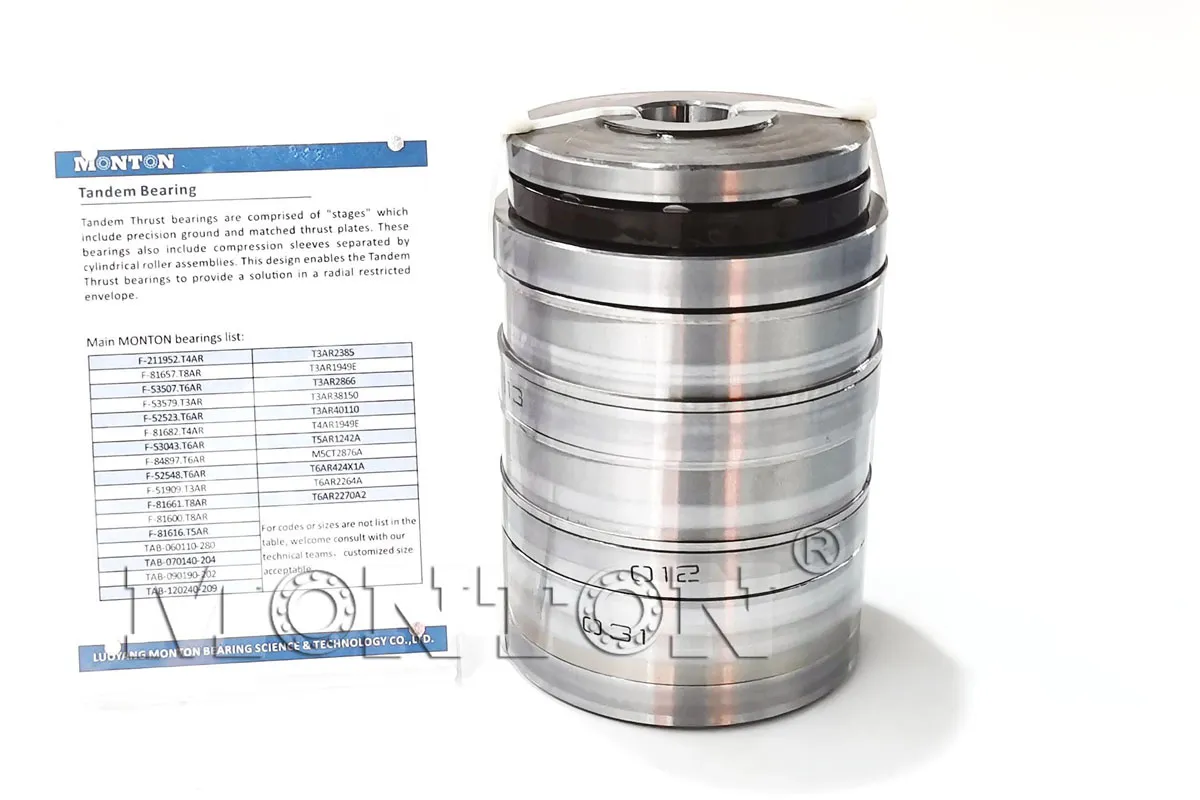

F-81683.T4AR Tandem Thrust bearings

Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.

Case Details

Name	Tandem Thrust bearings
Brand	MONTON
Row	Four row
Model	F-81683.T4AR
Bore diameter	25mm
Outside diameter	100mm
H(Height)	149mm
Ring Material	Gcr15 Bearing steel
Cage Material	Brass /Nylon
Basic dynamic load rating, axial C	350KN
Basic static load rating, axial Co	1400KN
Weight	6.2KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Twin screw extruder Gearbox Triple screw extruder Gearbox Pipe laying machines Deep hole drilling Oil pressing machine
