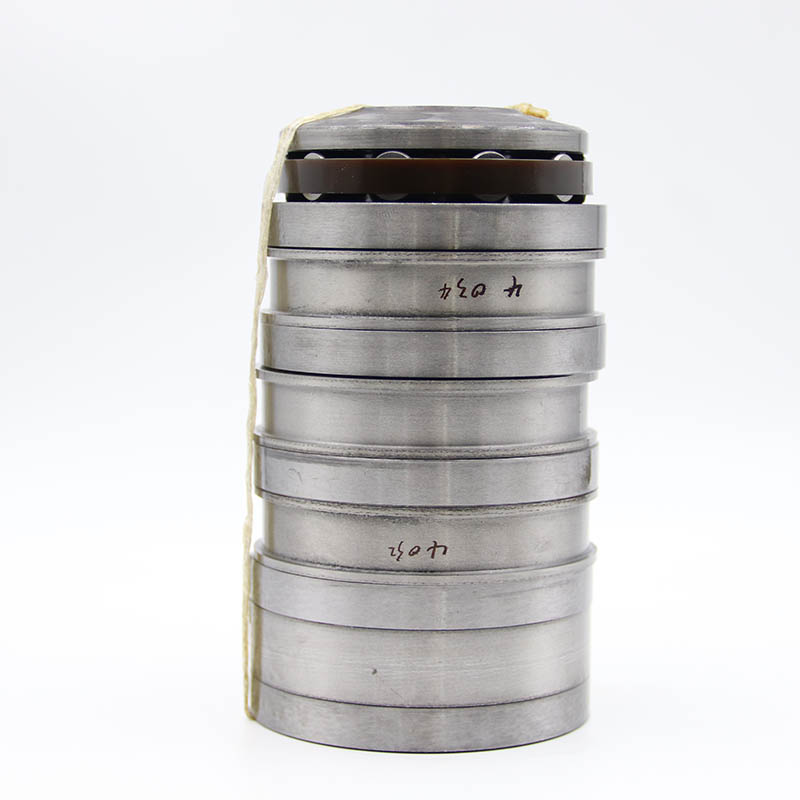

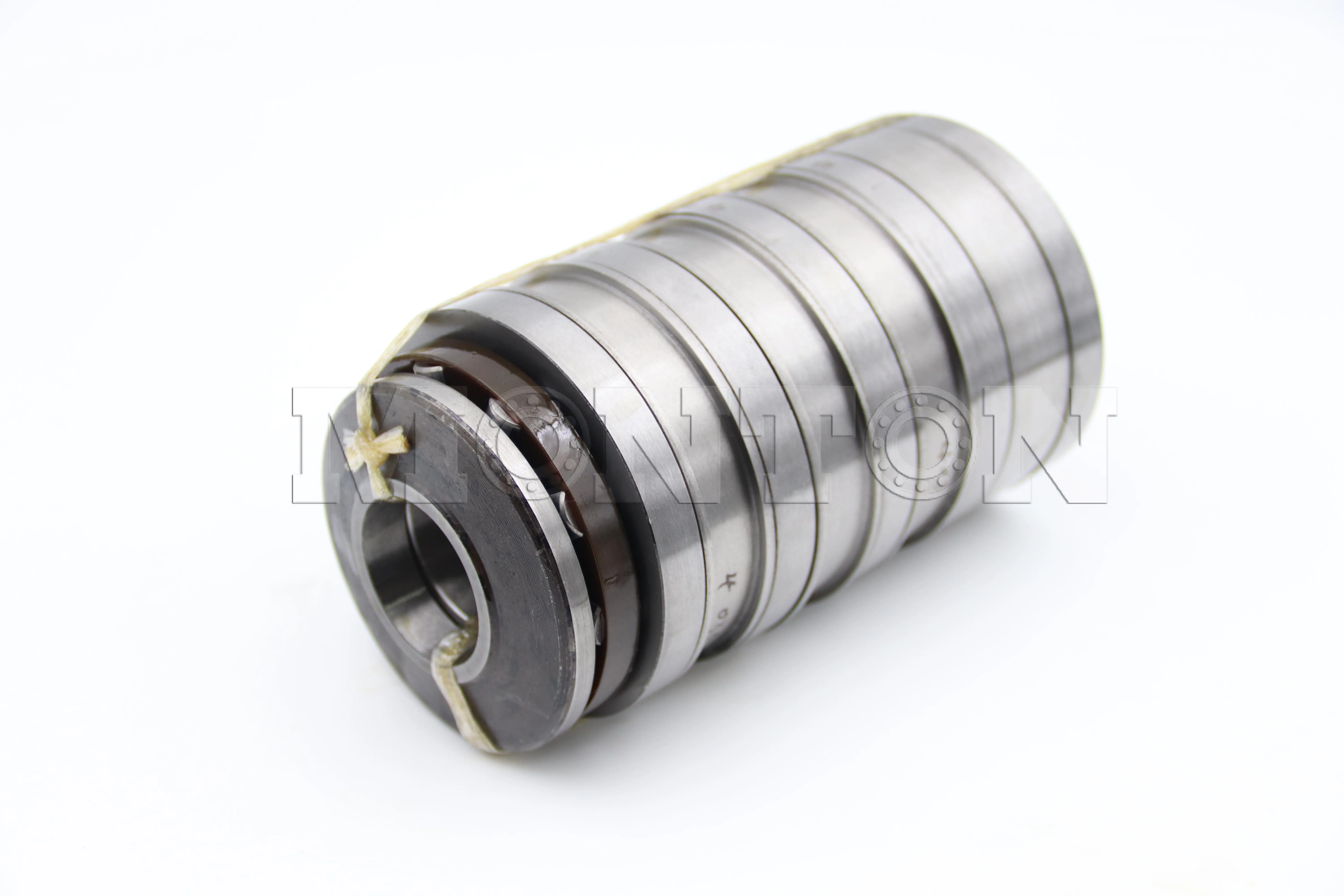

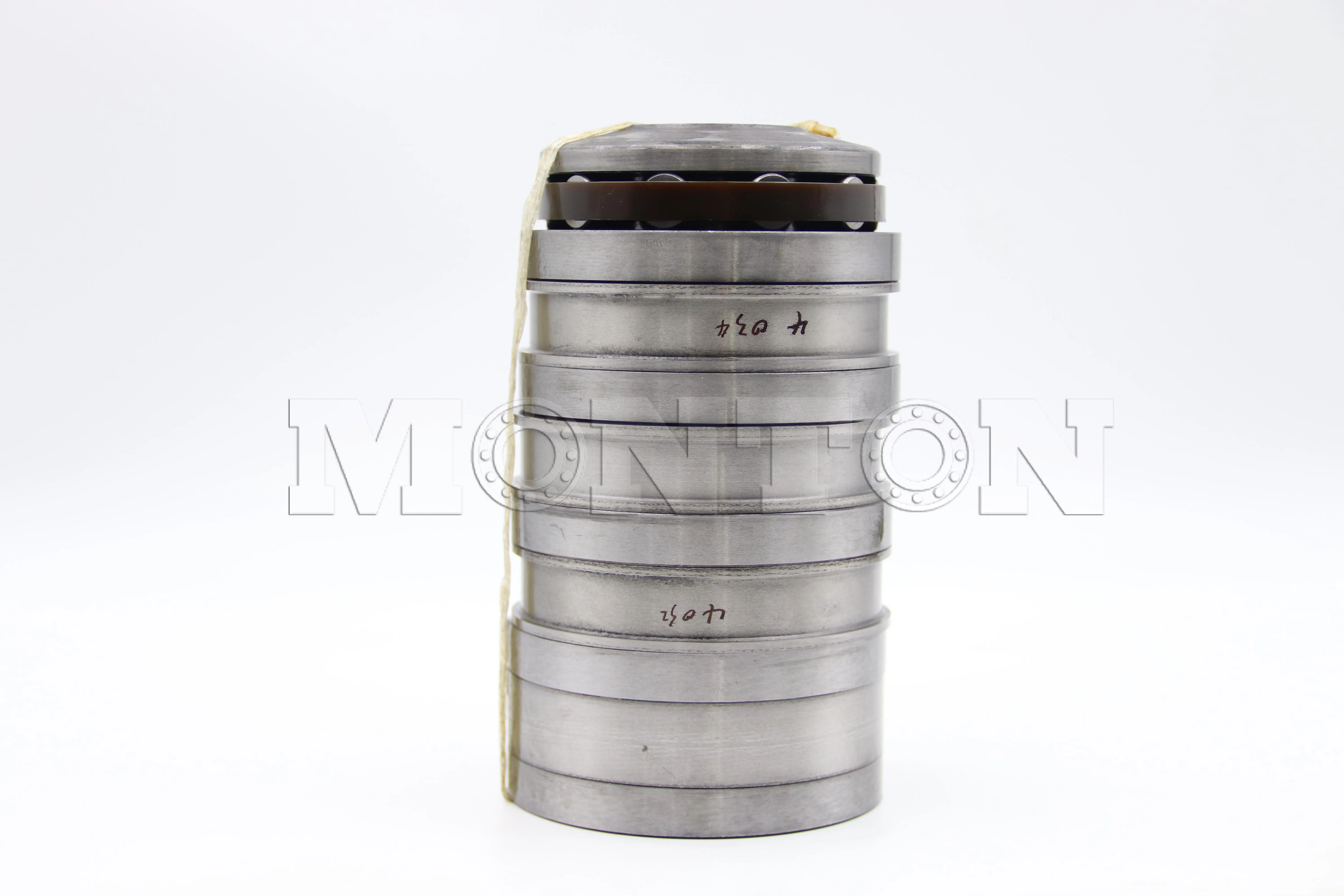

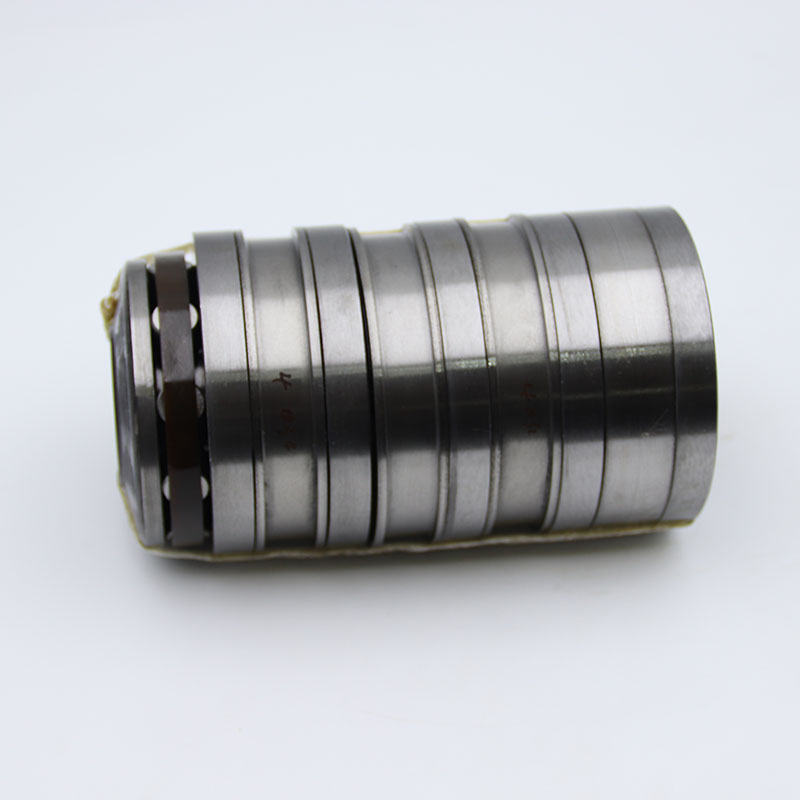

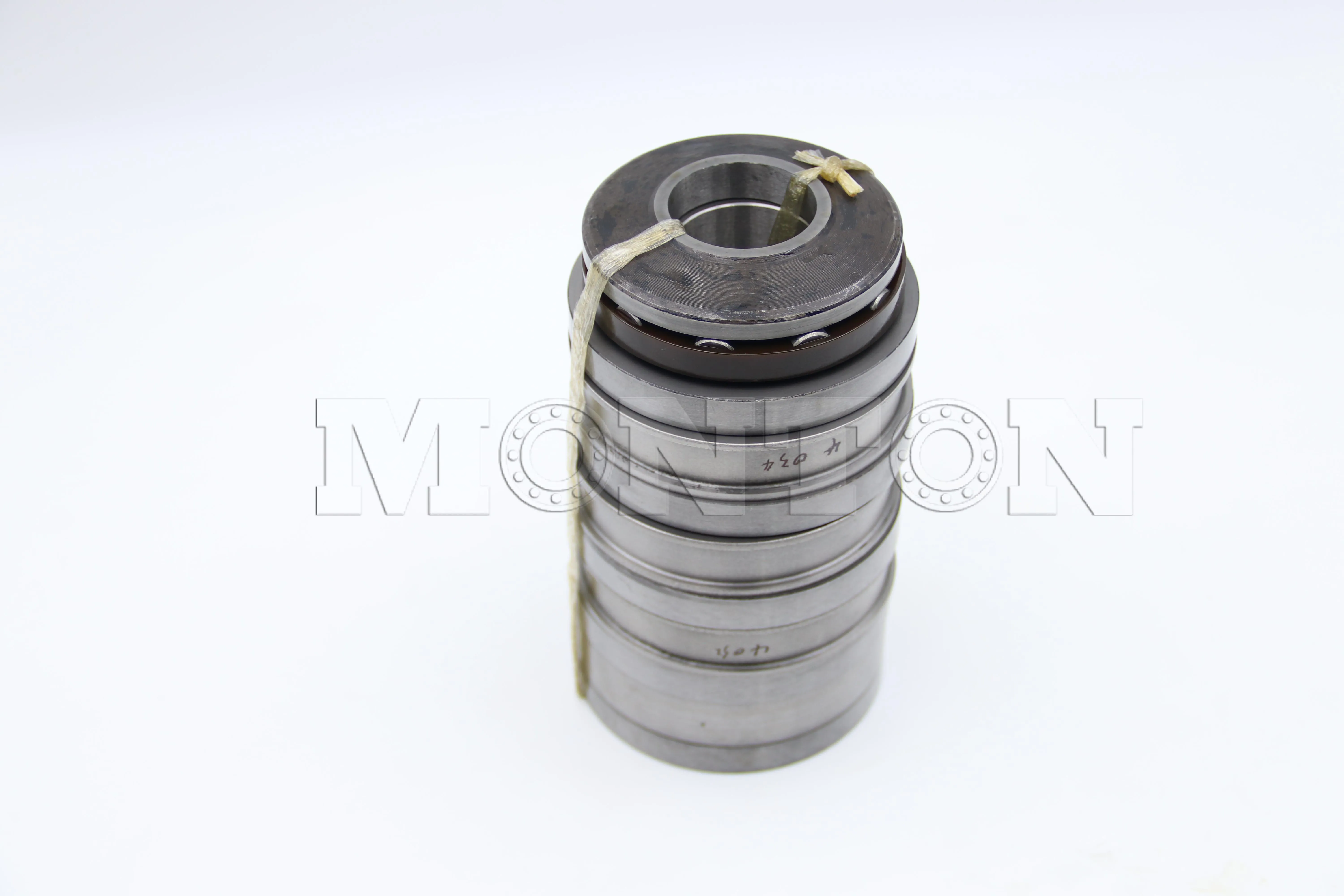

M5CT3278 Multi Stage cylindrical roller thrust bearings

  • M5CT3278 is a Multi Stage cylindrical roller thrust bearings designed specifically for high axial load conditions. It has a compact structure and wear-resistant characteristics, optimized space occupation, and is suitable for restricted installation environments. Multiple rows of rollers evenly share pressure, improving load-bearing efficiency. The special cage design reduces friction and extends the service life. Mainly used in plastic extruder gearboxes (such as twin-screw extruders, triple twin-screw extruders).
Case Details

Name

Multi Stage cylindrical roller thrust bearings

Seires

Multi row cylindrical roller

Brand

MONTON

Model

M5CT3278

Old Designations

T5AR3278

d

32mm

D

78mm

H

137mm

Ring Material

Gcr15

Cage Material

Nylon/Aluminum

Load rating  Cr

442kN

Load rating  Cor

1397kN

Shaft Tolerance

f6

Weight

3.2KG

Design Structure

cylindrical roller

Precision

P5

Assembly

Each bearing to be accompanied by instructions for assembly of individual components.

Clearance

C0 or  as customer requirement

Quality standard

ISO9001: 2000/SGS RoHS ect.

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Stock

Application

Extruder Gearboxes
Counter-rotating twin screw extruders
Parallel twin-screw extruder for plastic pellets
Three screw extruder
oil expeller
