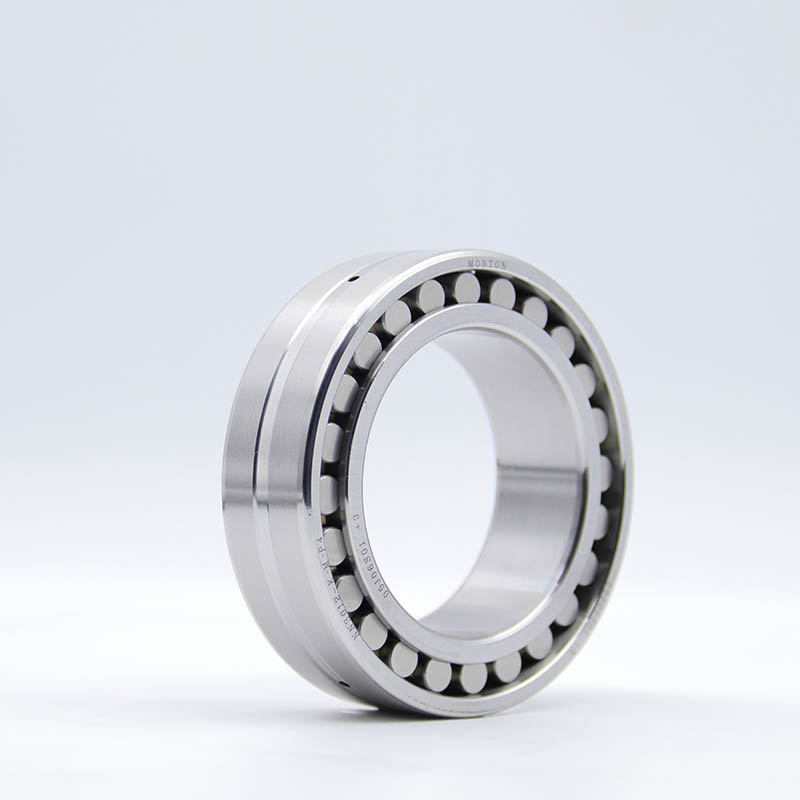

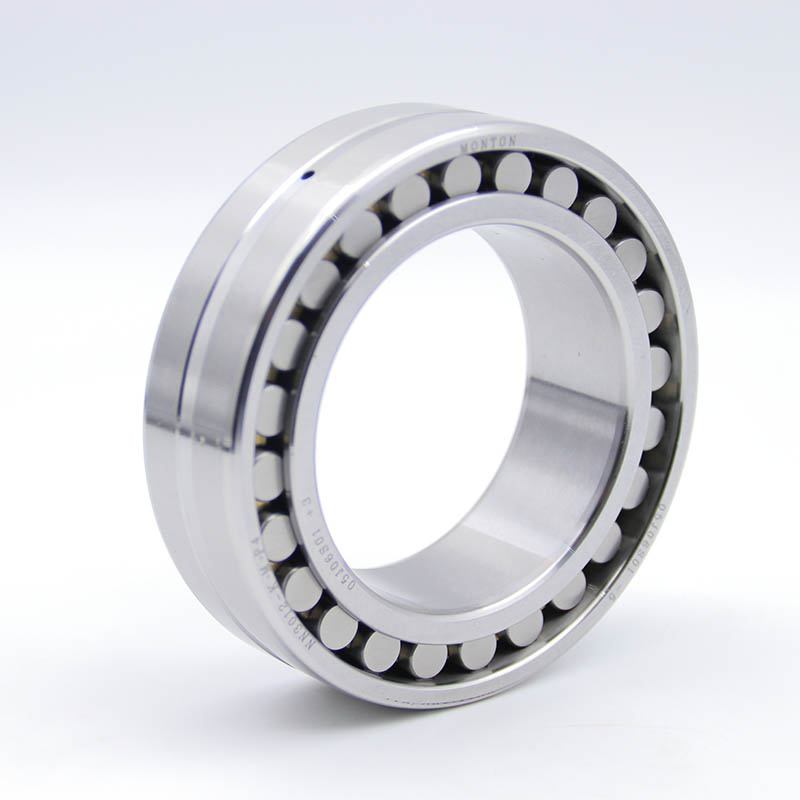

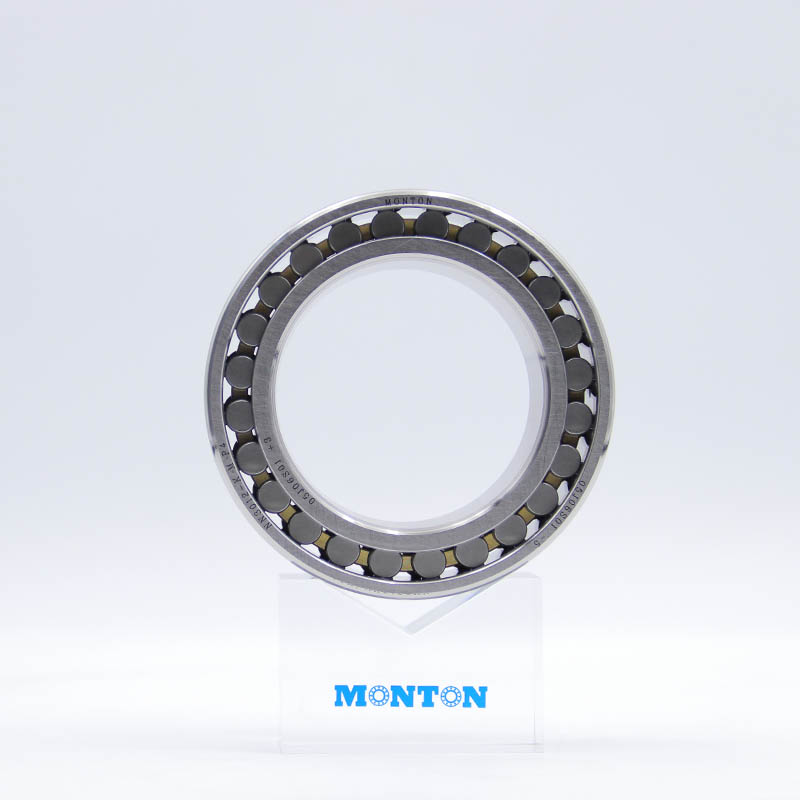

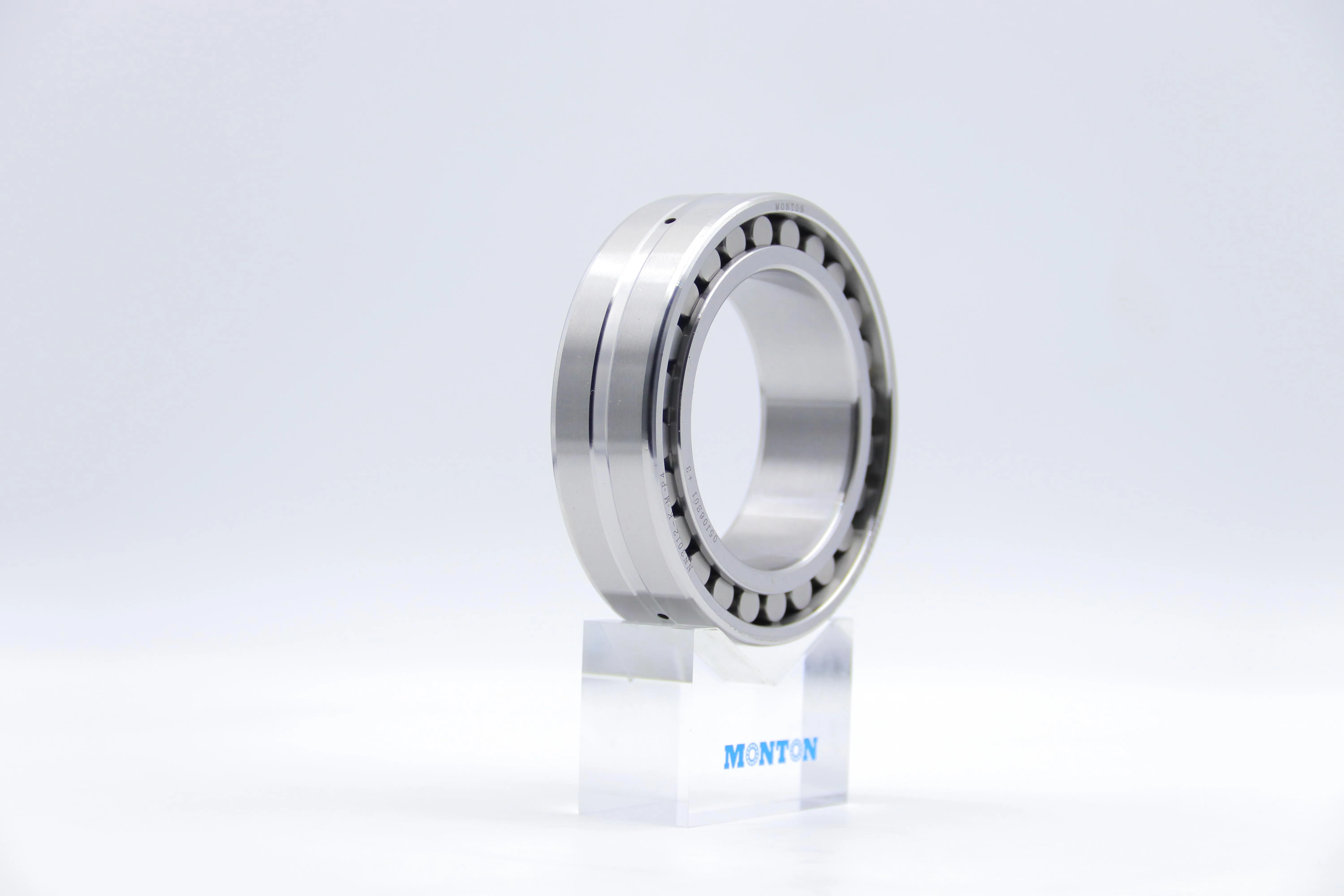

NN3017-K-M-SP High Precision Cylindrical Roller Bearing

The NN3017-K-M-SP precision double row cylindrical roller bearing produced by MONTON has a high radial load capacity, adopts a 1:12 taper design, uses brass or nylon retainers, and is suitable for high-precision rotating applications. For example, heavy-duty scenarios such as gear machining machines, industrial automation equipment, crimping machines, injection molding machines, concrete machinery, etc. Welcome to consult with us.

Case Details

Name	High Precision Cylindrical Roller Bearing
Brand	MONTON
Series	NN30
Model	NN3017-K-M-SP
Bore diameter	85mm
Outside diameter	130mm
B(width)	34mm
Bore:	1:12
Tolerance Class:	SP
Ring Material	Gcr15 Bearing steel
Cage Material	Brass /Nylon
Basic dynamic load rating, axial Cr	138,000 N
Basic static load rating, axial Cor	183,000 N
Limiting speed for Grease lubrication	8,200 1/min
Limiting speed for oil lubrication	9,700 1/min
Fatigue load limit, radial Cur	27,500 N
Sealed	Open
Weight	1.5KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
