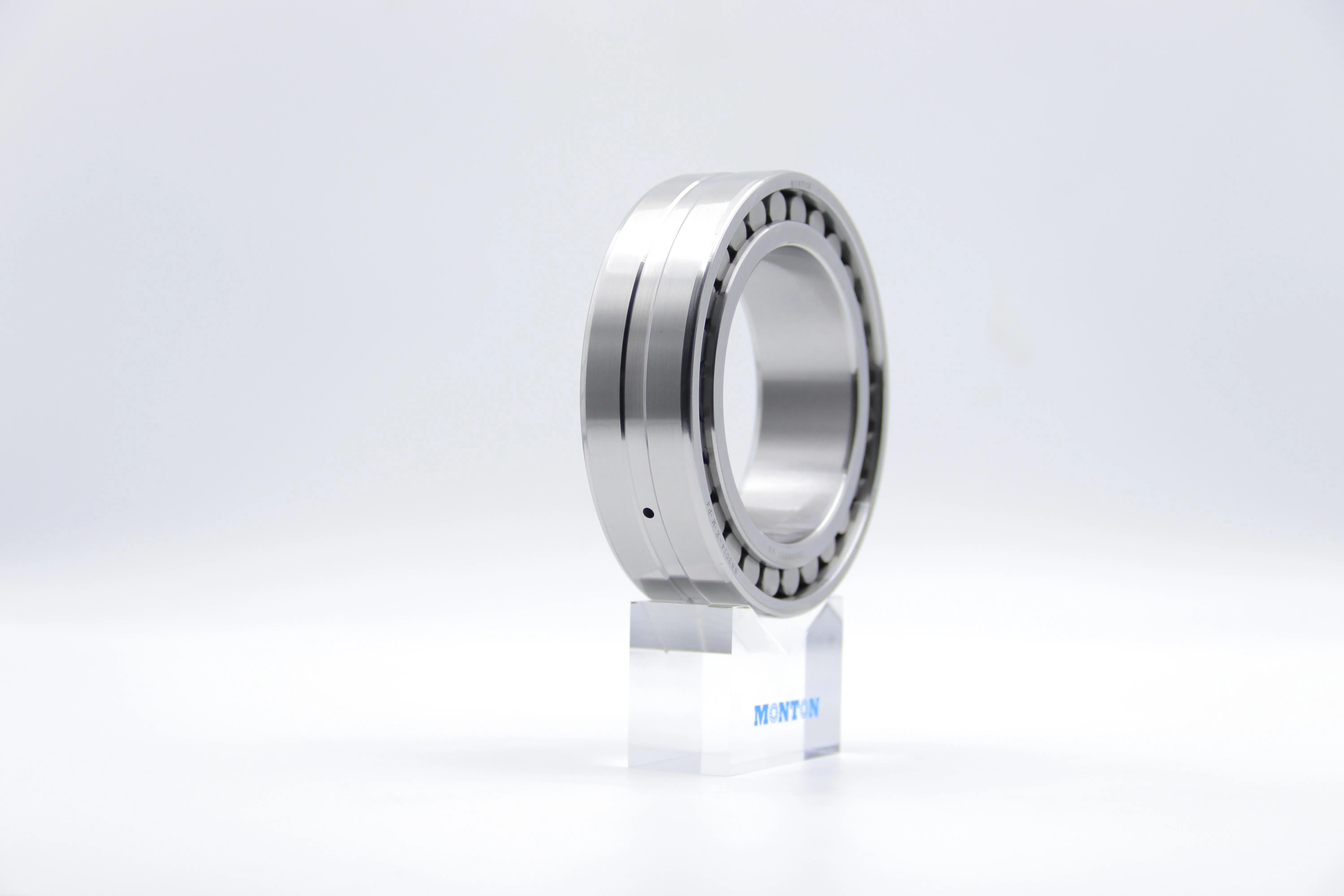

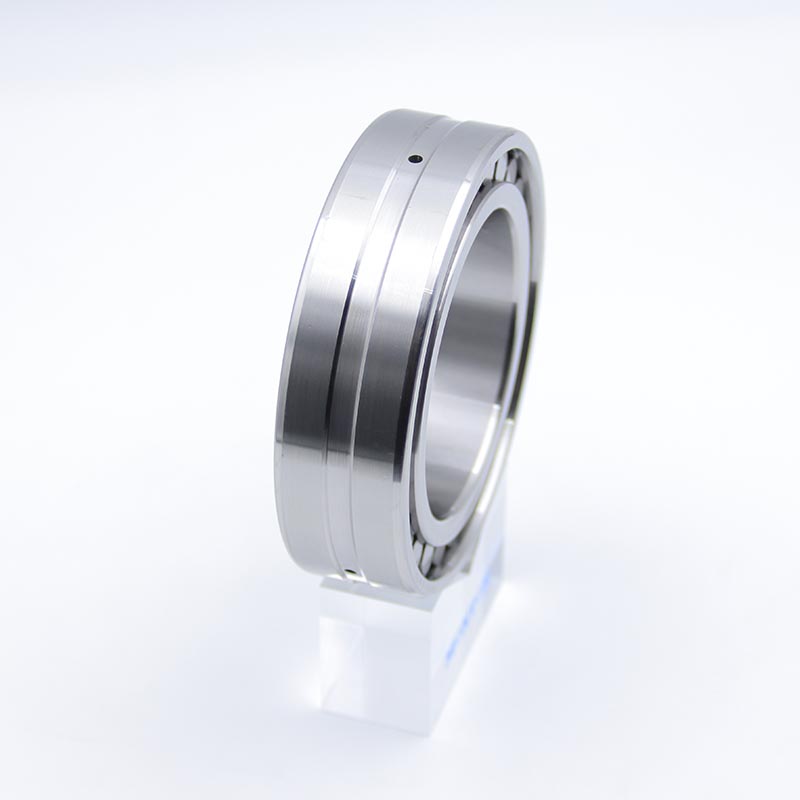

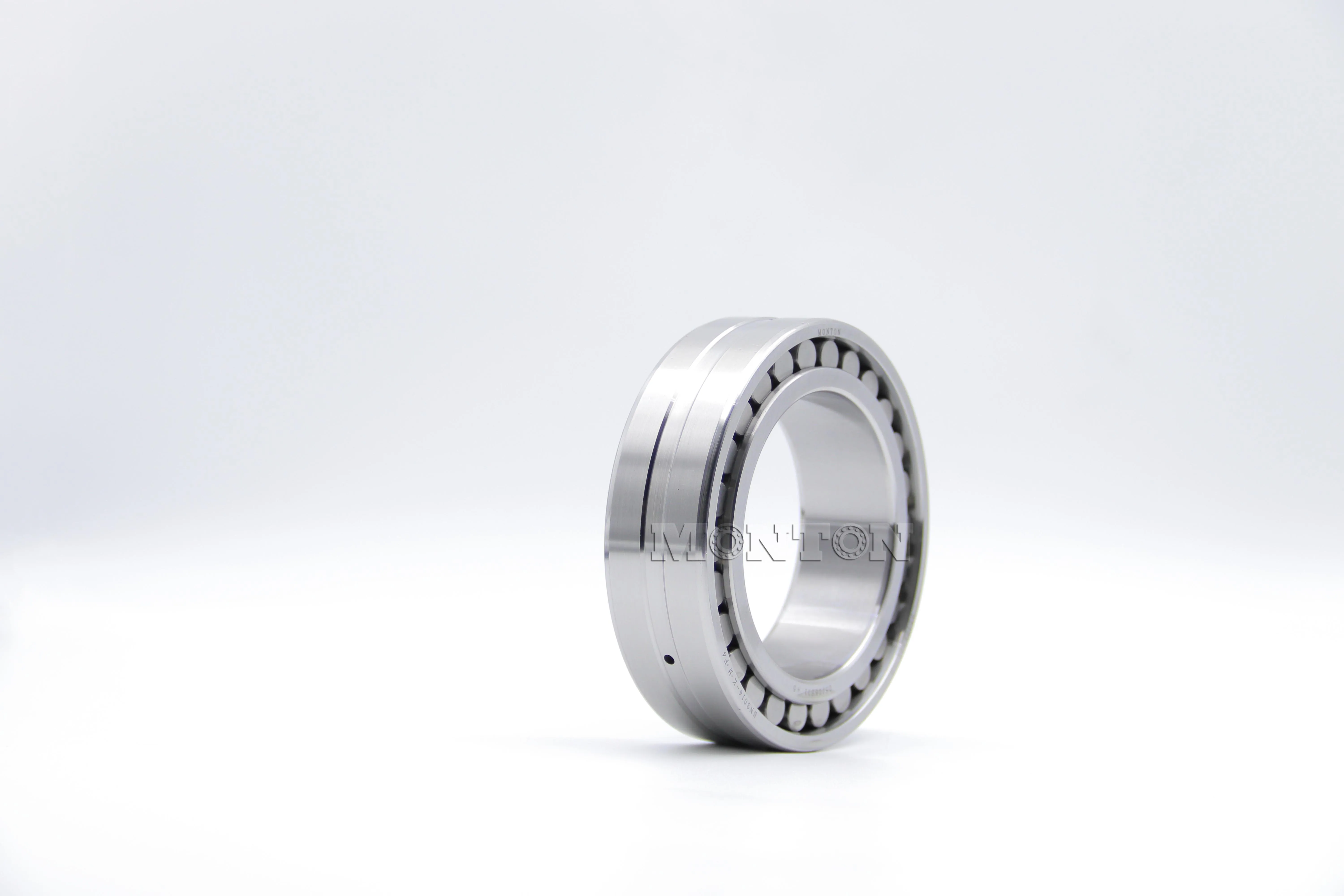

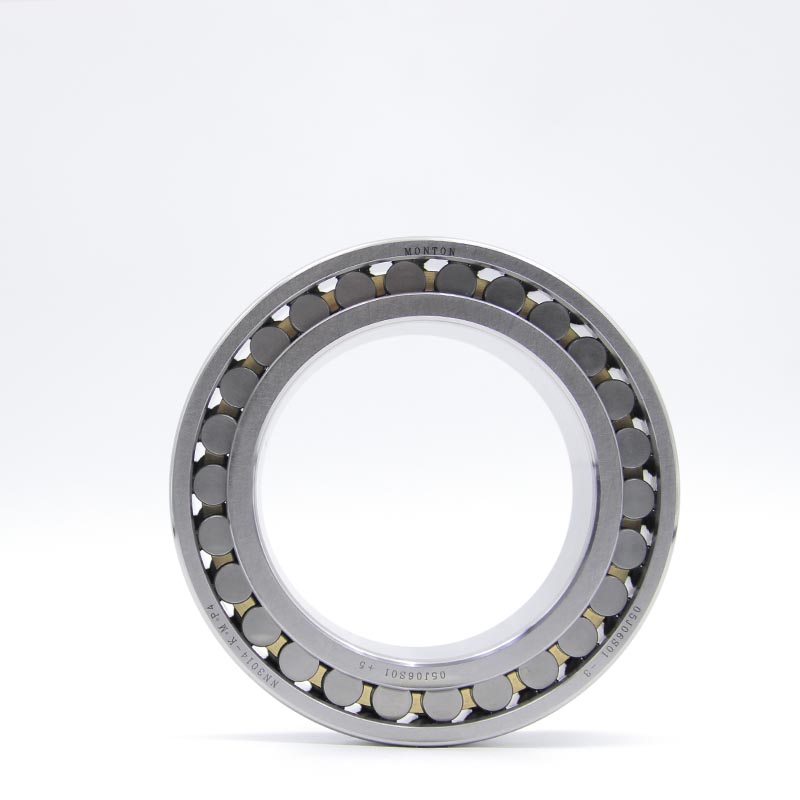

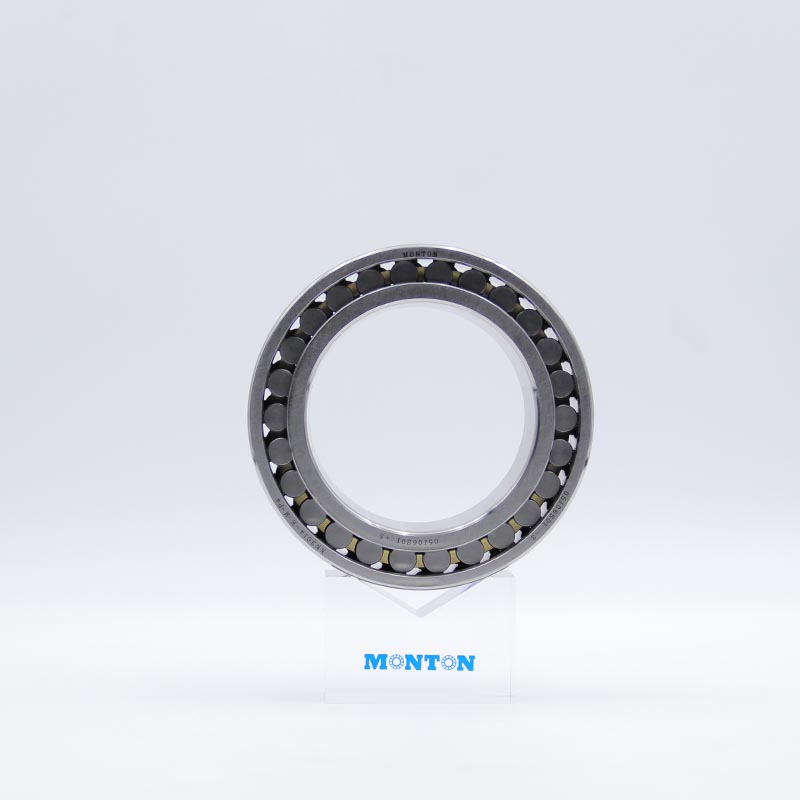

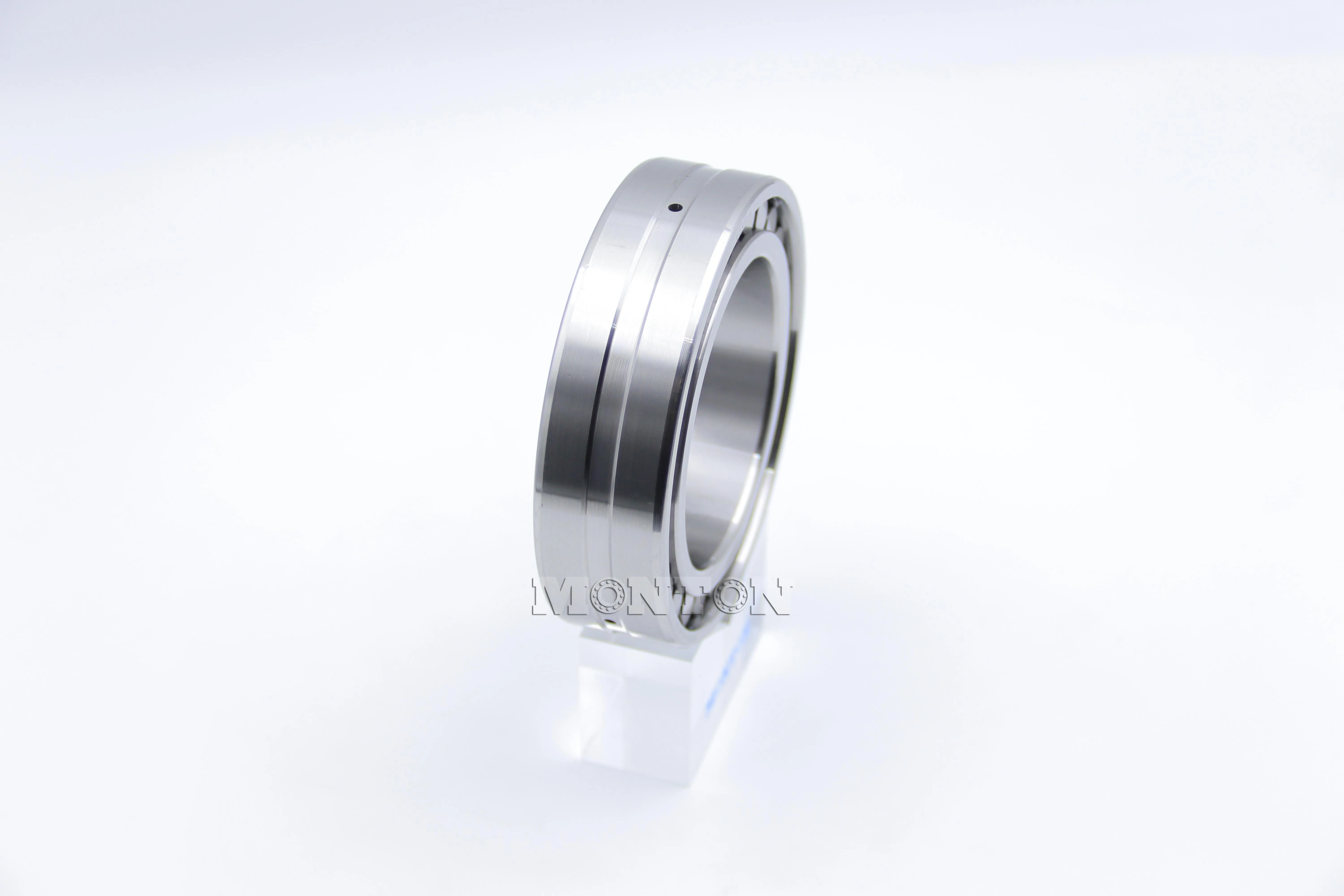

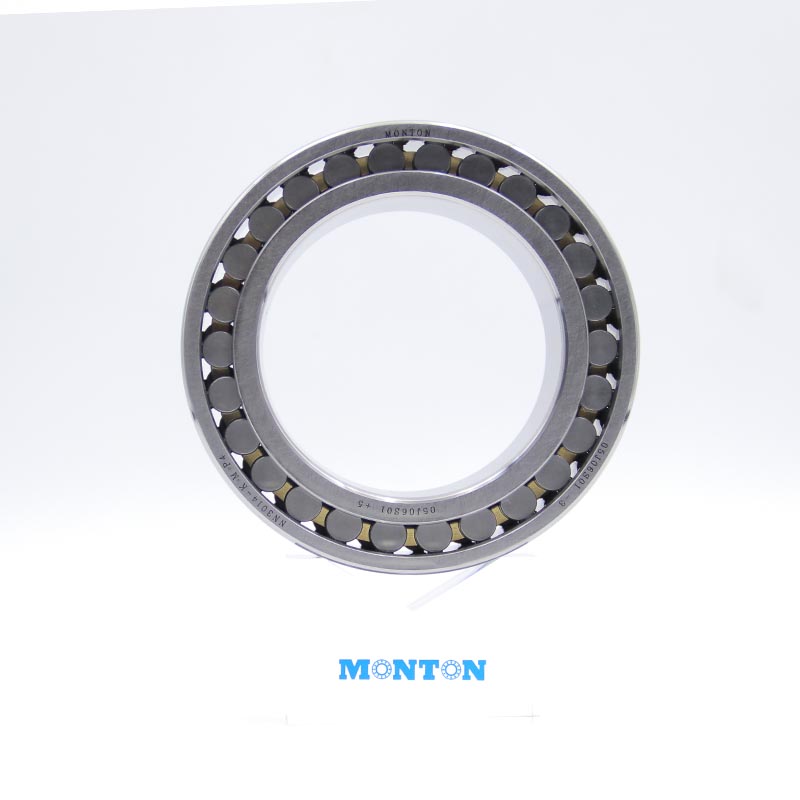

NN3014-K-M-P4 High Precision Cylindrical Roller Bearing

The high-precision cylindrical roller bearing NN3014-K-M-P4 meets the highest demands. It is both highly radial loadable and very precisely manufactured, making it suitable for applications with special requirements. Super precision cylindrical roller bearings NN30 series, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage.

Case Details

Name	High Precision Cylindrical Roller Bearing
Brand	MONTON
Series	NN30
Model	NN3014-K-M-P4
Bore diameter	70mm
Outside diameter	110mm
B(width)	30mm
Bore:	1:12
Tolerance Class:	P4
Ring Material	Gcr15 Bearing steel
Cage Material	Brass /Nylon
Basic dynamic load rating, axial Cr	113,000 N
Basic static load rating, axial Cor	145,000 N
Limiting speed for Grease lubrication	9,700 1/min
Limiting speed for oil lubrication	11,400 1/min
Fatigue load limit, radial Cur	21,200 N
Sealed	Open
Weight	1.4KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
