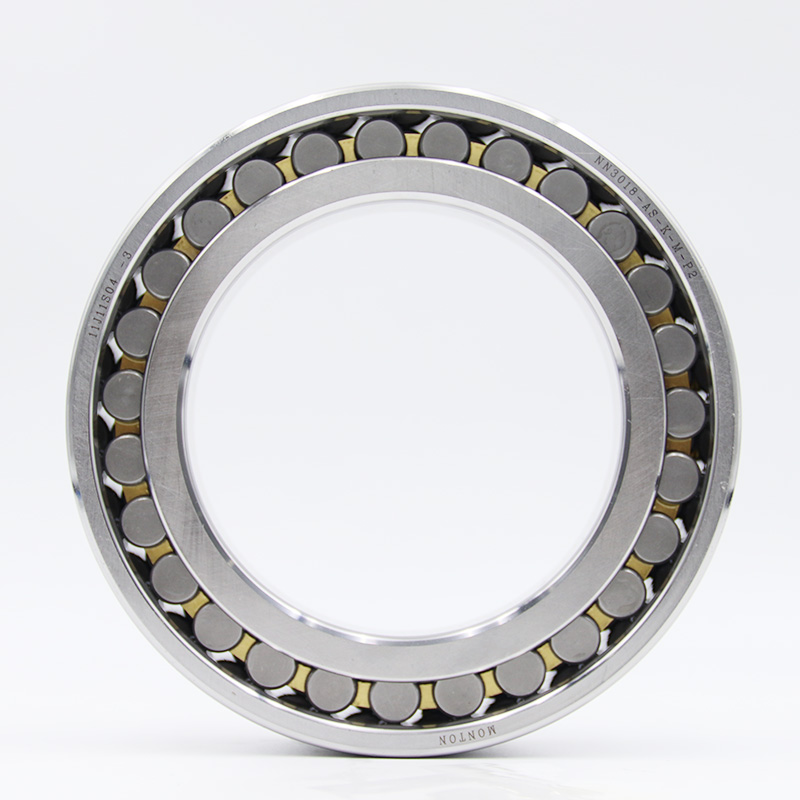

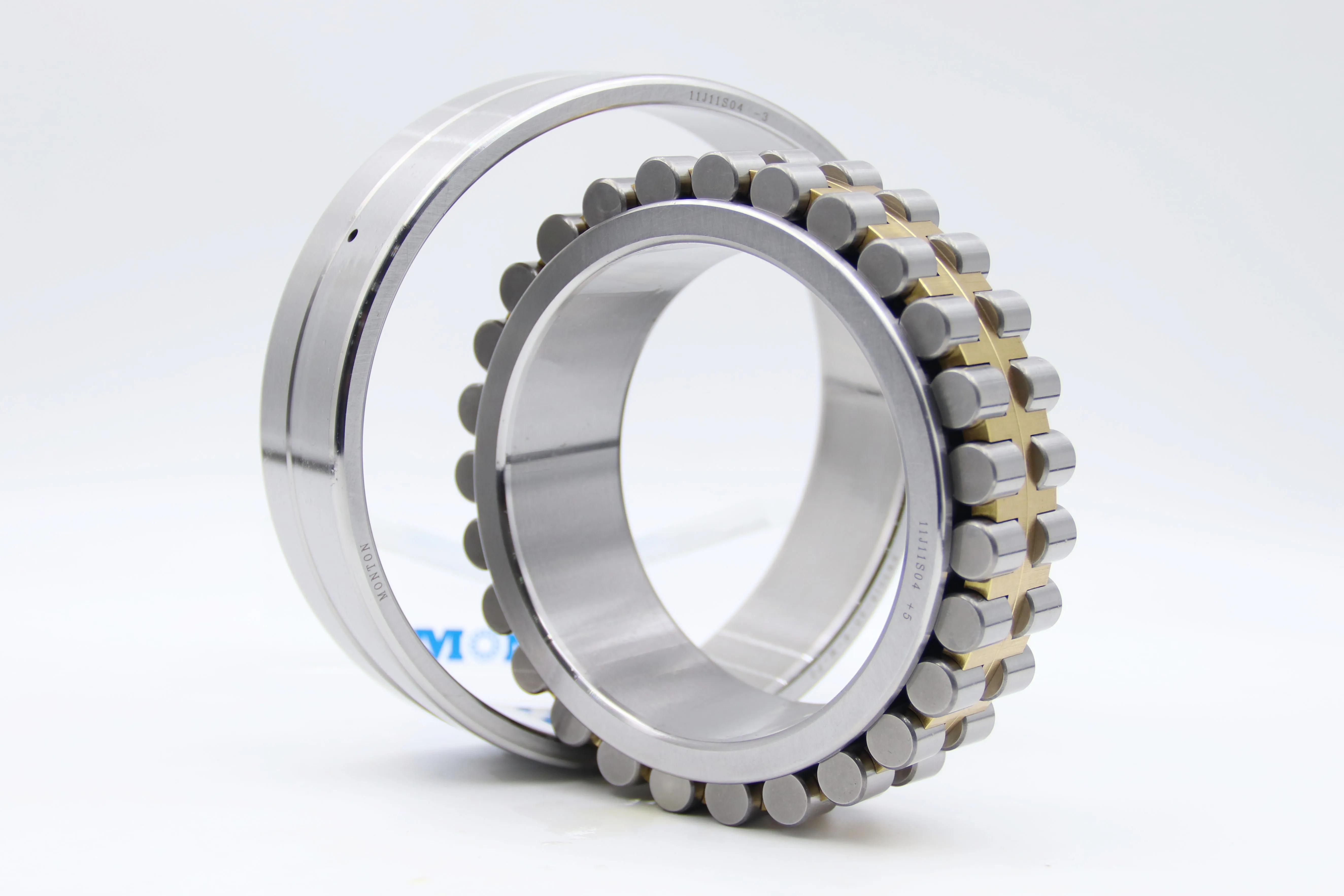

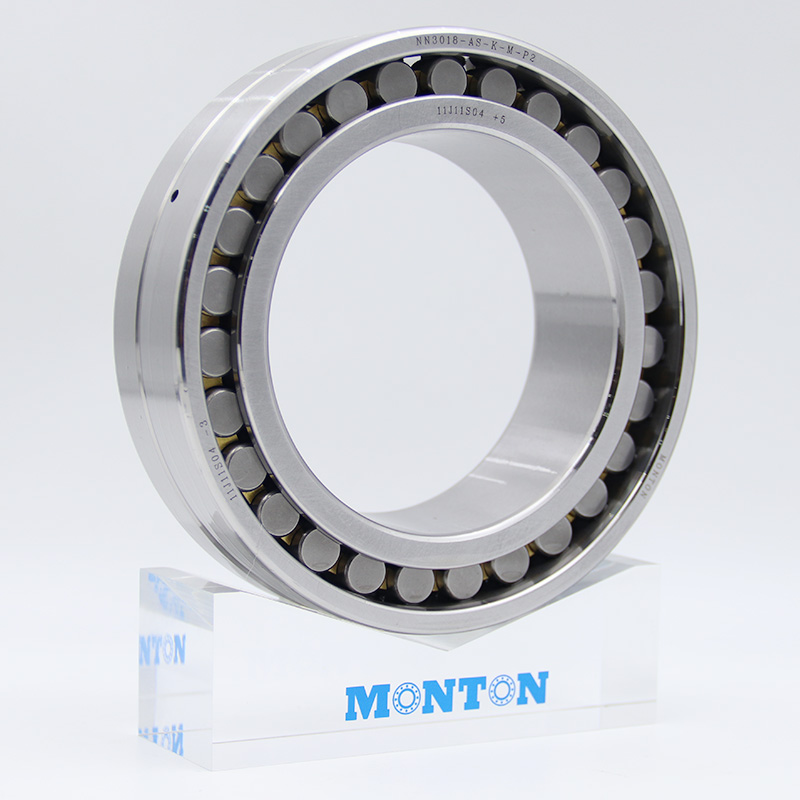

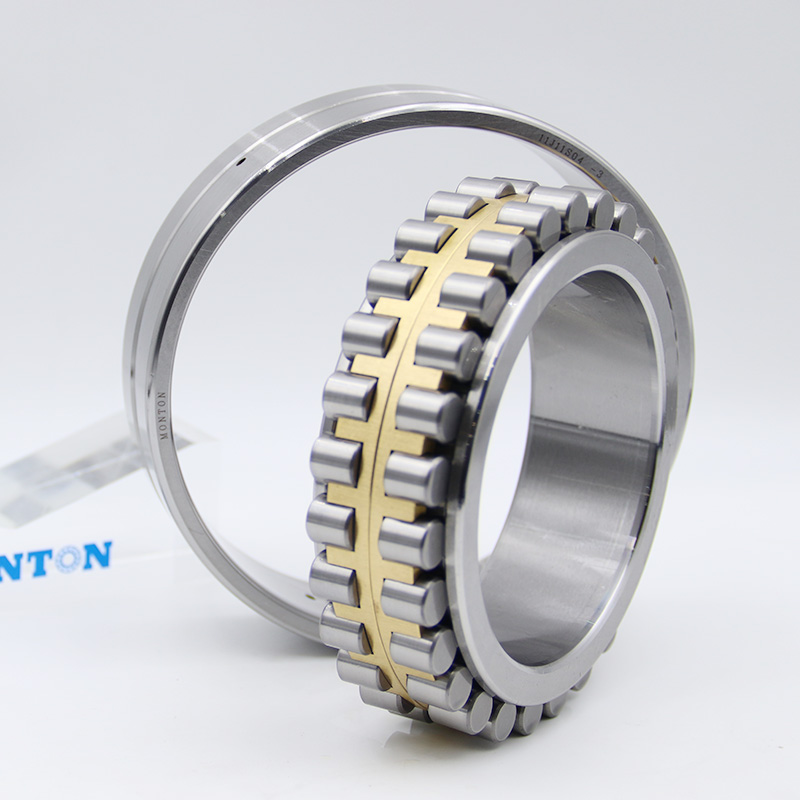

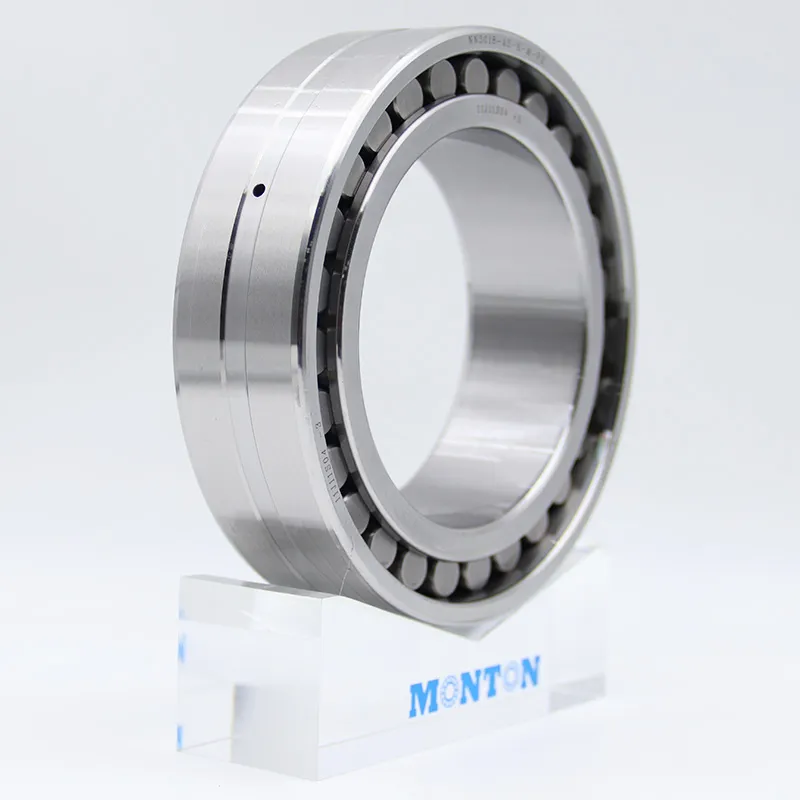

NN3018-AS-K-M-P2 High Precision Cylindrical Roller Bearing

NN3018-AS-K-M-P2 bearing is a double row cylindrical roller bearing that mainly bears radial loads and has a better load-bearing capacity than deep groove ball bearings of the same size. NN3018-AS-K-M-P2 has a taper of 1:12, making it easy to install and adjust. It is suitable for high-speed rotating applications and usually uses a polyamide formed cage made of high carbon chromium bearing steel. Mainly used for machine tool spindles, medical equipment, power generation equipment, plastic and rubber industry, steelmaking equipment, printing machinery, reducers, etc.

Case Details

Name	High Precision Cylindrical Roller Bearing
Brand	MONTON
Series	NN30
Model	NN3018-AS-K-M-P2
Bore diameter	90mm
Outside diameter	140mm
B(width)	37mm
Taper Bore	1:12
Precision	P2
Ring Material	Gcr15 Bearing steel
Cage Material	Brass /Nylon
Basic dynamic load rating, axial Cr	140KN
Basic static load rating, axial Cor	224KN
Limiting speed for Grease lubrication	5600 1/min
Limiting speed for oil lubrication	6700 1/min
Fatigue load limit, radial Cur	33.5KN
Sealed	Open
Weight	1.93KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
