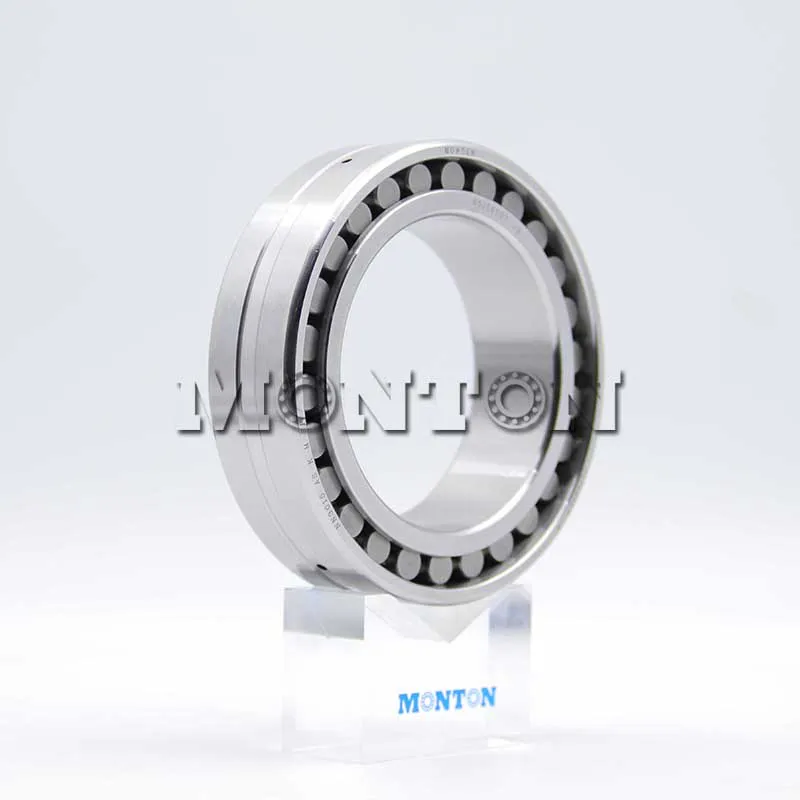

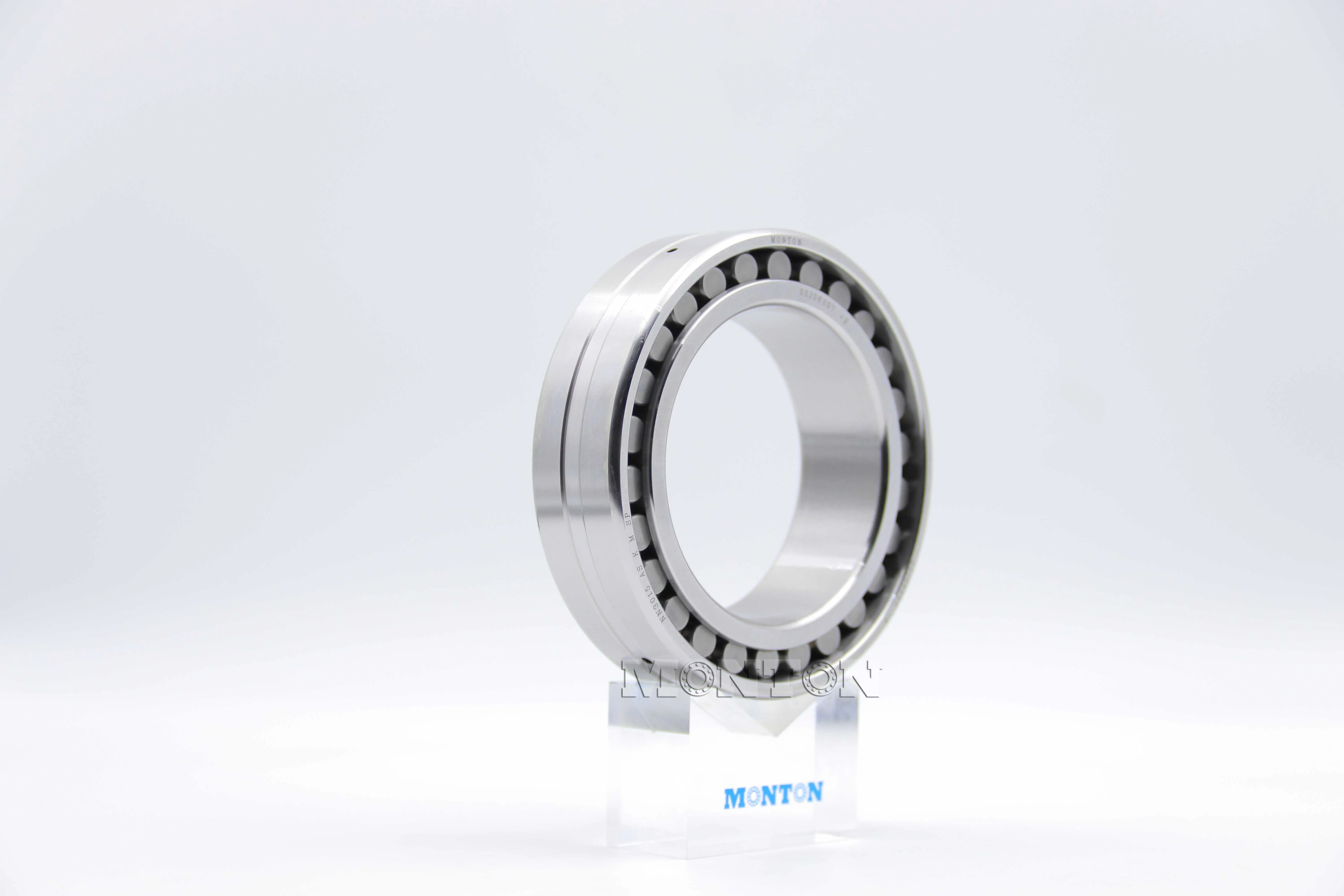

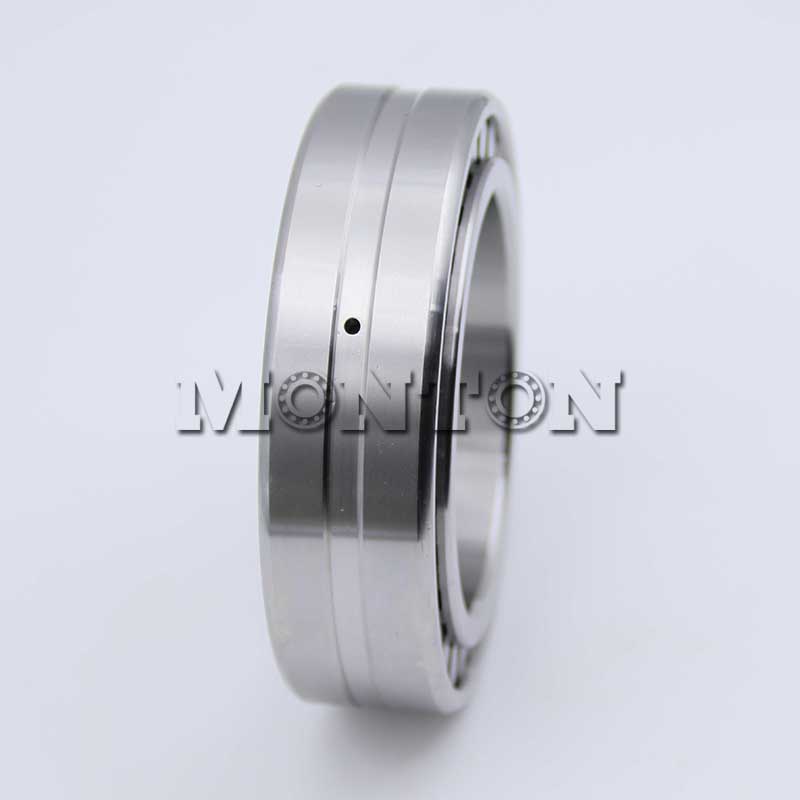

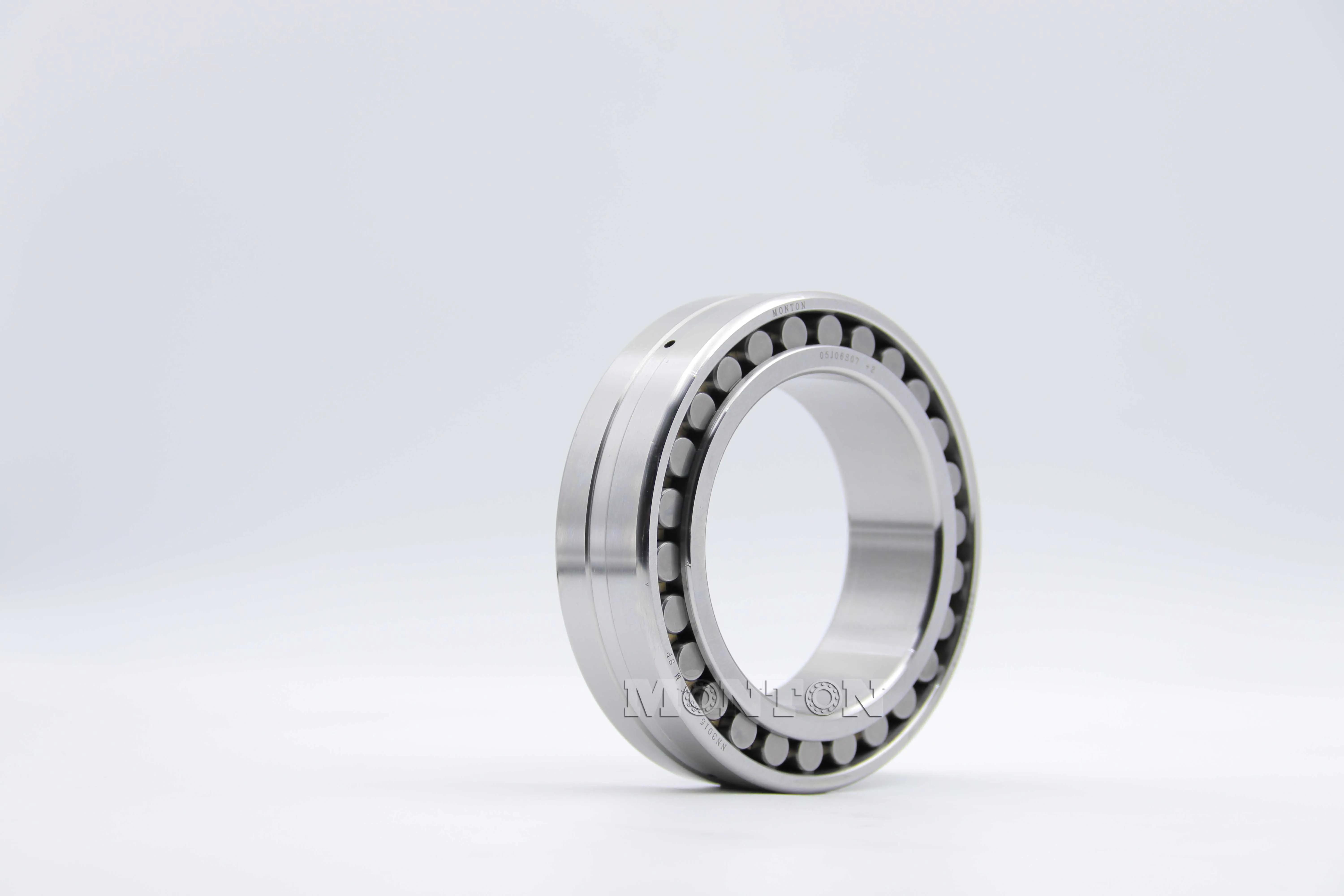

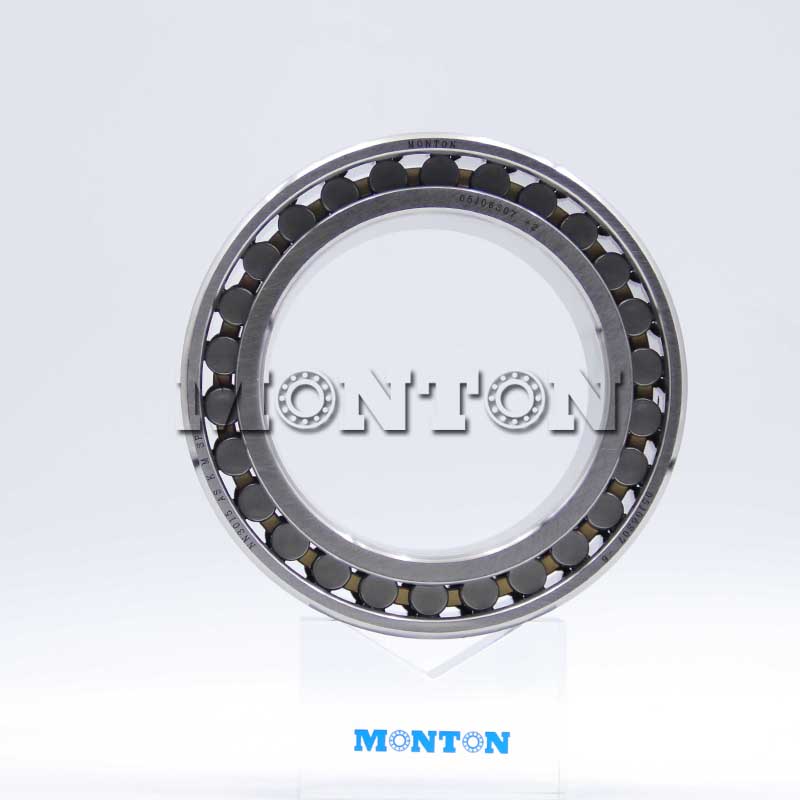

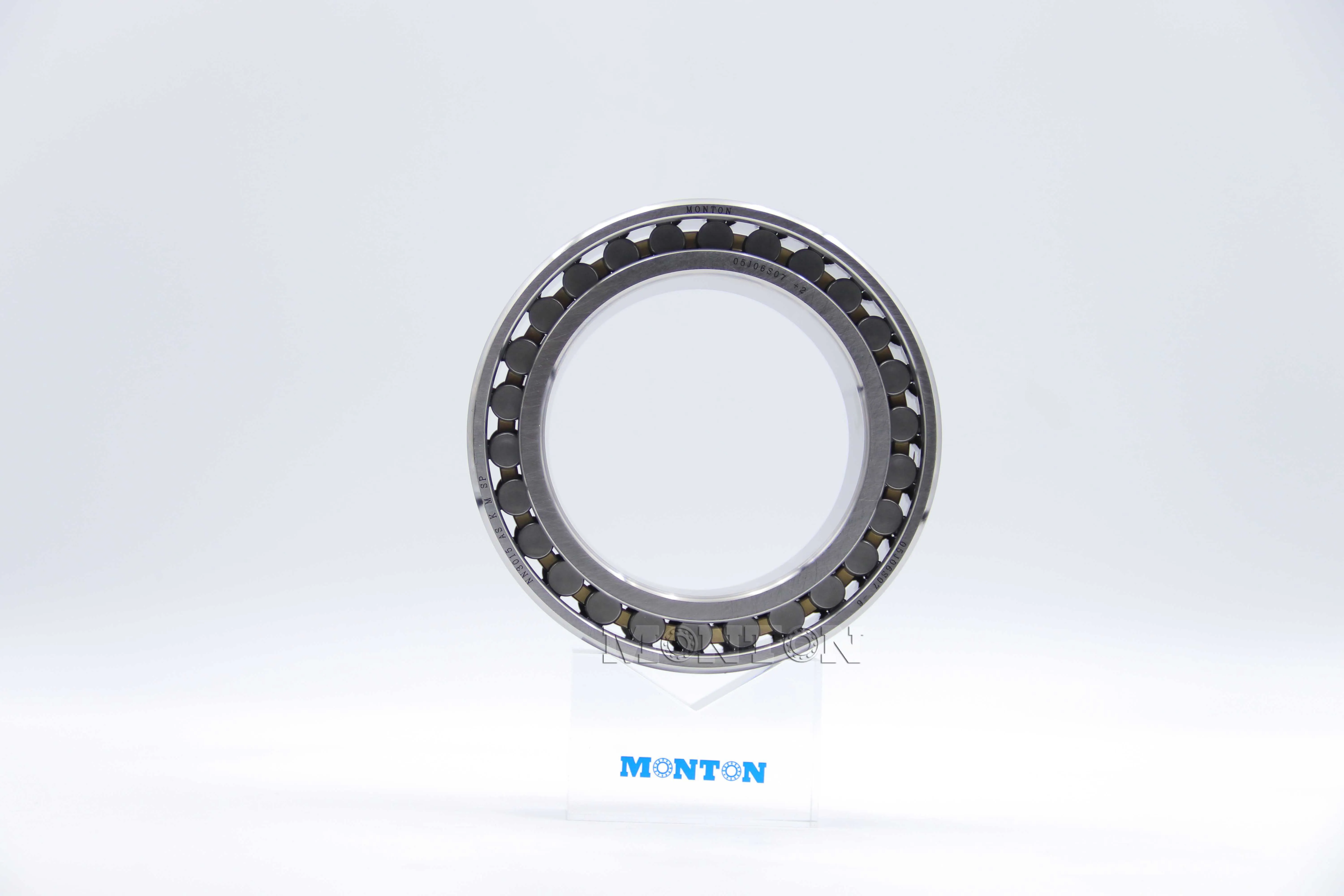

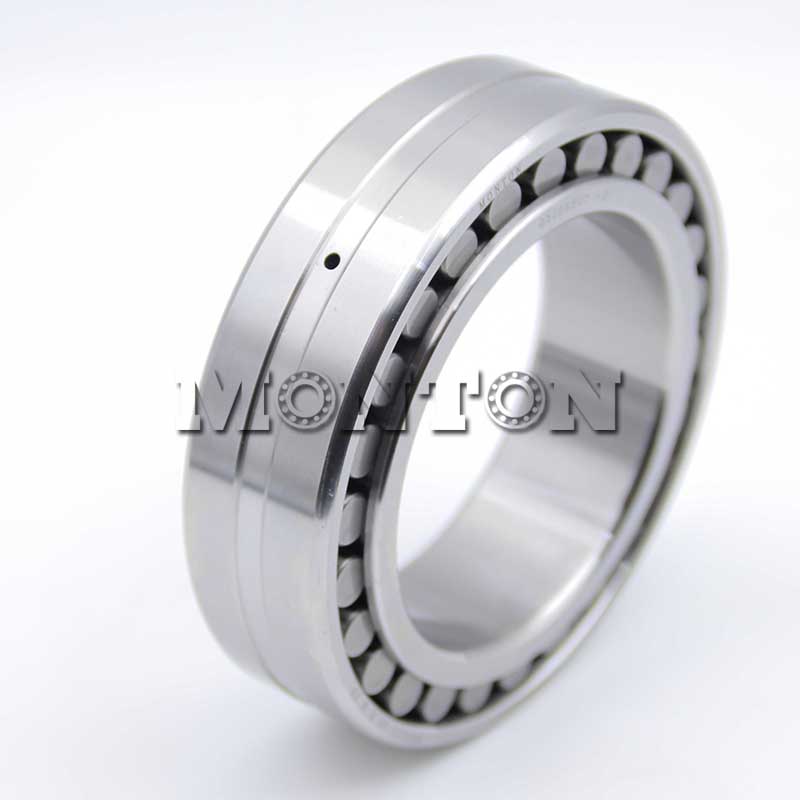

Super precision cylindrical roller bearings
|
Name |
High Precision Cylindrical Roller Bearing |
|
Brand |
MONTON |
|
Series |
NN30 |
|
Model |
NN3015-AS-K-M-SP |
|
Bore diameter |
75mm |
|
Outside diameter |
115mm |
|
B(width) |
30mm |
|
Bore: |
1:12 |
|
Tolerance Class: |
ABEC 5 / P5 |
|
Ring Material |
Gcr15 Bearing steel |
|
Cage Material |
Brass /Nylon |
|
Basic dynamic load rating, axial Cr |
100 000 N |
|
Basic static load rating, axial Cor |
156 000 N |
|
Limiting speed for Grease lubrication |
6700 1/min |
|
Limiting speed for oil lubrication |
8000 1/min |
|
Rigidity |
1730 Nμm |
|
Sealed |
Open |
|
Weight |
1.1KG |
|
Quality standard |
ISO9001: 2000/SGS |
|
Package |
single box |
|
Original |
Luoyang |
|
Service |
OEM |
|
Delivery date |
Accordingly |
|
Application |
Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc |
