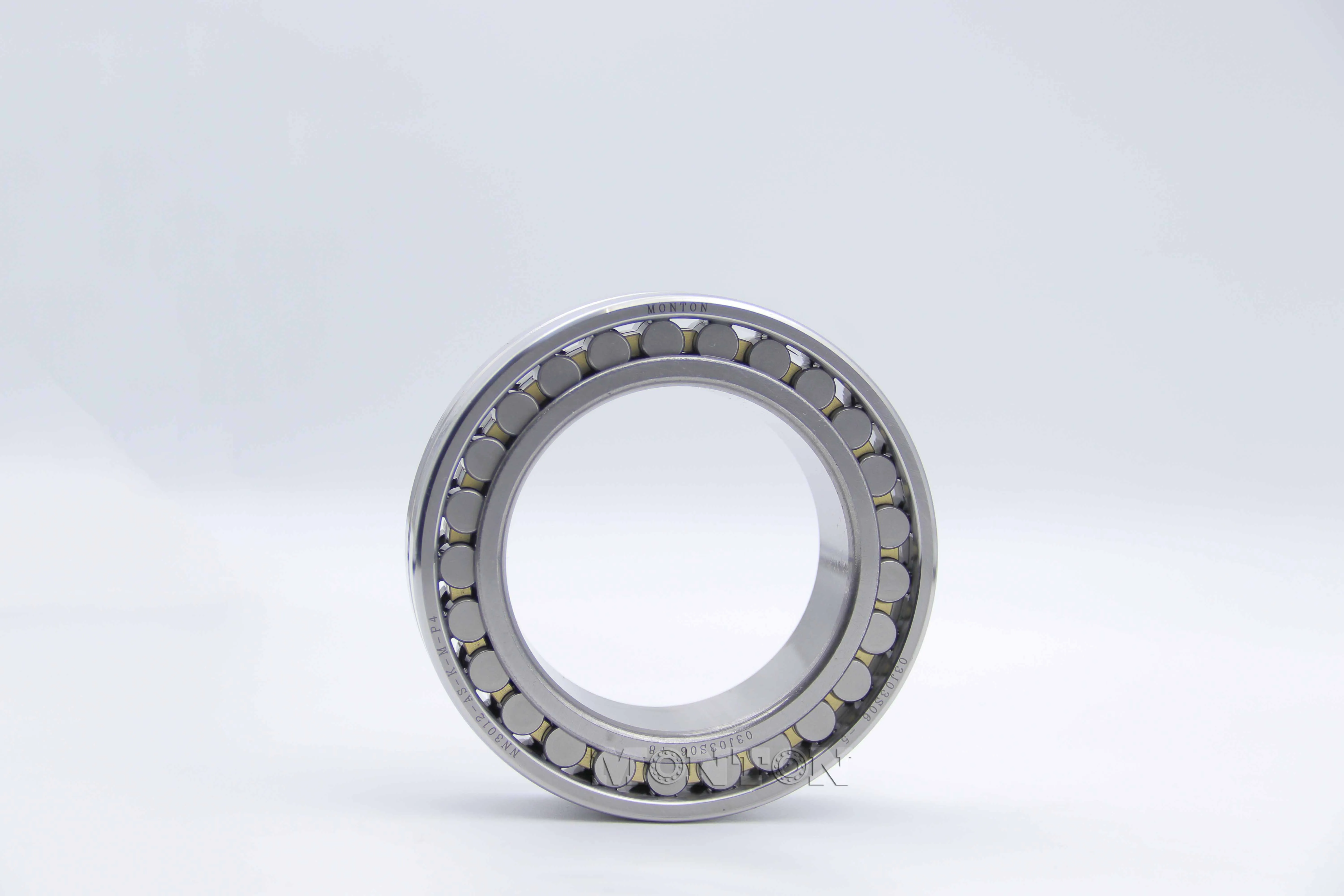

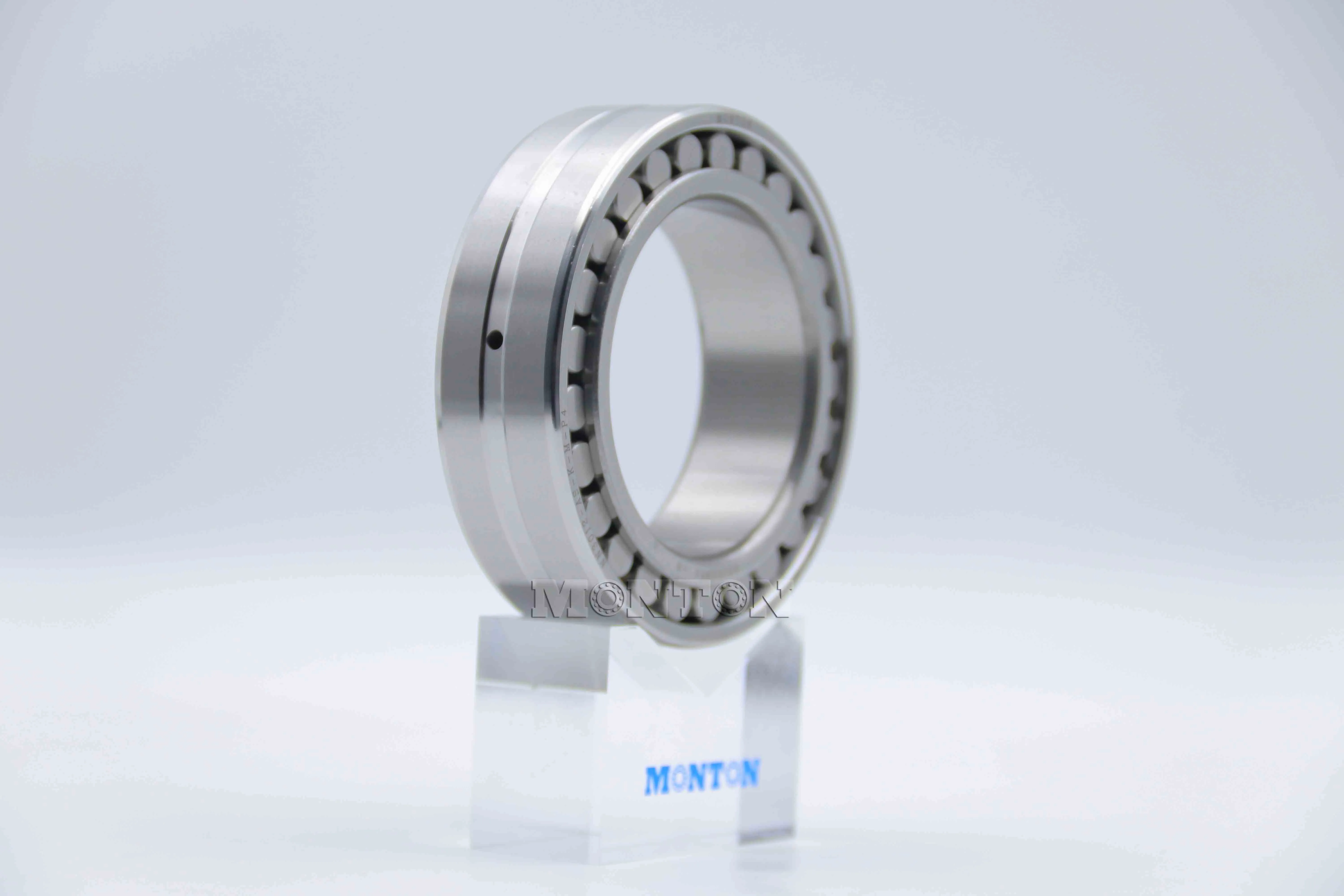

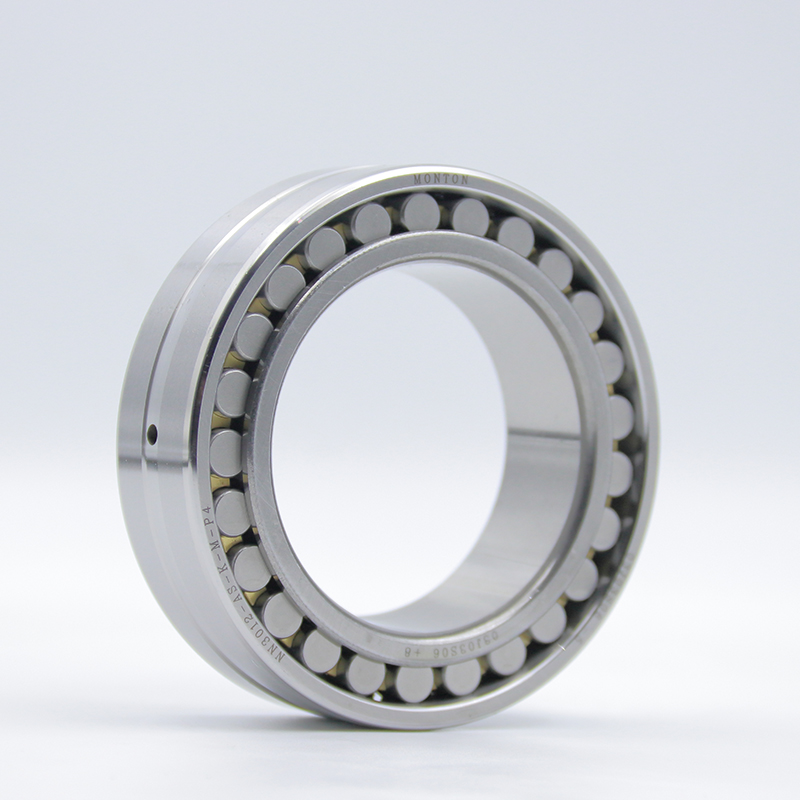

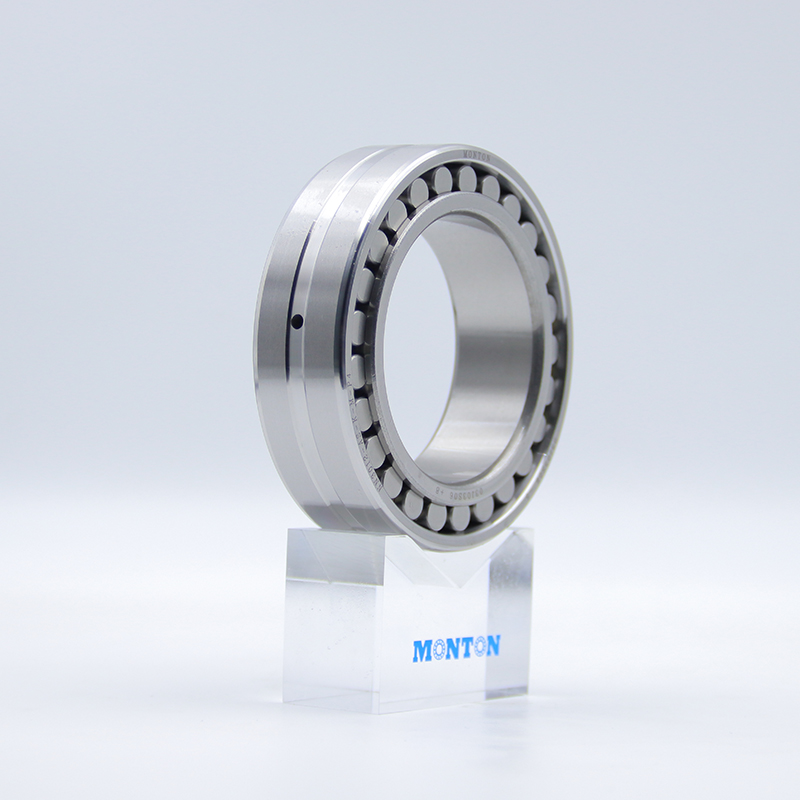

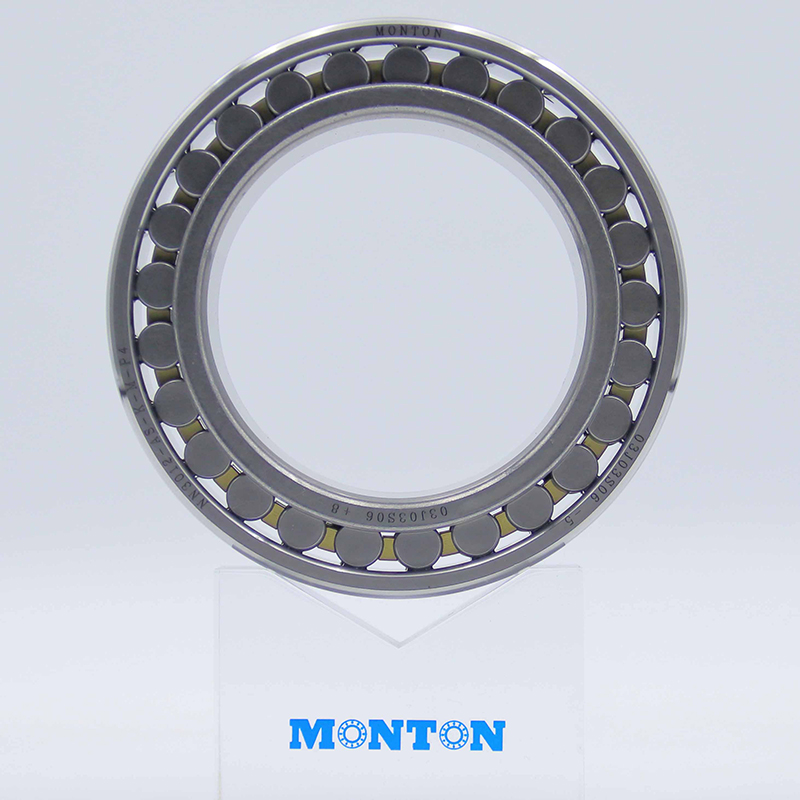

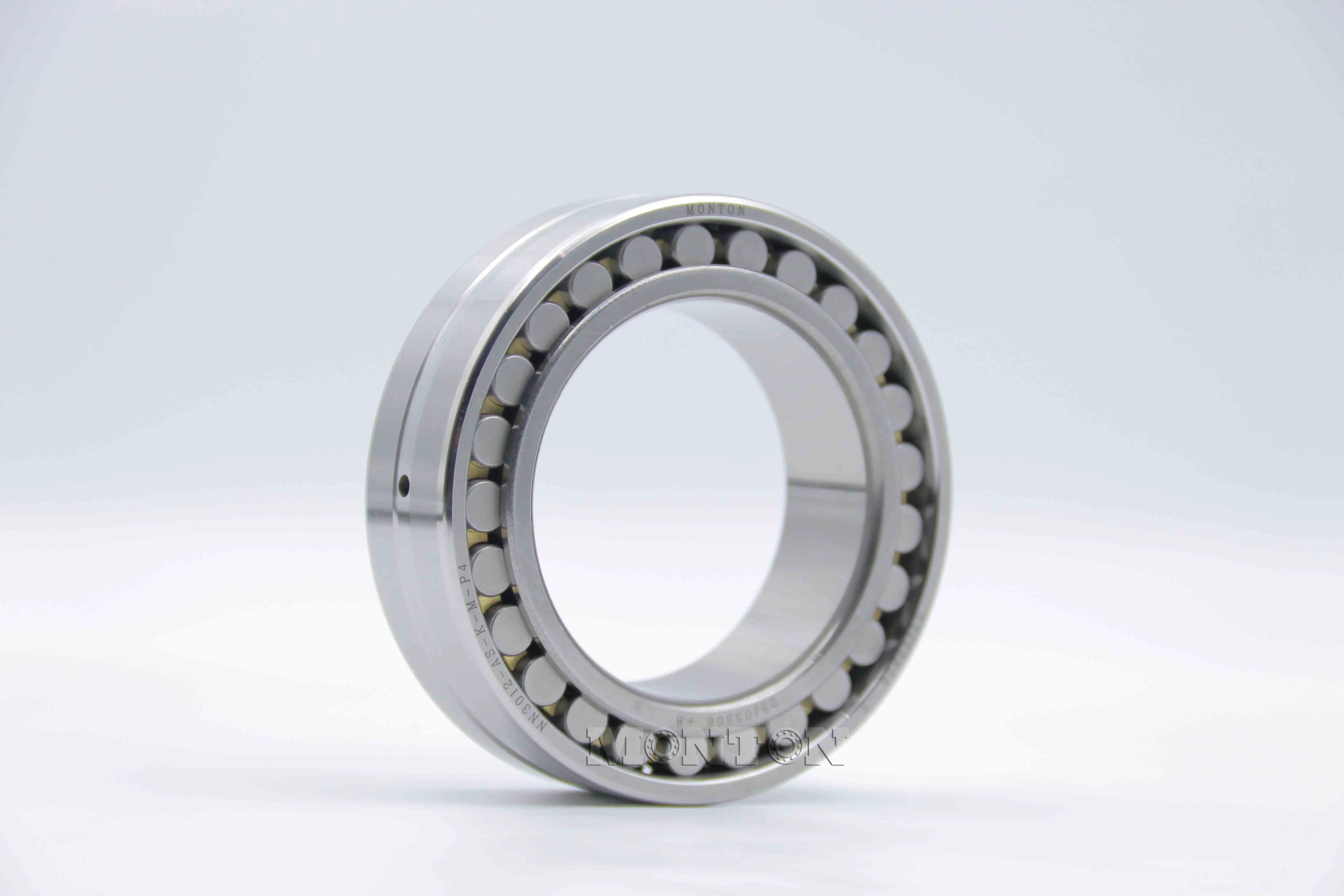

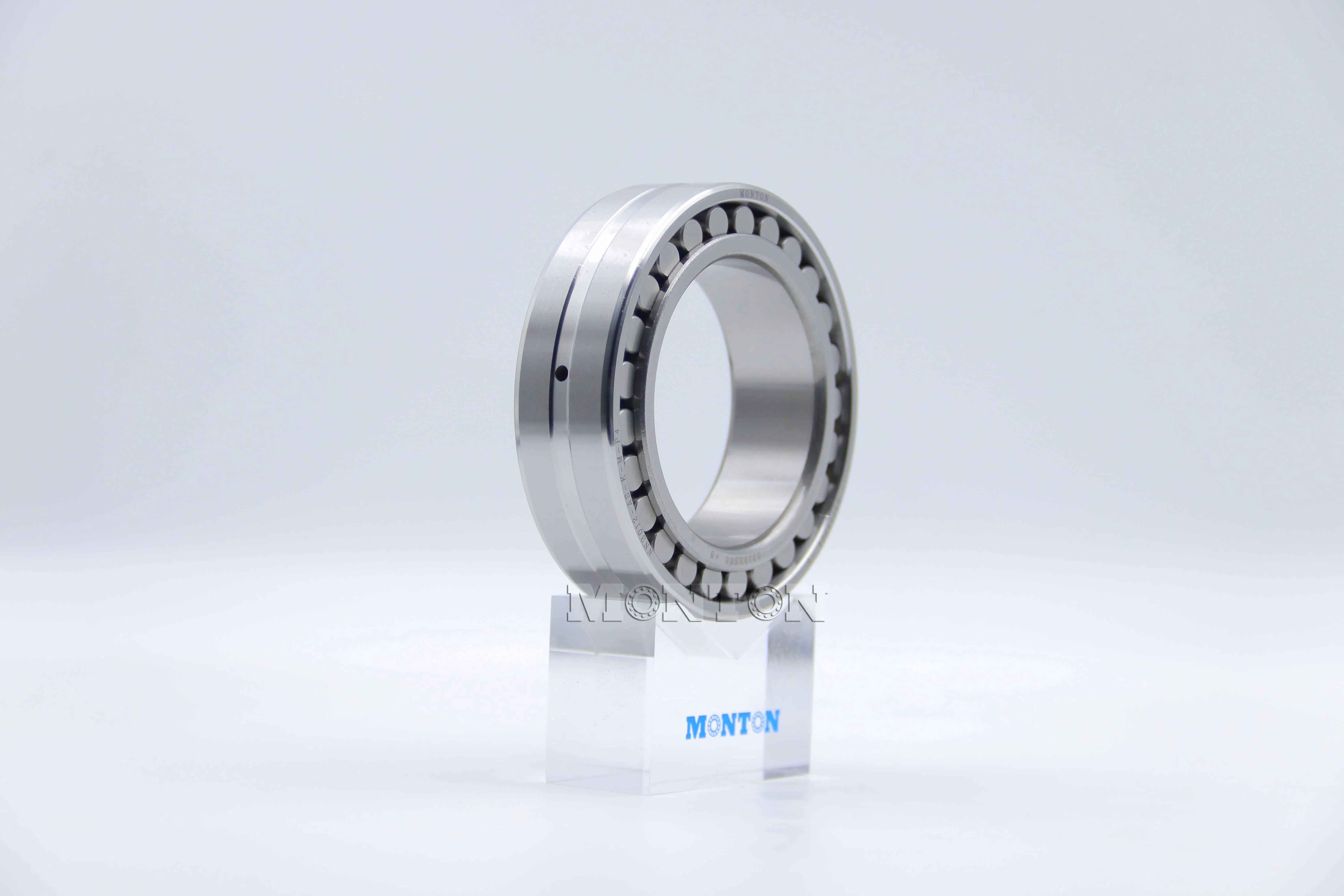

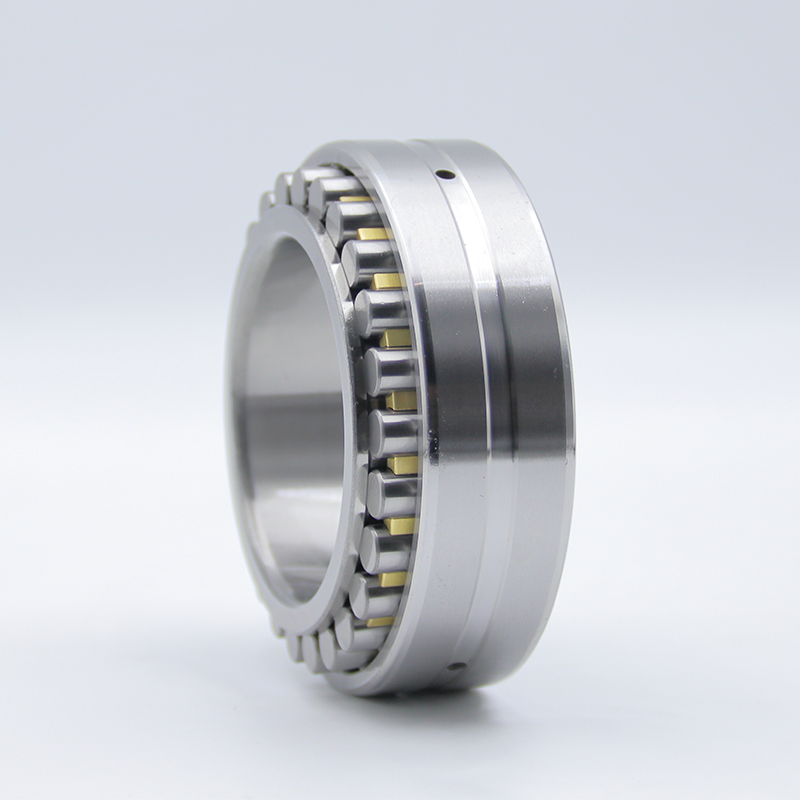

NN3012-AS-K-M-P4 Super precision cylindrical roller bearings

NN3012-AS-K-M-P4 double row cylindrical roller bearings are suitable for high radial load scenarios and are commonly used in machine tool spindles, gearboxes, and other equipment. AS： The outer ring is equipped with lubrication grooves and oil holes to enhance high-speed performance and load-bearing capacity, K： Representing a conical hole (taper 1:12), it is convenient for installation adjustment and pre tightening force control, M： Machine cut brass retainer, P4： The accuracy level is P4 (ISO standard), with high rotational accuracy (radial runout ≤ 5 μ m). The NN30 series is suitable for precision machine tools or high-precision equipment.

Case Details

Name	Super precision cylindrical roller bearings
Brand	MONTON
Model	NN3012-AS-K-M-P4
Bore diameter	60mm
Outside diameter	95mm
B(width)	26mm
Ring Material	Gcr15 Bearing steel
Cage Material	Brass cage
dynamic load rating, radial Cr	87000N
static load rating, radial Cor	106000 N
Fatigue load limit, radial Cur	17400N
Limiting speed for grease lubrication nG Grease	11,300 1/min
Limiting speed for oil lubrication nG Oil	13,300 1/min
tapered bore	1:12 separable, with cage
Weight	1.7KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Machining center spindle Machine tool spindle High speed milling machine spindle Lathe spindle Woodworking machine spindle
