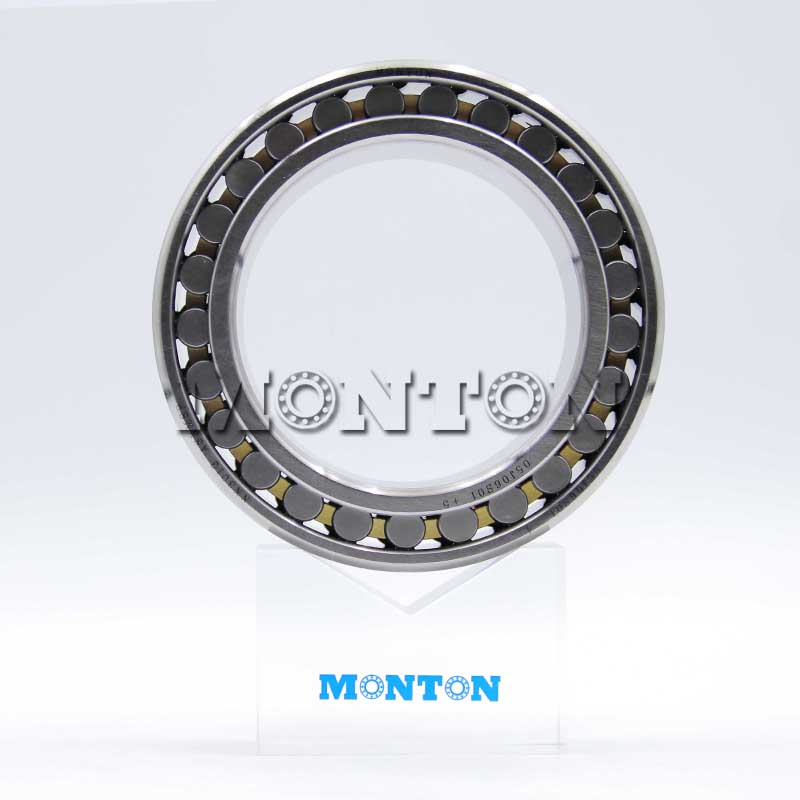

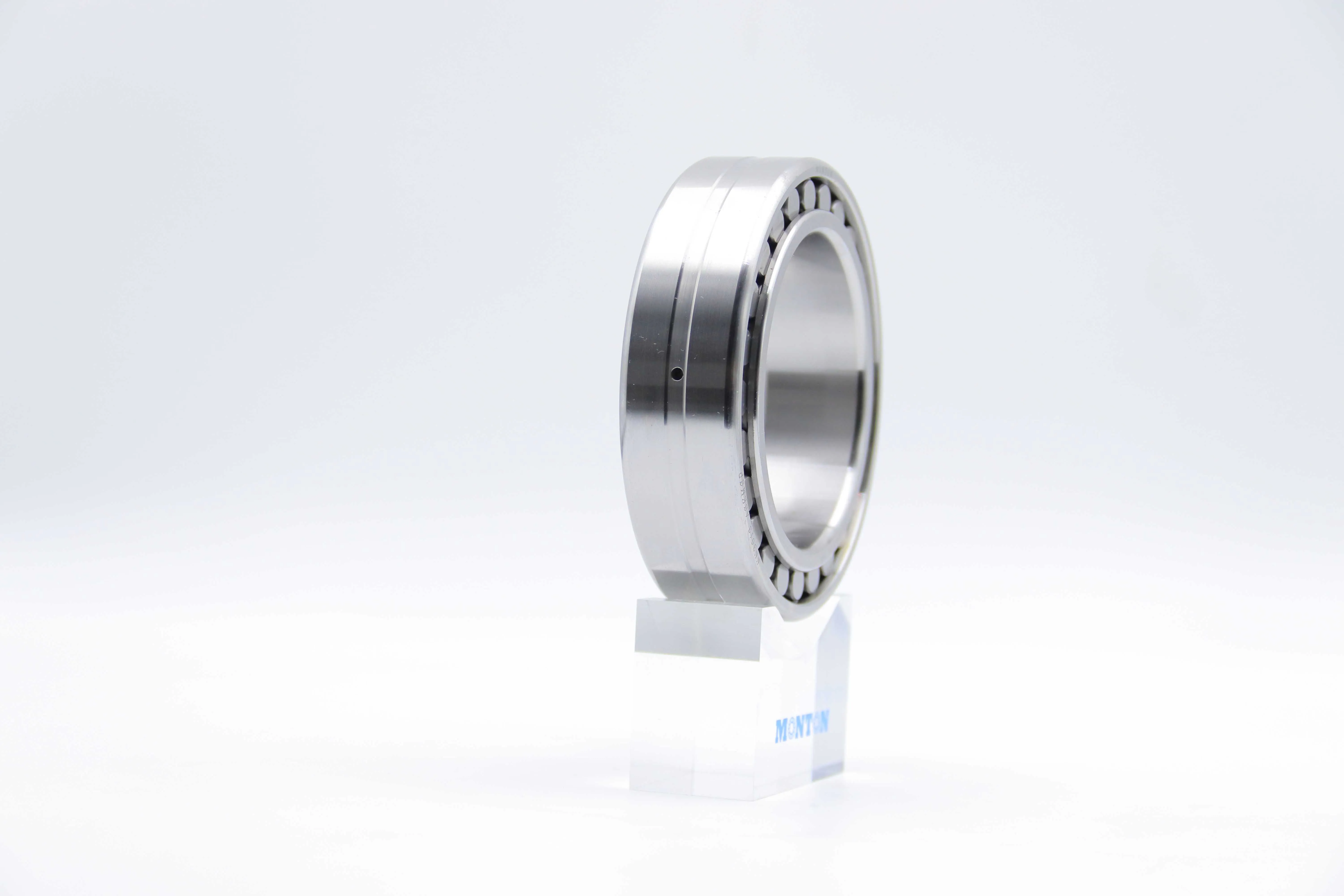

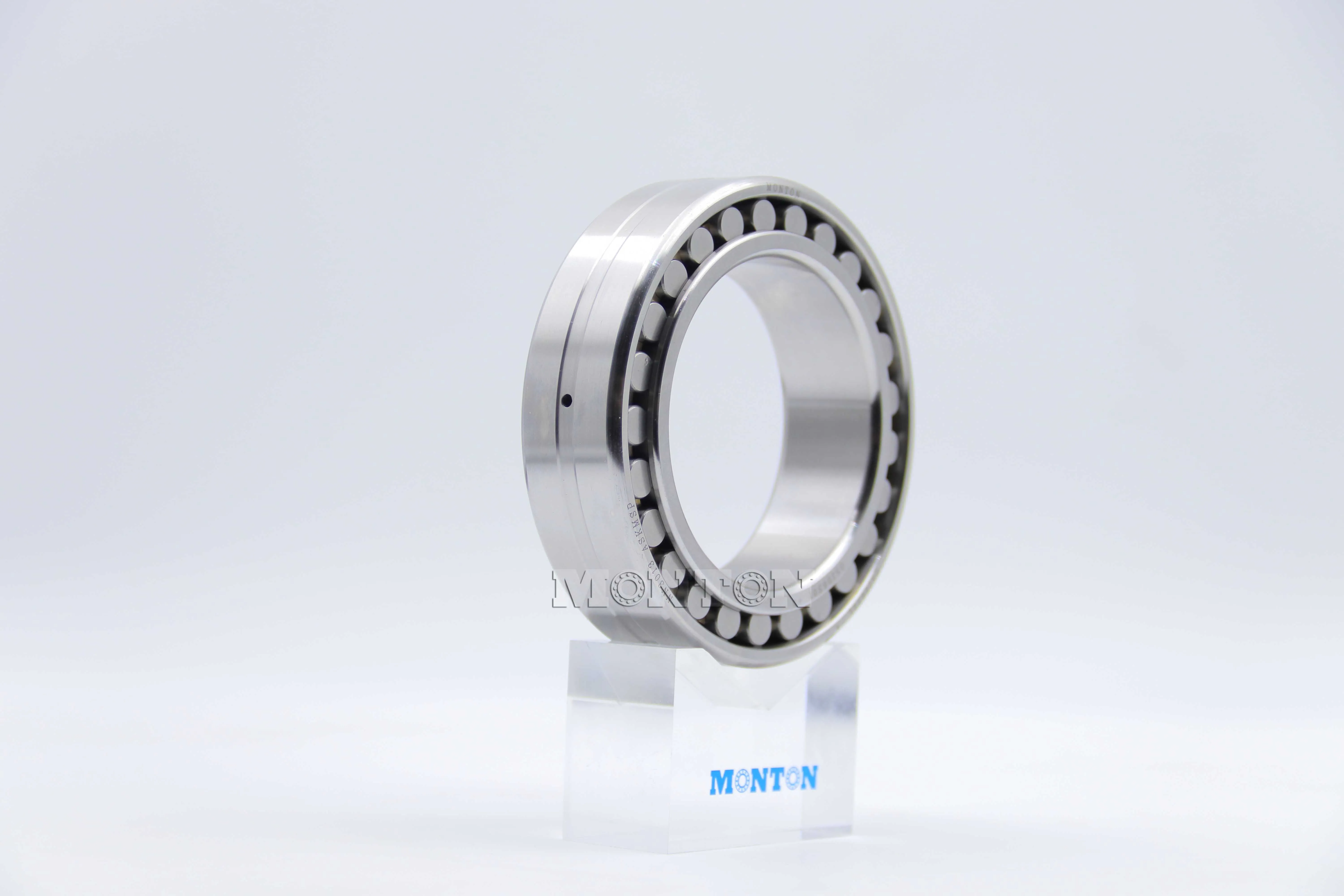

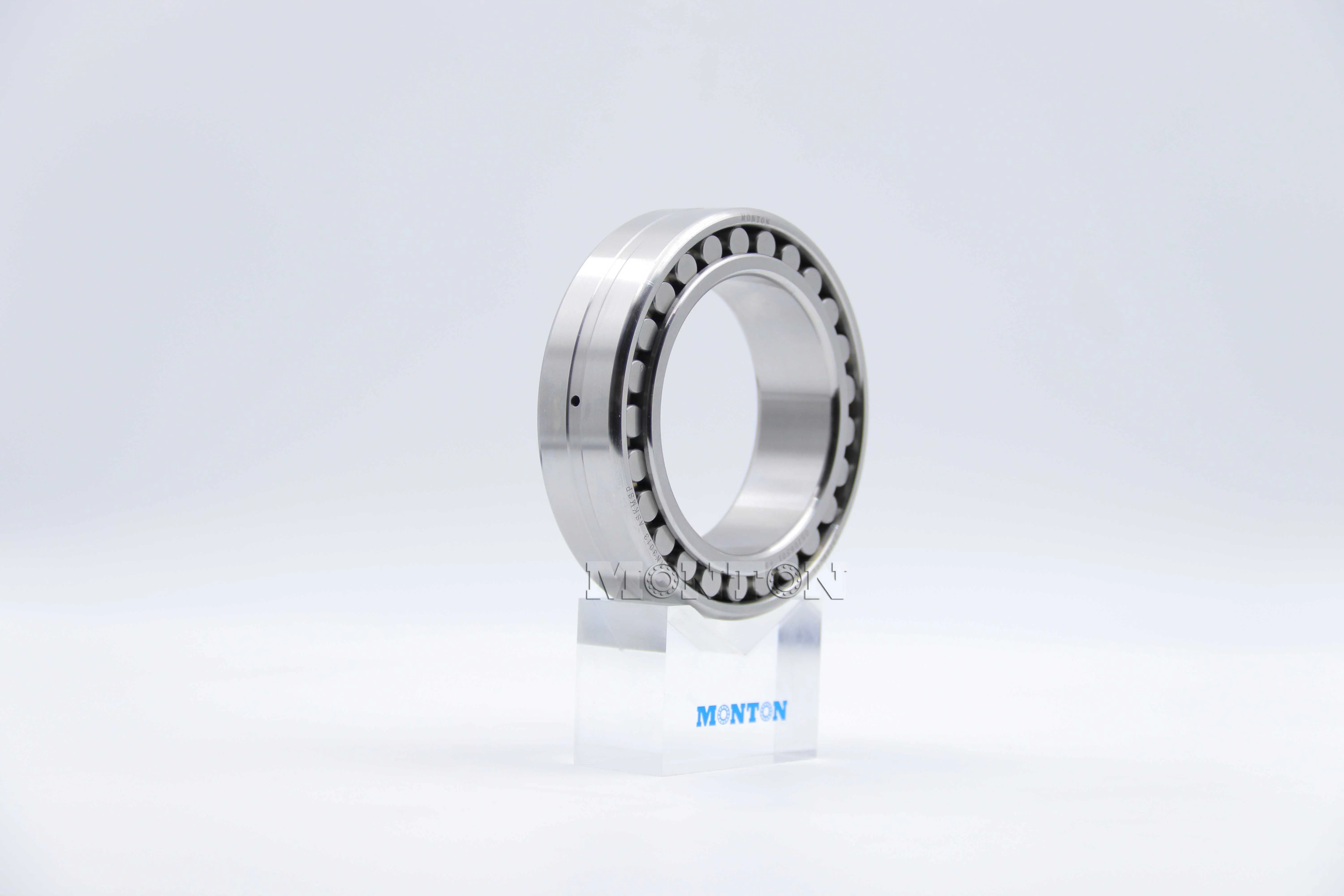

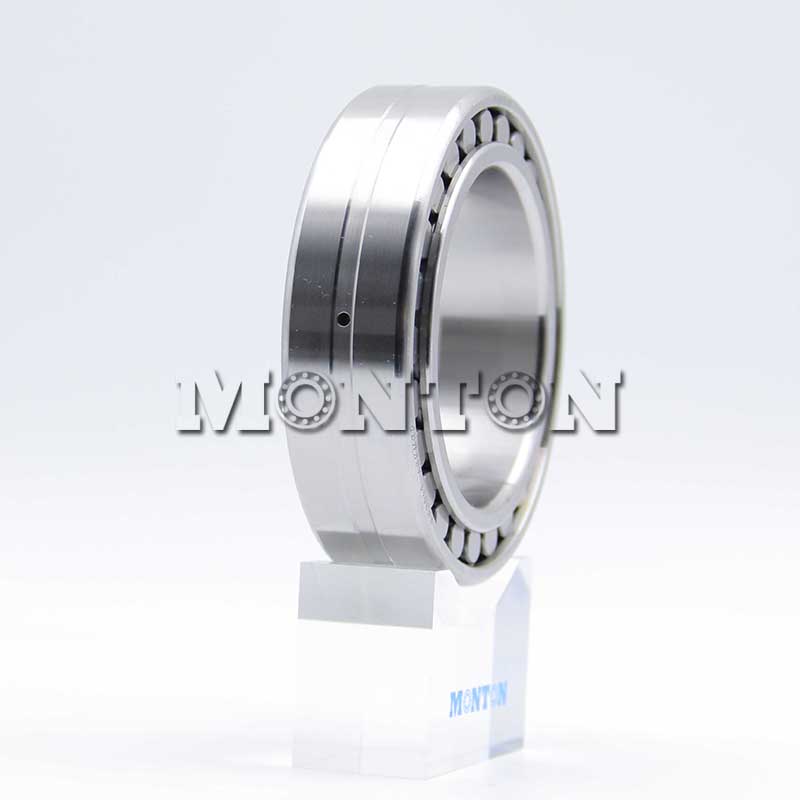

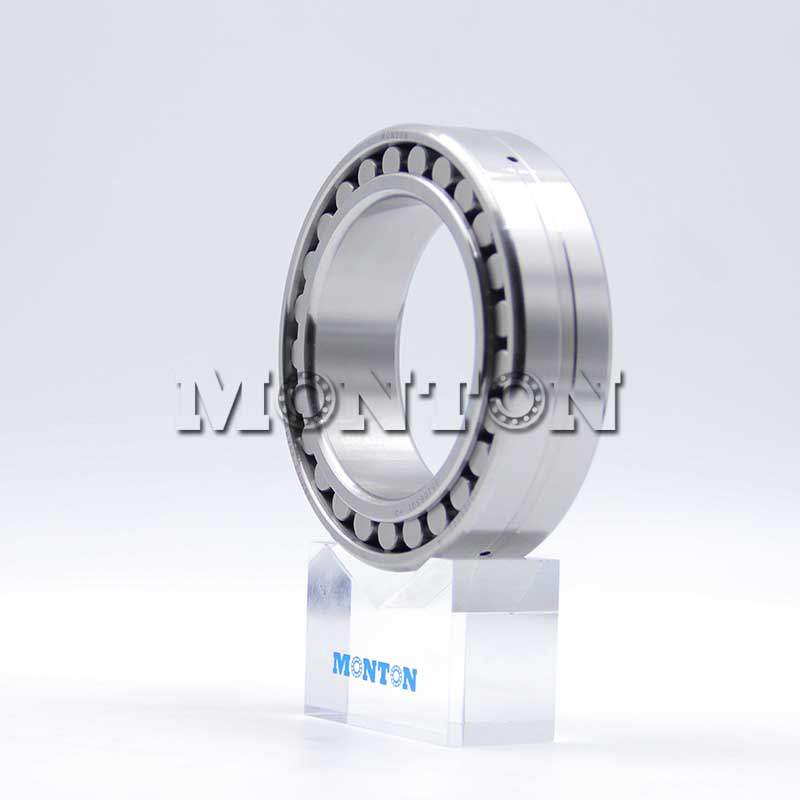

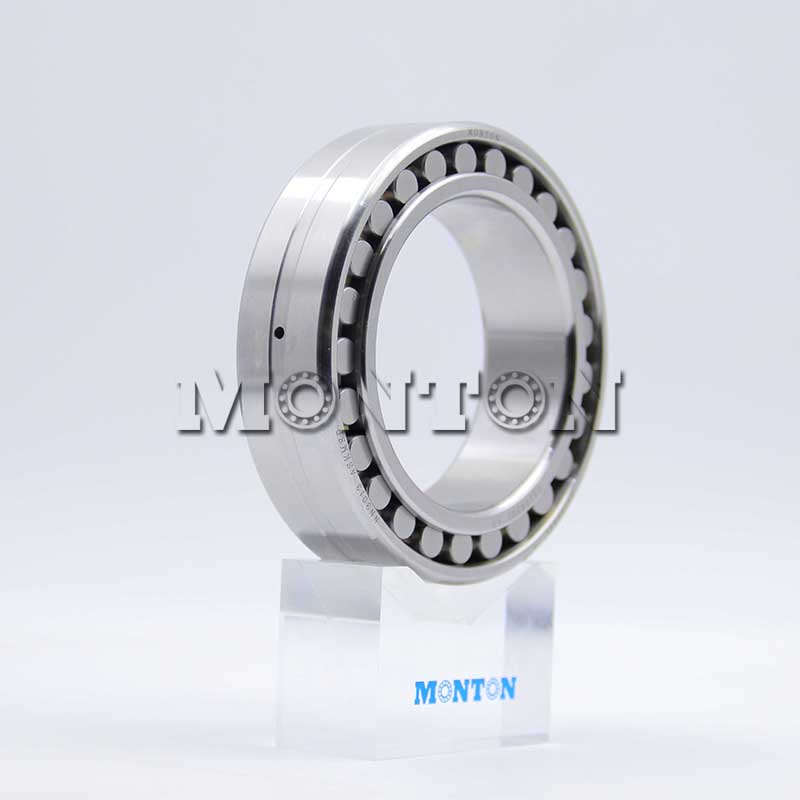

NN3013-AS-K-M-SP High Precision Cylindrical Roller Bearing

Precision cylindrical roller bearing NN3013-AS-K-M-SP is used in the industrial field of high-precision machine tool spindles and high-speed rotating equipment that require forced lubrication or high rigidity support. The rollers and raceways adopt a linear contact design, with uniform radial load distribution and significantly higher bearing capacity than ball bearings of the same size. The W33 design facilitates oil lubrication of the outer ring, improving heat dissipation and lifespan during high-speed operation. The SP level accuracy ensures minimal bearing rotation and runout errors, making it suitable for precision machining equipment. Benchmark model: NN3013KTN/SPW33

Case Details

Name	High Precision Cylindrical Roller Bearing
Brand	MONTON
Series	NN30
Model	NN3013-AS-K-M-SP
Bore diameter	65mm
Outside diameter	100mm
B(width)	26mm
Bore:	1:12
Tolerance Class:	SP
Ring Material	Gcr15 Bearing steel
Cage Material	Brass /Nylon
Basic dynamic load rating, axial Cr	91,000N
Basic static load rating, axial Cor	116,000 N
Limiting speed for Grease lubrication	10,800 1/min
Limiting speed for oil lubrication	12,700 1/min
Fatigue load limit, radial Cur	19,000 N
Sealed	Open
Weight	0.66KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
