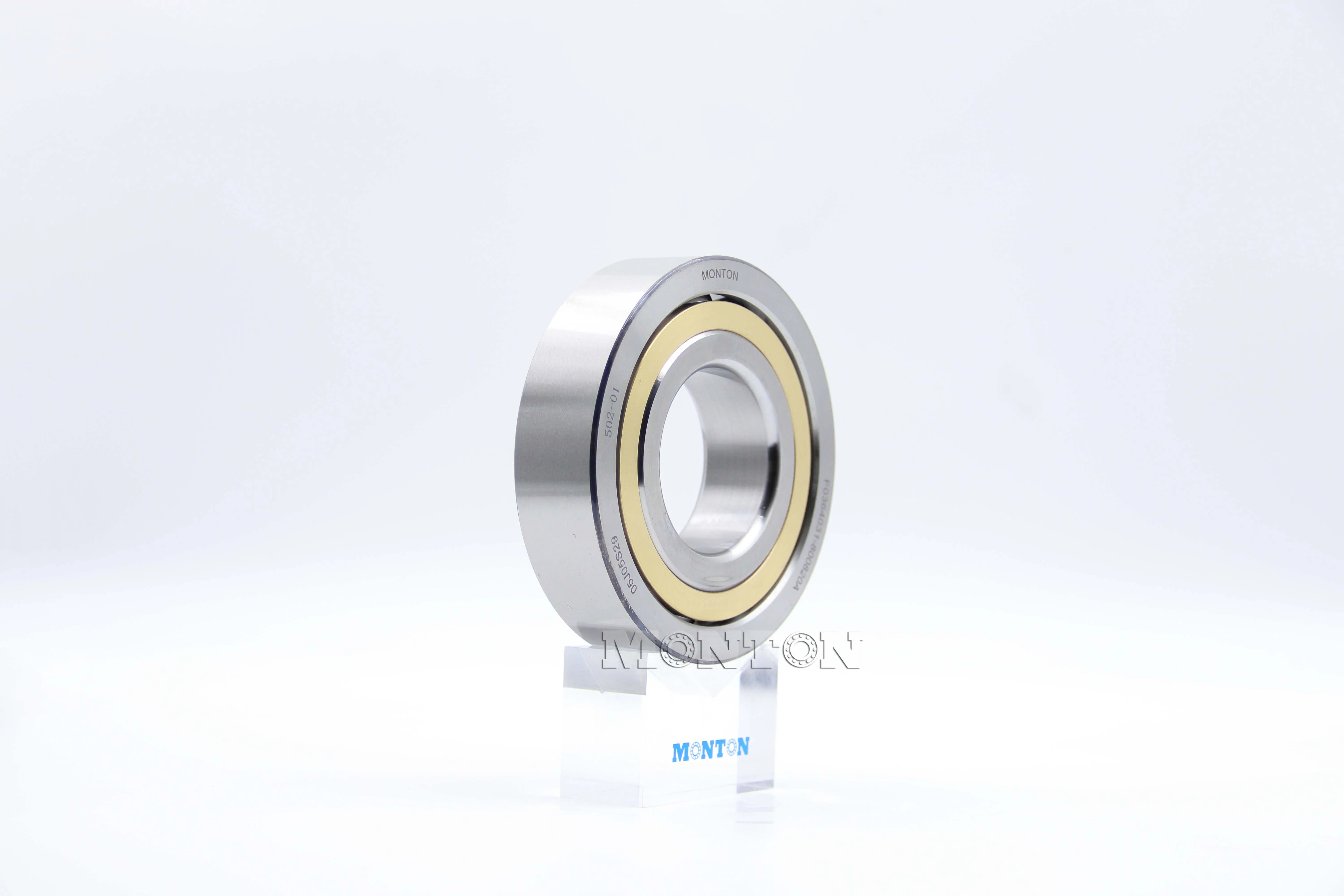

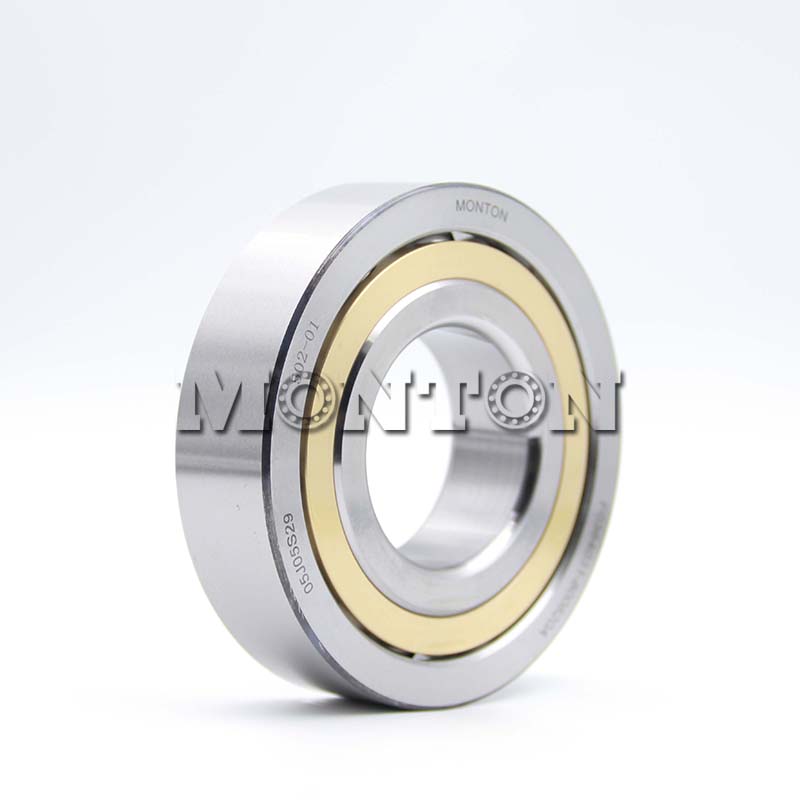

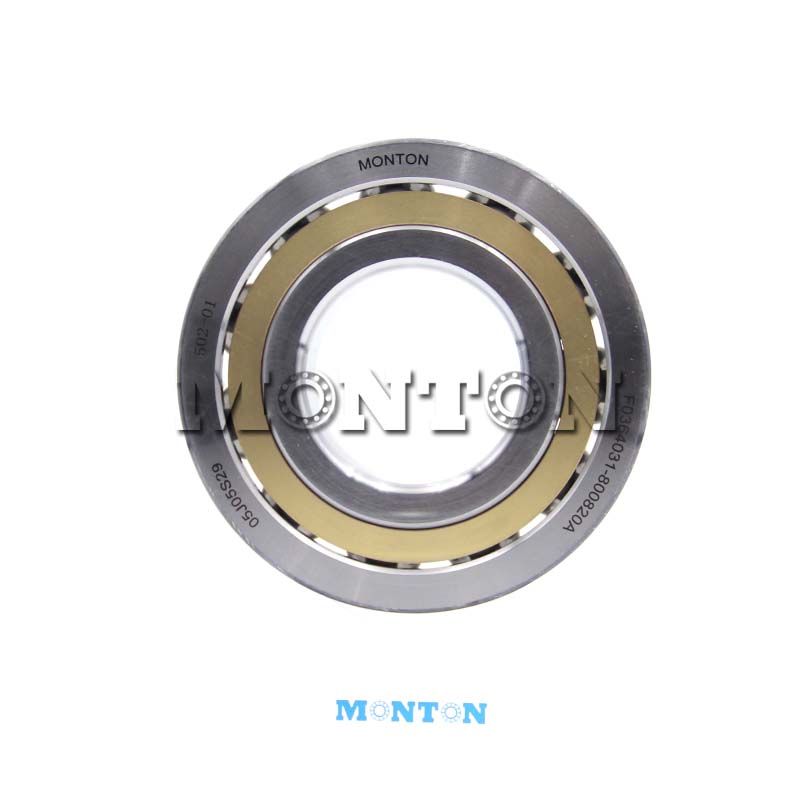

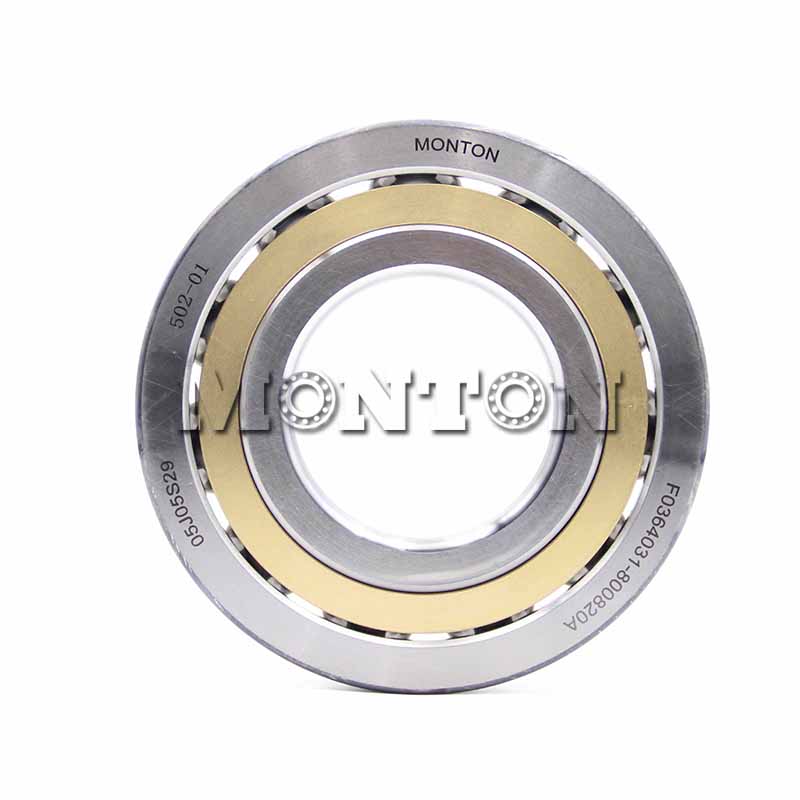

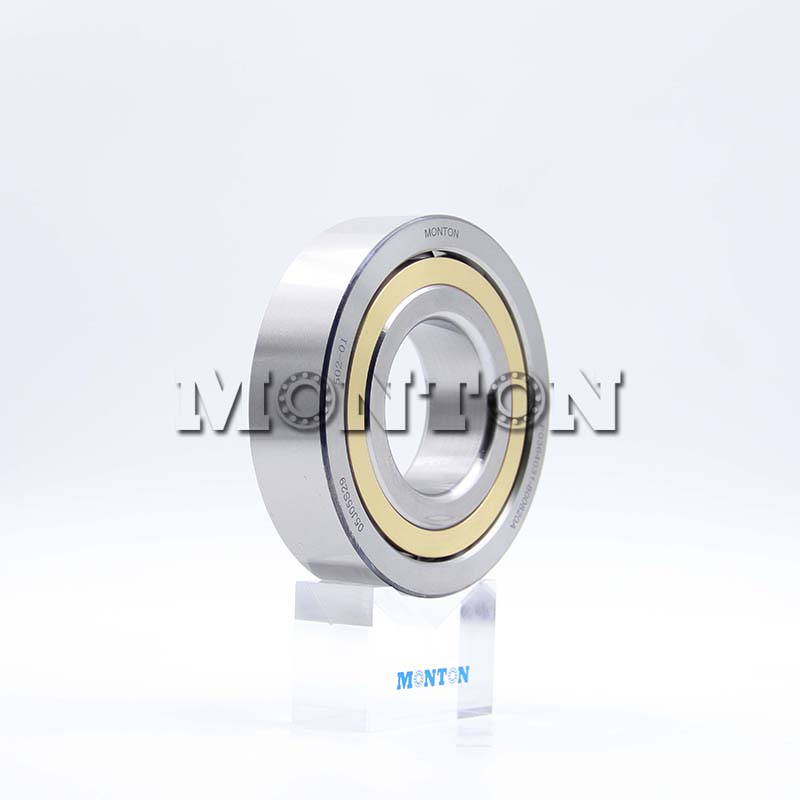

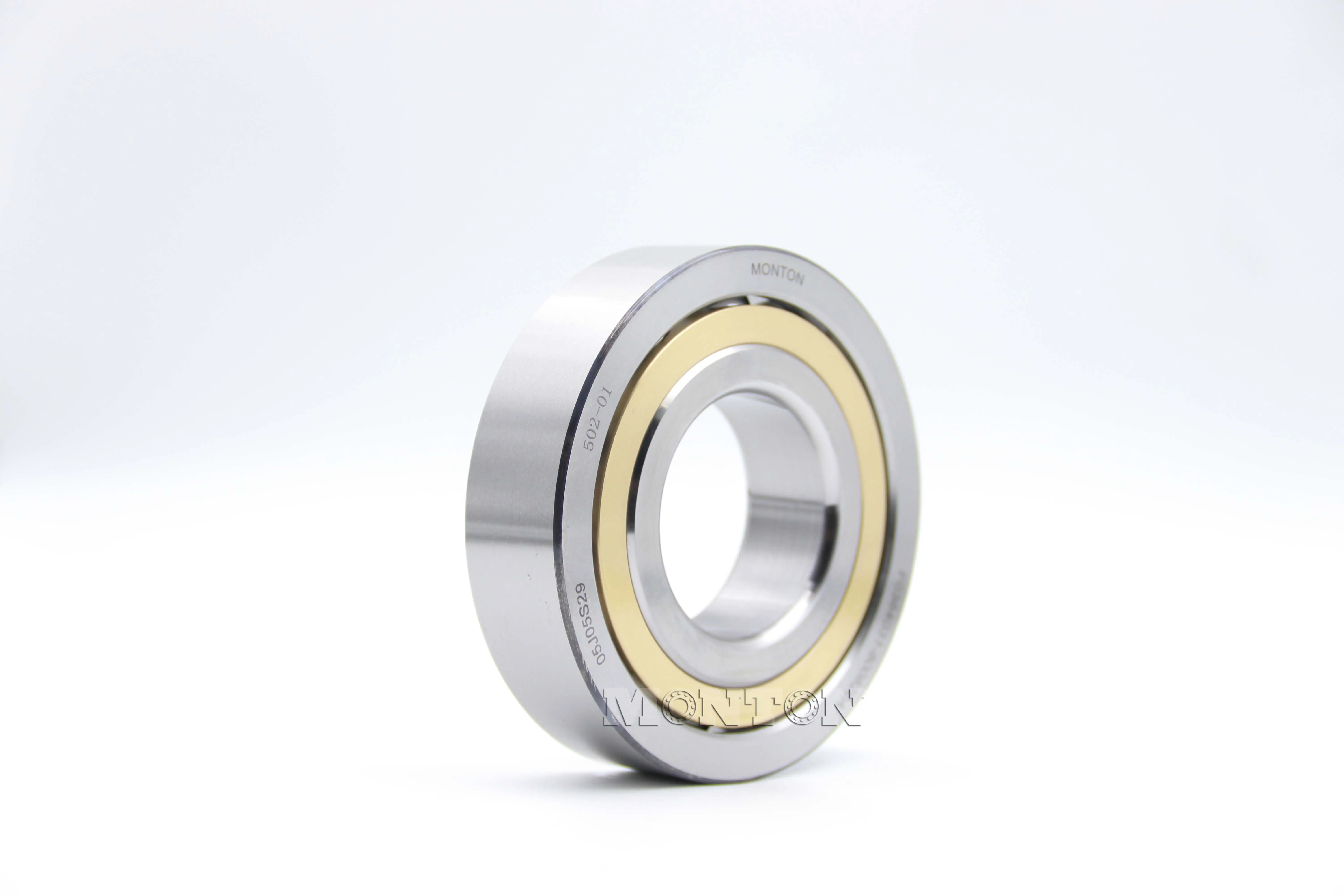

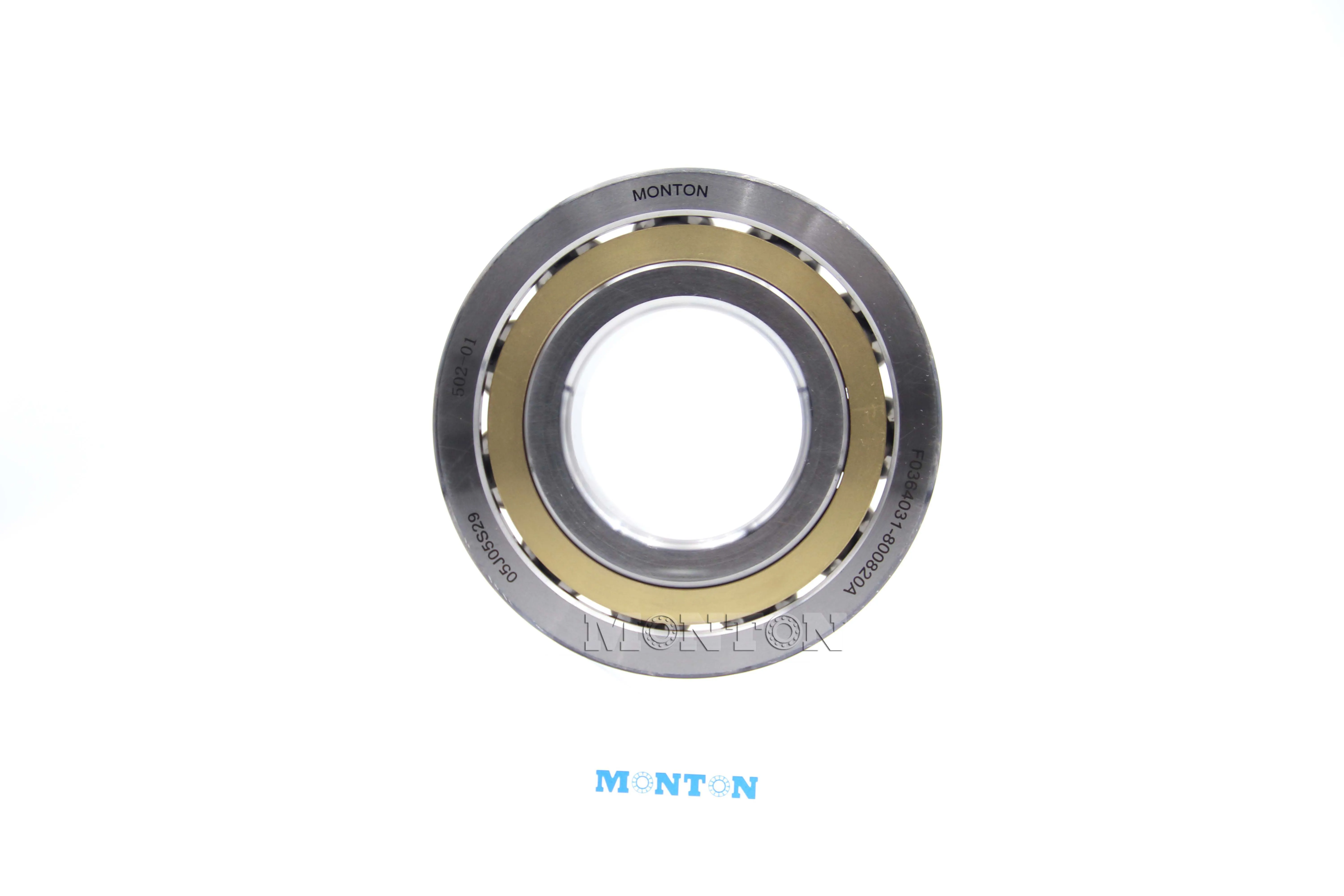

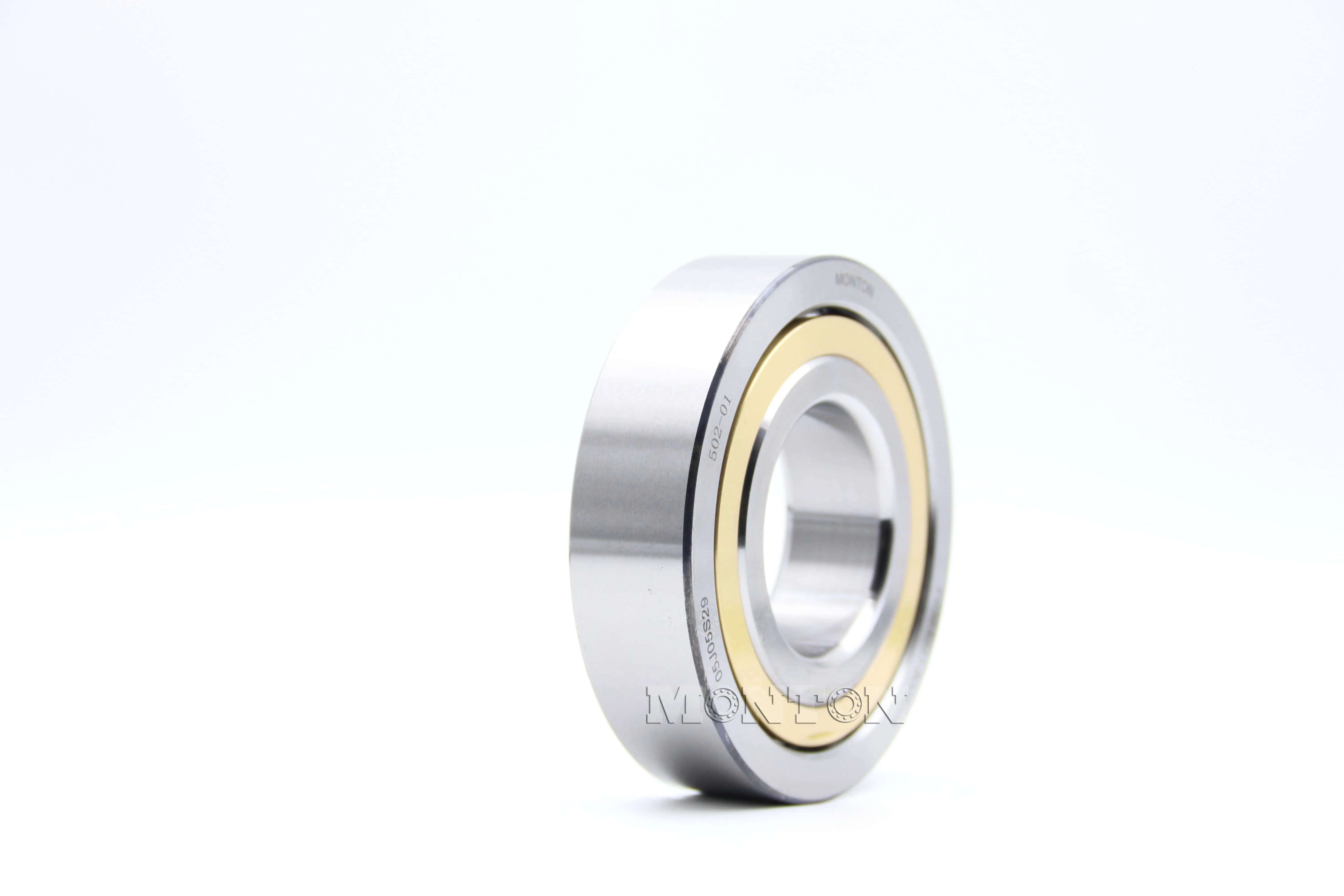

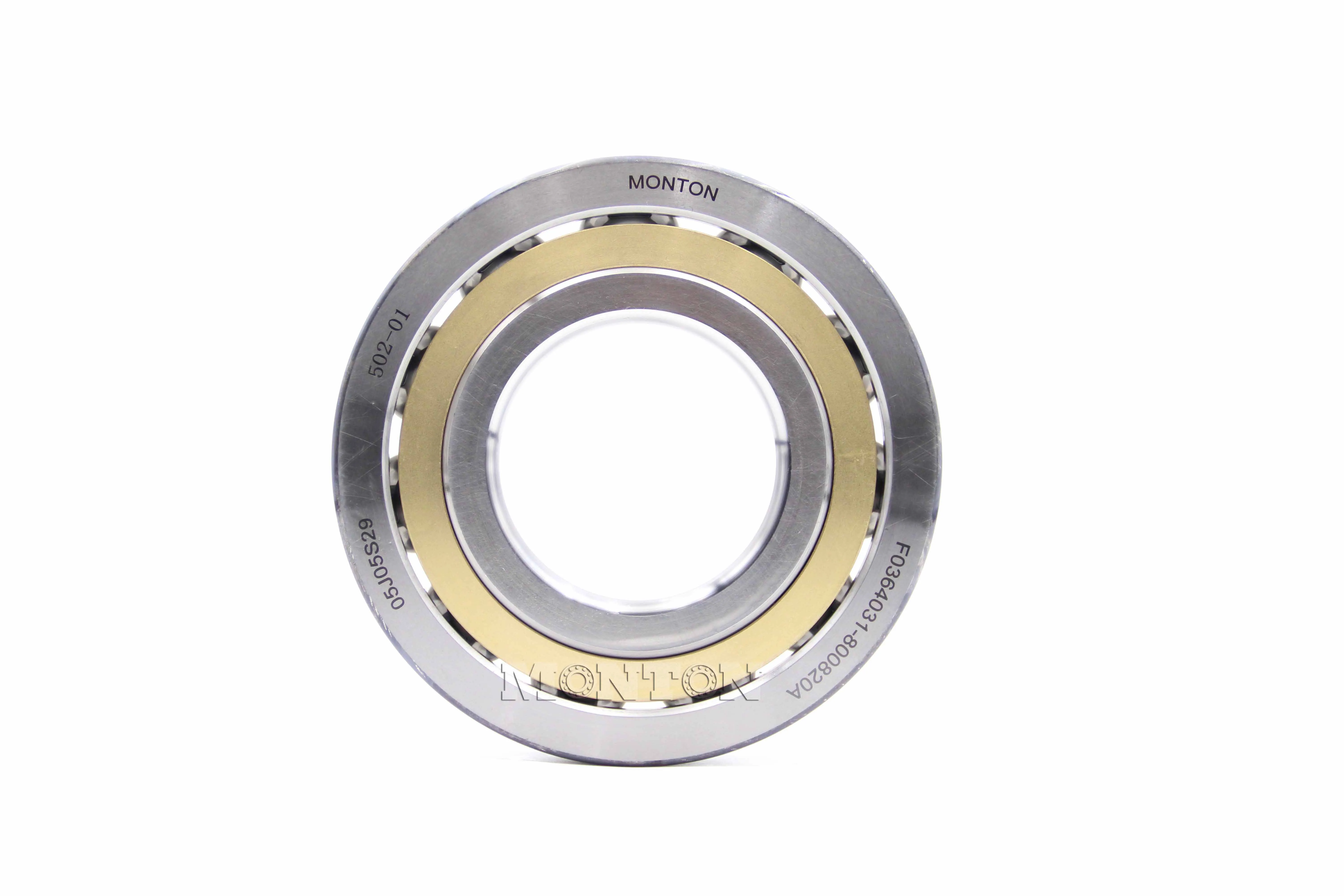

F-0364031-800820A High Precision Roller Bearings for Wire Rod Blocks

The bearings of high-speed wire rod mills are the core components that support the operation of rolling mills in steel rolling equipment. They need to adapt to high speeds, heavy loads, high temperatures, and complex working conditions. Their design and application directly affect production efficiency and equipment stability. Domestic high-speed wire rod rolling mill bearings (such as Luoyang MONTON) have achieved full range coverage, with precision reaching P5 level and passing intelligent quality inspection, gradually replacing imported products. The core of its technology lies in integrating material, lubrication, and sealing innovations to meet the stringent requirements of high-speed production.

Case Details

Name	High Precision Roller Bearings for Wire Rod Blocks
Seires	Angular contact
Brand	MONTON
Model	F-0364031-800820A
Bearing code	162250-MB (7310PD-4/8S)
Stock code	360018
d	50mm
D	110mm
B	27mm
Ring Material	Special Bearing steel
Cage Material	Brass cage
Weight	1.2KG
Design Structure	Ball
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	1. Roll box of precision rolling mill 2. Conical gearbox of precision rolling mill 3. Speed increasing machine 4. Pinching roller 5. Roll box for reducing mill 6. Cone gearbox of reducing mill 7. sizing mill roll-box 8. Conical gearbox for sizing machine 9. Silking machine
