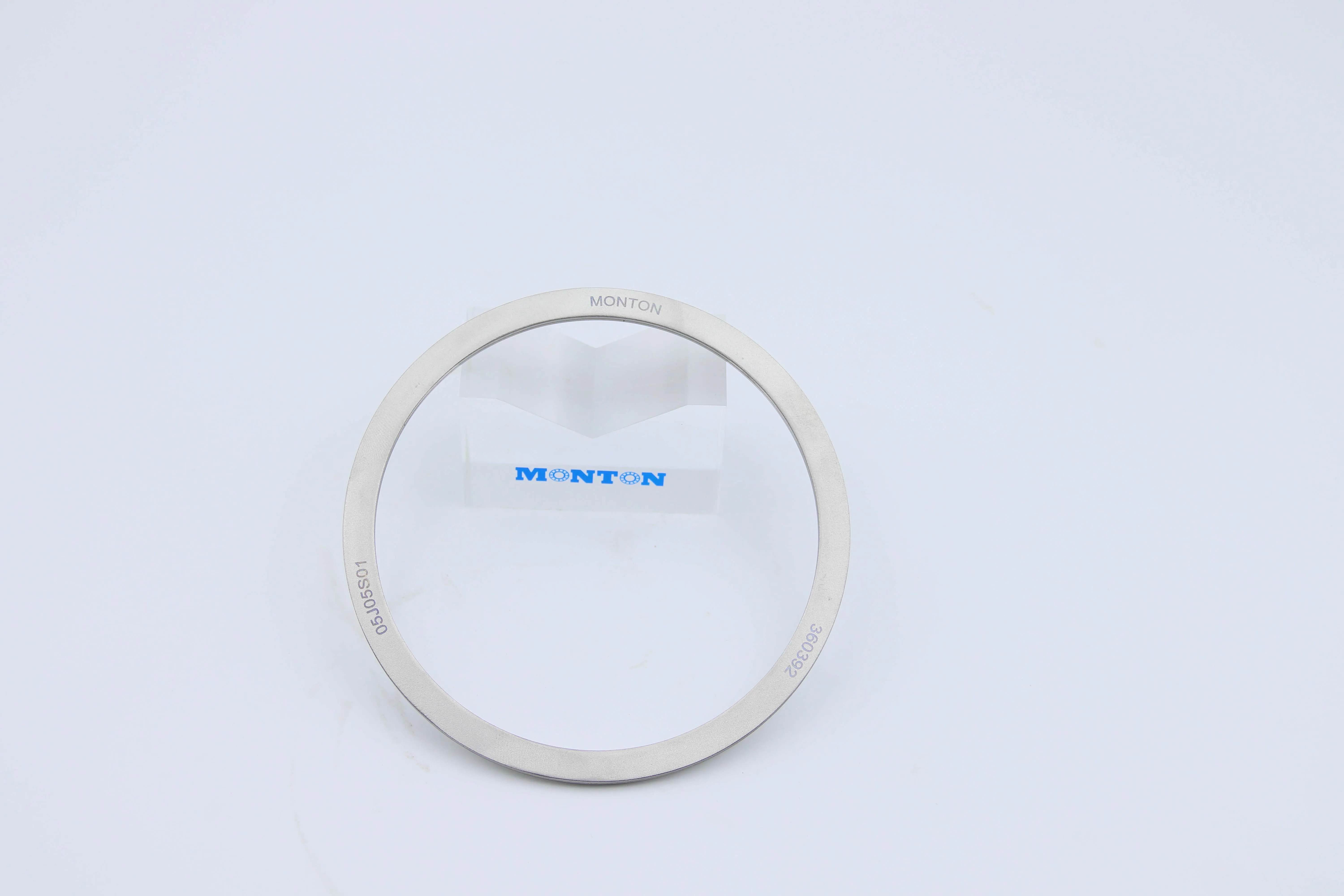

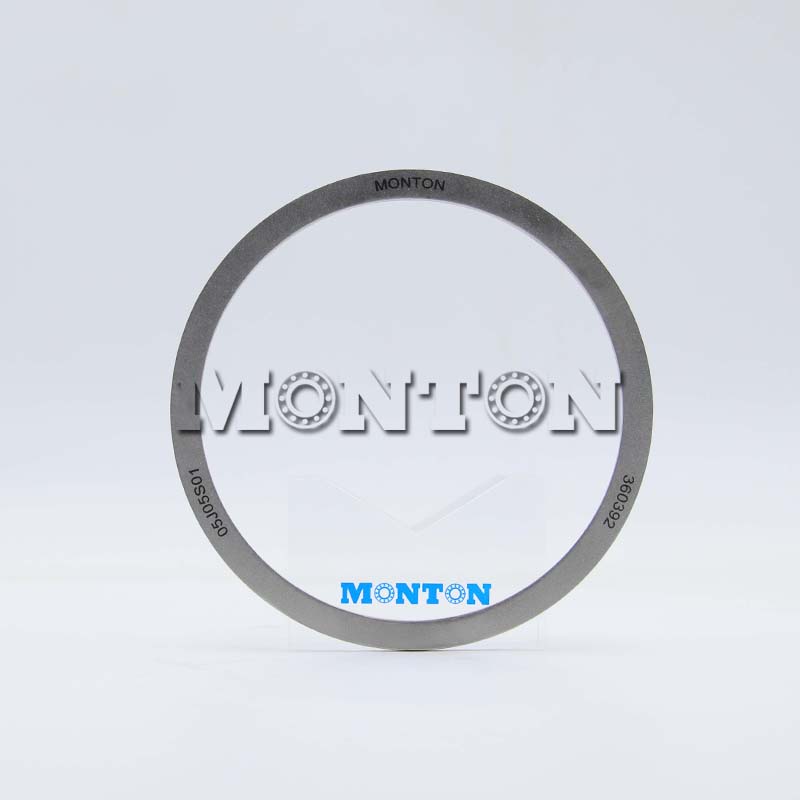

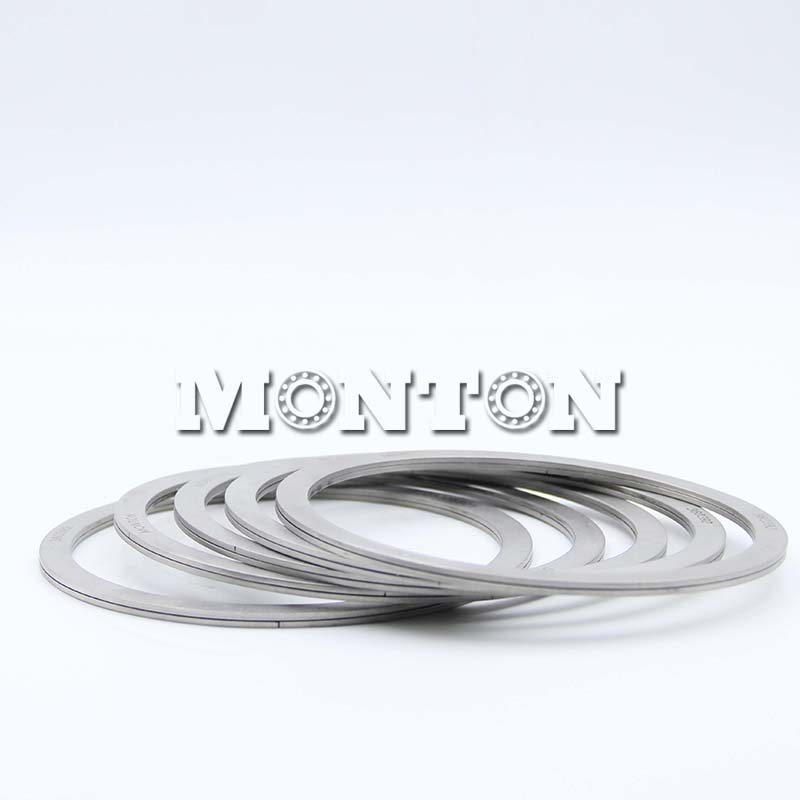

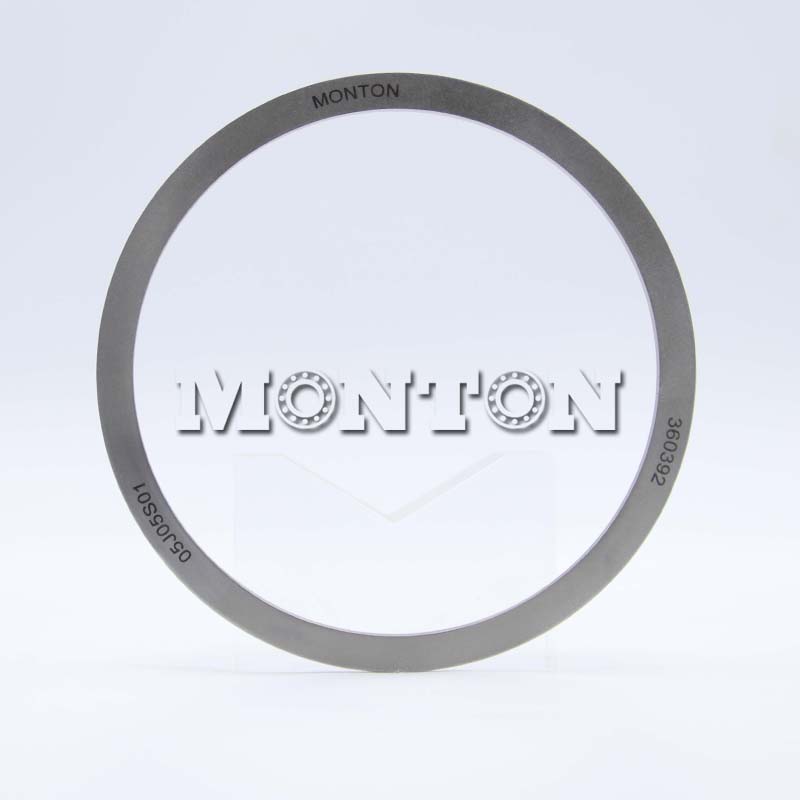

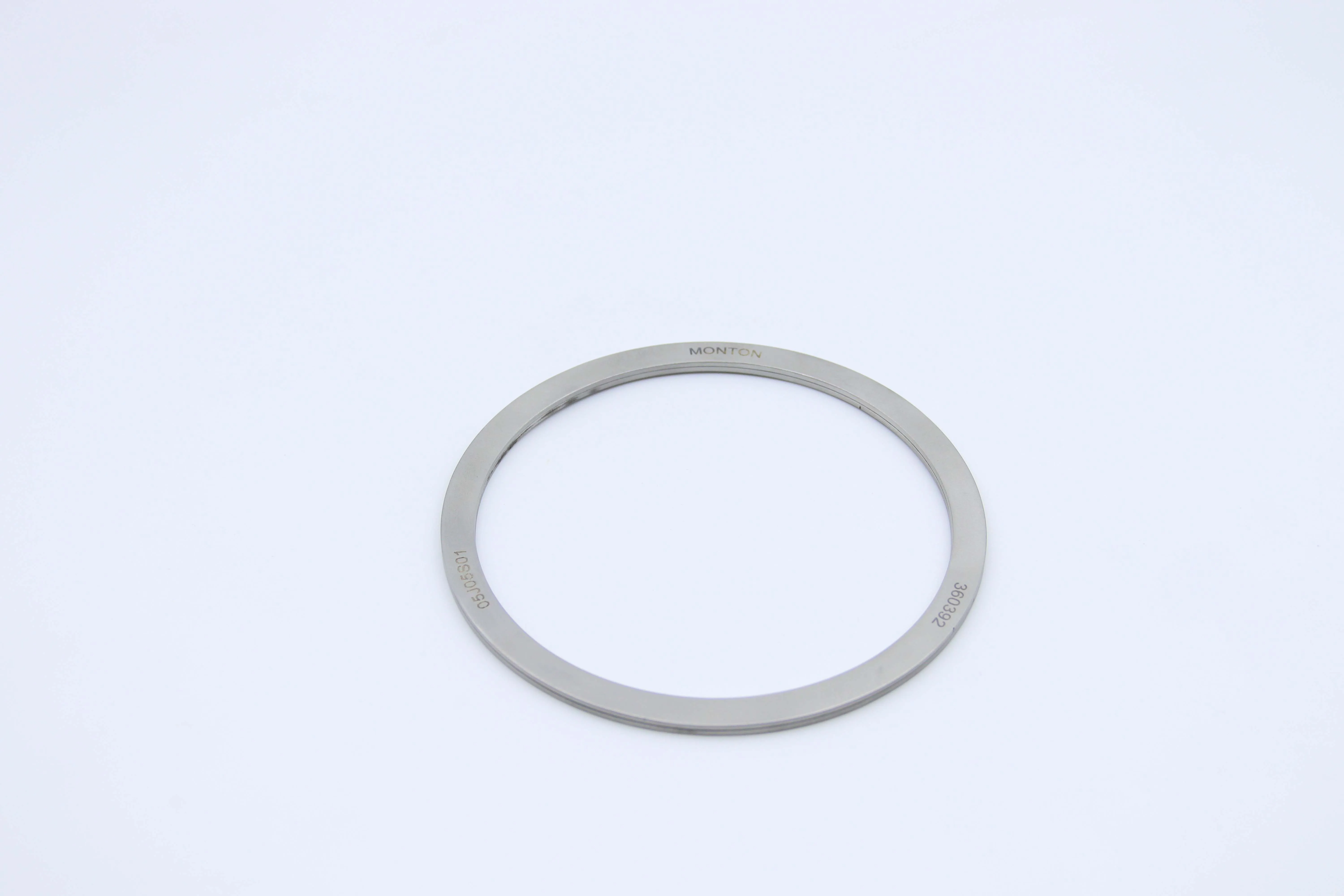

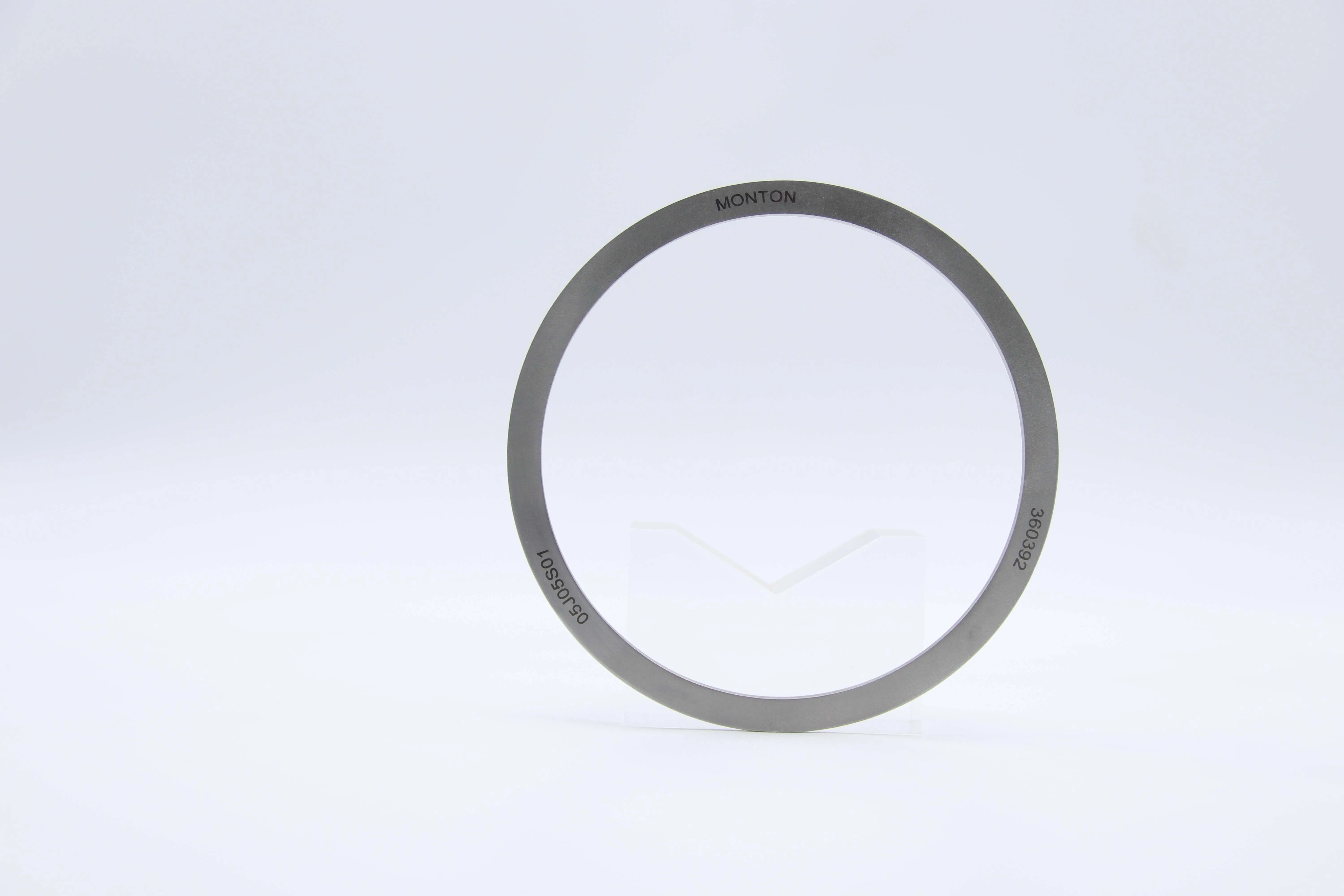

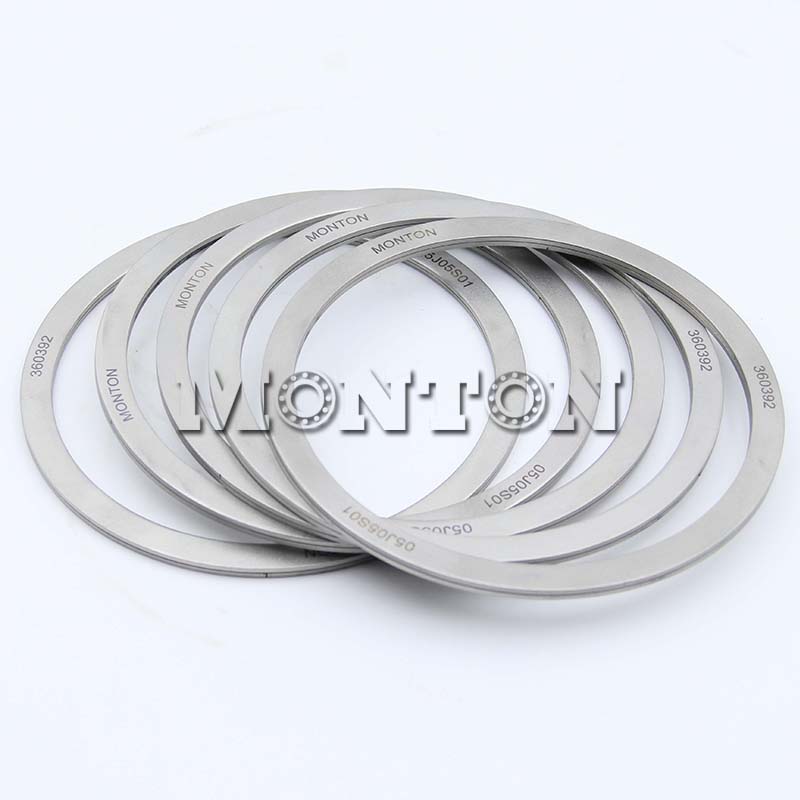

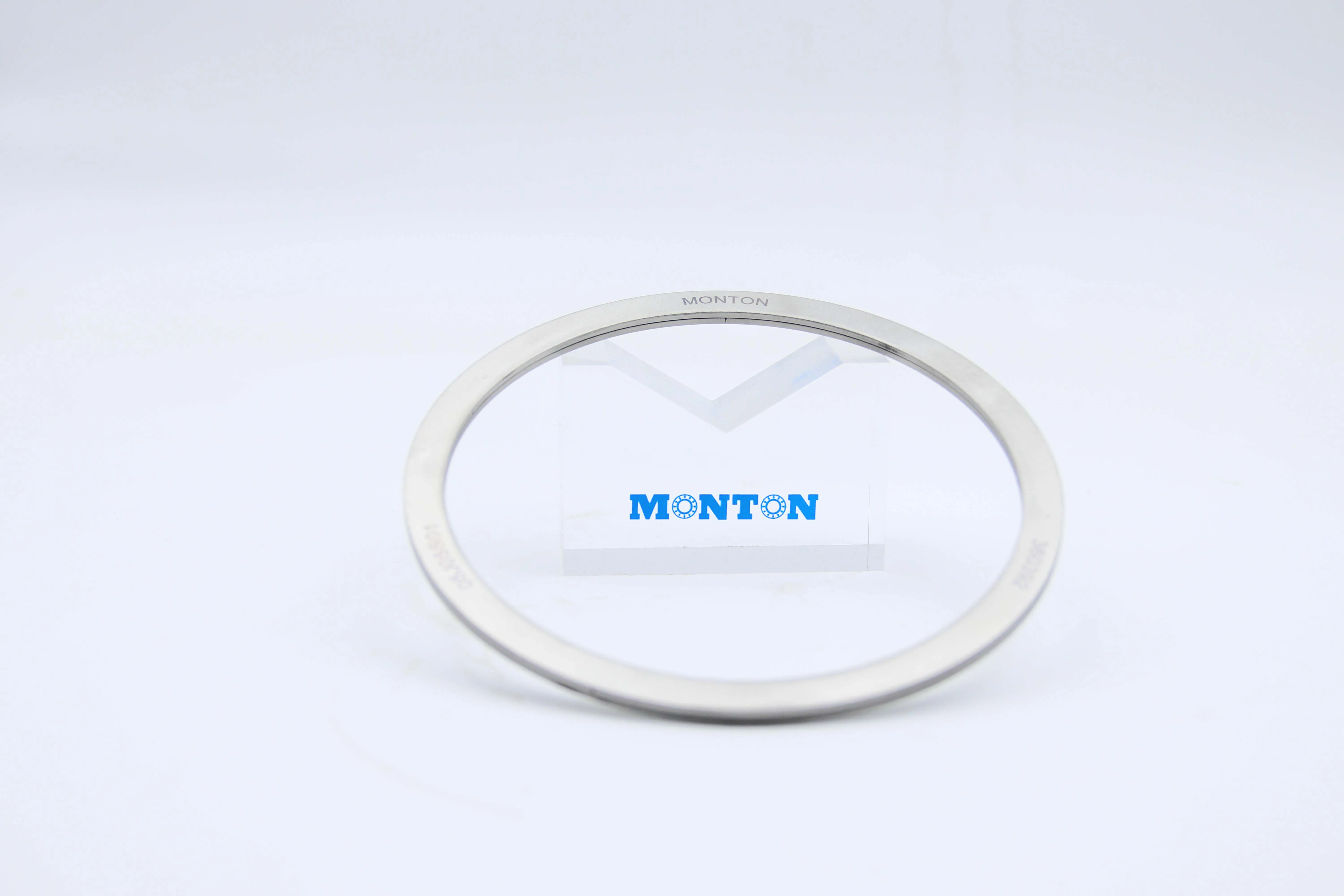

F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer
F0514002 360392 186629A Elastic washer

F0514002 360392 186629A Elastic washer

  • Double lip seal and elastic washer for Wire Rod Blocks also called damping washer. High-speed wire mill thrust bearings are equipped with elastic washer when installed, and preload is required during installation. This Damping gasket can effectively solve the clearance problem of the bearing during operation. If the clearance of bearings too small, they may get stuck or the temperature rises, while if the clearance is too large, it will cause vibration. Adding damping gasket can eliminate vibration and avoid damage to the bearing due to too small clearance, which not only improves the working accuracy of the bearing, but also increases the life of the bearing.
Case Details

Name

Elastic washer

Seires

F series

Brand

MONTON

Model

F0514002

Stock number

360392

Bearing number

186629A

d

98.4mm

D

116.2mm

B

3.3mm

Ring Material

Steel

Weight

0.07KG

Package

single box

Original

Luoyang

Service

OEM

Delivery date

25 days

Application

 Steel facotry Wire Rod mill
