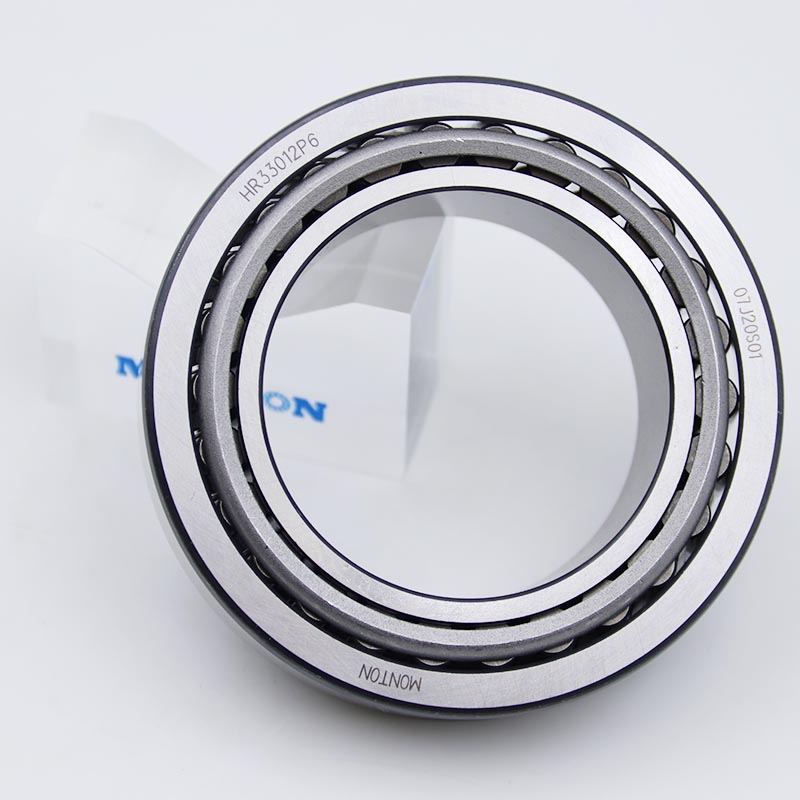

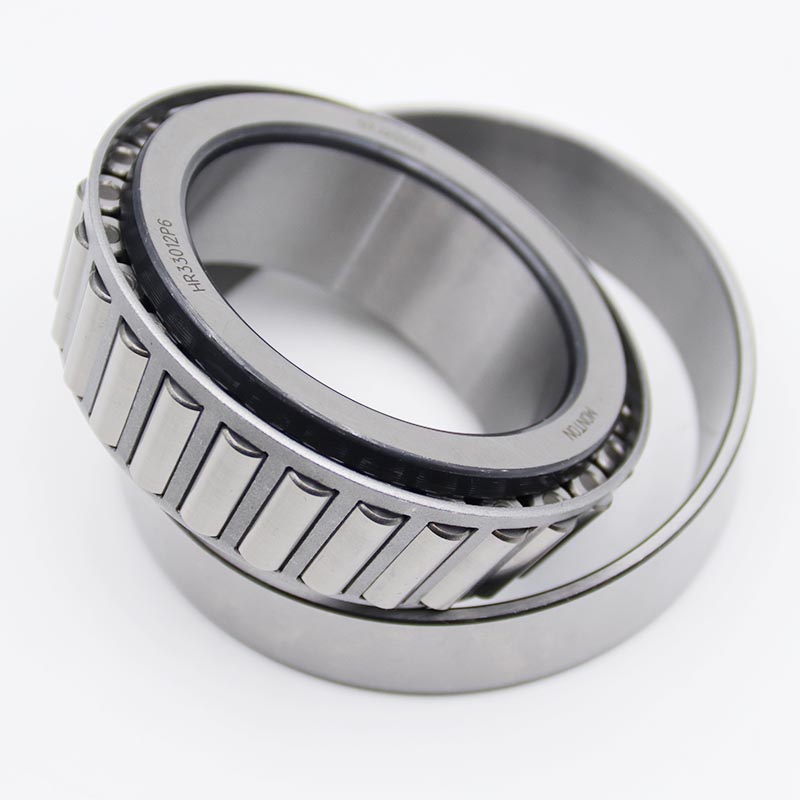

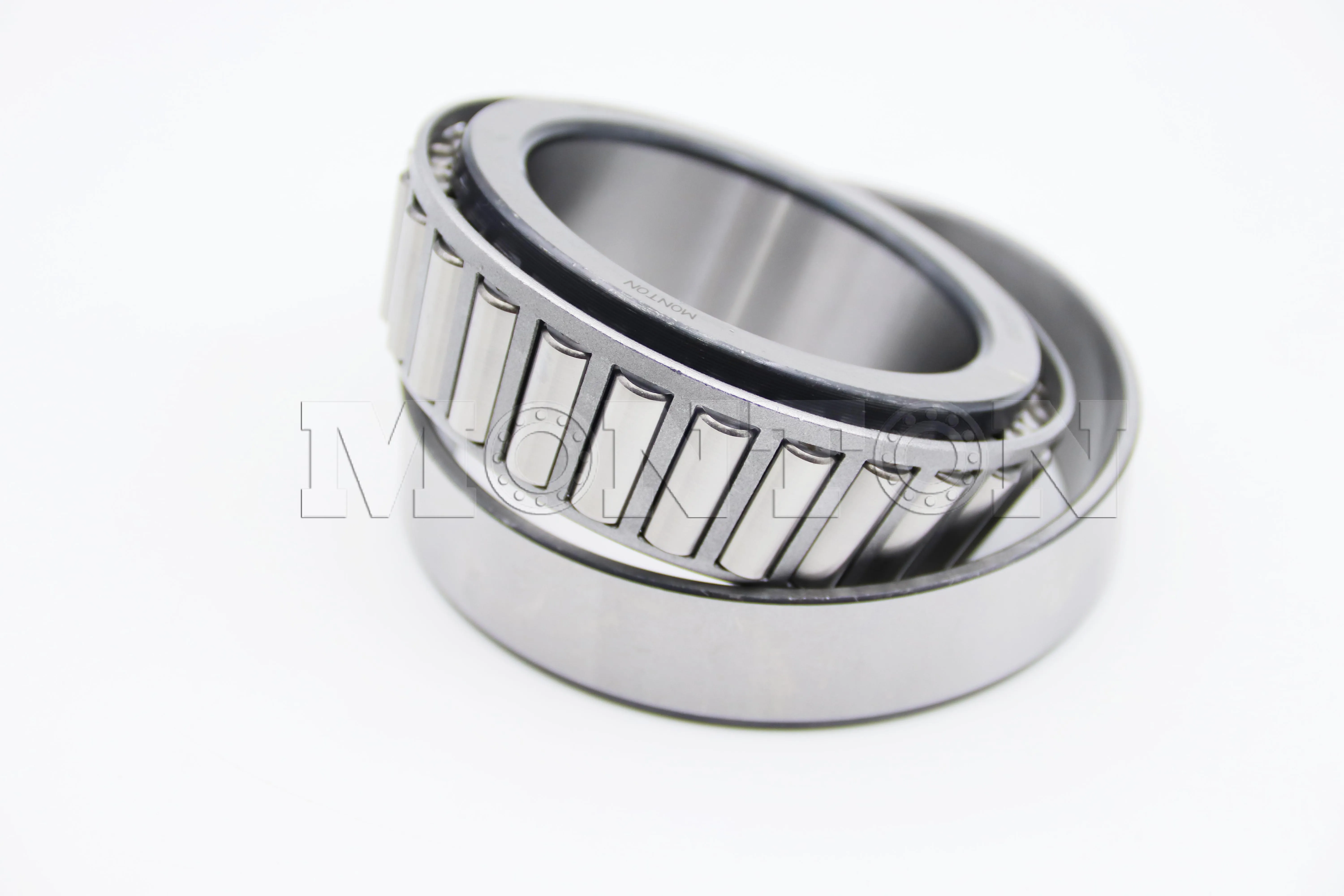

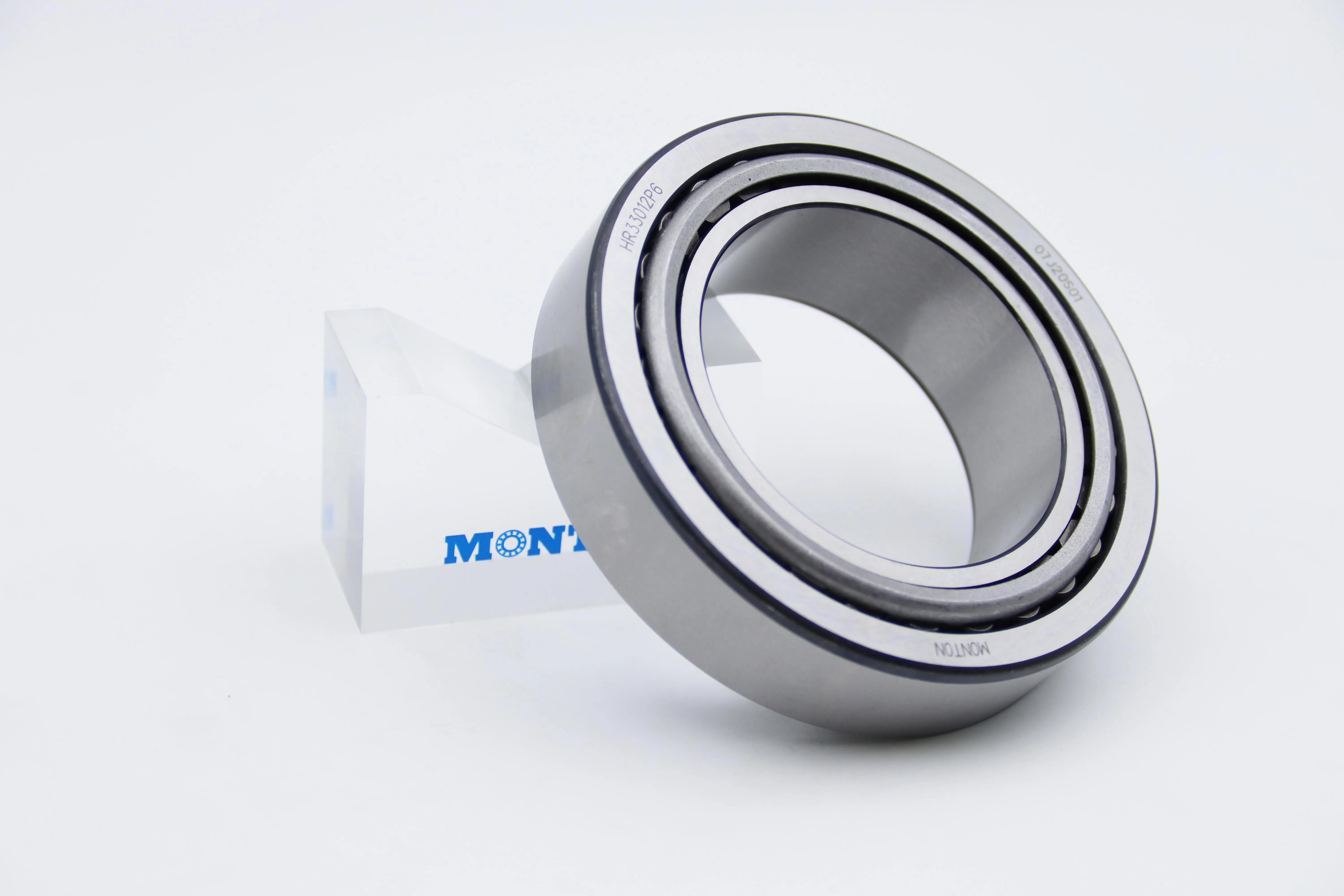

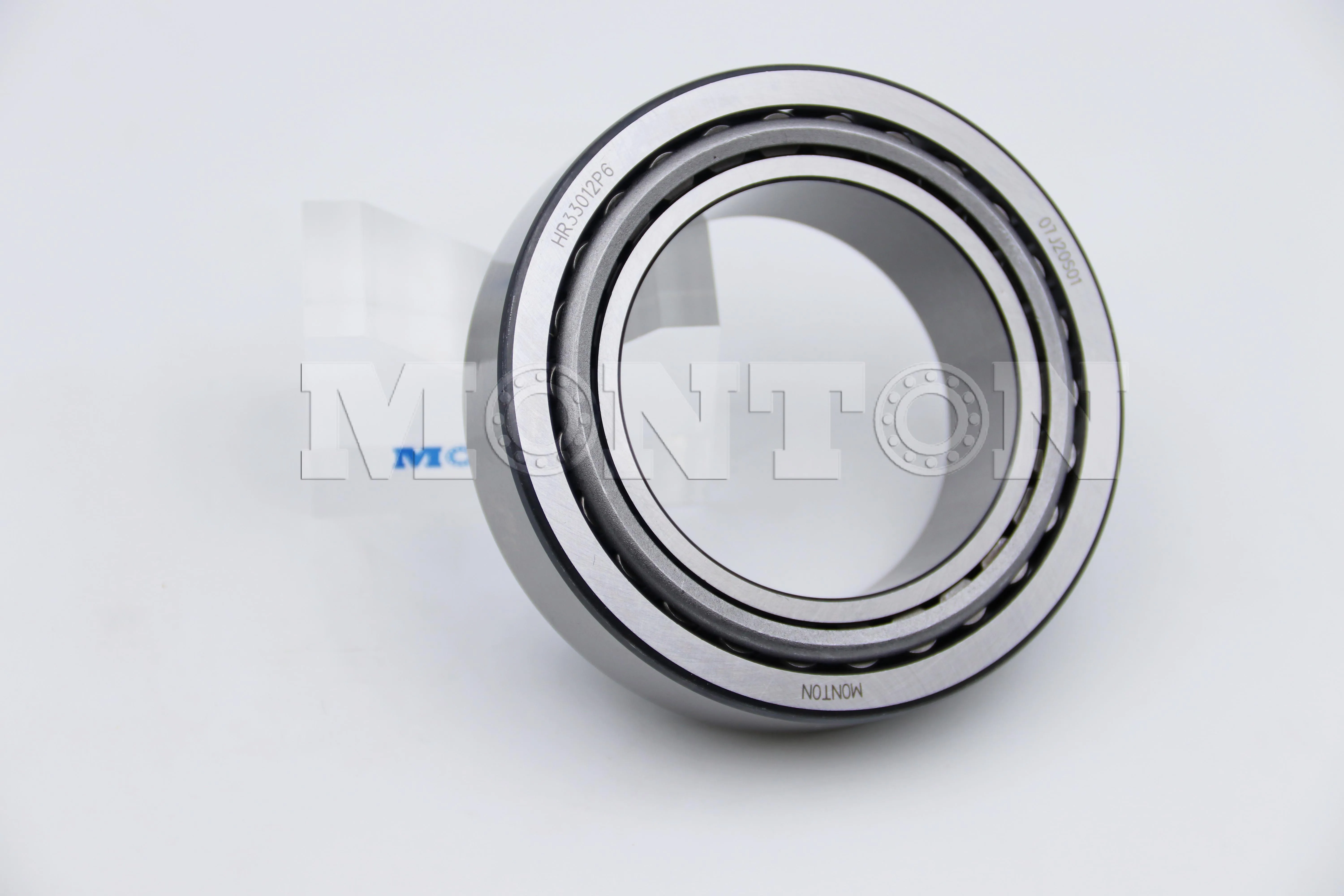

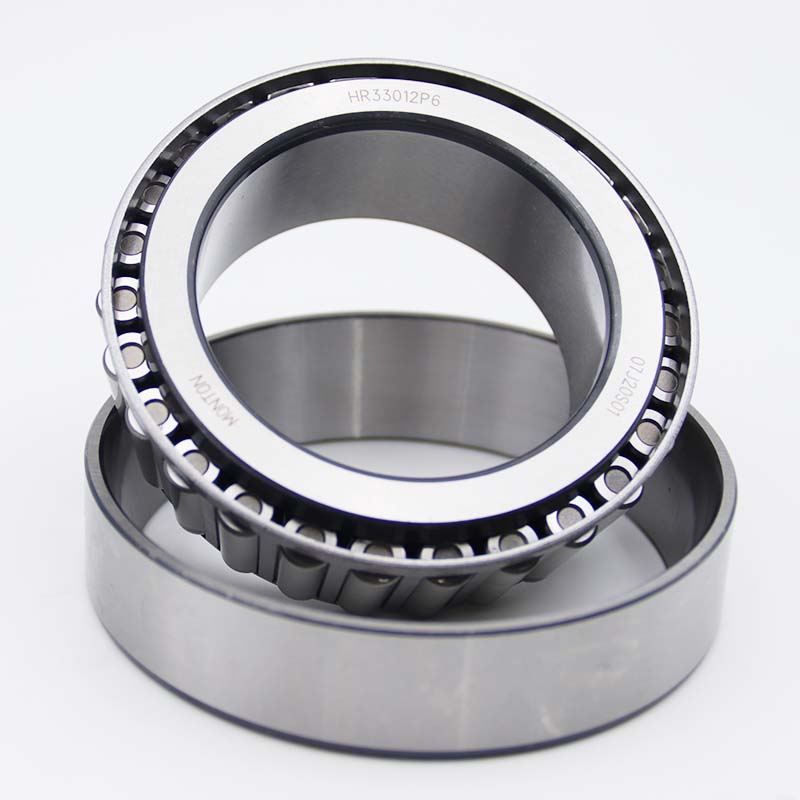

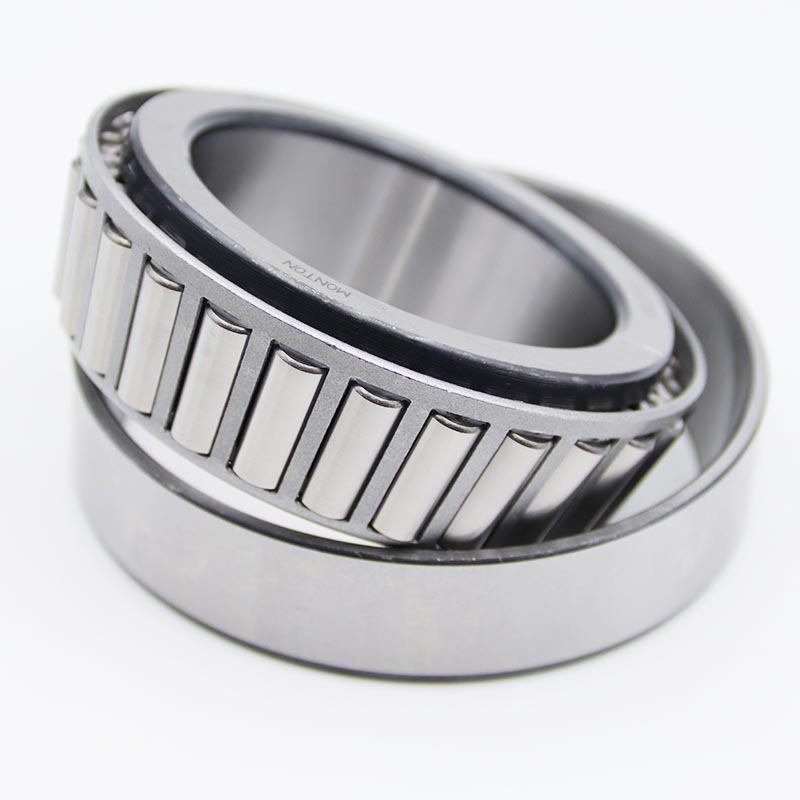

HR 33012 Taper roller bearing

The HR33012 single row tapered roller bearing produced by MONTON is a standard industrial bearing with a separable outer and inner component structure, widely used in mechanical equipment. The single row tapered roller bearing can withstand combined radial and unidirectional axial loads and is commonly used in wheel hubs, gearboxes, and transmission systems to support high-speed rotating components, mining crushers, engineering machinery, and withstand high impact loads.

Case Details

Name	Taper roller bearing
Seires	Single row
Brand	MONTON
Model	HR 33012
d	60mm
D	95mm
T	27mm
B	27mm
C	21mm
r cone	1.5
r cup	1.5
Cr	96000N
C0r	150000N
Limiting Speeds Grease	3600 min
Limiting Speeds Oil	5000 min
Mass	0.71KG
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Delivery date	Accordingly
Application	wheel hub drive system differential mechanism Locomotive gearbox Traction motor Rolling mill roll neck Crusher, mining equipment crane bulldozer excavator Gearbox and spindle Hydraulic turbine compressor
