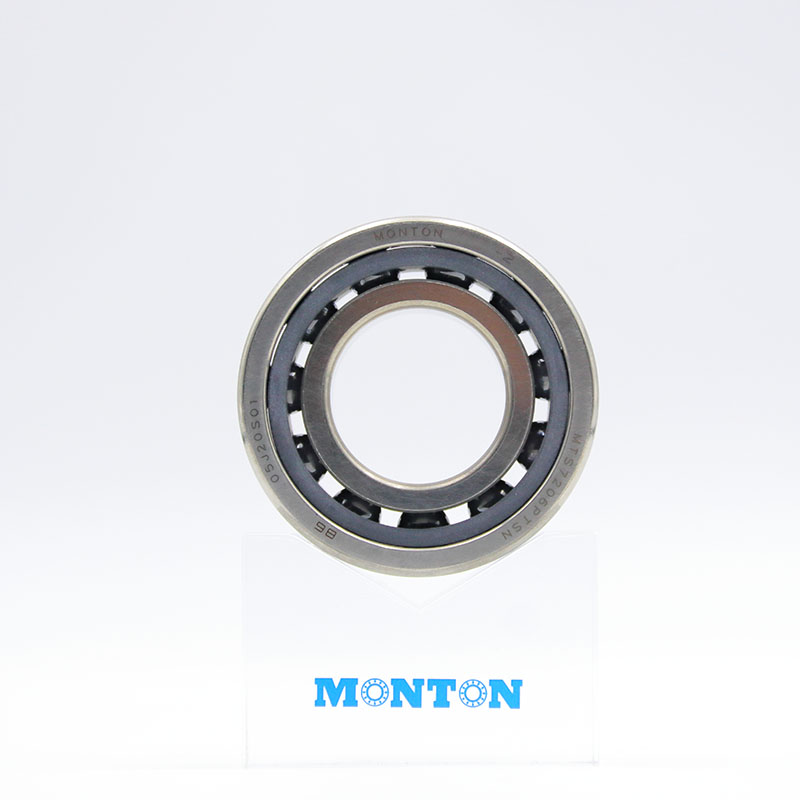

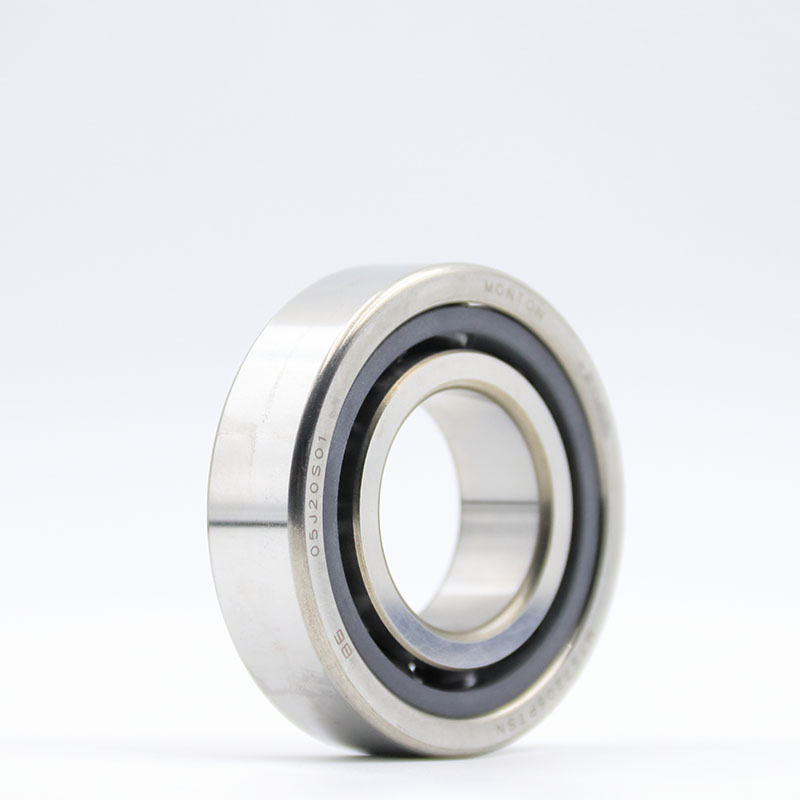

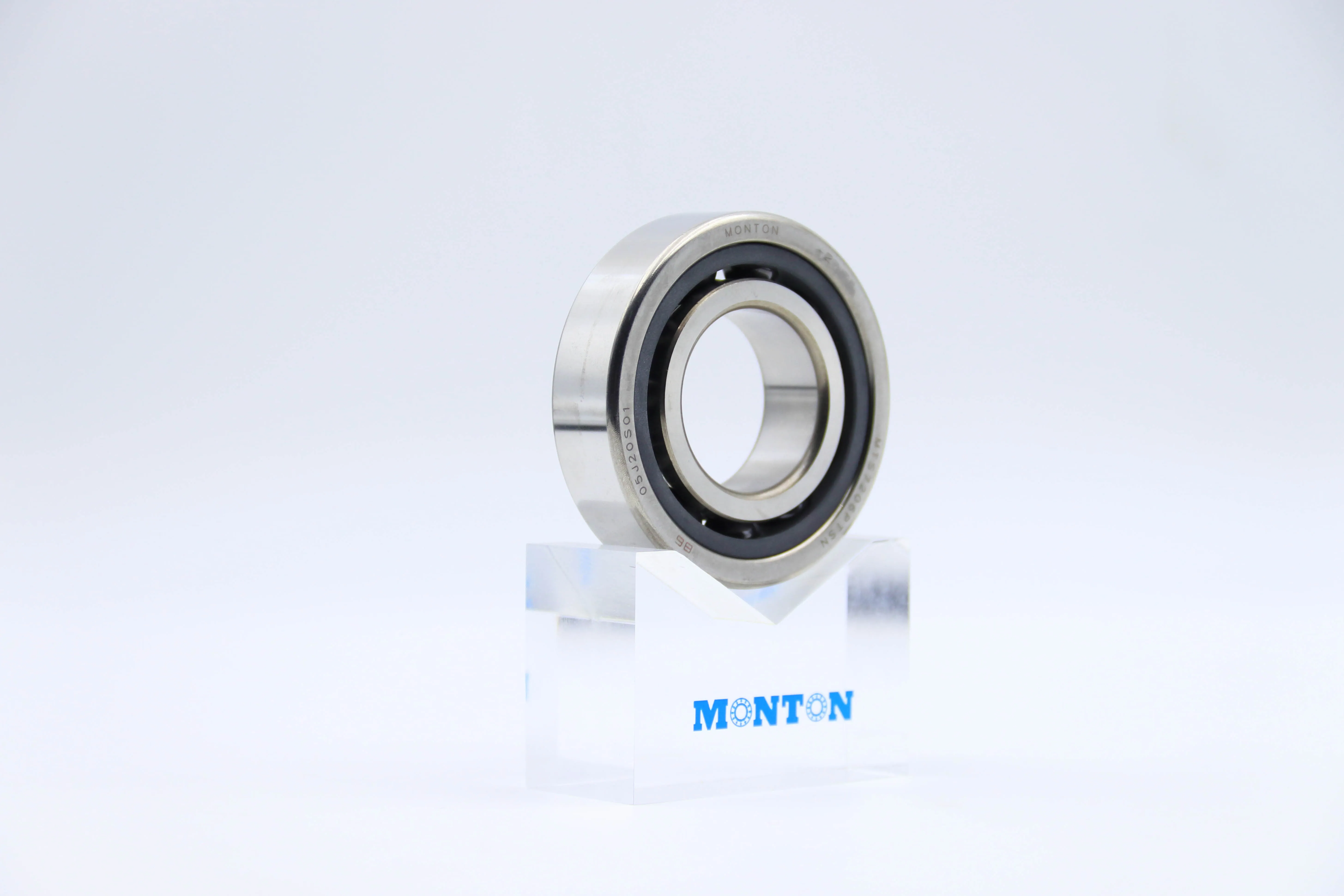

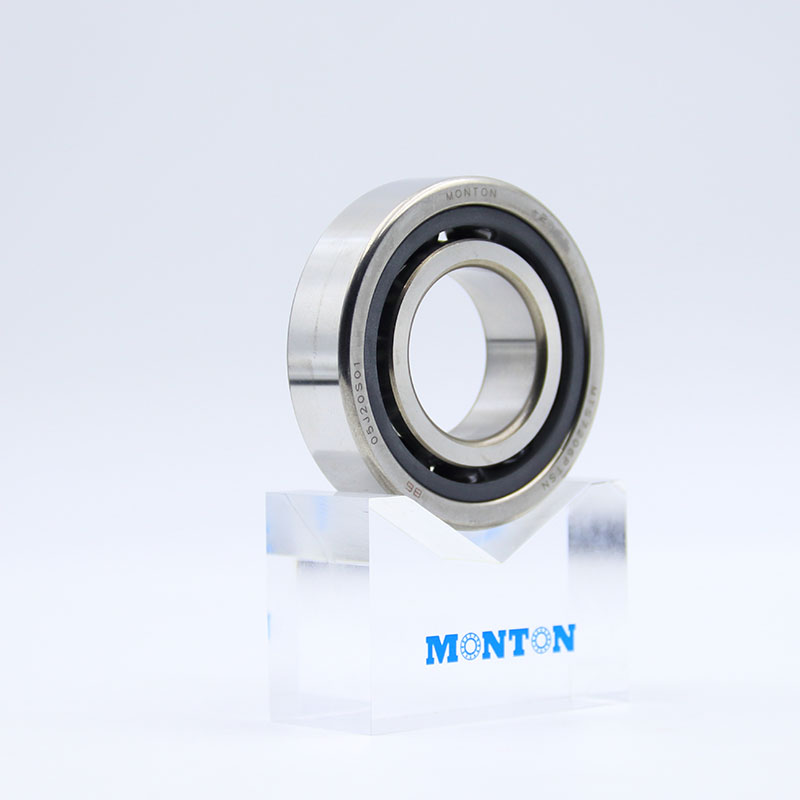

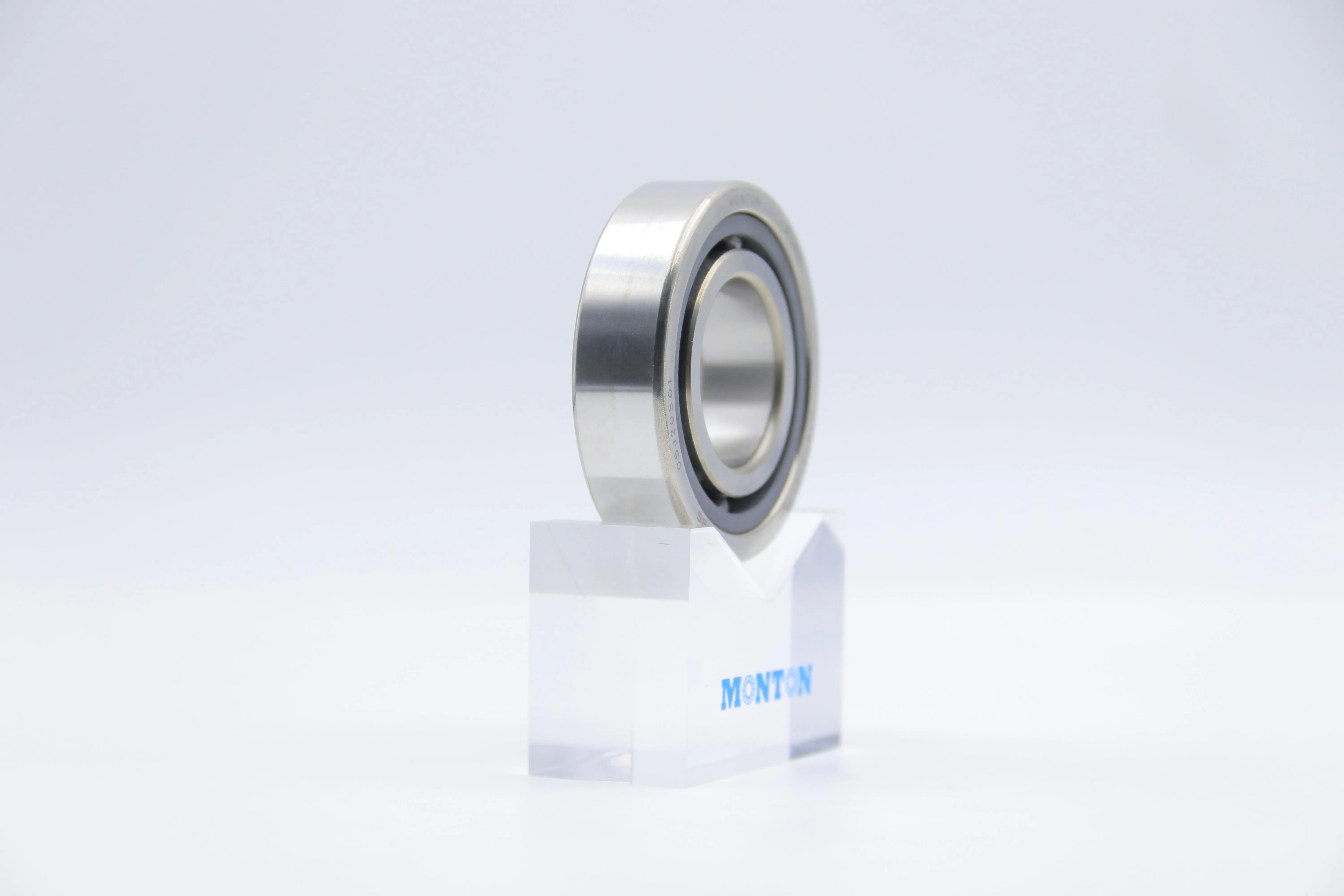

Low temperature bearing MTS7206PTSN

MTS7206PTSN is a low temperature bearing specially designed by MONTON Bearing for customers. The ring material is made of low-temperature resistant brittle stainless steel, and the rolling element is silicon nitride ceramic ball. It is used in the low-temperature range of liquid nitrogen temperature -196 ℃. It is an optimized structure low-temperature resistant long-life bearing.

Case Details

Name	Low temperature bearing
Seires	72 series
Brand	MONTON
Model	MTS7206PTSN
d	30mm
D	62mm
B	16mm
Ring Material	Special steel
Cage Material	PTFE
Load rating Cr	22.5kN
Load rating Cor	14.3kN
Sealed	N/A
Weight	0.18KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
