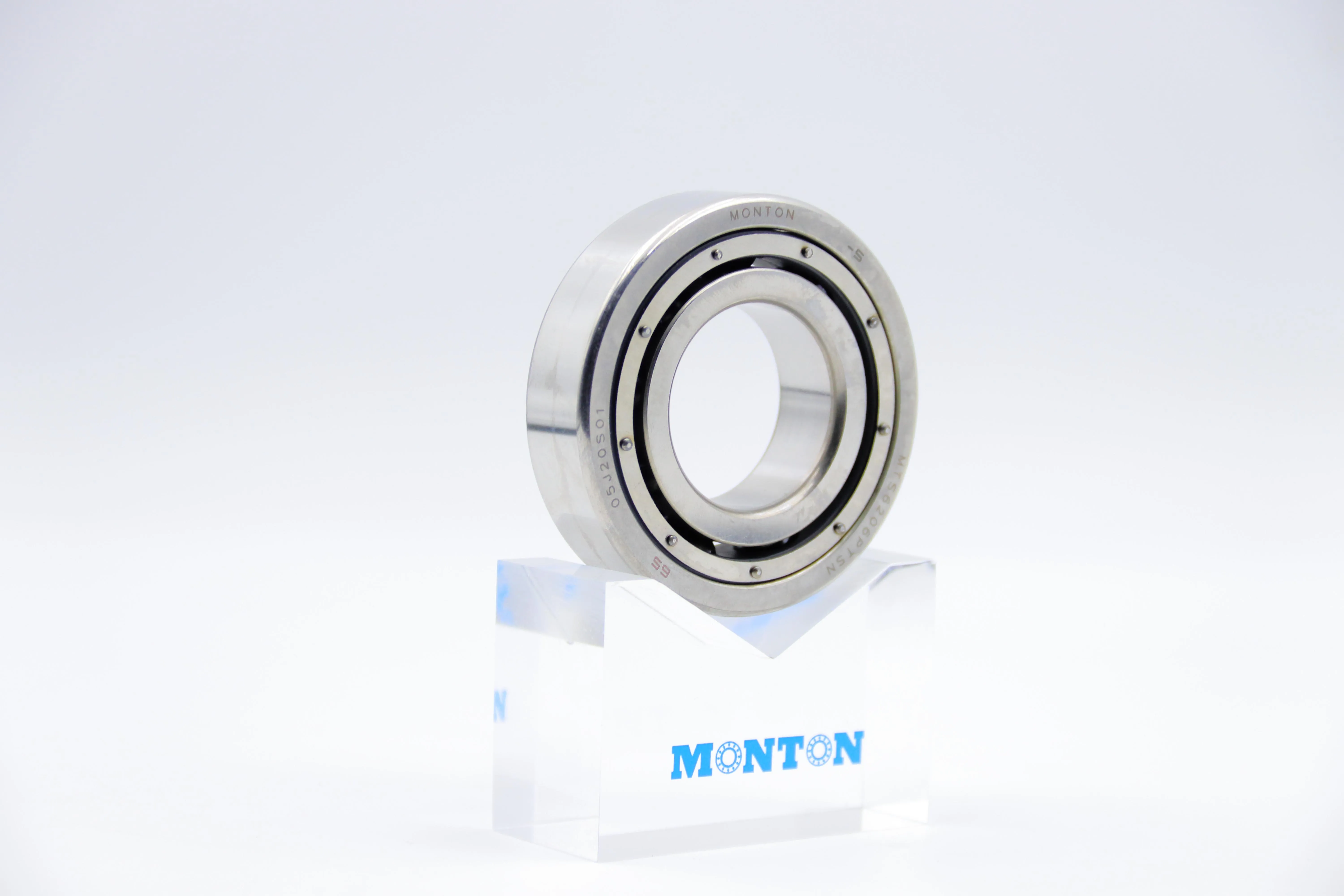

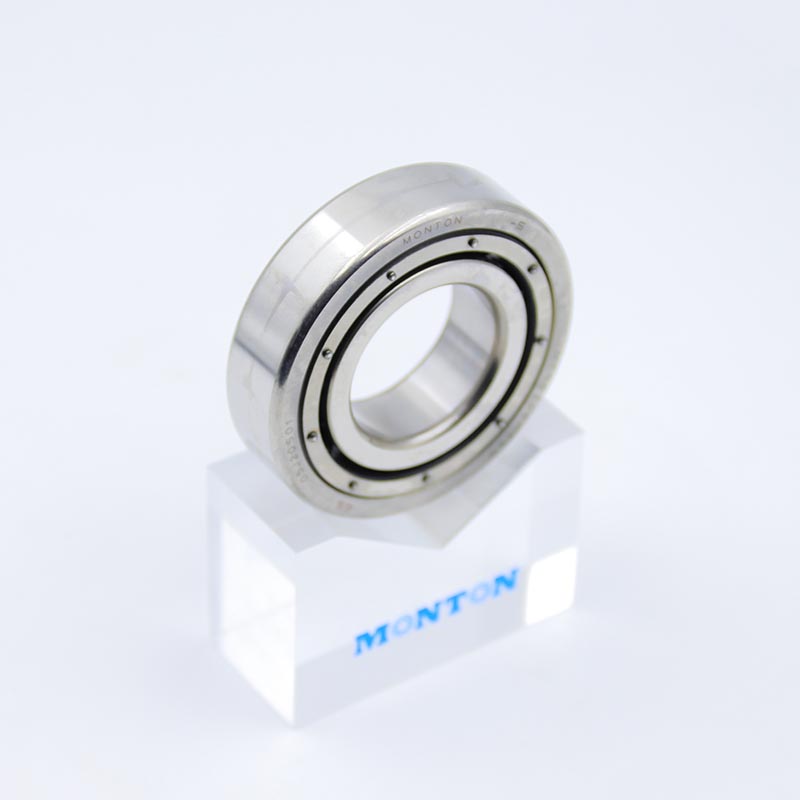

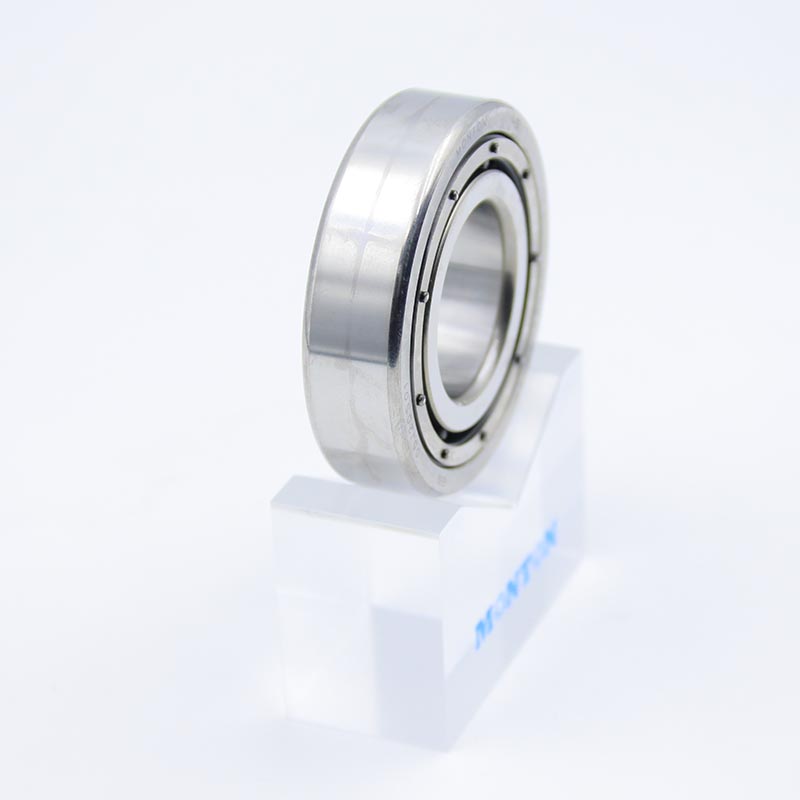

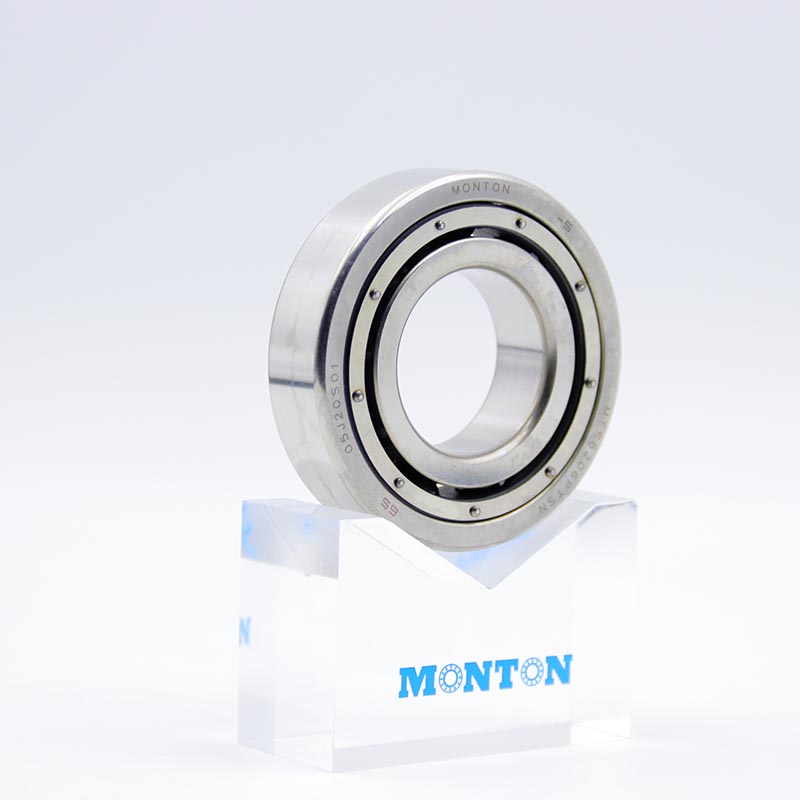

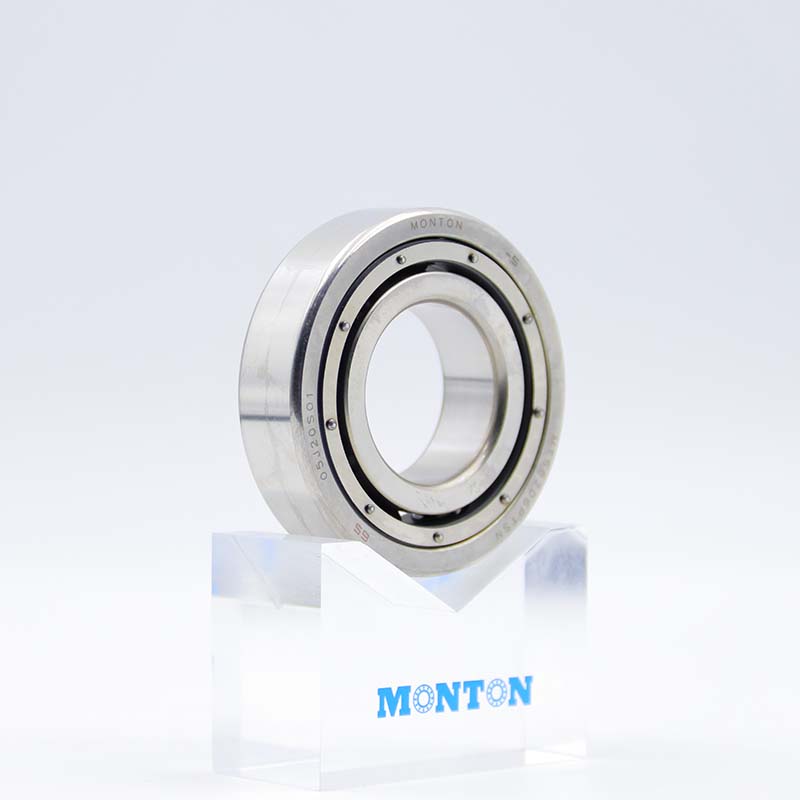

MTS6206 low temperature bearing

The MTS6206, produced and developed by MONTON is a low-temperature bearing specifically designed for liquefied natural gas (LNG) pumps. Made of corrosion-resistant stainless steel suitable for low temperatures, the MTS6206 can withstand a minimum temperature of -196°C. It relies on special cage material for lubrication, ensuring the bearing can operate even at low temperatures. It is suitable for environments where it is immersed in liquid natural gas for extended periods and subjected to high-speed rotation and medium impact, such as LNG transfer pumps and liquid nitrogen pumps.

Case Details

Name	Cryogenic bearings
Seires	62 series
Brand	MONTON
Model	MTS6206
d	30mm
D	62mm
B	16mm
Ring Material	Special steel
Cage Material	PTFE
Load rating Cr	21kN
Load rating Cor	12kN
Sealed	N/A
Weight	0.21KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
