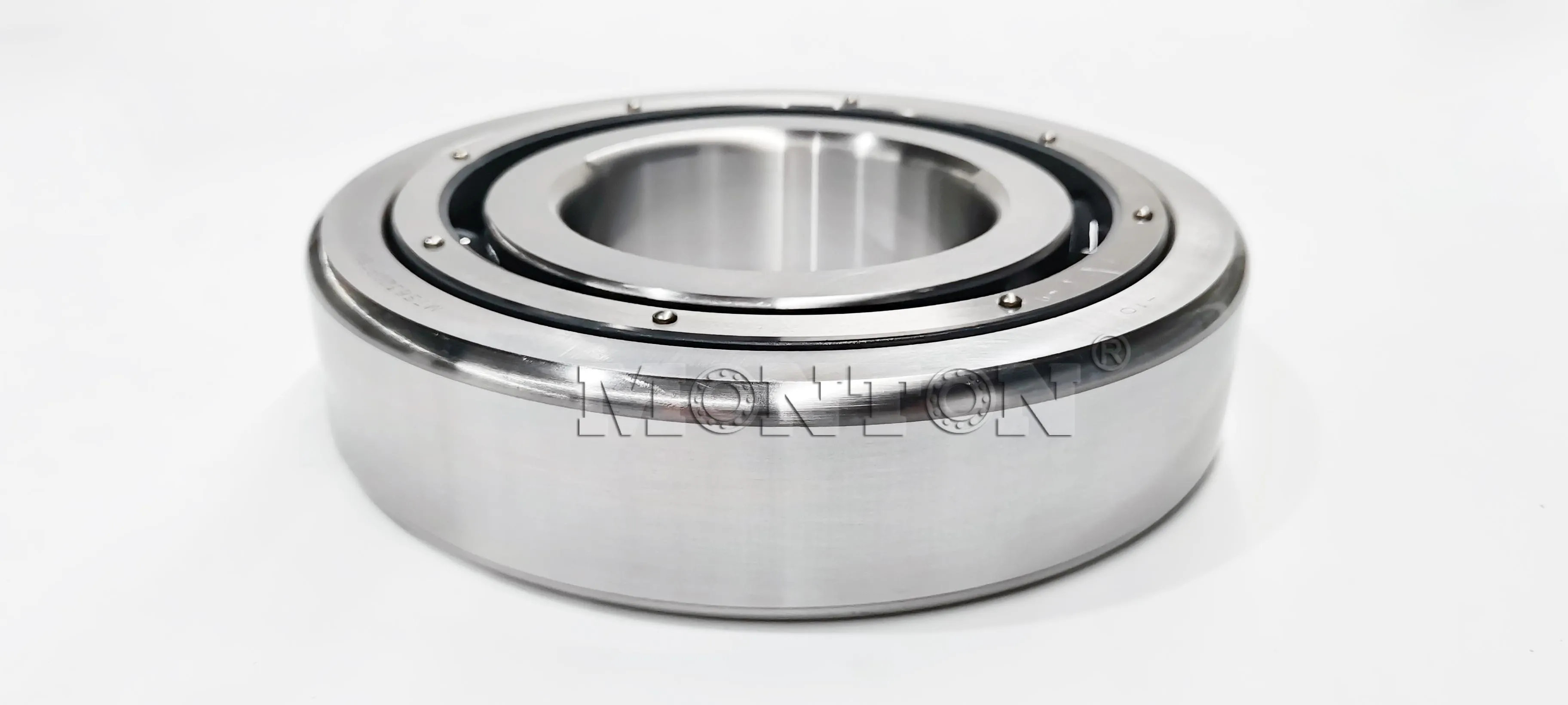

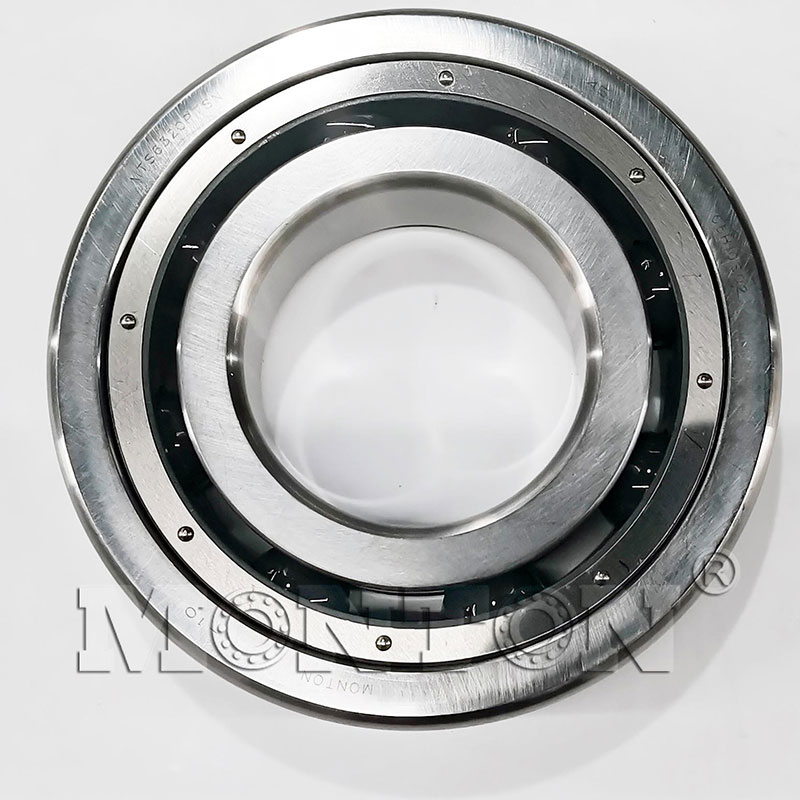

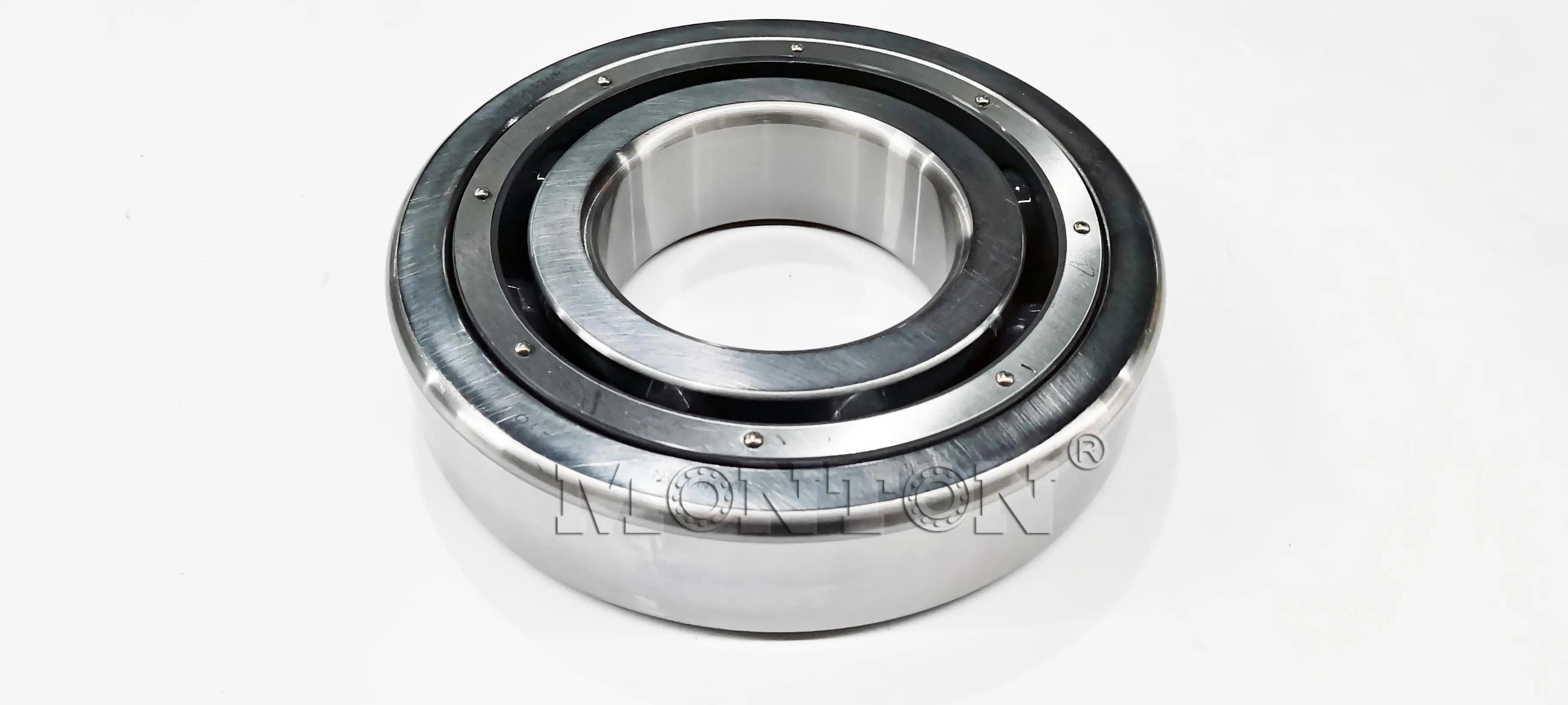

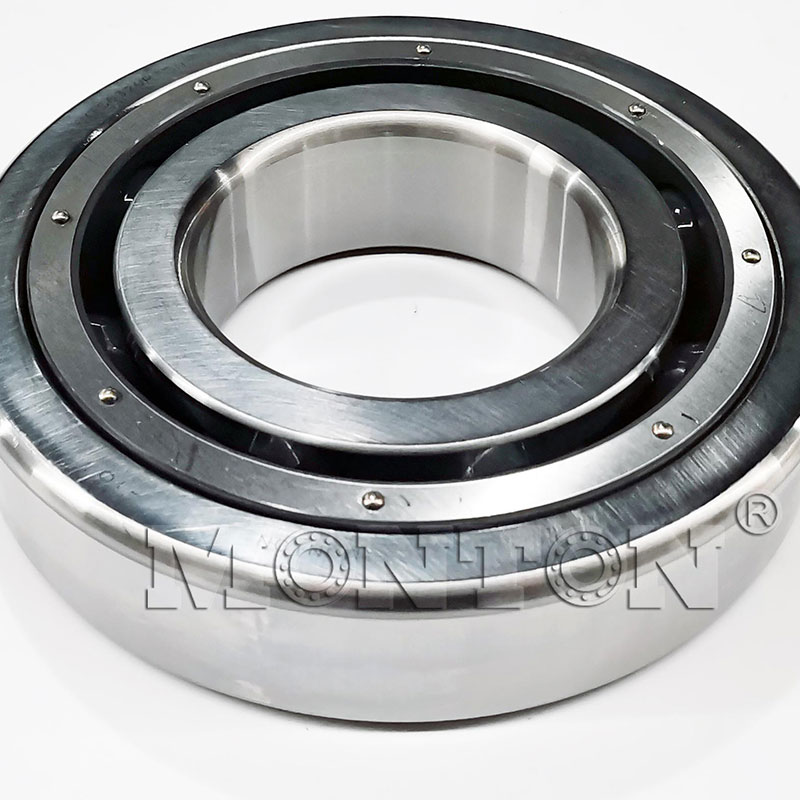

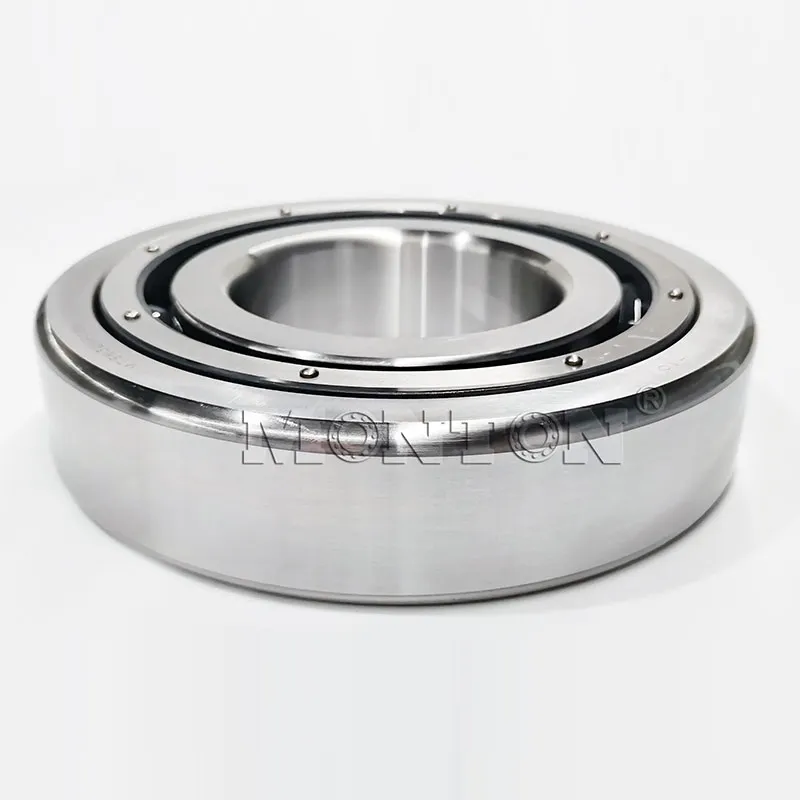

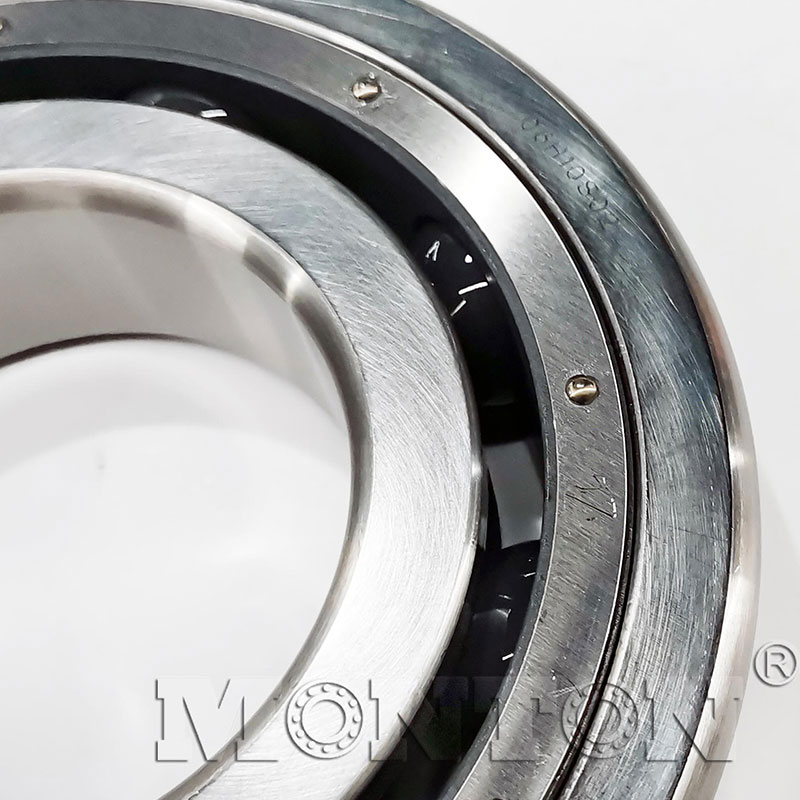

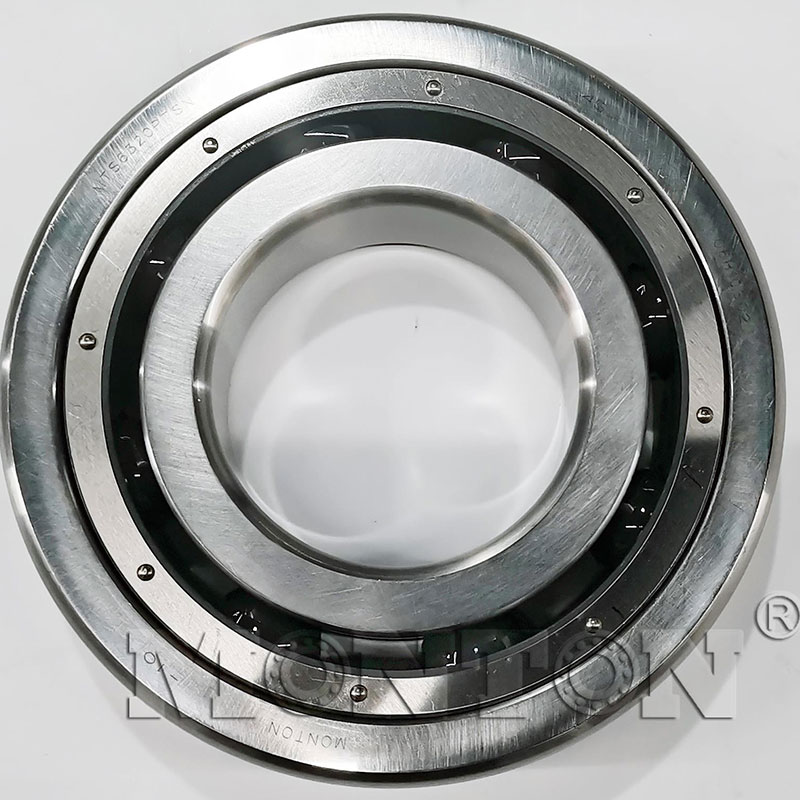

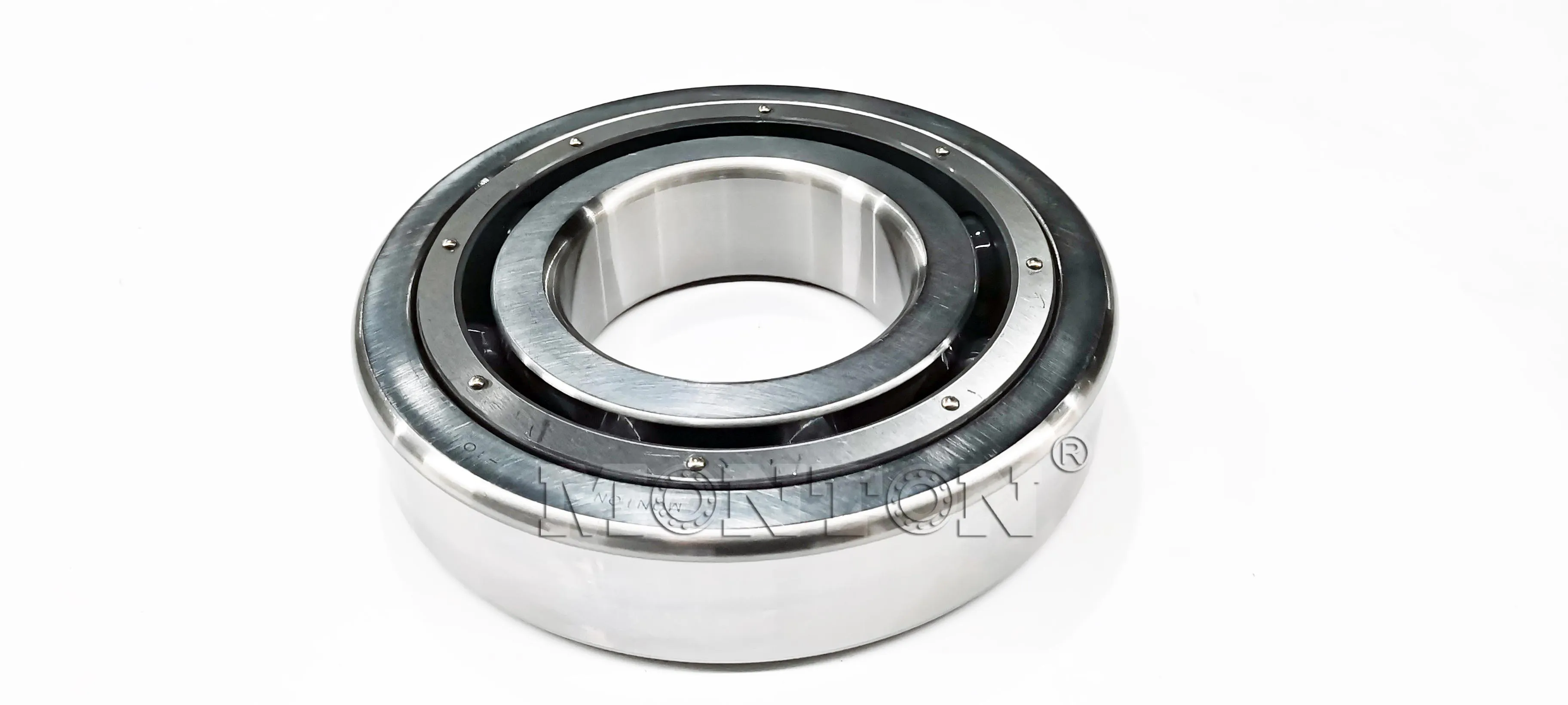

MTS6320PTSN Cryogenic bearings

6320-H-T35D is a low temperature bearing designed by MONTON Bearing for liquefied natural gas (LNG) pumps. It is made of corrosion-resistant stainless steel material and has a minimum temperature tolerance of -256 ℃. Relying on special retainer materials and pre filled lubricating grease to avoid low-temperature solidification, it is suitable for environments that are immersed in liquid natural gas for a long time, withstand high-speed rotation and medium impact, and require zero leakage sealing design. For example, LNG transfer pumps (such as receiving stations, tank loading and unloading systems), rocket cryogenic liquid pumps, aerospace liquid pumps, etc.

Case Details

Name	Cryogenic bearings
Seires	63 series
Brand	MONTON
Model	MTS6320PTSN
d	100mm
D	215mm
B	47mm
Ring Material	Special steel
Cage Material	PTFE
Load rating Cr	160kN
Load rating Cor	130kN
Sealed	N/A
Weight	6.98KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
