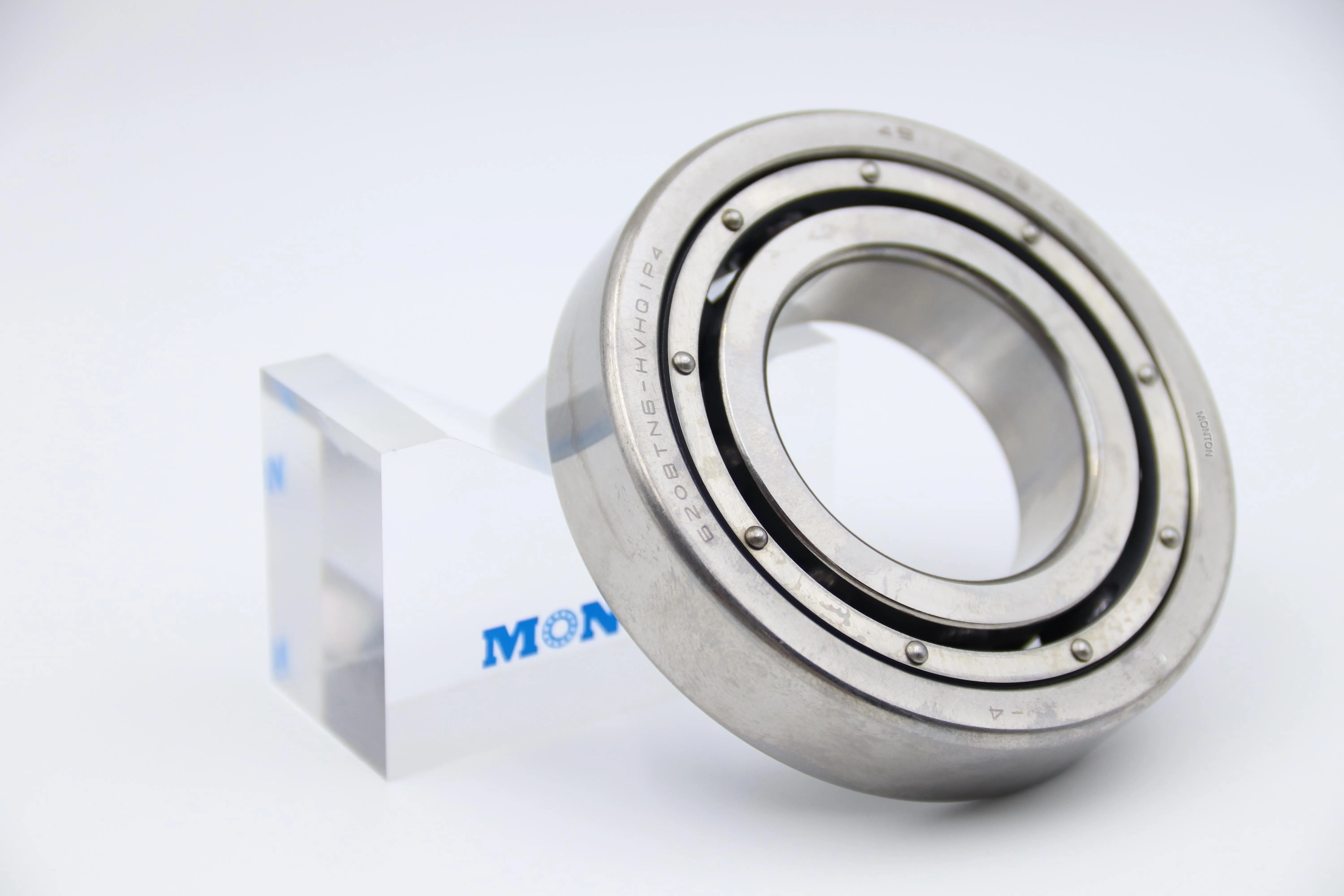

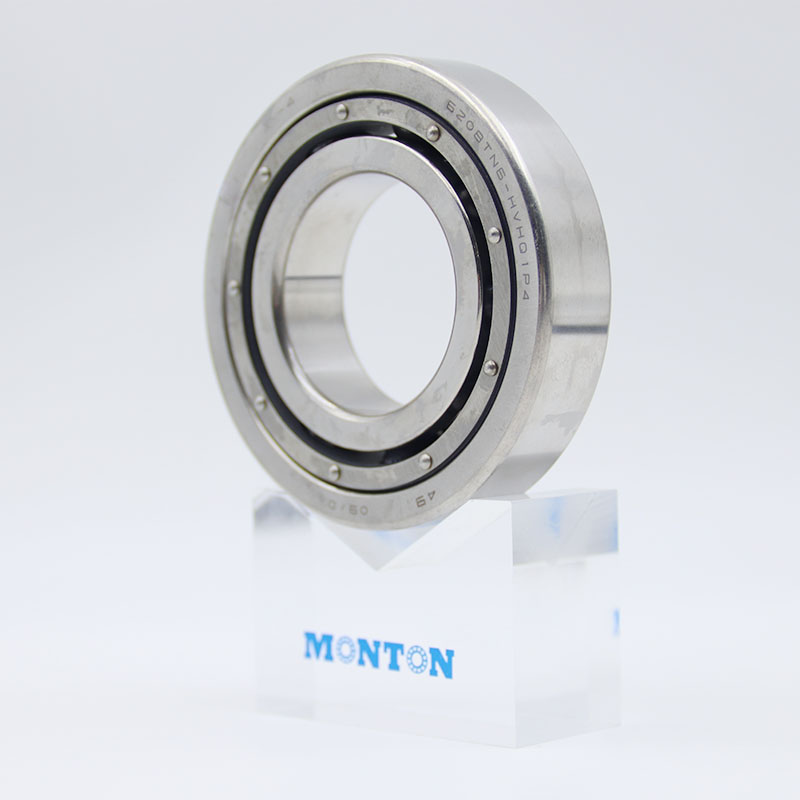

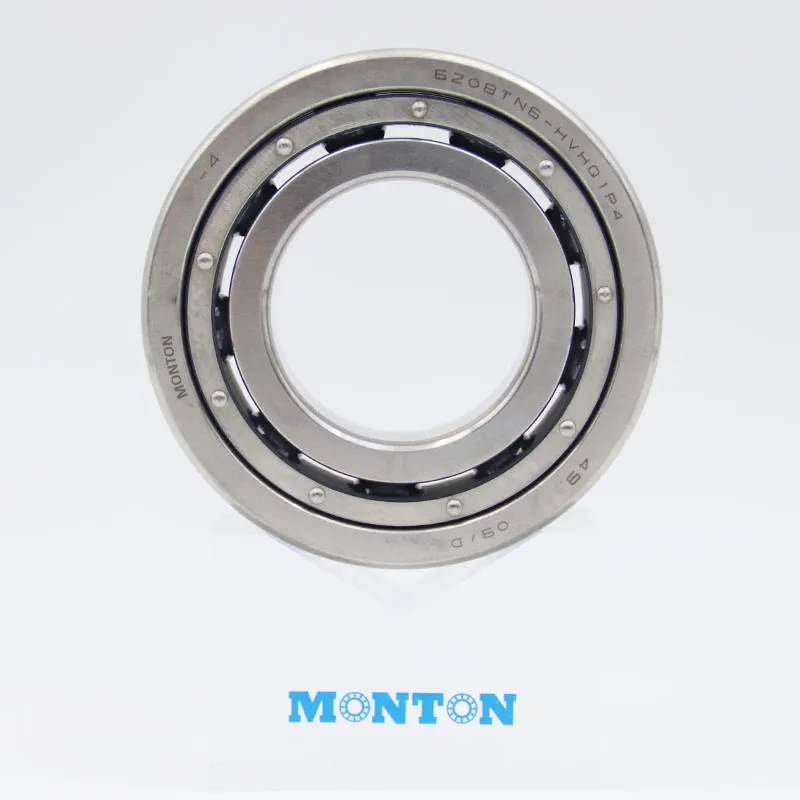

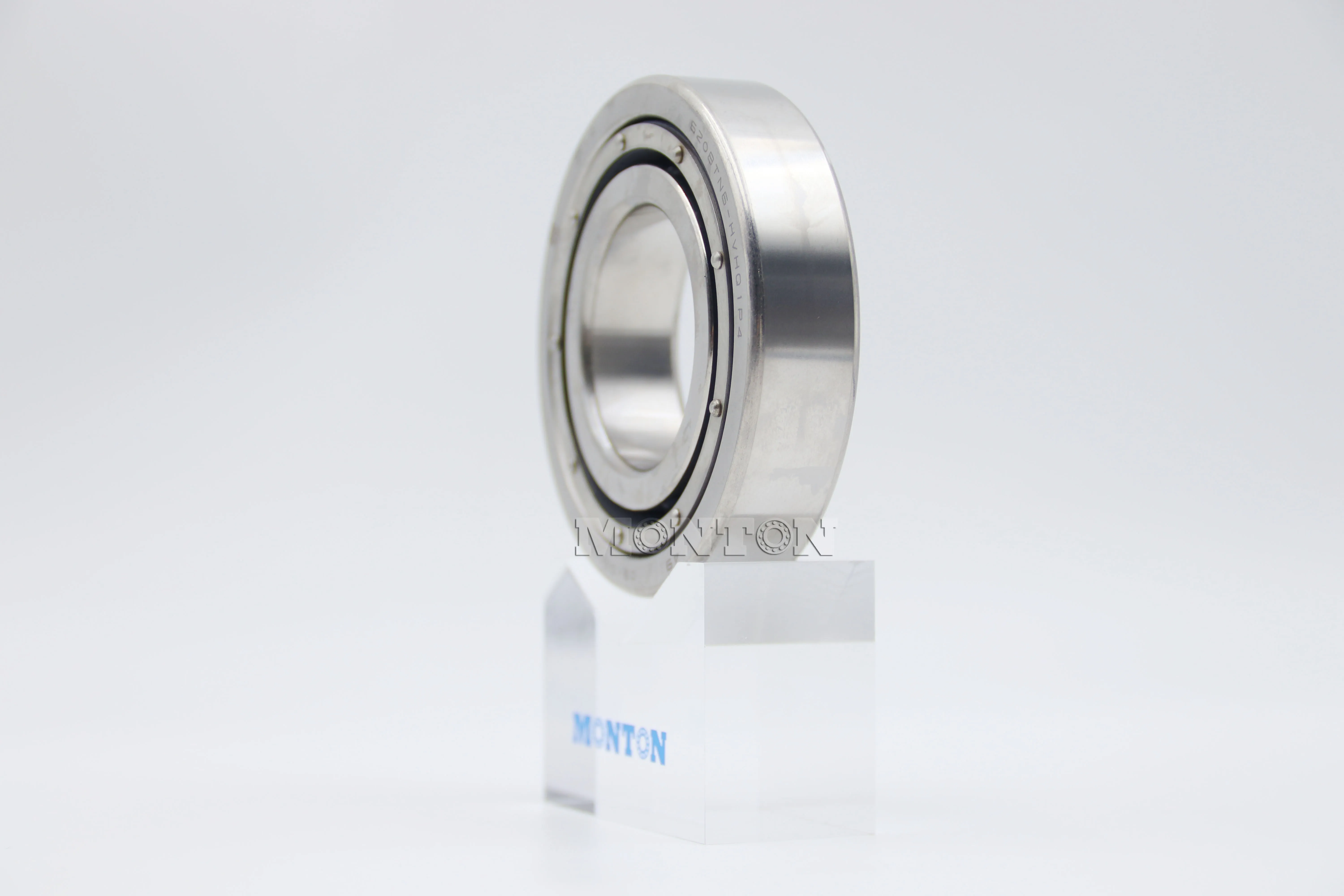

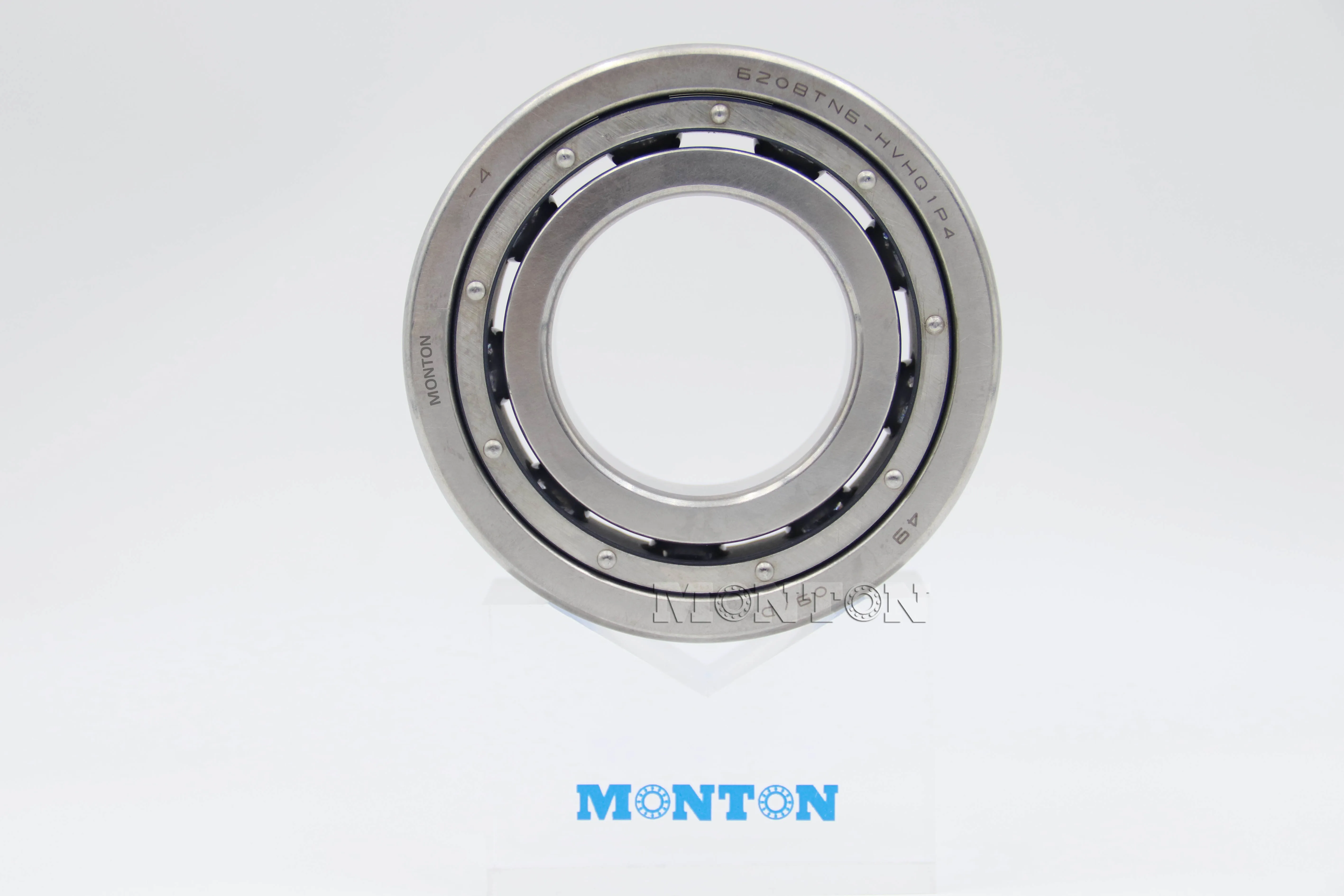

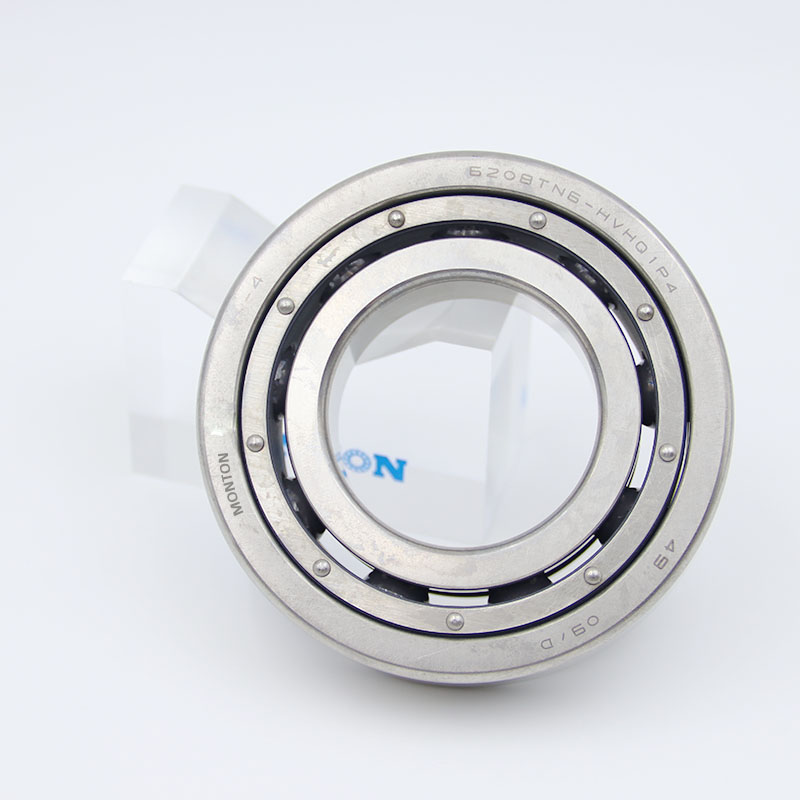

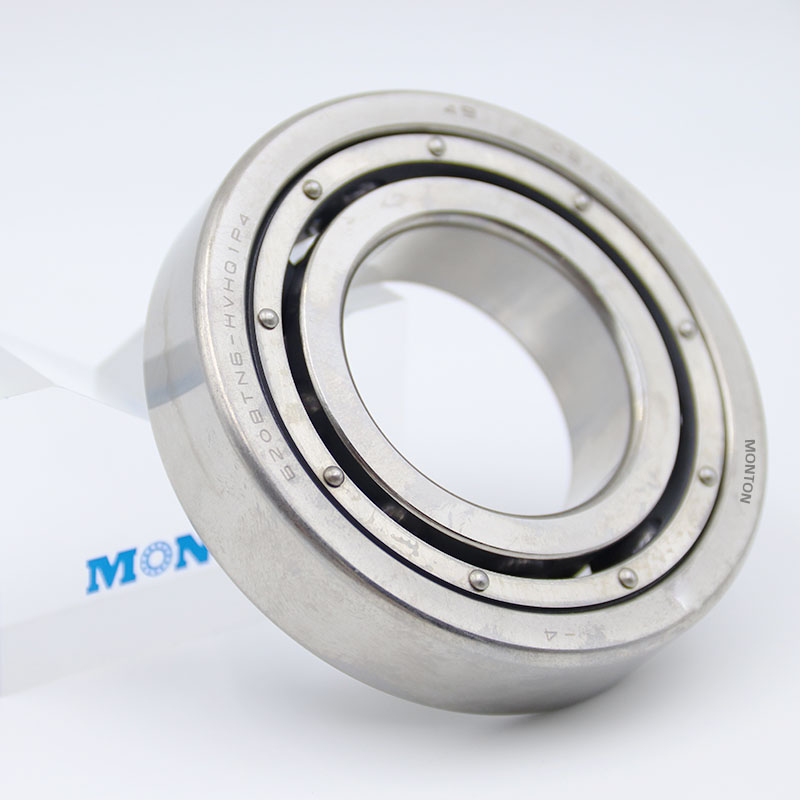

6208TN6HVHQ1P4 Cryogenic bearings

The 6208TN6HVHQ1P4 produced by MONTON is a low-temperature bearing designed specifically for LNG pumps. The 6208TN6HVHQ1P4 is made of corrosion-resistant special stainless steel material and has a minimum temperature tolerance of -256 ℃. It is self-lubricating through a special retainer material to prevent the bearing from malfunctioning at low temperatures, and is suitable for long-term immersion in liquid natural gas, withstanding high-speed rotation and medium impact environments. For example, LNG pumps, liquid nitrogen pumps, cryogenic pumps, and other low-temperature environments.

Case Details

Name	Cryogenic bearings
Seires	62 series
Brand	MONTON
Model	6208TN6HVHQ1P4
d	40mm
D	80mm
B	18mm
Ring Material	Special steel
Cage Material	PTFE
Load rating C	32.5kN
Load rating Co	19kN
Sealed	N/A
Weight	0.35KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
