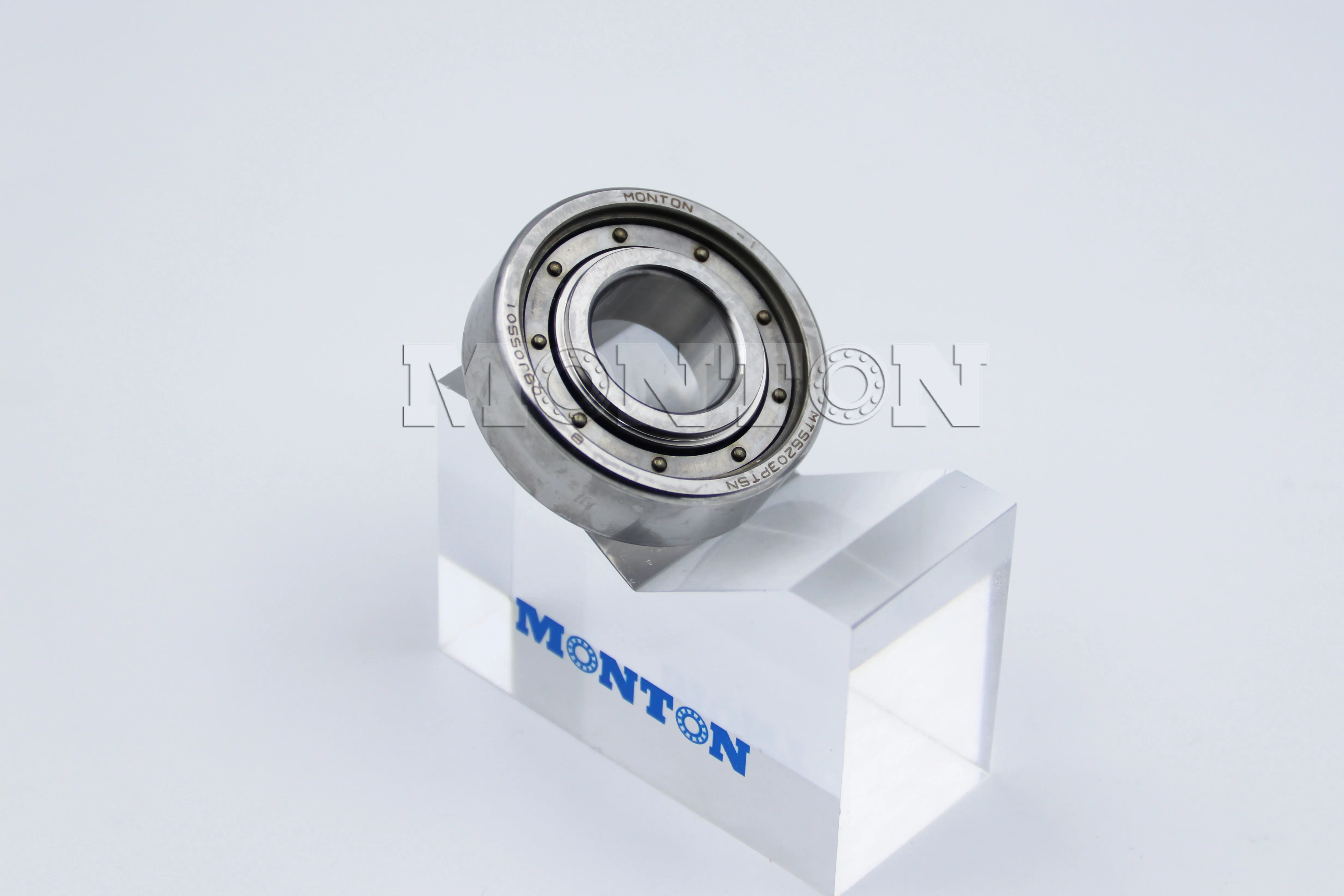

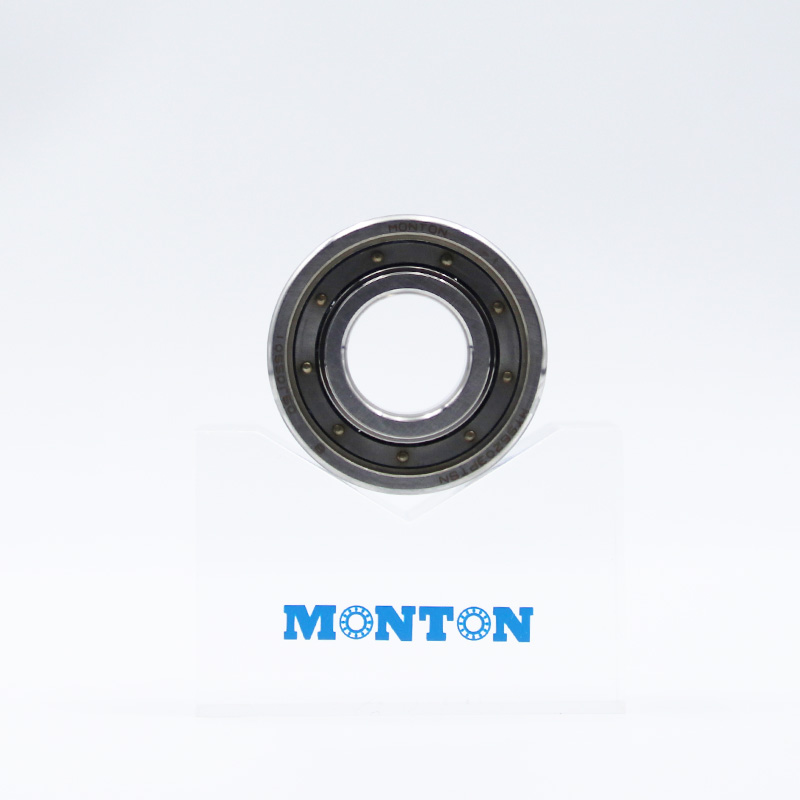

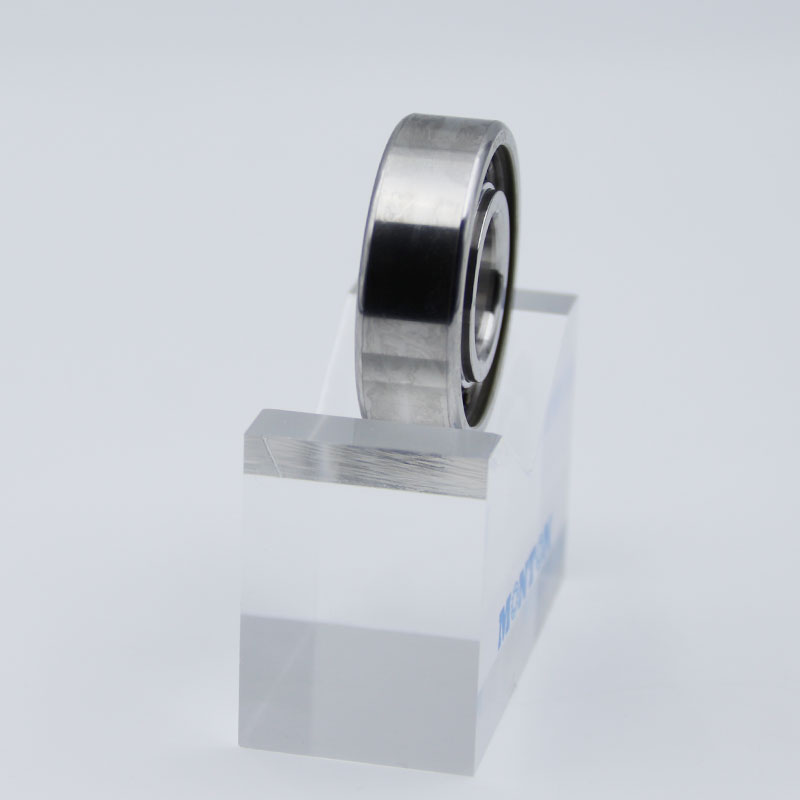

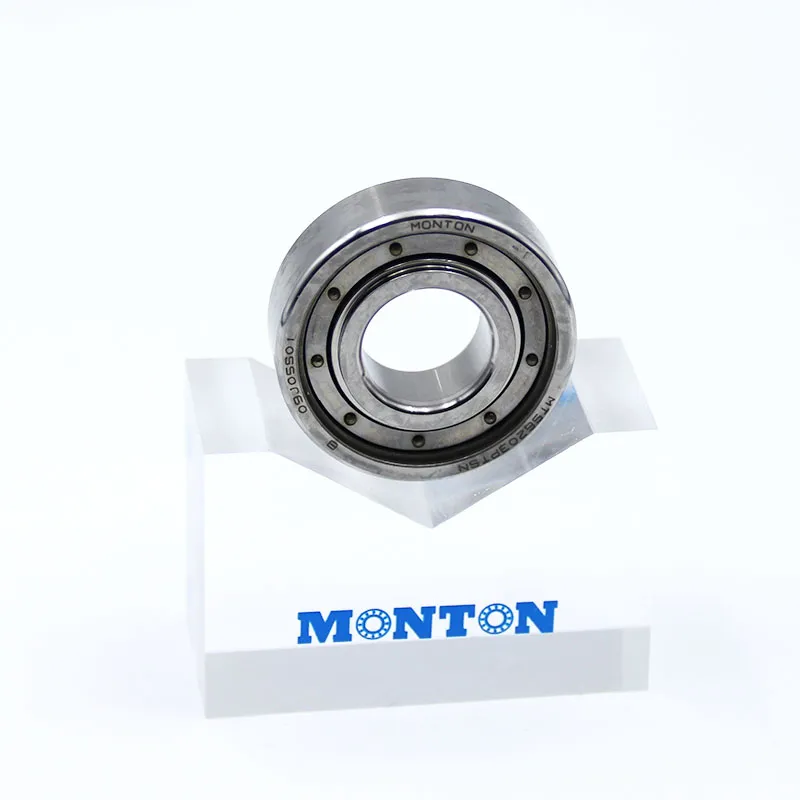

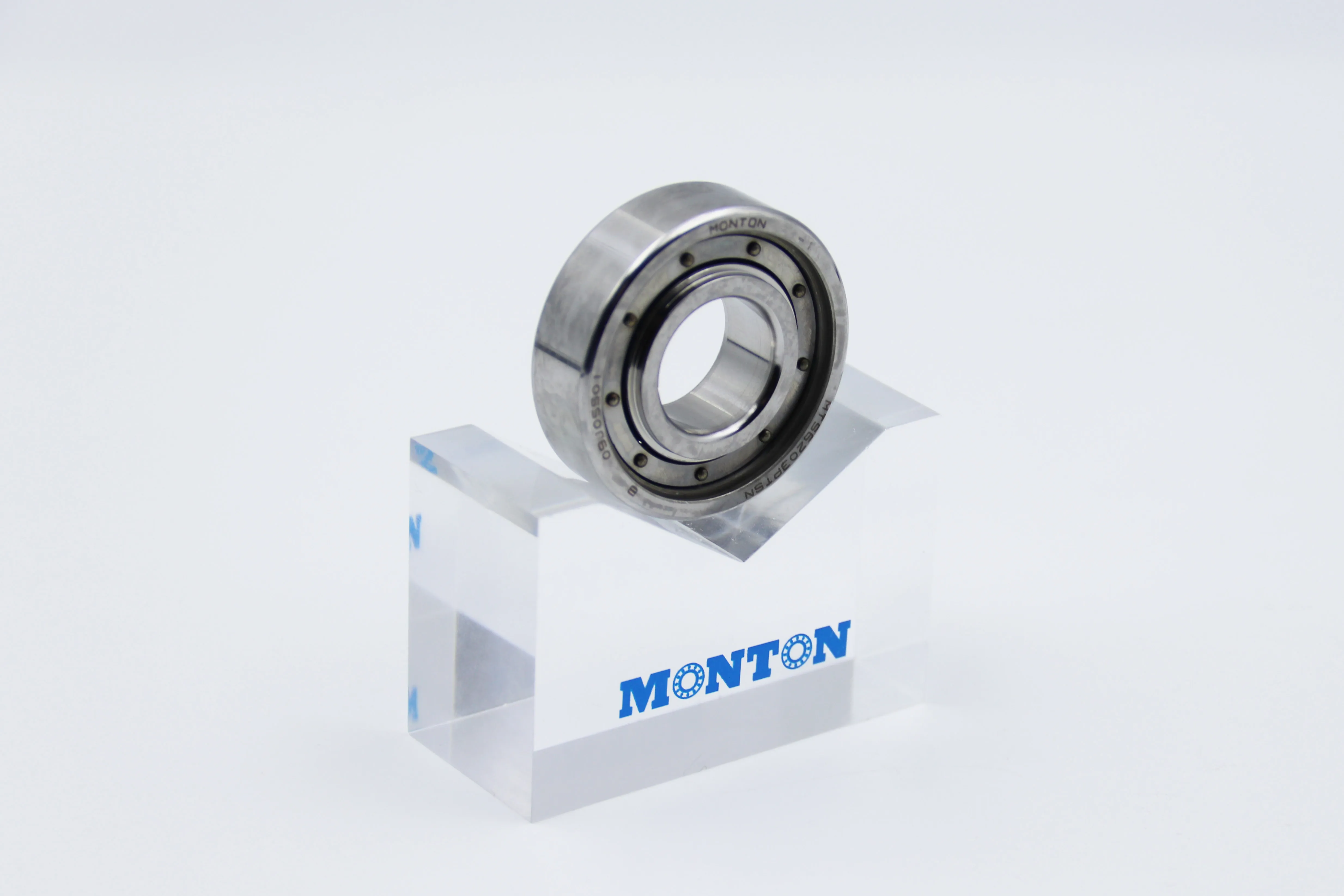

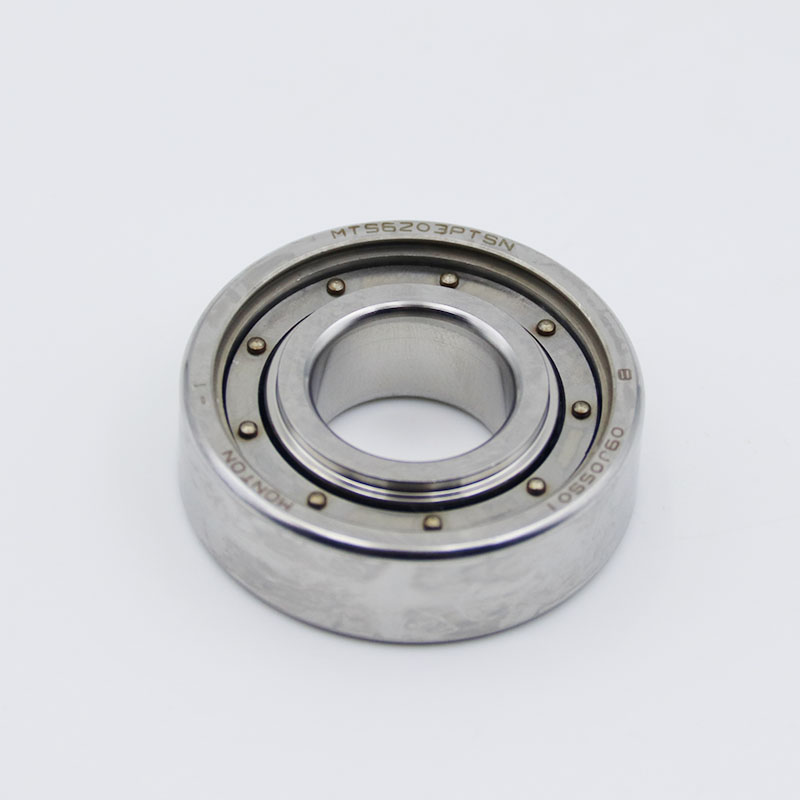

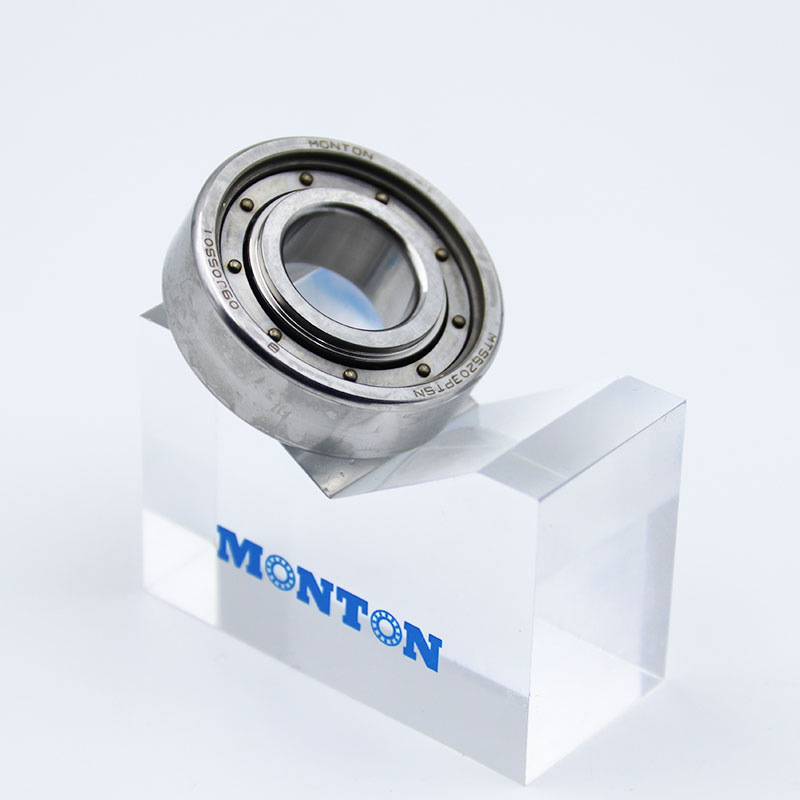

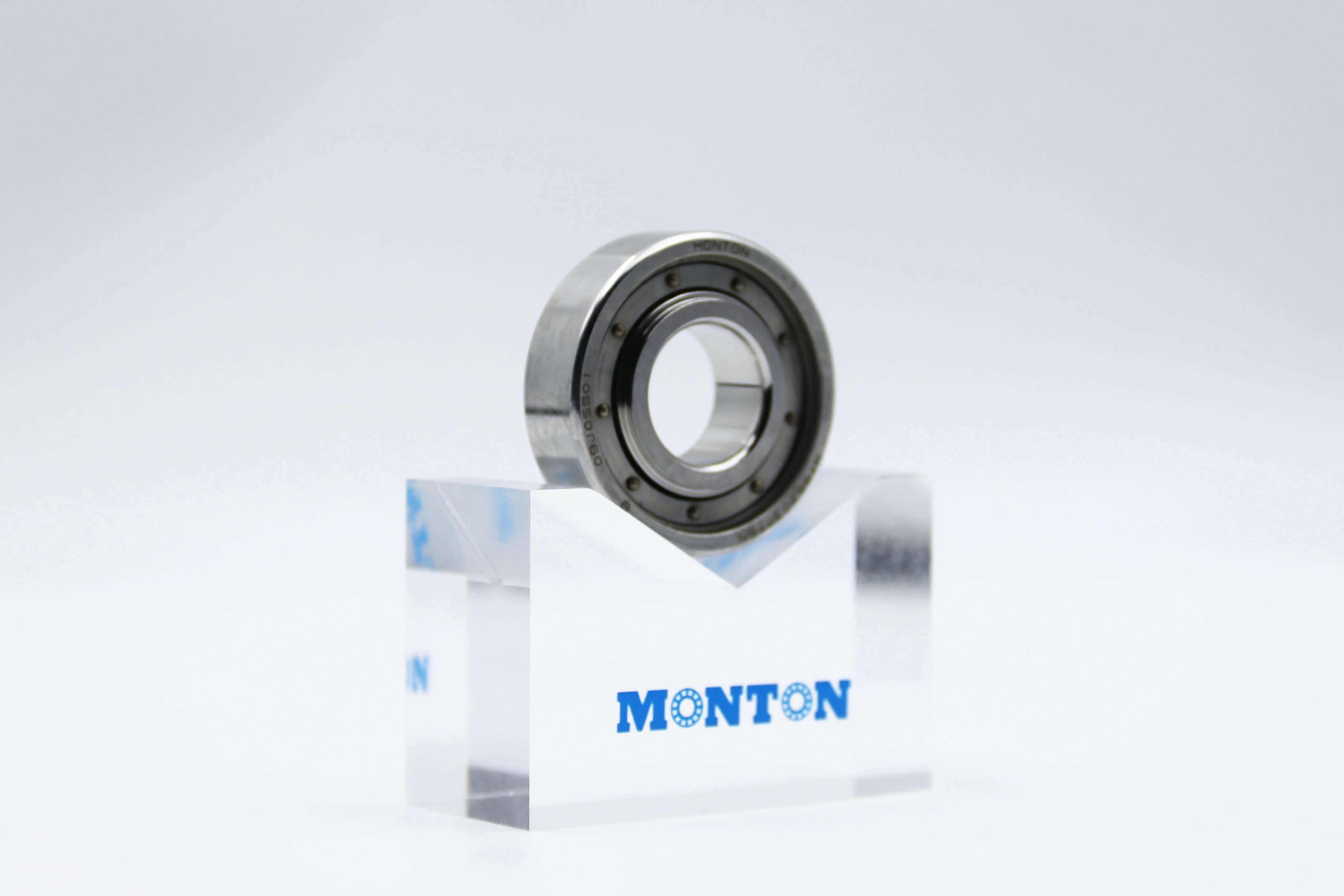

MTS6203PTSN Low temperature bearings

The MTS6203PTSN produced by MONTON is a bearing specifically designed for LNG cryogenic pumps ‌. The MTS6203PTSN is made of corrosion-resistant special stainless steel and can withstand a minimum temperature of -256℃. It self-lubricates through special cage materials, preventing the bearing from failing to operate at low temperatures. It is suitable for environments where the bearing is constantly immersed in liquid natural gas and subjected to high-speed rotation and medium impact. For example: LNG pump, cryogenic pump, liquid oxygen turbine pump, rocket engine, rocket cryogenic liquid pump, aerospace liquid pump.

Case Details

Name	Cryogenic bearings
Seires	62 series
Brand	MONTON
Model	MTS6203PTSN
d	17mm
D	40mm
B	12mm
Ring Material	Special steel
Cage Material	PTFE
Load rating C	9.95kN
Load rating Co	4.75kN
Sealed	N/A
Weight	0.06KG
Design Structure	Angular Contact
Precision	P4
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	LNG pump Cryogenic pum LOX Turbo Pump Rocket engine Rocket cryogenic liquid pump Spacecraft liquid pump
