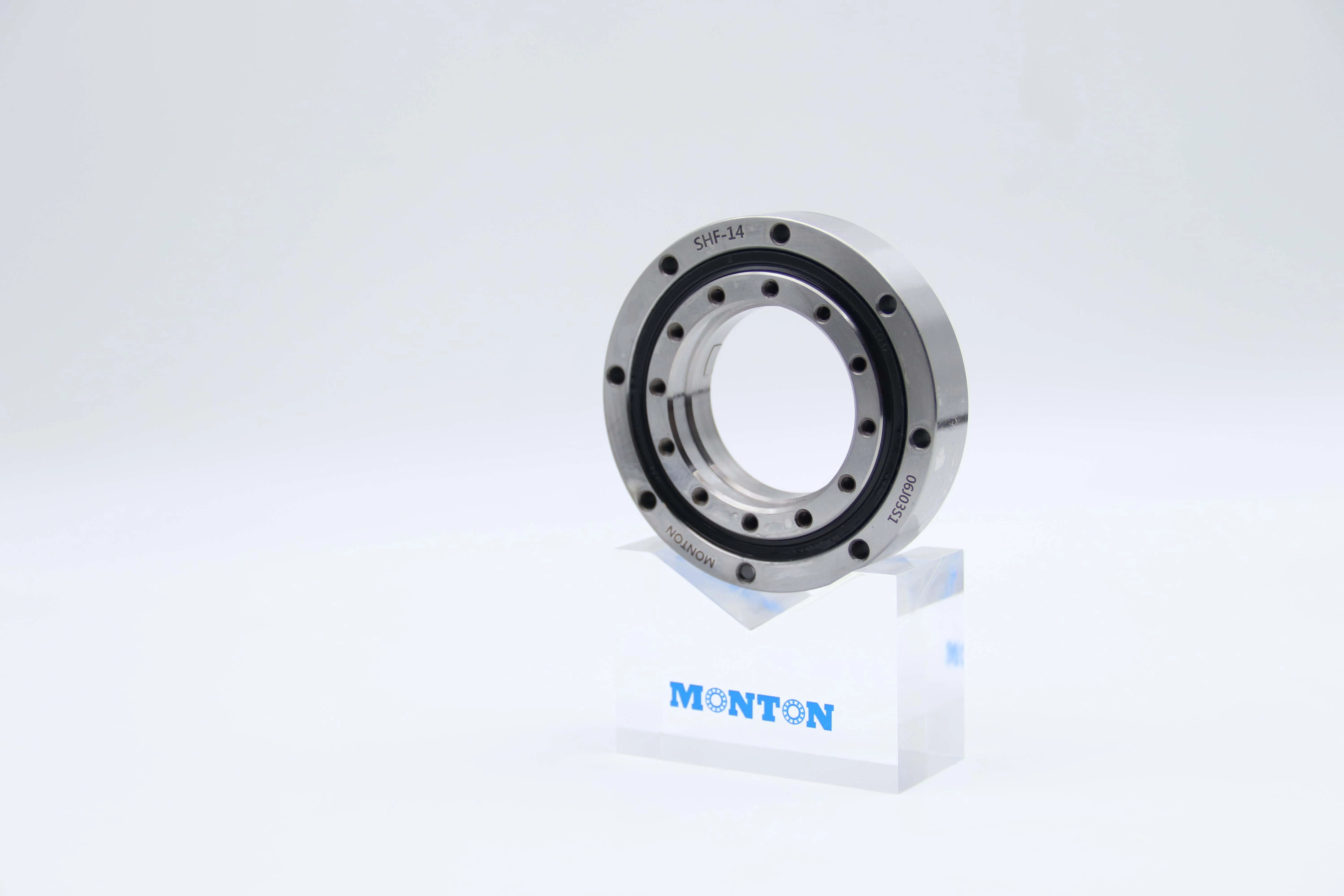

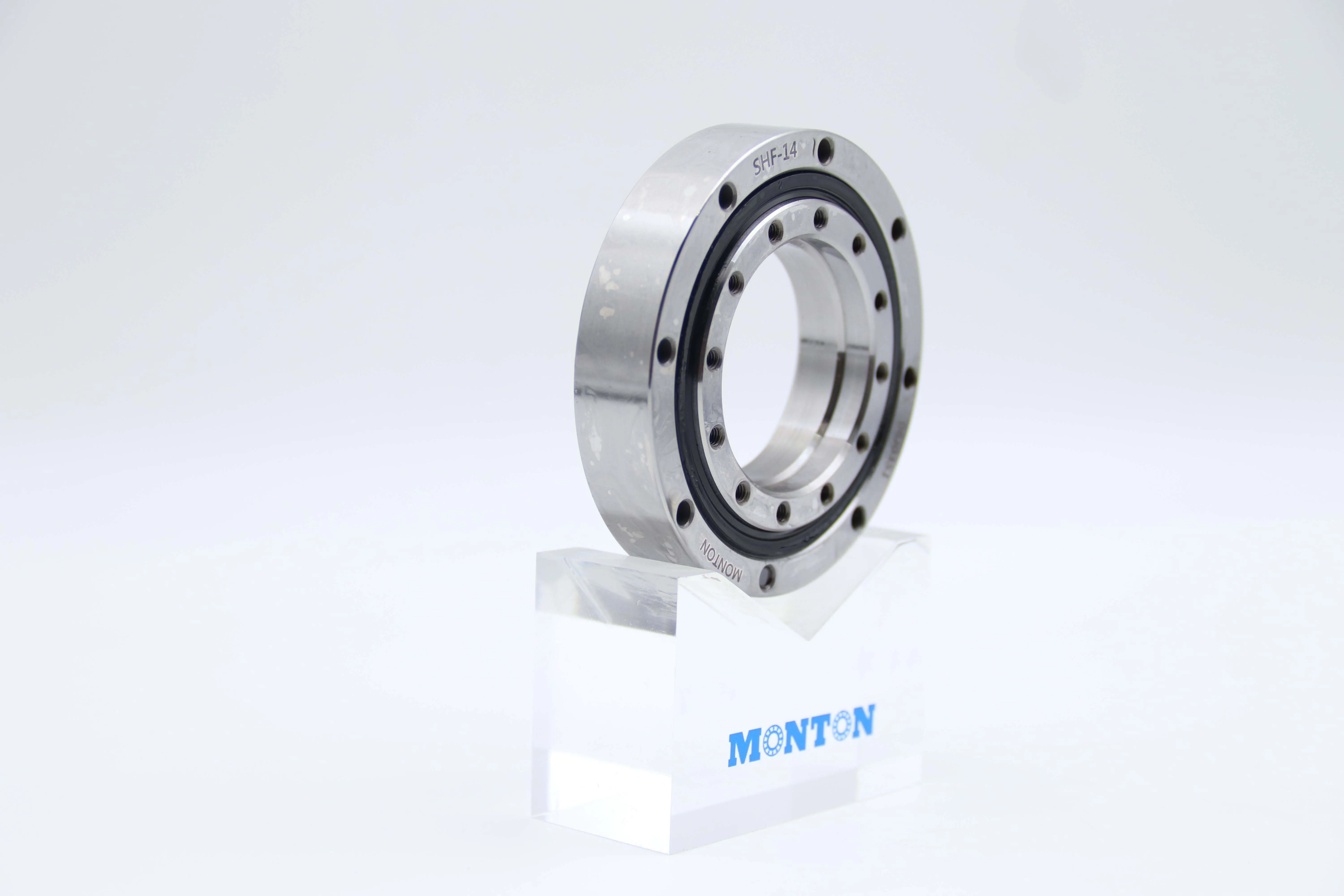

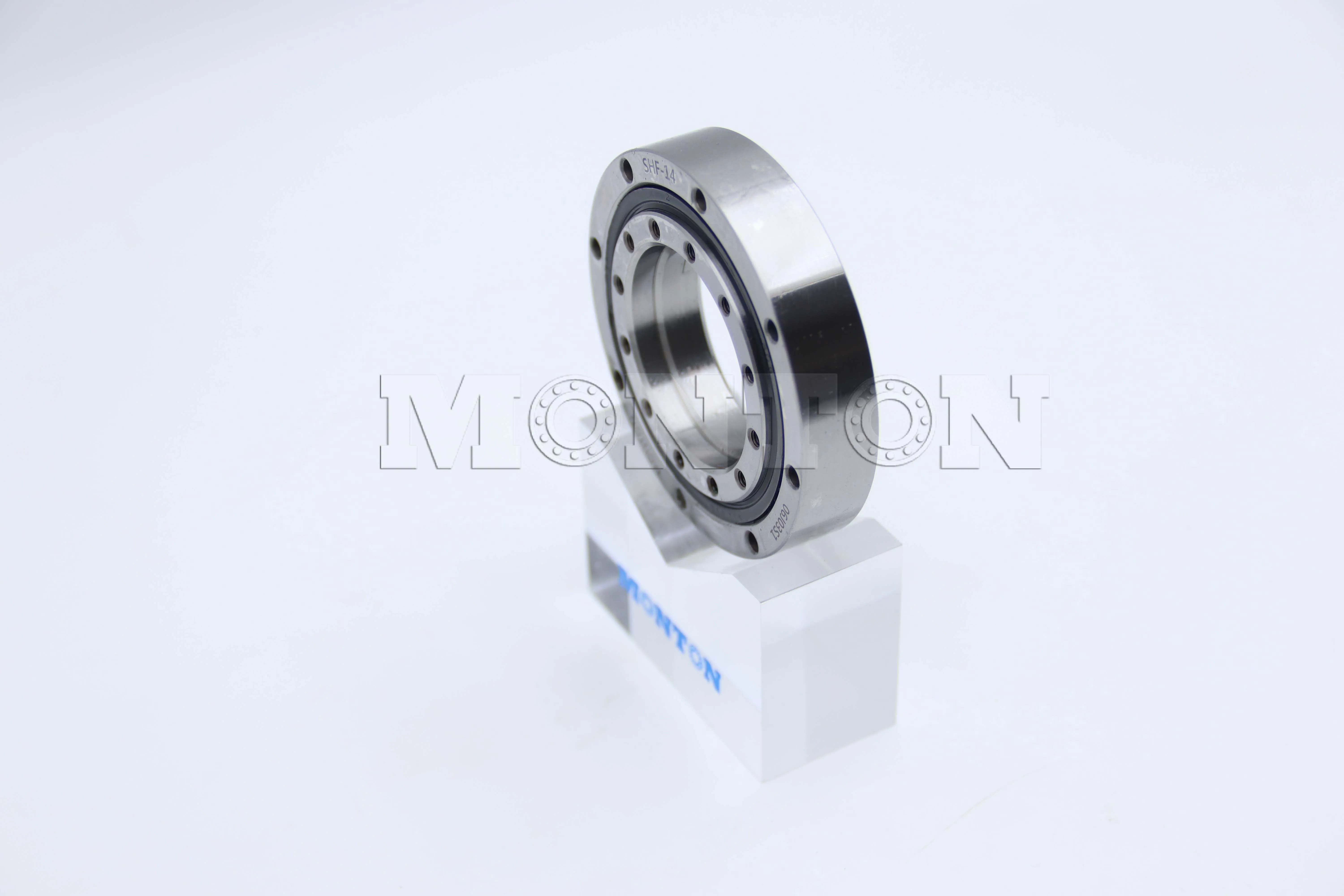

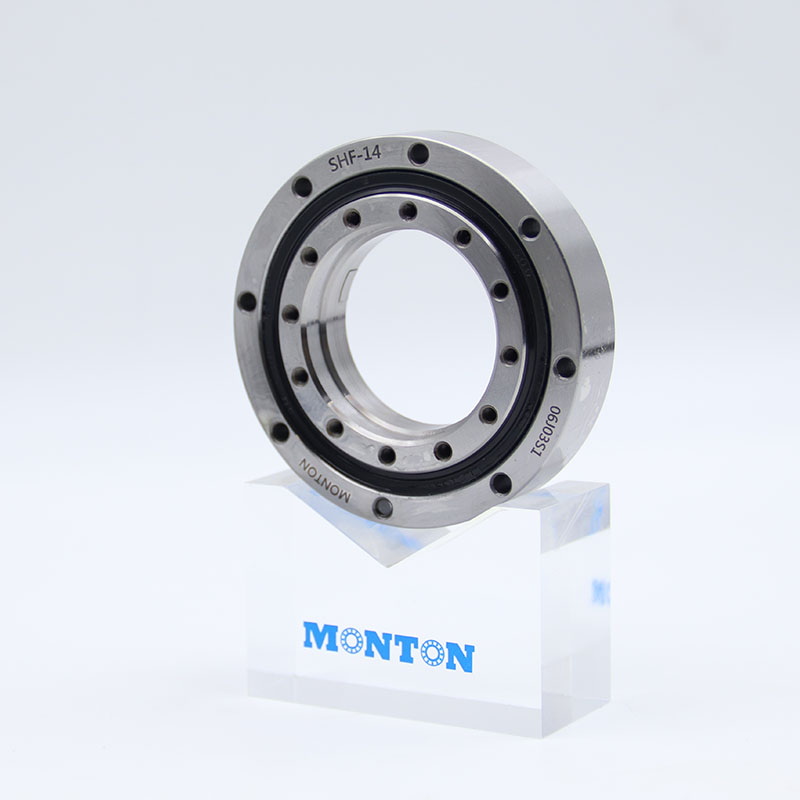

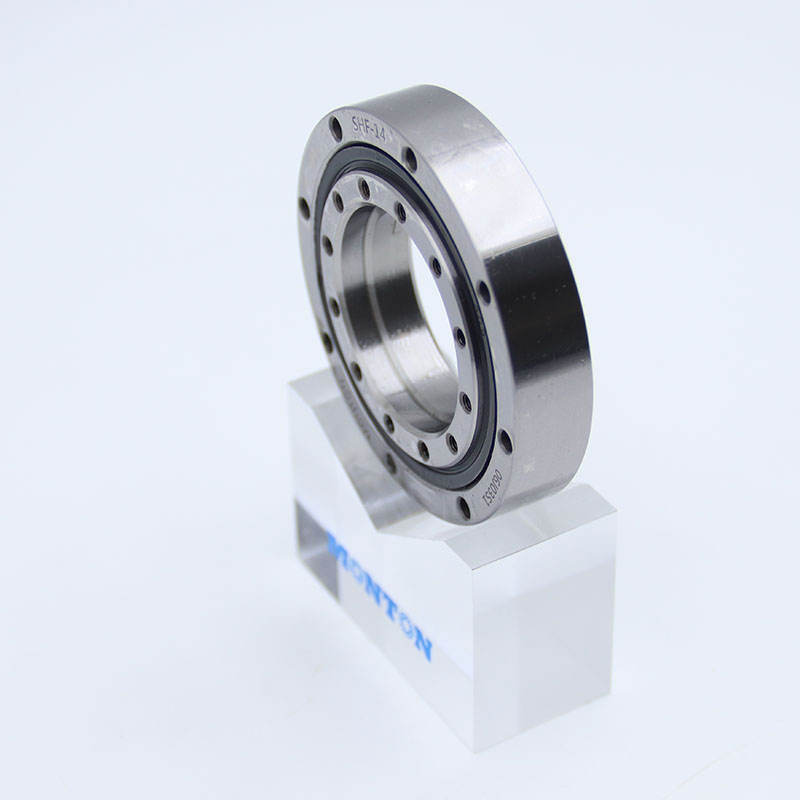

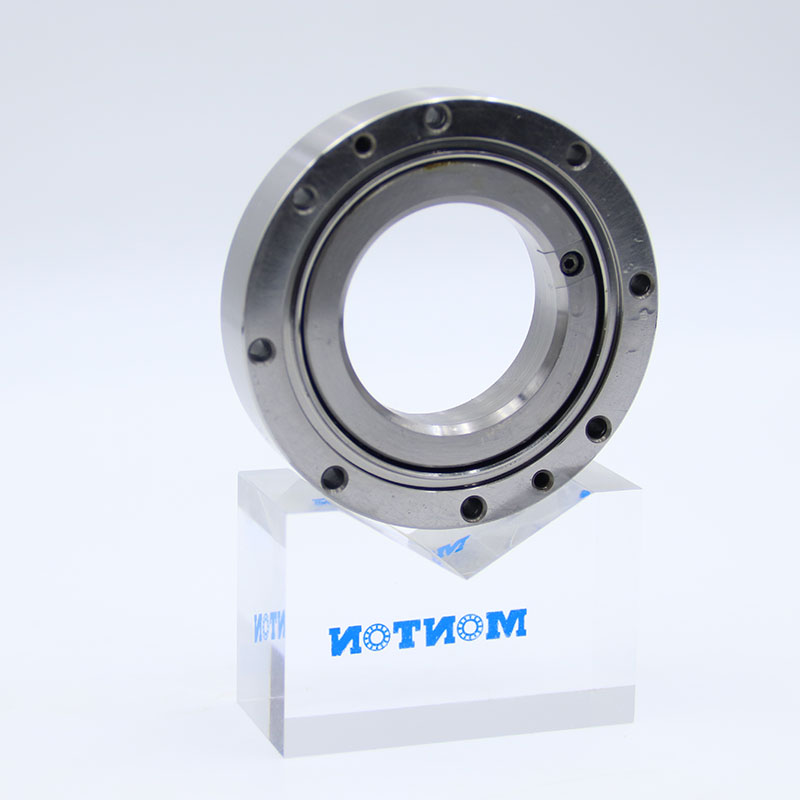

SHF-14/SHG-14 Harmonic Drive Bearing

SHF-14/SHG-14 harmonic reducer cross roller bearings adopt an integral inner and outer ring structure, with cylindrical rollers arranged in a 90 ° vertical cross in the V-shaped raceway, which can simultaneously withstand radial force, bidirectional axial force, and overturning moment. After installation, it has little impact on performance and can maintain stable rotation accuracy and torque output. Specially designed for output parts of harmonic reducers, especially suitable for SHG/SHF series reducers, industrial robot joints (waist, wrist and other high-precision rotating parts).

Case Details

Name	Harmonic Drive Bearing
Seires	SHF series
Brand	MONTON
Model	SHF-14/SHG-14
d	38mm
D	70mm
B	15.1mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	6.1kN
Load rating Cor	14kN
Sealed	Double seals
Weight	0.11KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2008
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer
