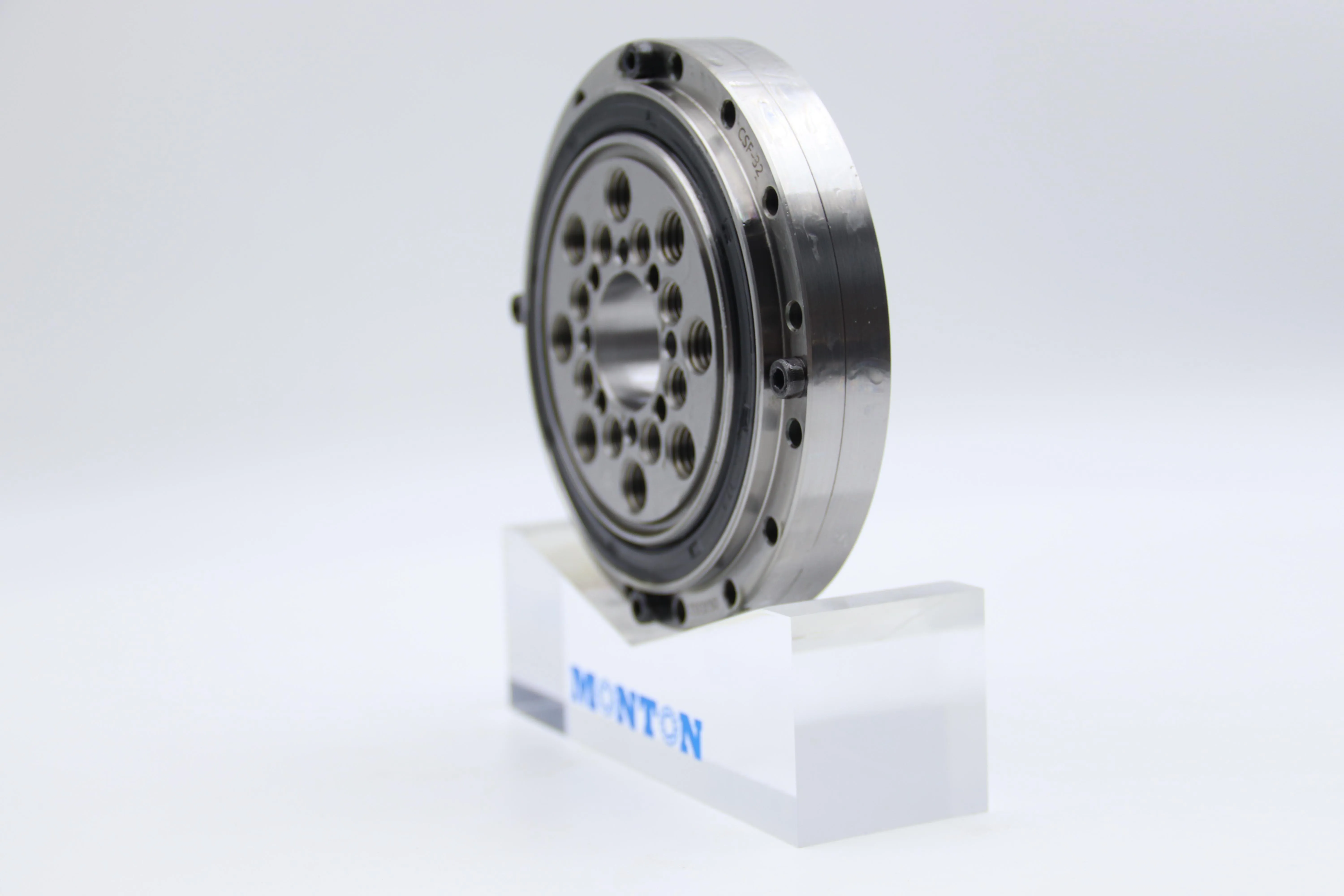

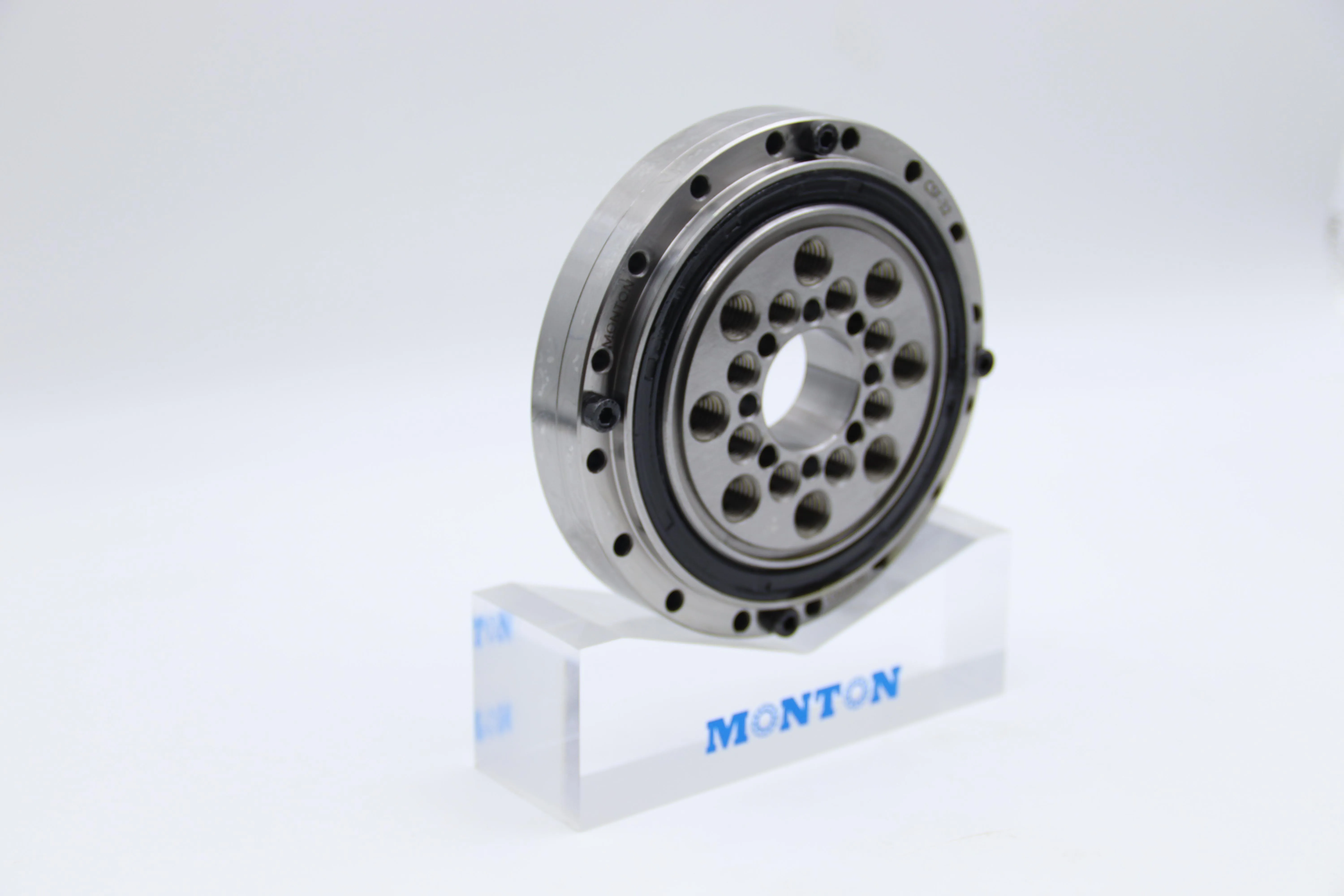

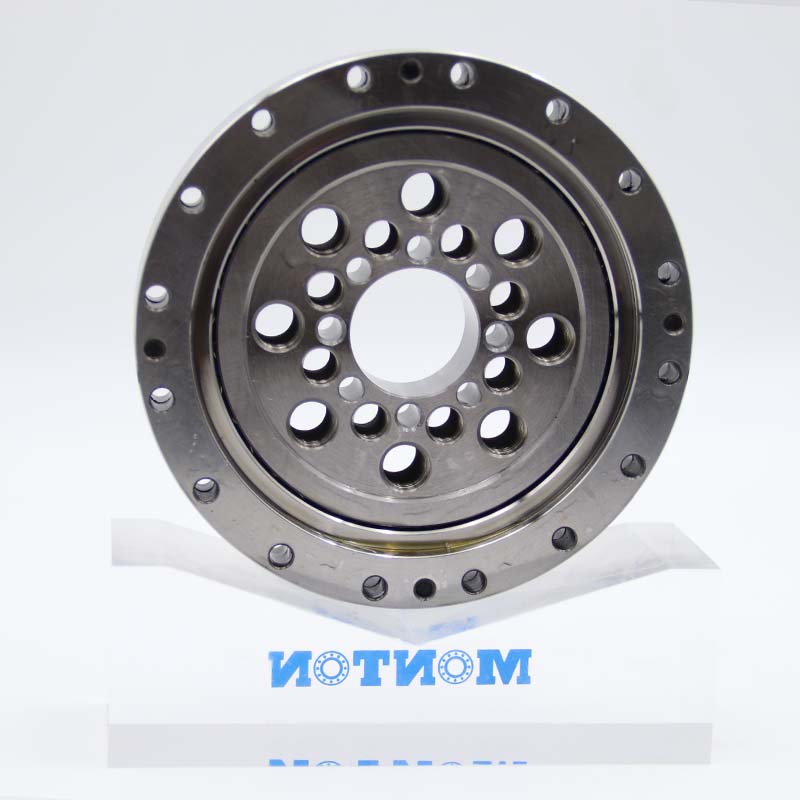

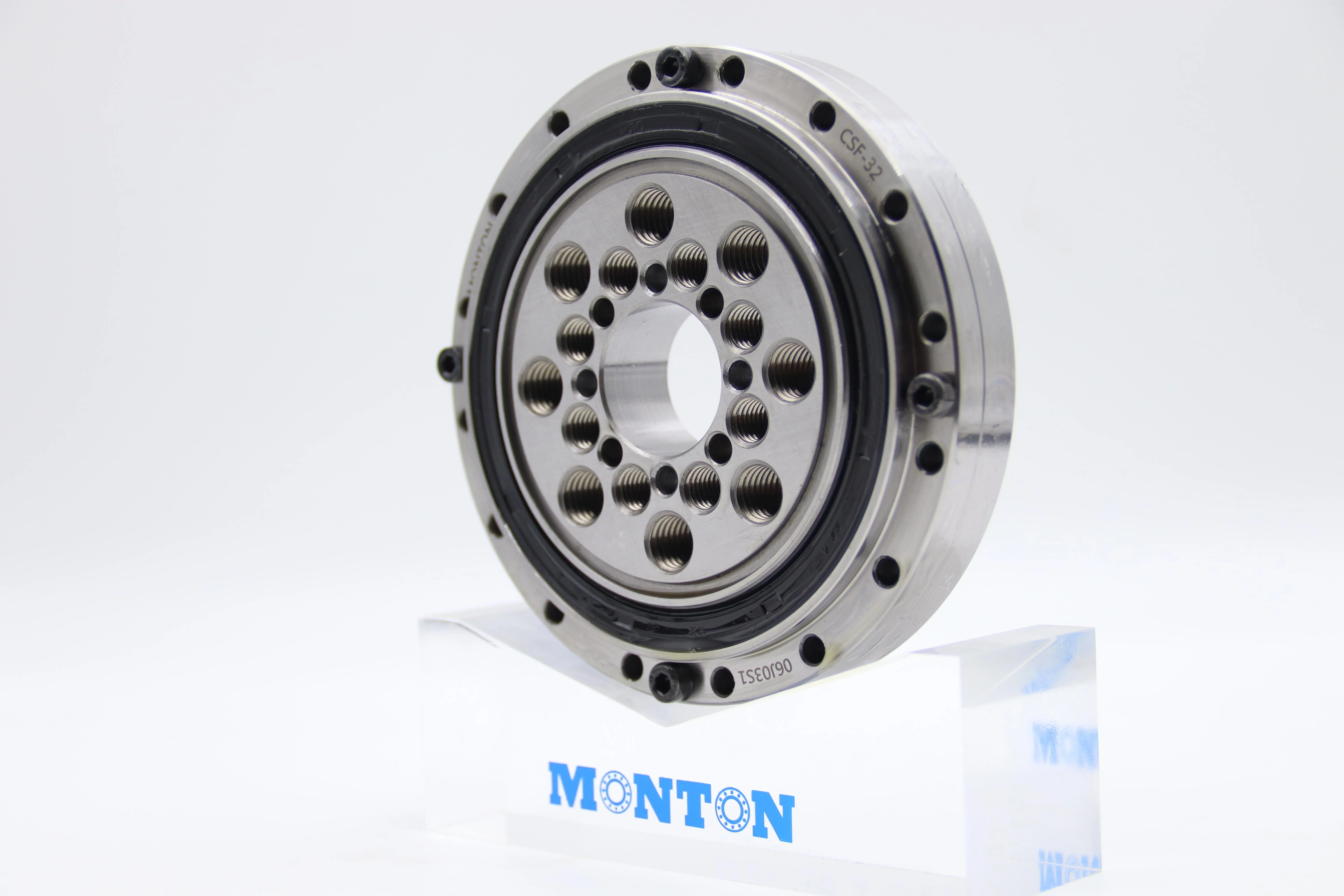

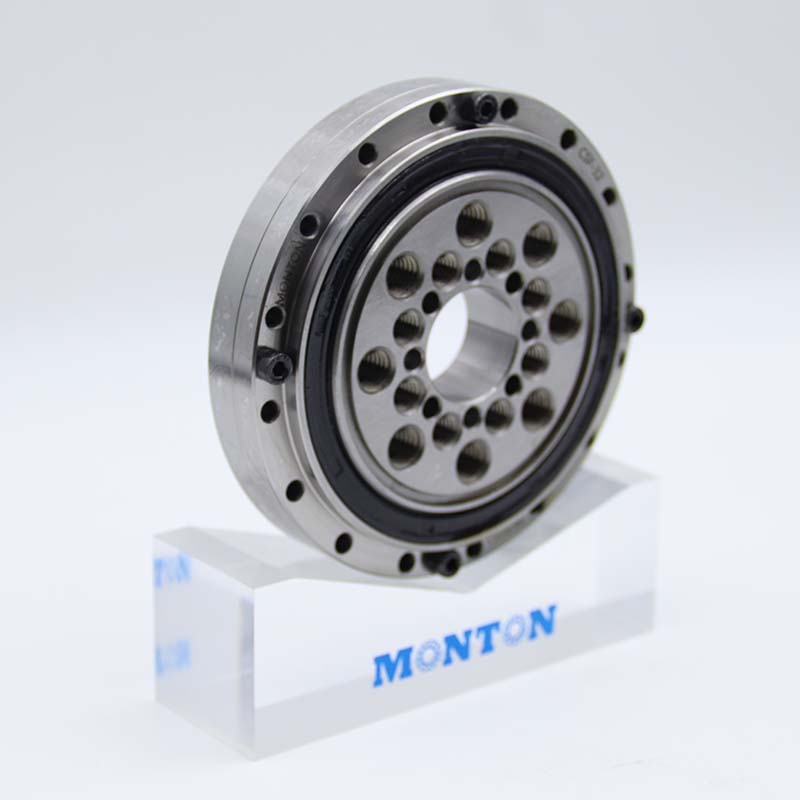

CSF-32 Harmonic drive Crossed Roller Bearing

The CSF-32 cross roller bearing for harmonic reducers produced by MONTON is used in harmonic reducers, industrial robot joints, etc. Its cylindrical rollers are arranged vertically at a 90 ° angle to each other on the V-shaped raceway, and can simultaneously withstand radial loads, axial loads, and overturning moments. It is often installed at the output of harmonic reducers, with multiple layers of precision mounting holes built in and special sealing design to prevent pollutants from entering. The material is made of GCr15 bearing steel, with overall quenching of the outer ring and high-frequency quenching process of the inner ring raceway, which improves wear resistance and fatigue strength by 30%.

Case Details

Name	Crossed Roller Bearing
Seires	CSF series
Brand	MONTON
Model	CSF-32
d	26mm
D	112mm
B	22.5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	47.3kN
Load rating Cor	77.3kN
Sealed	According to requirement
Weight	1.57KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2008
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer,Robotics
