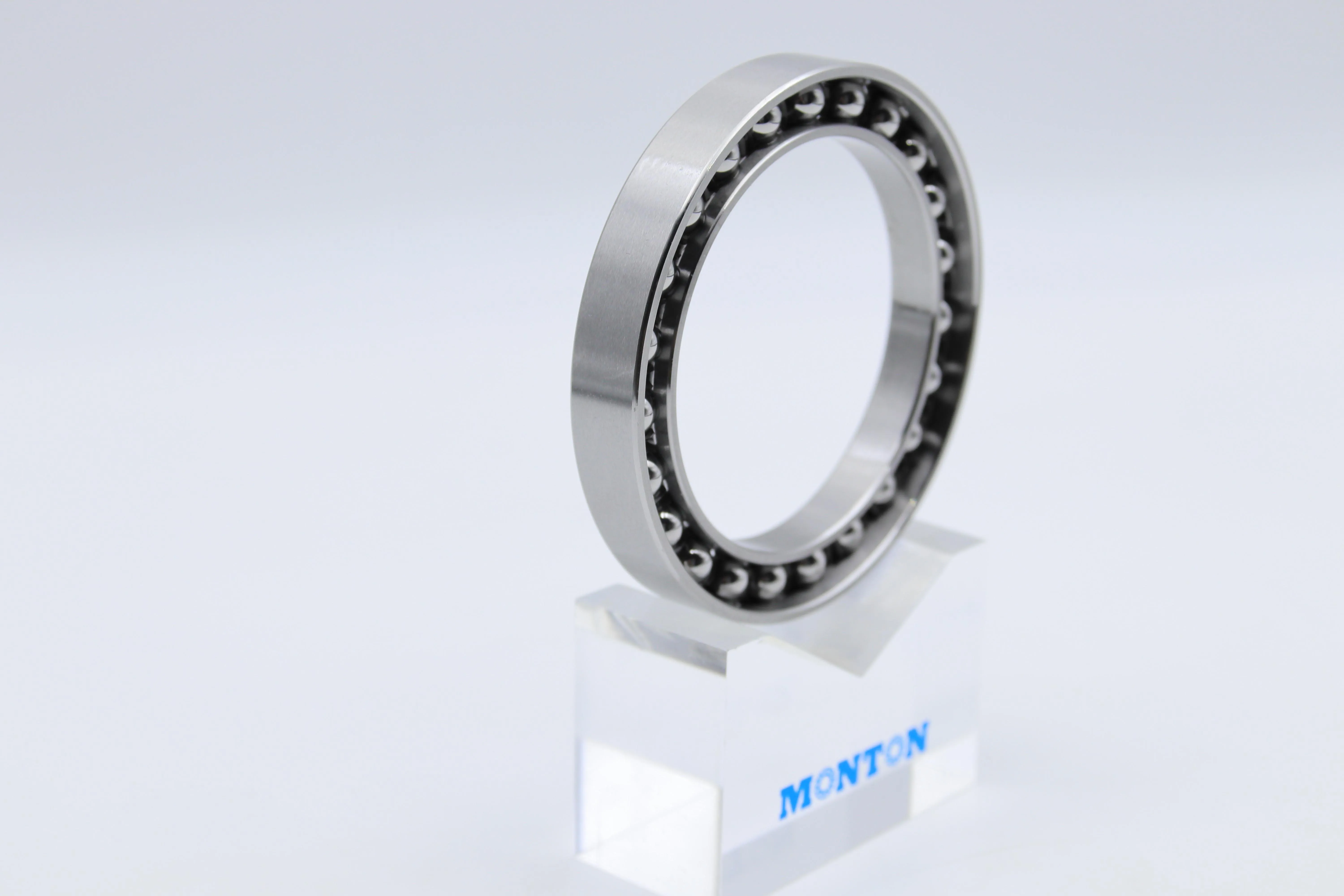

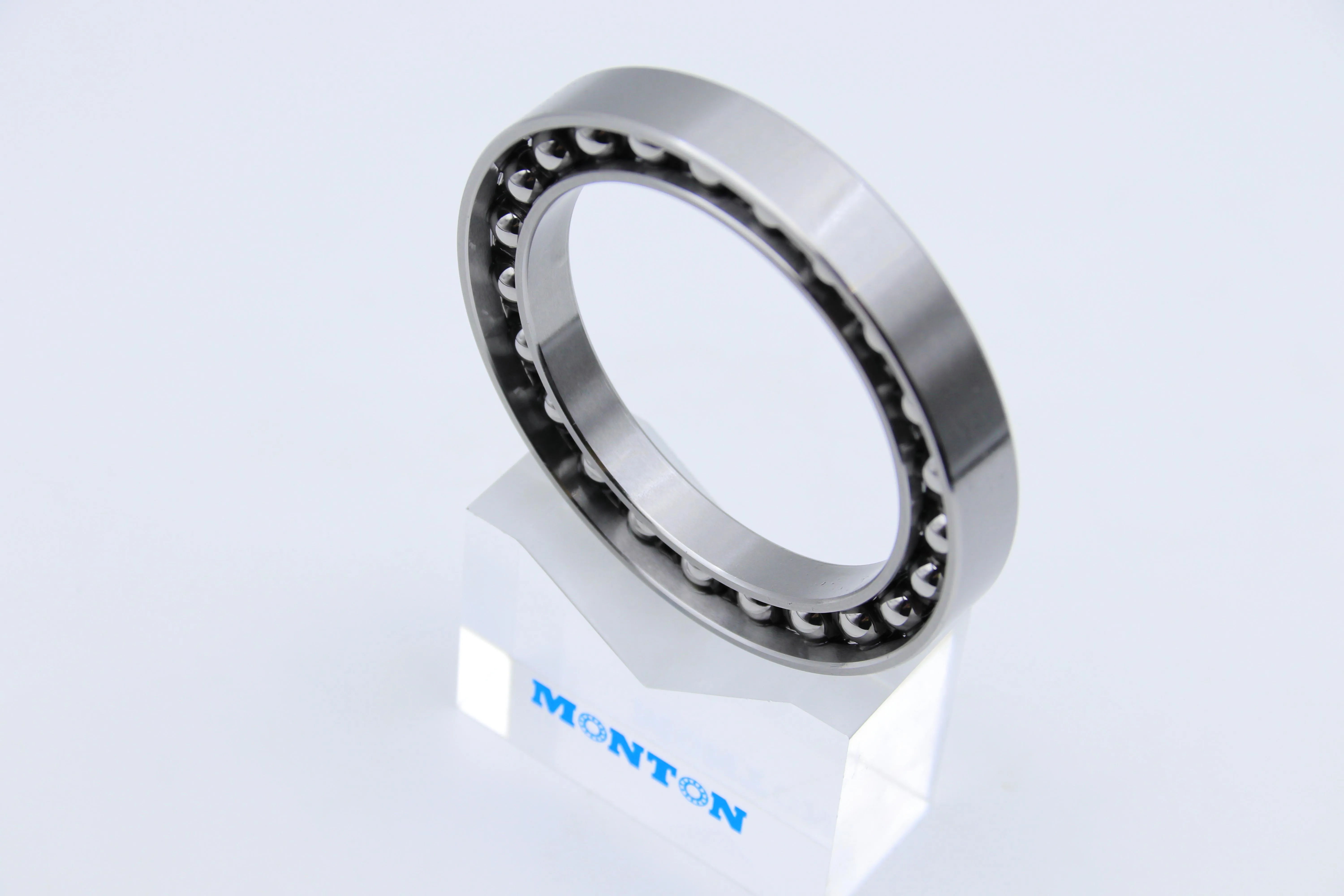

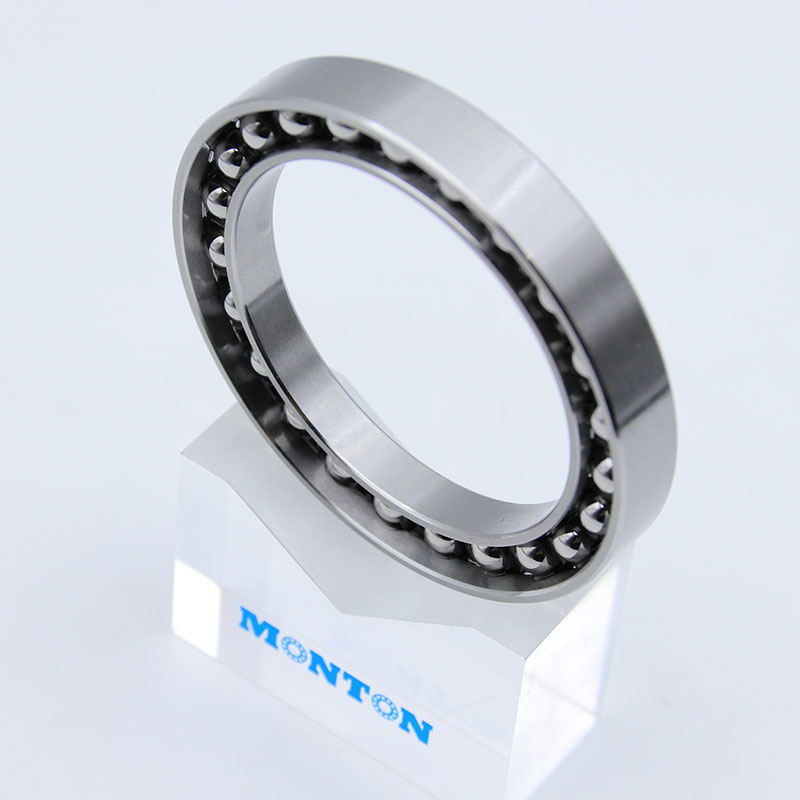

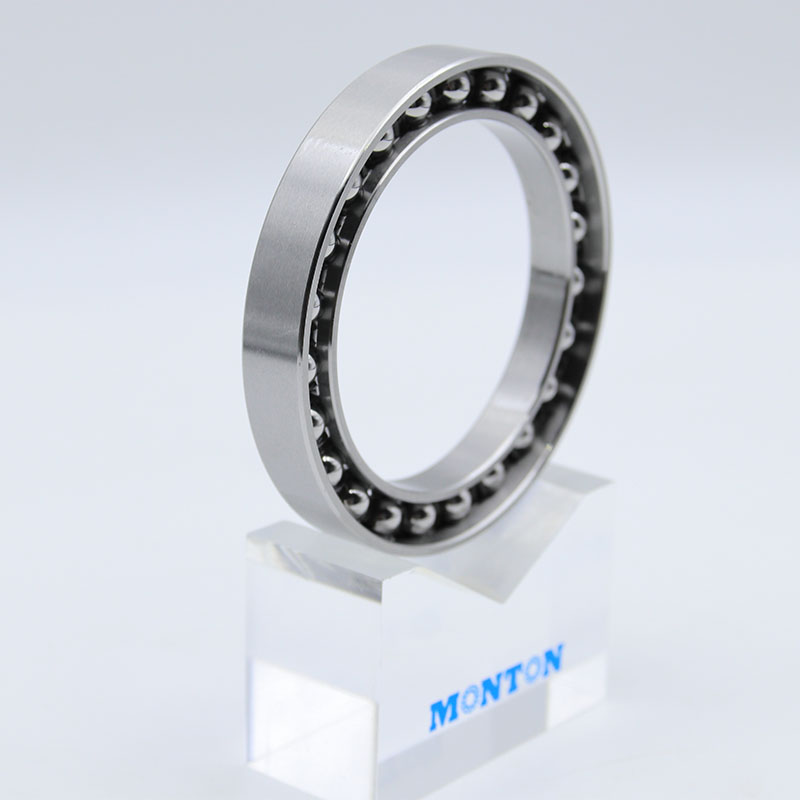

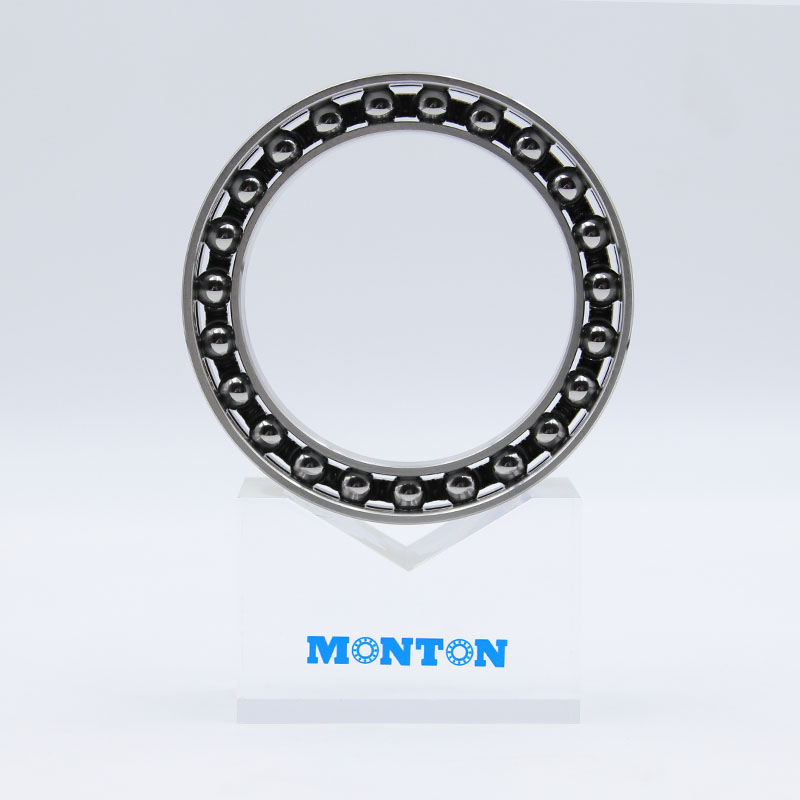

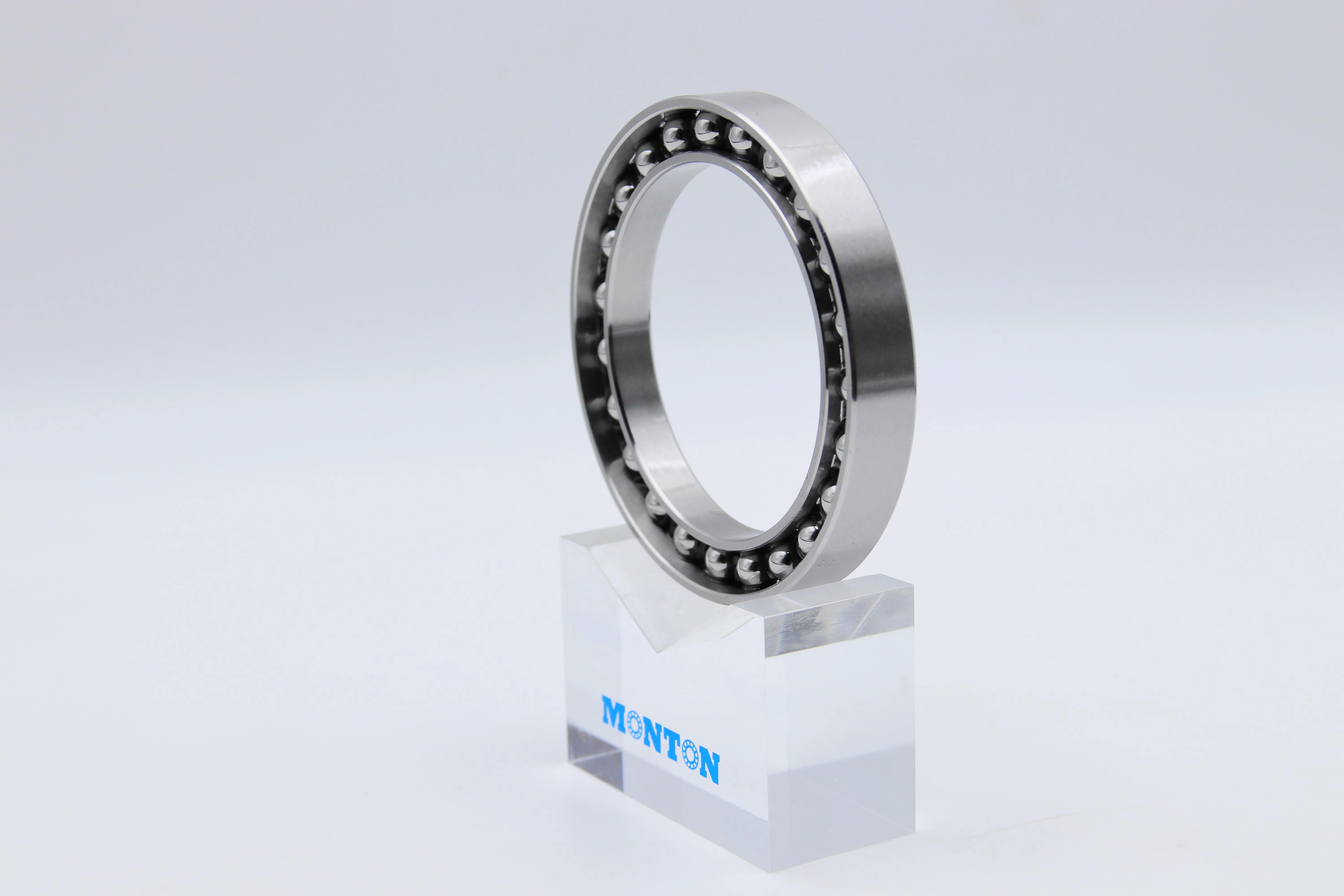

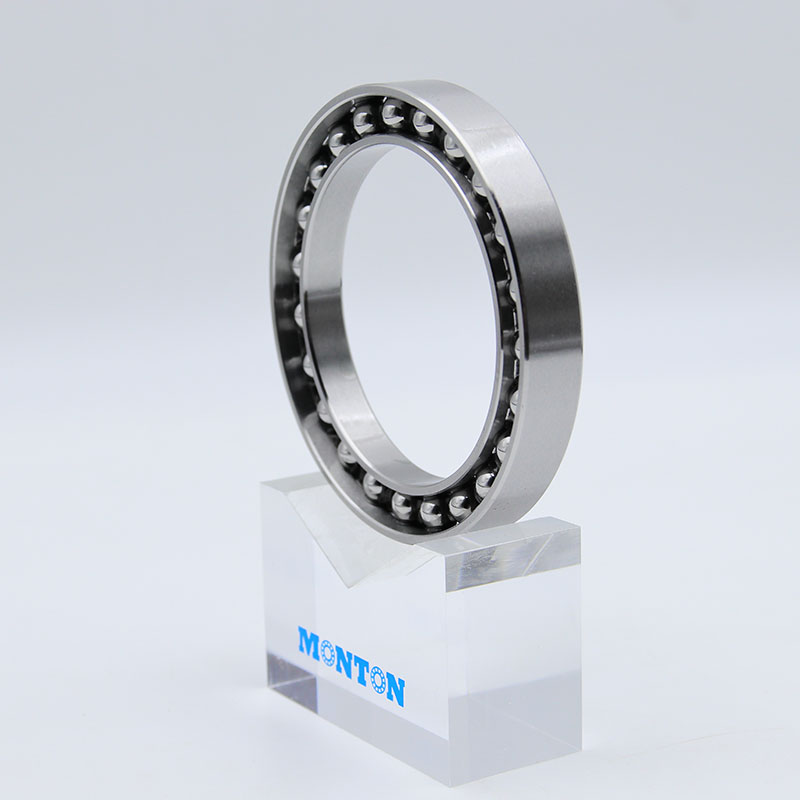

Flexible Bearing F-32

• The F-32 flexible bearing produced by MONTON Bearing is the key transmission component of harmonic reducer, with a special design that directly affects the performance and service life of the reducer. The wall thickness of F-32 flexible bearings is extremely thin, and the controllability of deformation ensures micrometer level transmission errors. After installation, they are compressed into an elliptical shape by a wave generator and transmit power through controllable deformation. This design gives it high elasticity and the ability to periodically adapt to the deformation requirements of the flexible wheel. The F-32 flexible bearing is nested on the outer side of the elliptical cam of the wave generator, which converts the high-speed rotation of the cam into periodic deformation of the flexible wheel through elastic deformation, driving the flexible wheel to mesh with the rigid gear teeth in a misaligned manner, achieving deceleration. Our company provides multi specification standard products and supports non-standard customized flexible bearings.
