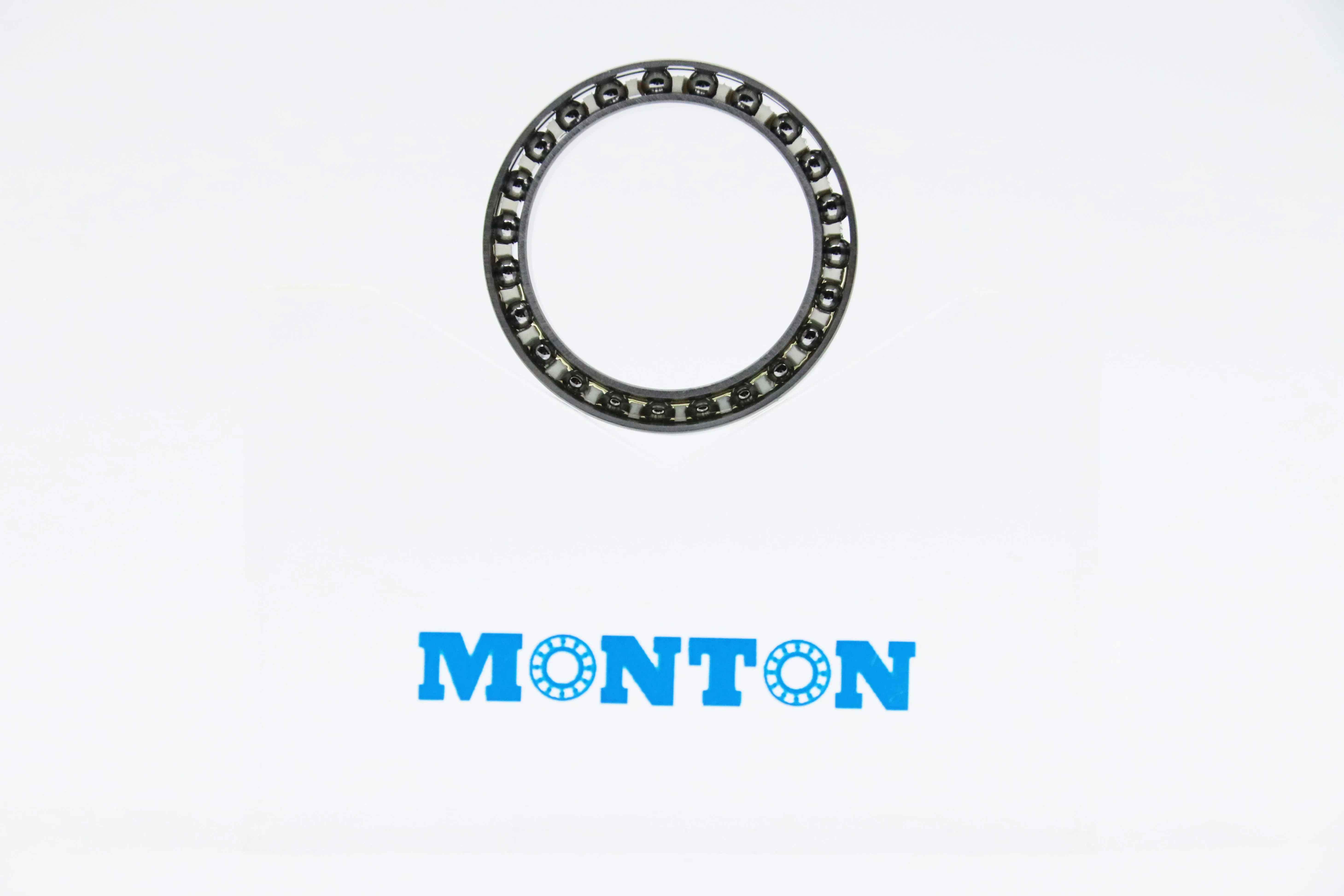

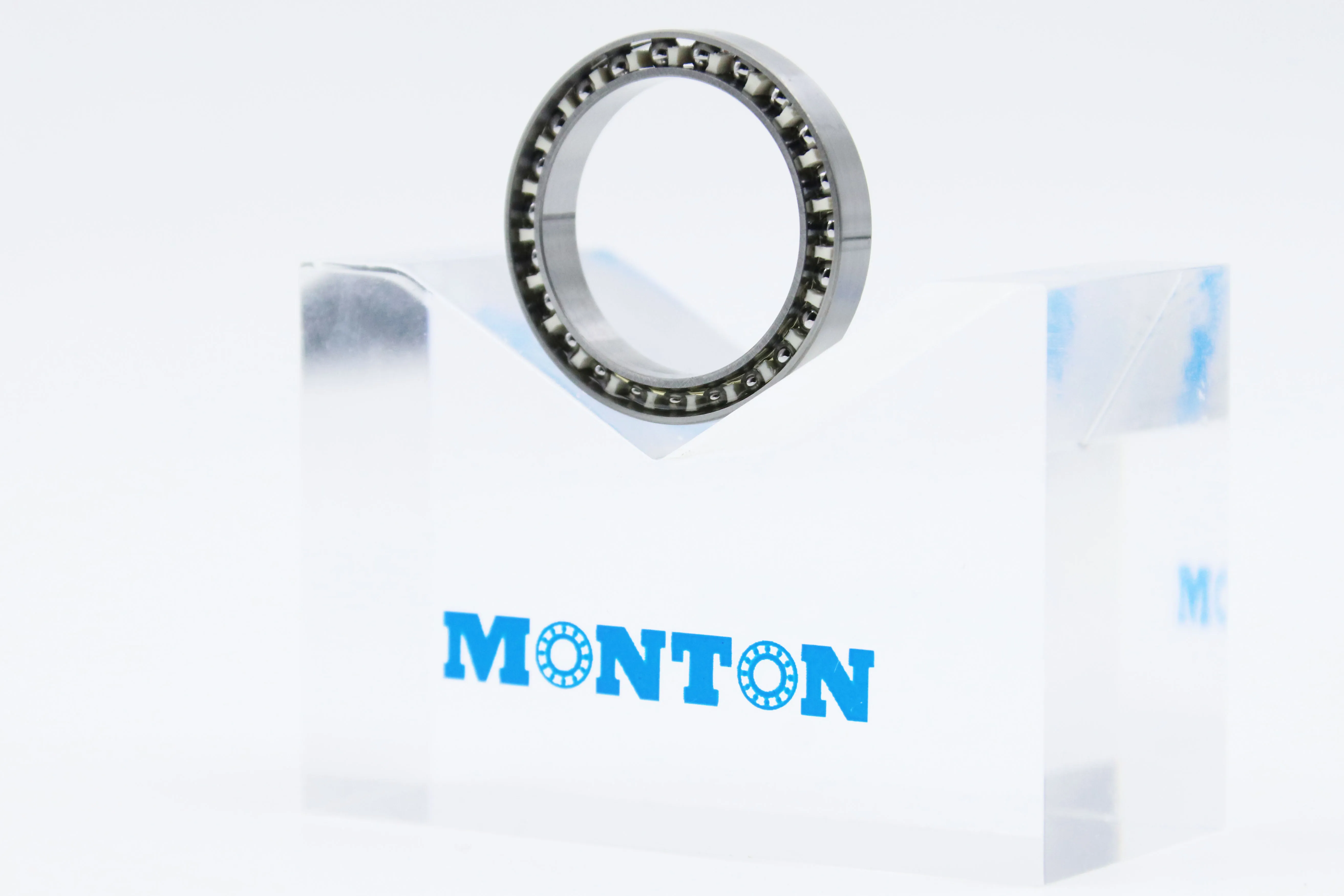

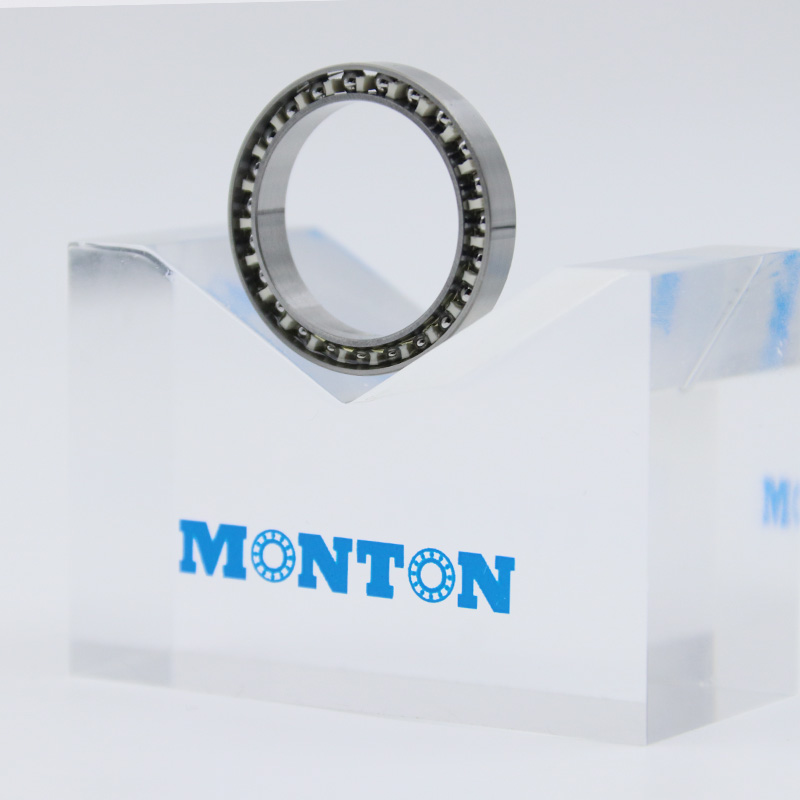

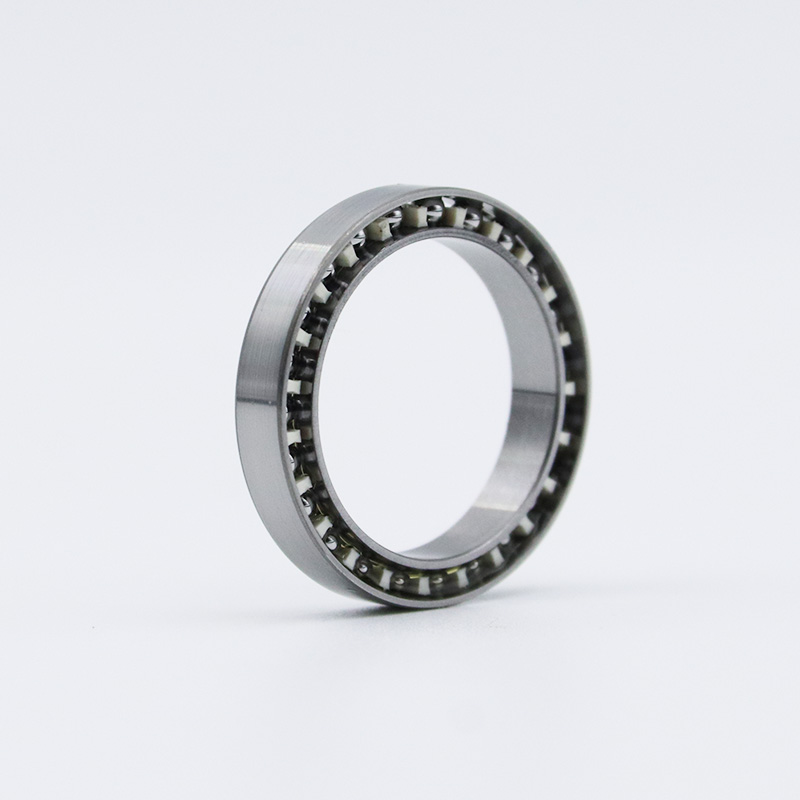

F-14 Flexible Bearing

The F-14 flexible bearing is the key parts of the harmonic reducer. It adopts a thin section design (with an outer ring thickness of only 6.095mm) and achieves high reduction ratio transmission through elastic deformation. It is suitable for fields such as industrial robots and precision machine tools. Its inner and outer rings as well as the rolling elements are made of military armor steel, with a service life of over 10 years. The retainer is a nylon integral retainer that can withstand alternating cyclic stress loads. It is often used in conjunction with crossed roller bearings in the field of harmonic reducers.

Case Details

Name	Flexible Bearing
Brand	MONTON
Model	F-14
Bore diameter	25.07mm
Outside diameter	33.896mm
B(width)	6.095mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating C	4.74KN
Basic static load rating C0	3.75KN
Input rotate speed	3000
Radial Deformation	0.2
Sealed	Open
Row	Single row
Weight	0.1KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Harmonic drive reducer Machine tool Robotics Satellite
