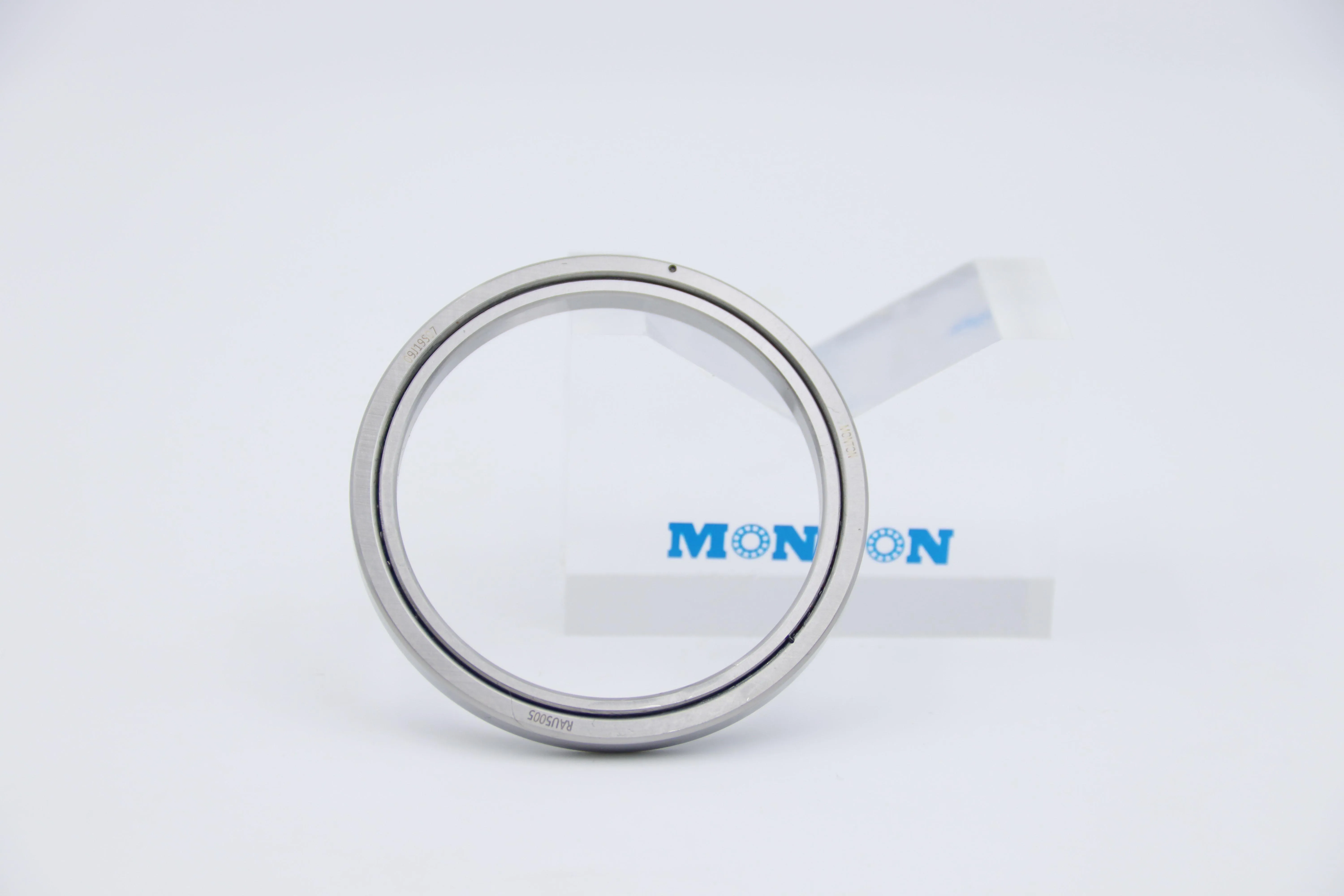

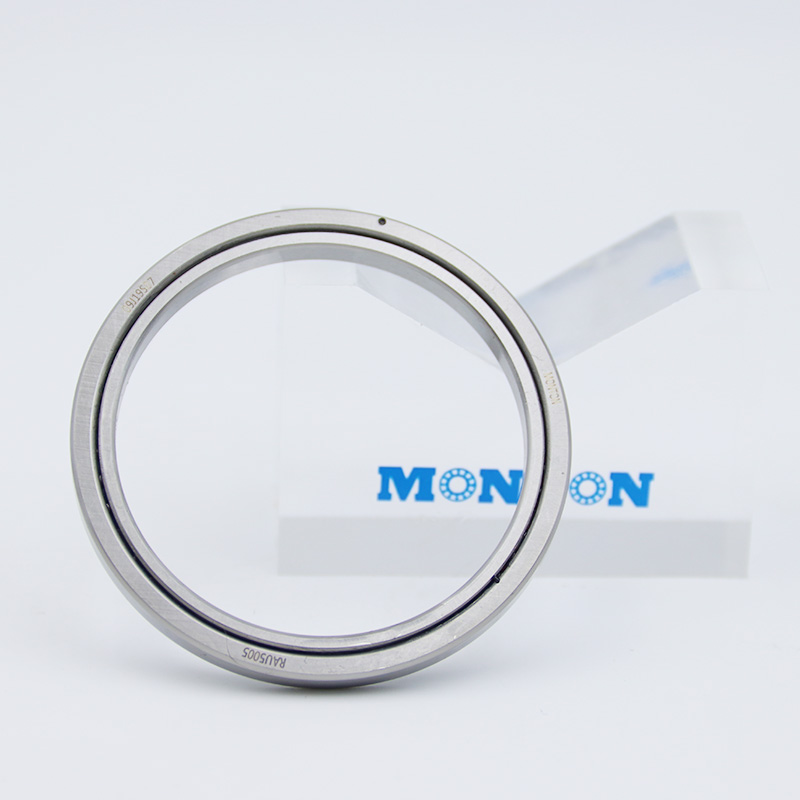

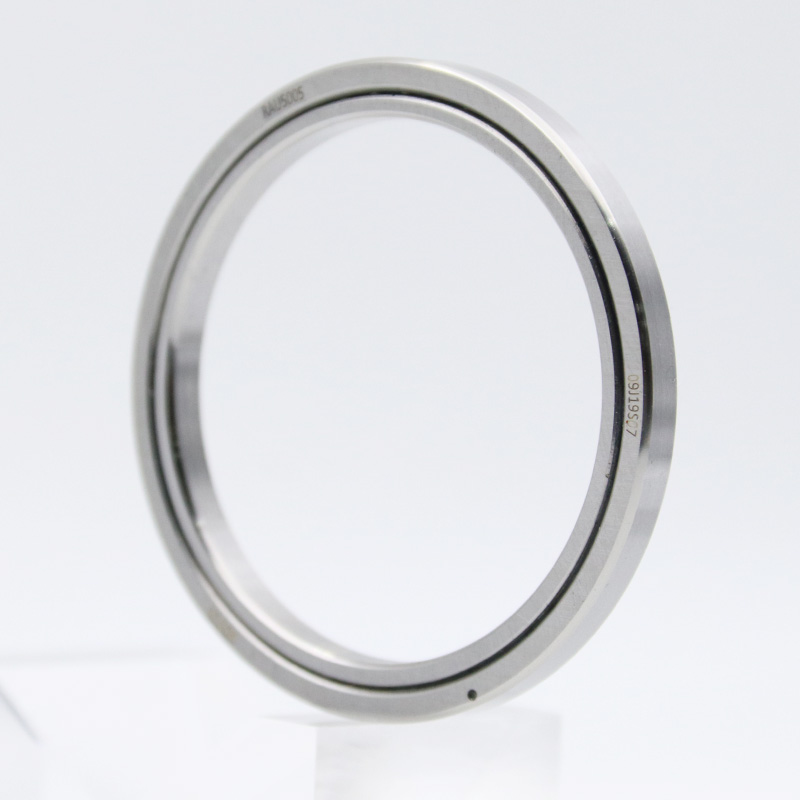

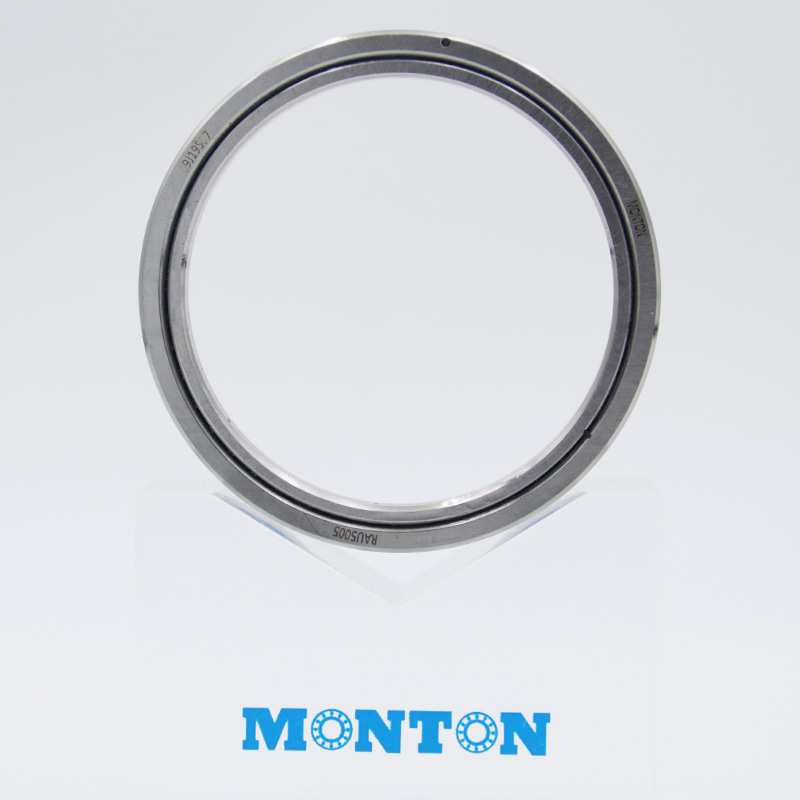

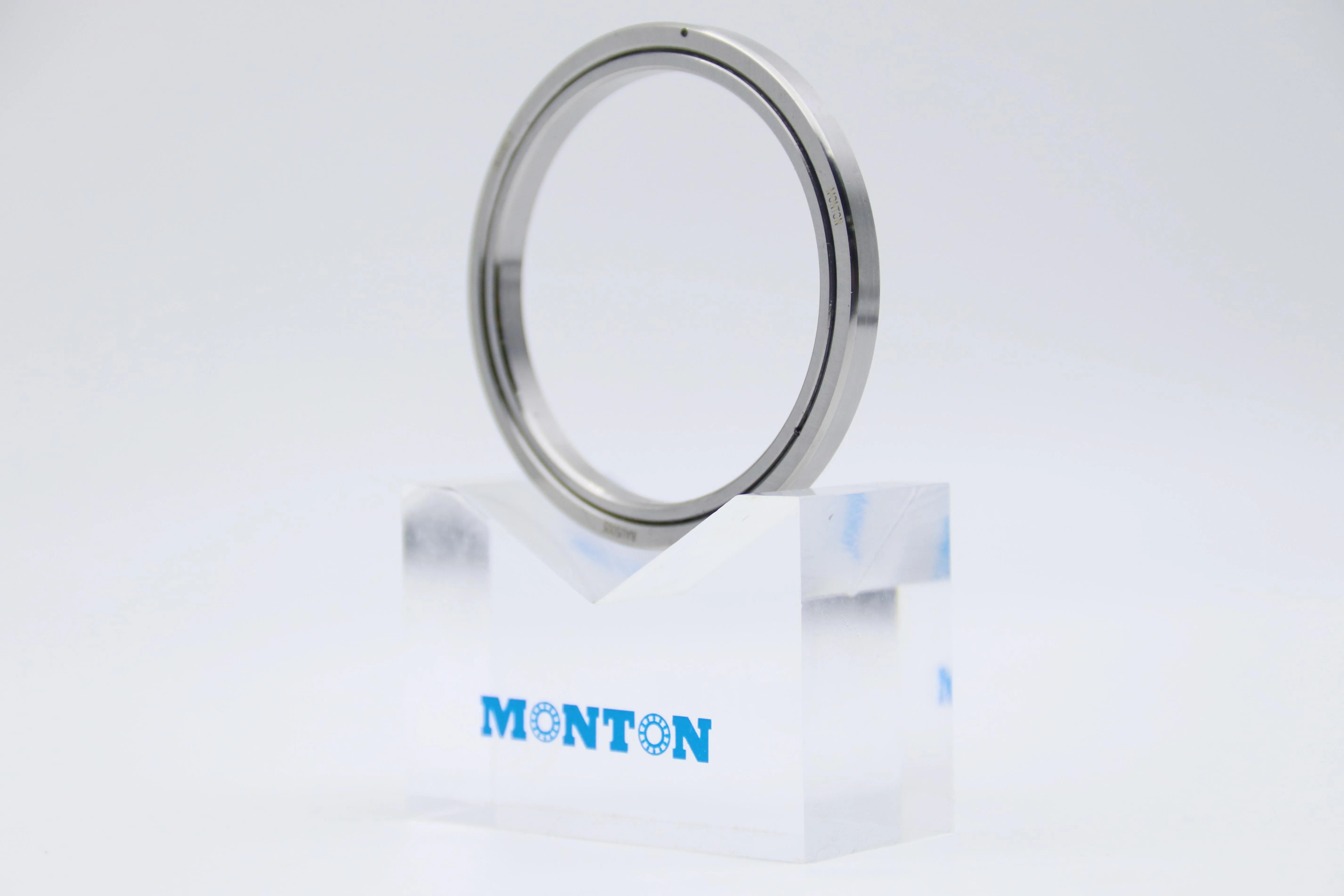

RAU5005 Super slim Crossed Roller Bearing

The RAU5005 produced by MONTON is an ultra-thin type of crossed roller bearing, mainly applied in the precision machinery field where size and weight are strictly required. Compared with the traditional thin type RA (CRBS) crossed roller bearing, the RAU series is only 69% of its thickness, 43% of its cross-sectional area, and 38% of its weight. The compact structure of crossed roller bearings is often used in collaborative robots, service robots, mechanical arm joints, humanoid robot rotating parts, unmanned aerial vehicle steering mechanisms, radar communication platforms, precision alignment machines, medical instruments, etc.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	RAU series
Brand	MONTON
Open type	RAU5005/CRBT505A
d	50mm
D	61mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	2.43KN
Load rating Ca	3.49KN
Sealed	Open
Weight	32g
Design Structure	Crossed roller
Precision	P4,P5
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Compact Hand Robot Compact Surveillance Camera
