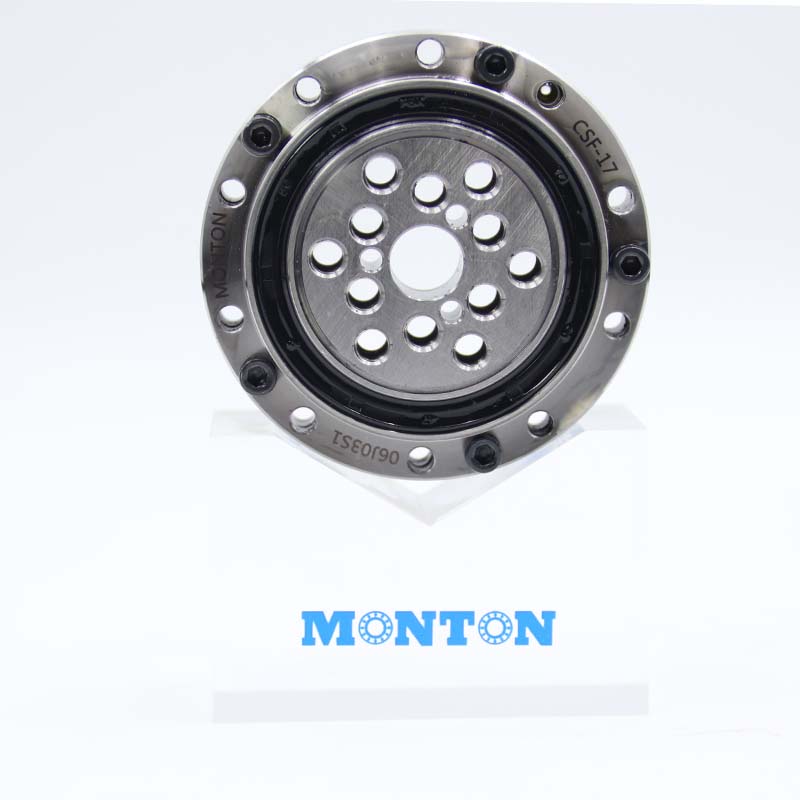

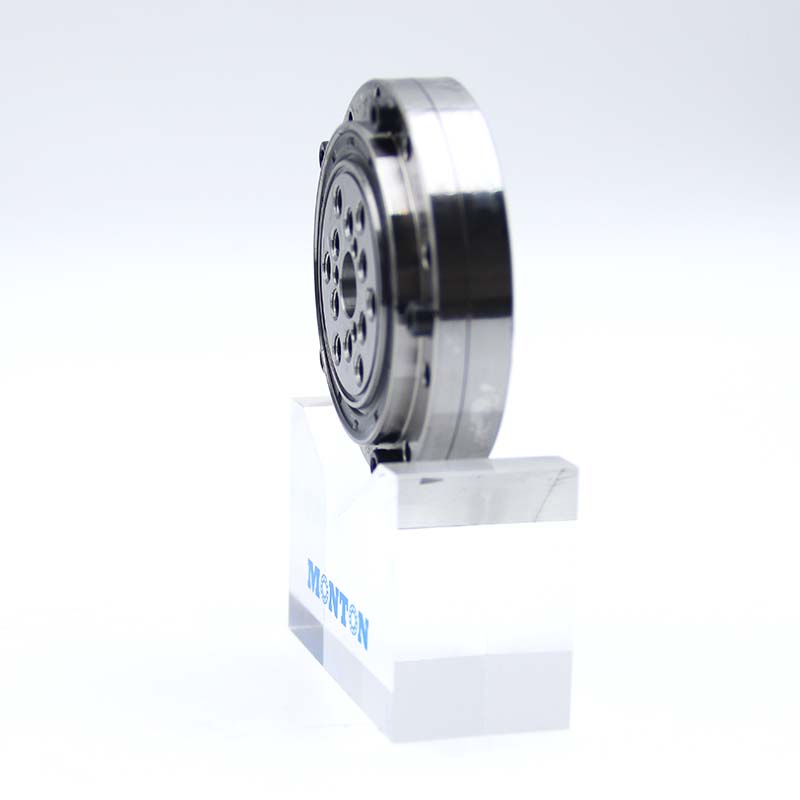

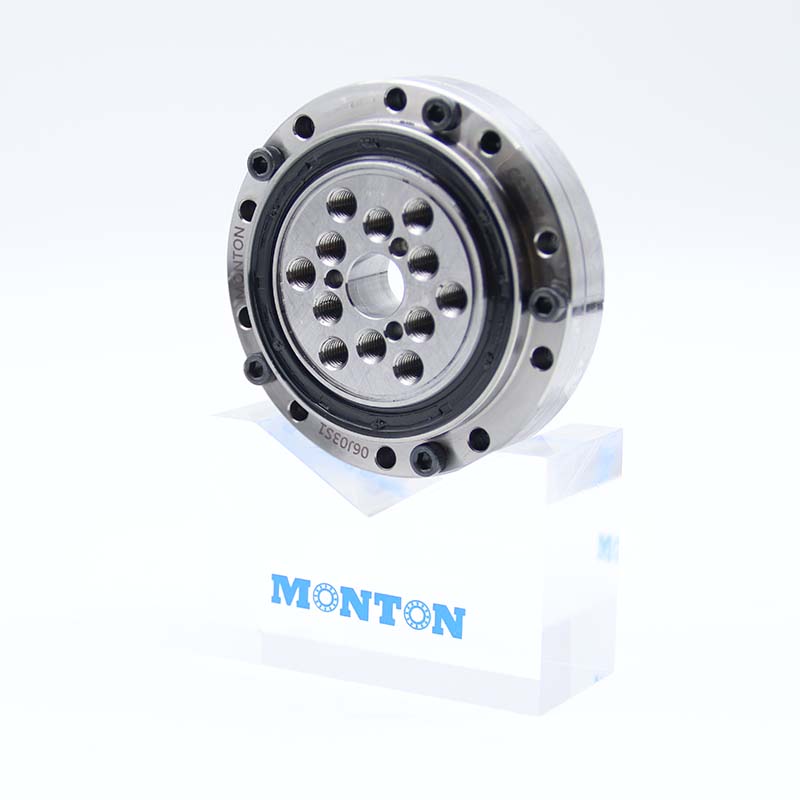

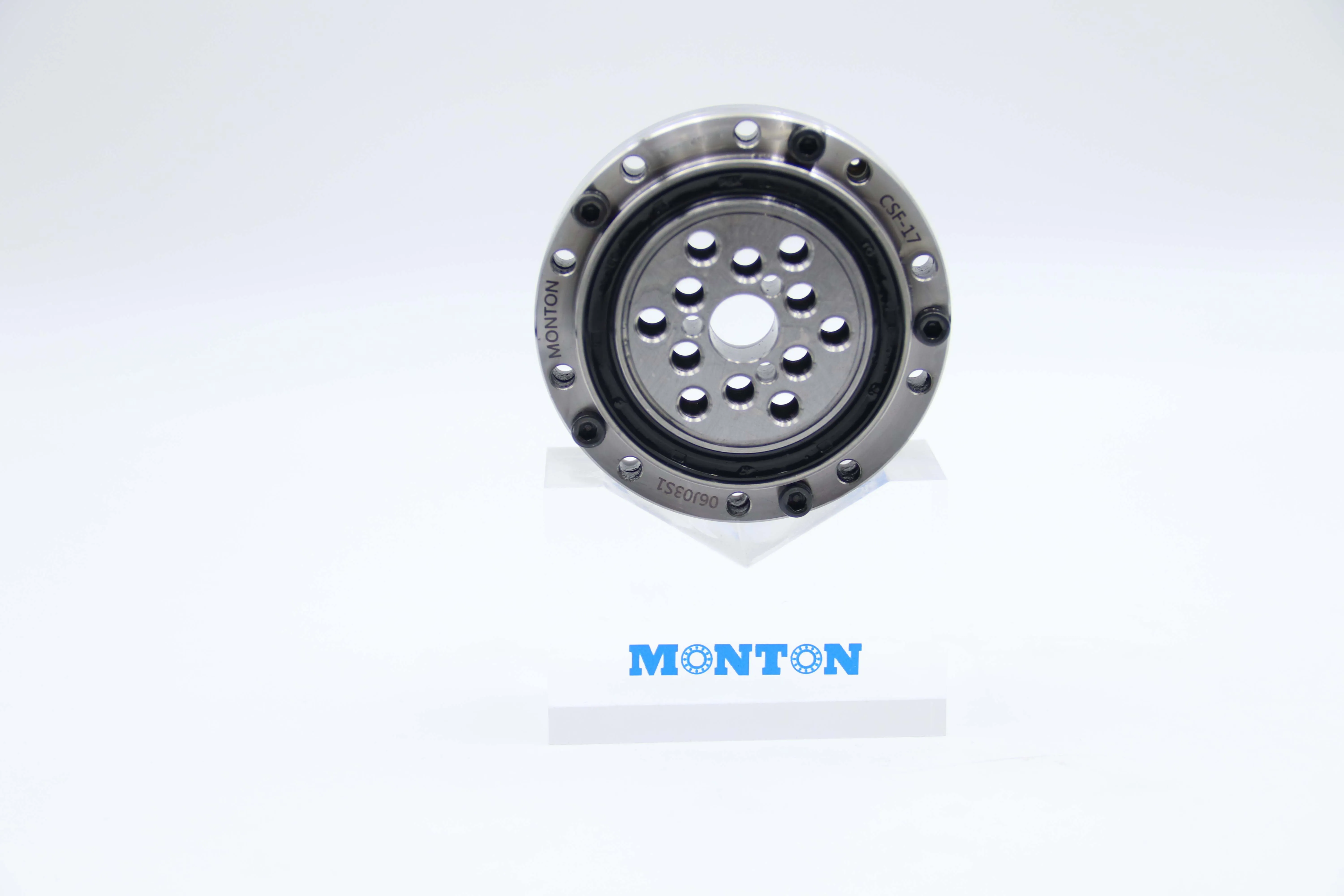

CSF-17 Crossed Roller Bearing

The CSF-17 harmonic reducer bearing is a high-precision cross roller bearing designed specifically for harmonic reducers. The inner diameter is 10mm, the outer diameter is 62mm, and the height (thickness) is 16.5mm. The rolling elements are cylindrical rollers arranged in a 90 ° cross in a V-shaped raceway, which can simultaneously withstand axial loads, radial loads, and overturning moments. The rigidity is 3-4 times higher than traditional bearings. Mainly suitable for CSF/CSG series harmonic reducers, used for industrial robot joints, rotating parts, and machining center turntables.

Case Details

Name	Crossed Roller Bearing
Seires	CSF series
Brand	MONTON
Model	CSF-17
d	10mm
D	62mm
B	16.5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	7.6kN
Load rating Cor	10.7kN
Sealed	According to requirement
Weight	0.24KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2008
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer
