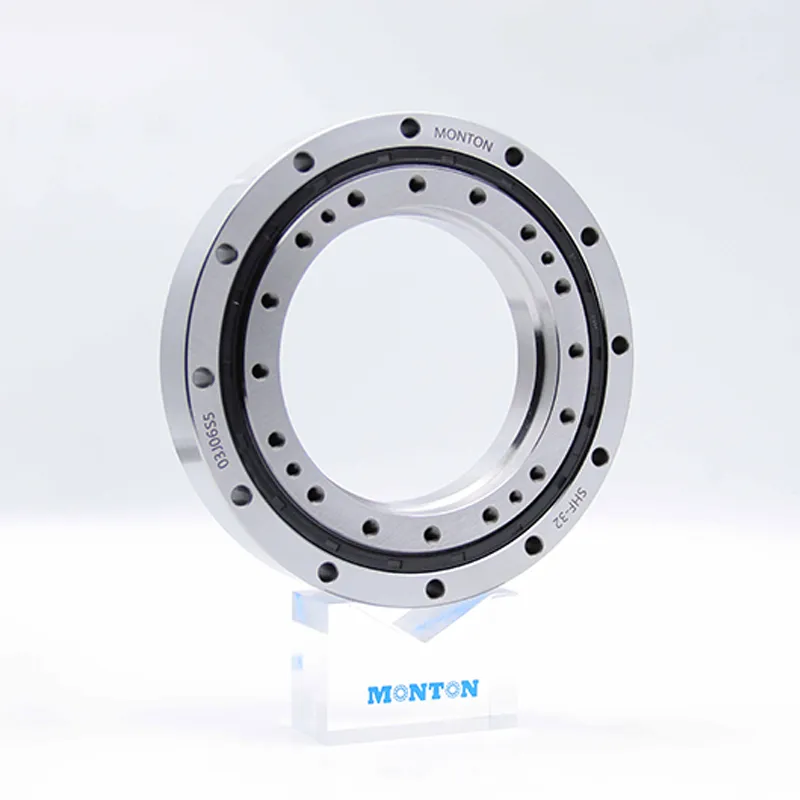

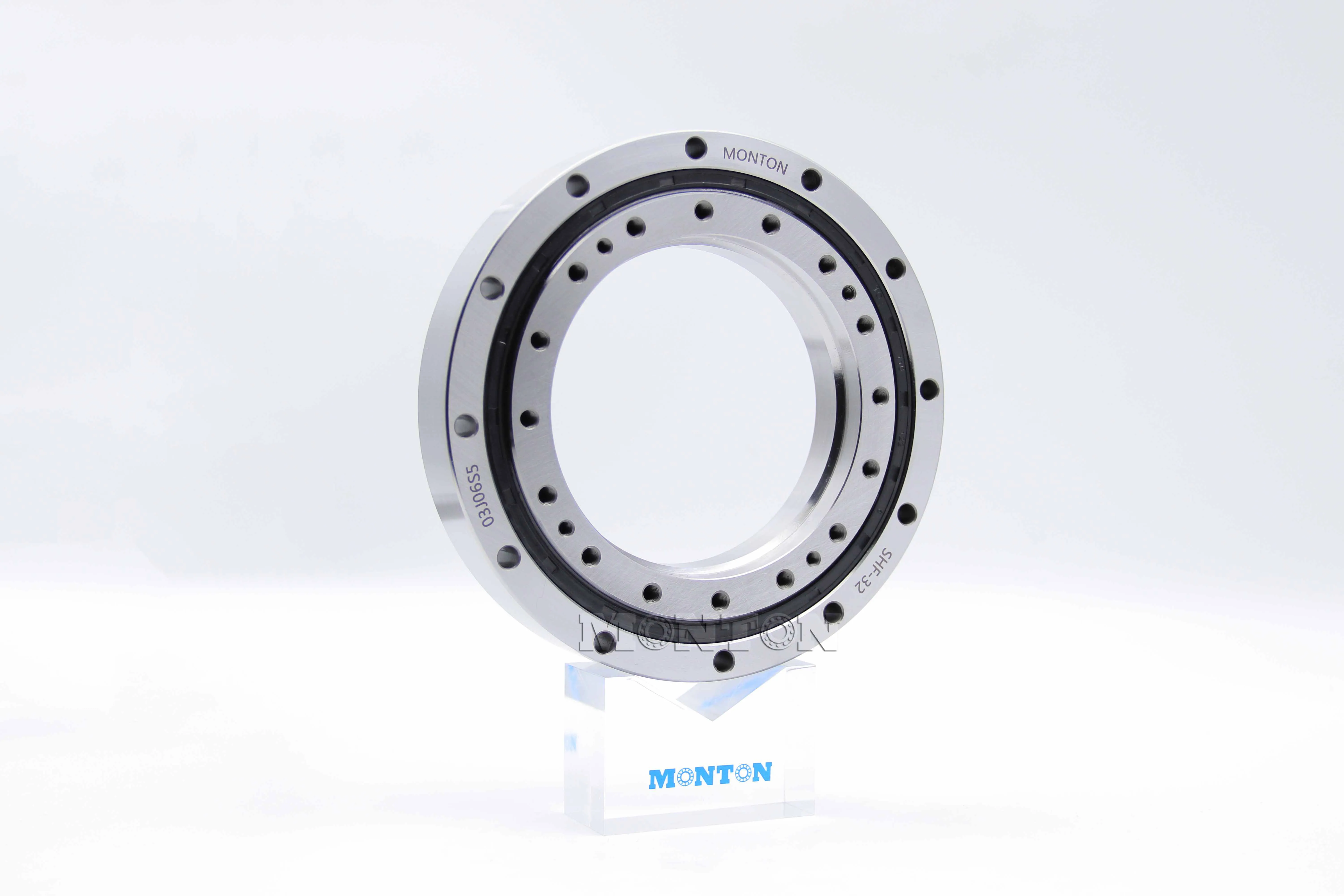

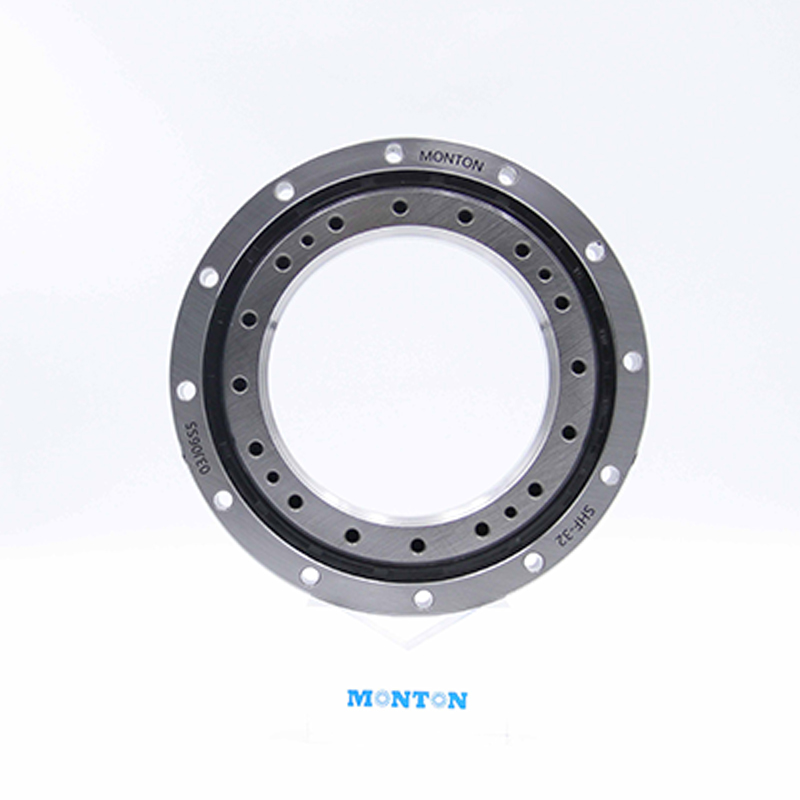

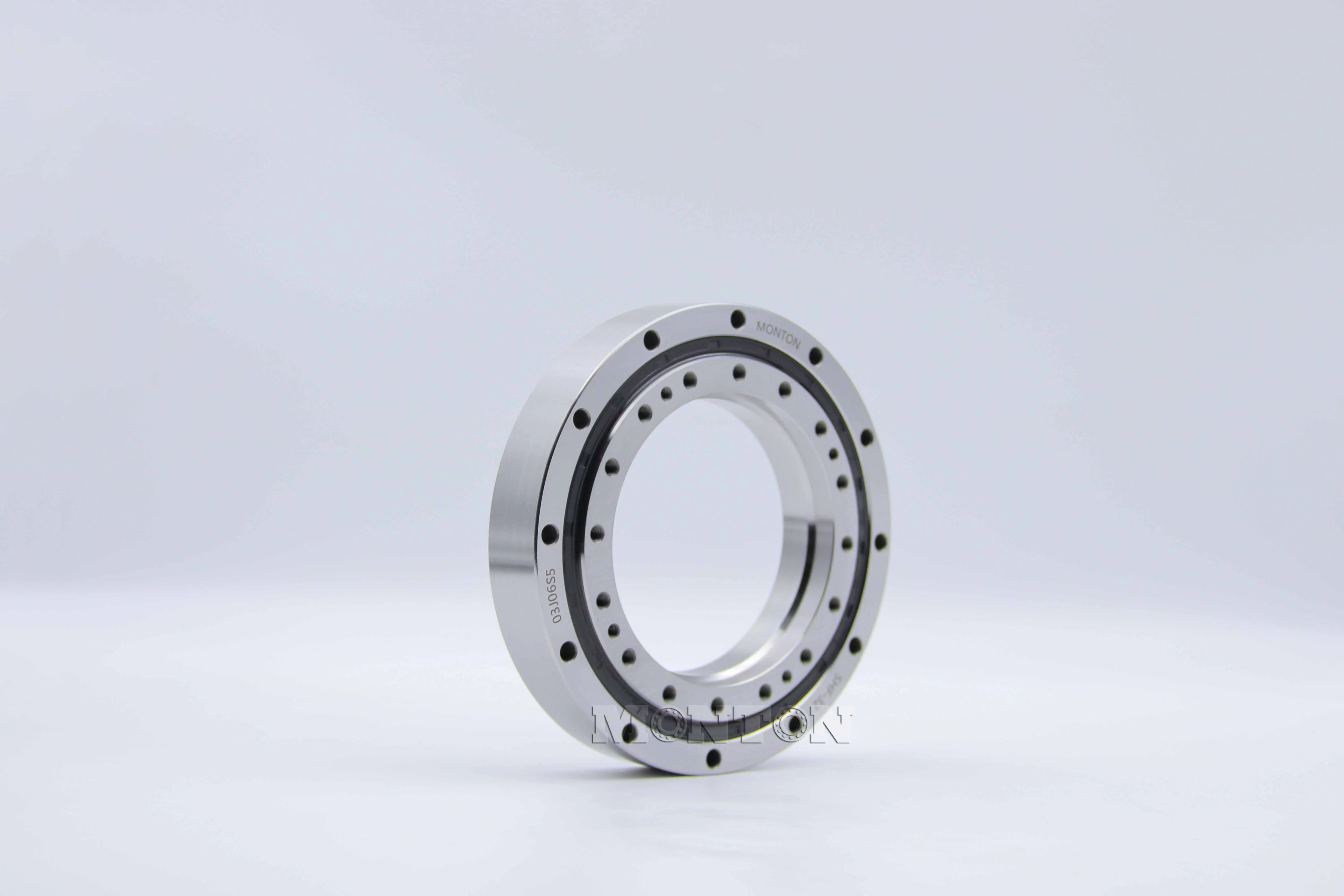

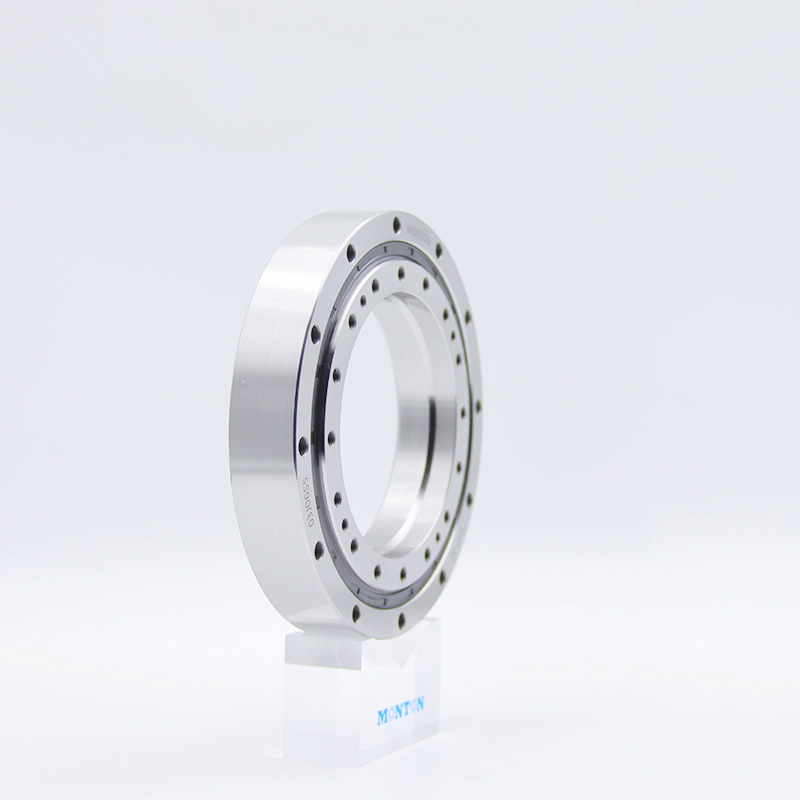

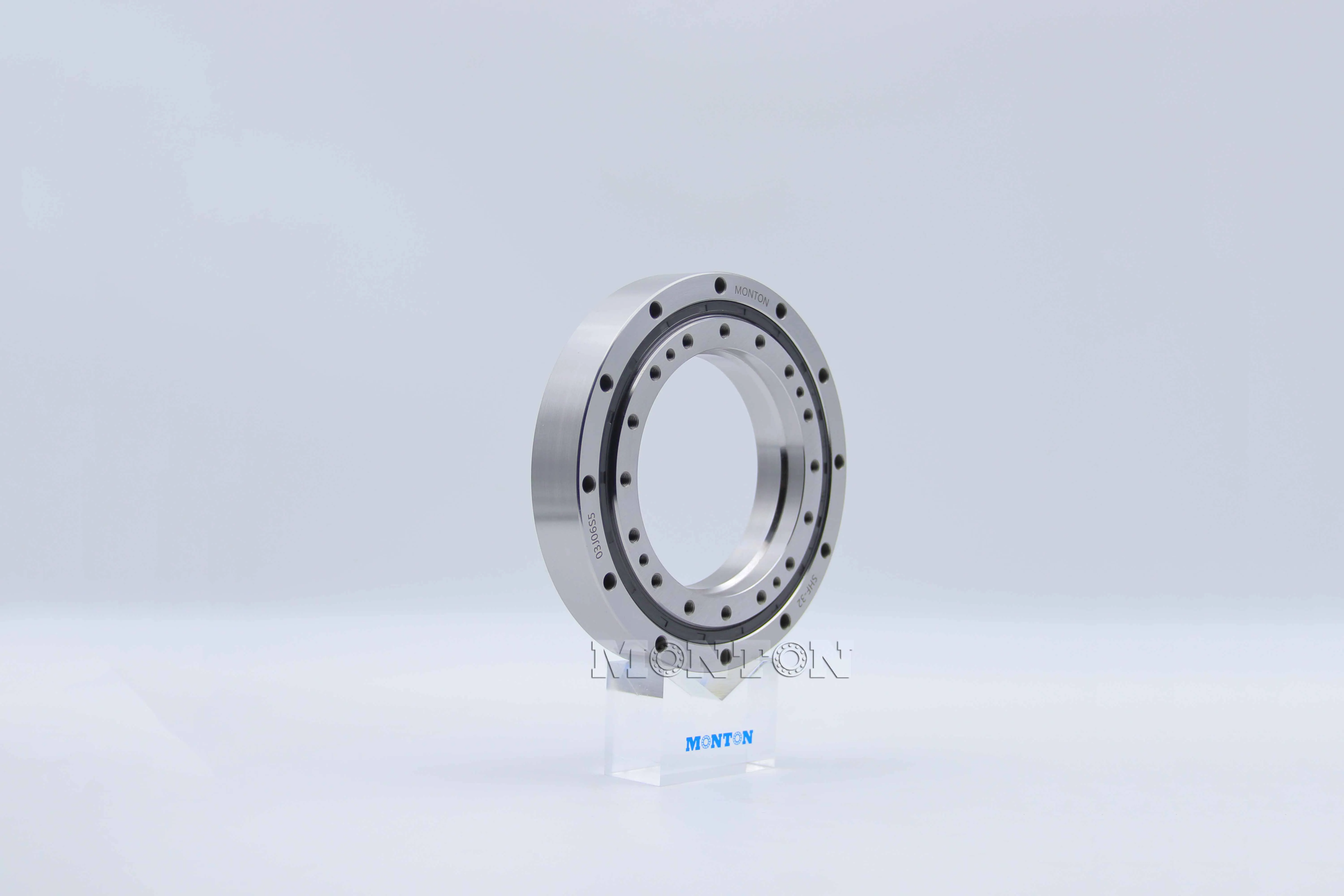

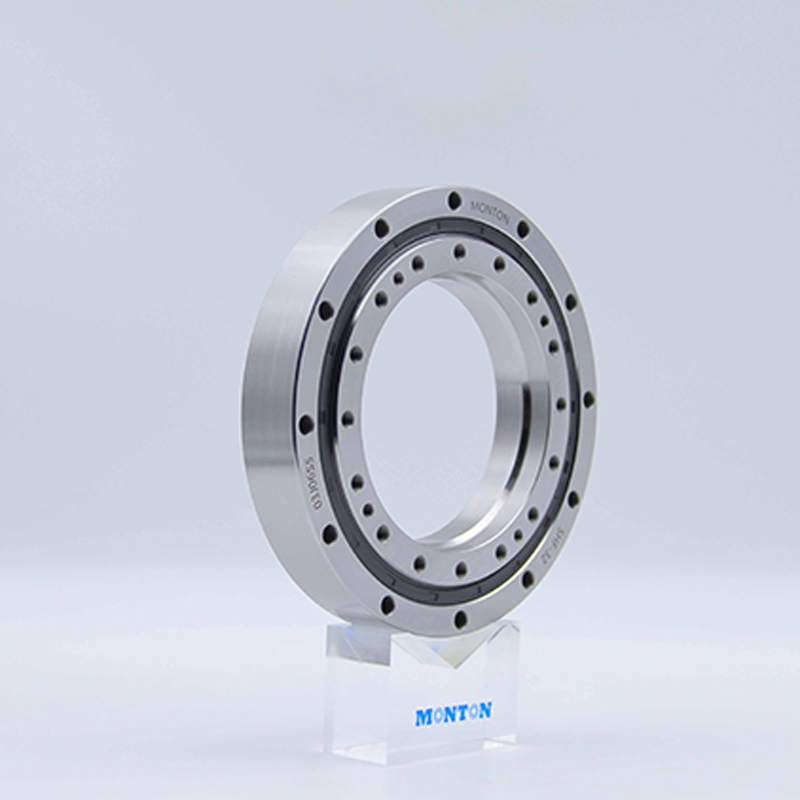

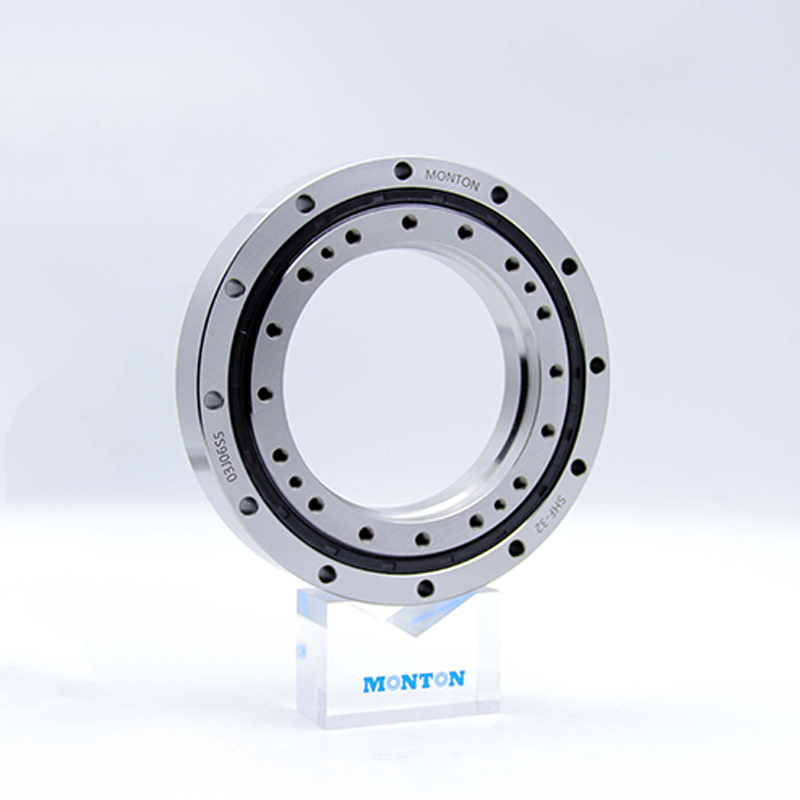

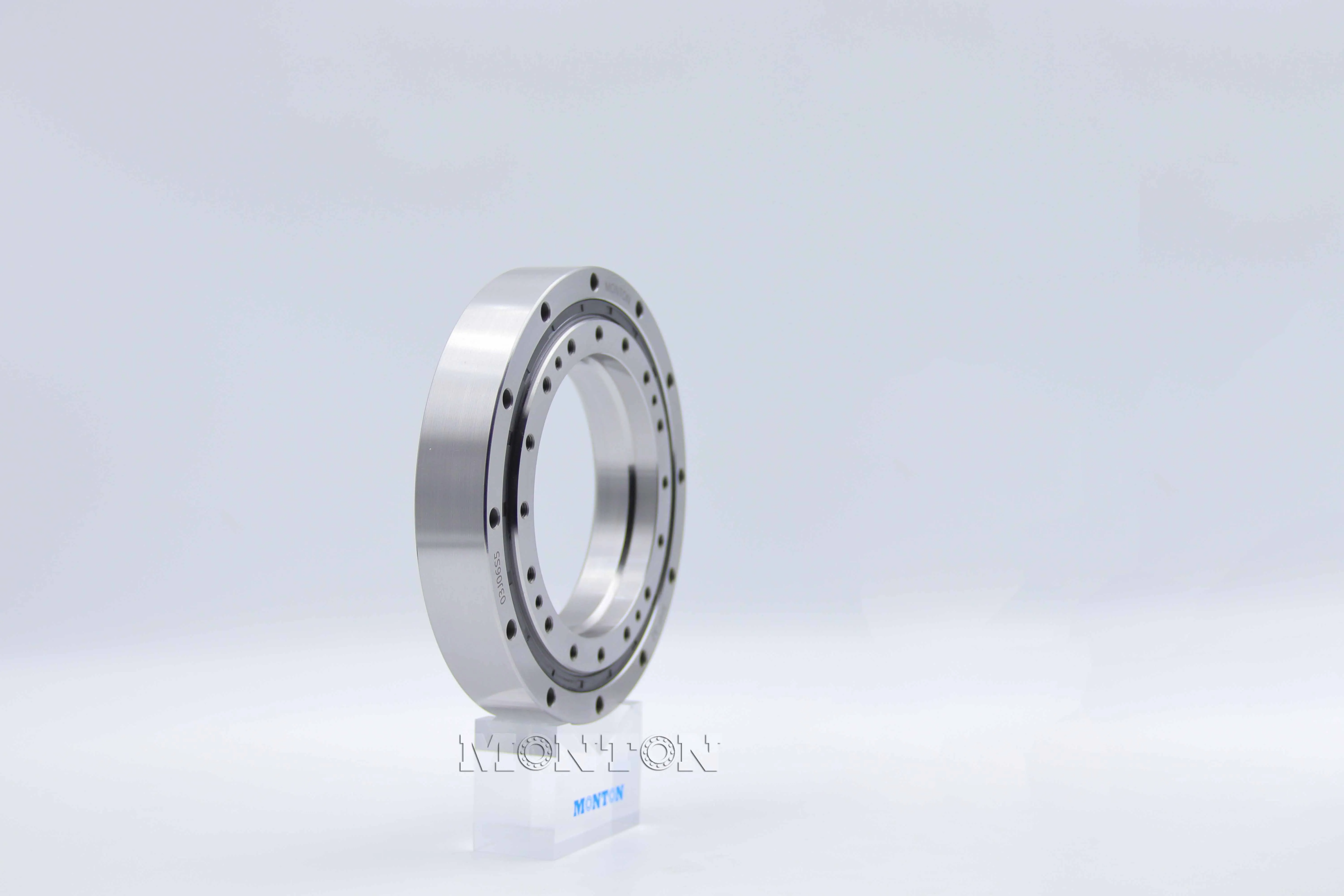

Harmonic Drive Bearing SHF-32

SHF (G) -32 harmonic reducer special cross cylindrical roller bearings have been applied in high-precision transmission systems such as harmonic reducers, industrial robot joints, precision turntables, medical equipment, etc., relying on their low friction, high-speed adaptability, and impact resistance Cross roller arrangement: The rollers are arranged in a 90 ° cross pattern, which can simultaneously withstand radial, axial, and overturning moment loads. Lightweight thin-walled structure: The outer and inner rings are processed in an integrated manner to reduce assembly errors and improve overall rigidity.

Case Details

Name	Harmonic Drive Bearing
Seires	SHF series
Design Structure	Crossed roller
Brand	MONTON
Bearing	SHF(G)-32
d	88mm
D	142mm
B	24.4mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	47.3KN
Load rating Cor	77.3KN
Sealed	Sealed
Weight	1.57KG
Precision	P4,P5
alternative code	SHG-32
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive Robotic arm reducer
