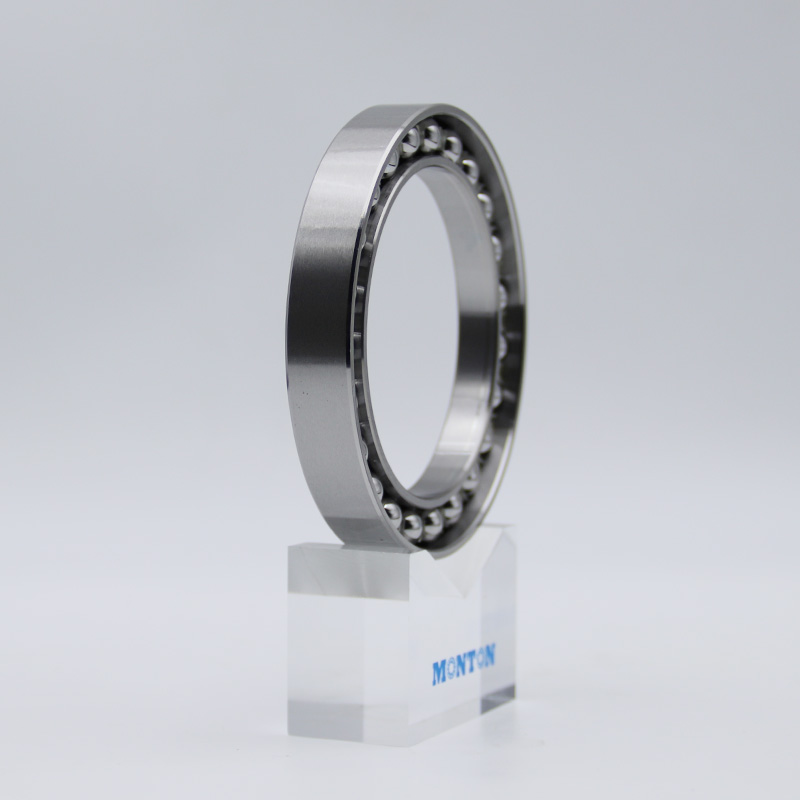

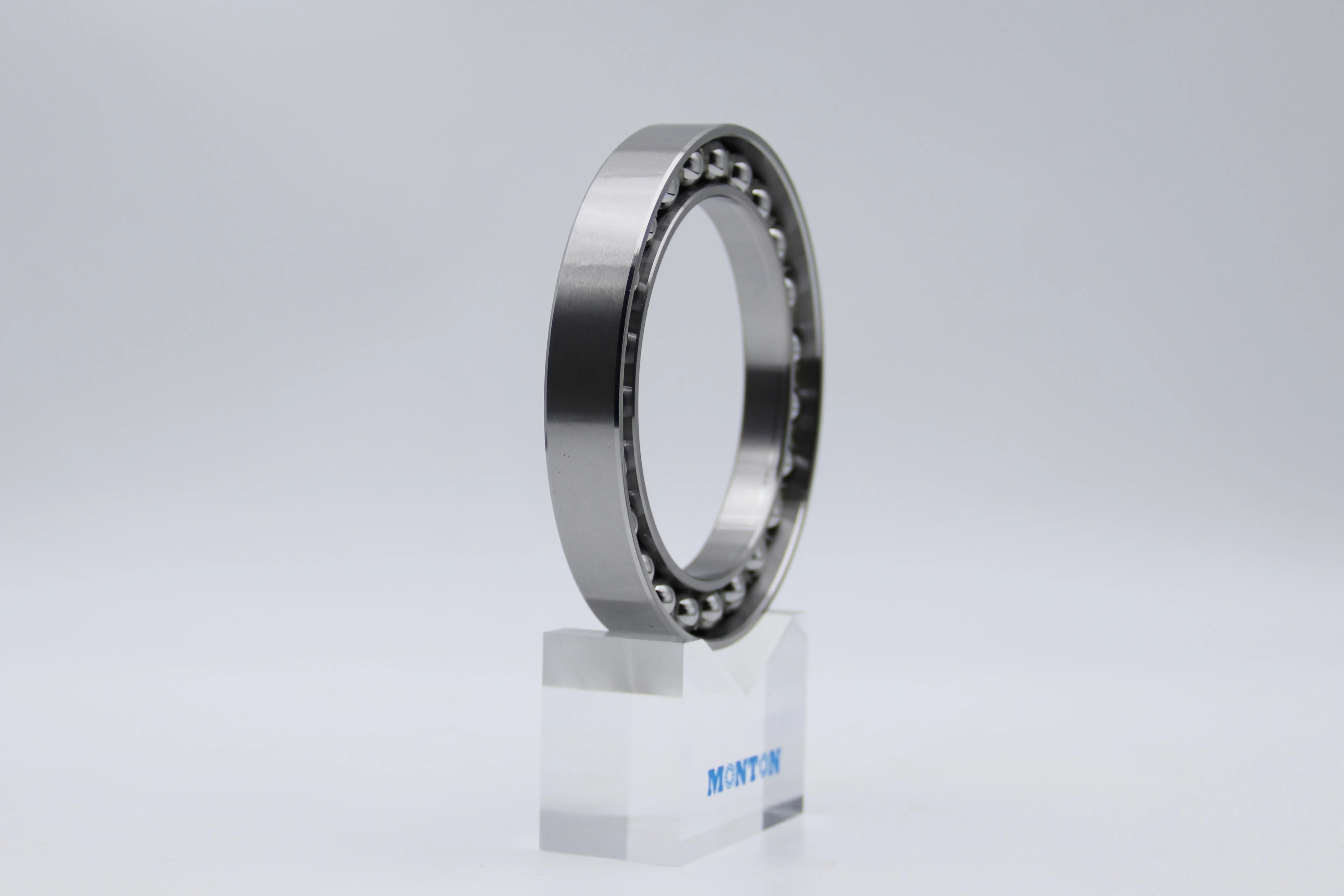

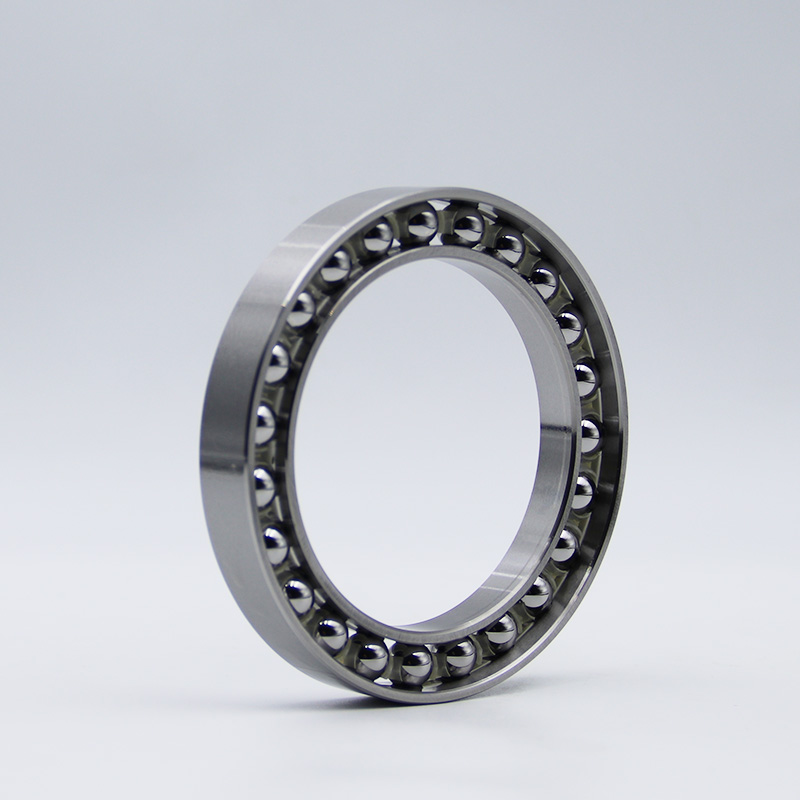

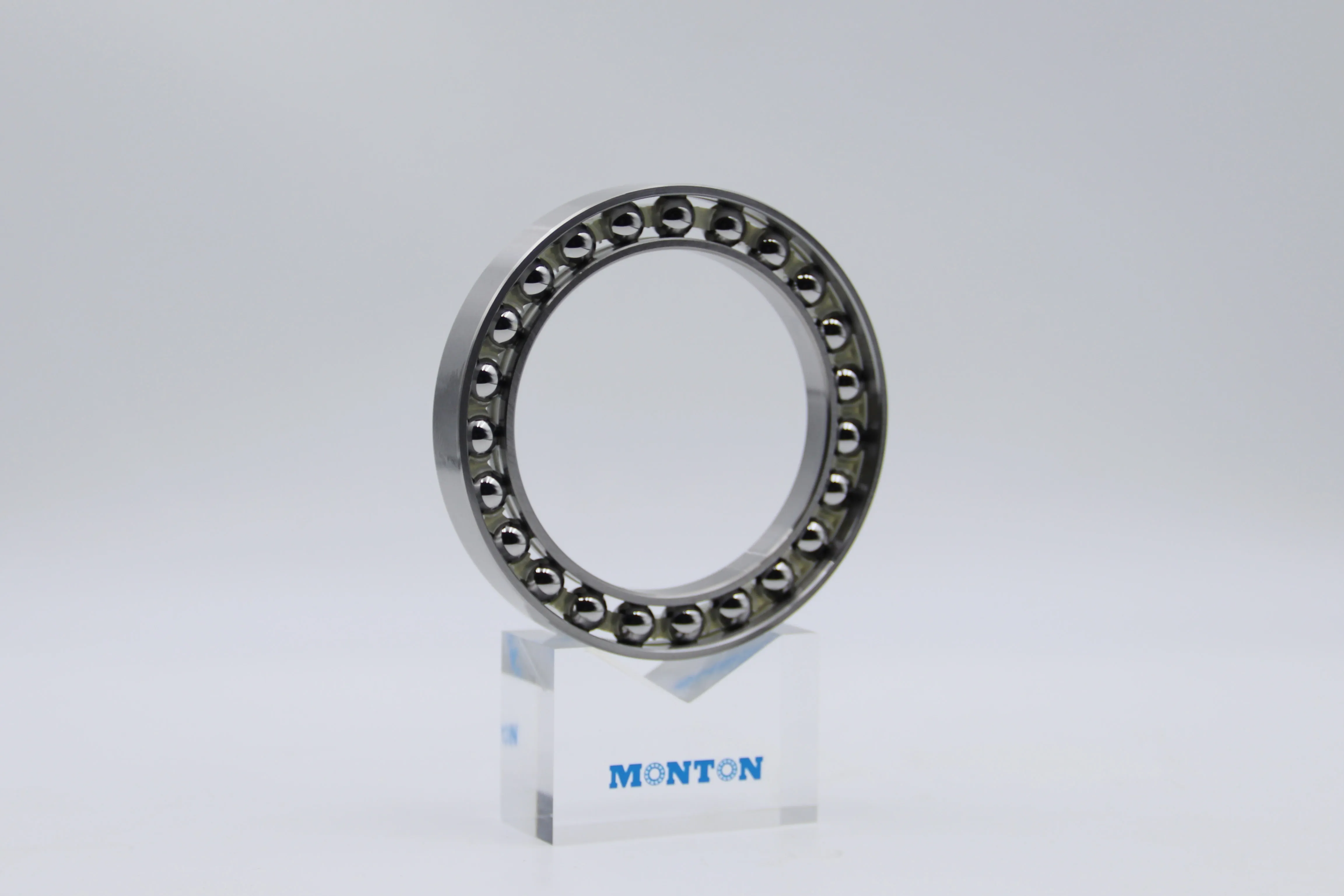

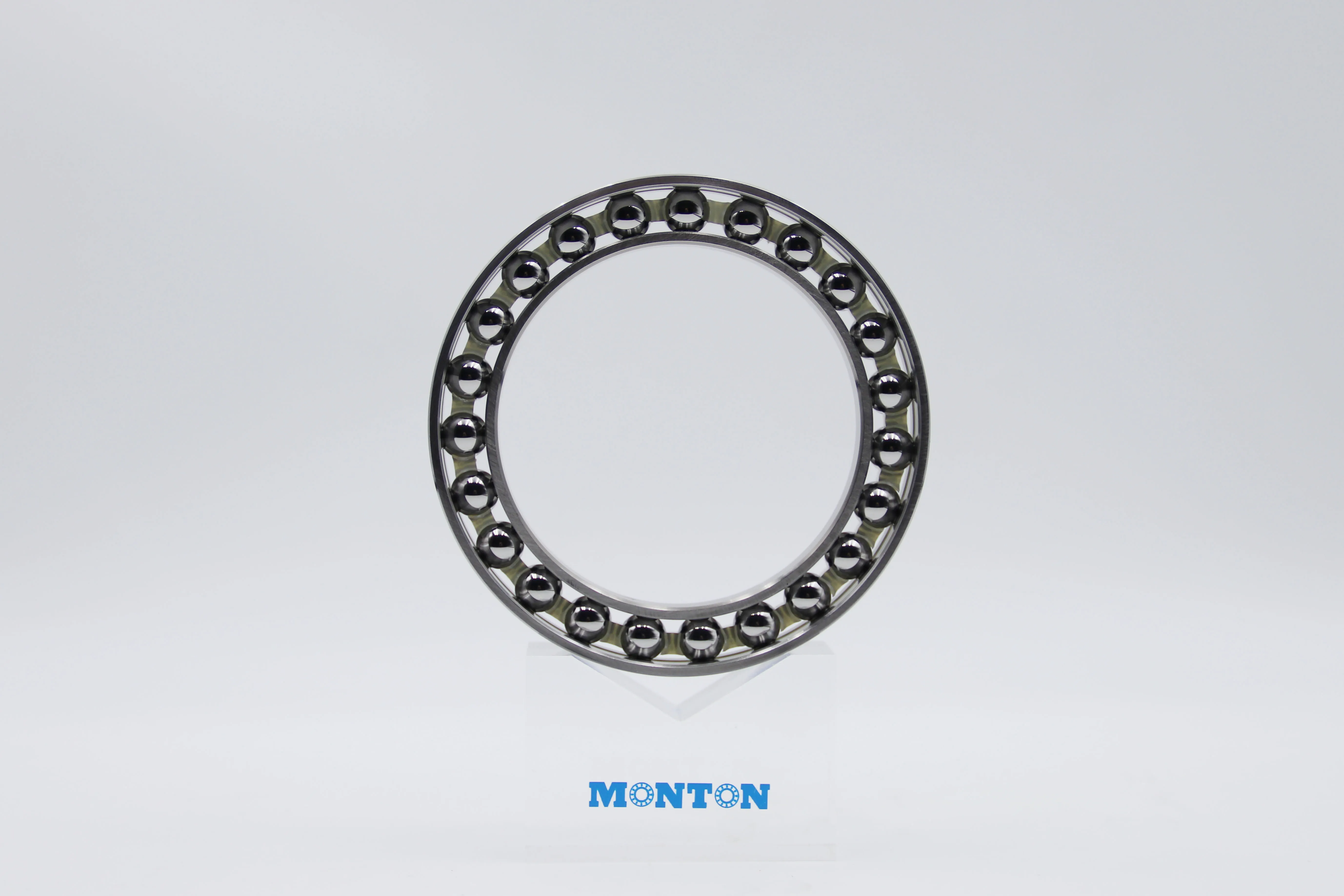

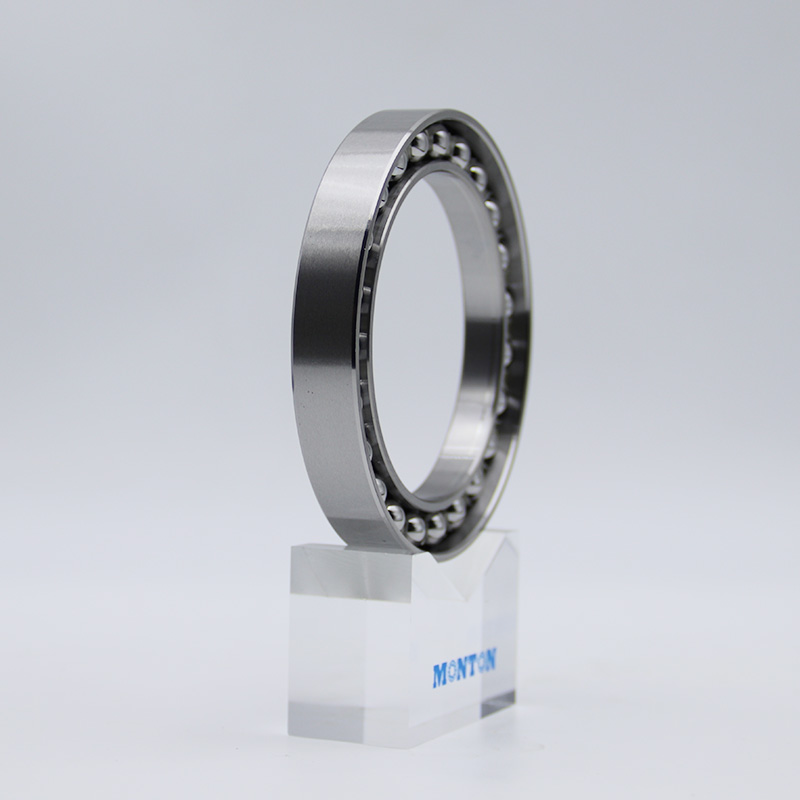

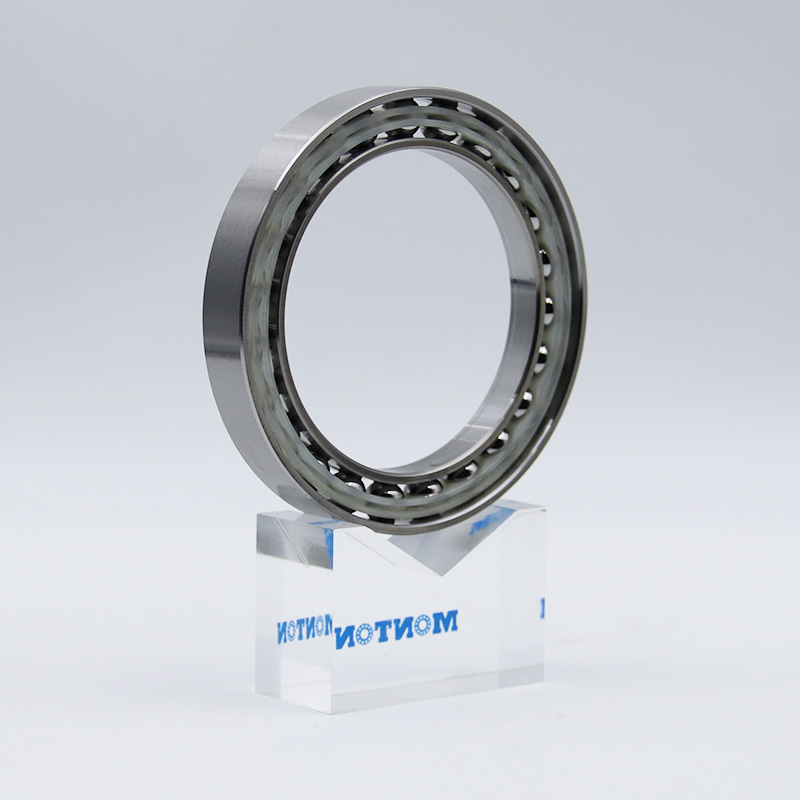

F-40 Flexible Bearing for harmonic drive wave gear

Flexible bearings for F-40 harmonic reducers are thin-walled bearings designed specifically for harmonic reducers, with the core feature of achieving high-precision transmission through elastic deformation. Adopting a thin-walled ring design, with a wall thickness of only a few millimeters, it takes on an elliptical shape after installation. The inner and outer rings are made of ZGCr15 high carbon chromium bearing steel, and the retainer is a nylon integral type, ensuring high precision and compactness. Together with the rigid wheel, flexible wheel, and wave generator, it forms a harmonic reducer, where the wave generator generates controllable deformation of the flexible wheel through an elliptical cam. Mainly used in industrial robots, aerospace and other fields, it is the core component of harmonic reducers.

Case Details

Name	Flexible Bearing
Brand	MONTON
Model	F-40
Bore diameter	71.12mm
Outside diameter	98.171mm
B(width)	14.47mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating C	26.4KN
Basic static load rating C0	25.7KN
Radial Deformation	0.6
Sealed	Open
Row	Single row
Weight	0.35KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Harmonic drive reducer Machine tool Robotics Satellite
