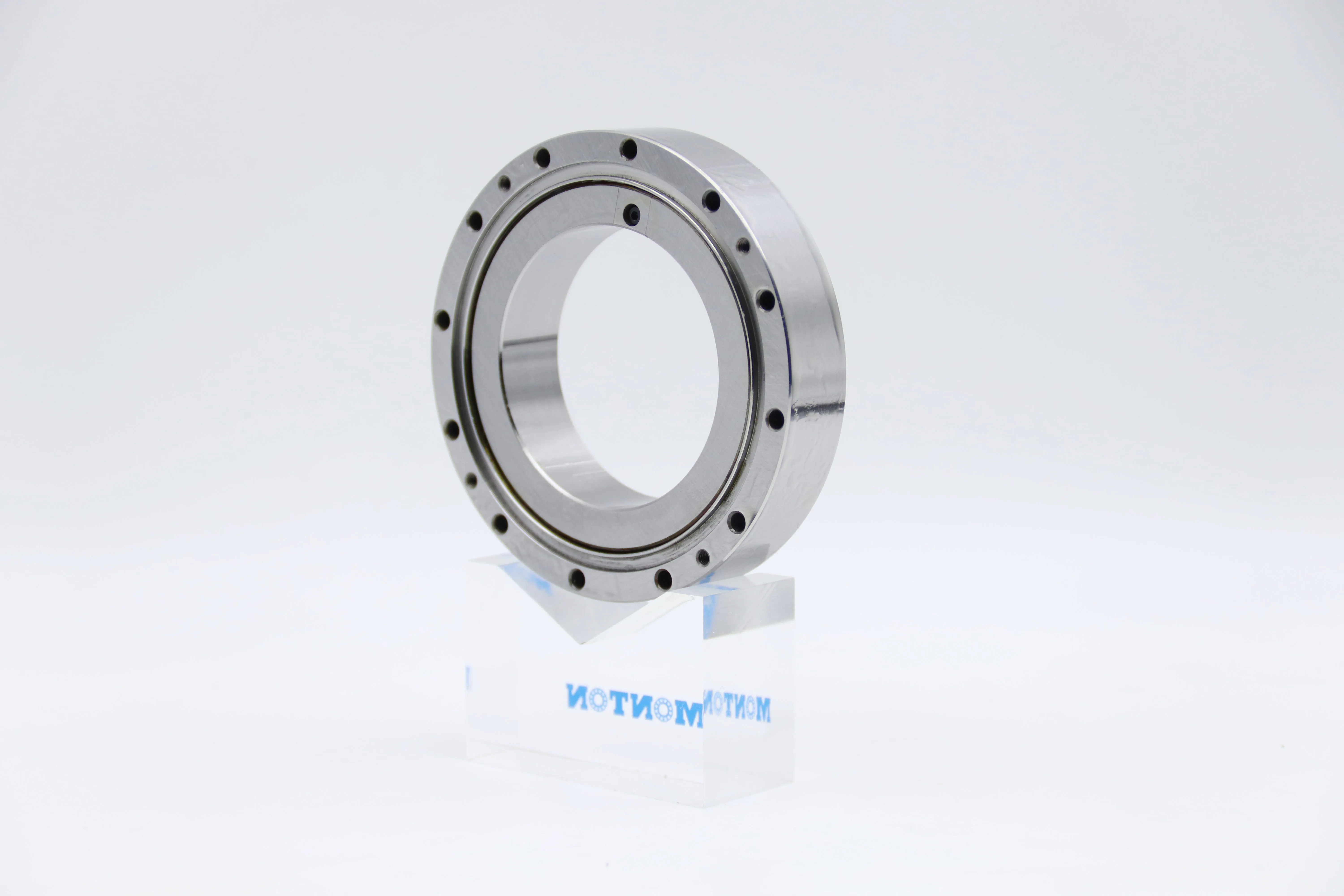

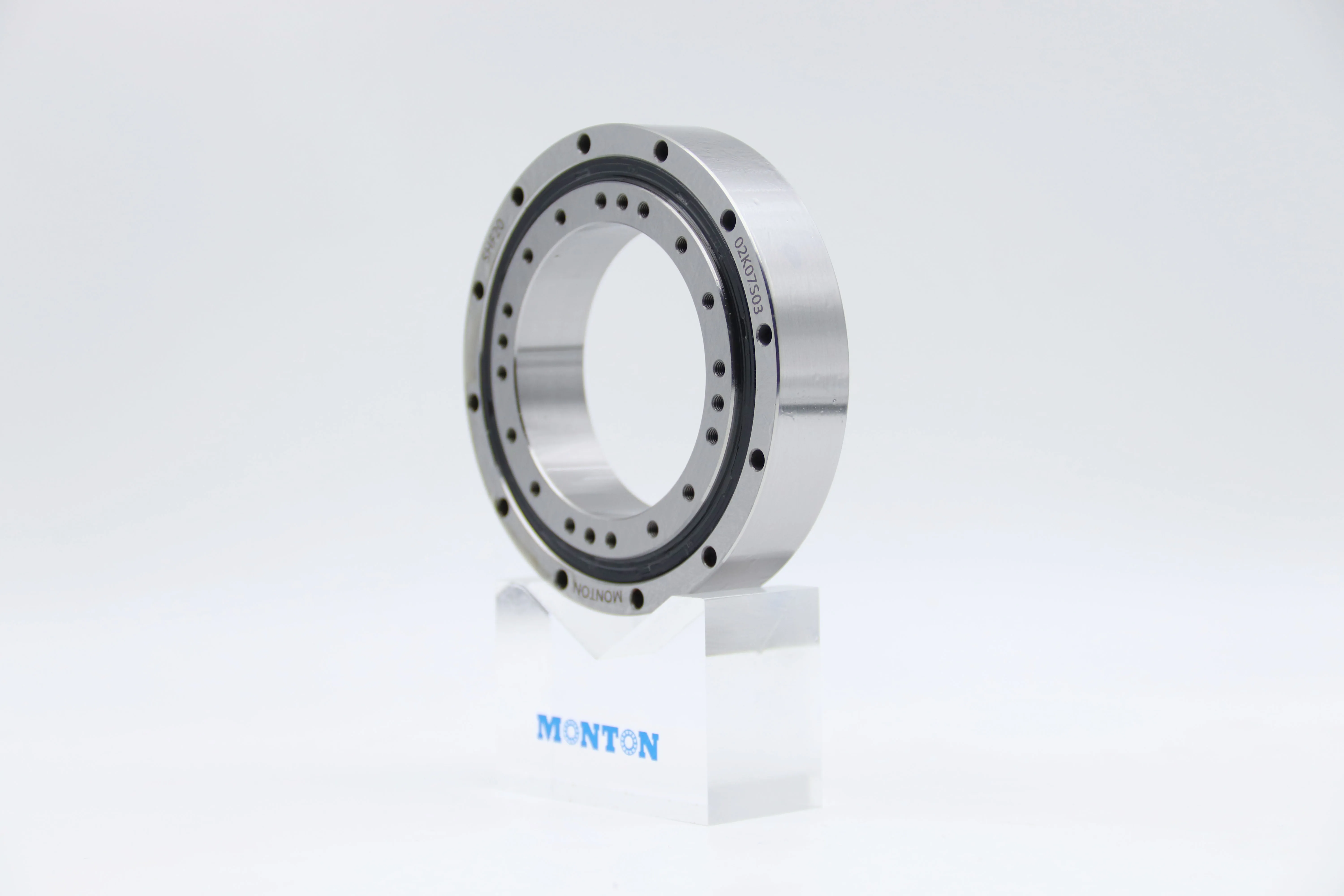

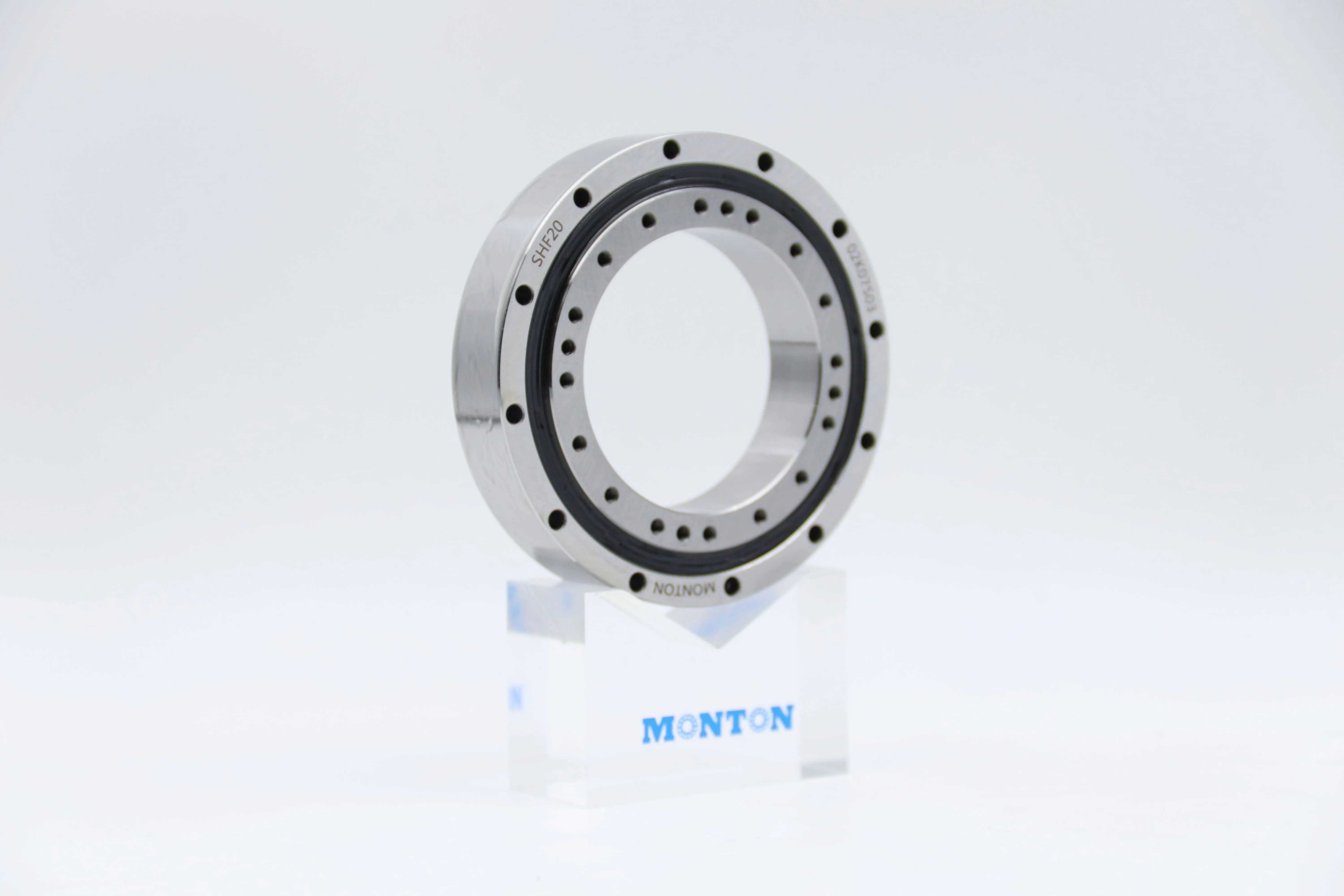

SHF-20 /SHG-20 Harmonic Drive Crossed Roller Bearing

SHF20 harmonic reducer cross roller bearing is a high-precision and high rigidity matching bearing designed specifically for harmonic reducers, widely used in high-end automation equipment such as industrial robots, precision rotary tables, and CNC machine tools. Its core feature is the use of a cross cylindrical roller structure, with rollers arranged vertically at a 90 ° angle to each other in a V-shaped raceway. It can simultaneously withstand multi-directional composite loads such as axial, radial, and overturning moments, significantly improving the operational stability and positioning accuracy of the equipment.

Case Details

Name	Harmonic Drive Crossed Roller Bearing
Seires	SHF series
Brand	MONTON
Model	SHF-20 /SHG-20
d	54mm
D	90mm
B	17.5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	18.5kN
Load rating Cor	25.6kN
Sealed	According to requirement
Weight	0.48KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2015
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer
