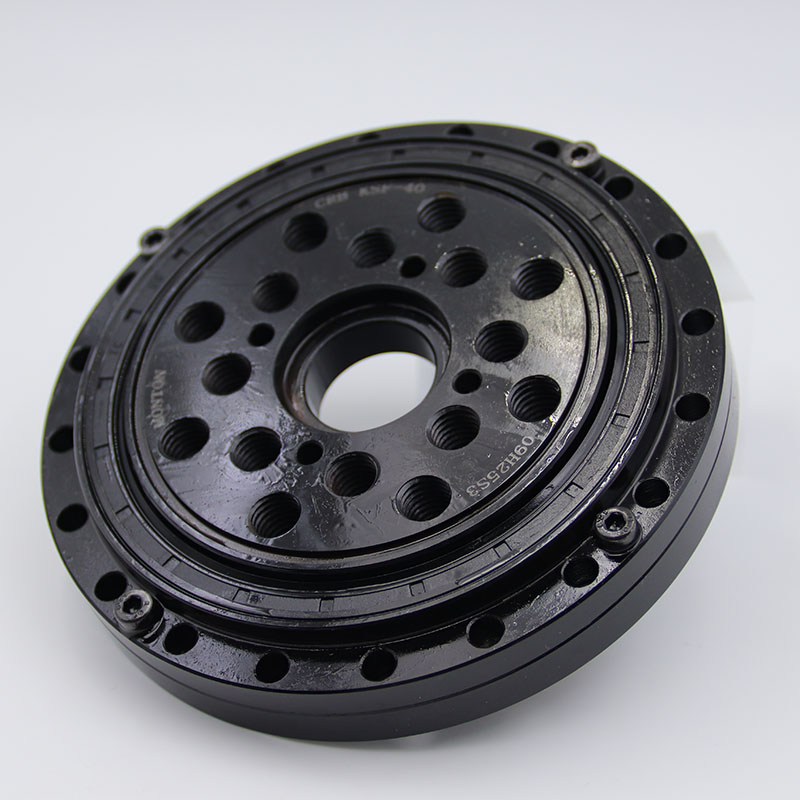

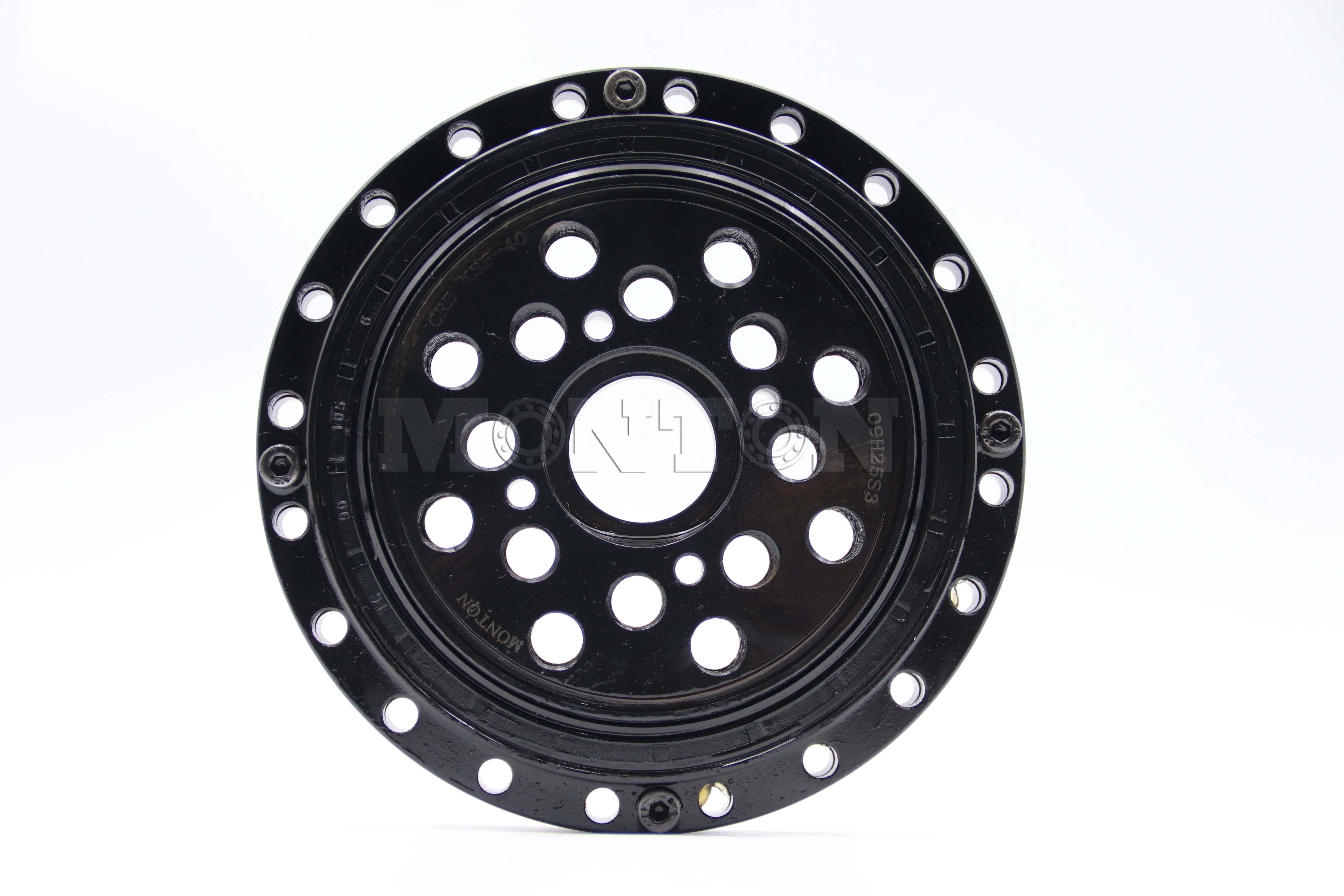

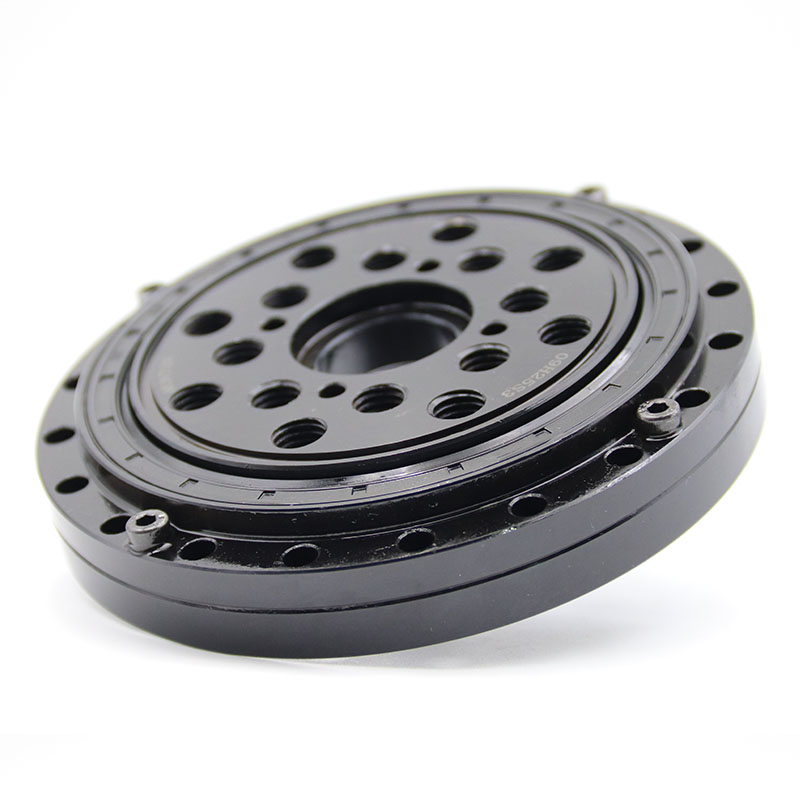

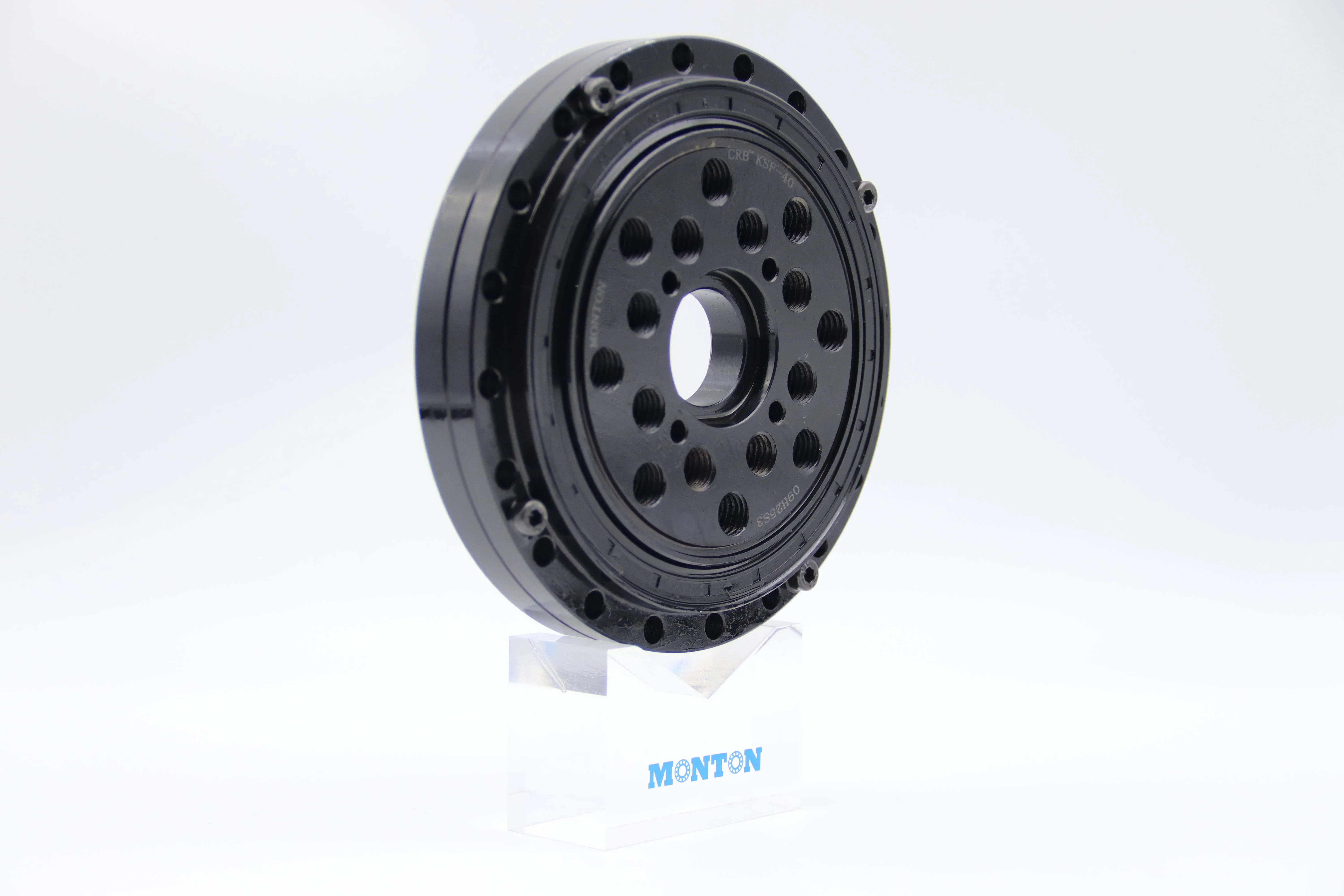

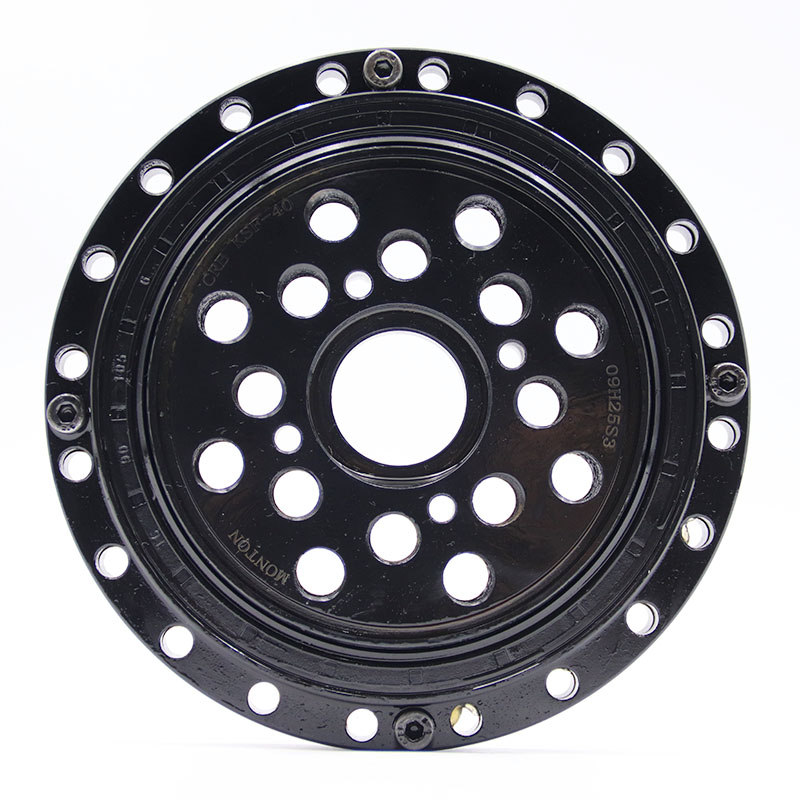

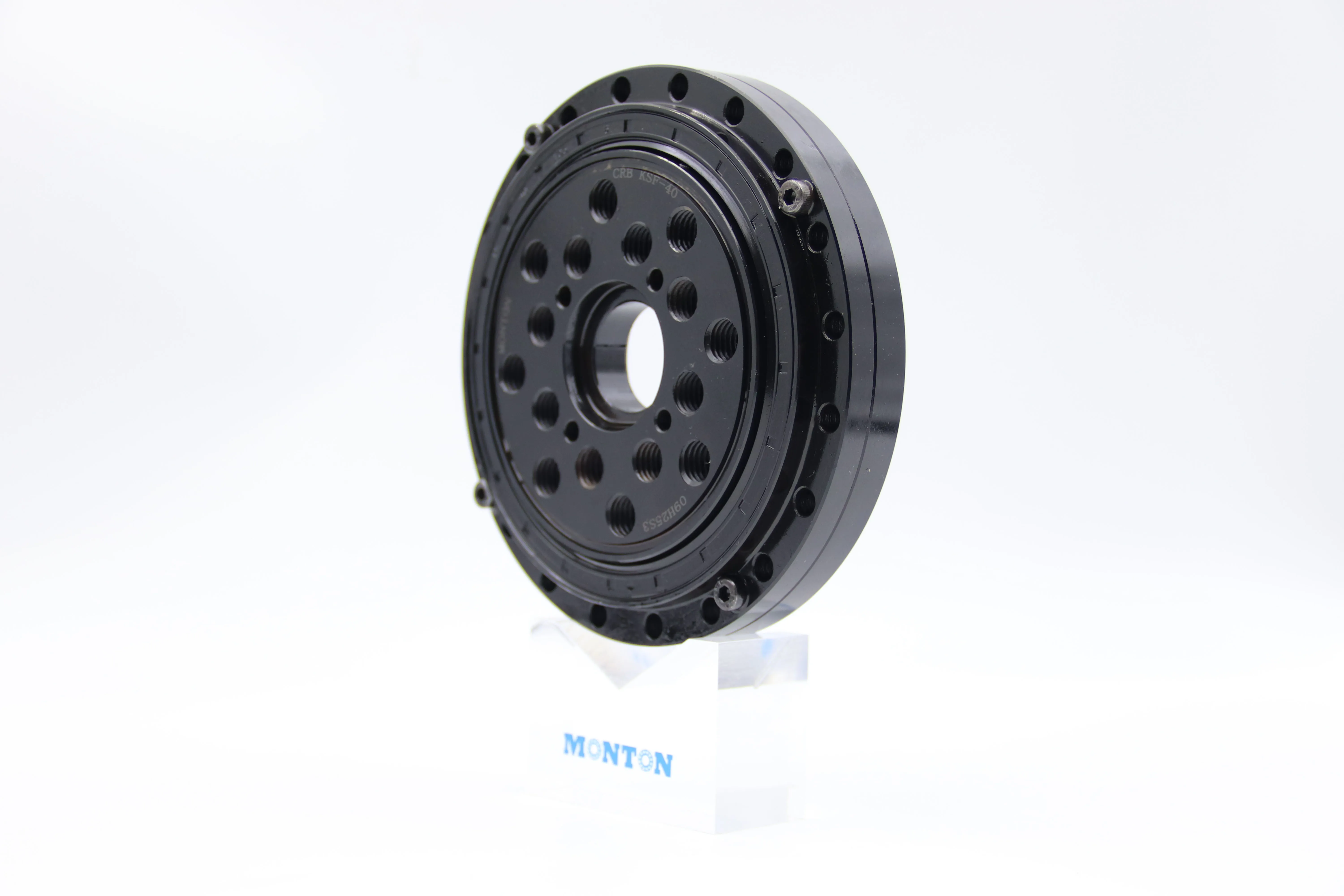

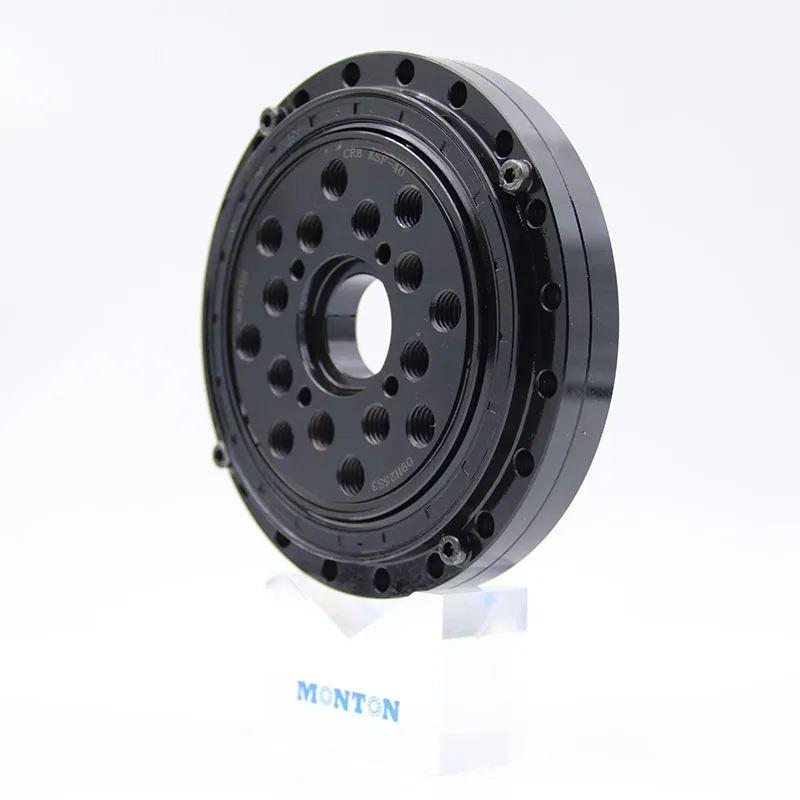

CSF-40 Harmonic drive Crossed Roller Bearing

CSF-40 harmonic reducer bearing is a type of crossed cylindrical roller bearing specially designed for harmonic reducers, featuring high precision, high rigidity and combined load-bearing capacity. The outer ring is split and the inner ring is integral, with installation holes for easy direct installation. It is mainly used in high-precision transmission fields such as industrial robot joints and aerospace equipment. The bearings of the harmonic reducer should be protected from violent knocking. It is recommended to use a special tool, a hydraulic oil injector, to assist in installation.

Case Details

Name	Crossed Roller Bearing
Seires	CSF series
Brand	MONTON
Model	CSF-40/KCF-40
d	32mm
D	126mm
B	24mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	25.9kN
Load rating Cor	38.9kN
Sealed	According to requirement
Weight	0.9KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2008
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive reducer,Robotics
