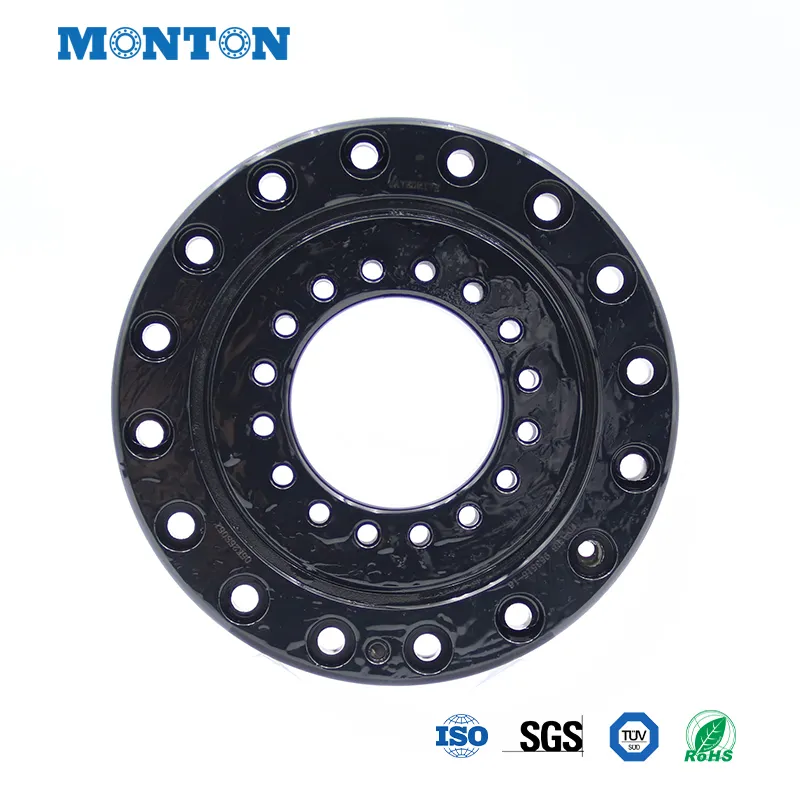

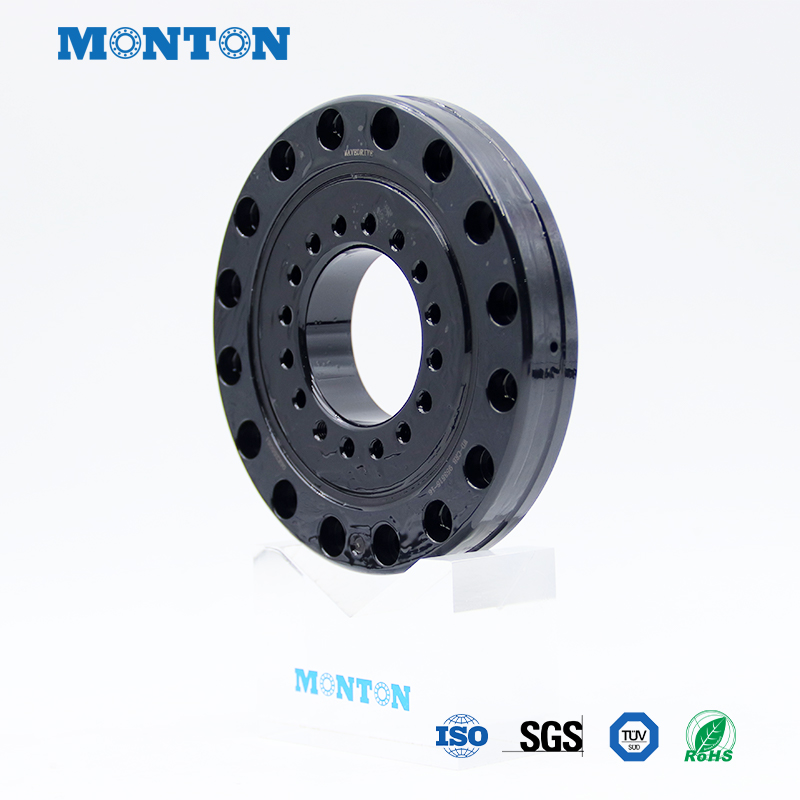

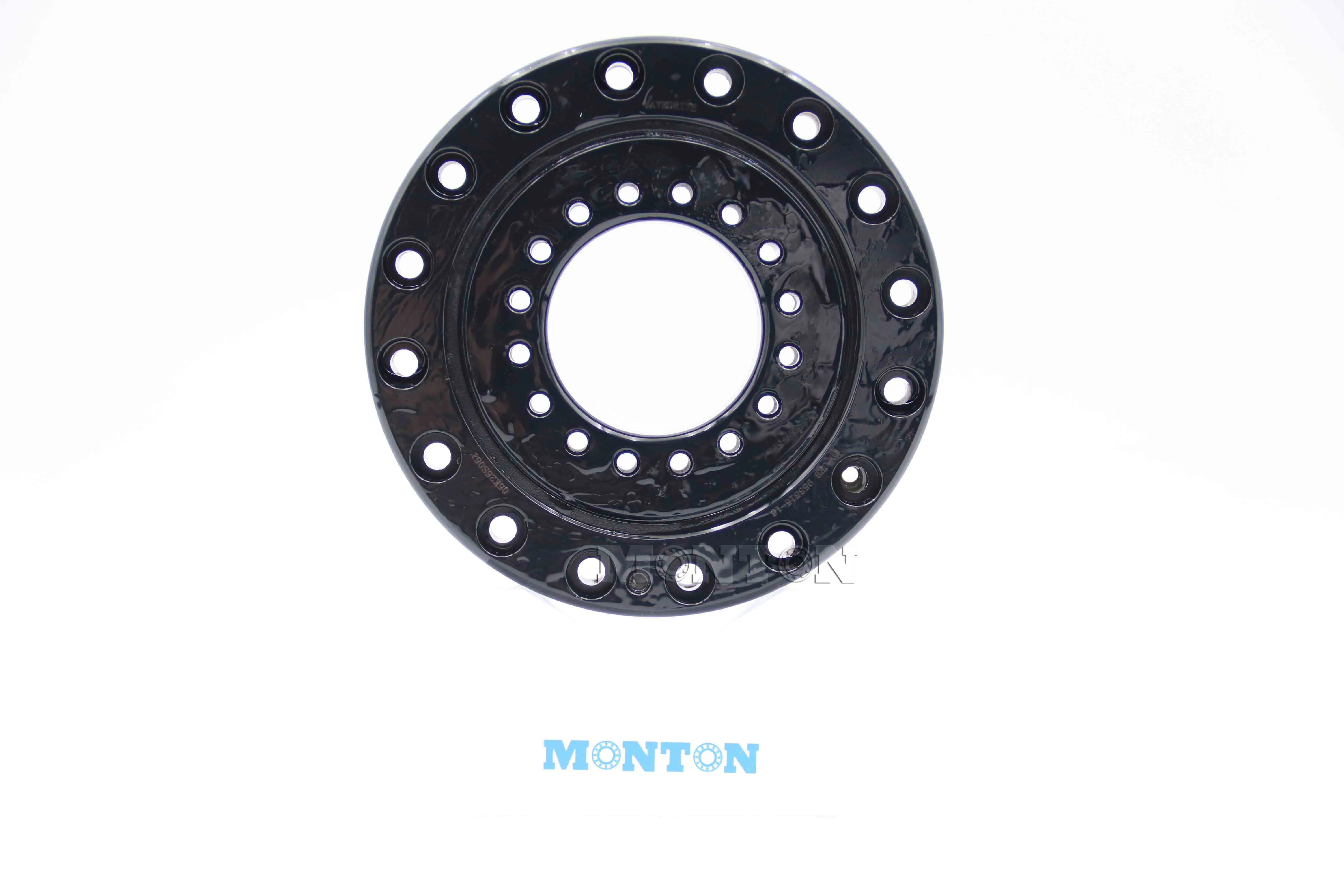

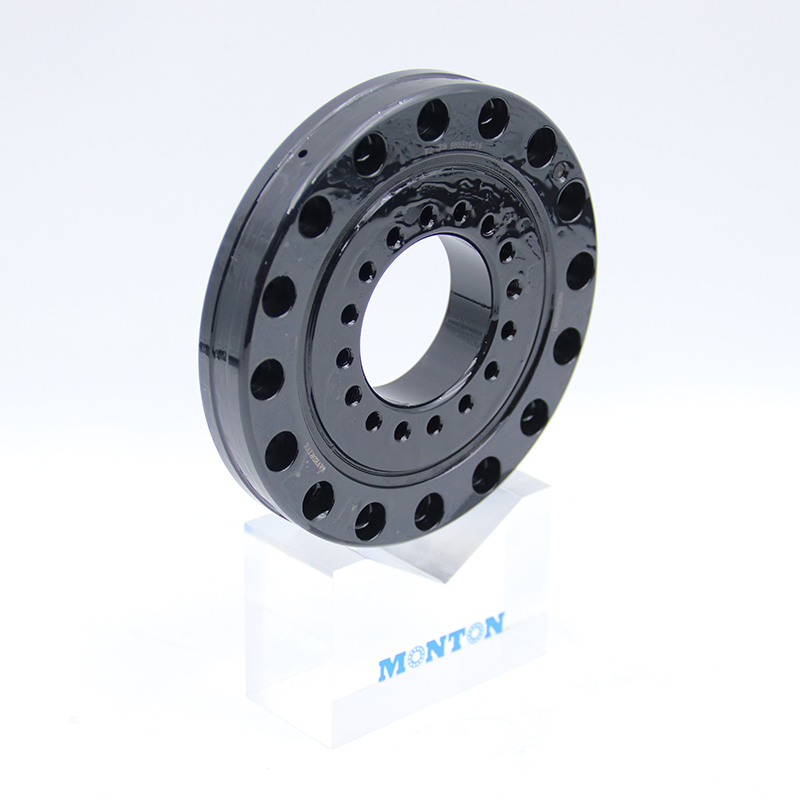

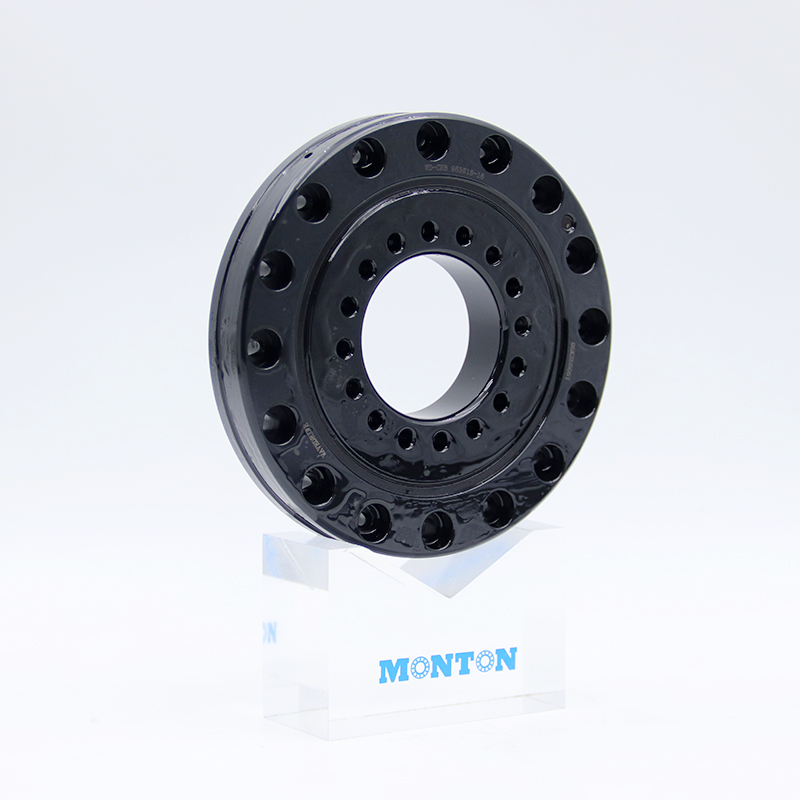

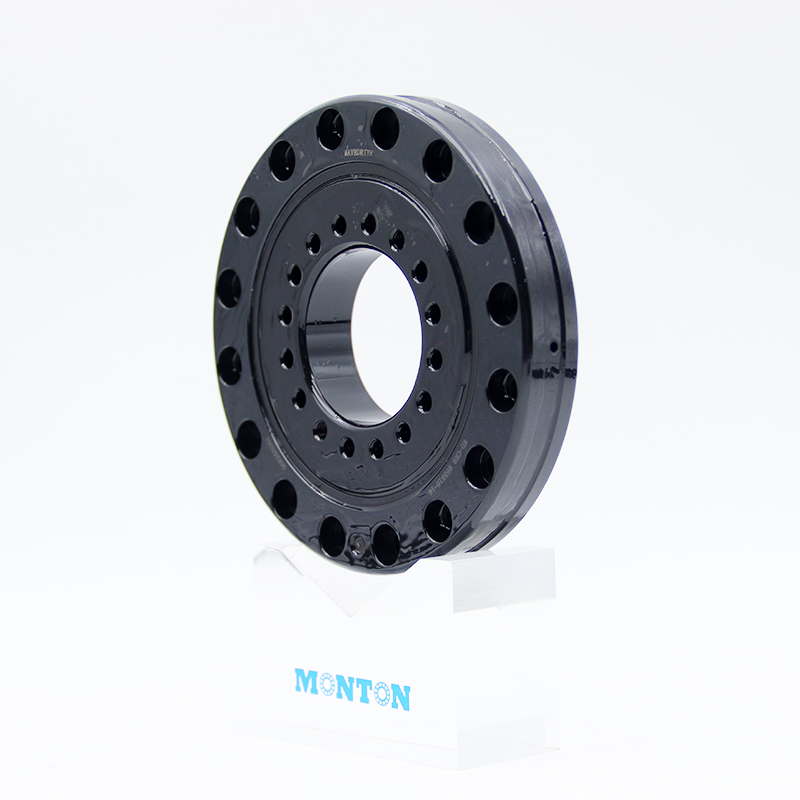

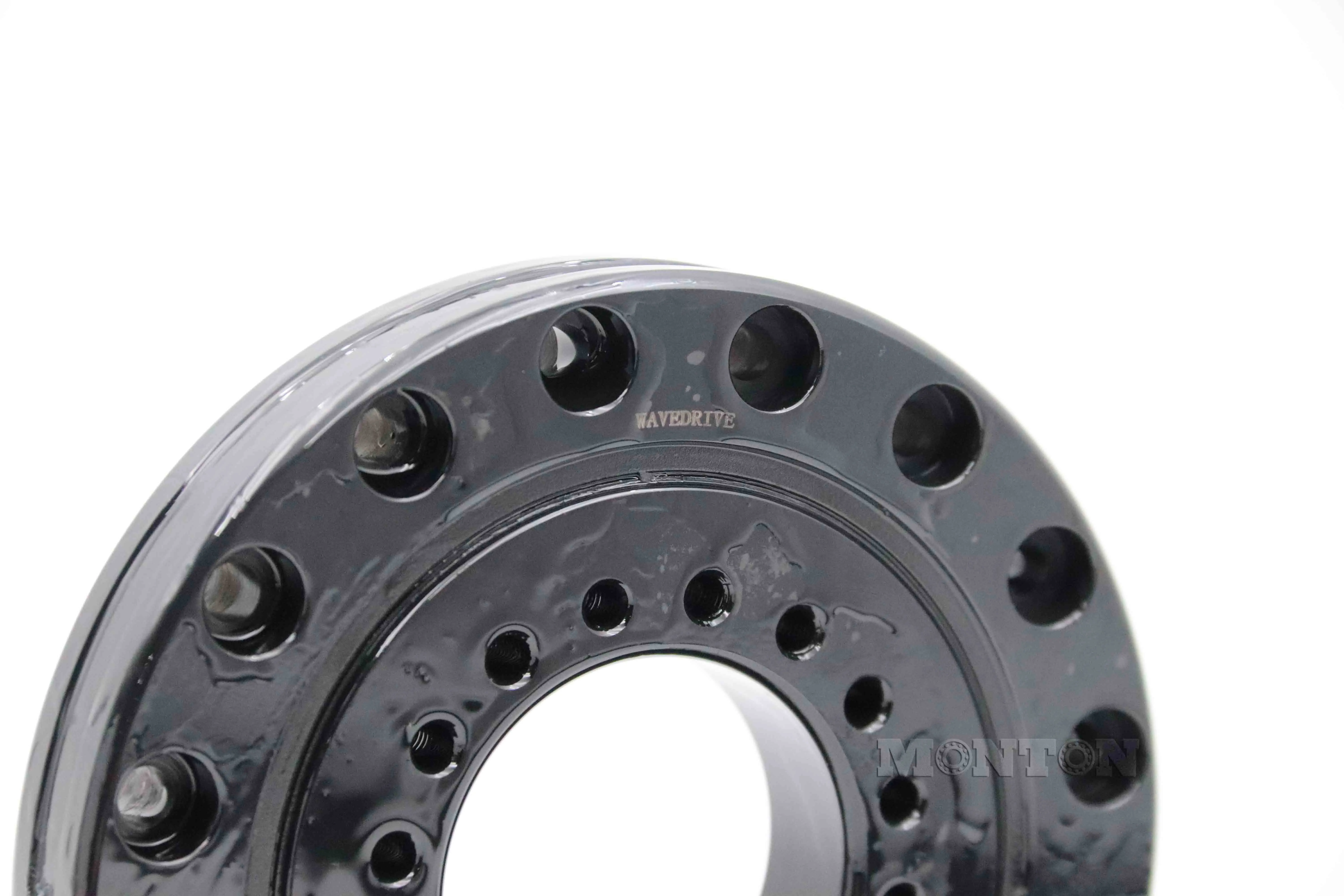

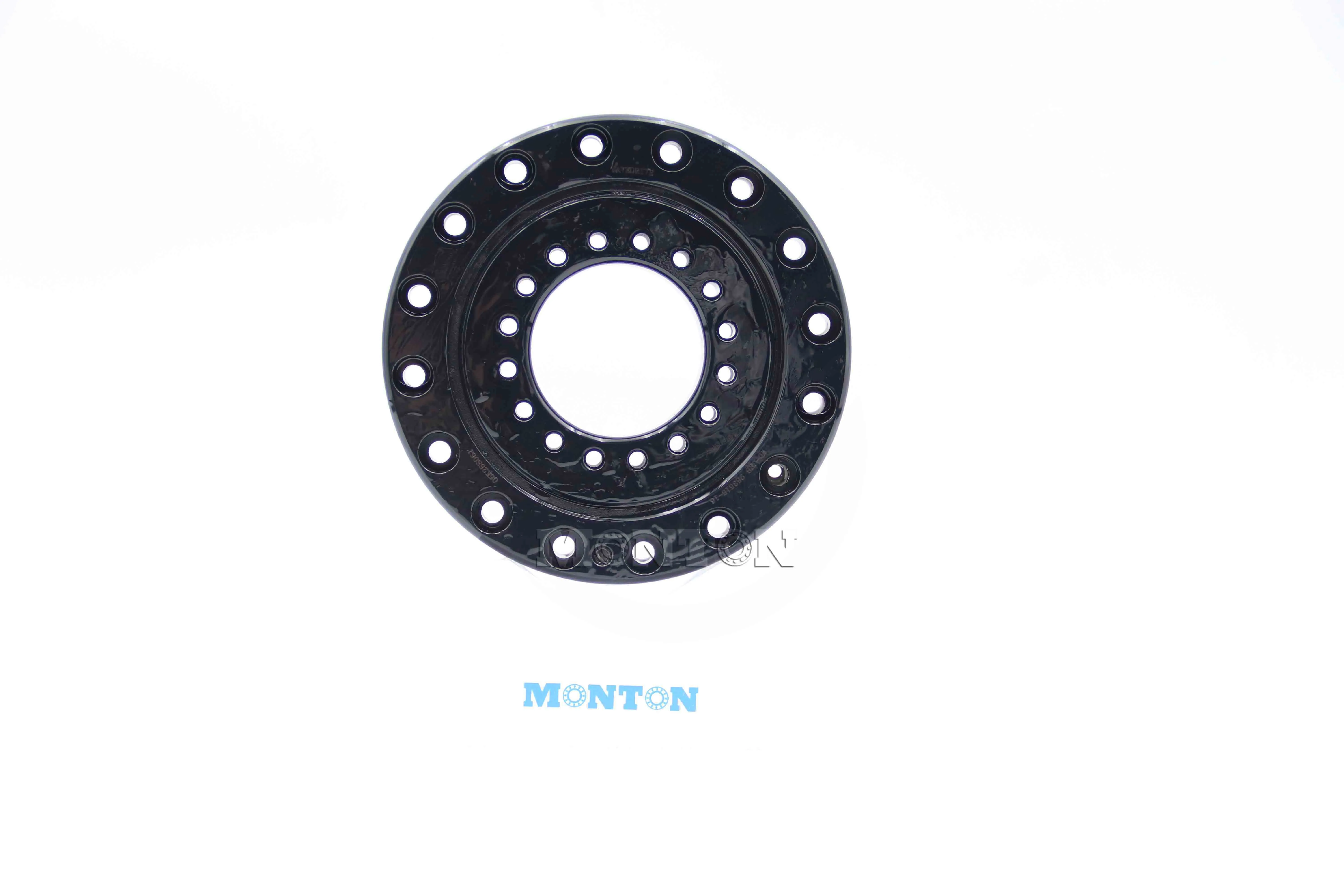

WR-CRB-53515-16 Crossed Roller Bearing

WR-CRB-53515-16 non-standard customized cross roller bearing is a precision transmission component designed and manufactured for special working conditions based on the basic structure of cross roller bearings. It retains the core design of rollers arranged vertically and crosswise at 90°, which can simultaneously bear combined loads of radial, axial and overturning moments. It can also make exclusive adjustments to the inner and outer ring dimensions, roller parameters, lubrication and sealing methods, etc., according to users' special requirements for size, load, installation space, etc. It is widely used in fields with strict requirements for precision and rigidity, such as industrial robots, high-end machine tools, medical equipment, aerospace and so on.

Case Details

Name	Crossed Roller Bearing
Series	WR series
Brand	MONTON
Open type	WR-CRB-53515-16
d	35mm
D	95mm
B	15mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	17.5KN
Load rating Cor	22.3KN
Sealed	According to requirement
Weight	1.3KG
Design Structure	Crossed roller
Precision	P4,P5 P2 or according to requirement
Clearance	CC0 /T1/C1/C2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot Medical equipment Machine tools Motor Windmills Marine antenna Security Camera
