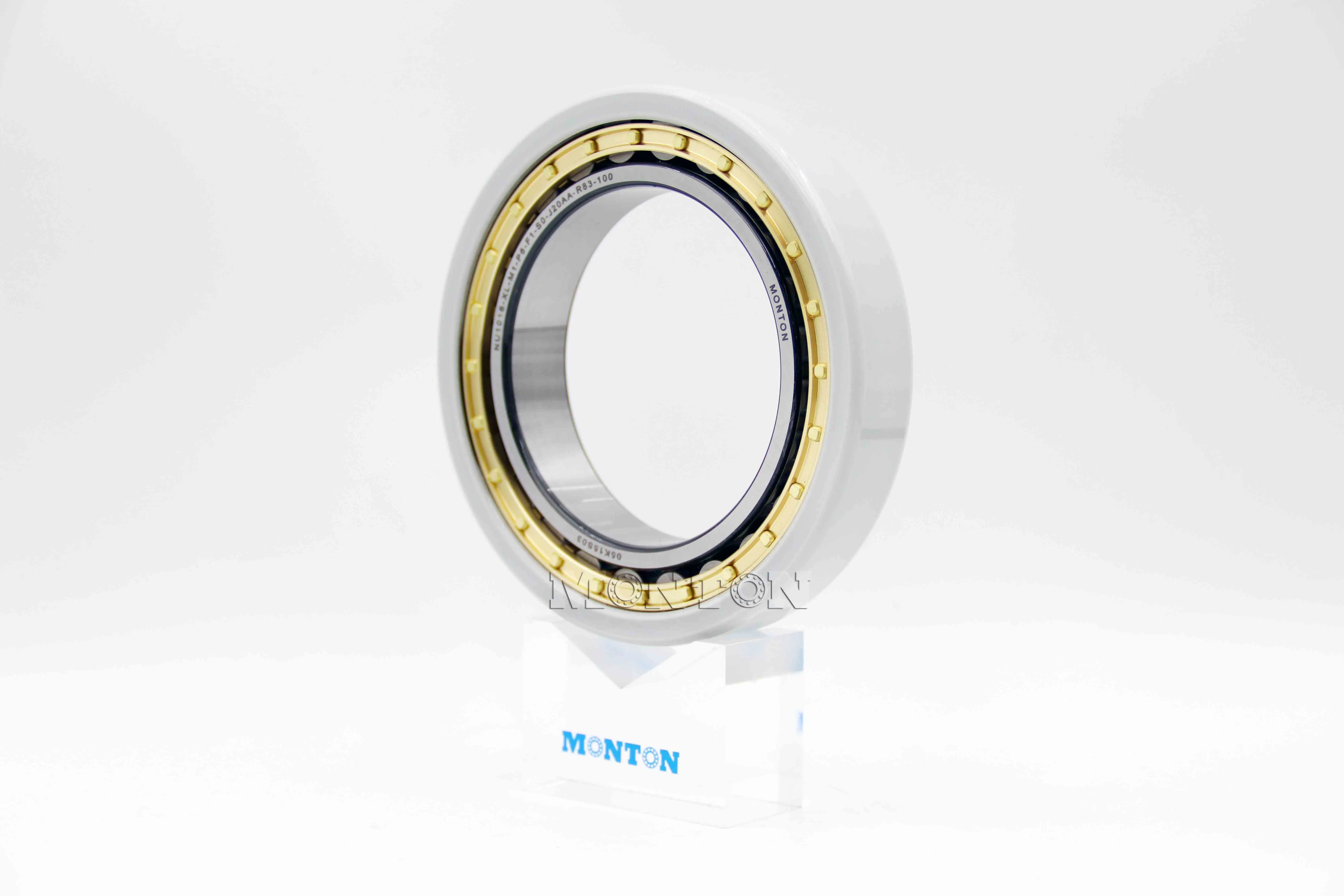

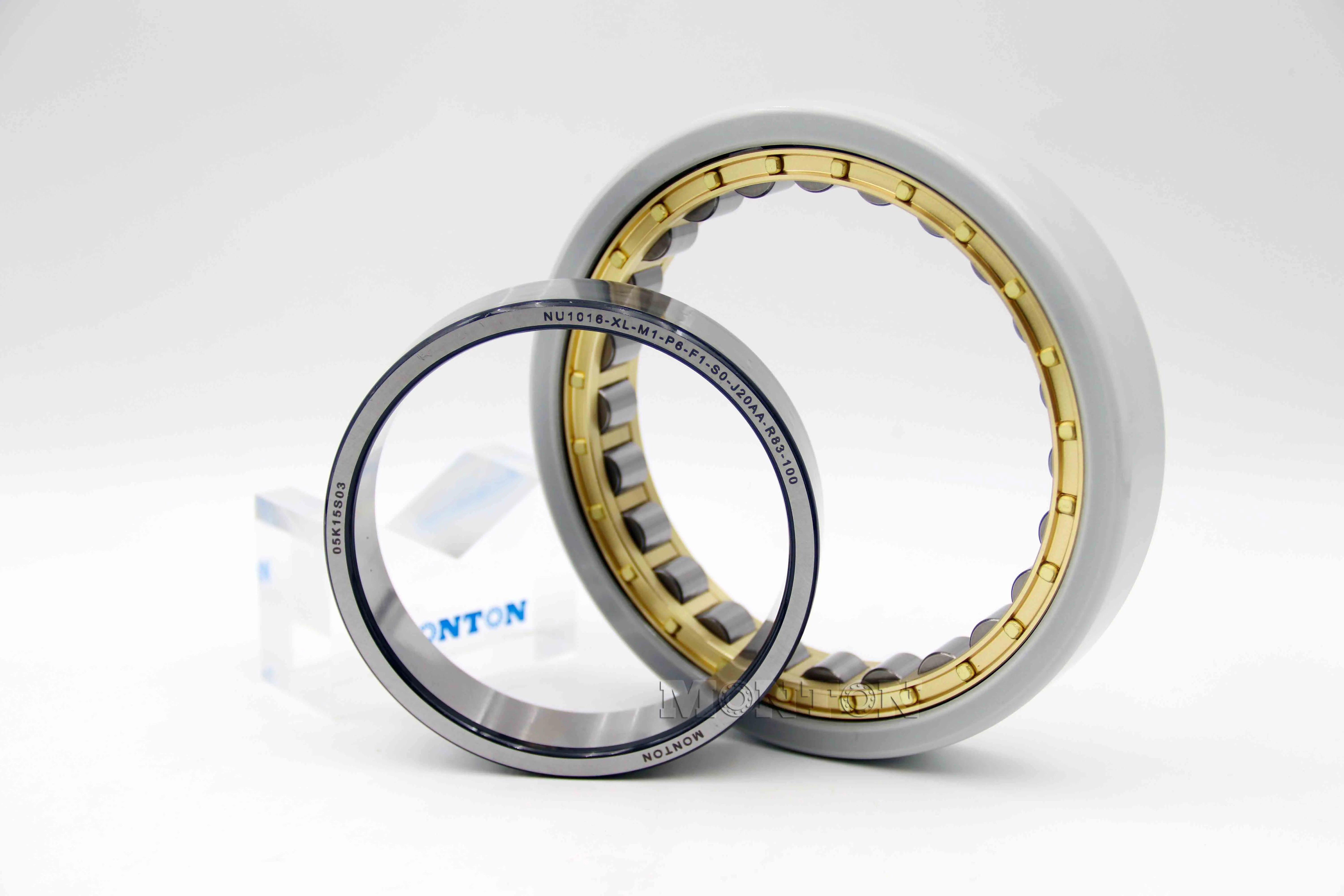

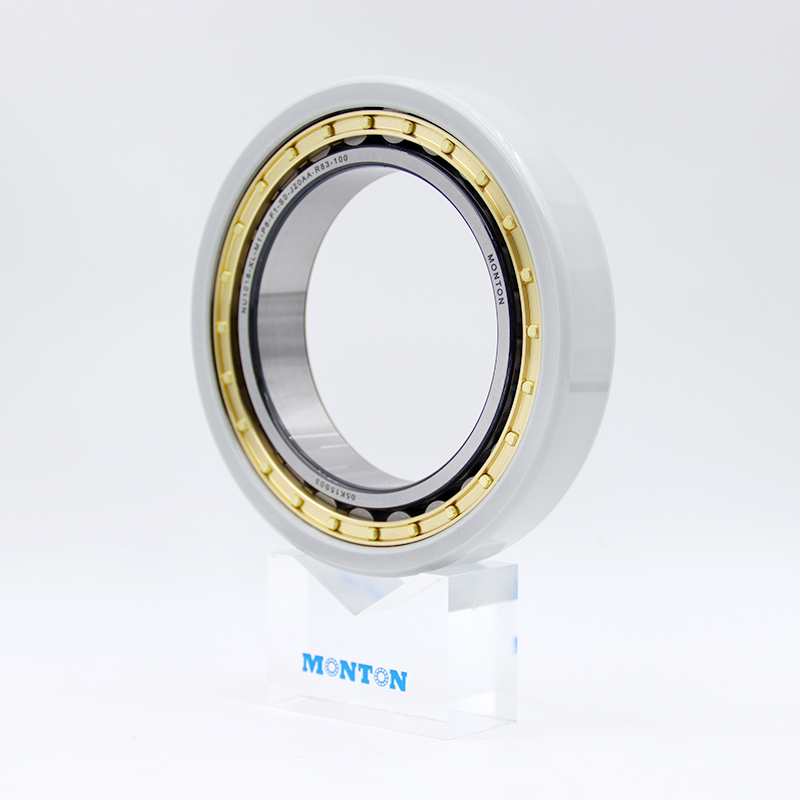

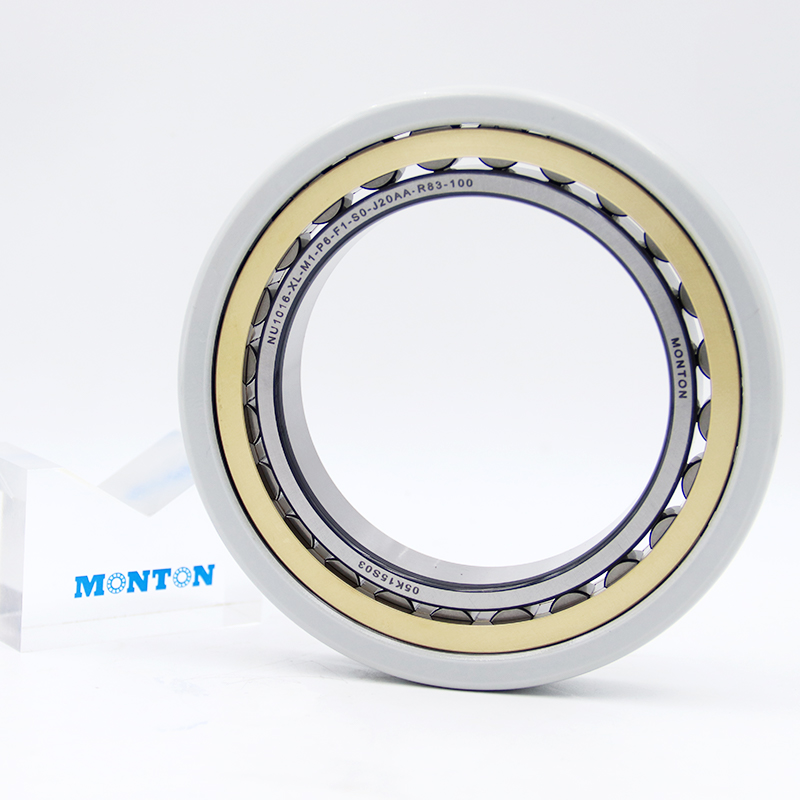

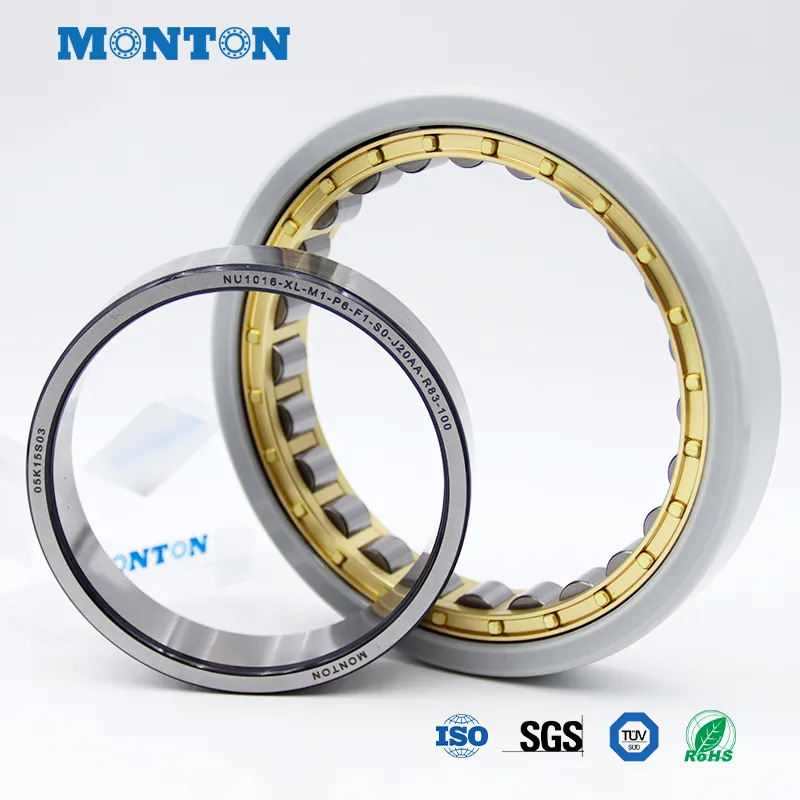

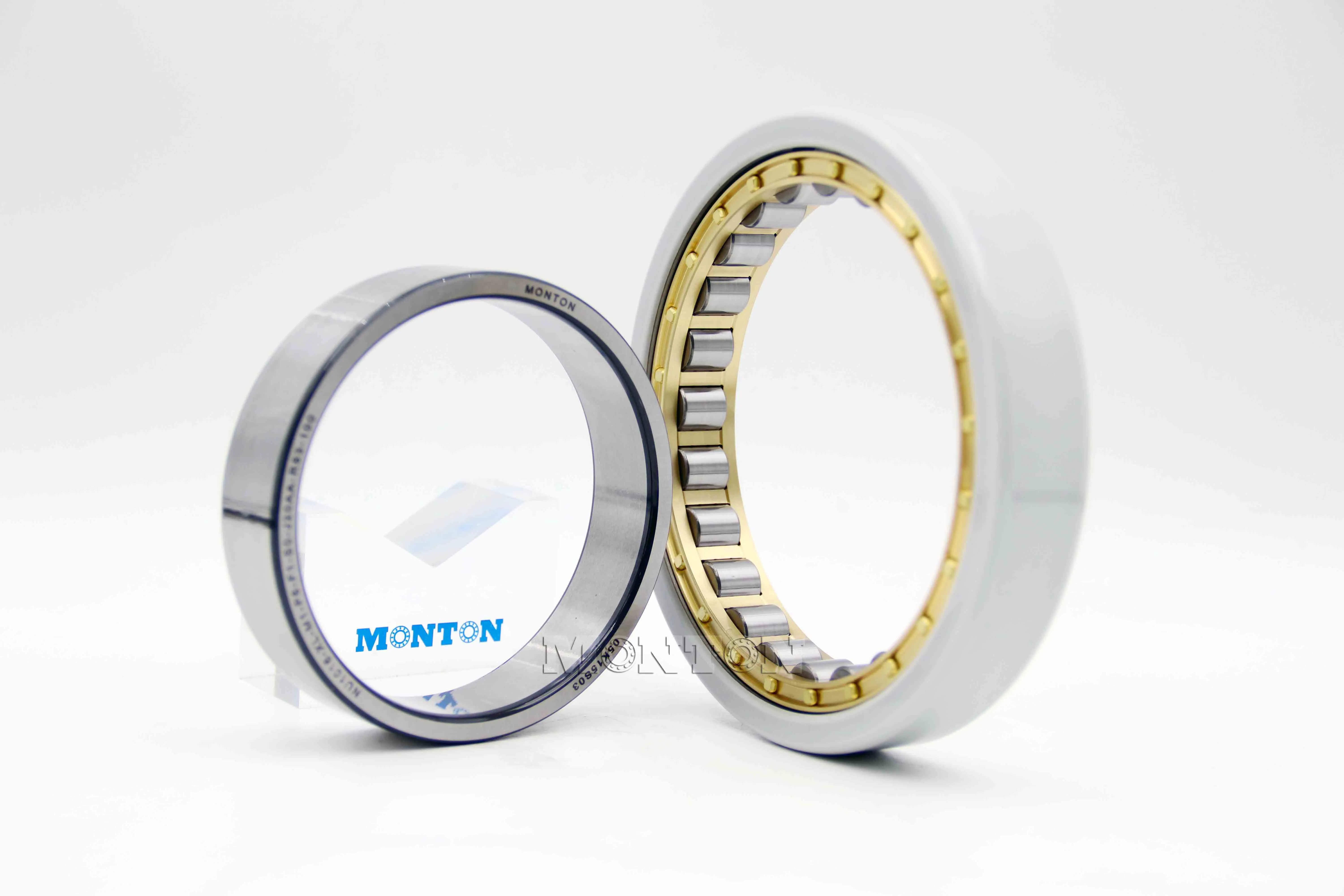

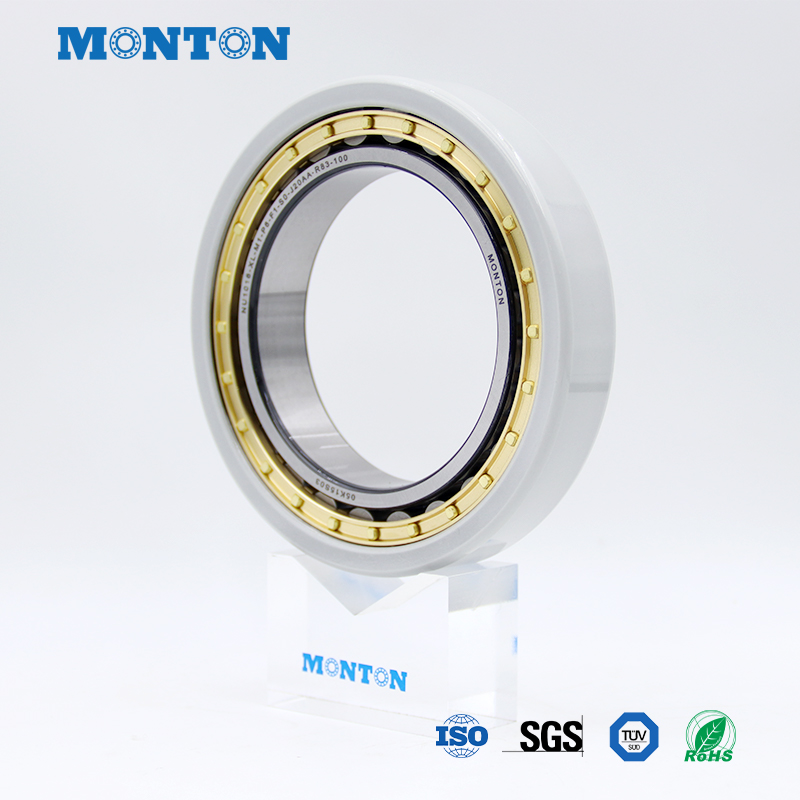

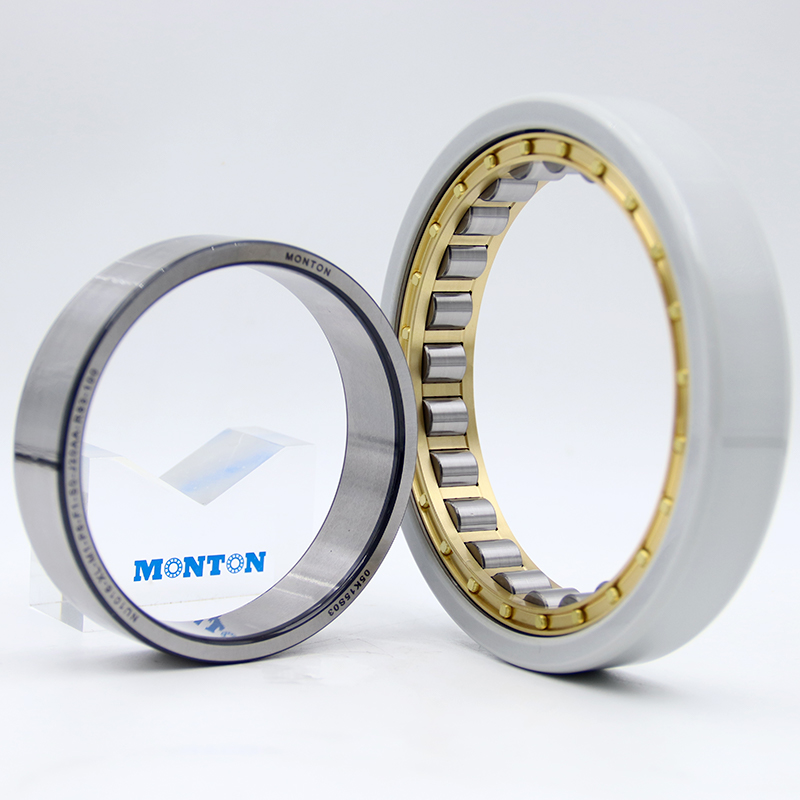

NU1016-XL-M1-P6-F1-S0-J20AA-R83-100 Insulated bearing

• NU1016-XL-M1-P6-F1-S0-J220AA-R83-100 insulated bearing is a single row cylindrical roller insulated bearing designed to resist shaft current erosion. Its core is suitable for working conditions such as wind power and high-power motors that are prone to current leakage. NU1016-XL-M1-P6-F1-S0-J220AA-R83-100 can be directly interchanged and installed with ordinary NU series cylindrical roller bearings of the same size. Spraying high-performance alumina insulation coating on the outer surface of the outer ring can withstand a maximum DC breakdown voltage of 3000V, effectively blocking the shaft current generated during the operation of the motor and generator, avoiding the occurrence of electric corrosion pitting on the raceway and premature electrolytic failure of the lubricating grease. Mainly used in electrical equipment such as wind turbines, electric traction equipment, and high-power variable frequency motors that are prone to current leakage, it is specifically designed to solve the problem of premature bearing damage caused by shaft current during long-term operation of such equipment, greatly extending the equipment maintenance cycle.
