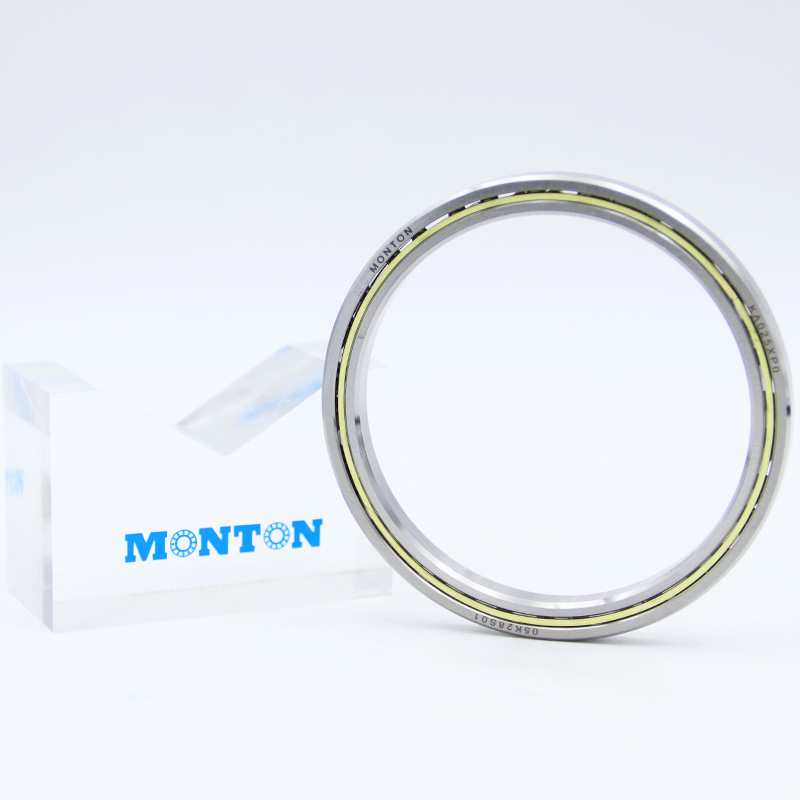

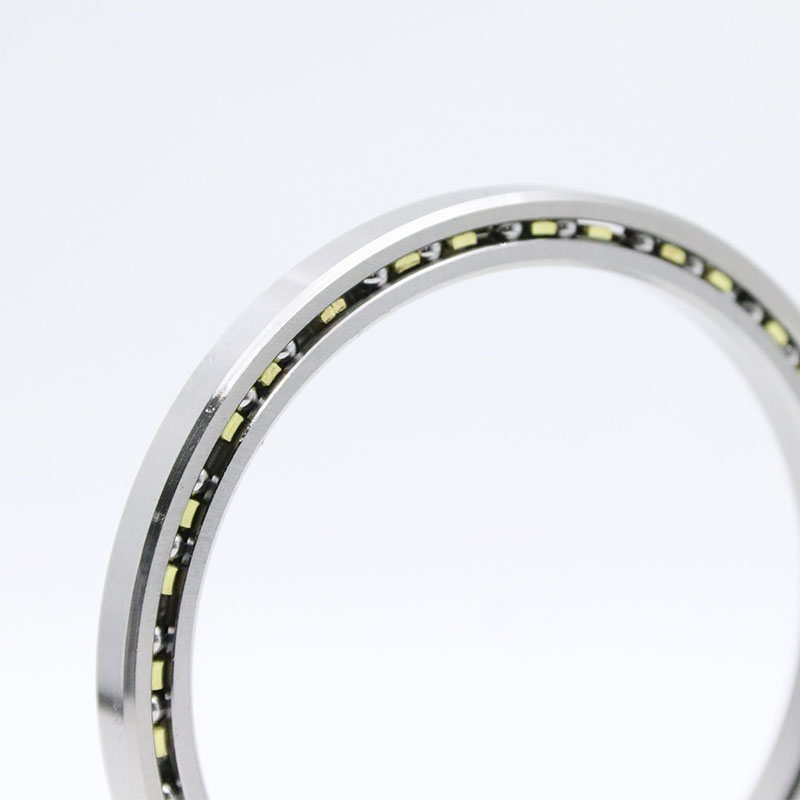

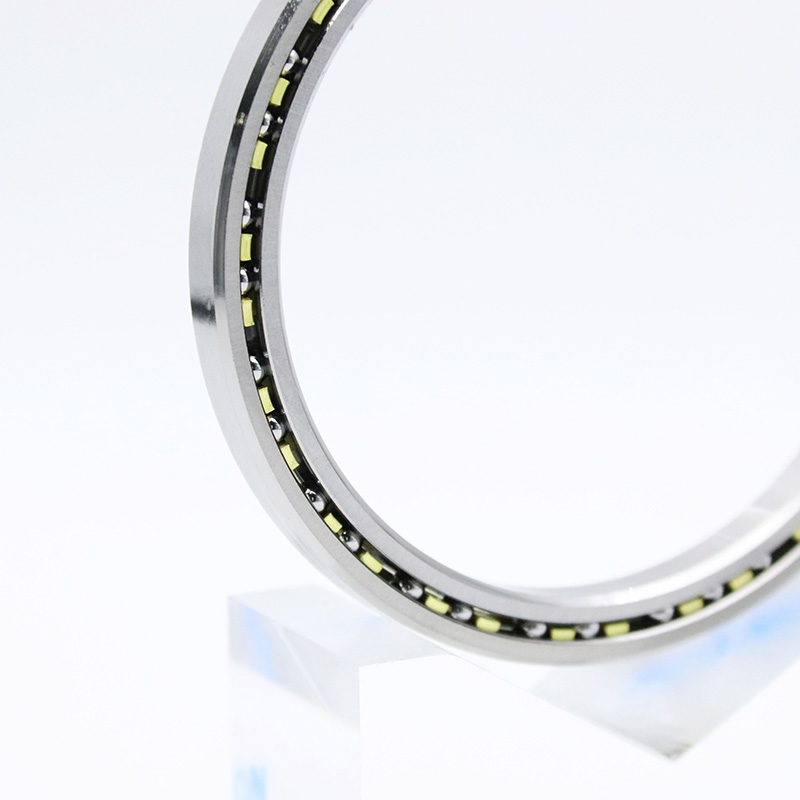

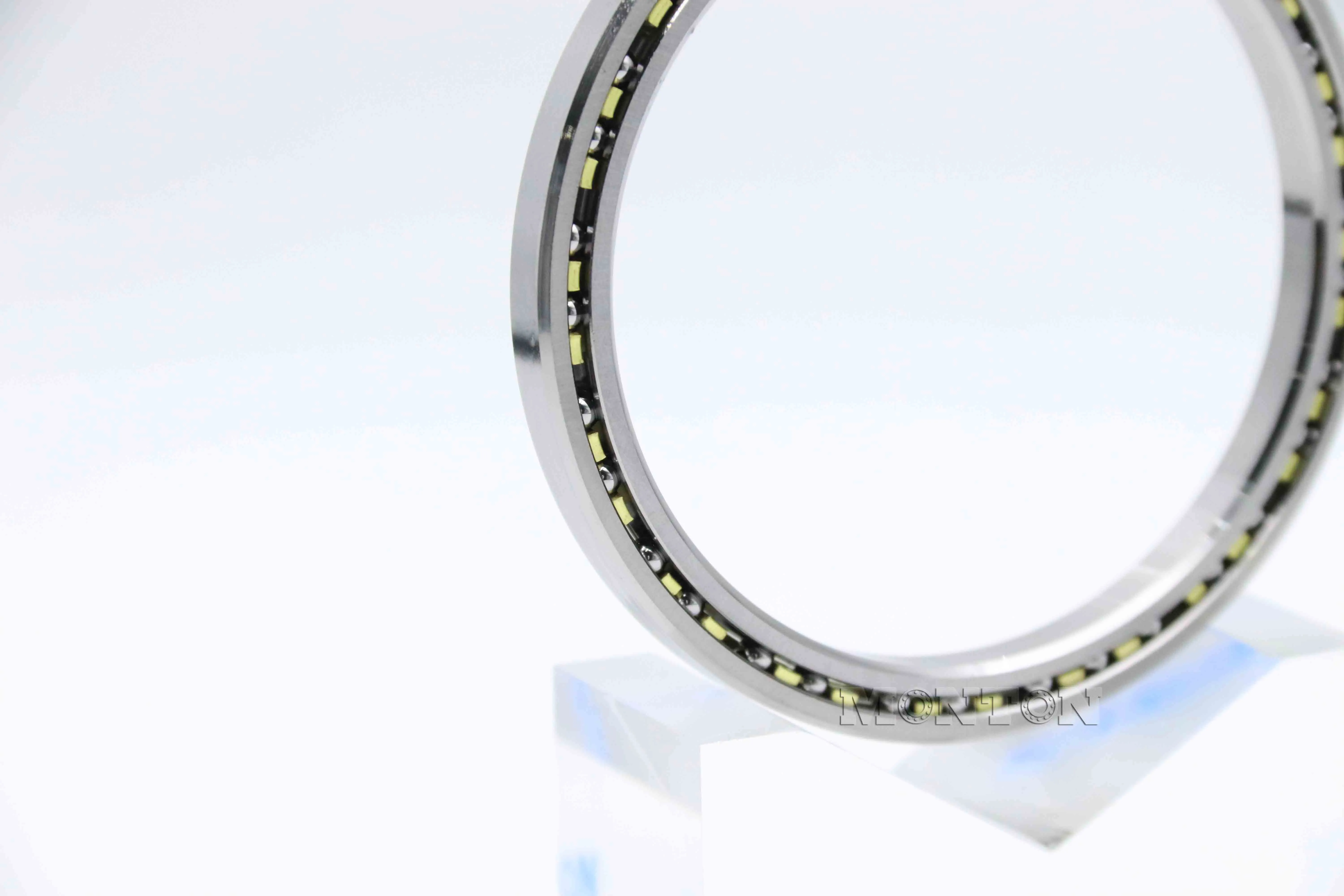

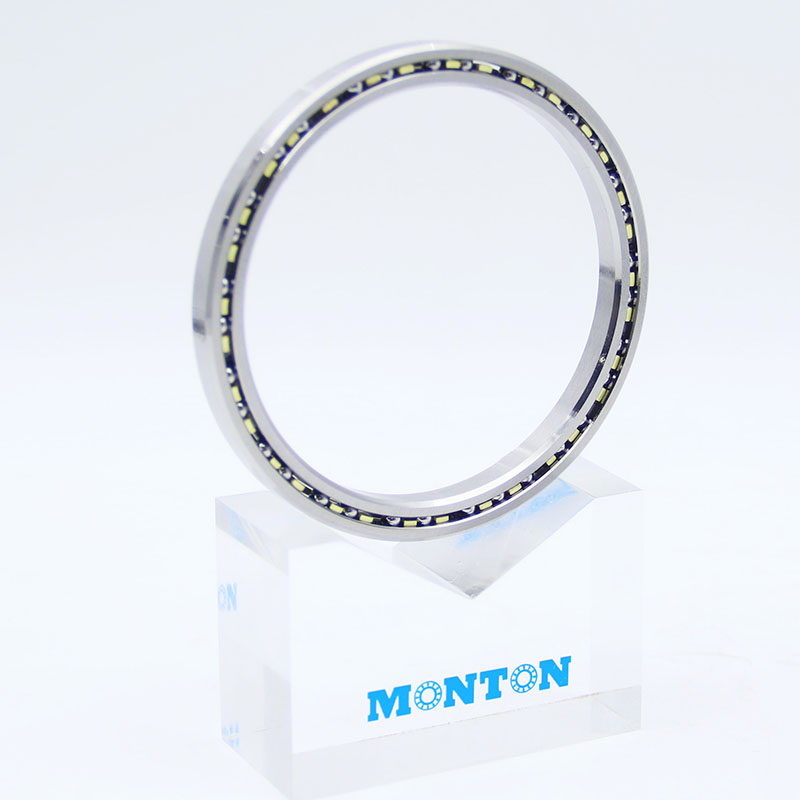

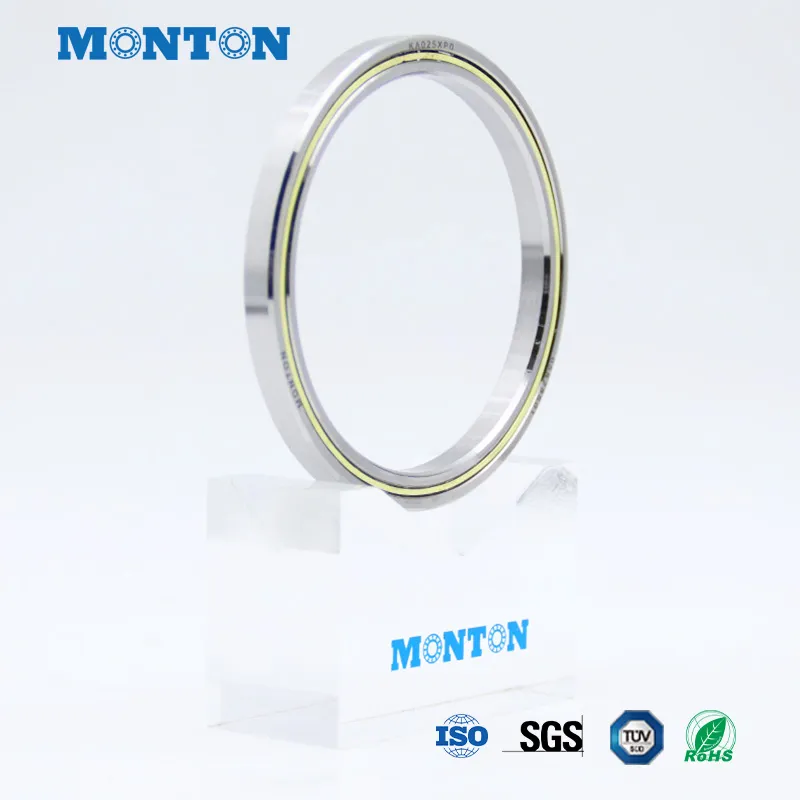

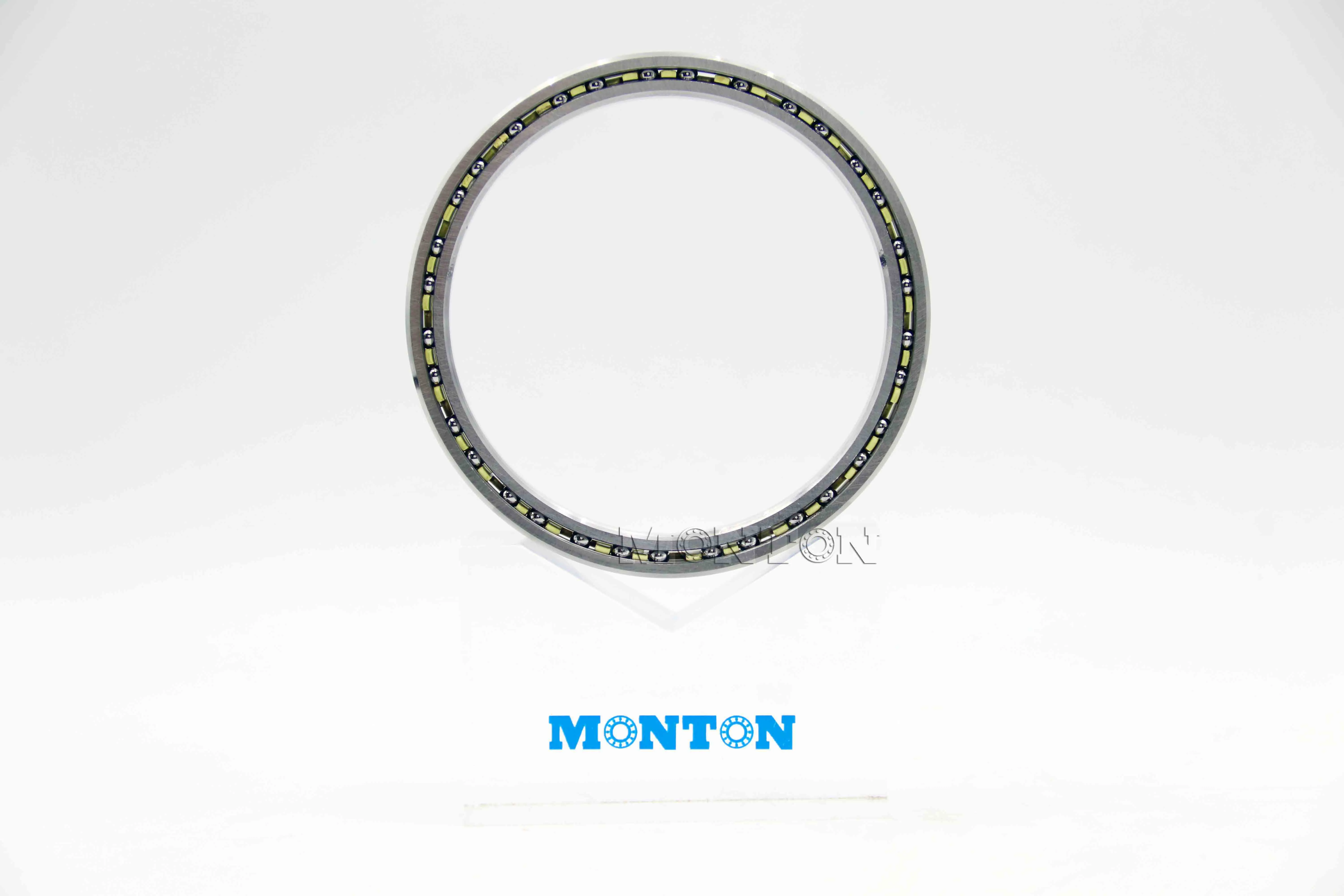

KA025XP0 Thin Section Bearings

KA025XP0 four point contact type slim section thin-walled ball bearing belongs to the KA series of open thin-walled bearings. Its core feature is a constant cross-sectional size, which can greatly save installation space and overall weight. The inner diameter is 63.5mm, the outer diameter is 76.2mm, and the width is 6.35mm. The radial section maintains an equal width of 6.35mm, and the overall weight is only 0.059kg. It can withstand radial, axial, and overturning moment loads simultaneously. Compared with two sets of angular contact ball bearings, it occupies less axial space and has the advantages of low friction, high rigidity, and high operating accuracy. The material can be GCr15 bearing steel or stainless steel, and supports customization of different precision levels. Widely used in industrial robot joints, it is also suitable for aerospace, precision machining equipment, rail transportation and other scenarios that require strict installation space and lightweight requirements.

Case Details

Name	Thin Section Bearings
Series	KA Real-Slim series
Brand	MONTON
Model	KA025XP0
Equivalent model	FPXA 208/CSXA025/NBX 6306
d	2.5in
D	3in
B	0.26in
Ball Quantity	33 pcs
Ring Material	Gcr15
Cage Material	brass cage
Radial Static	3.69KN
Radial Dynamic	2.59KN
Thrust Static	9.3KN
Thrust Dynamic	5.87KN
Sealed	According to requirement
Weight	0.059KG
Design Structure	Balls
Precision	P0,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Robots Optical scanning and imaging equipment Food processing machinery Packaging equipment Rotating drill rig equipment Pipe inspection equipment Iron roughnecks Power swivels CT scanners Laboratory diagnostic equipment Surgical robotics Surgical chairs, tables
