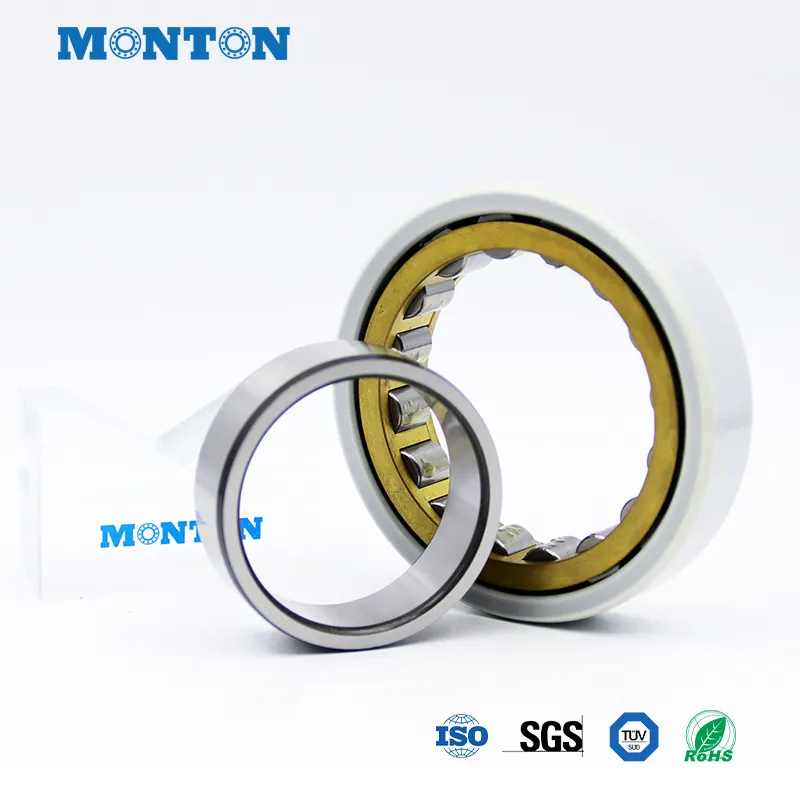

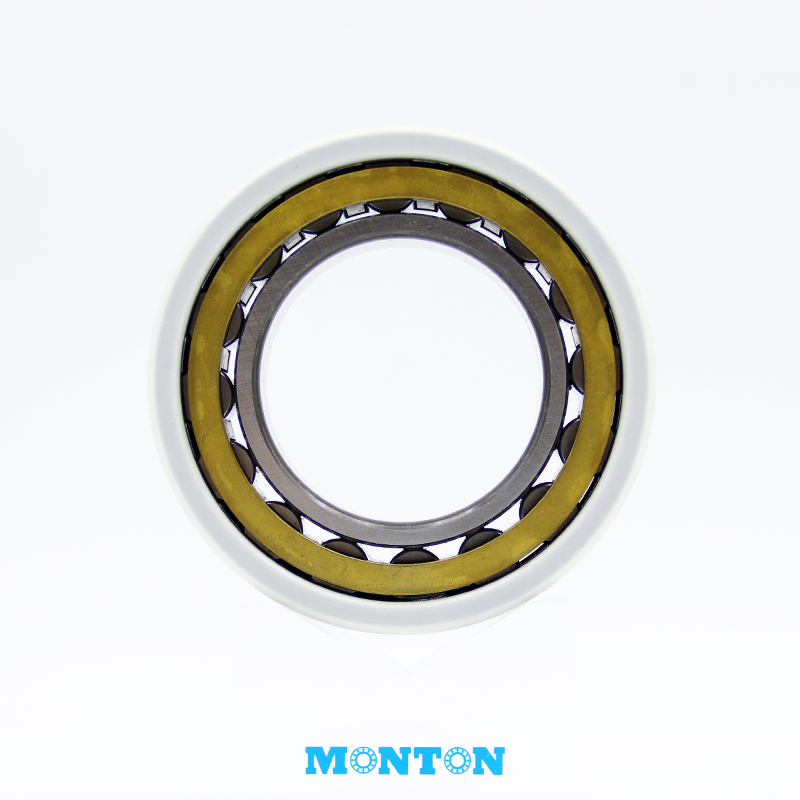

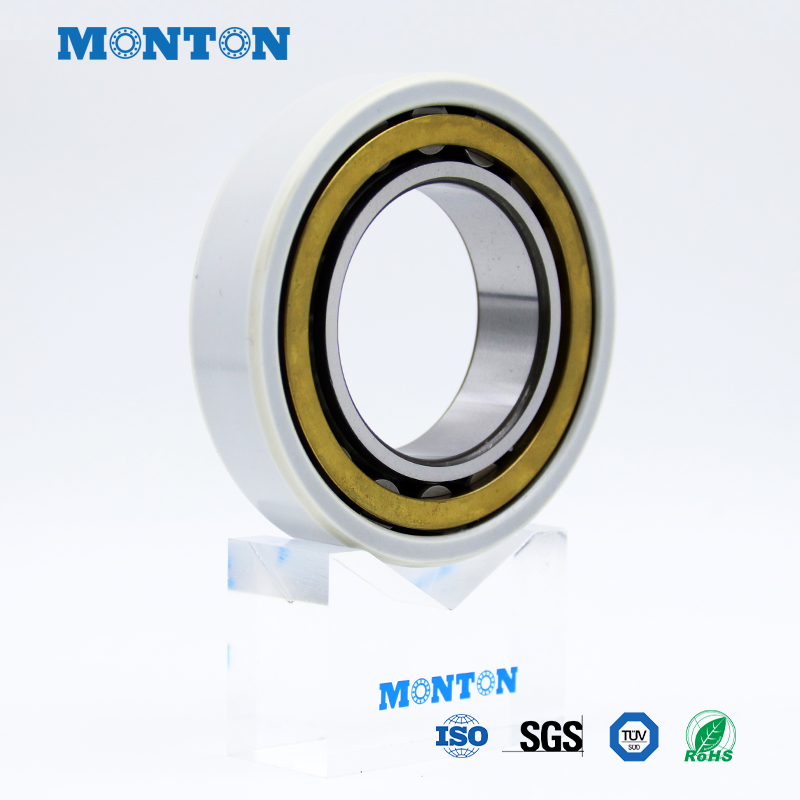

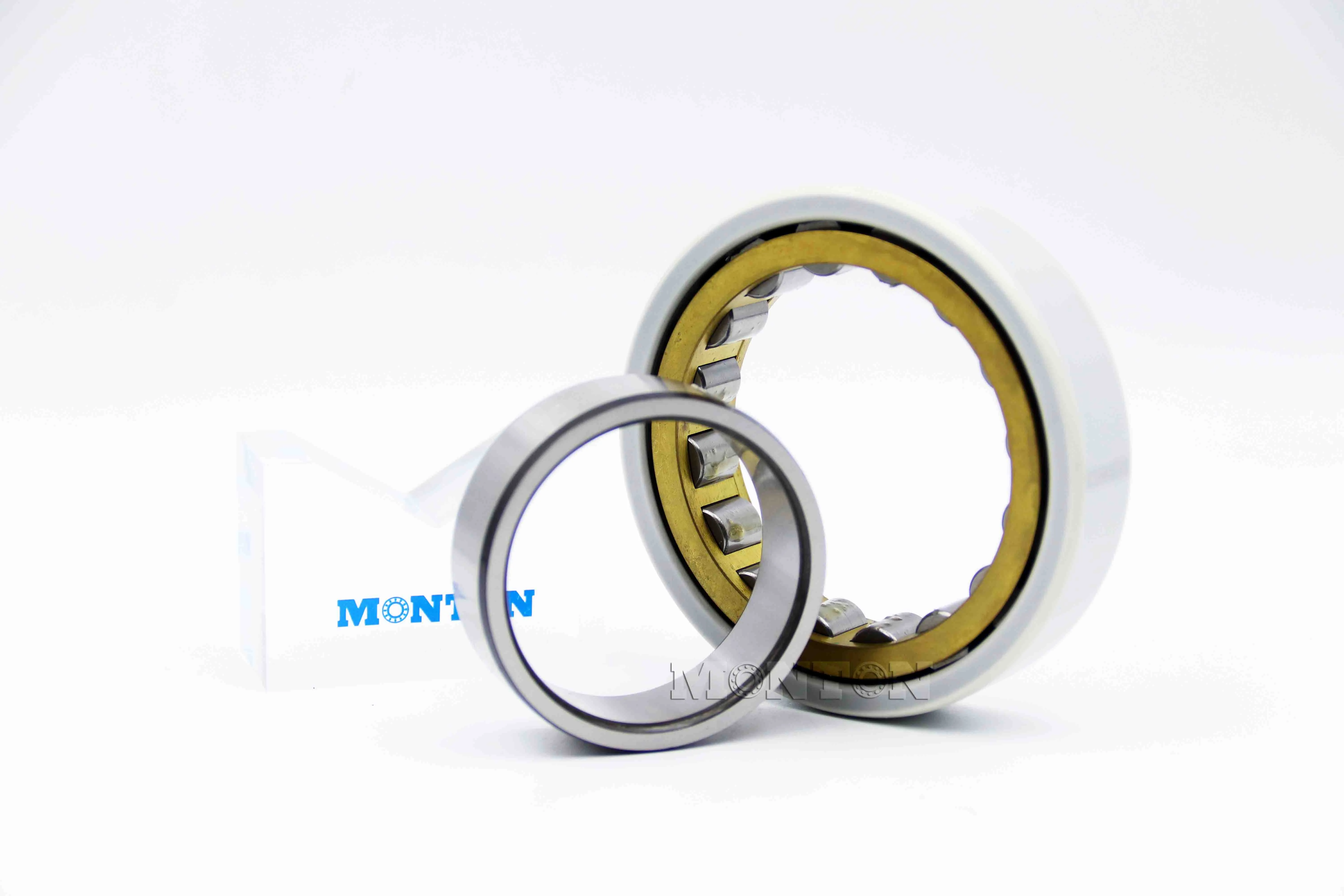

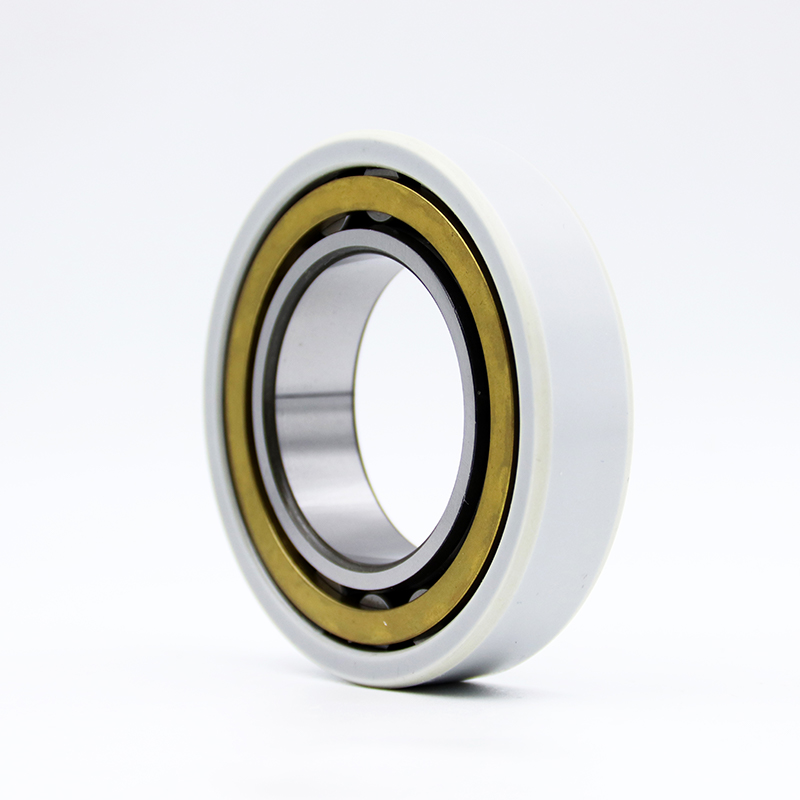

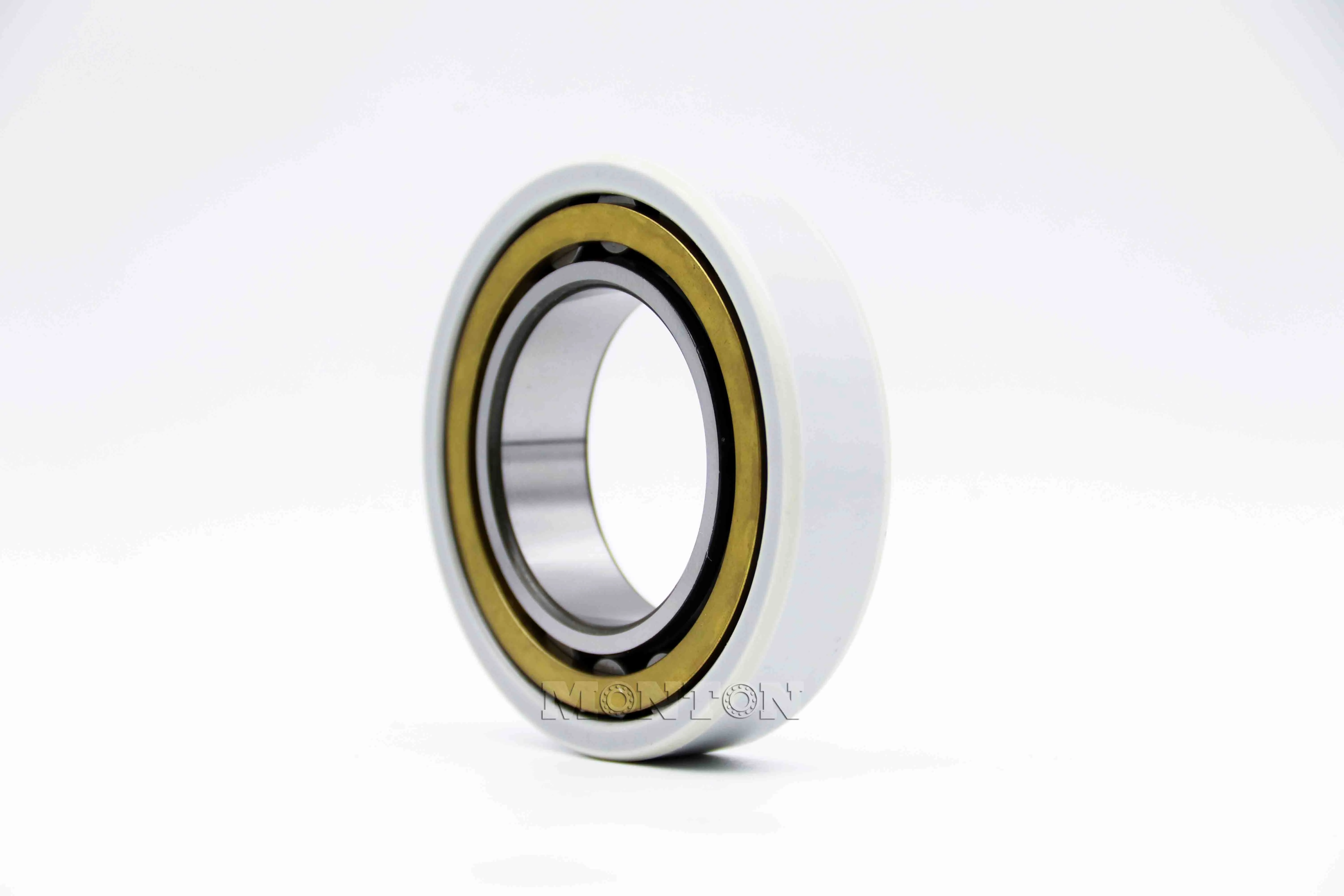

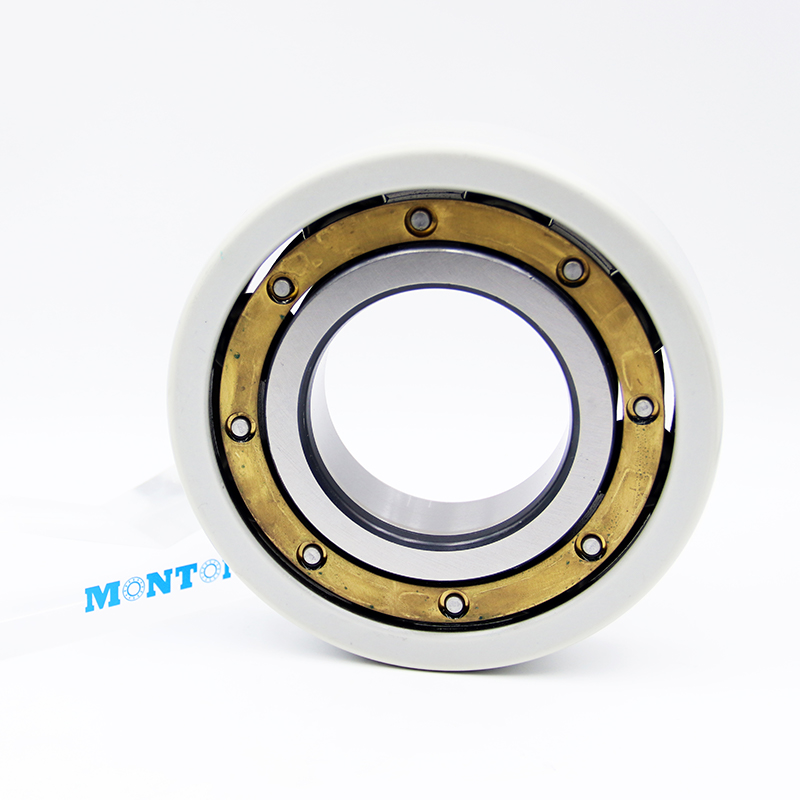

NU210ECMC3VL0241 Insulated Insocoat bearings

The insulated bearing NU210ECMC3VL0241 is a specially designed cylindrical roller bearing with electrical insulation performance. It can effectively prevent electrical erosion damage caused by electric current passing through the bearing, and is widely used in equipment requiring electrical isolation such as electric motors and generators.Its insulation property is mainly achieved by applying a ceramic oxide coating (e.g., Al₂O₃) on the outer ring surface, which can withstand a voltage of up to 3000 V. This effectively blocks the path of shaft current and extends the service life of equipment.

Case Details

Name	Insulated bearings
Type	NU Series
Brand	MONTON
Model	NU210ECMC3VL0241
d	60mm
D	110mm
B	22mm
Material	Gcr15
Cage	Brass cage
Load rating C	93.5kN
Load rating Co	102kN
Coating type	VL0241 coated with alumina insulating layer
Weight	0.93KG
structure	cylindrical
Precision	P5/P6
Clearance	CC0
Standard	ISO9001: 2015/TUV/Rohs/SGS
Package	Single box
Original	Luoyang
Service	OEM
Delivery	Stock
Application	Traction motor wind turbine three-phase motor
