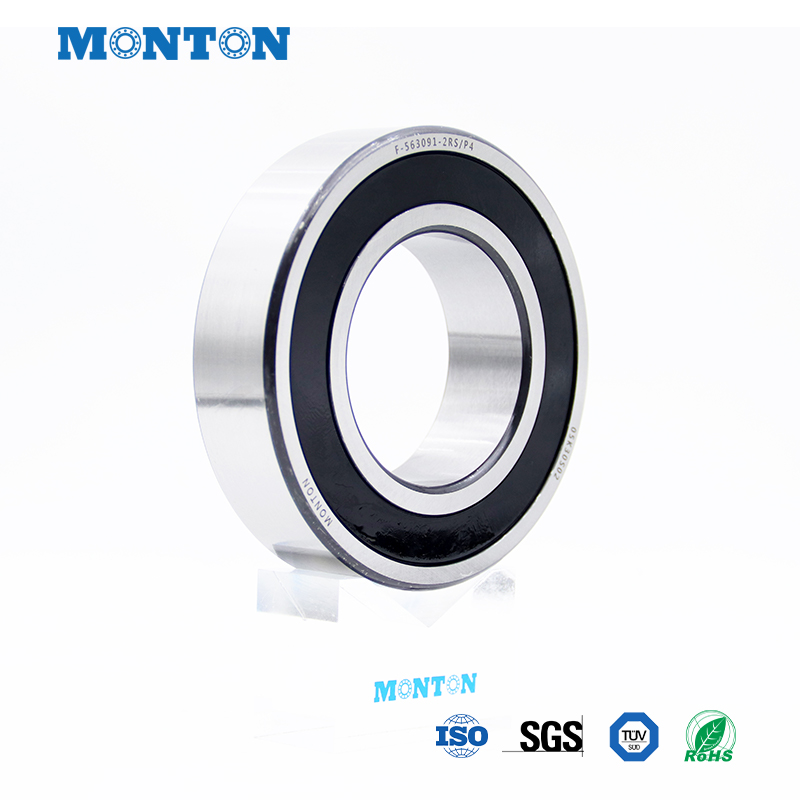

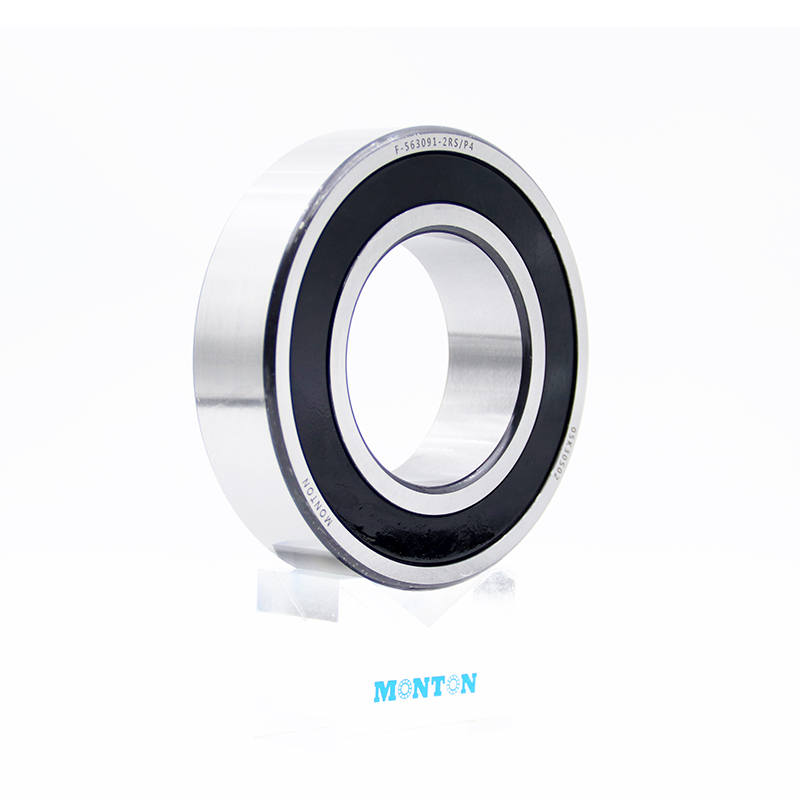

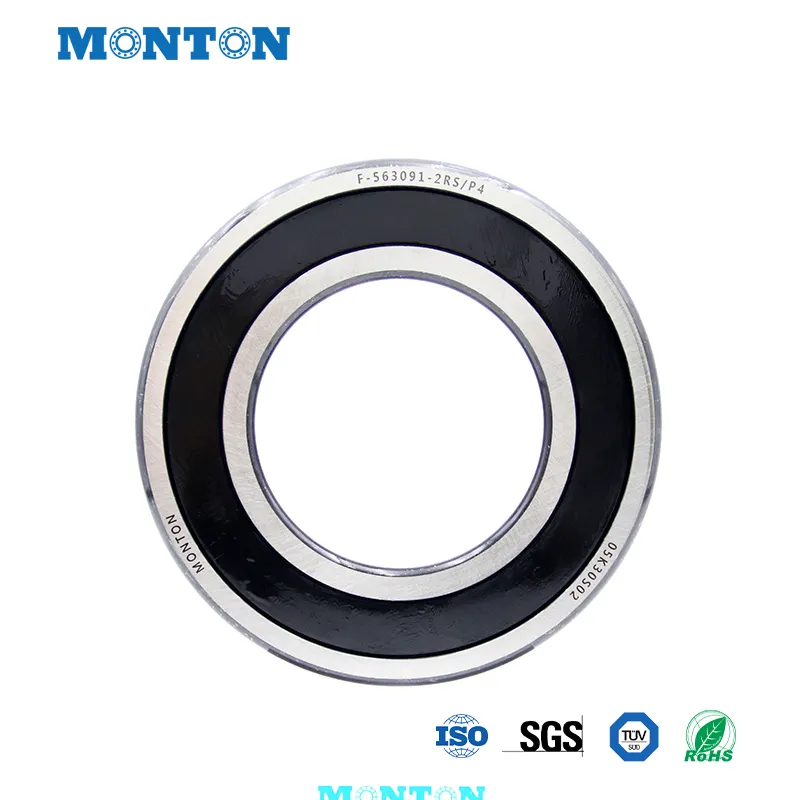

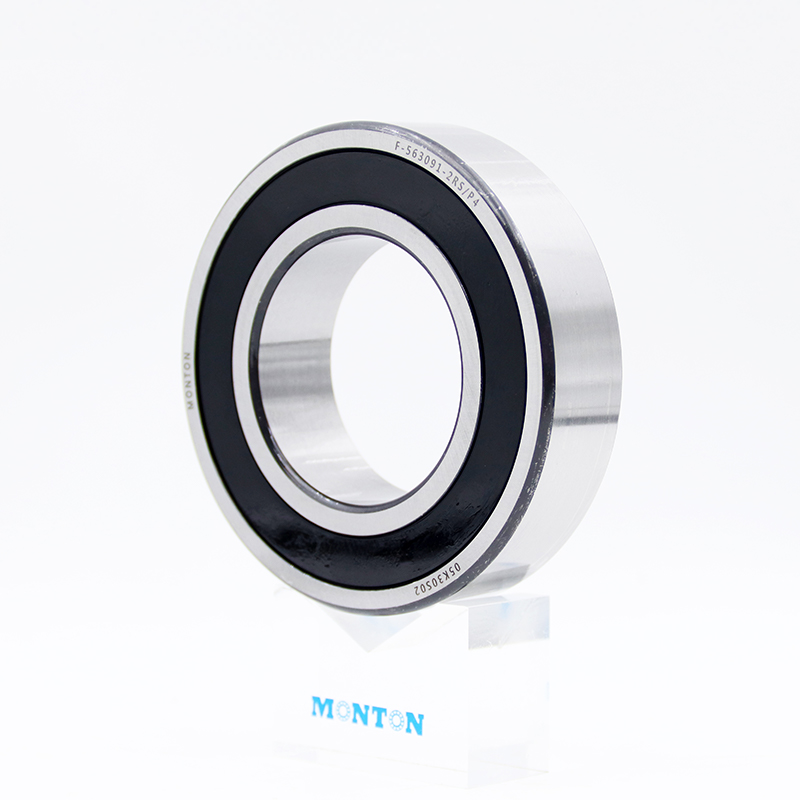

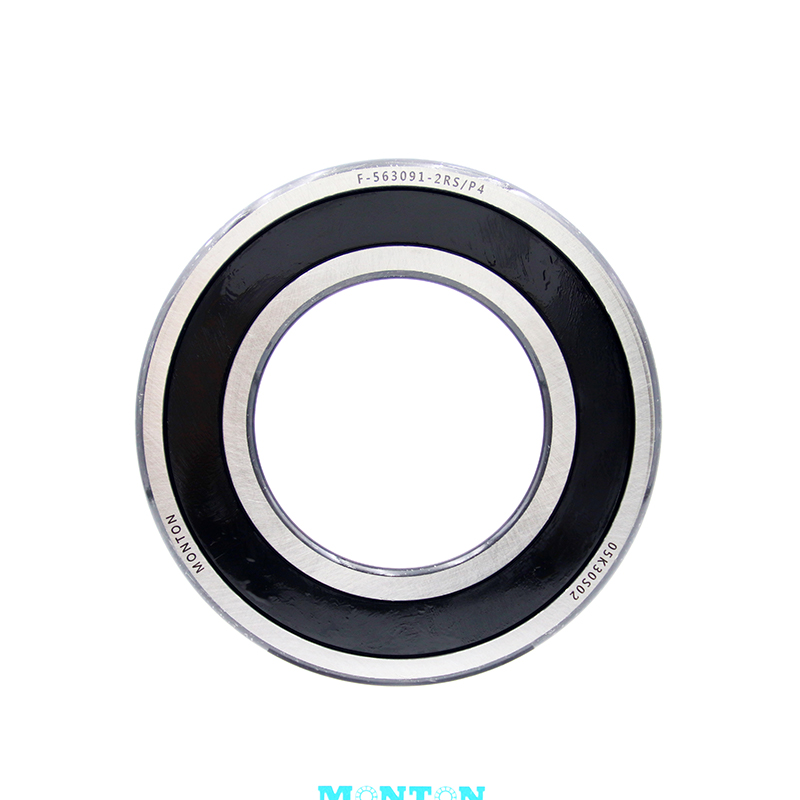

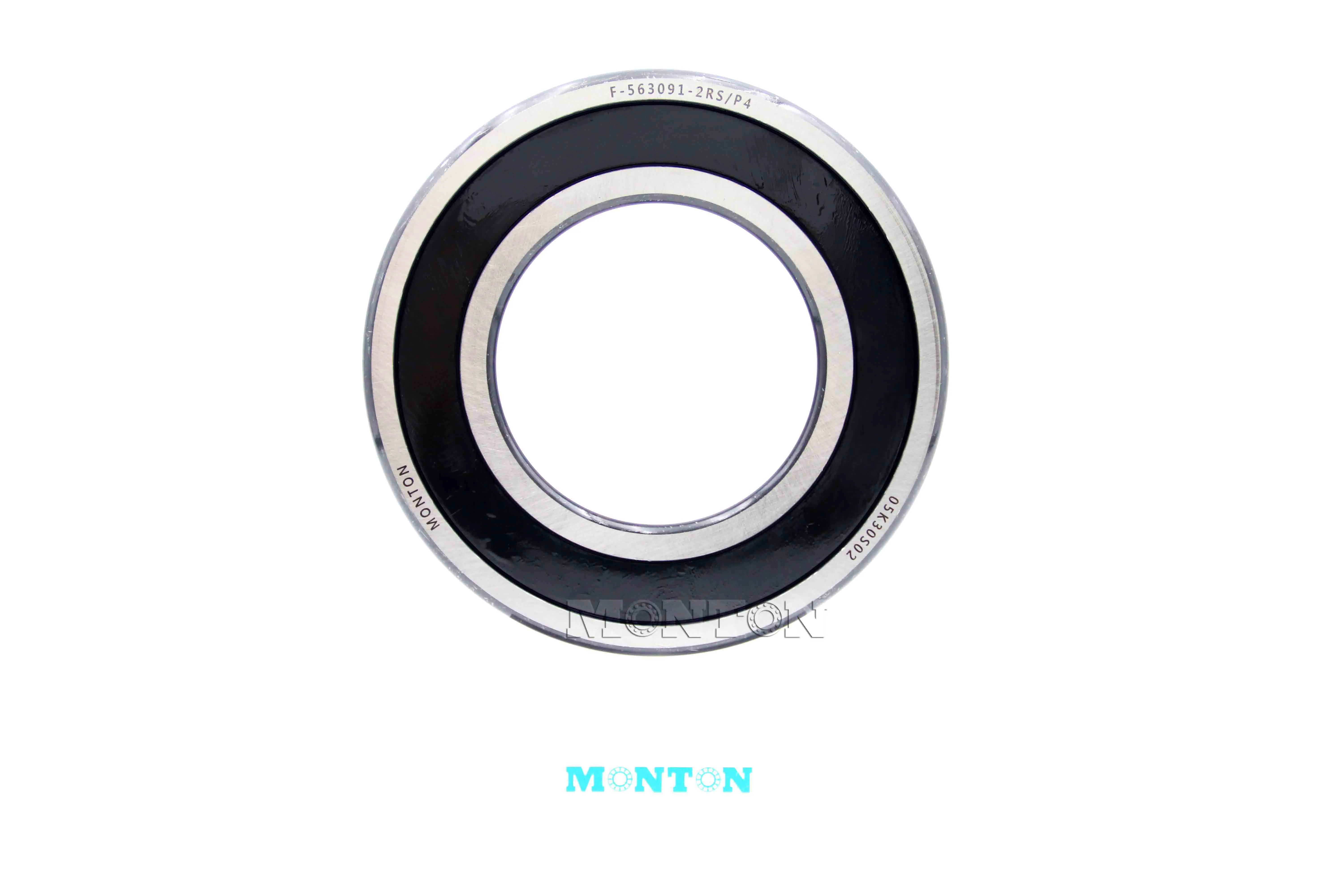

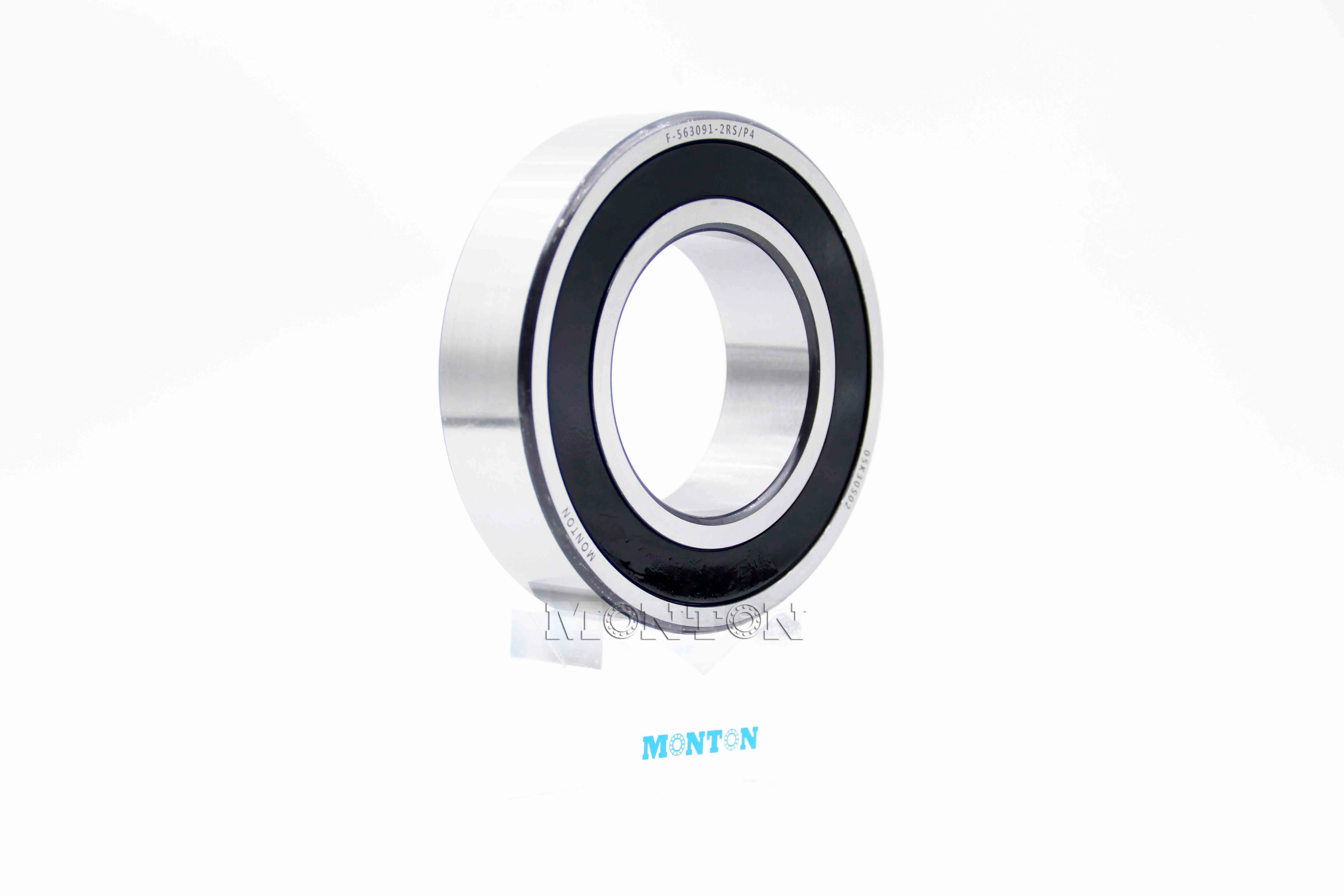

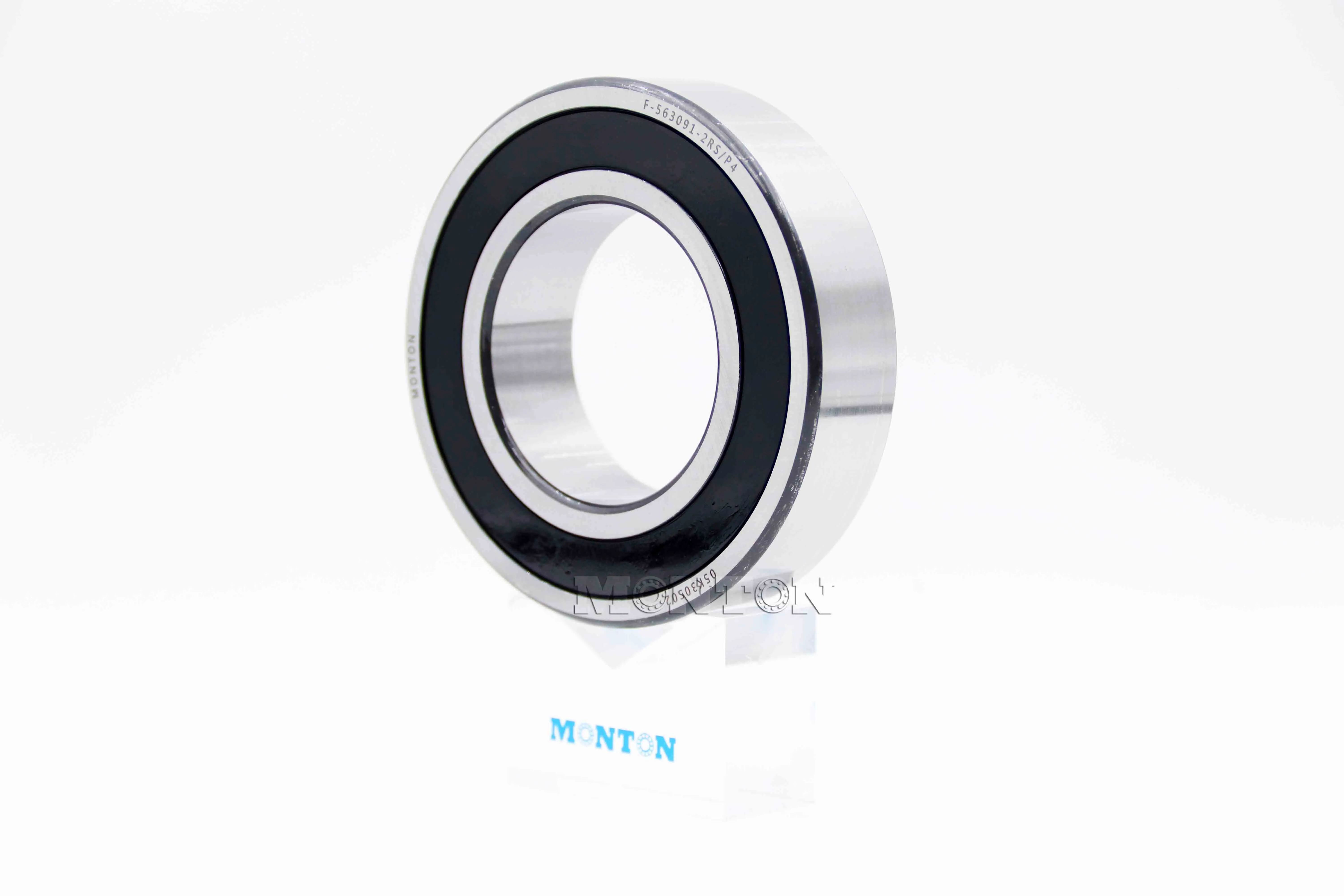

F-563091-2RS/P4 Servo motor bearing

F-563091-2RS/P4 high-speed servo motor spindle bearing is a bearing designed with ceramic balls to adapt to high-speed and high load working environment conditions. Common models include EPB50-67-2RS/P4 EPB60-44-2RS/P4 EPB60-47-2RS/P4 B40-180-2RS/P4 B40-185-2RS/P4 B40-188-2RS/P4 B40-166-2RS/P4 B40-160-2RS/P4 F-568217-2RS/P4 F-568240-2RS/P4 F-568241-2RS/P4 F-563087-2RS/P4 F-563088-2RS/P4 F-563091-2RS/P4 F-567384-2RS/P4 F-569109-2RS/P4 F-569112-2RS/P4 F583269.05-2RS/P4 Wait, applicable to Fanuc servo motors. The motor bearings produced by MONON use ceramic ball bearings, which have the characteristics of high temperature resistance, high speed (up to 24000 revolutions per minute), and long service life. Welcome to consult us.

Case Details

Name	Servo motor bearing
Brand	MONTON
Model	F-563091-2RS/P4
Bore diameter	60mm
Outside diameter	110mm
B(width)	28mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Balls	Ceramic Ball
Sealed	Two seals
Row	Single row
Weight	01.3KG
Quality standard	ISO9001: 2015/SGS/Rohs
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Automotive FANUC Servo motor Domestic Appliances Electric Motors Machine Tools Material Handling
