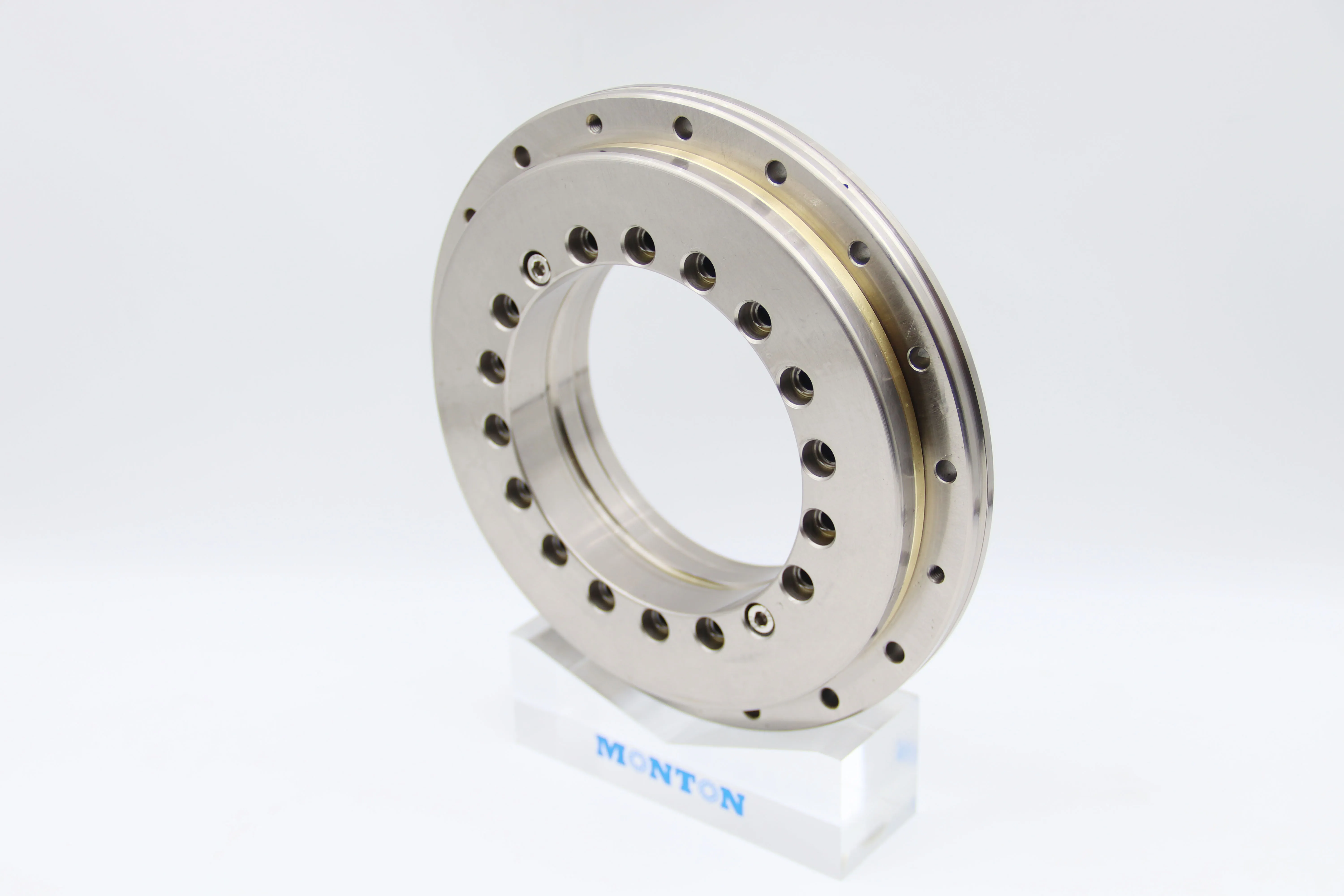

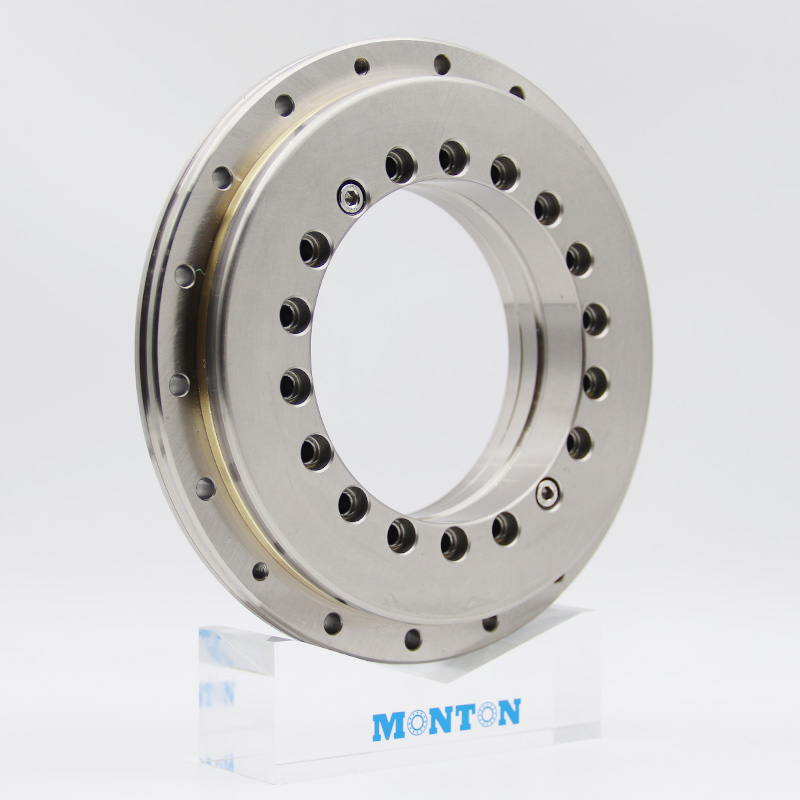

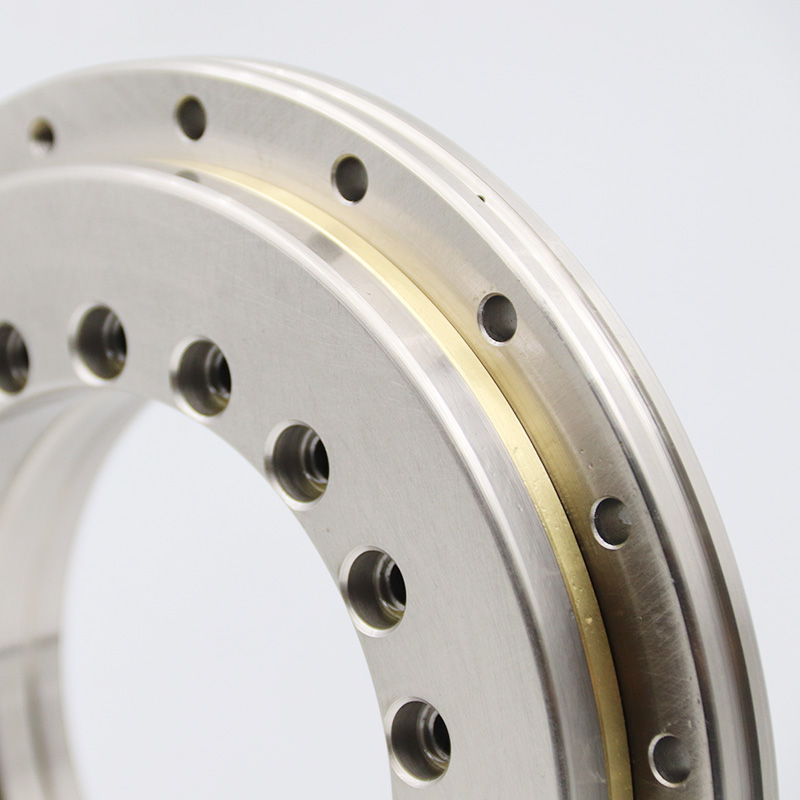

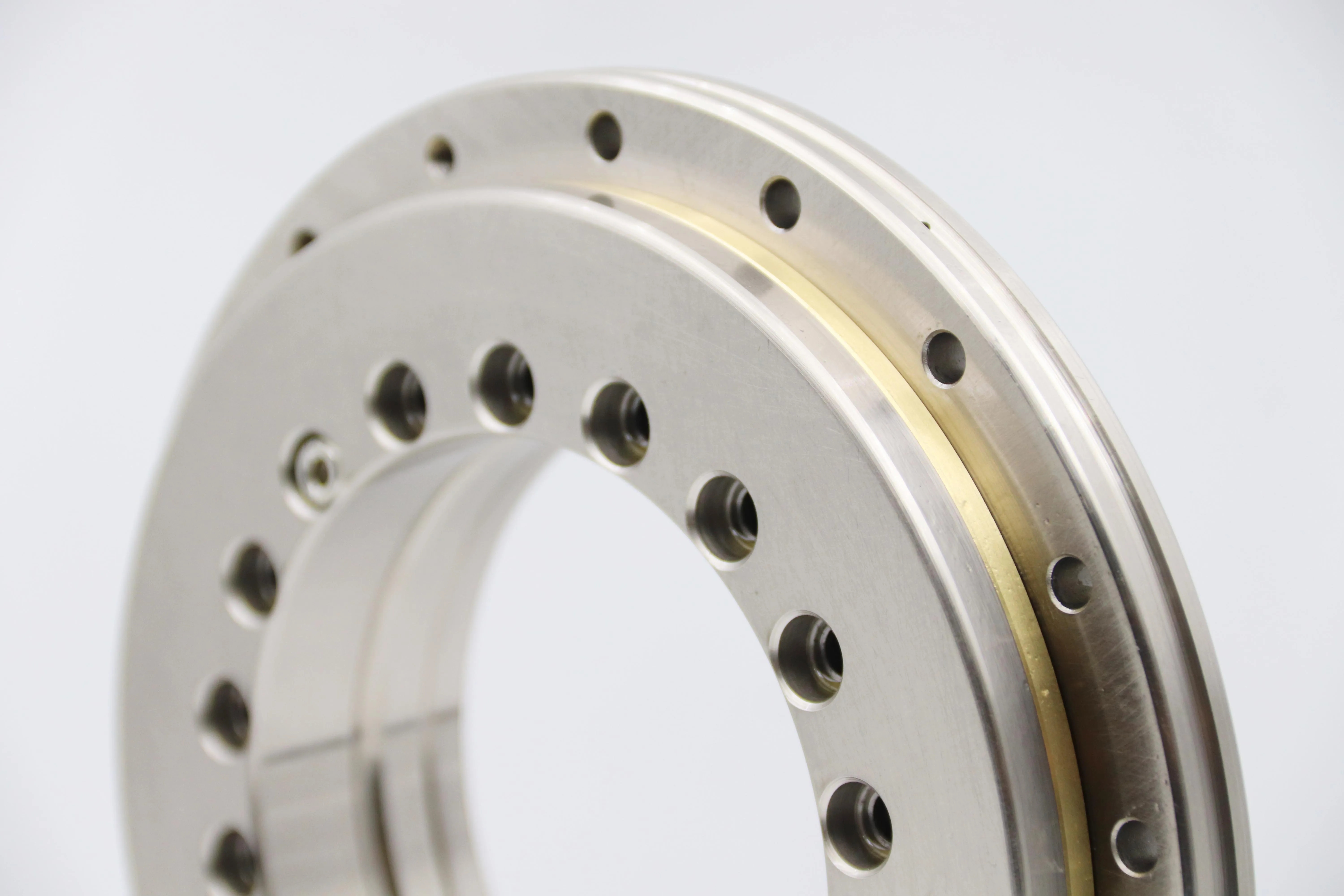

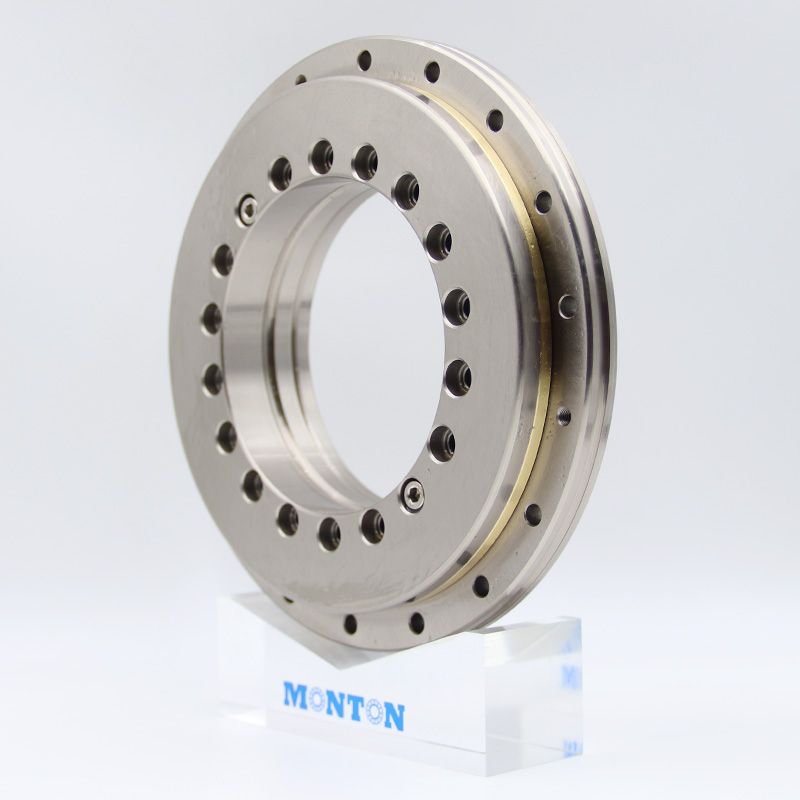

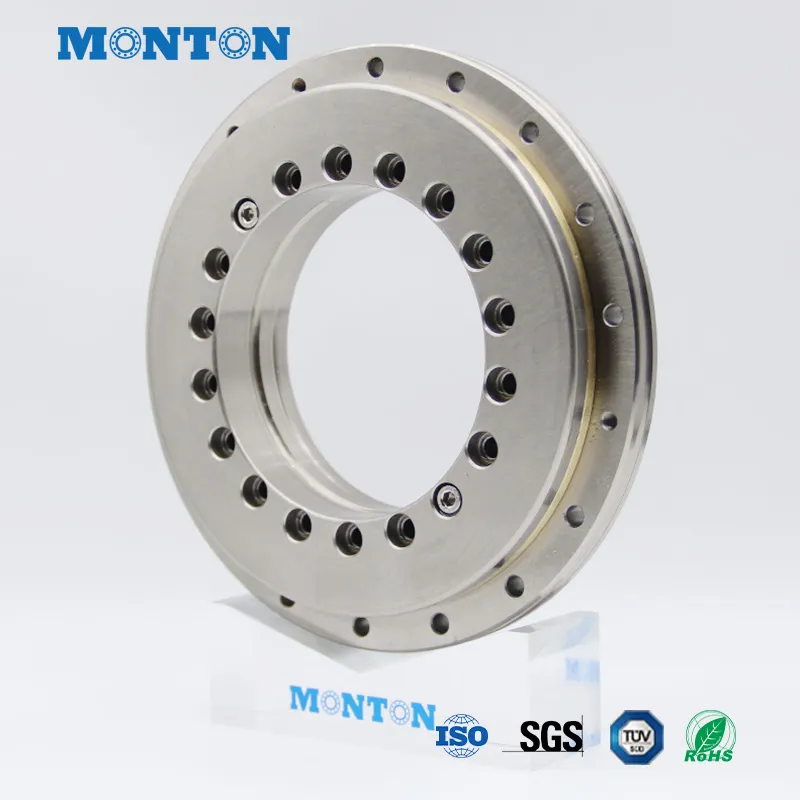

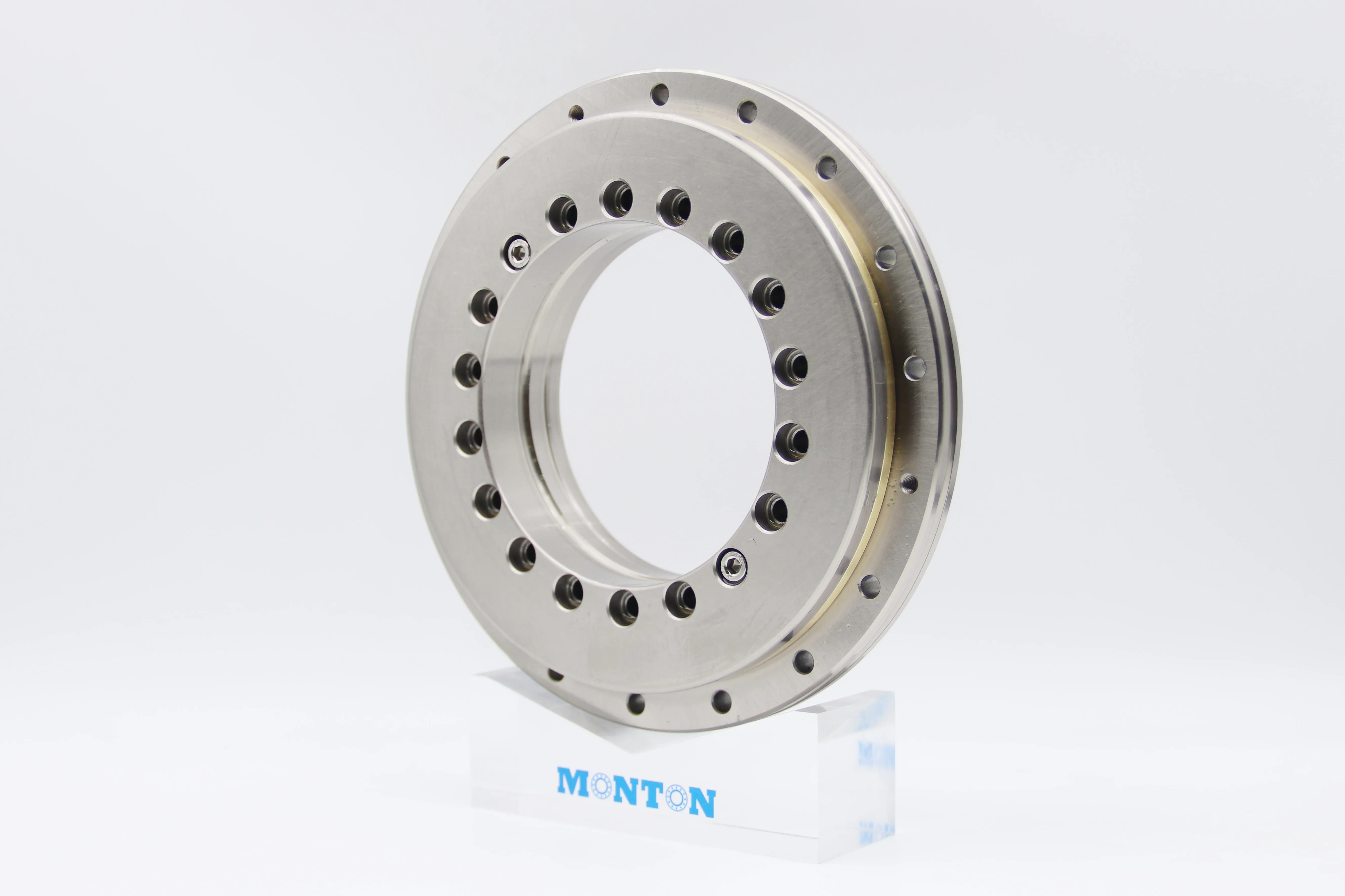

YRT100 Rotary Table Bearing

The YRT100 turntable bearing is a high-precision and high rigidity rotary mechanism that adopts a thrust centripetal combination structure, which can simultaneously withstand bidirectional axial loads, radial loads, and overturning moments. Its standard model has an inner diameter of 100mm, an outer diameter of 185mm, and a thickness of 38mm. It is made of GCR15 bearing steel material and has an accuracy level covering P2/P4/P5. This bearing is suitable for applications with low rotational speed, high requirements for rigidity and accuracy, such as rotary workbenches, indexing heads, CNC machine tools, precision rotary tables, vertical grinders, and other equipment. Its compact structure, strong load-bearing capacity, and easy installation make it an important component in the field of precision machinery.

Case Details

Name	YRT Rotary Table Bearing
Seires	YRT seires
Brand	MONTON
Model	YRT100
Precision	P4
d	100mm
D	185mm
B	33mm
H1	25mm
C	12
D1	161
J	112
J1	170
Ring Material	Gcr15
Cage Material	Brass cage/Nylon cage
Axial Ca	73kN
Axial Coa	370kN
radial Cr	52KN
radial Cor	108KN
RPM Grease	280 RPM
Sealed	as customer requested
Weight	4.1KG
Bearing Arrangement	3 row combined rollers
Design Structure	Cylindrical
Vibration	as customer requested
Clearance	as customer requested
Quality standard	ISO9001: 2005/SGS/TUV
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock,mass qty accodring to inquiry qty.
Application	CNC Rotary Table
