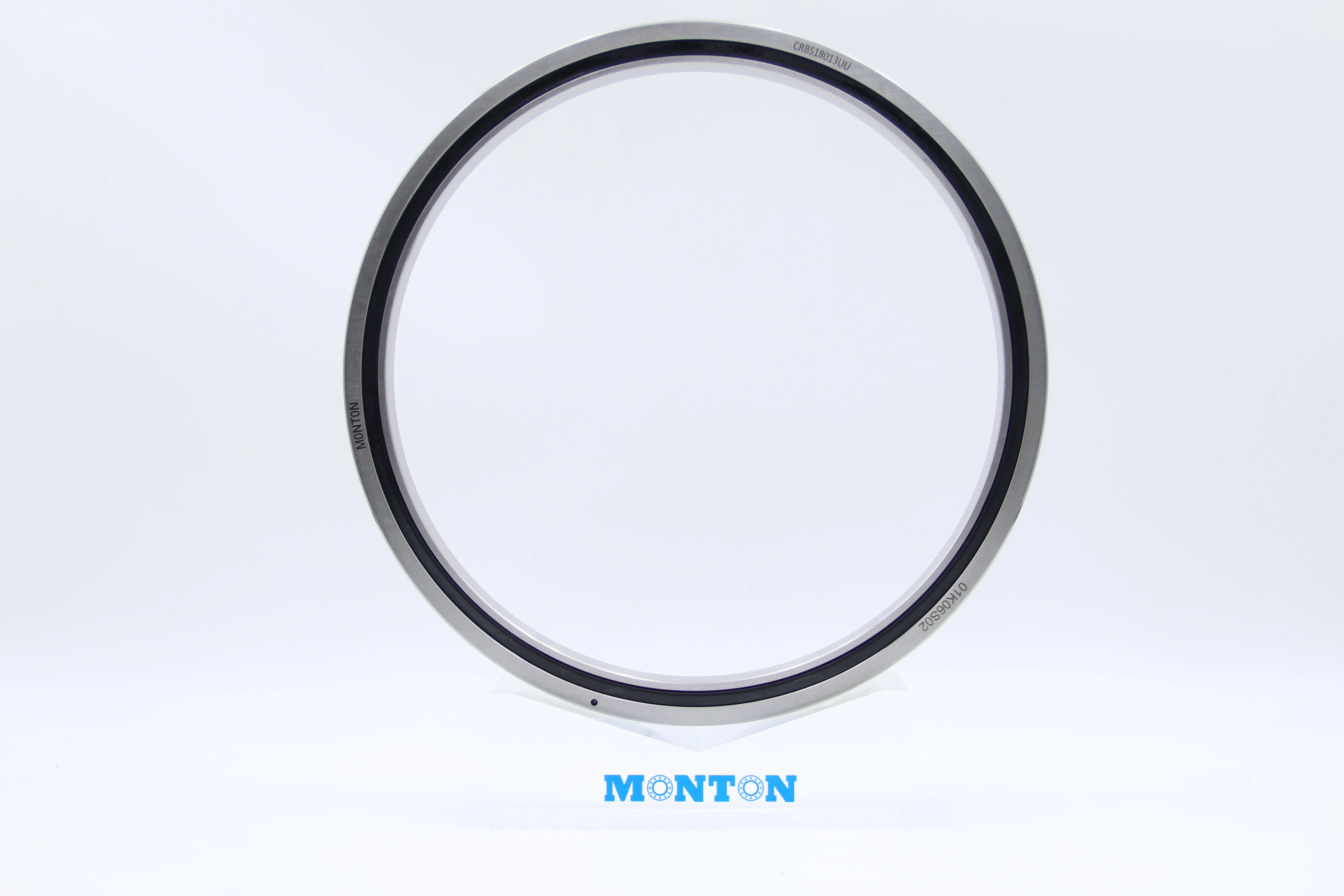

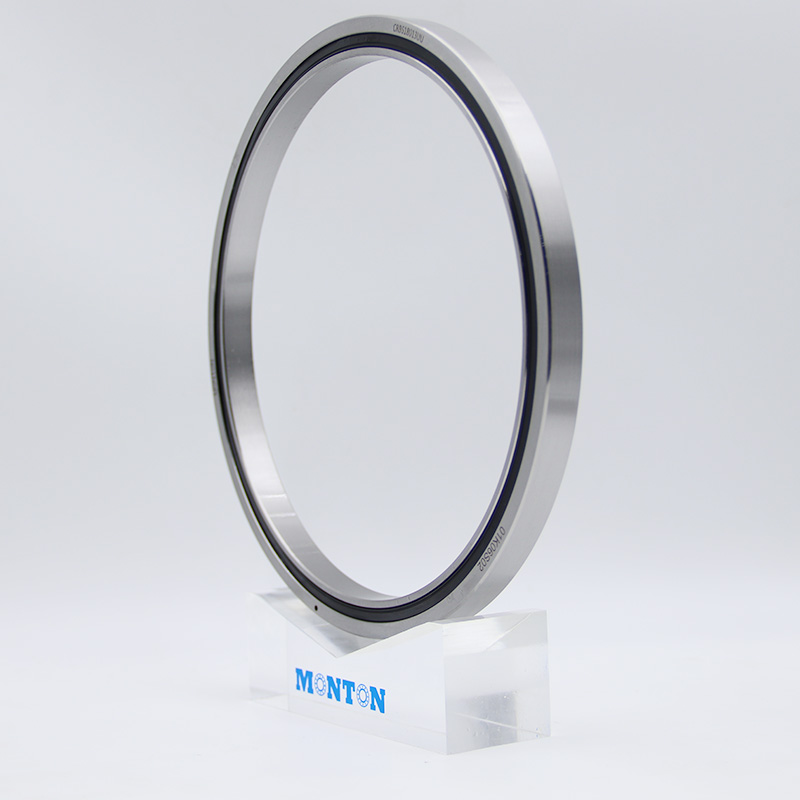

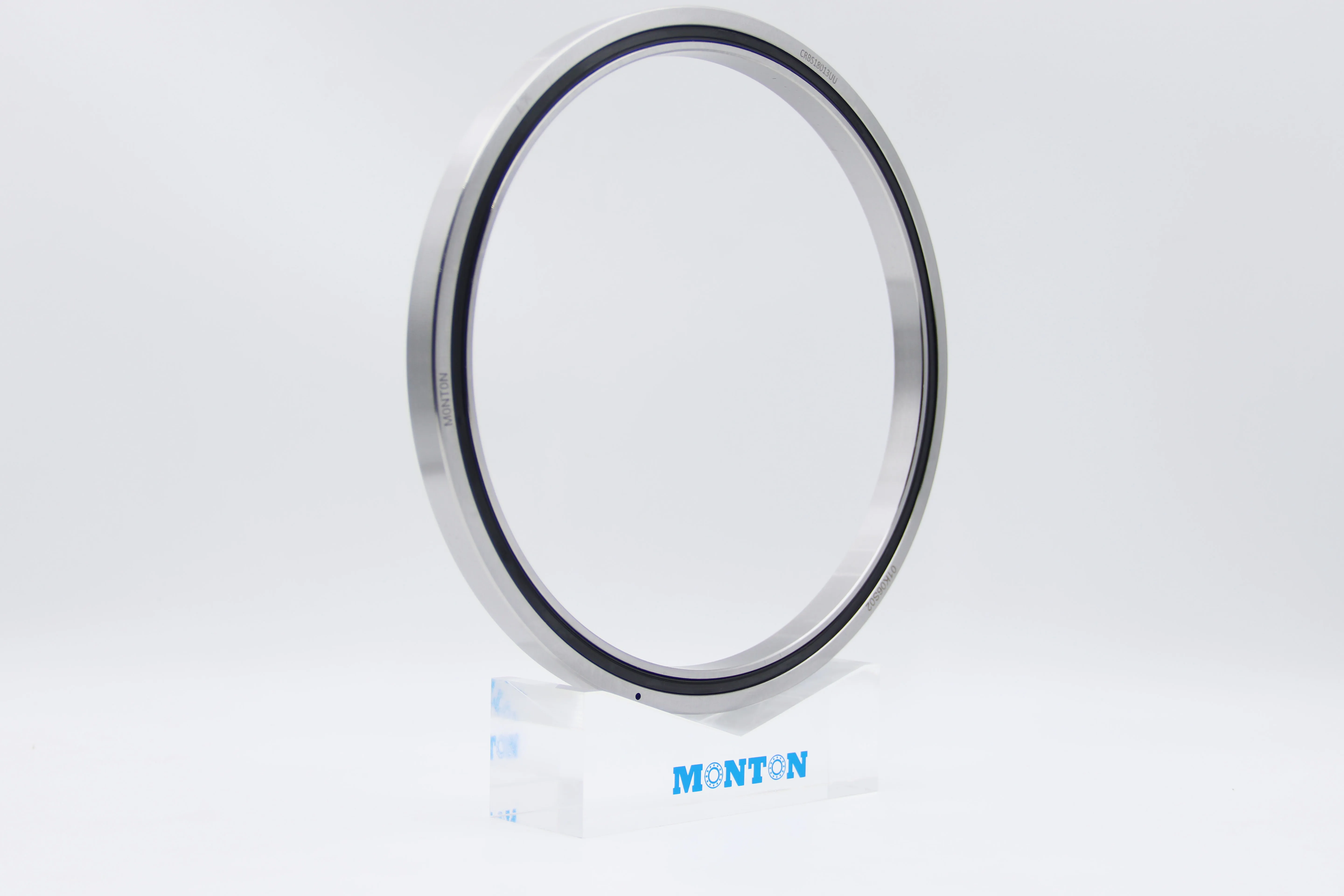

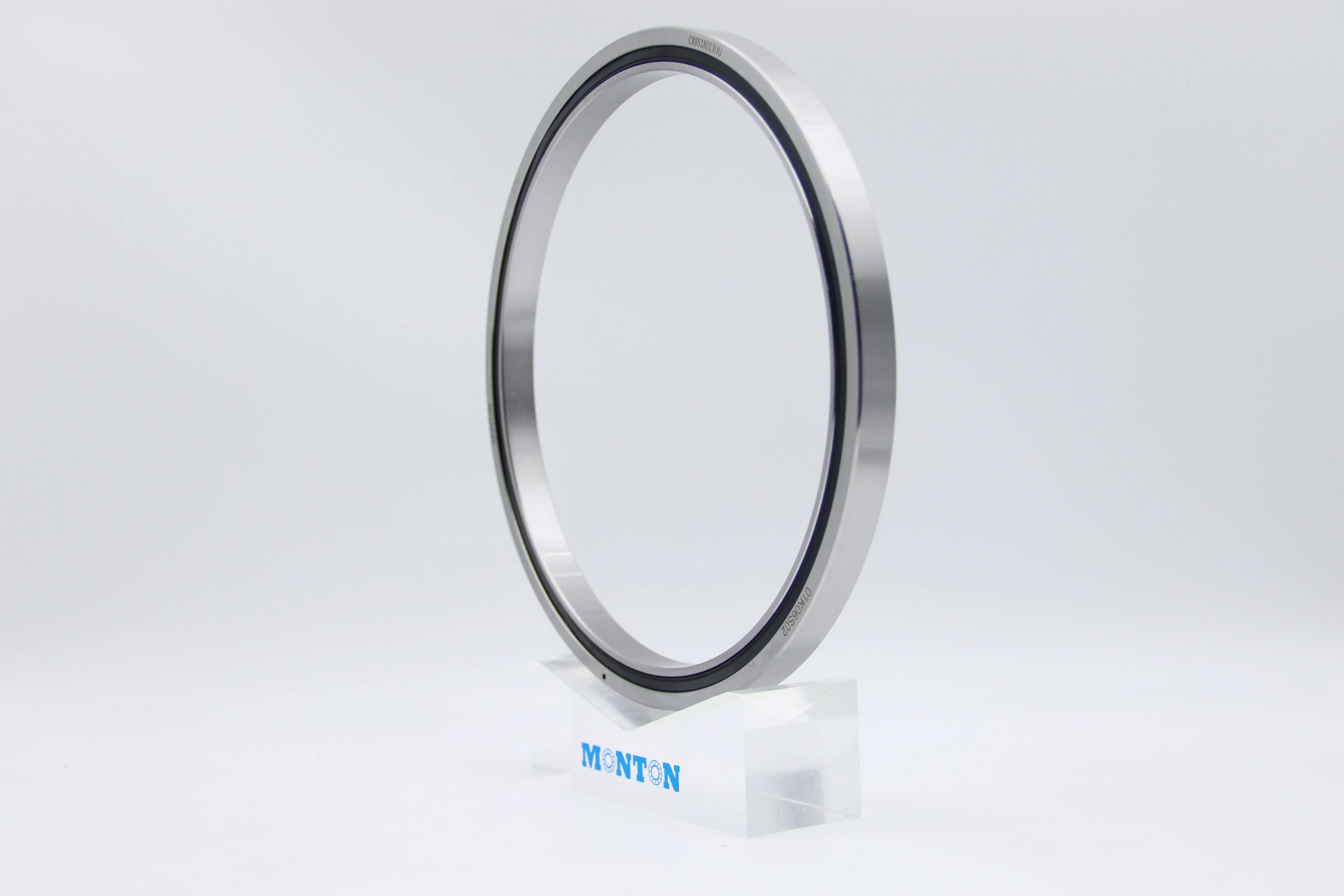

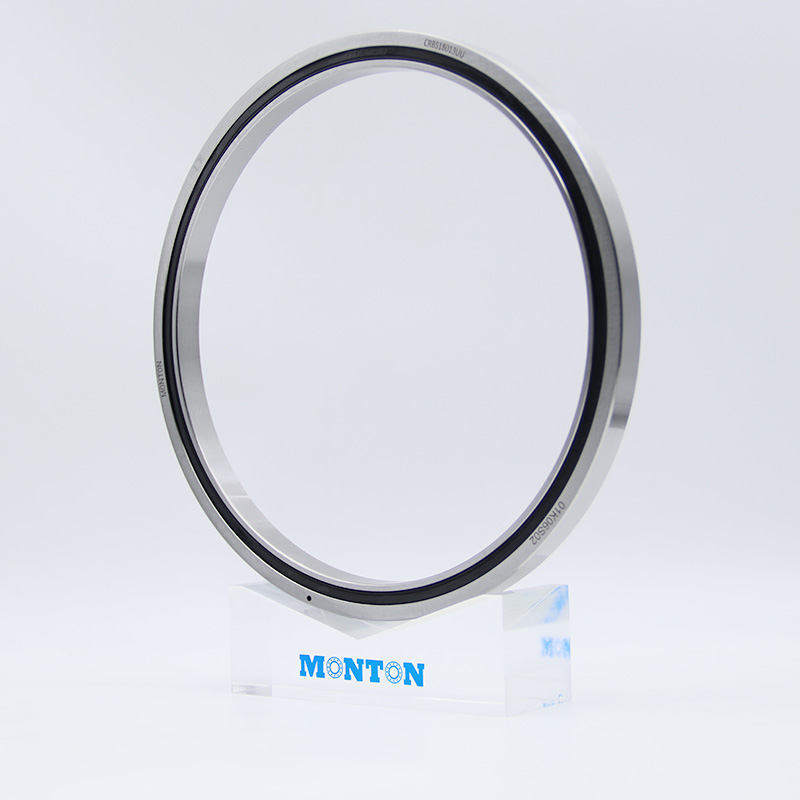

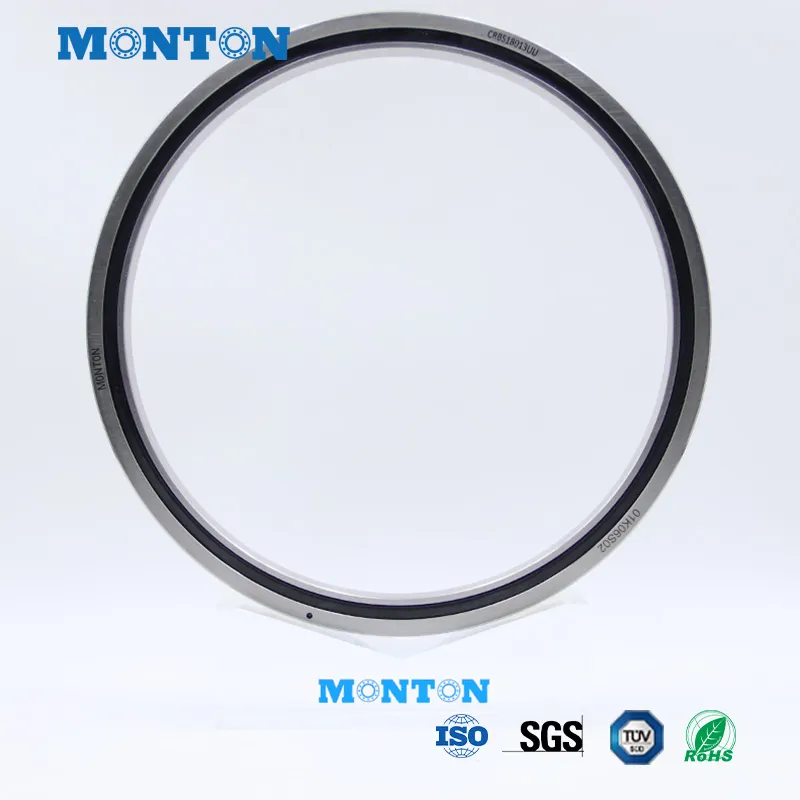

CRBS18013AUUC1P5 Crossed Roller Bearing

The CRBS18013AUUC1P5 cross roller bearing produced by MONTON adopts a thin-walled structure design with an outer ring and inner ring as a whole. The internal rollers are arranged in a 90 ° cross pattern, and synchronous motion is achieved through a precision cage. This design gives it the characteristics of multi-directional load-bearing capacity, high rigidity, and high precision. Suitable for industrial robot joints, precision turntables, automation equipment, etc.

Case Details

Name	Crossed Roller Bearing
Series	CRBS series
Brand	MONTON
Model	CRBS18013AUUC1P5
d	180mm
D	206mm
B	13mm
Ring Material	Gcr15
Seal type	Double seals
Cage Material	Spacer
Load rating C	21.5kN
Load rating Co	44.6kN
Weight	0.7KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Clearance	CC0
Quality standard	ISO9001: 2015/SGS/TUV/CE/RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Industrial robot joints Precision Turntable Automation Equipment
