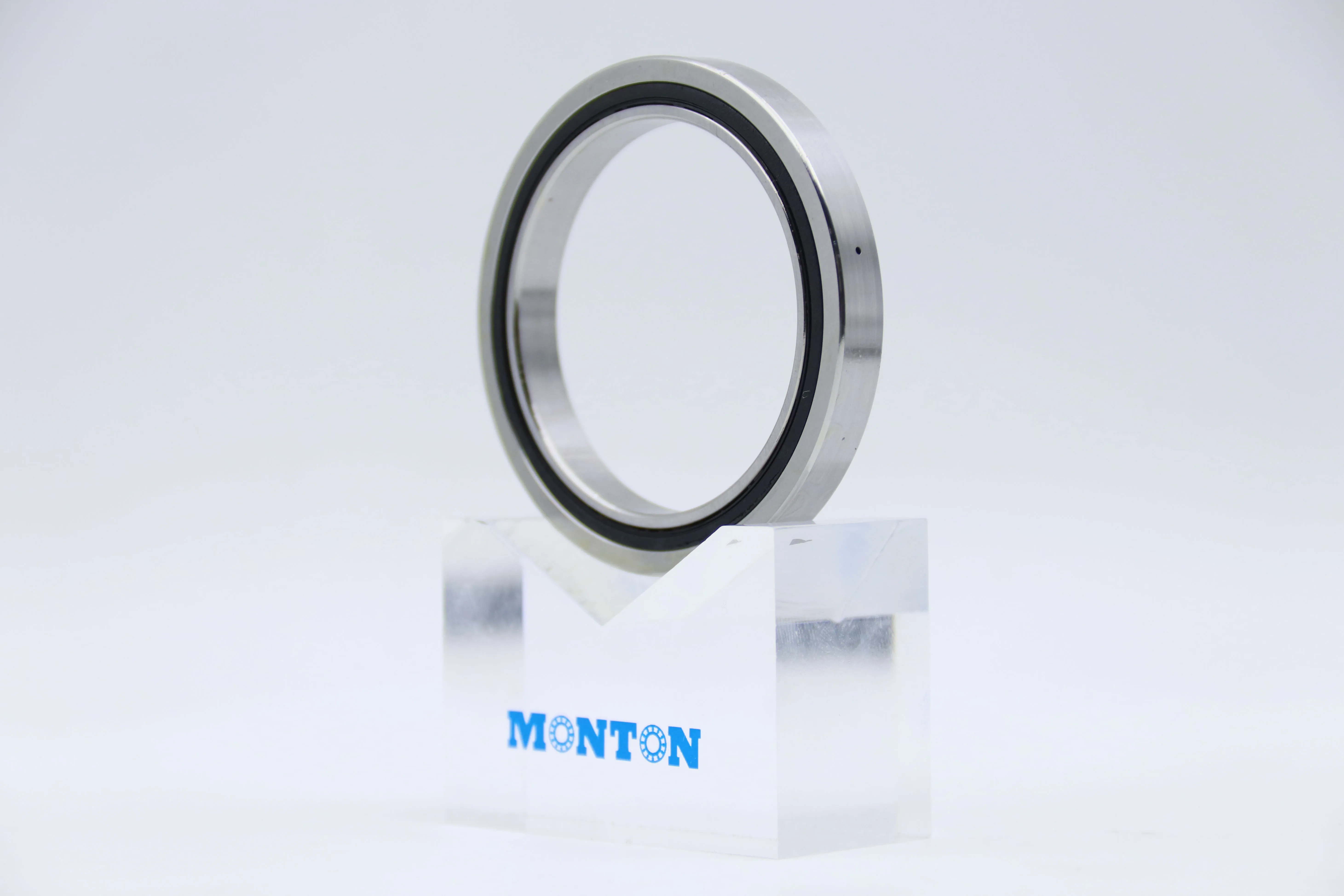

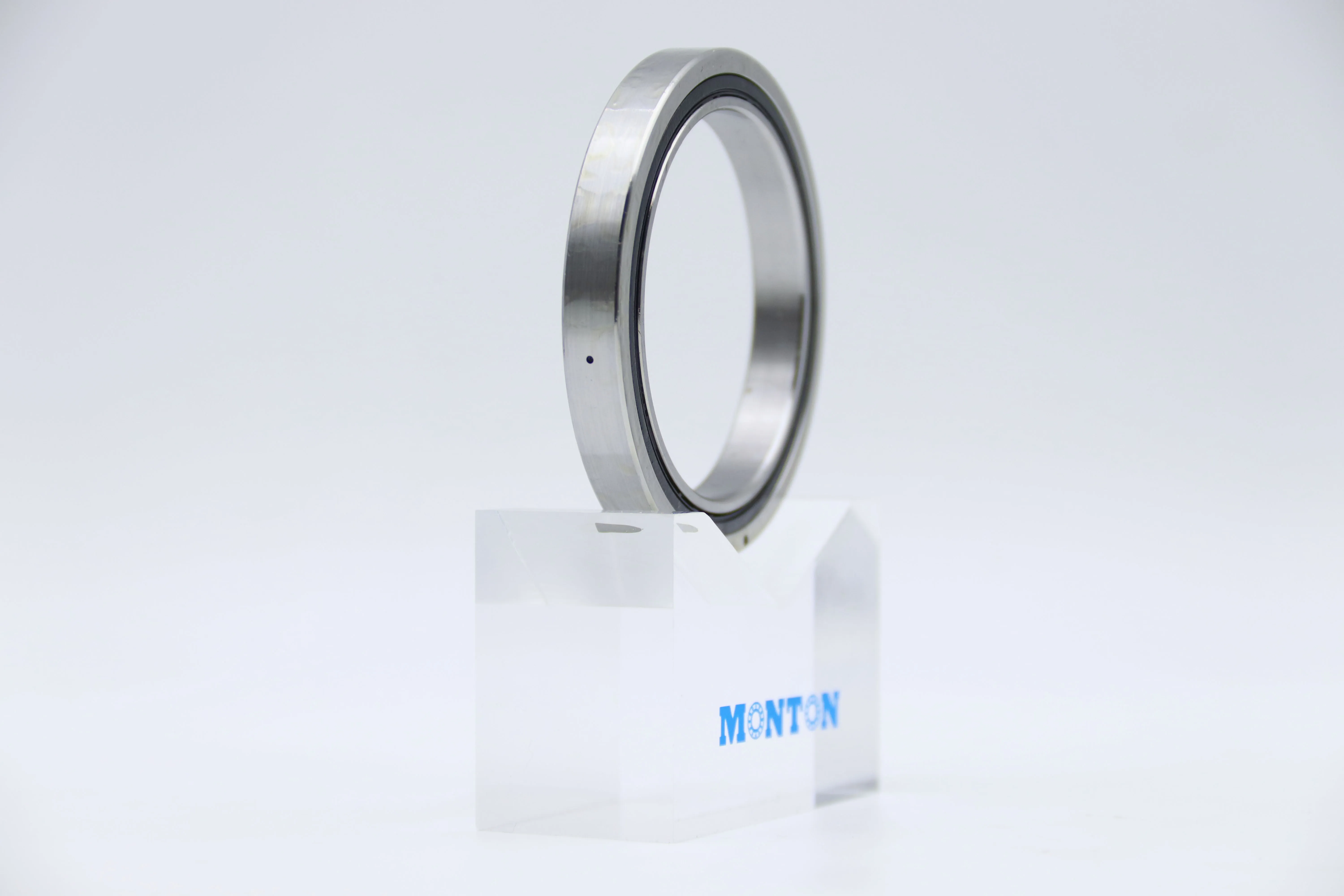

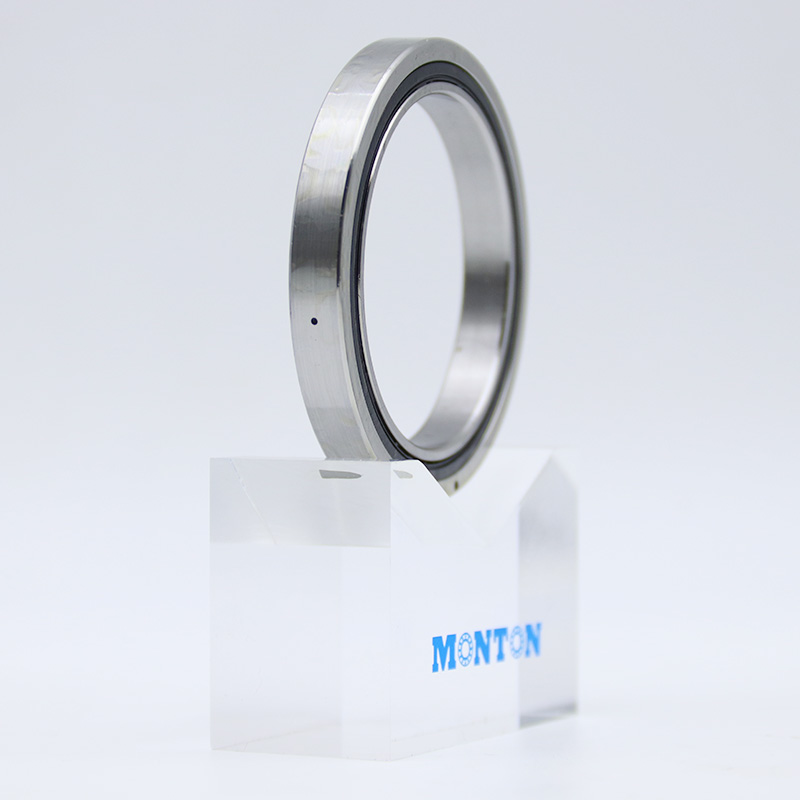

RAU8005 Slim Crossed roller bearing

The RAU8005 slim cross roller bearing is a precision bearing designed specifically for high-precision, high stiffness, and space limited application scenarios. The cross roller bearing is that its rollers are arranged in a 90 ° perpendicular cross arrangement and separated by spacers or isolation blocks to prevent roller tilting and mutual friction, effectively reducing rotational torque and improving operational stability. This "X" - shaped cross layout allows a single bearing to simultaneously withstand multiple composite loads such as radial, axial, and overturning moments, effectively integrating the functions of two traditional bearings and achieving a "one for two" load-bearing effect. With its unique structure and excellent performance, it has become a key component in high-end equipment such as industrial robots, medical equipment, and precision machine tools.

Case Details

Name	Slim Crossed roller bearing
Seires	RAU series
Design Structure	Crossed roller
Brand	MONTON
Bearing	RAU8005
d	80mm
D	91mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	3.1KN
Load rating Cor	5.4KN
Sealed	Sealed
Weight	0.05KG
Precision	P4,P5
alternative code	CRBT805
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive Robotic arm reducer
