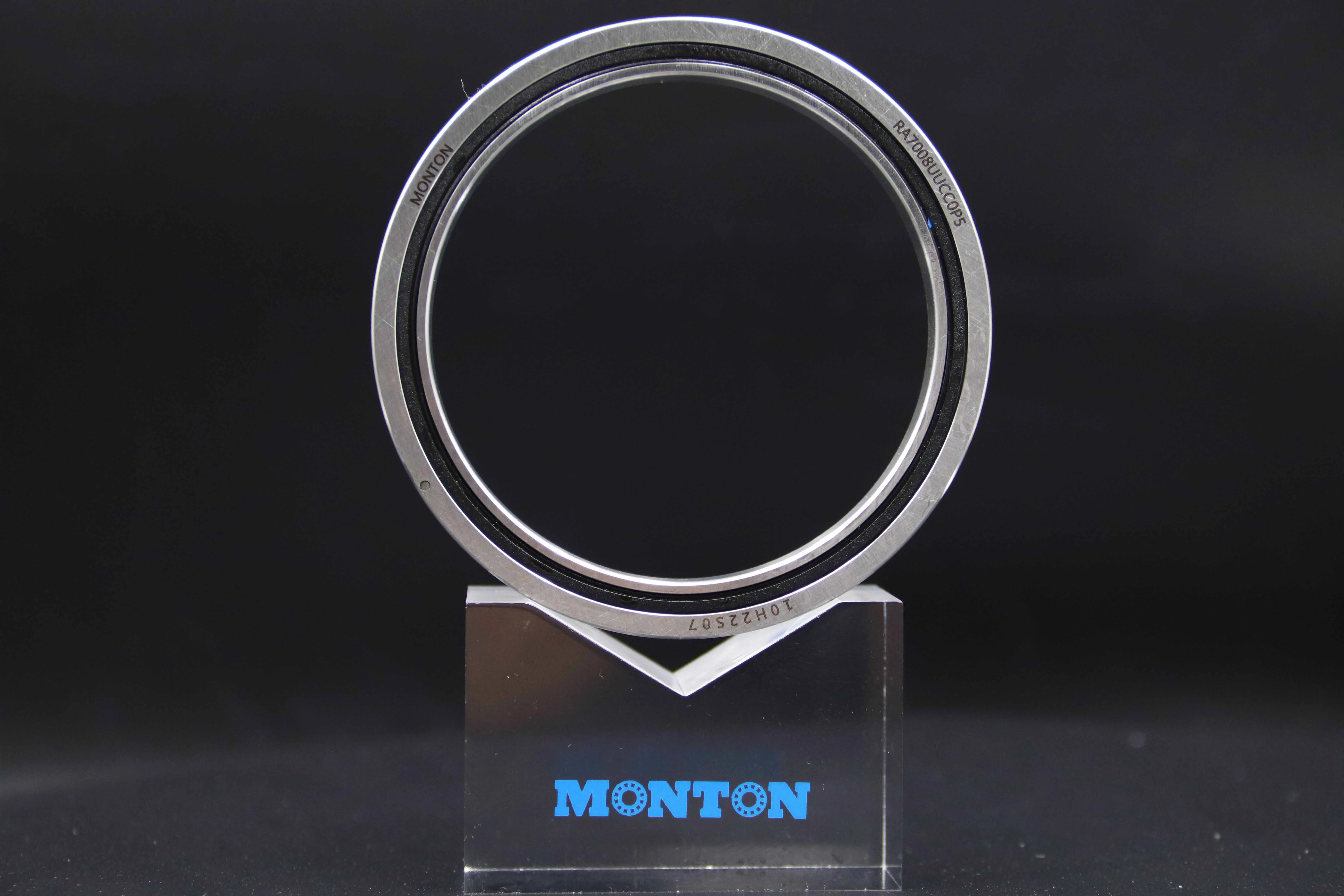

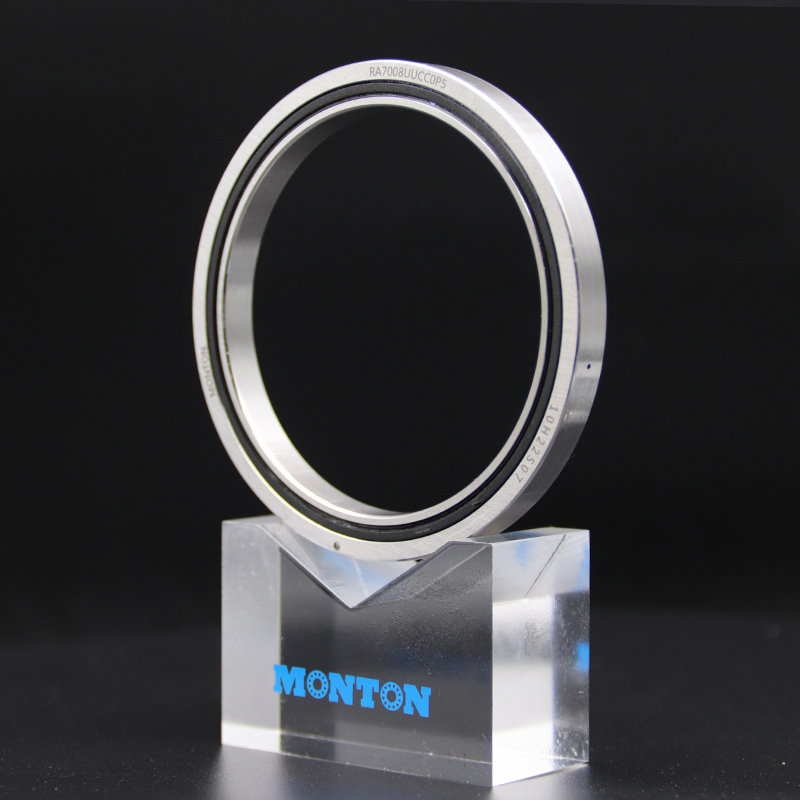

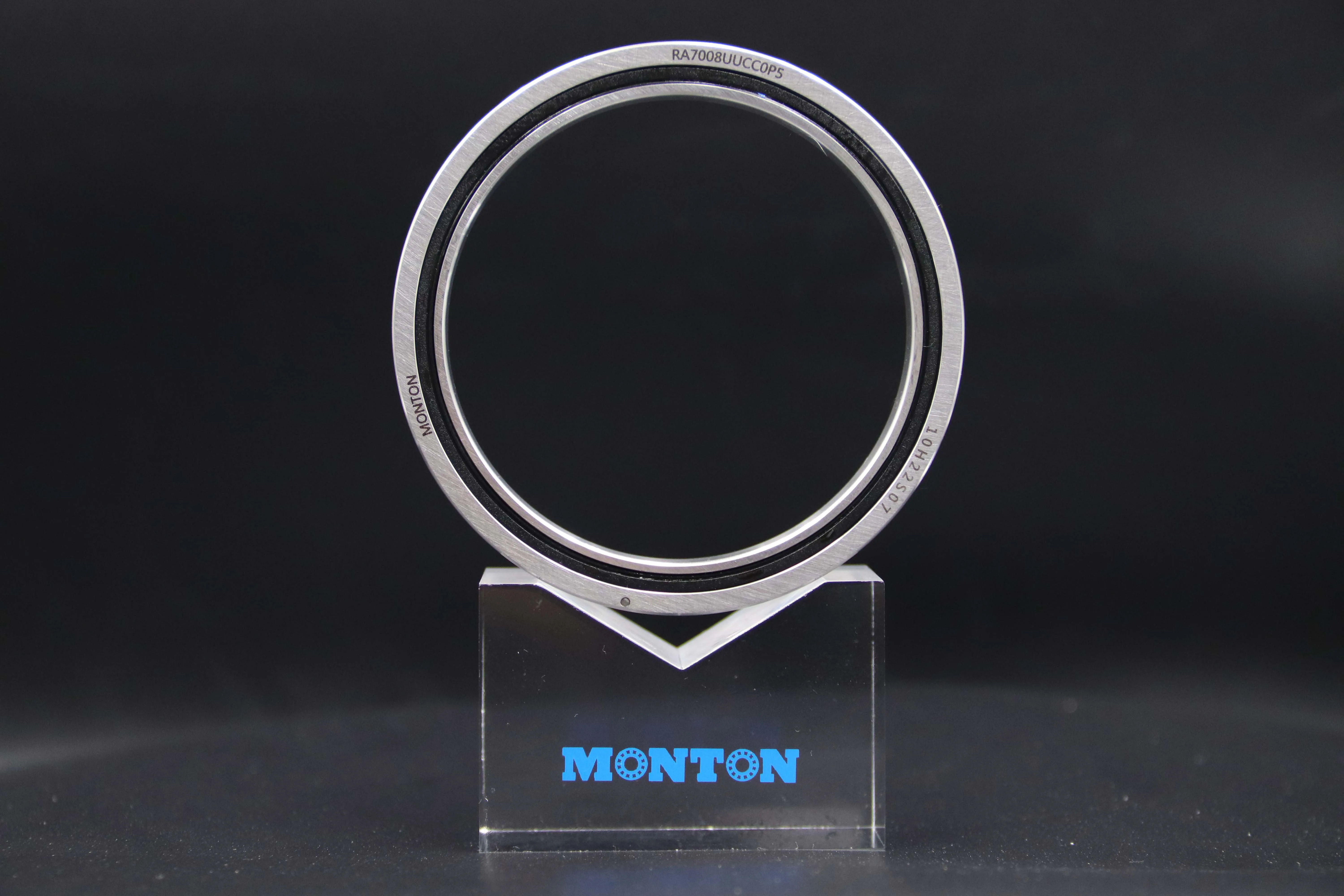

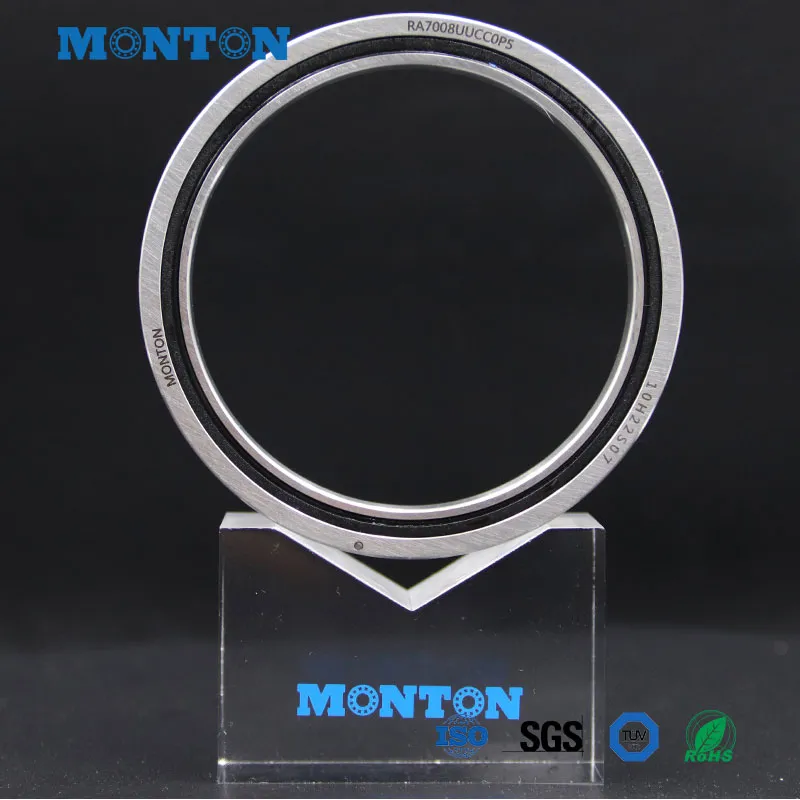

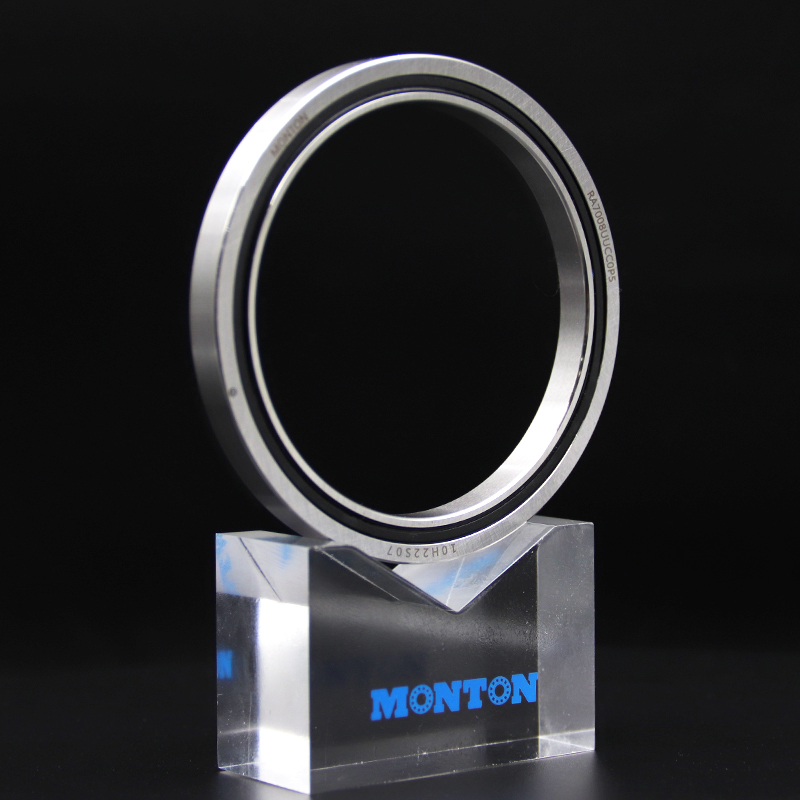

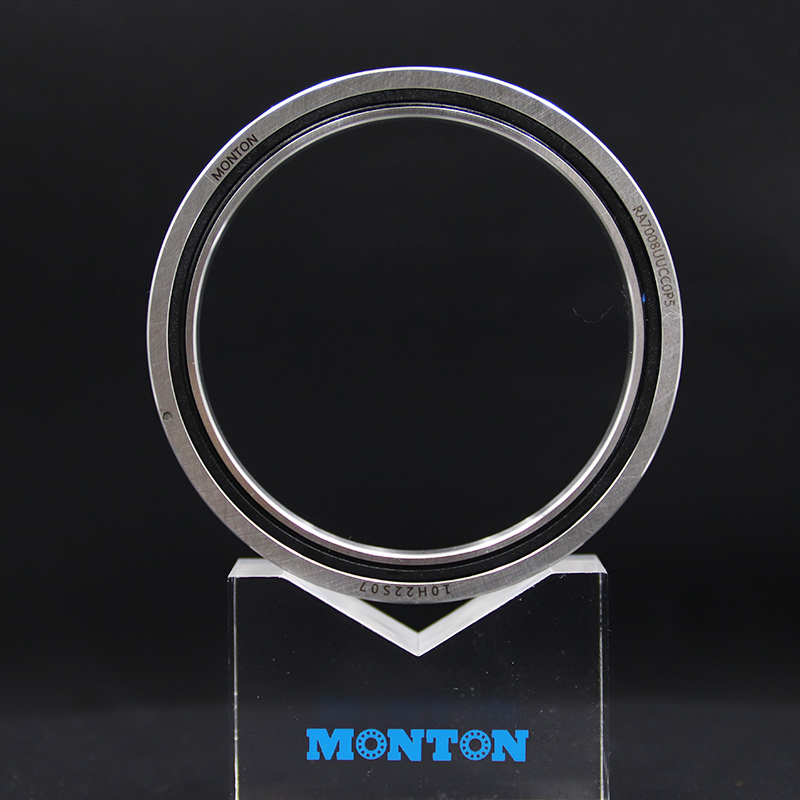

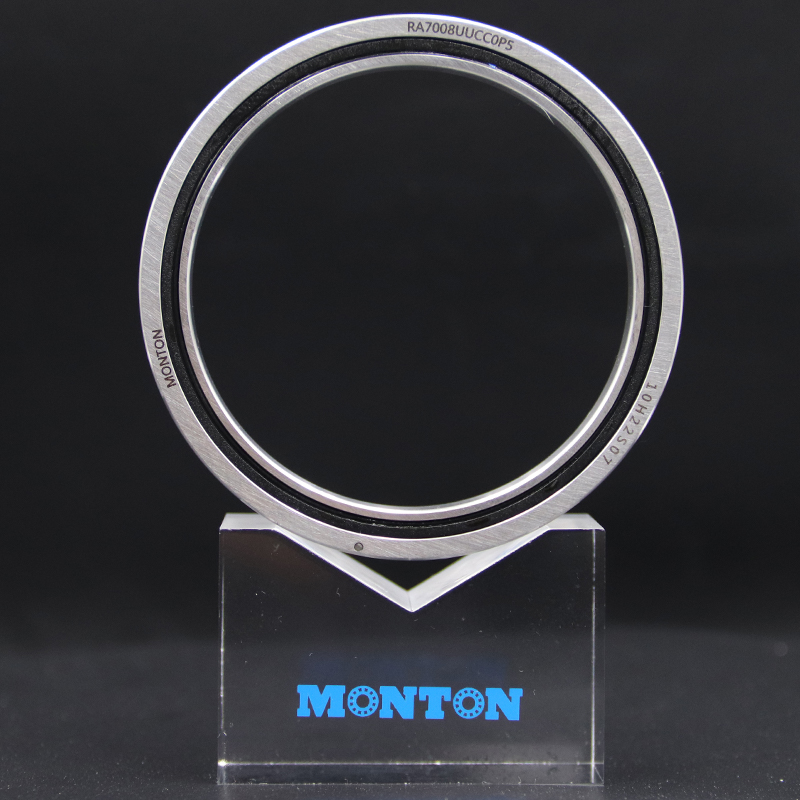

RA7008UUCC0P5 Super slim Crossed Roller Bearing

The RAU7008 produced by MONTON is an ultra-thin cross roller bearing that uses cylindrical rollers arranged in a cross pattern. It can withstand axial, radial, and overturning loads simultaneously. The overall structure design of the inner and outer rings ensures high rotational accuracy. The main dimensions are an inner diameter of 70mm, an outer diameter of 86mm, a height of 8mm, and a weight of approximately 0.1kg. RAU7008 cross roller bearings are commonly used in collaborative robots, service robots, robotic arm joints, rotating parts of humanoid robots, unmanned aerial vehicle steering mechanisms, radar communication platforms, precision alignment machines, etc.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	RAU series
Brand	MONTON
Open type	RA7008UUCC0P5
d	70mm
D	86mm
B	8mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	5.98KN
Load rating Ca	9.8KN
Sealed	Open
Weight	0.1kg
Design Structure	Crossed roller
Precision	P4,P5
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robotic Arm Compact Hand Robot Compact Surveillance Camera Harmonic Gear Drive Reducer
