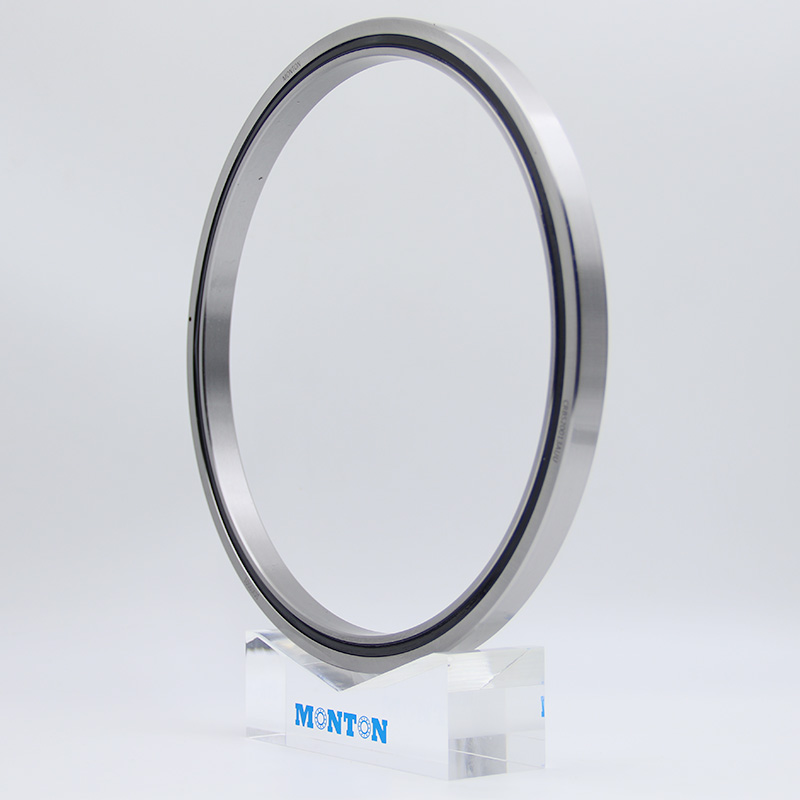

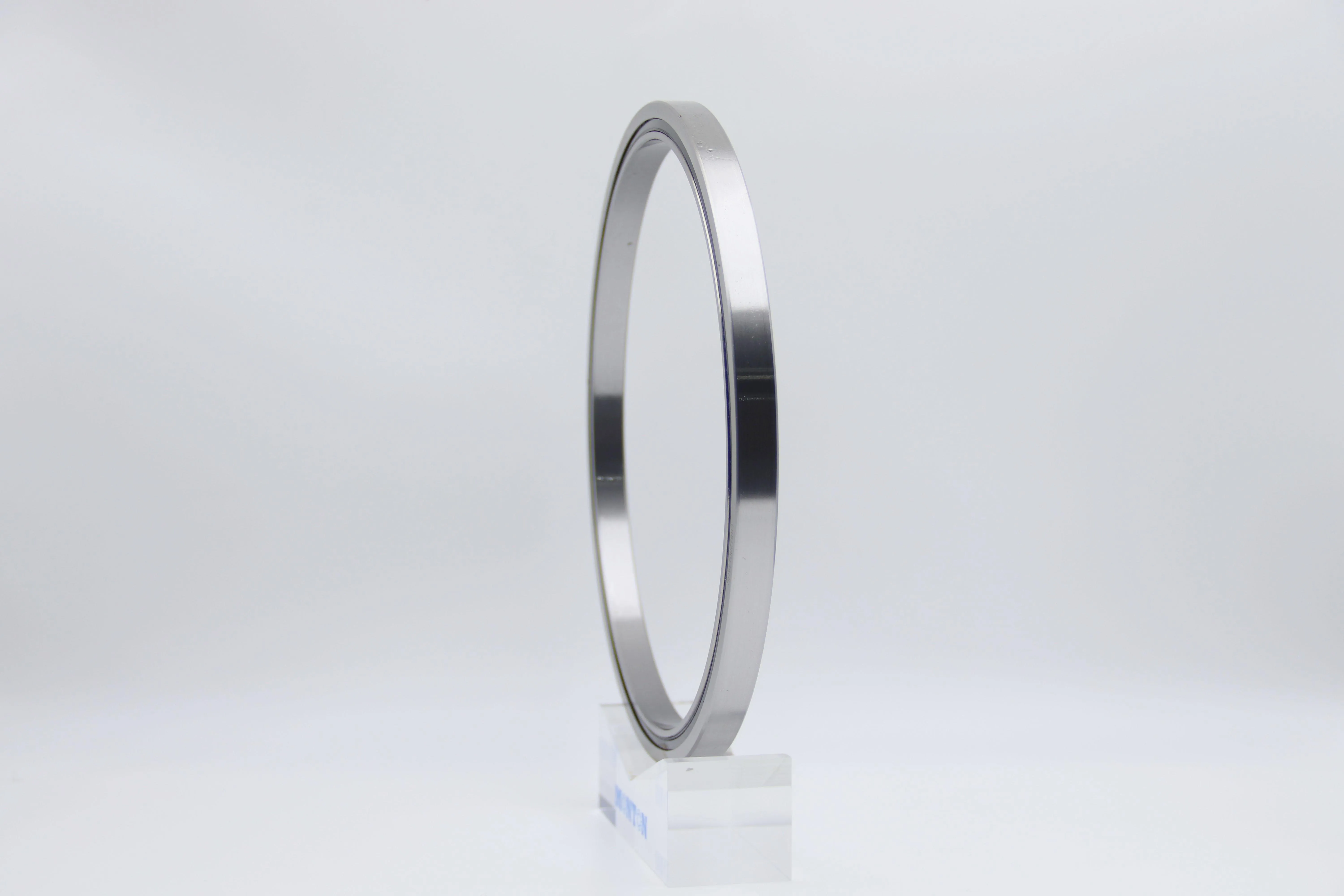

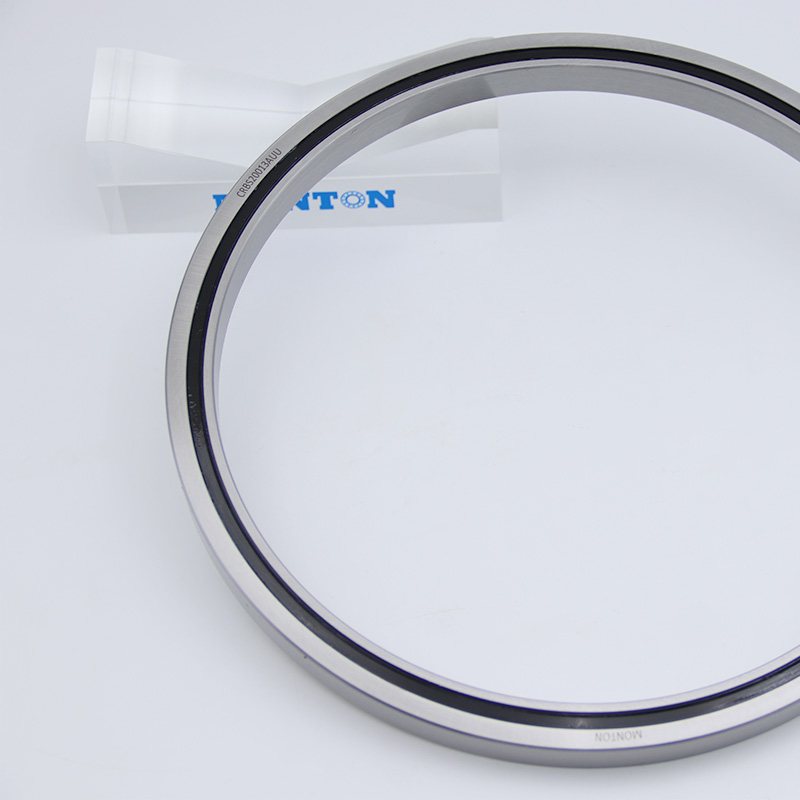

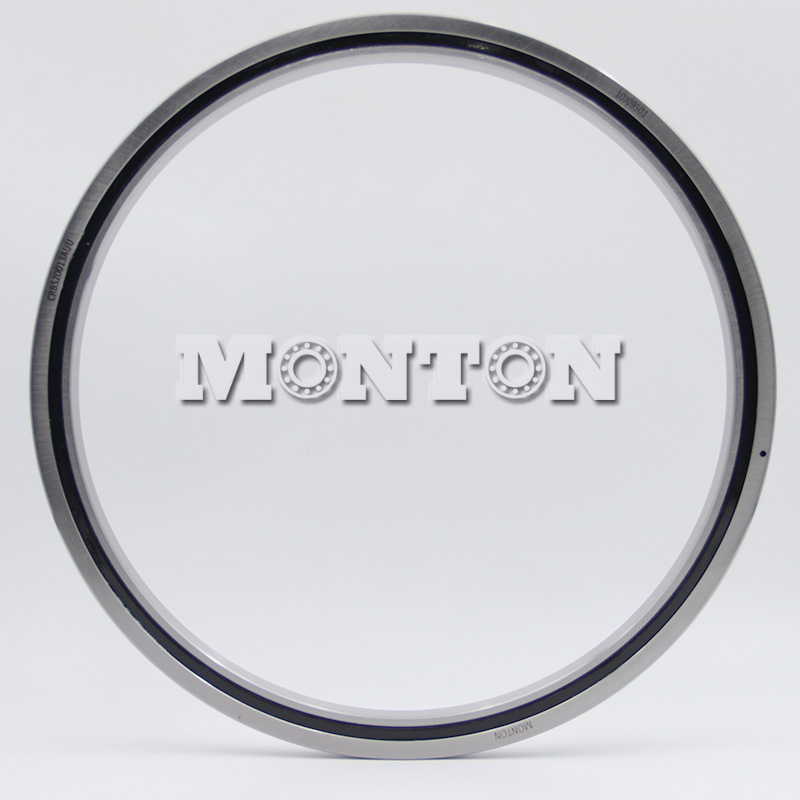

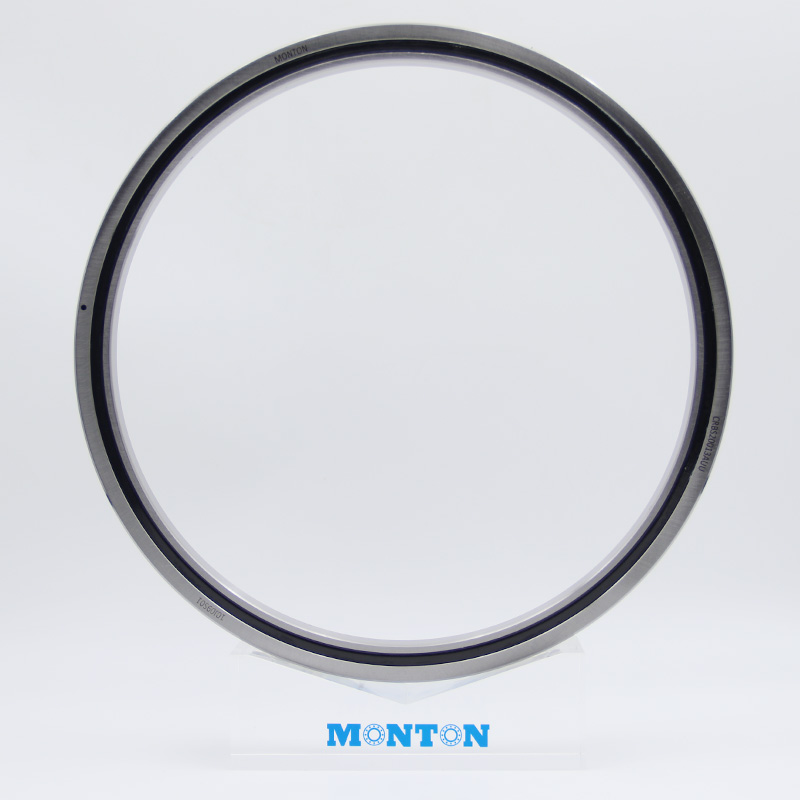

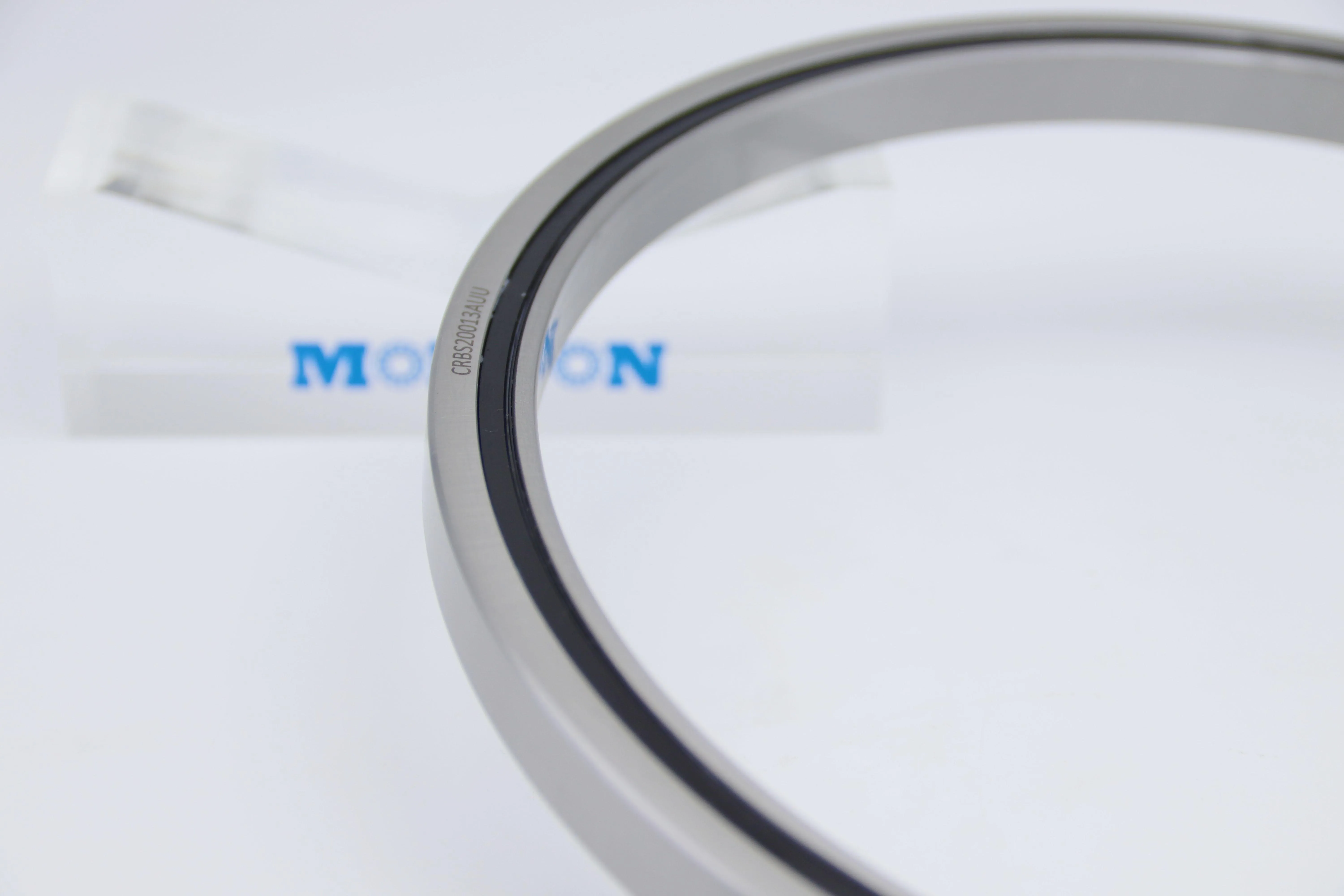

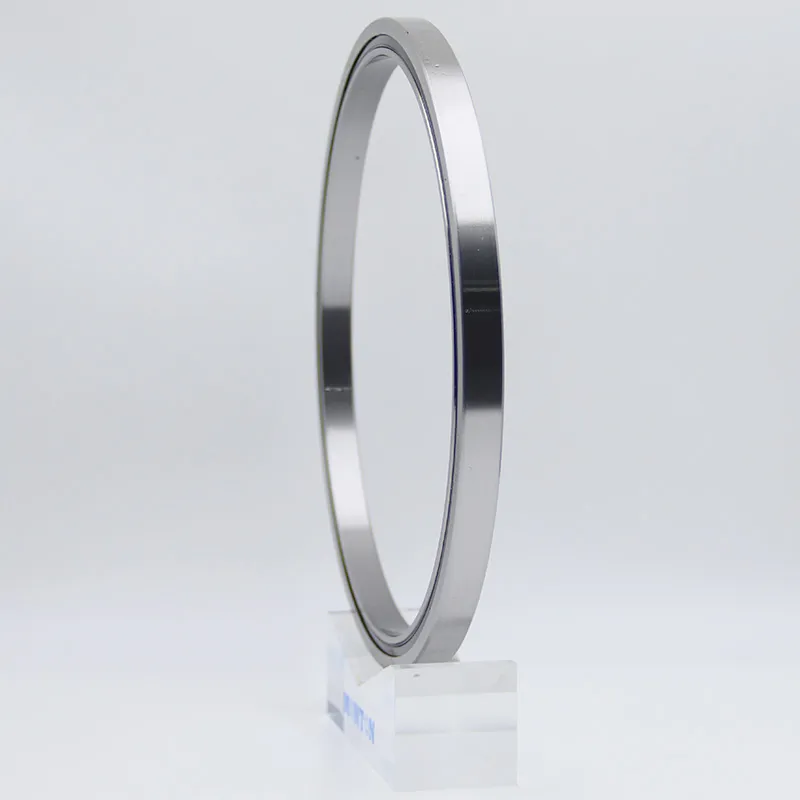

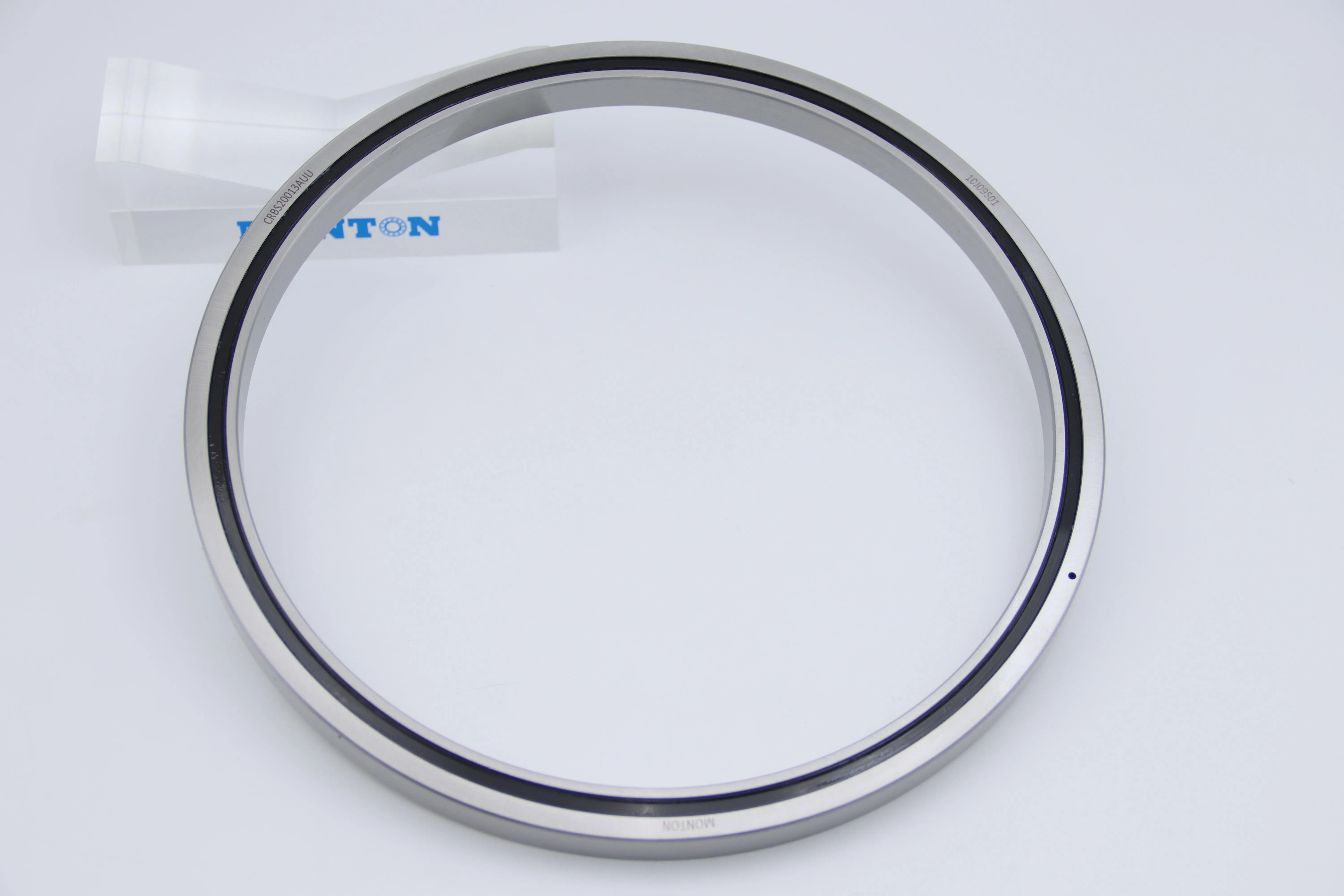

CRBS20013AUU Crossed Roller Bearing

The CRBS20013AUU crossed roller bearing produced by MONTON features an integrated thin walled structure of the outer and inner rings (with a height of only 13mm). The internal rollers are arranged at a 90° cross angle and move synchronously through a precision cage. This design endows it with the characteristics of high multi-directional load capacity, high rigidity and high precision. It is suitable for the 2nd to 4th axes of 6-axis industrial robots, replacing the traditional "bearing + harmonic reducer" combination to reduce transmission clearance.

Case Details

Name	Crossed Roller Bearing
Series	CRBS series
Brand	MONTON
Model	CRBS20013AUU
d	200mm
D	226mm
B	13mm
Ring Material	Gcr15
Seal type	Double seals
Cage Material	Spacer
Load rating C	23.3kN
Load rating Co	51.6kN
Weight	0.78KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Clearance	CC0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Industrial robot joints Precision Turntable Automation Equipment
