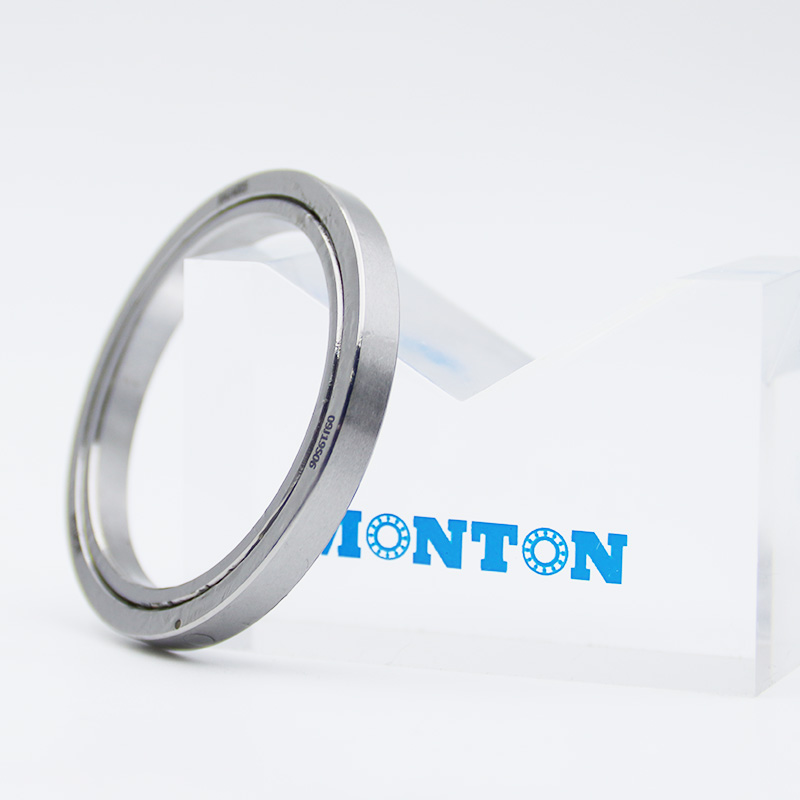

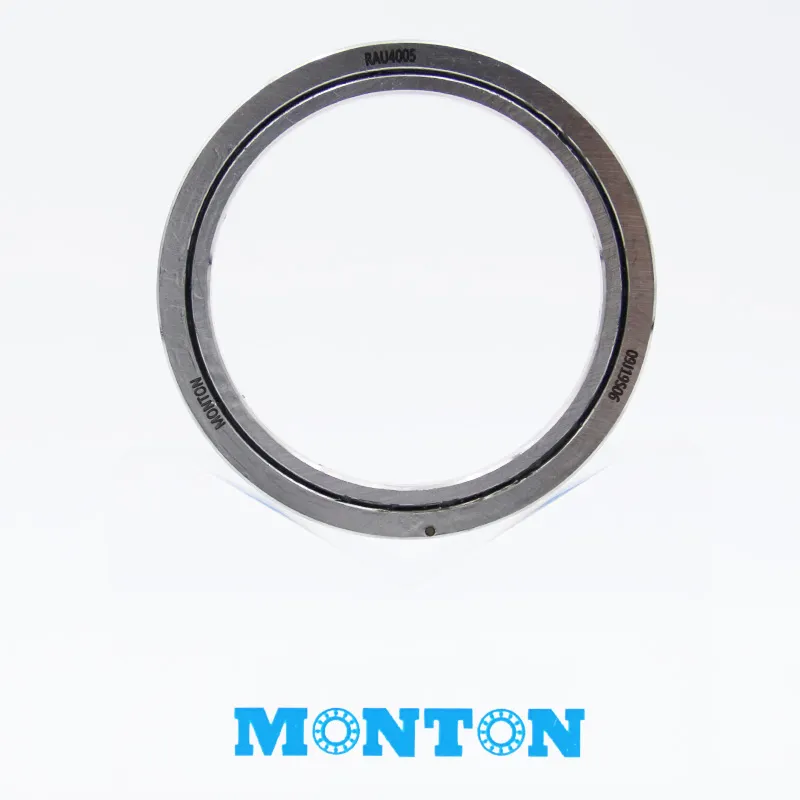

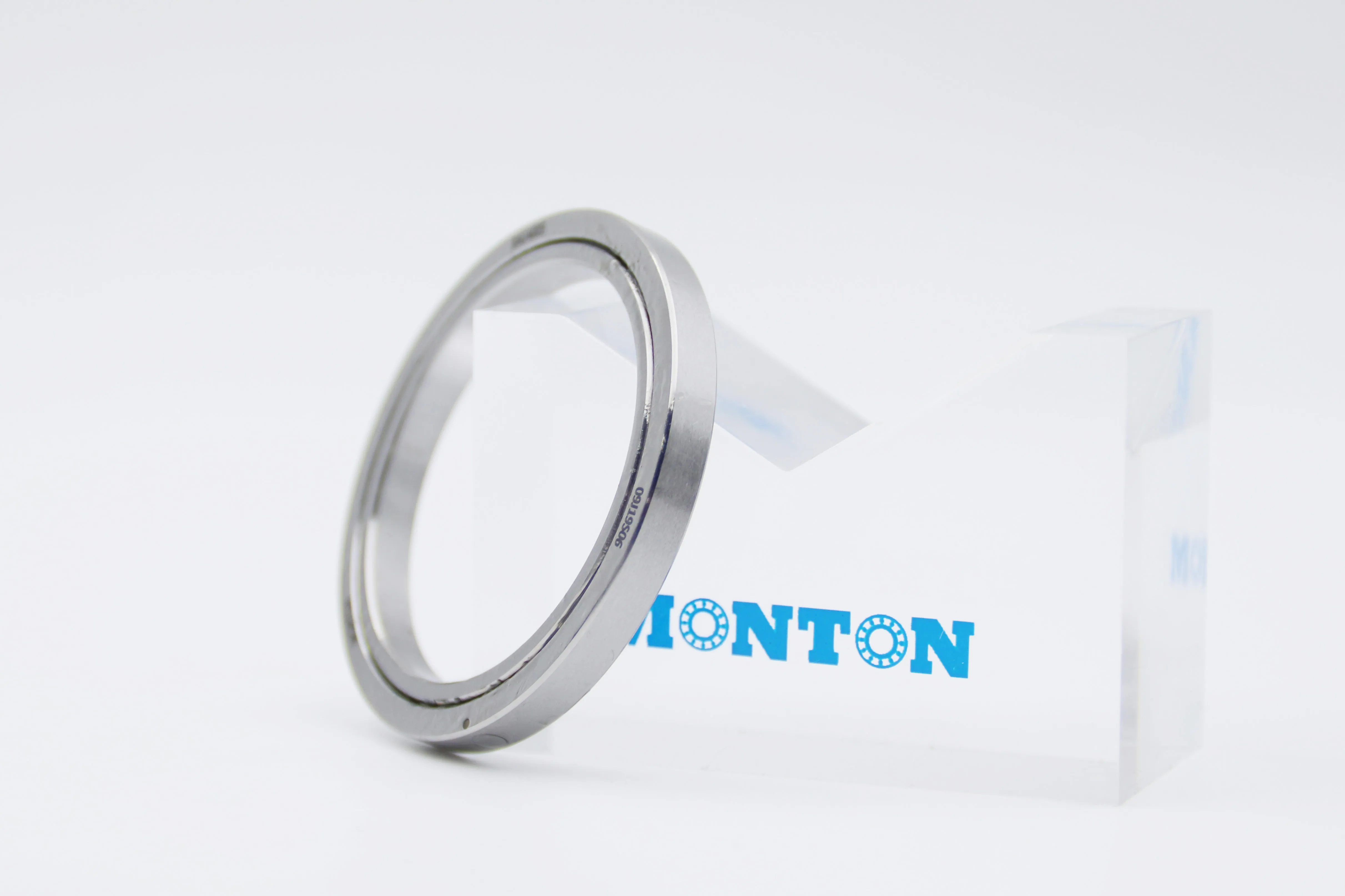

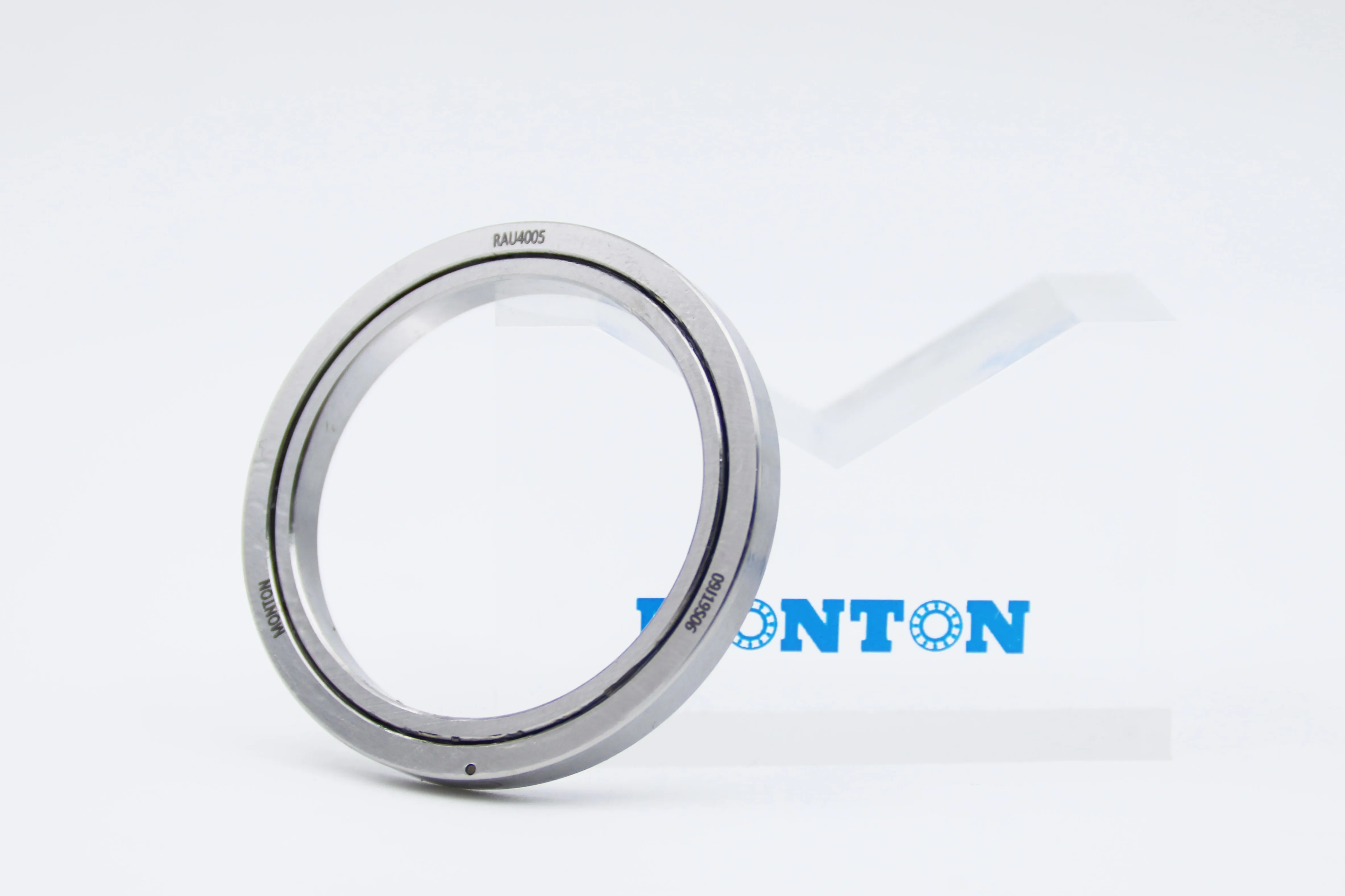

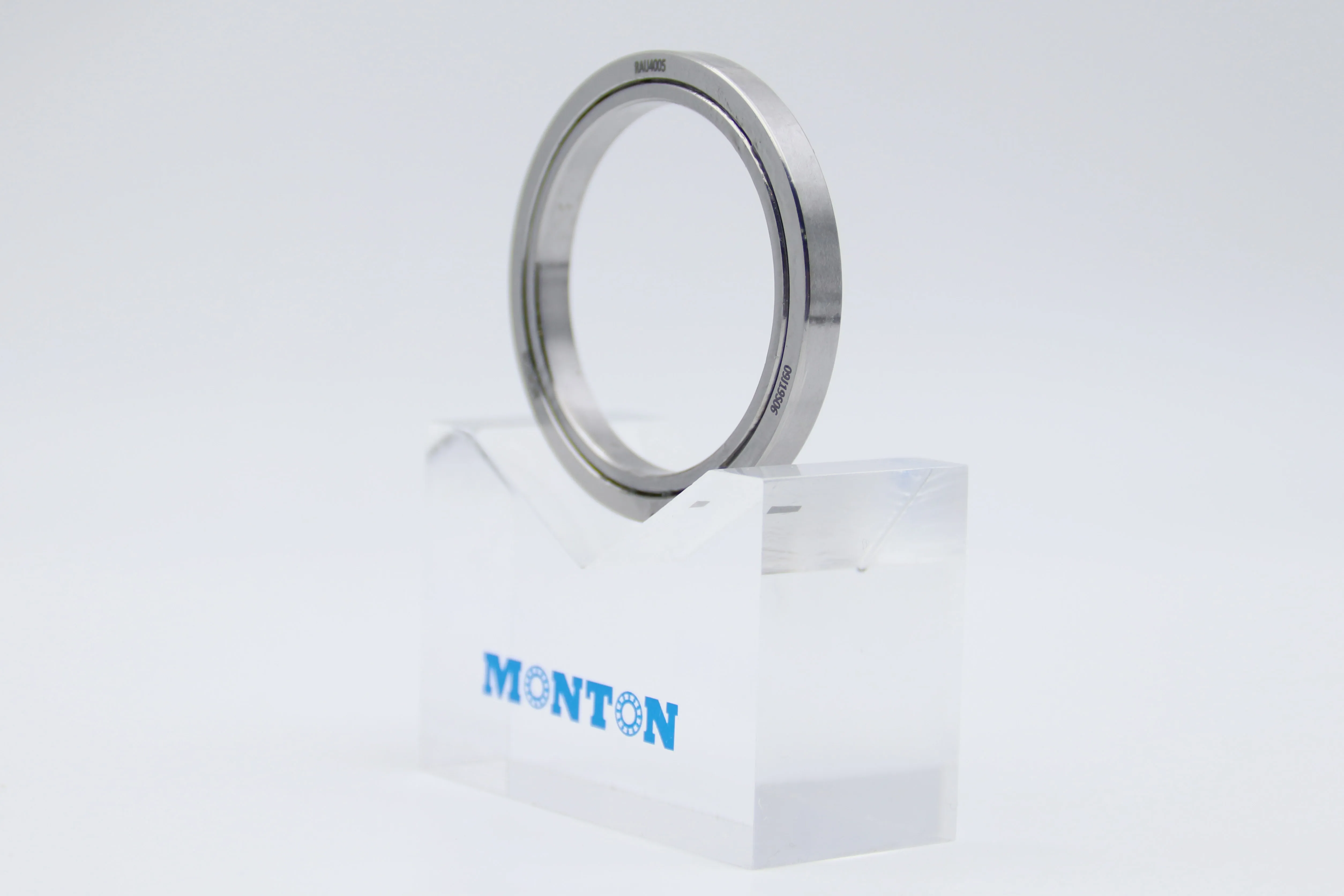

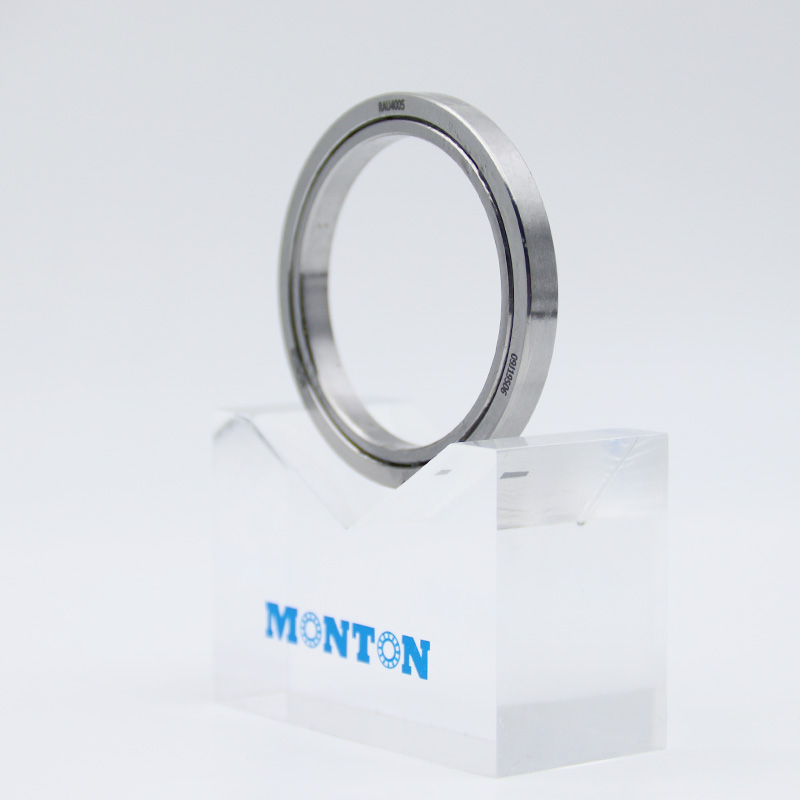

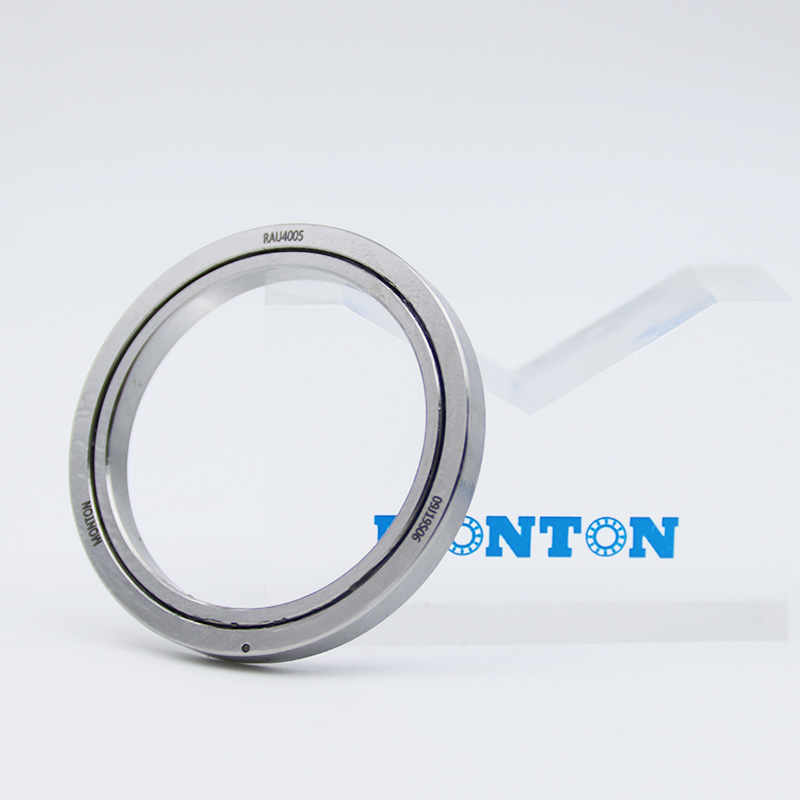

RAU4005 Super slim Crossed Roller Bearing

The RAU4005 slim cross roller bearing produced by MONTON is mainly used in small robotic arms, small monitoring cameras, small robots and other fields. Compared to traditional lightweight RA (CRBS) cross roller bearings, the RAU series has a thickness of only 69%, a bearing cross-sectional area of only 43%, and a weight of only 38%. Suitable for occasions with strict requirements for weight and installation space.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	RAU series
Brand	MONTON
Open type	RAU4005/CRBT405A
d	40mm
D	51mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	2.14KN
Load rating Ca	2.74KN
Sealed	Open
Weight	27g
Design Structure	Crossed roller
Precision	P4,P5
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Compact Hand Robot Compact Surveillance Camera
