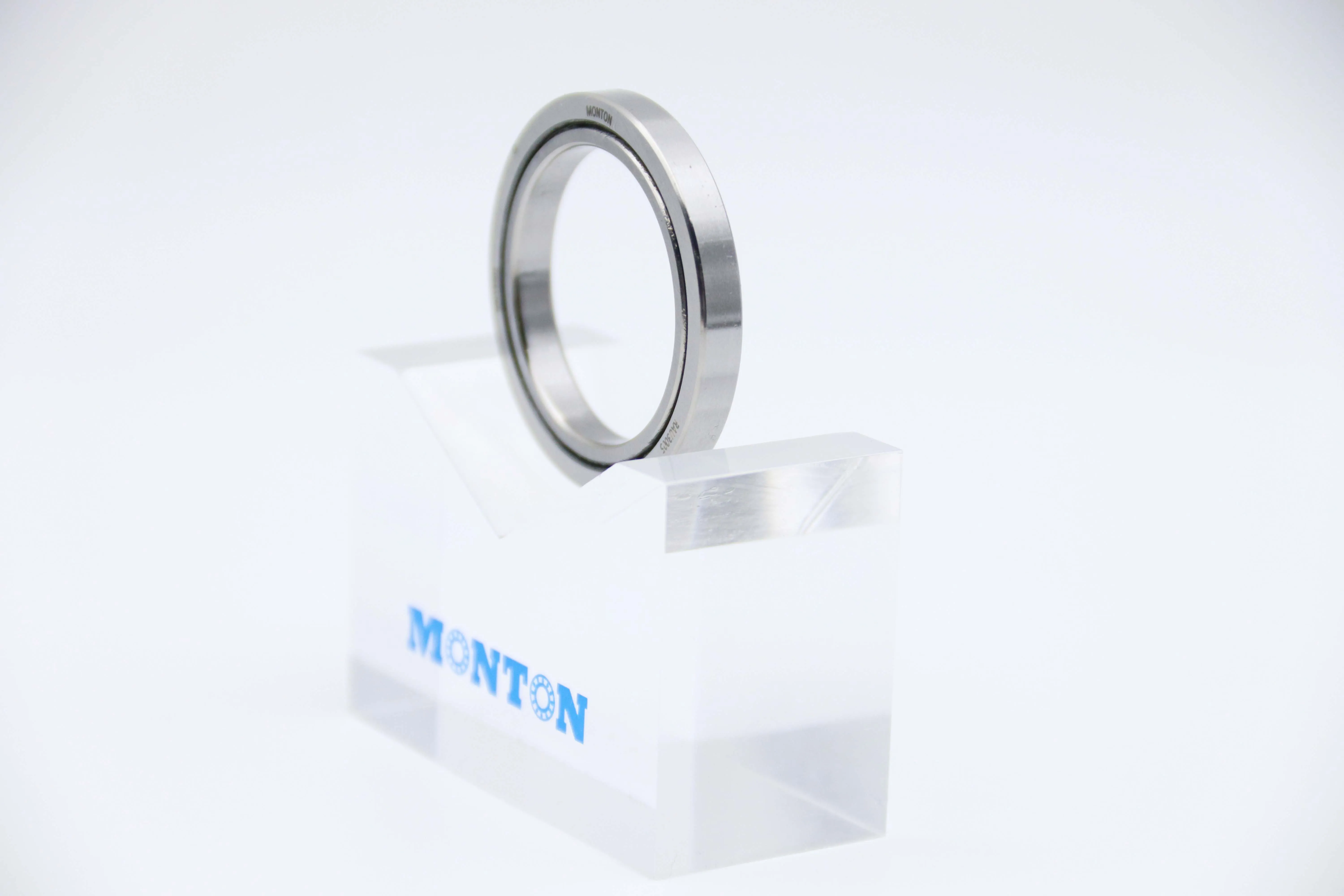

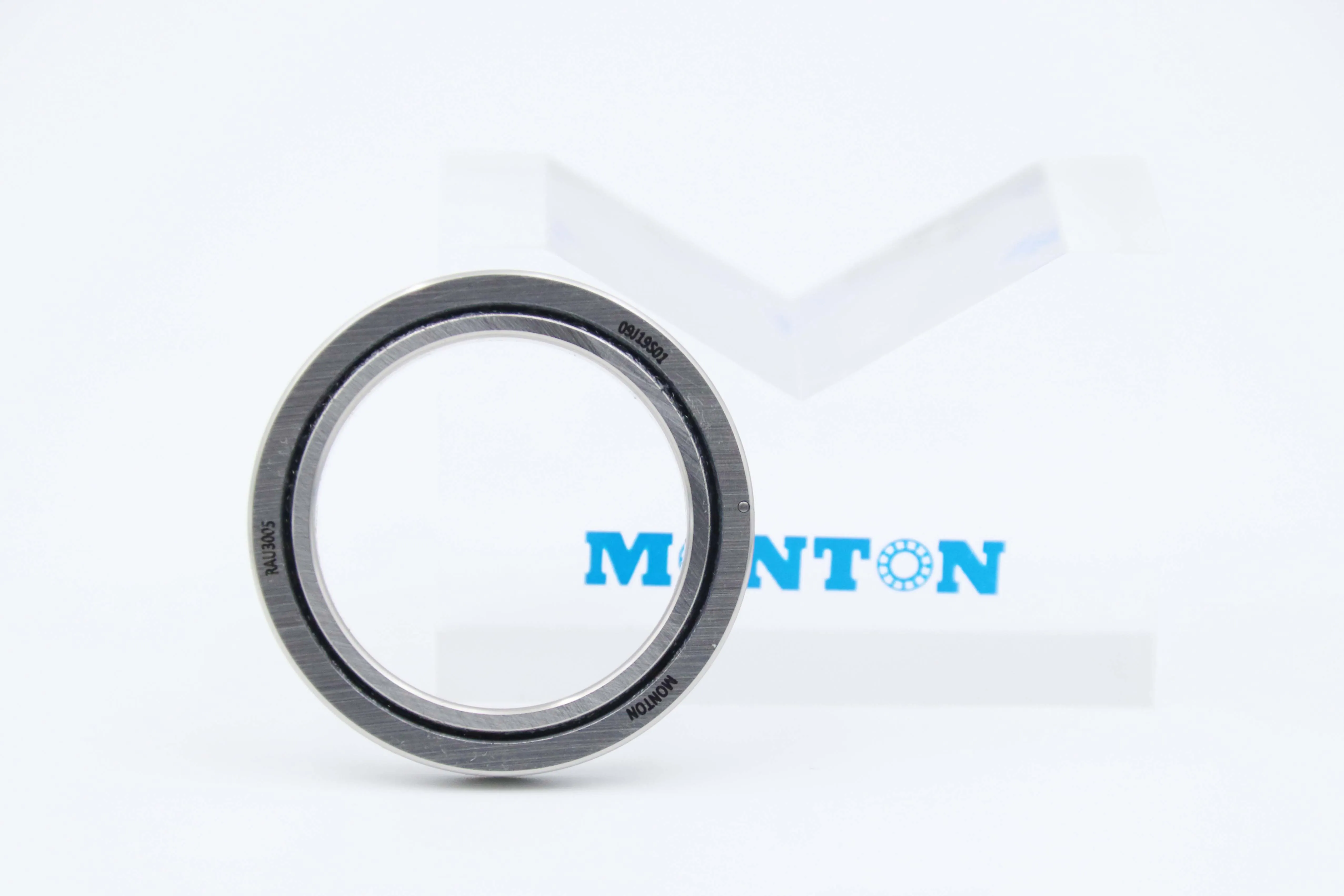

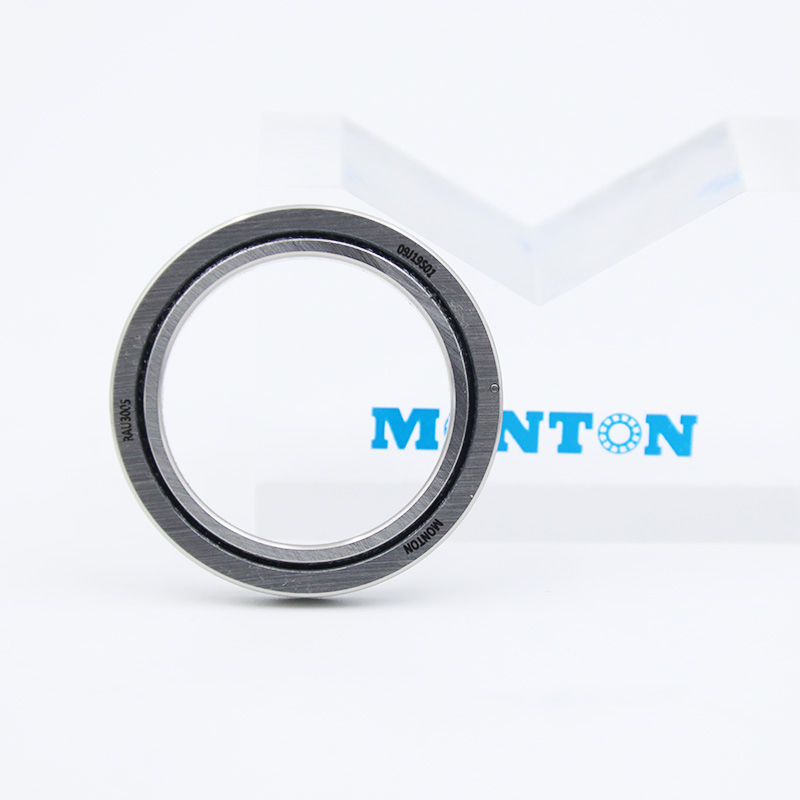

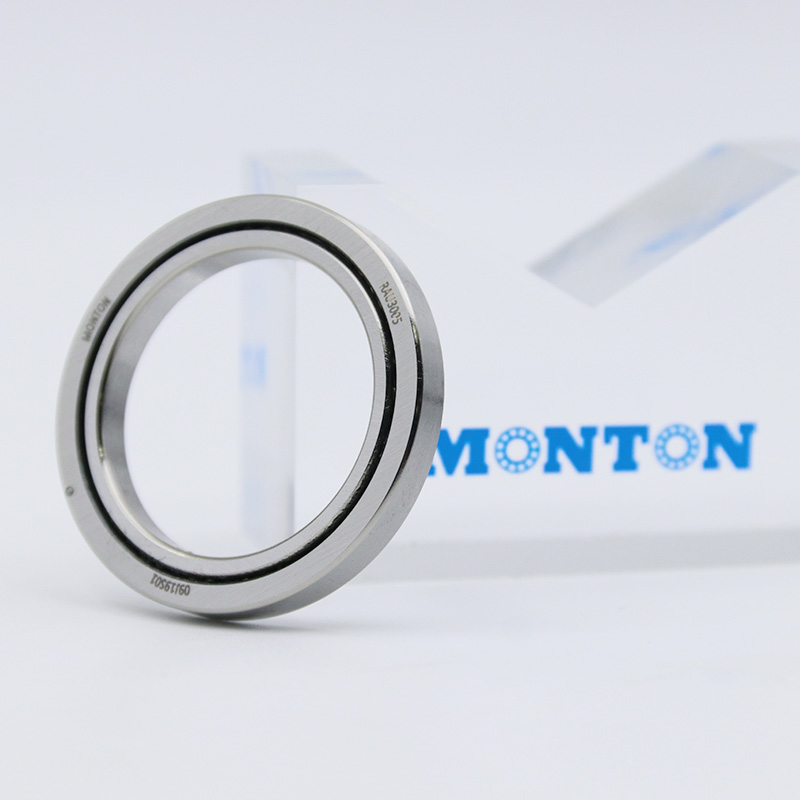

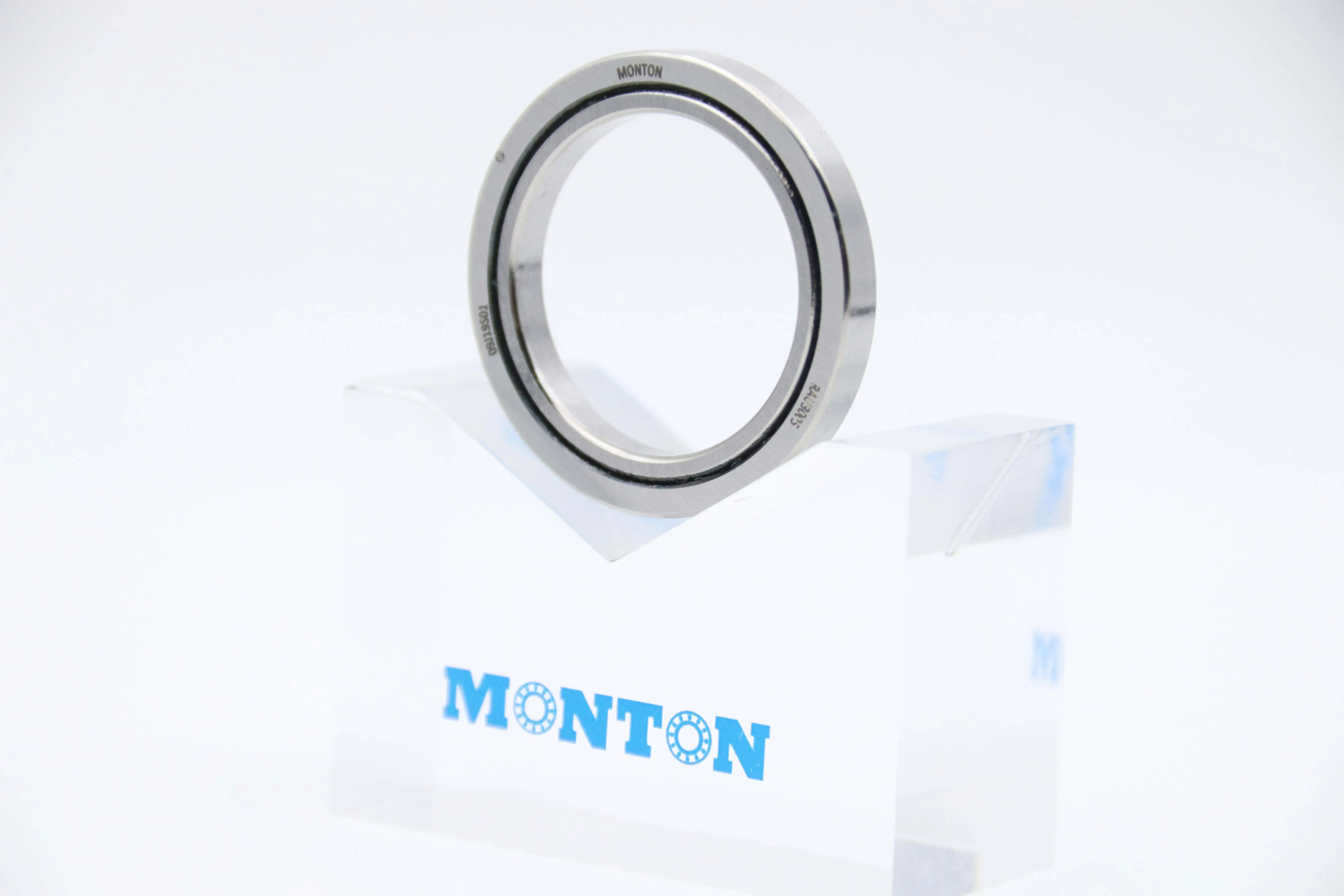

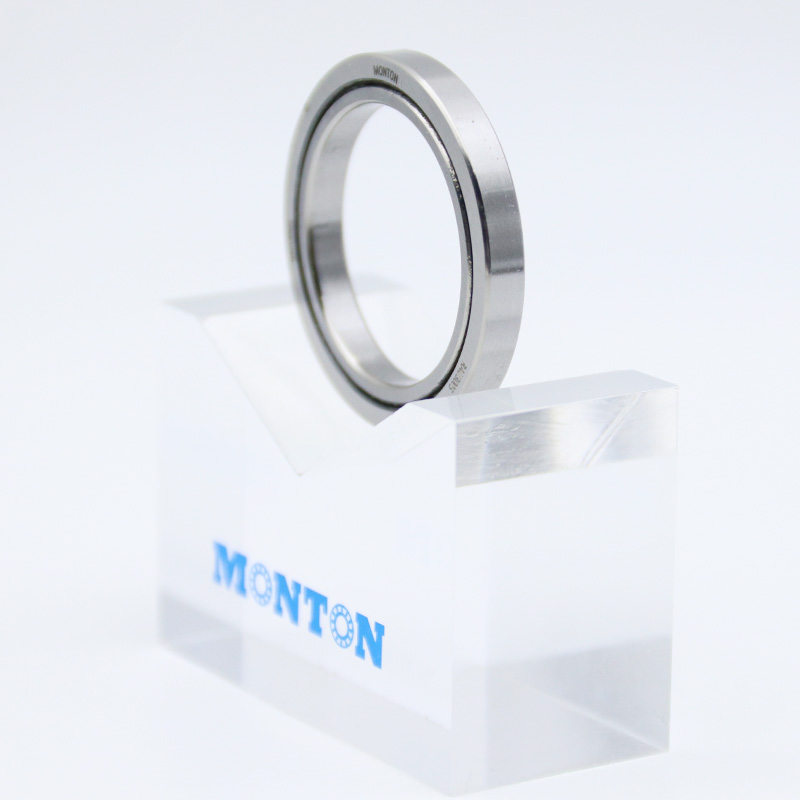

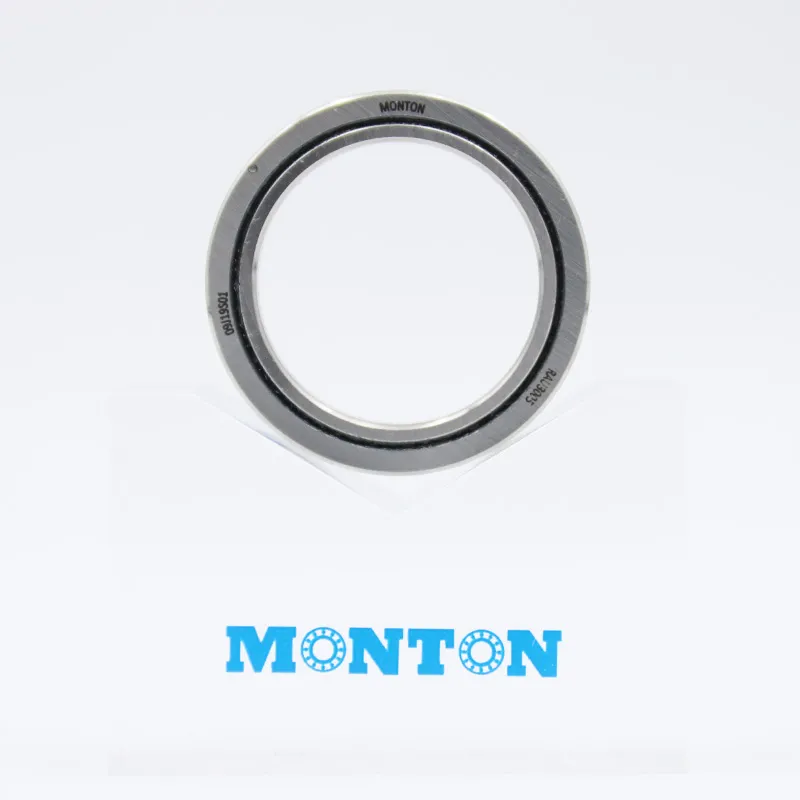

RAU3005 Super slim Crossed Roller Bearing

RAU3005 slim precision cross roller bearings are mainly used in small robotic arms, small monitoring cameras, small robots and other fields. The cylindrical rollers are arranged in a cross pattern on the V-shaped raceway, and the rollers are separated by isolation blocks, which can simultaneously withstand axial and radial loads as well as overturning moments. Compared to traditional lightweight RA (CRBS) cross roller bearings, the RAU series has a thickness of only 69%, a bearing cross-sectional area of only 43%, and a weight of only 38%. Suitable for occasions with strict requirements for weight and installation space.

Case Details

Name	Super slim Crossed Roller Bearing
Seires	RAU series
Brand	MONTON
Open type	RAU3005/CRBT305A
d	30mm
D	41mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	1.89KN
Load rating Ca	2.14KN
Sealed	Open
Weight	21g
Design Structure	Crossed roller
Precision	P4,P5
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Compact Hand Robot Compact Surveillance Camera
