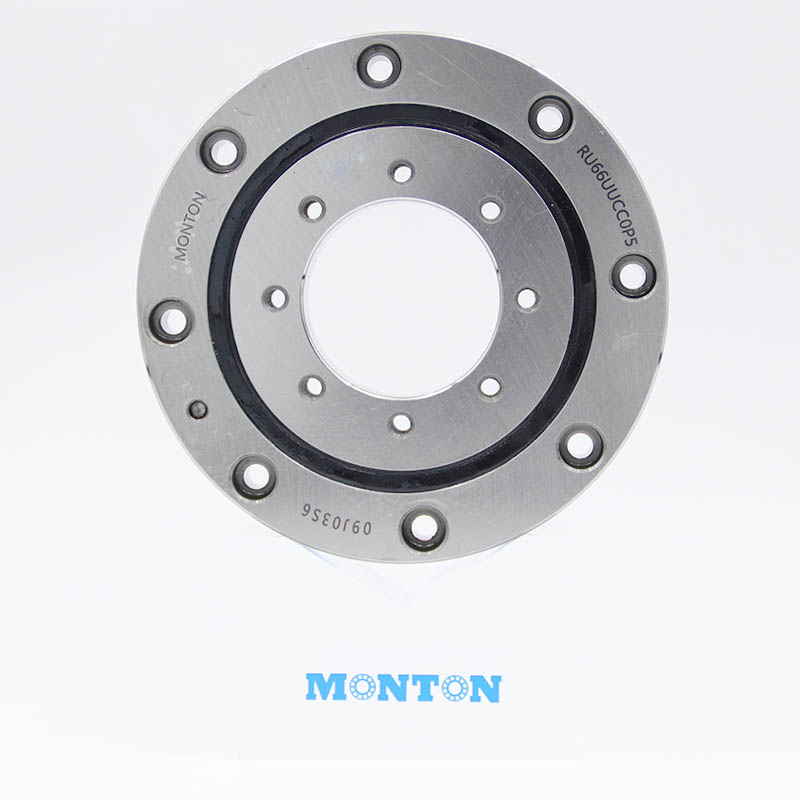

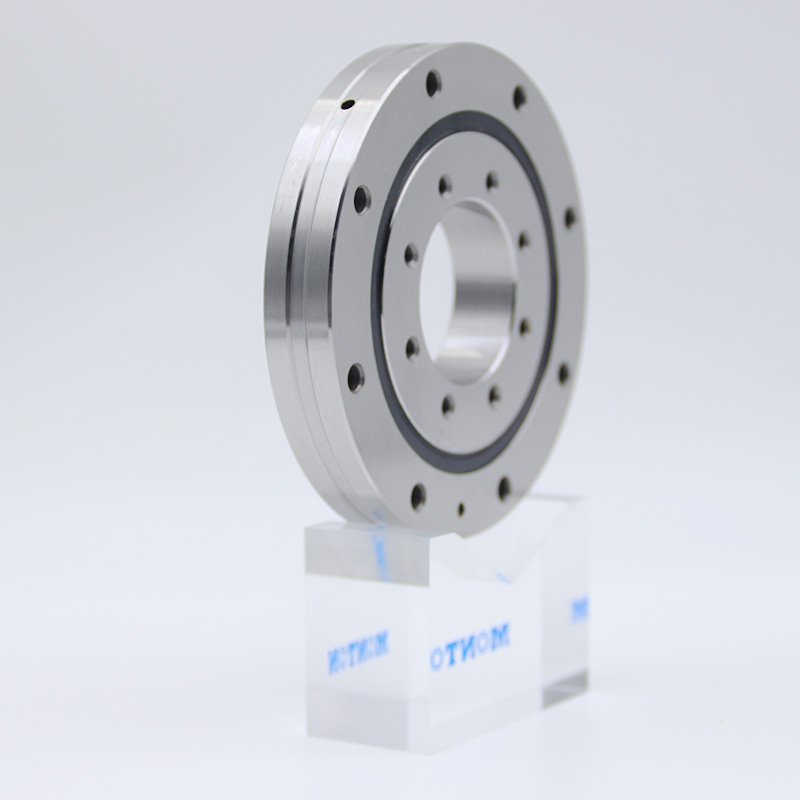

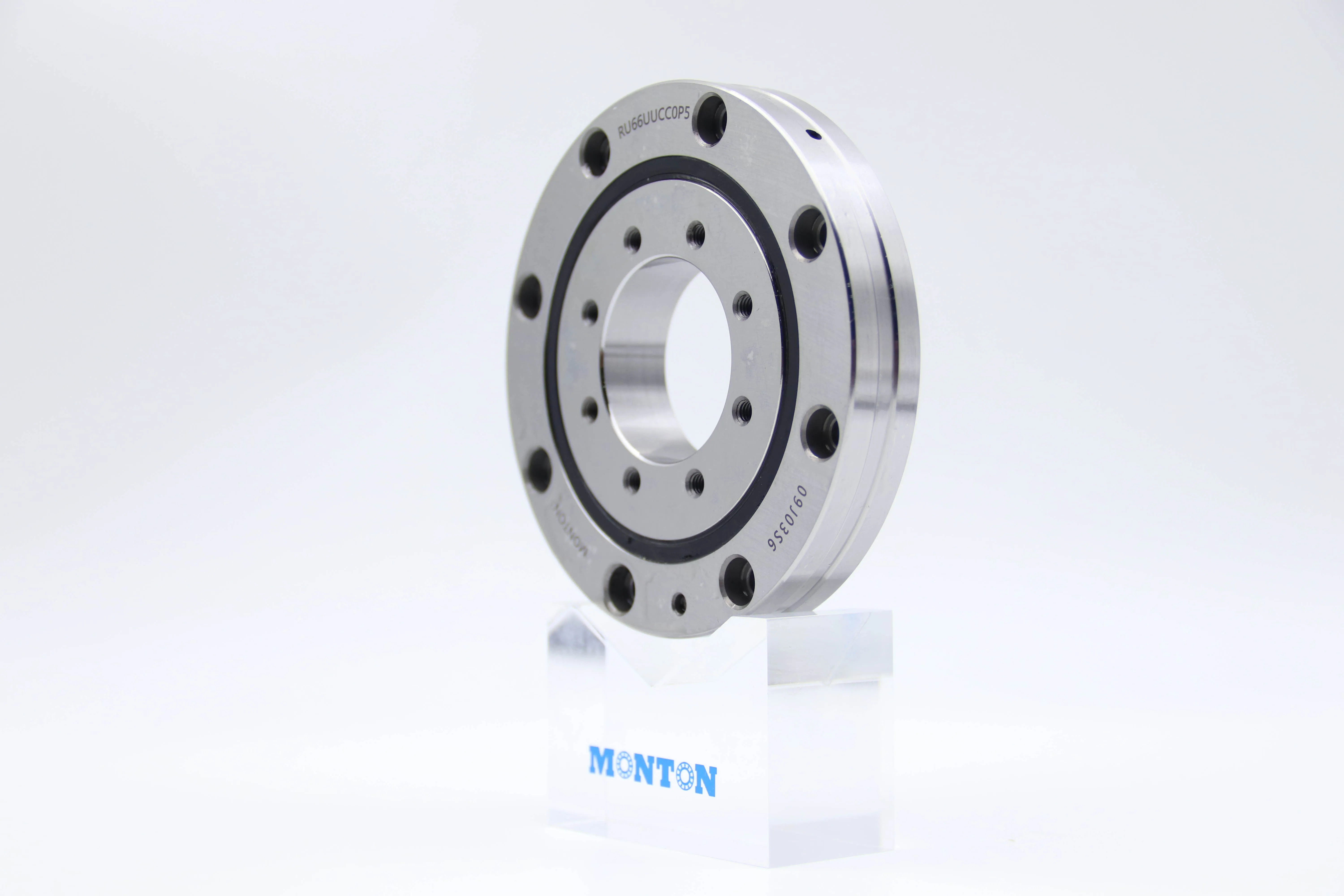

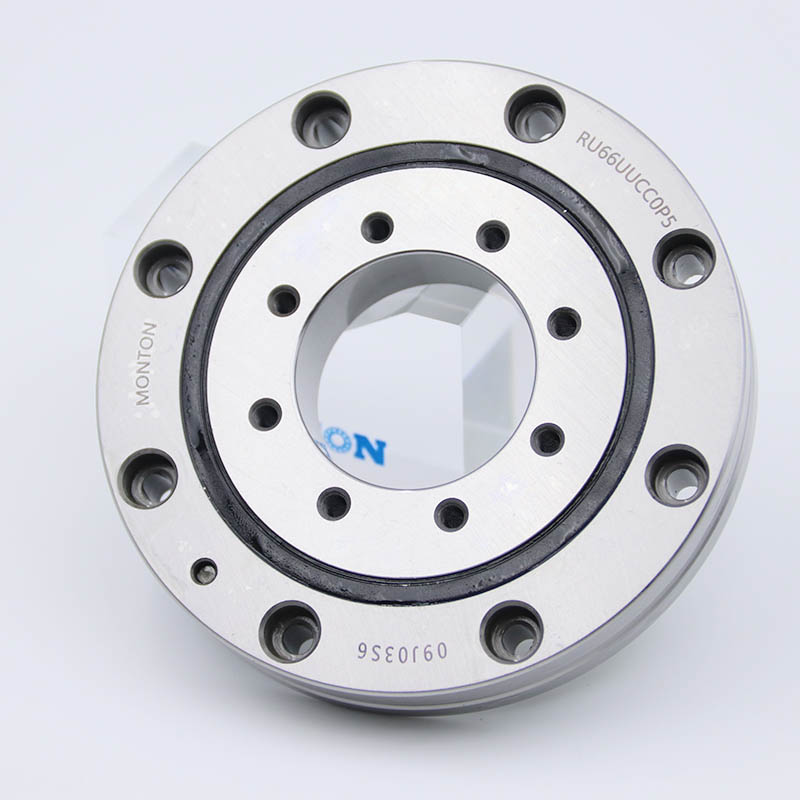

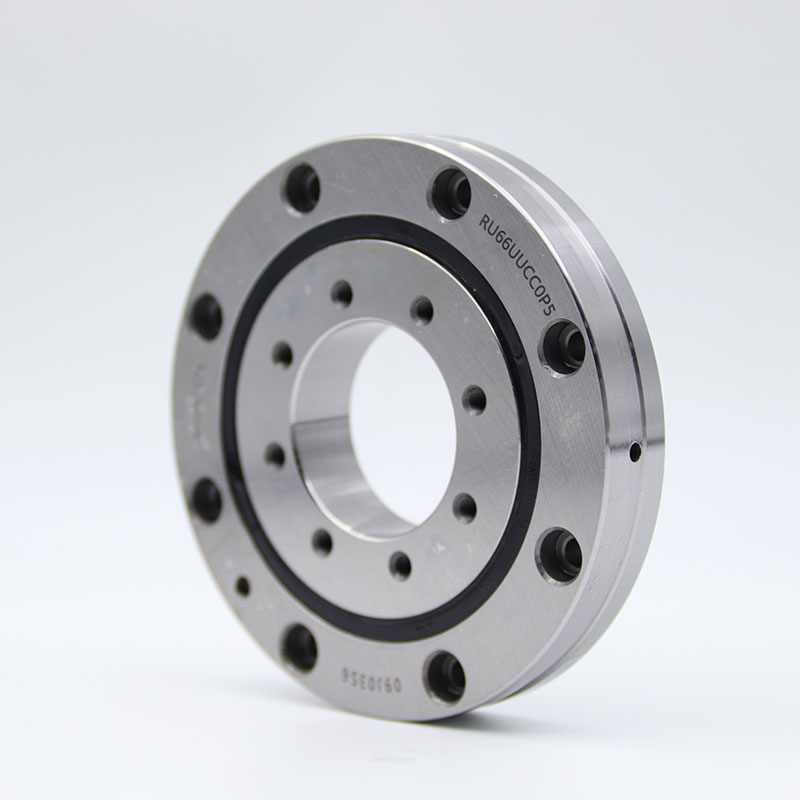

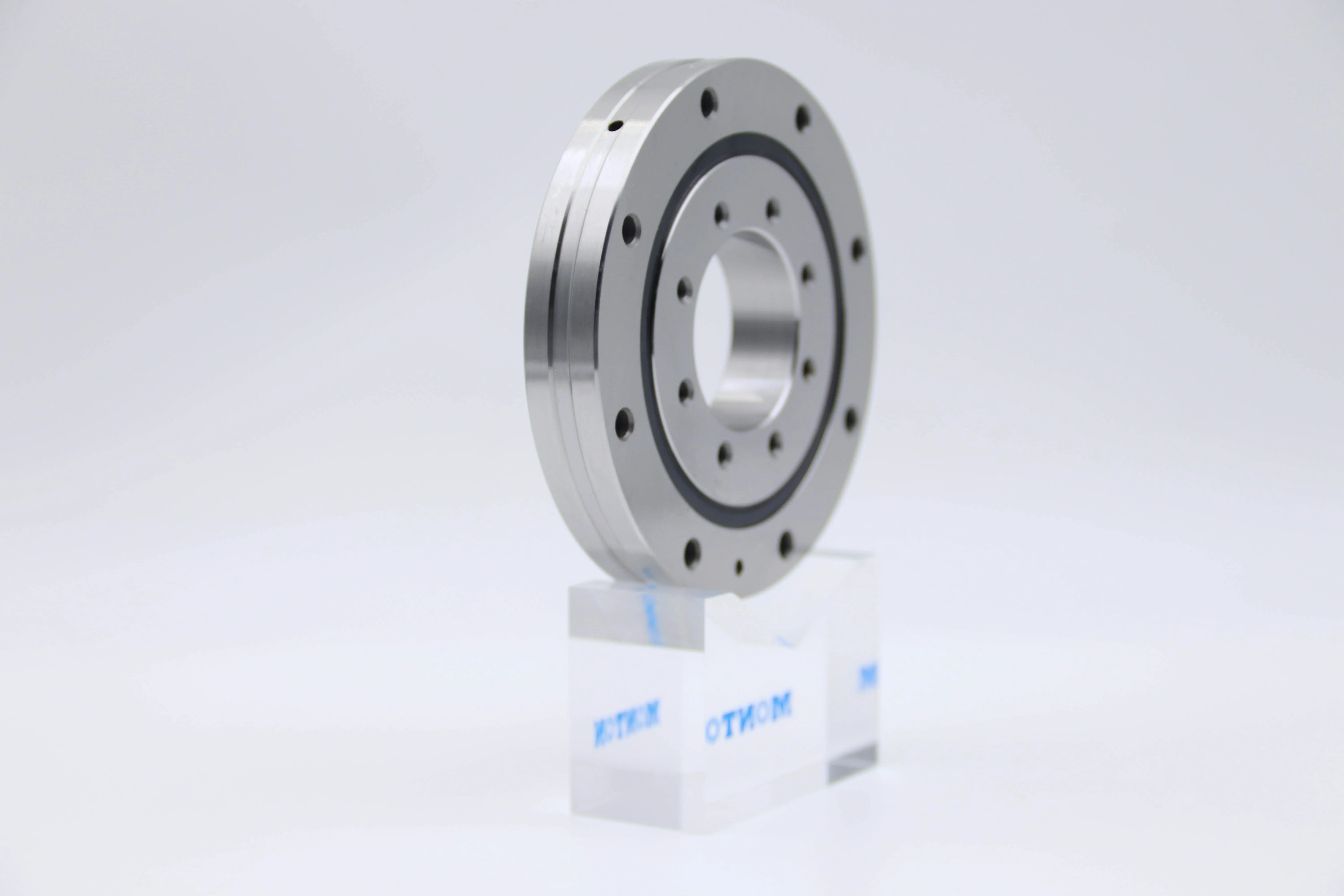

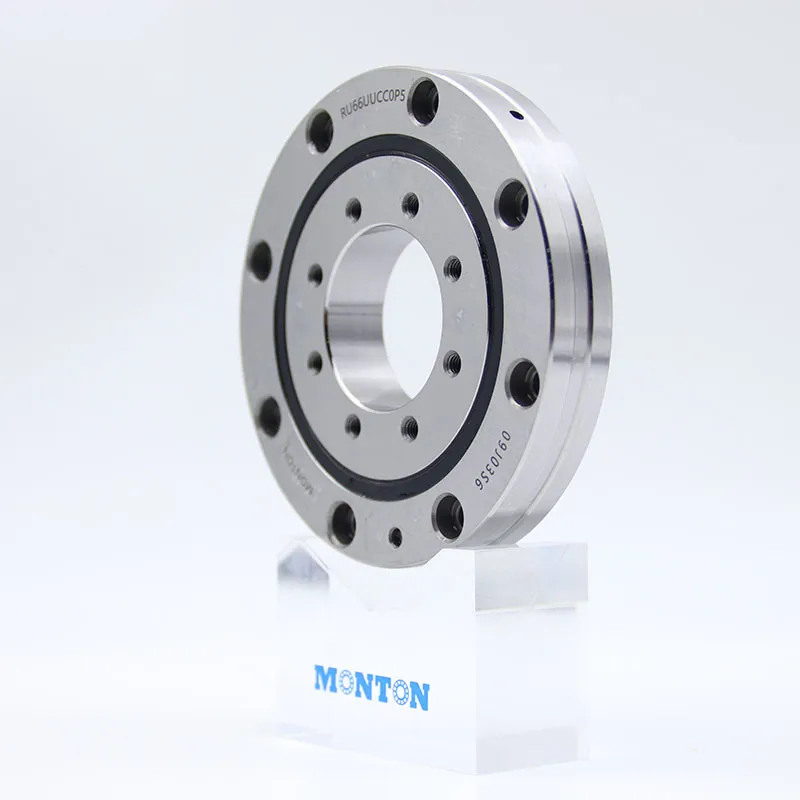

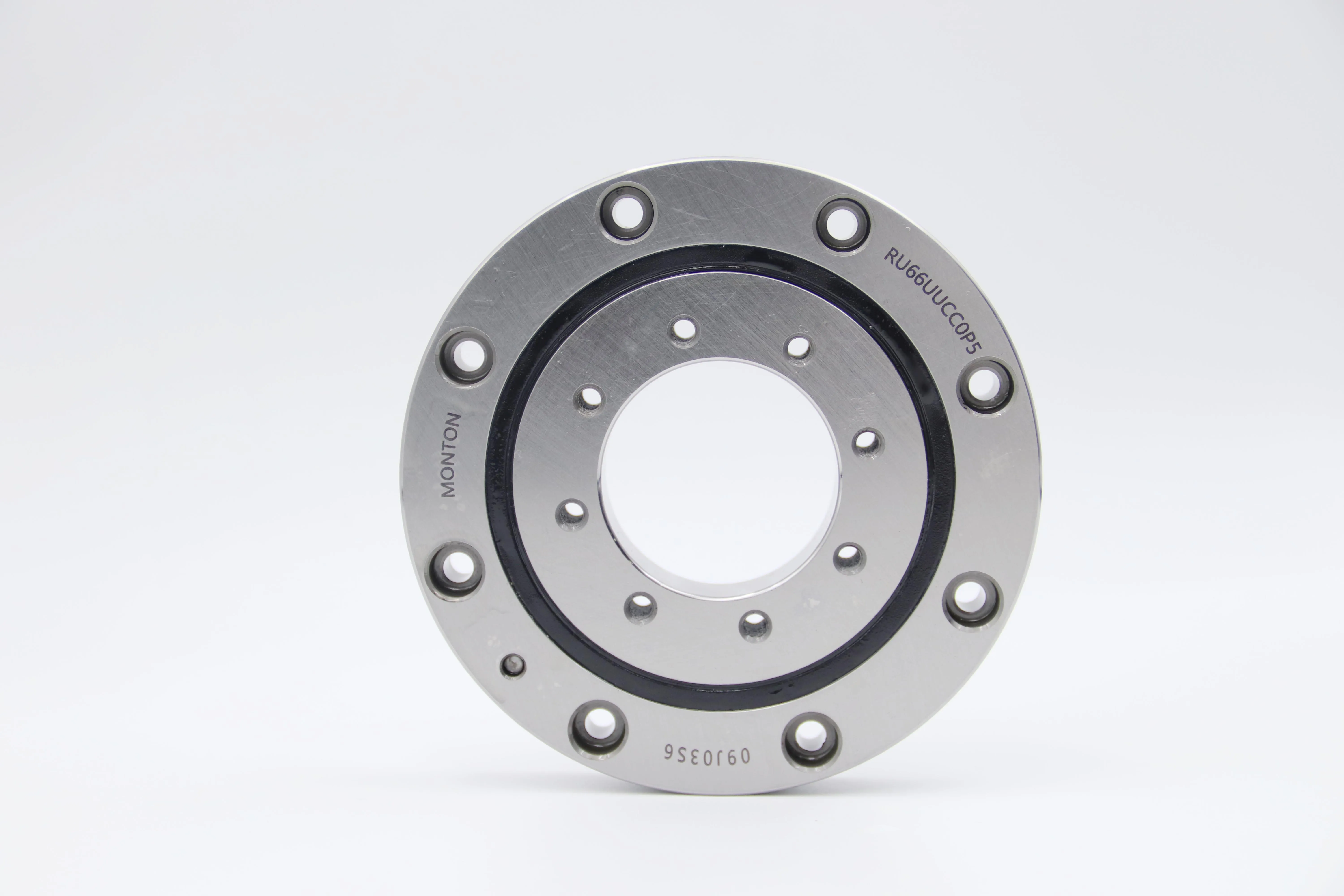

RU66UUCC0P5 Crossed Roller Bearing

The RU66UUCC0P5 cross roller bearing produced by MONTON bearings is mainly used in high-precision mechanical transmission fields such as industrial robot joints and precision rotating platforms. RU66 with cylindrical roller vertical cross arrangement design, which can simultaneously withstand radial, axial, and moment loads, with high rigidity and high rotational accuracy. The miniaturization of inner and outer ring sizes is suitable for precision equipment with limited space, such as robotic arm rotating parts or machining center workbenches. RU66UUCC0P5 double sided seal (UU) is filled with grease for lubrication, suitable for long-term stable operation. During installation, the contact surface should be cleaned to avoid tilting. It is recommended to use a plastic hammer to evenly tap until it is completely in place.

Case Details

Name	Crossed Roller Bearing
Seires	RU series
Brand	MONTON
Model	RU66UUCC0P5
d	35mm
D	95mm
B	15mm
Ring Material	Gcr15
R	0.6
Load rating Cr	17.5kN
Load rating Cor	22.3kN
Sealed	According to requirement
Weight	0.62KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Clearance	CC0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Centrifuges Manipulators Hoists Luggage scanner Medical technology Antennas such as radar systems and telescopes Automation, such as robot and handling systems
