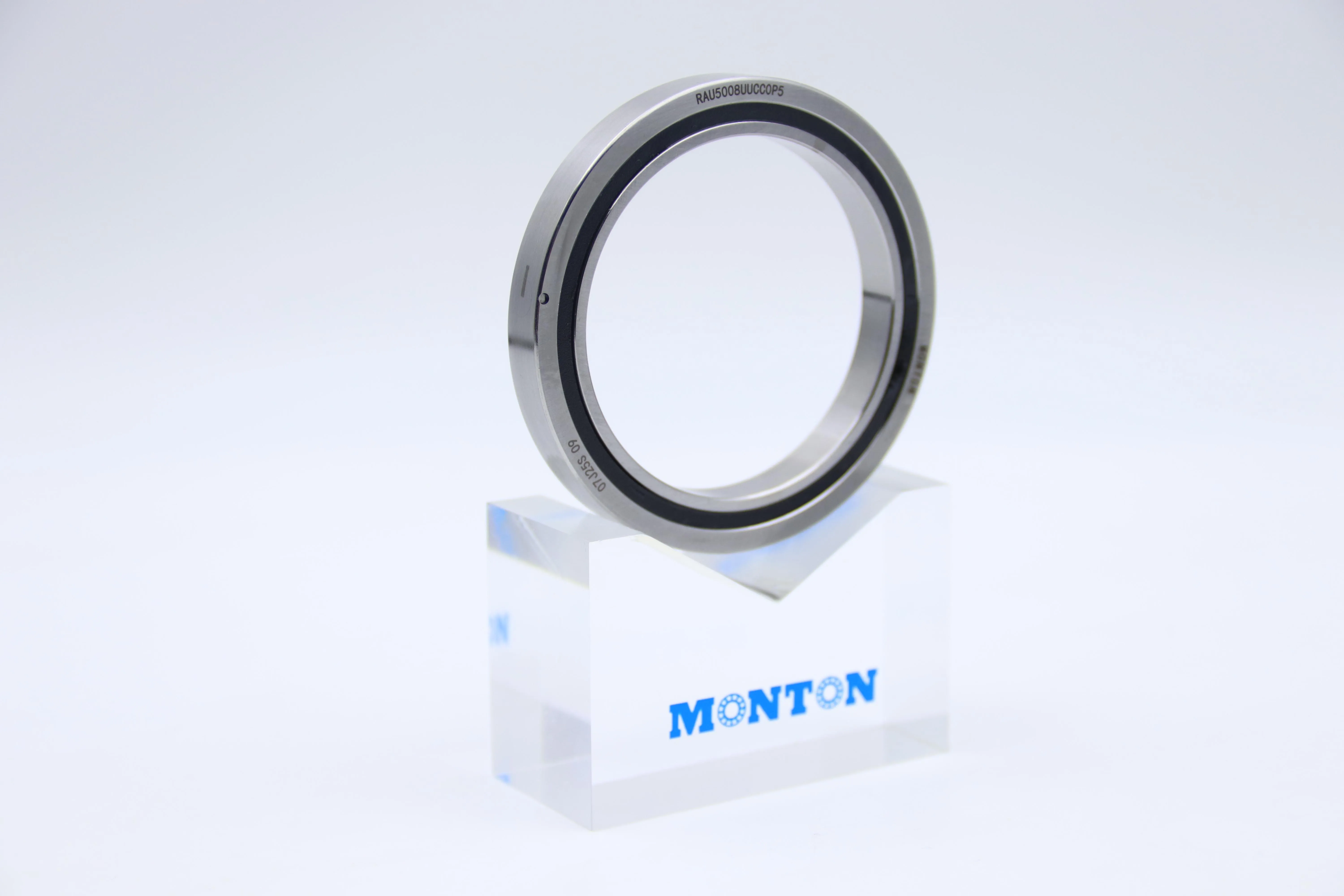

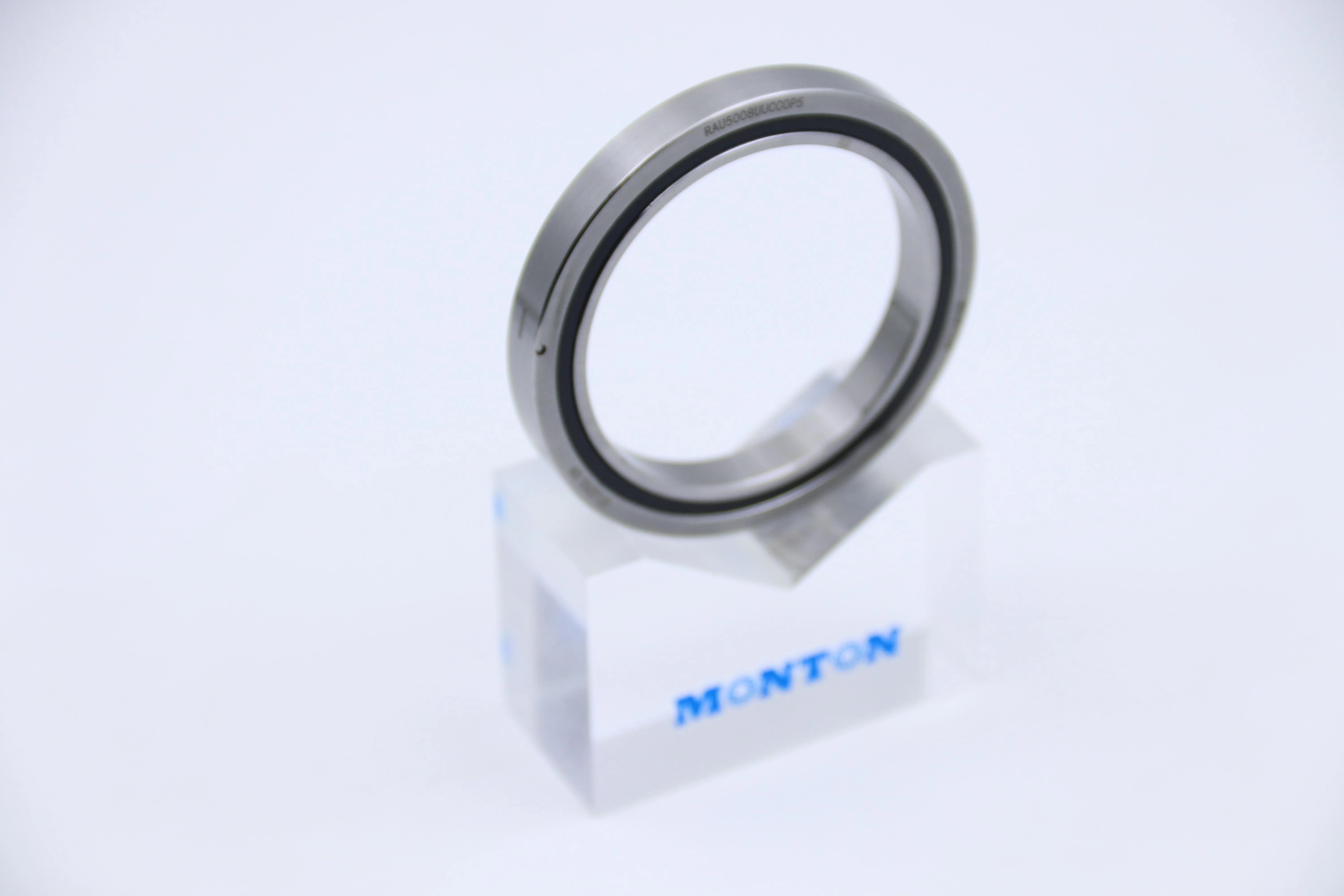

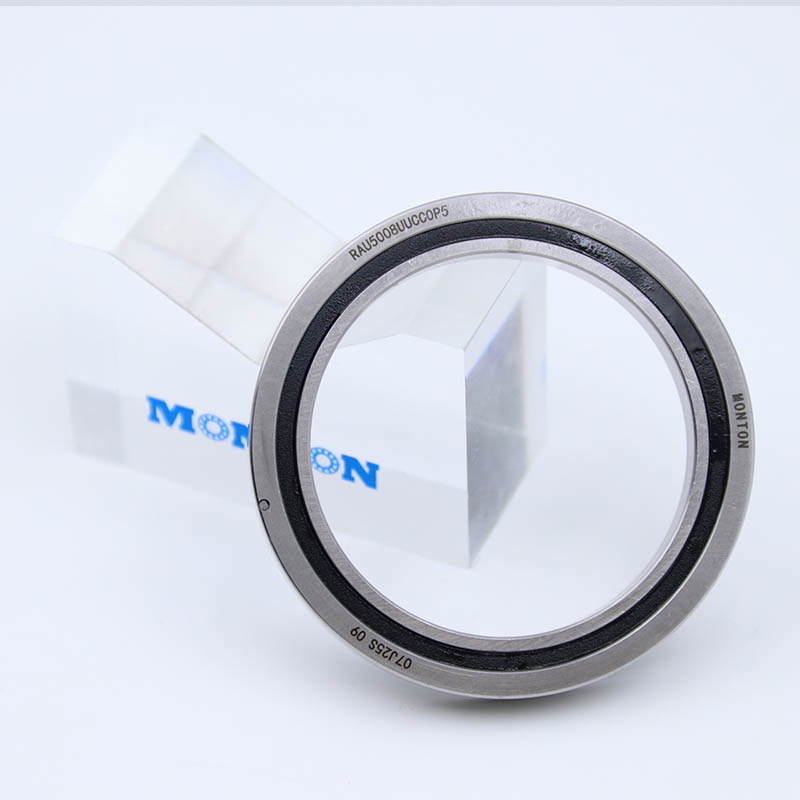

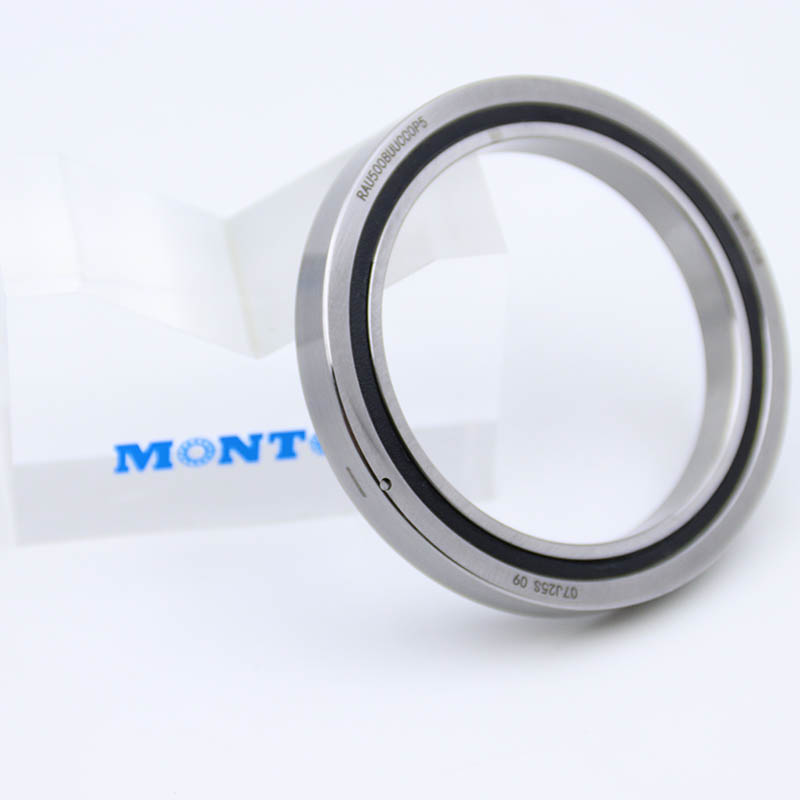

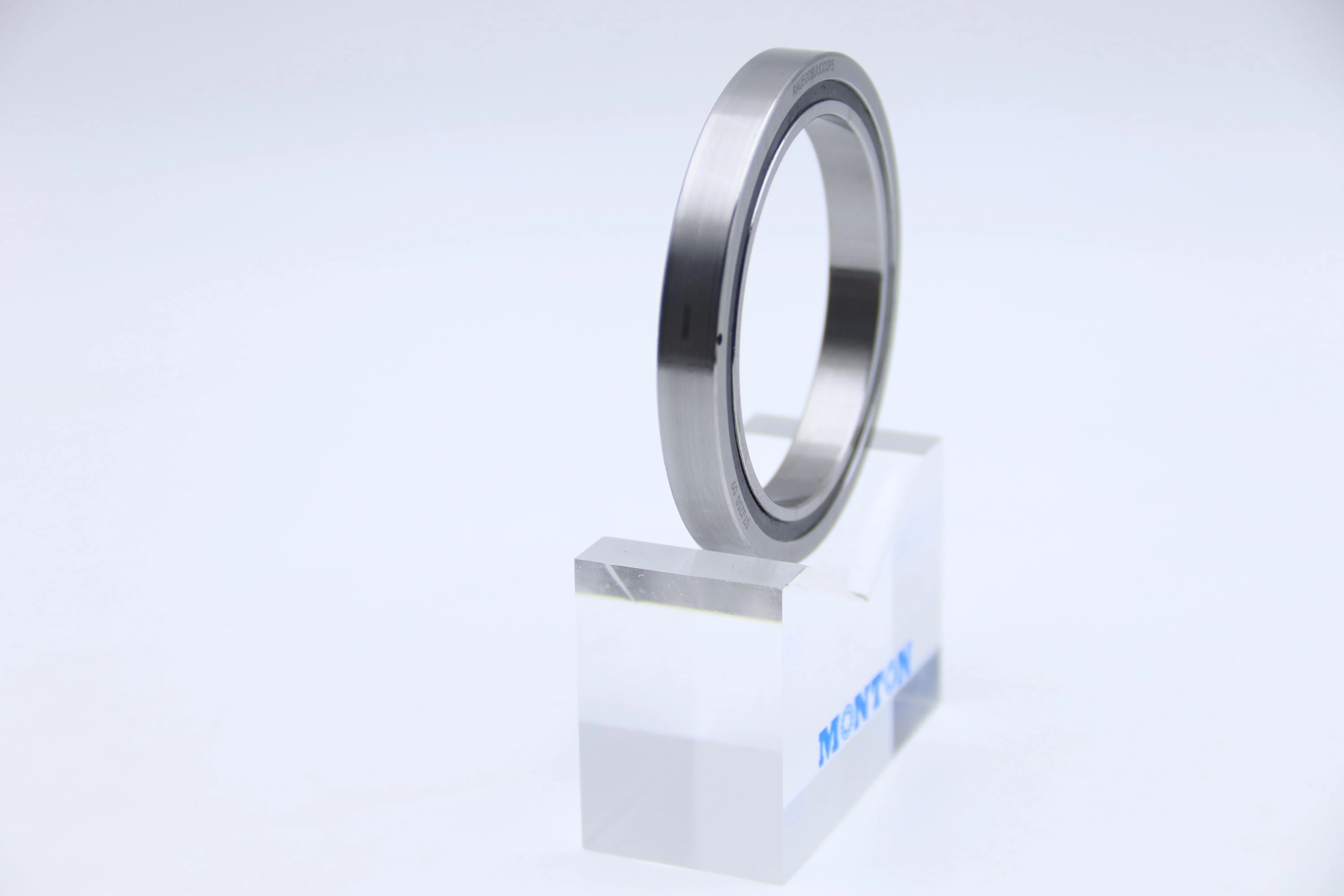

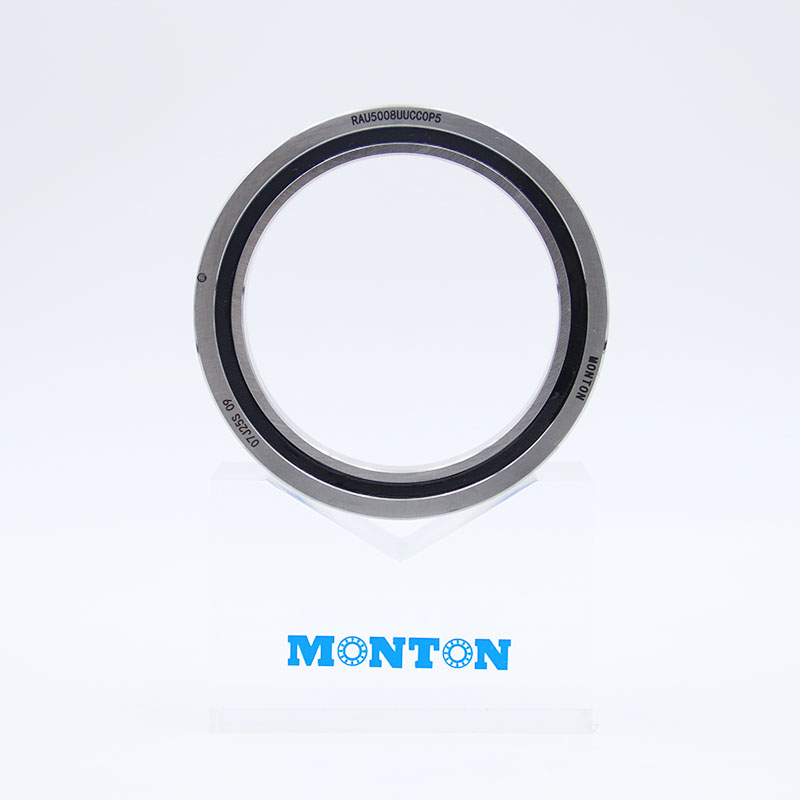

RAU5008UUCC0P5 crossed roller bearing

The RAU5008UUCC0P5 cross roller bearing is a thin-walled equal section design type bearing, with thin-walled inner and outer rings (thickness 8mm), significantly reducing installation space. It is suitable for compact rotating parts, with an integrated structure of inner and outer rings, balancing high rigidity and installation convenience. It has P5 level accuracy and rotation stability up to micrometer level, making it suitable for precision motion control. Commonly used terms include robotic arm joint rotating parts, lightweight collaborative robot joints, CNC indexing discs, DD motors (direct drive motors) rotating supports, CT scanner rotating mechanisms, precision transmission components for surgical robots, etc.

Case Details

Name	Crossed roller bearing
Seires	RAU series
Design Structure	Crossed roller
Brand	MONTON
Bearing	RAU5008UUCC0P5
d	50mm
D	66mm
B	8mm
PCD	57
r	0.5
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	5.1KN
Load rating Cor	7.19KN
Sealed	Sealed
Weight	0.008KG
Precision	P4,P5
alternative code	RA5008UUCC0P5 /CRBS508VUU
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Harmonic drive Robotic arm reducer
