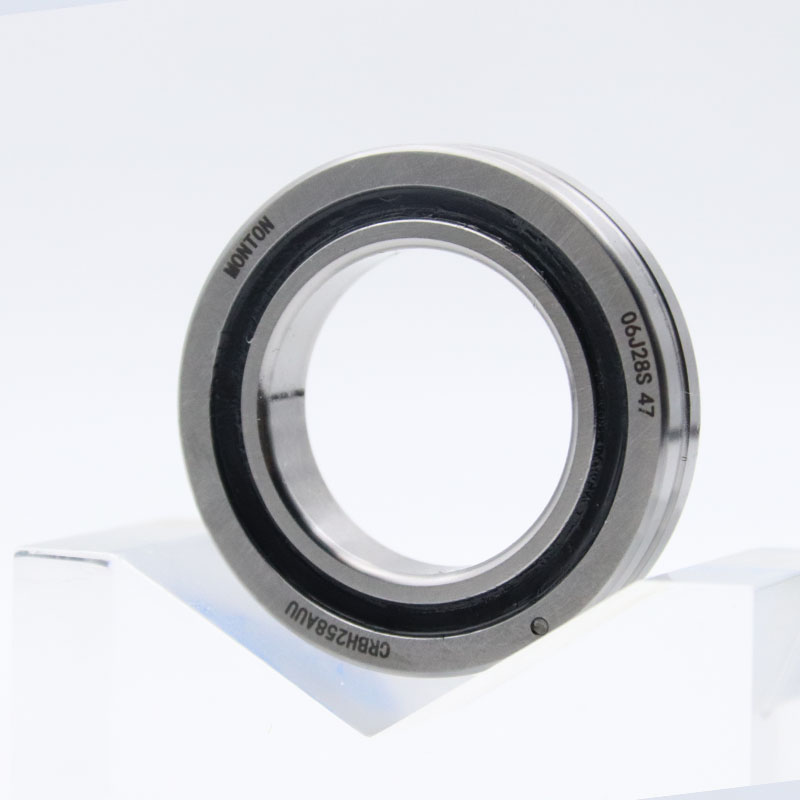

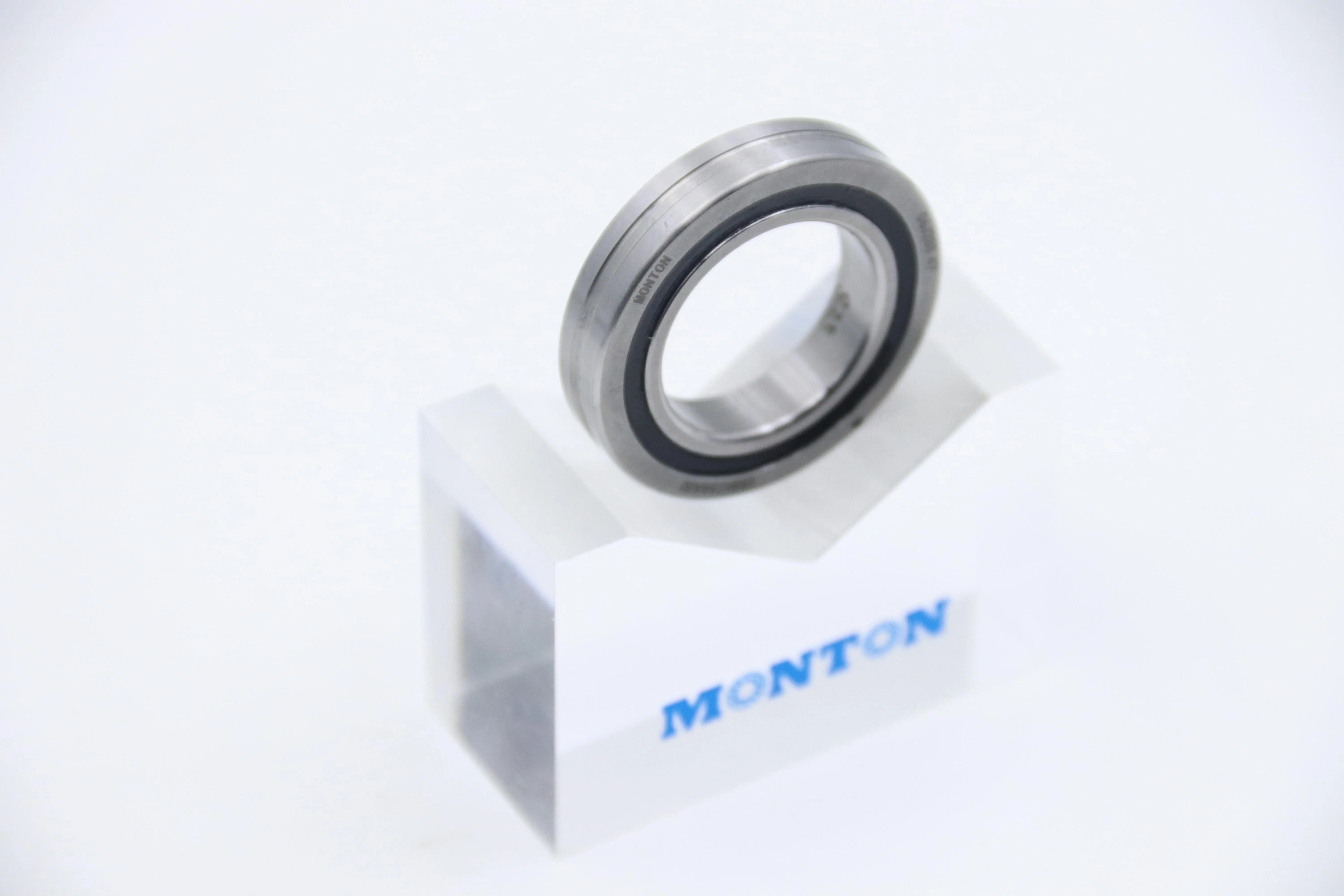

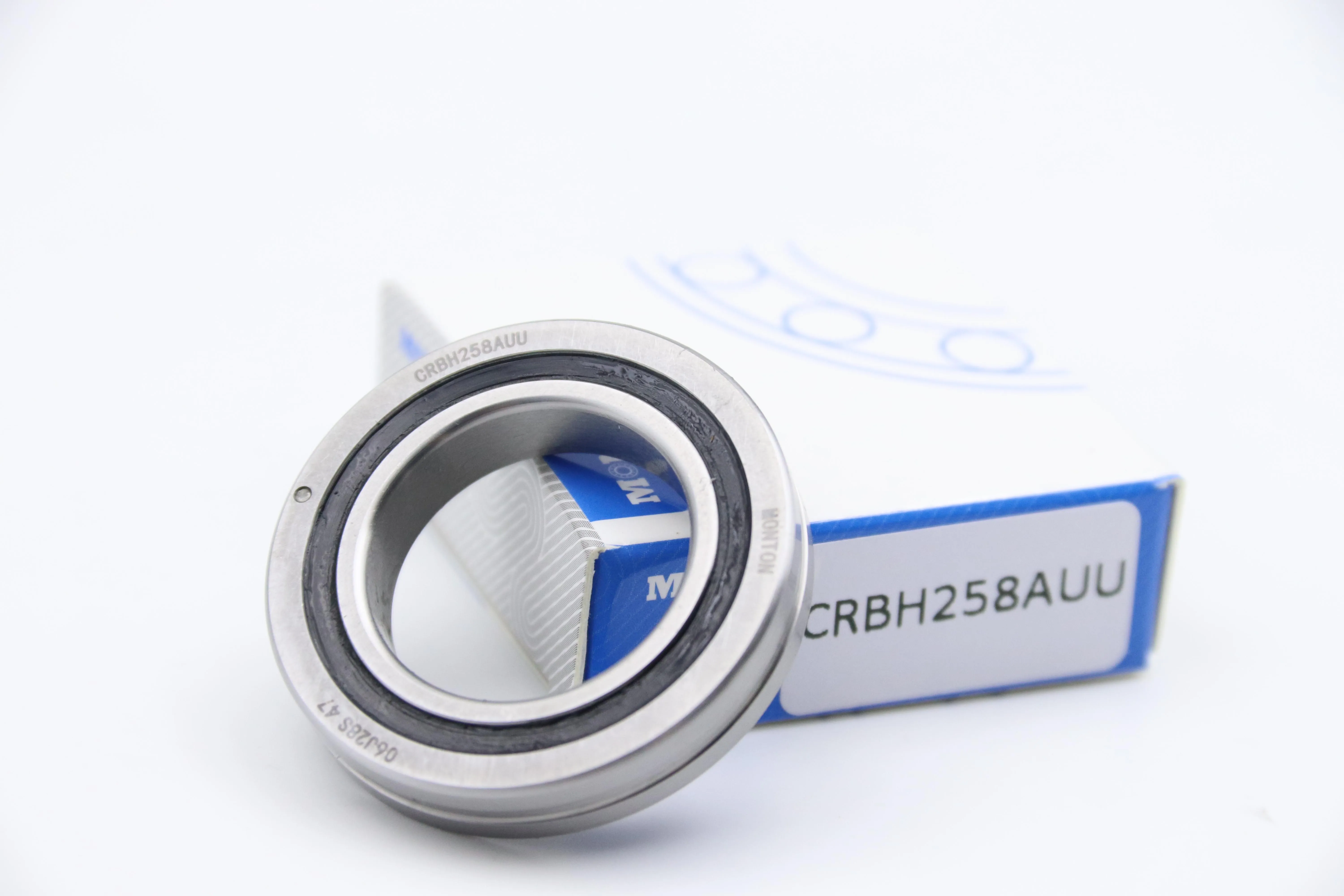

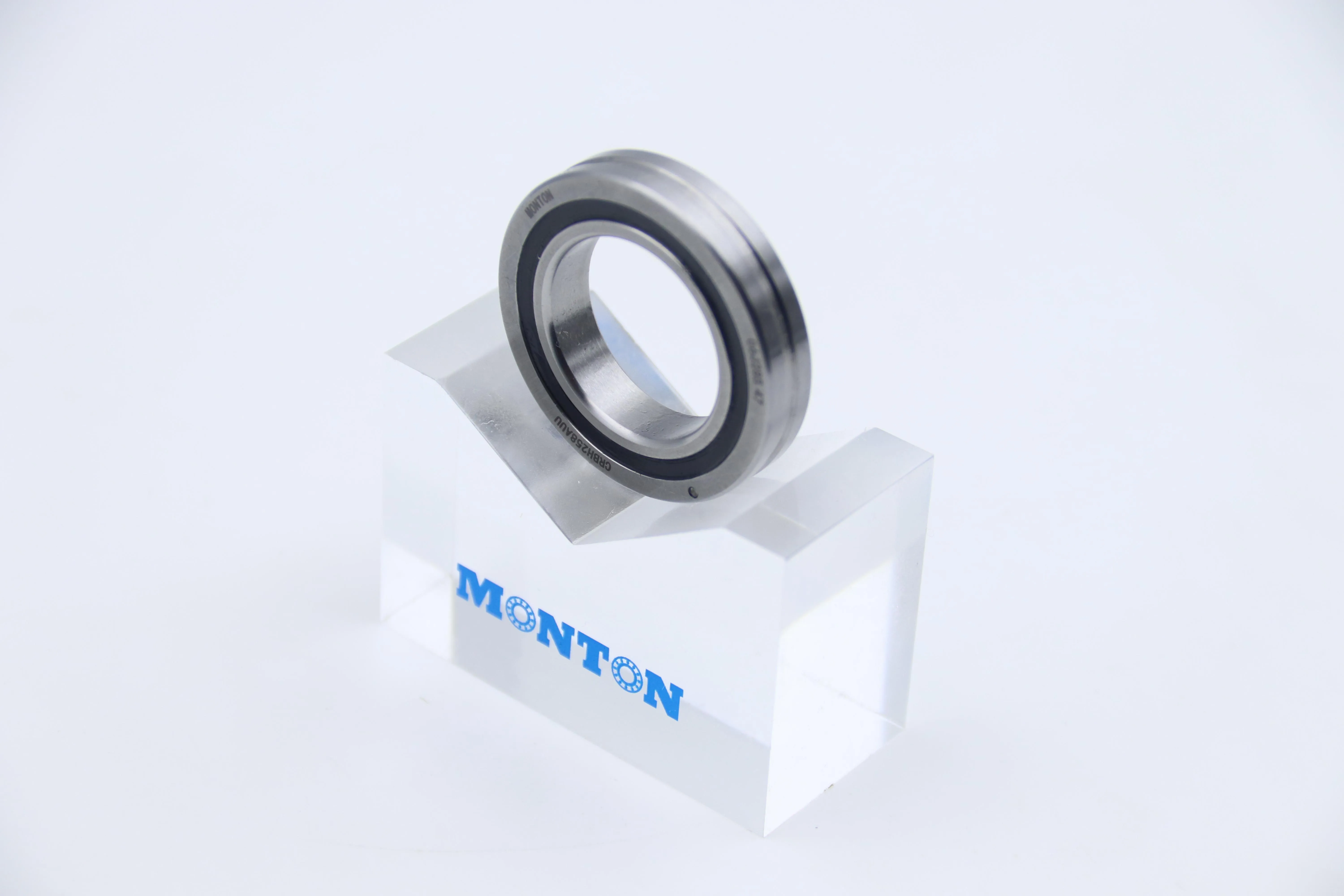

CRBH258AUU Crossed Roller Bearing

CRBH258AUU cross roller bearing is an industrial bearing with high precision and thin cross-section design, optimized to withstand multi-directional complex loads. Its inner diameter is 25mm, outer diameter is 41mm, and thickness is 8mm, making it a compact and lightweight design product. The inner and outer rings of CRBH258AUU are both integral structures, and only the flange and support seat need to be fixed during installation, simplifying the assembly process and reducing performance fluctuations caused by installation errors. Thin section design (with a thickness of only 8mm) is suitable for space constrained scenarios, such as high-precision equipment such as solar panel processing equipment, LED packaging lines, PCB drilling machines, robot rotary joints, precision modules, linear transmission systems, microscope stages, and rotating parts of medical imaging equipment.

Case Details

Name	Crossed Roller Bearing
Seires	CRBH series
Brand	MONTON
Open type	CRBH258A
Sealed type	CRBH258AUU
d	25mm
D	41mm
B	8mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating Cr	3120N
Load rating Cor	2810N
Sealed	According to requirement
Weight	0.05KG
Design Structure	Crossed roller
Precision	P4,P5 P2 or according to requirement
Vibration	as requirement
Clearance	CC0 /T1/C1/C2
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot Medical equipment Machine tools Motor Windmills Marine antenna Security Camera
