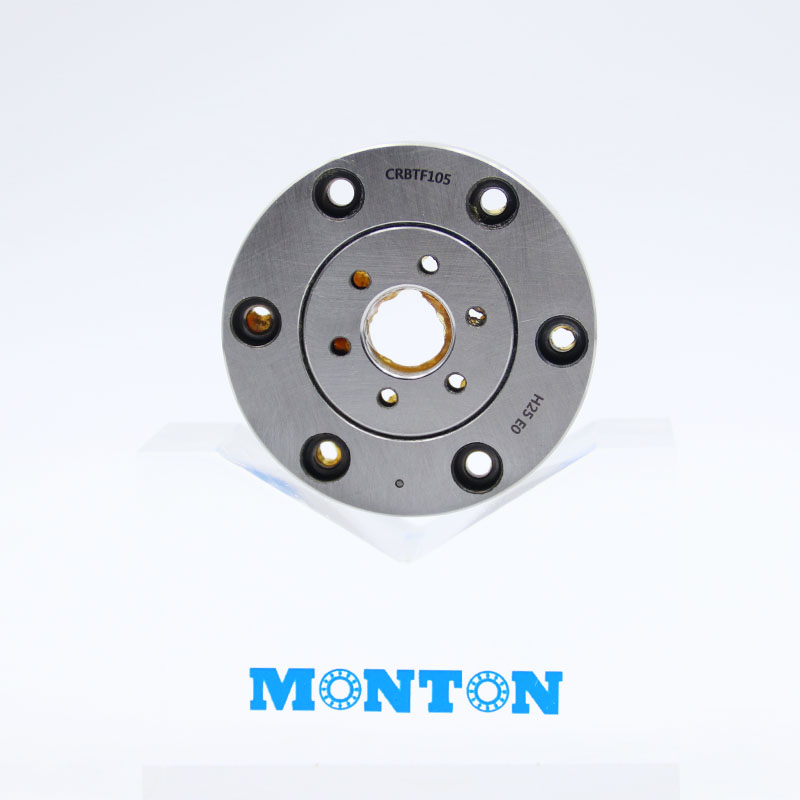

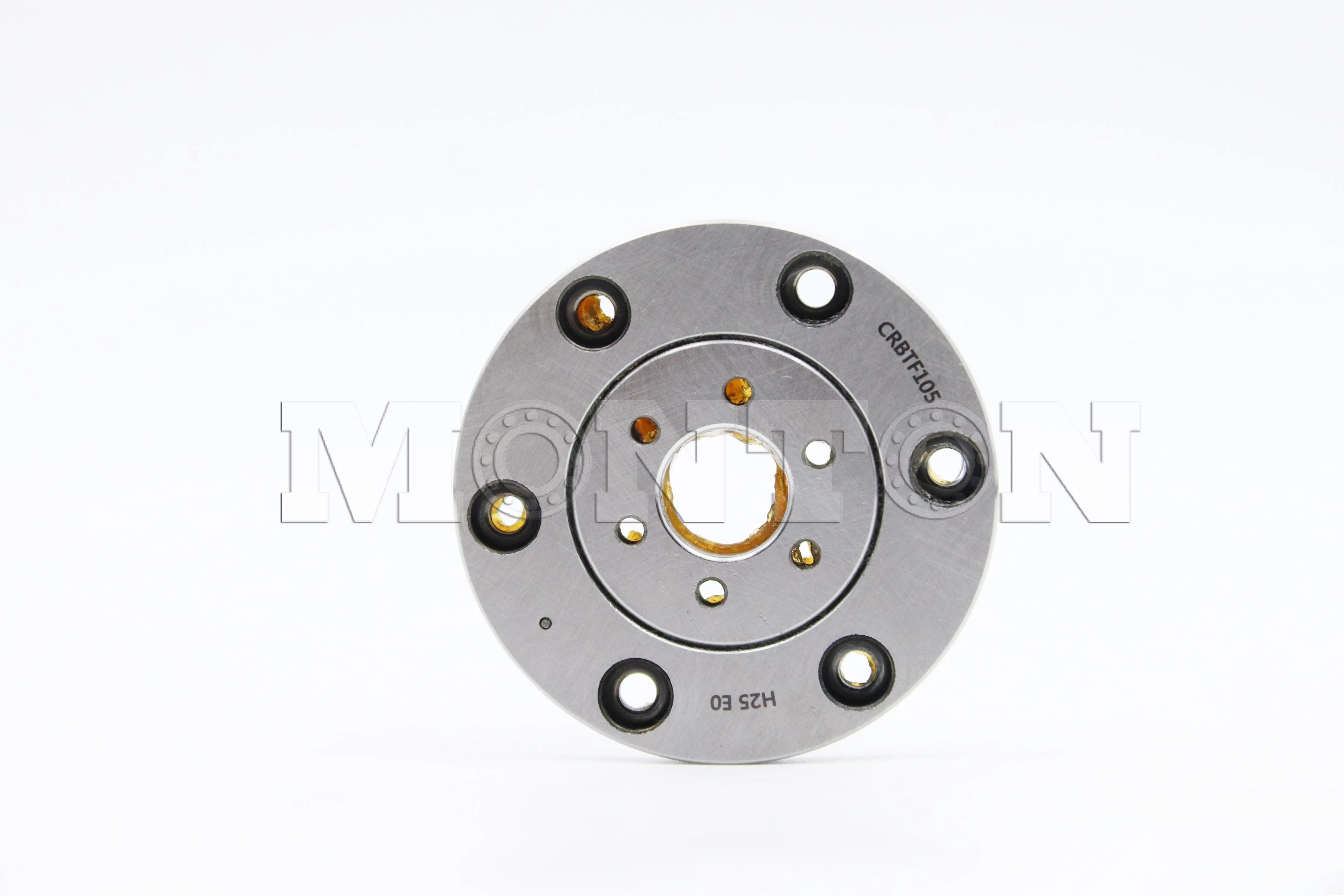

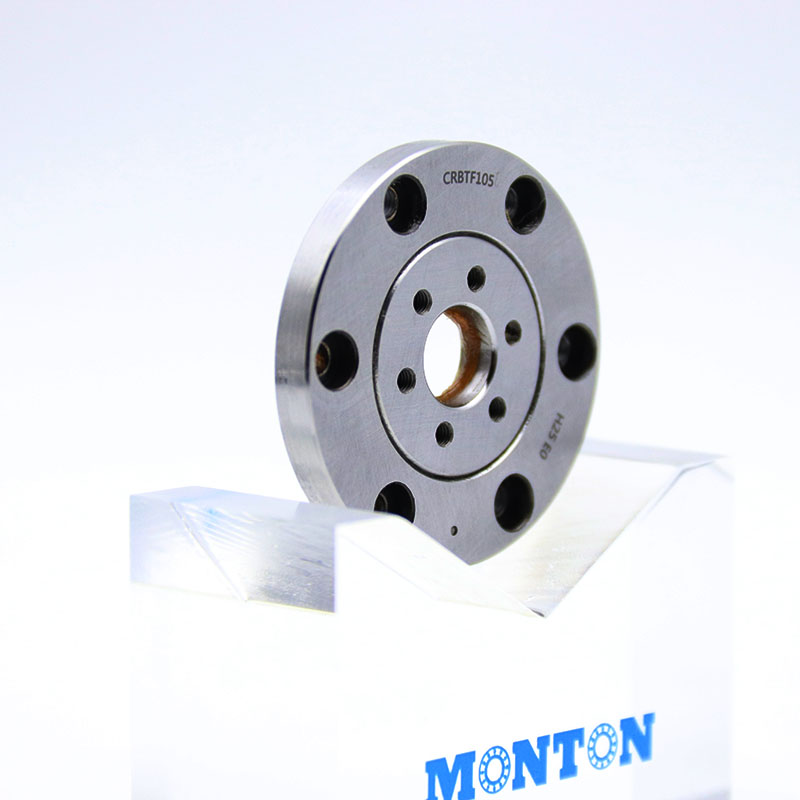

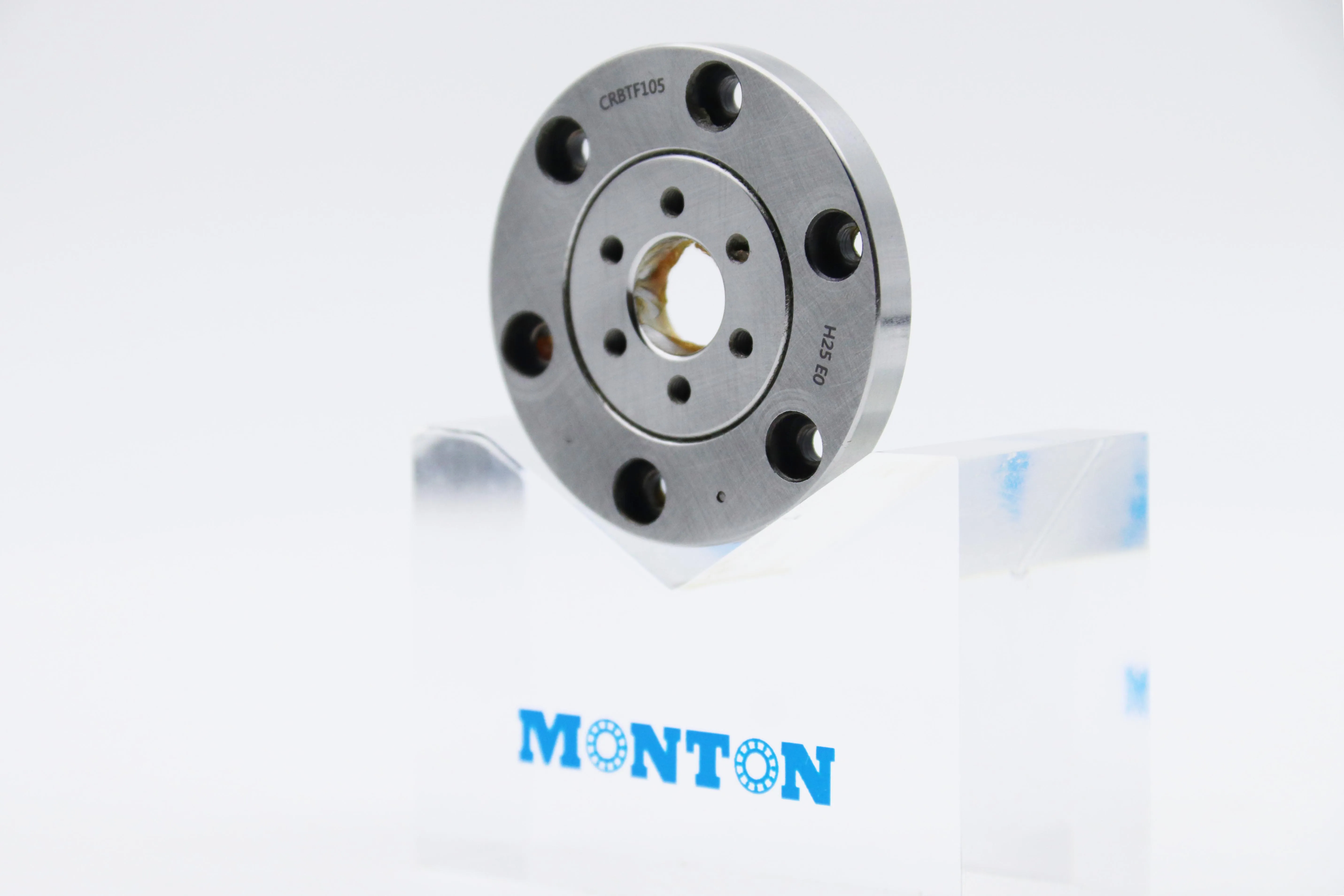

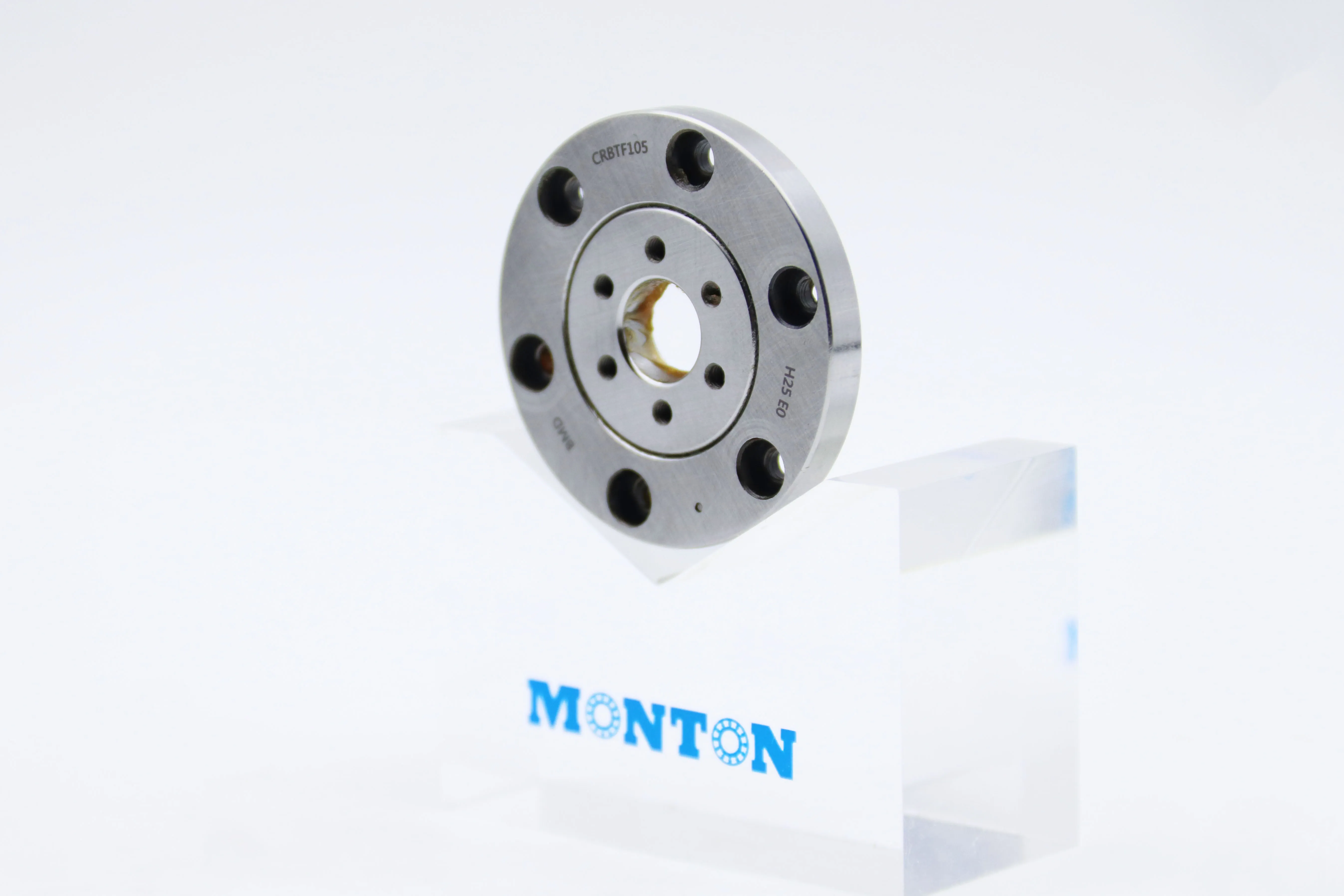

CRBTF105AT Super slim Crossed Roller Bearing

  • The CRBTF105AT is integral structure with mounting holes on both the inner and outer rings, without the need for additional flanges or support seats. The cross arranged rollers are positioned by isolation block holders to reduce friction and rotational torque fluctuations. It is suitable for precision motion control structures and is commonly used in robot joints (lightweight/cooperative/SCARA type), AGV carts, optical degree transfer platforms, radar systems, harmonic reducers, exoskeleton robots, and hollow rotating platforms.
Case Details

Name

Super slim Crossed Roller Bearing

Seires

CRBTF series

Brand

MONTON

Open type

CRBTF105AT

d

10mm

D

43mm

B

5mm

Ring Material

Gcr15

Cage Material

Spacer

Load rating  C

1500N

Load rating  Co

1400N

Sealed

Open

Weight

46g

Design Structure

Crossed roller

Precision

P4,P5

Vibration



Clearance

C0

Quality standard

ISO9001: 2000/SGS RoHS ect.

Package

single box

Original

Luoyang

Service

OEM

Delivery date

Stock

Application

Robot joint (light weight/collaborative/SCARA type)
AGV car
Light degree relocation
Radar system
harmonic drive
Exoskeleton robot
Hollow rotating platform
