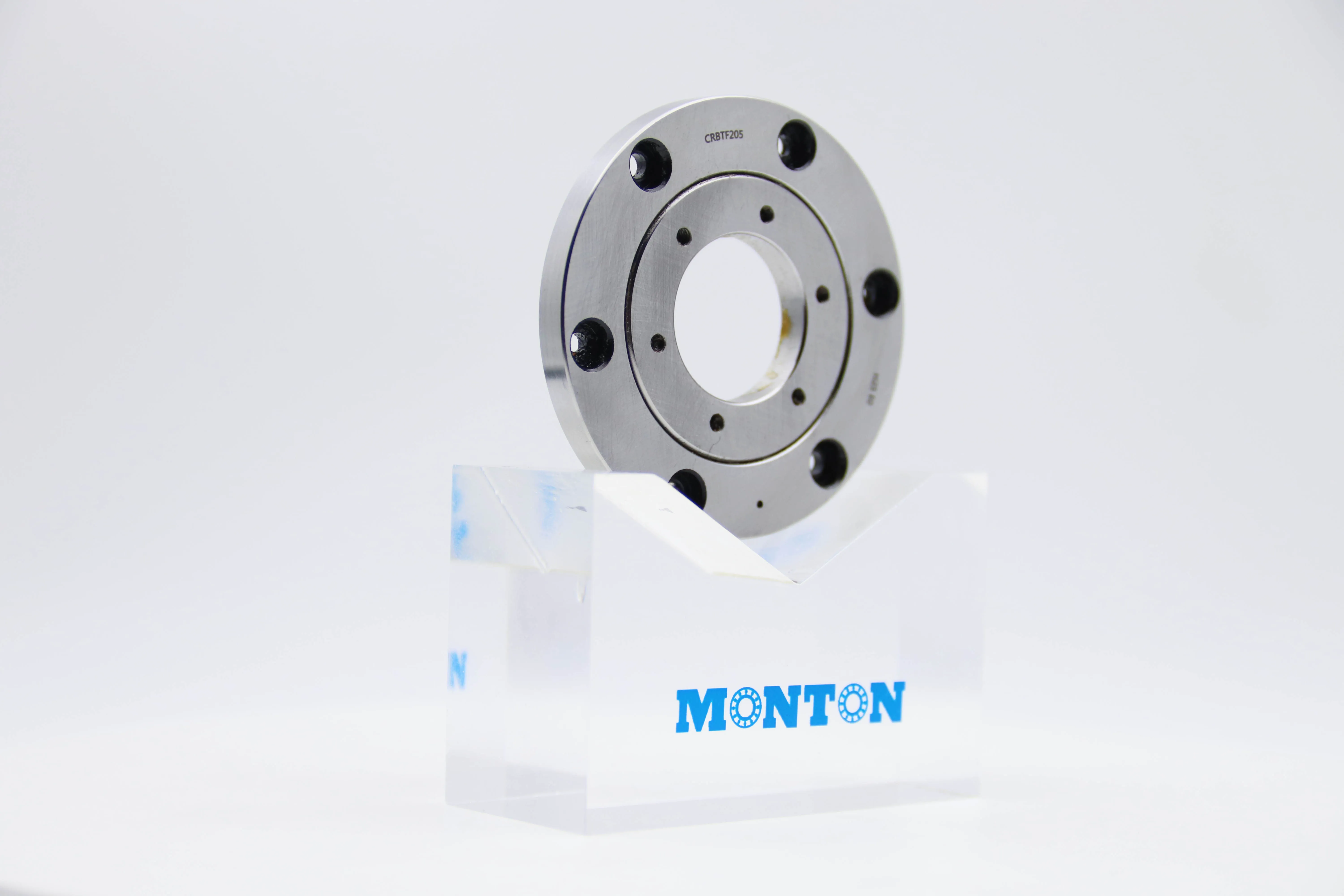

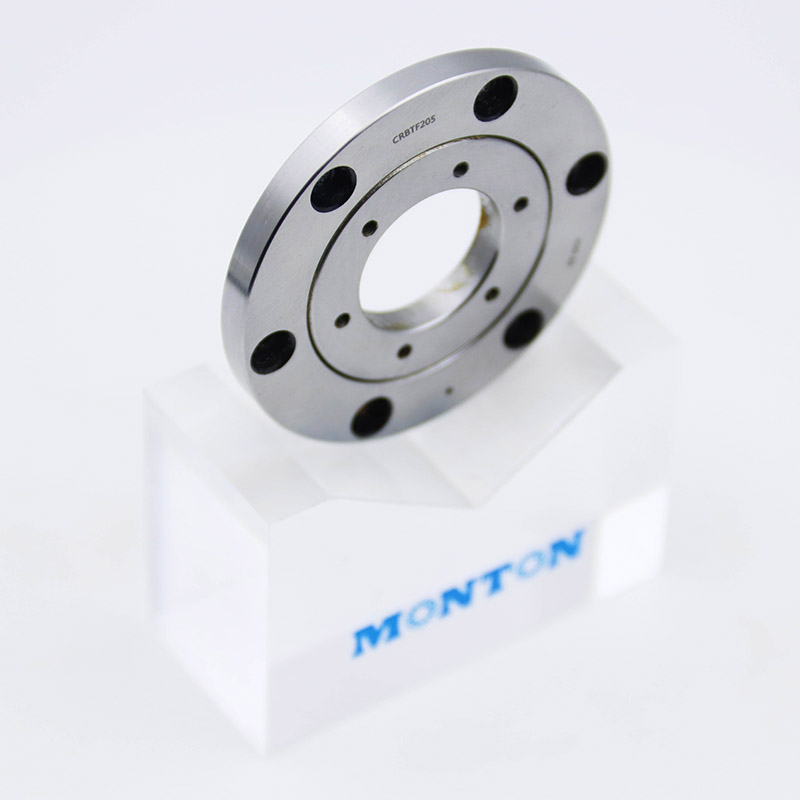

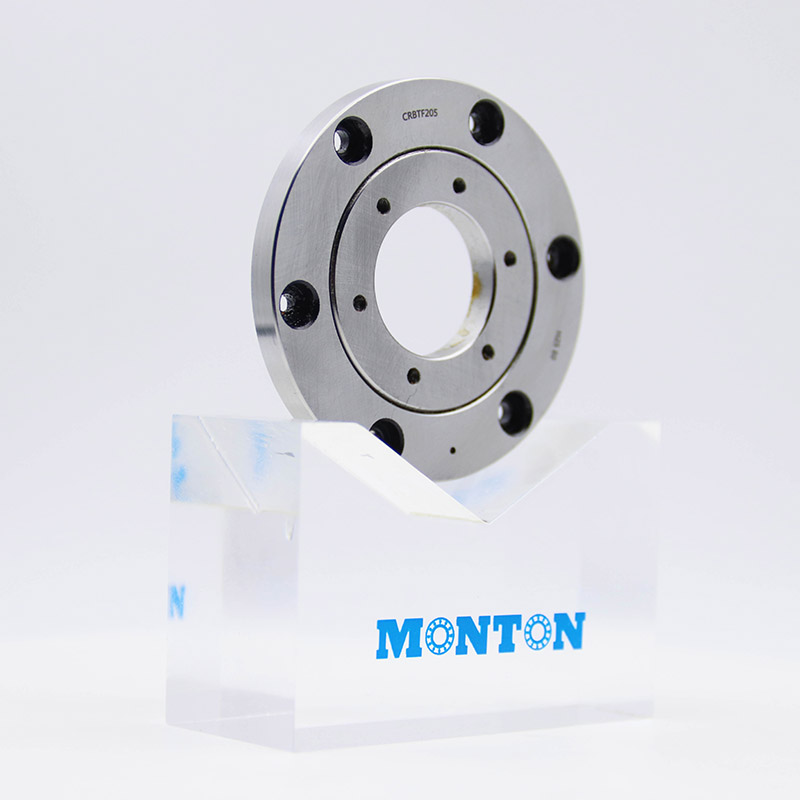

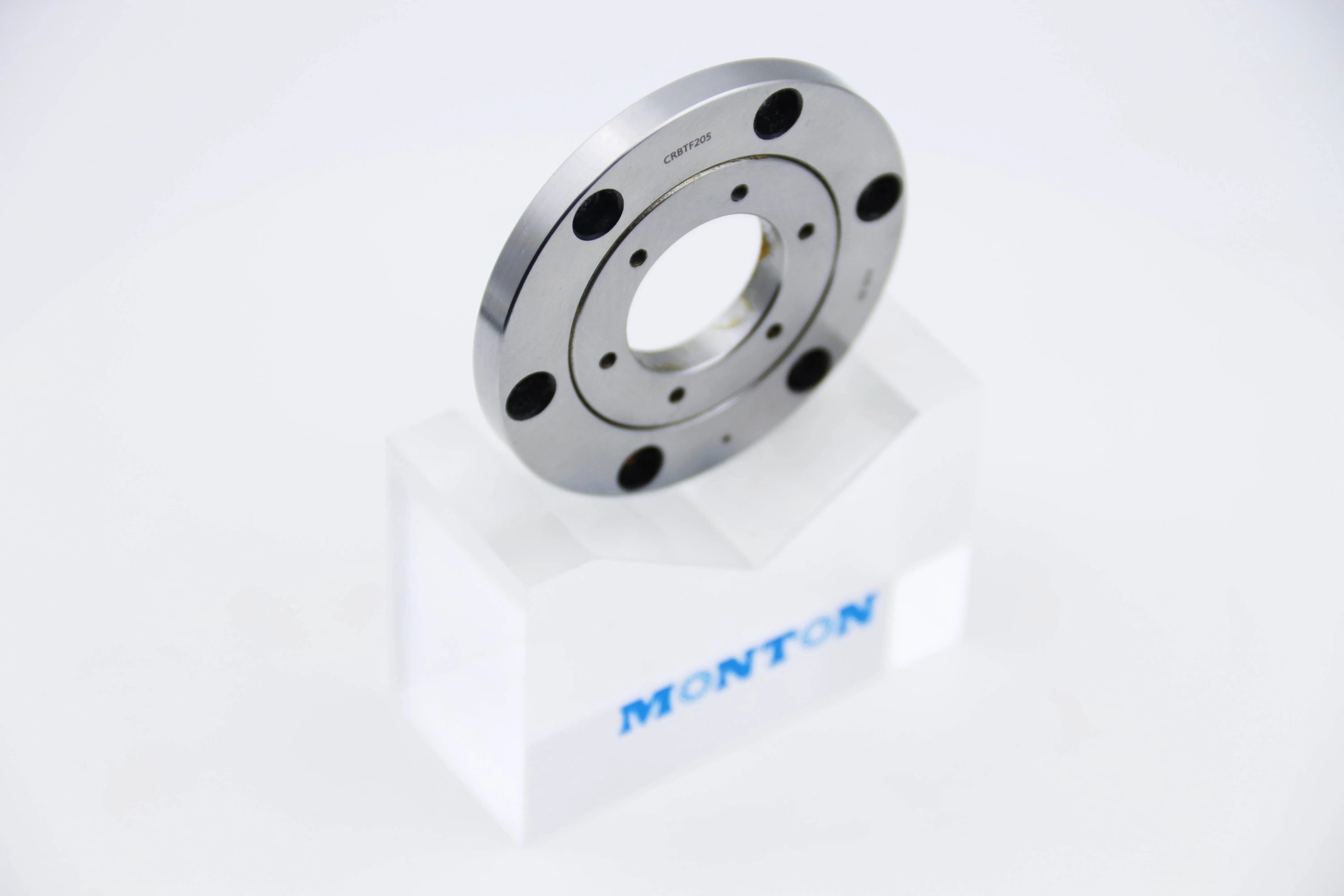

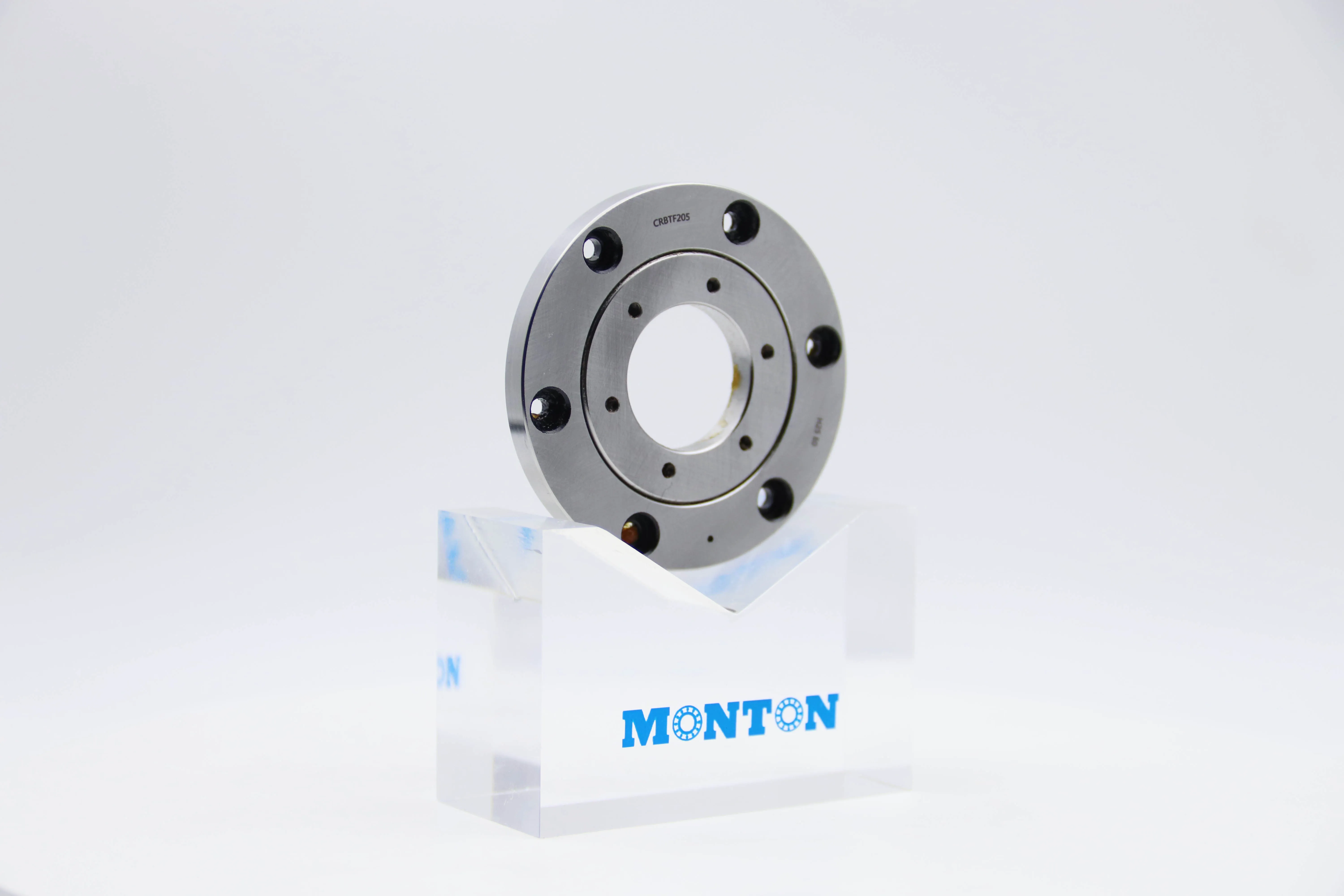

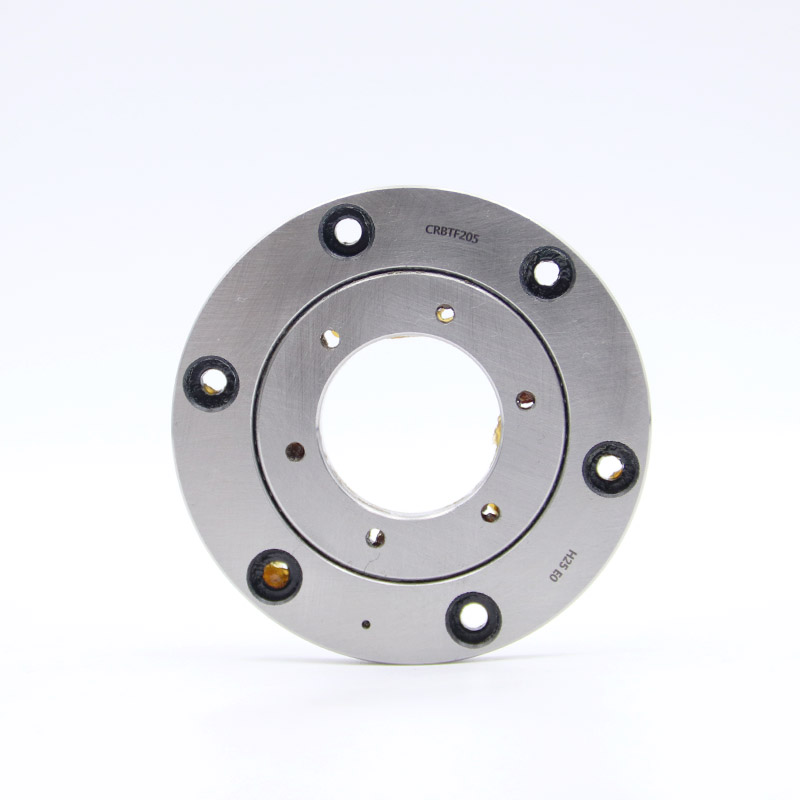

CRBTF205AT Super slim Crossed Roller Bearing

The CRBTF205AT has an integral structure with mounting holes on both the inner and outer rings, without the need for additional flanges or support seats. The cross arranged rollers are positioned by isolation block holders to reduce friction and rotational torque fluctuations. It is suitable for precision motion control structures and is commonly used in robot joint optical displacement tables, radar systems, harmonic reducers, exoskeleton robots, and hollow rotating platforms.

Case Details

Seires	CRBTF series
Brand	MONTON
Open type	CRBTF205AT
d	20mm
D	53mm
B	5mm
Ring Material	Gcr15
Cage Material	Spacer
Load rating C	1890N
Load rating Co	2150N
Sealed	Open
Weight	66g
Design Structure	Crossed roller
Precision	P4,P5
Vibration
Clearance	C0
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Robot joint Light degree relocation Radar system harmonic drive Exoskeleton robot Hollow rotating platform
